Union Truck U350 350 hp 8X4(12 wheels) 5.6m Dump Truck

Export reference
MSRP N/A
Emission: China V
Fuel: Diesel
Transmission: Fast Gear
Curb Weight:: 14.785ton
Wheelbase:: 1800+2200+1350mm
Tire Size:: 12.00R20 18PR

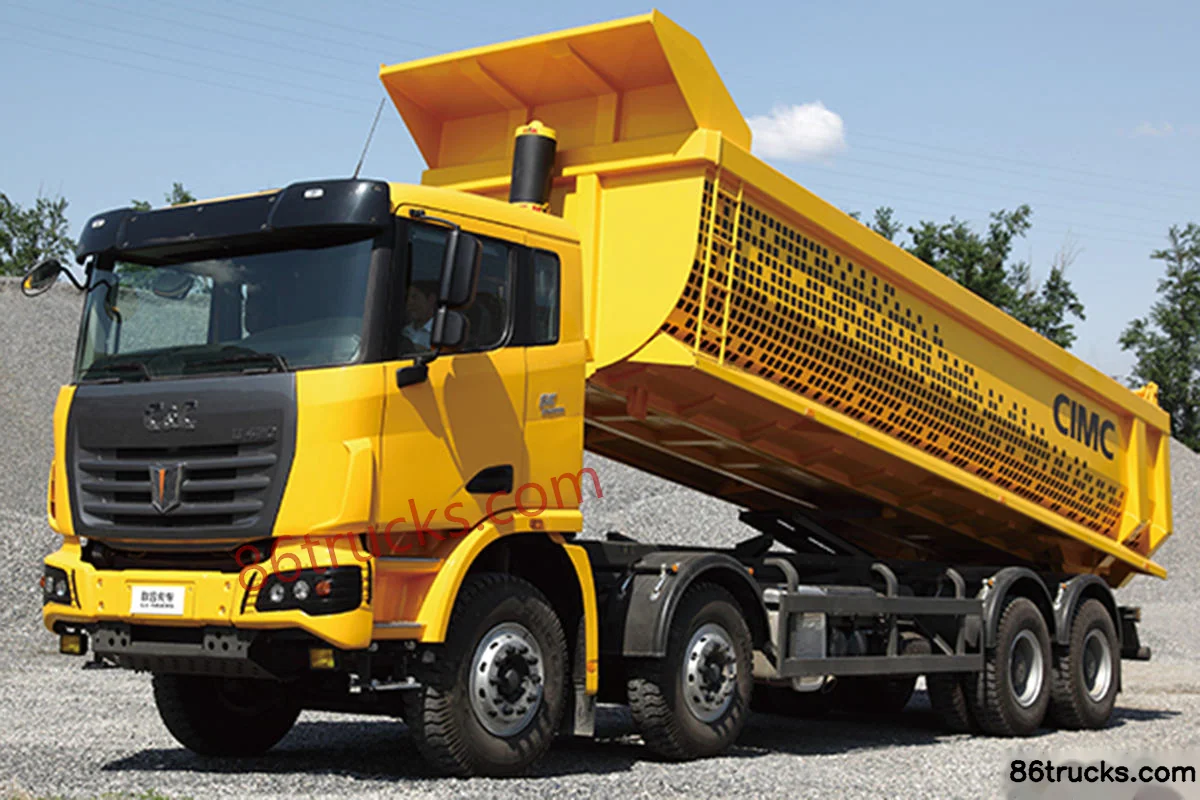

Union Truck U350 350 hp 8X4(12 wheels) 5.6m Dump Truck exterior
View more photos (2)
Rated payload: 16.085ton
Drive 8X4 (12 wheels)
Horsepower 351
Cargo box type: U-shaped box

Overview

The Union Truck U350 350 hp 8X4(12 wheels) 5.6m Dump Truck is a Heavy truck featuring 16.085t payload, 31t GVW, Dump type cargo body and 8X4 (12 wheels) drive. On the powertrain side, it comes with a United PowerYC6K1035-50 engine, 351 hp, China V emissions and Fast Gear transmission.

China V 351 Diesel 8X4

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model code (announced): QCC3312D656-4
Drive type: 8X4
Wheelbase: 1800+2200+1350mm
engine: United PowerYC6K1035-50
transmission: Fast Gear 12-speed
Rear Axle Ratio: 4.769
Cab length: 8.4m
Cab width: 2.55m
Cab height: 3.3m
Front track width: 2040/2040mm
rear track: 1860/1860mm
Curb Weight: 14.785ton
Rated payload: 16.085ton
GVWR: 31ton
Origin: Xuancheng, Anhui
tonnage class: Heavy truck
Approach angle: 23°
departure angle: 27°
Remarks: Optional ratio 5.26
Energy Type: Diesel
Engine parameters
Engine Brand: United Power
Engine Model: United PowerYC6K1035-50
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 10.388L
Emission standard: China V
Max output power: 258kW
Max hp: 351Horsepower
Max torque: 1570N·m
Max torque speed: 1400rpm
Rated speed: 1900rpm
Transmission Parameters
Transmission Model: Fast Gear 12-speed
Transmission Brand: Fast Gear
Forward gears: 12Gear
Cargo box parameters
Unloading Type: Dump type
Cargo box type: U-shaped box
Cargo box type: Dump type
Cargo box length: 5.6m
Cargo box width: 2.35m
Cargo box height: 1.5m
Cab parameters
Cab: Flat-top Mid-length
fuel tank
Fuel tank capacity: 260L
Chassis Specs
Front axle allowable load: 6500/6500kg
rear axle description: Wheel-side double reduction axle
rear axle allowable load: 18000 (tandem axle group)kg
Axle ratio: 4.769
Leaf spring count: 10/10/12,12/12/13
Suspension (front/rear): Leaf spring
Tire
Tire Size: 12.00R20 18PR
Number of tires: 12pcs
Control configuration
ABS:

Photos

Exterior2

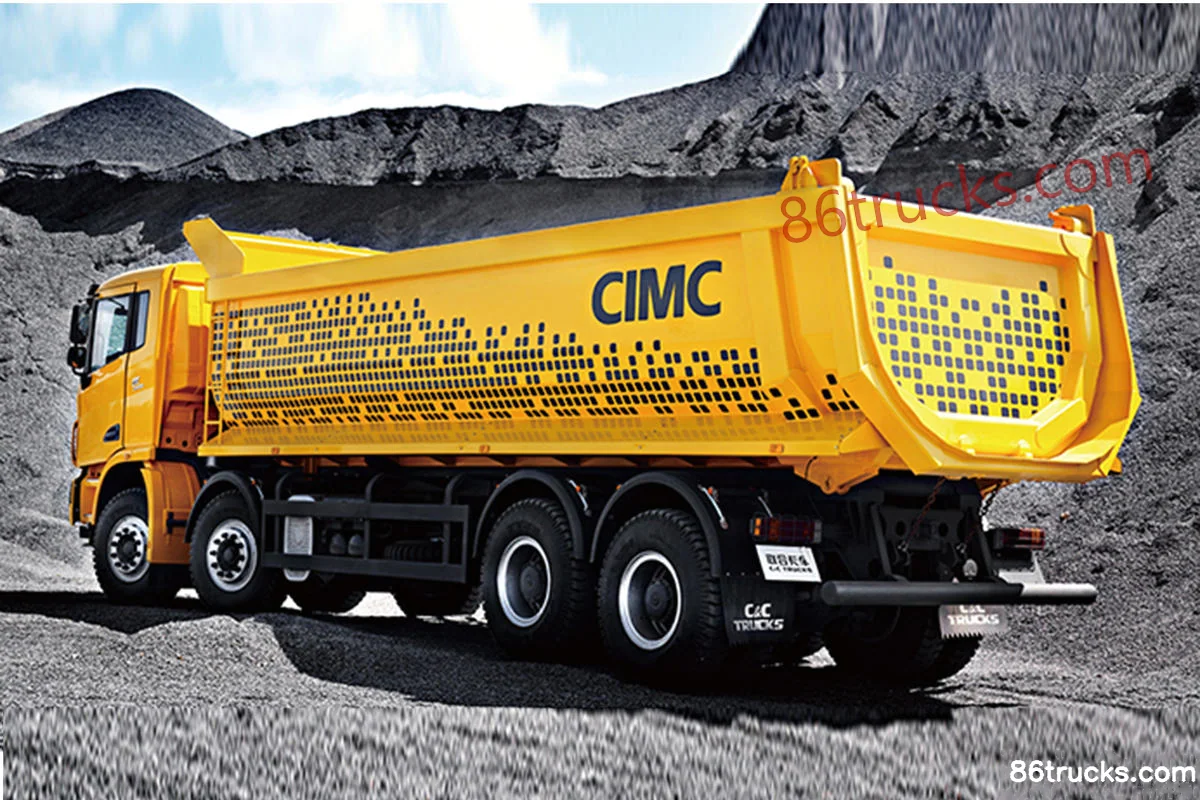

Union Truck U350 350 hp 8X4(12 wheels) 5.6m Dump Truck Exterior (1) | 86Trucks Union Truck U350 350 hp 8X4(12 wheels) 5.6m Dump Truck Exterior (2) | 86Trucks

2 photos

FAQ

What emission standard does Union Truck U350 350 hp 8X4(12 wheels) 5.6m Dump Truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Union Truck U350 350 hp 8X4(12 wheels) 5.6m Dump Truck?

Key specs of Union Truck U350 350 hp 8X4(12 wheels) 5.6m Dump Truck: Drive: 8x4; Horsepower: 351 hp; Emission: China V; Fuel: Diesel; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Union Truck U350 350 hp 8X4(12 wheels) 5.6m Dump Truck suited for?

Union Truck U350 350 hp 8X4(12 wheels) 5.6m Dump Truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Union Truck U350 350 hp 8X4(12 wheels) 5.6m Dump Truck differ from other variants in the same series?

Union Truck U350 350 hp 8X4(12 wheels) 5.6m Dump Truck belongs to Union Truck U-Series Heavy Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Union Truck U350 350 hp 8X4(12 wheels) 5.6m Dump Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Union Truck U350 350 hp 8X4(12 wheels) 5.6m Dump Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
