Dayun N6 Heavy Truck 300 hp 8X4(12 wheels) 5.8m Dump Truck

Export reference
MSRP N/A
Emission: China V
Fuel: Diesel
Transmission: Fast Gear
Curb Weight:: 11ton
Wheelbase:: 1800+2600+1300mm
Tire Size:: 10.00R20
Rated payload: 19.87ton
Drive 8X4 (12 wheels)
Horsepower 300
Cargo box length: 5.8m

Overview

The Dayun N6 Heavy Truck 300 hp 8X4(12 wheels) 5.8m Dump Truck is a Heavy truck featuring 19.87t payload, 31t GVW, 5.8m cargo body and 8X4 (12 wheels) drive. On the powertrain side, it comes with a WeichaiWP7.300E51 engine, 300 hp, China V emissions and Fast Gear transmission.

China V 300 Diesel 8X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): CGC3310D5DDLA
Drive type: 8X4
Wheelbase: 1800+2600+1300mm
engine: WeichaiWP7.300E51
transmission: Fast Gear10JSD140B
Rear Axle Ratio: 5.143
Cab length: 8.85m
Cab width: 2.55m
Cab height: 3.16m
Front track width: 1965/1965mm
rear track: 1860/1860mm
Curb Weight: 11ton
Rated payload: 19.87ton
GVWR: 31ton
Origin: Shanxi Yuncheng
tonnage class: Heavy truck
Approach angle: 15°
departure angle: 25°
Remarks: QH50 PTO
Energy Type: Diesel
Engine parameters
Engine Brand: Weichai
Engine Model: WeichaiWP7.300E51
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 7.47L
Emission standard: China V
Max output power: 220kW
Max hp: 300Horsepower
Max torque: 1250N·m
Max torque speed: 1200-1700rpm
Rated speed: 2300rpm
Engine Type: Inline 6-cylinder, electronic high-pressure common rail, SCR
Transmission Parameters
Transmission Model: Fast Gear10JSD140B
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 10Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Cargo box length: 5.8m
Cargo box width: 2.35m
Cargo box height: 1.5m
Cab parameters
Cab: Flat roof short crew cab
Chassis Specs
Front axle description: 5.5T
Front axle allowable load: 6500/6500kg
Frame Dimensions: 280×80×(8+5)mm
rear axle description: 10T
rear axle allowable load: 18000 (tandem axle group)kg
Axle ratio: 5.143
Leaf spring count: 8/8/10
Tire
Tire Size: 10.00R20
Number of tires: 12pcs
Control configuration
ABS:

Photos

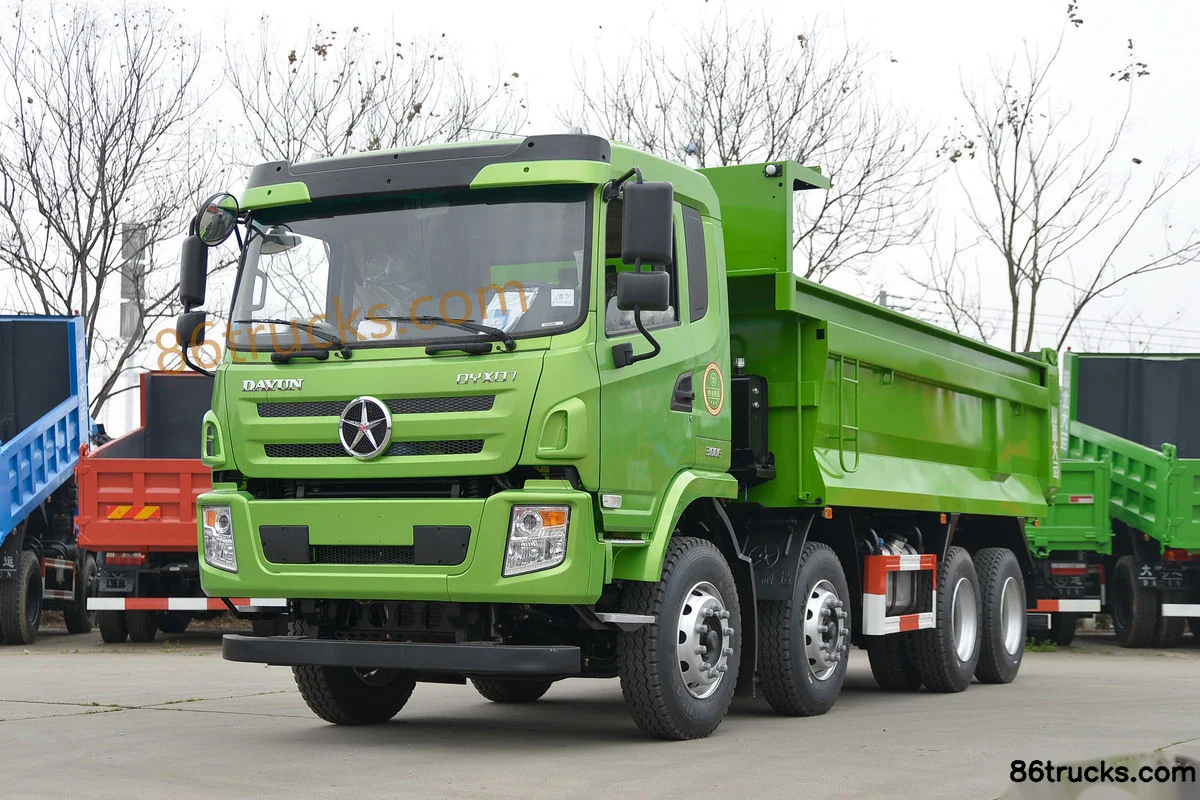

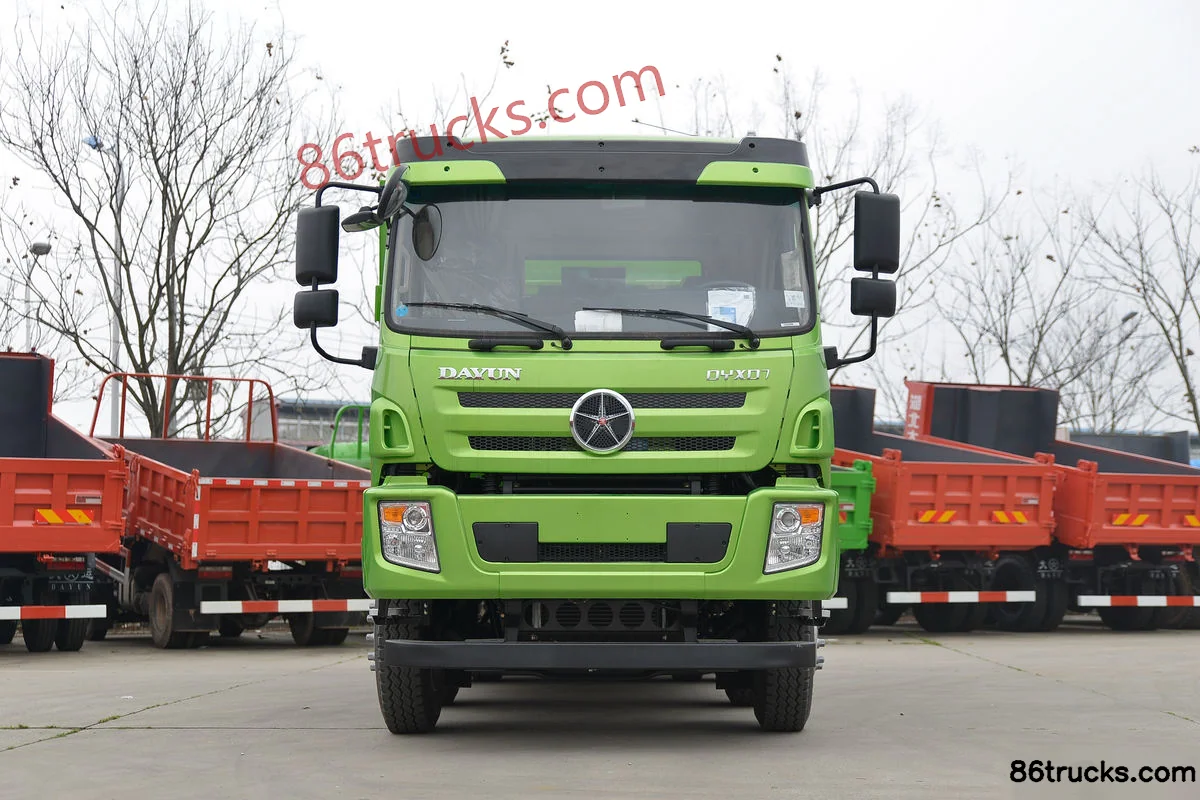

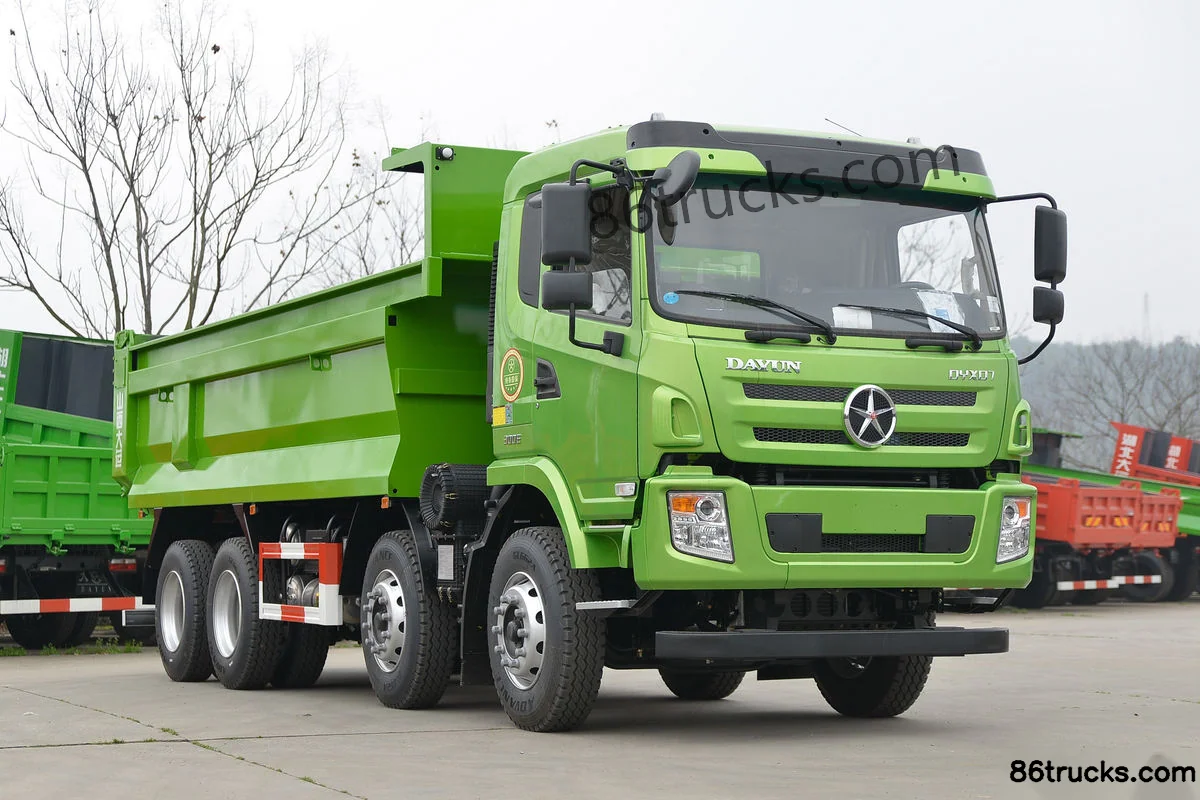

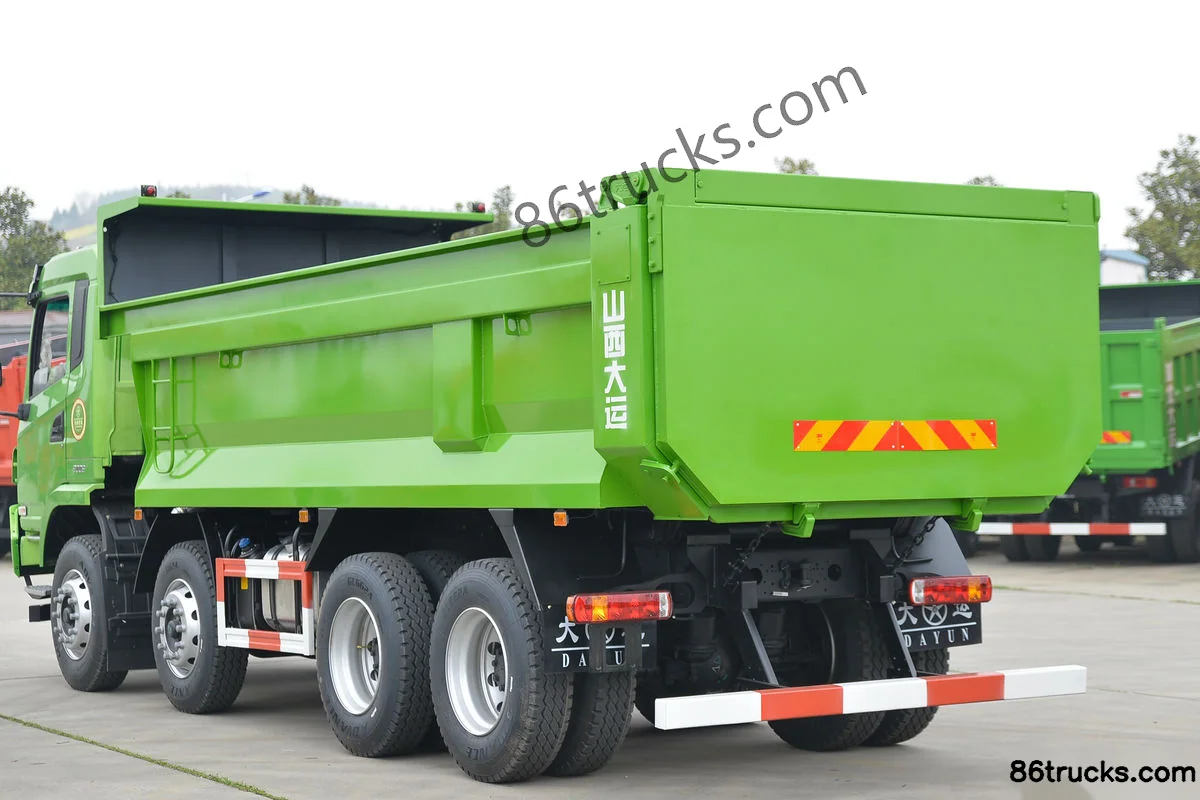

Exterior3

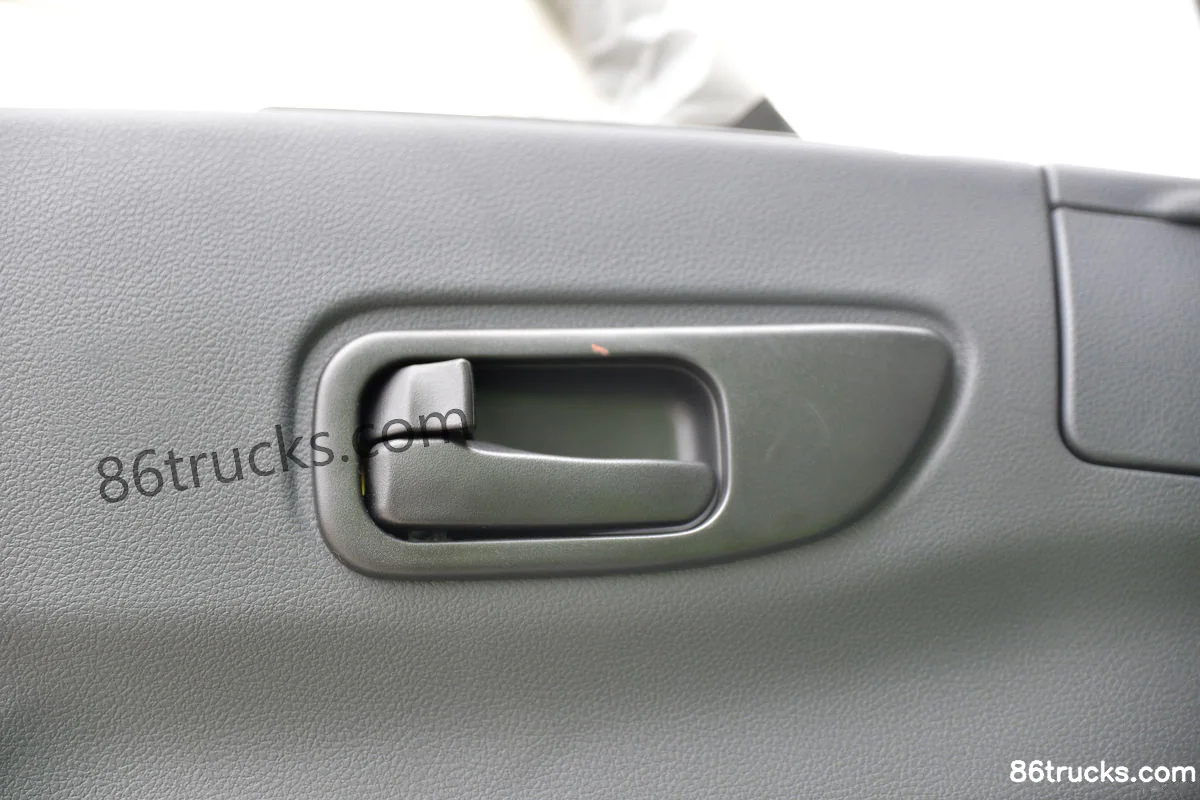

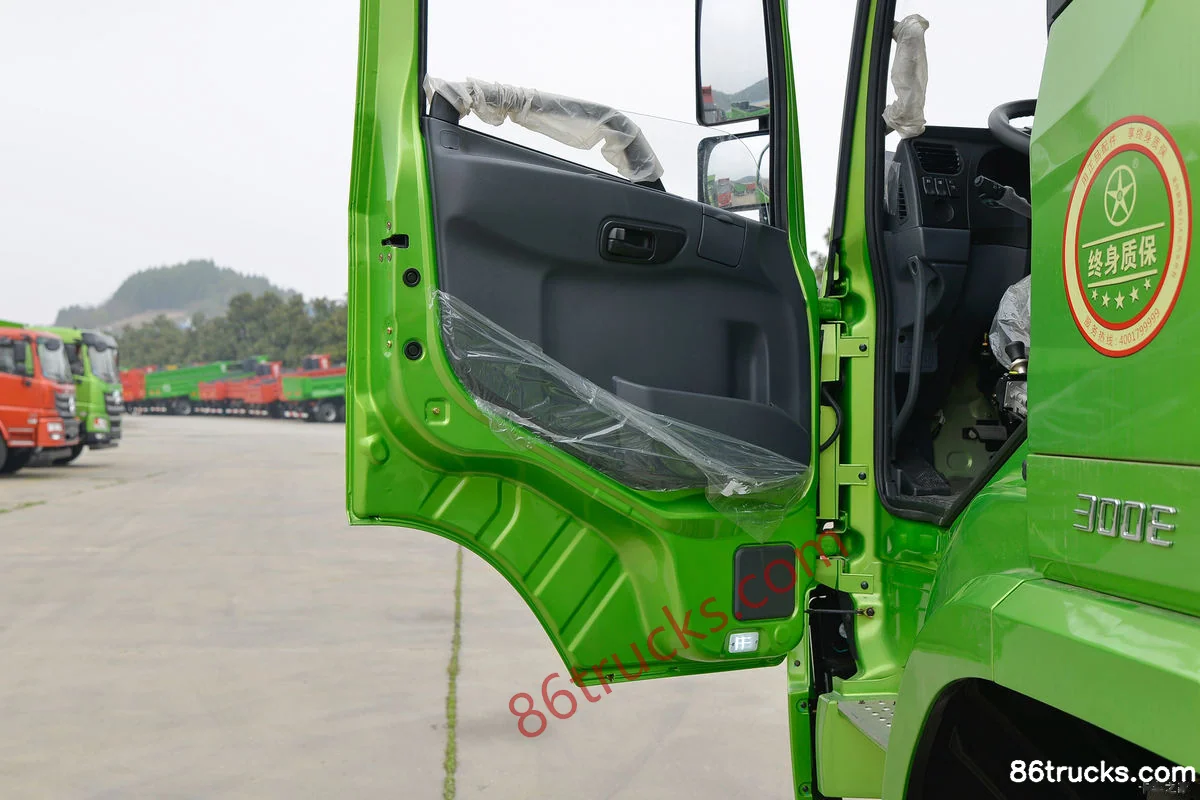

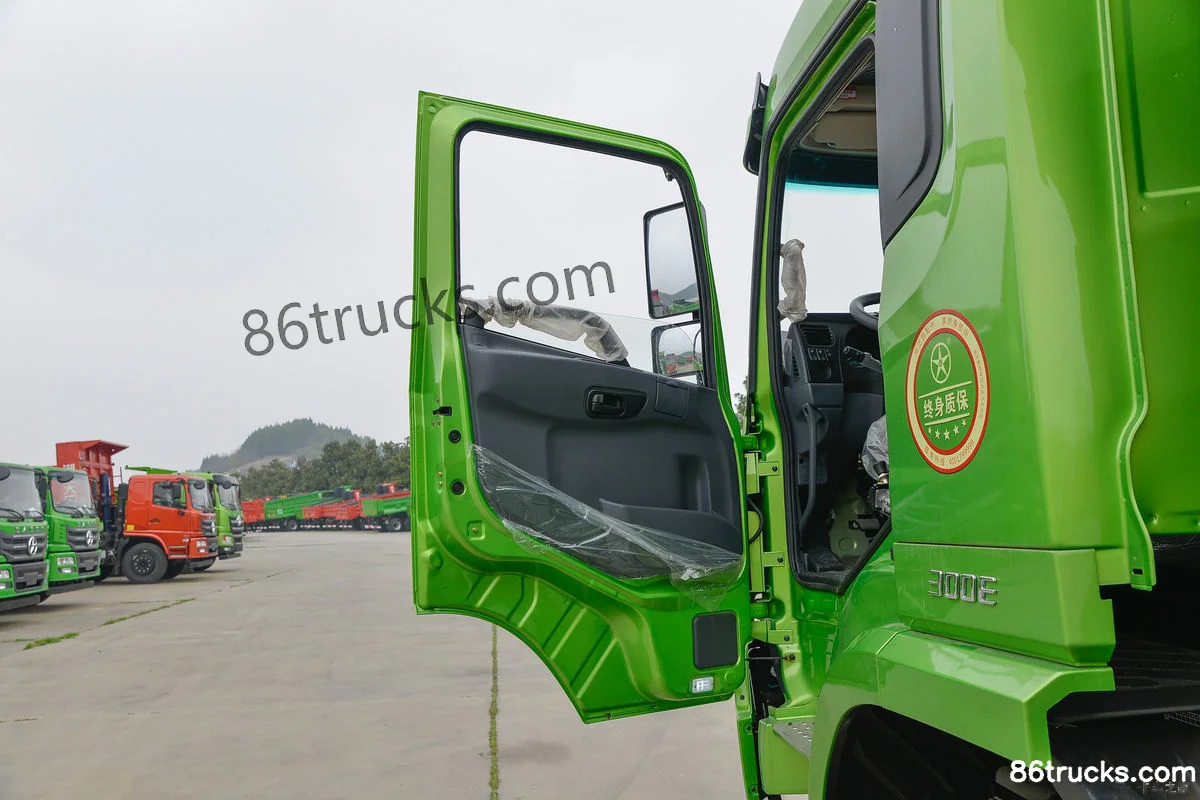

Cab3

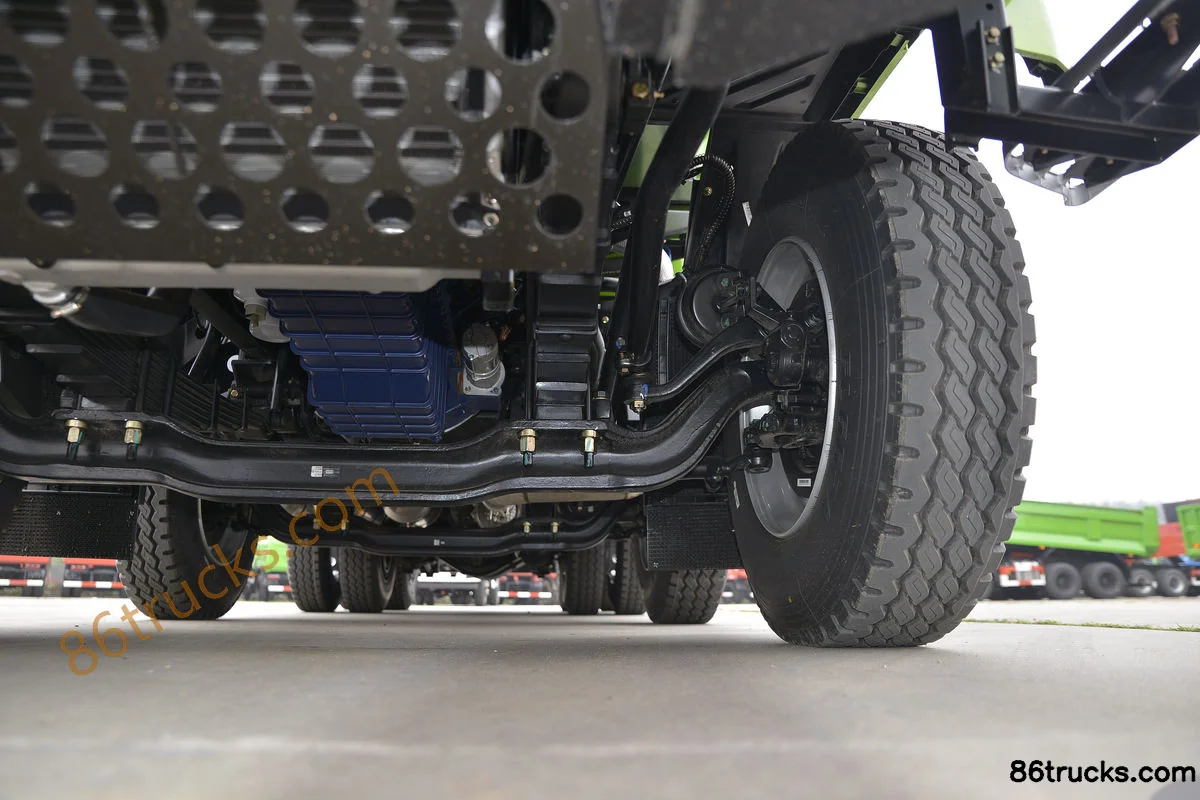

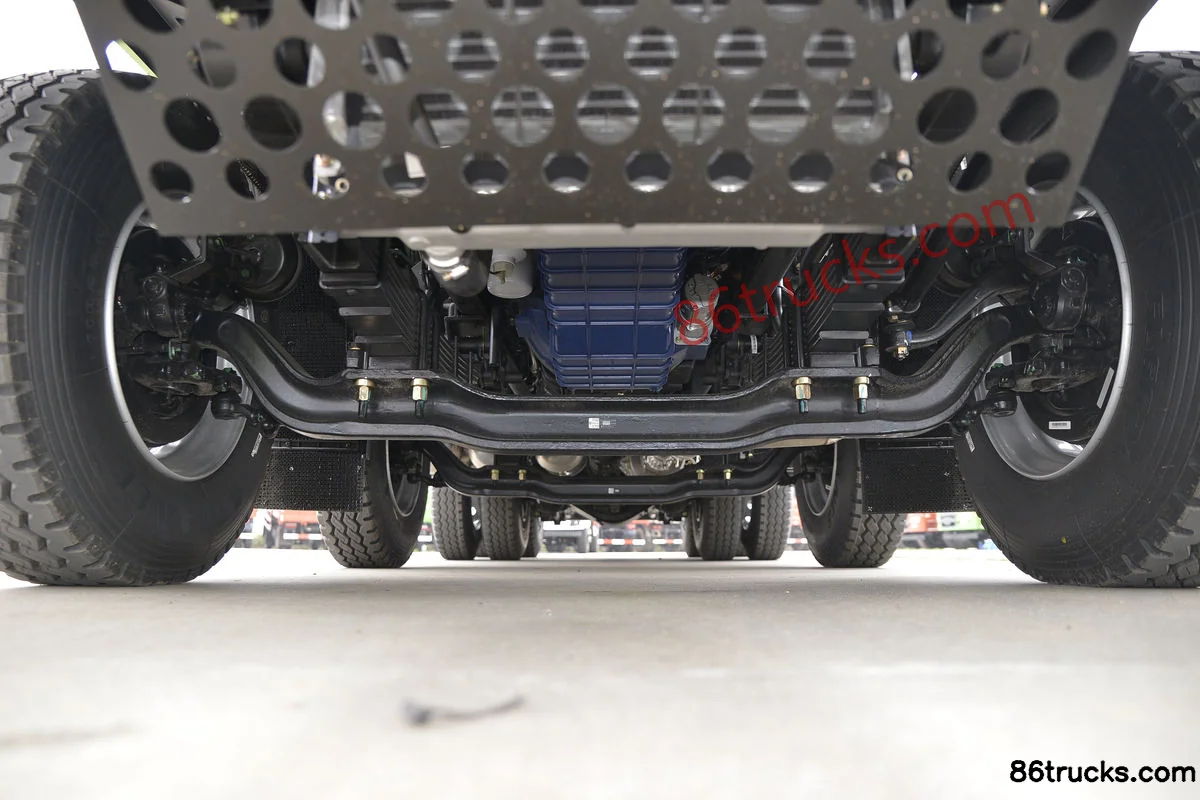

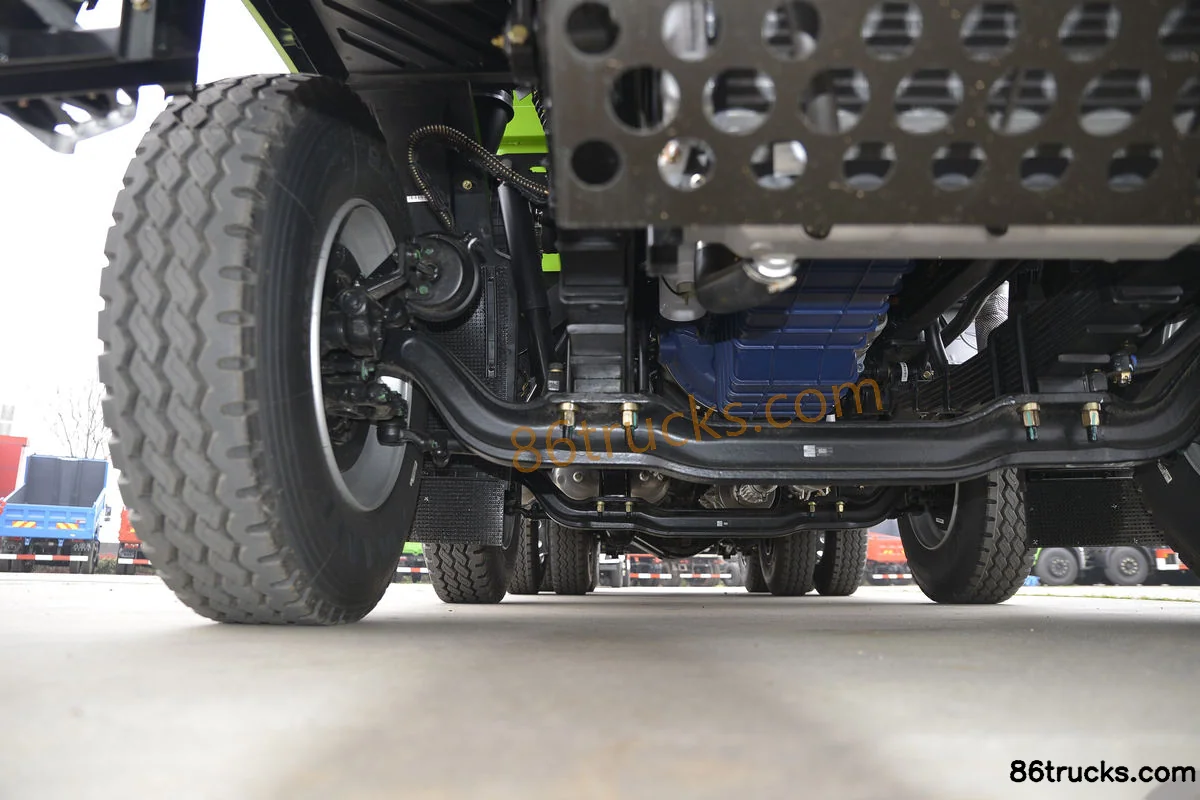

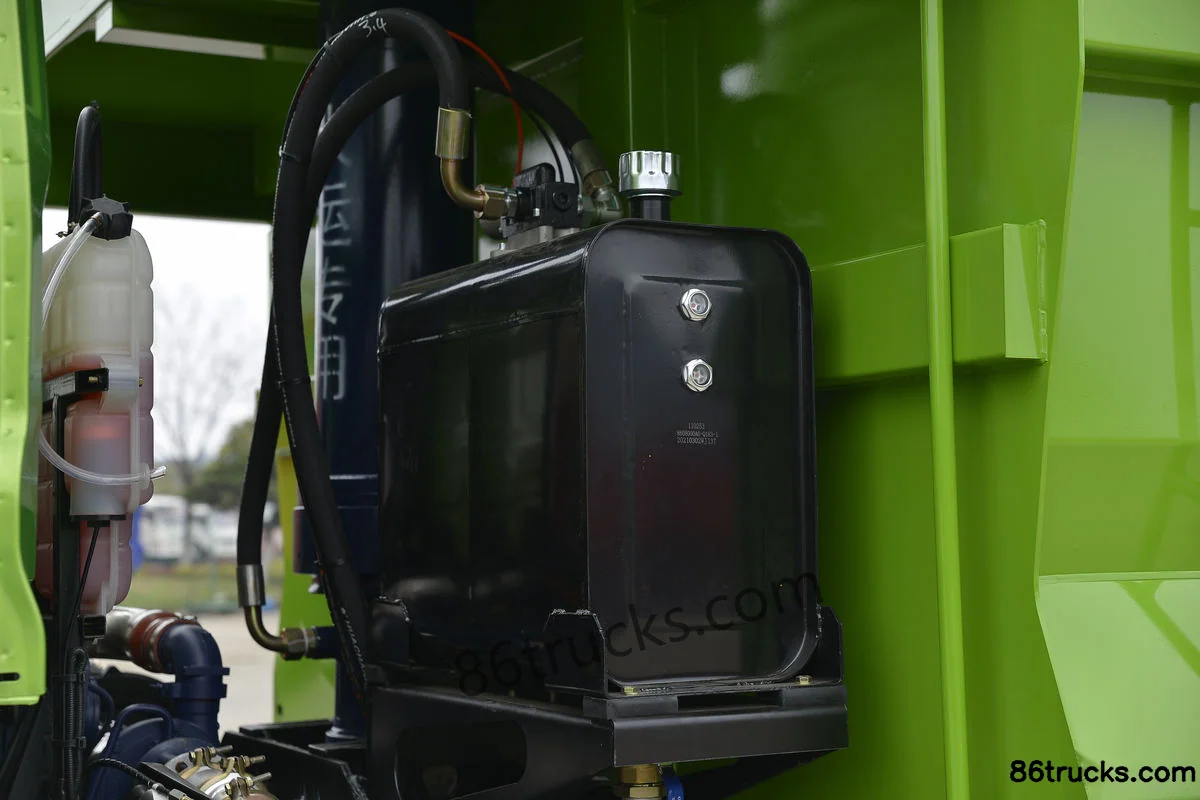

Chassis3

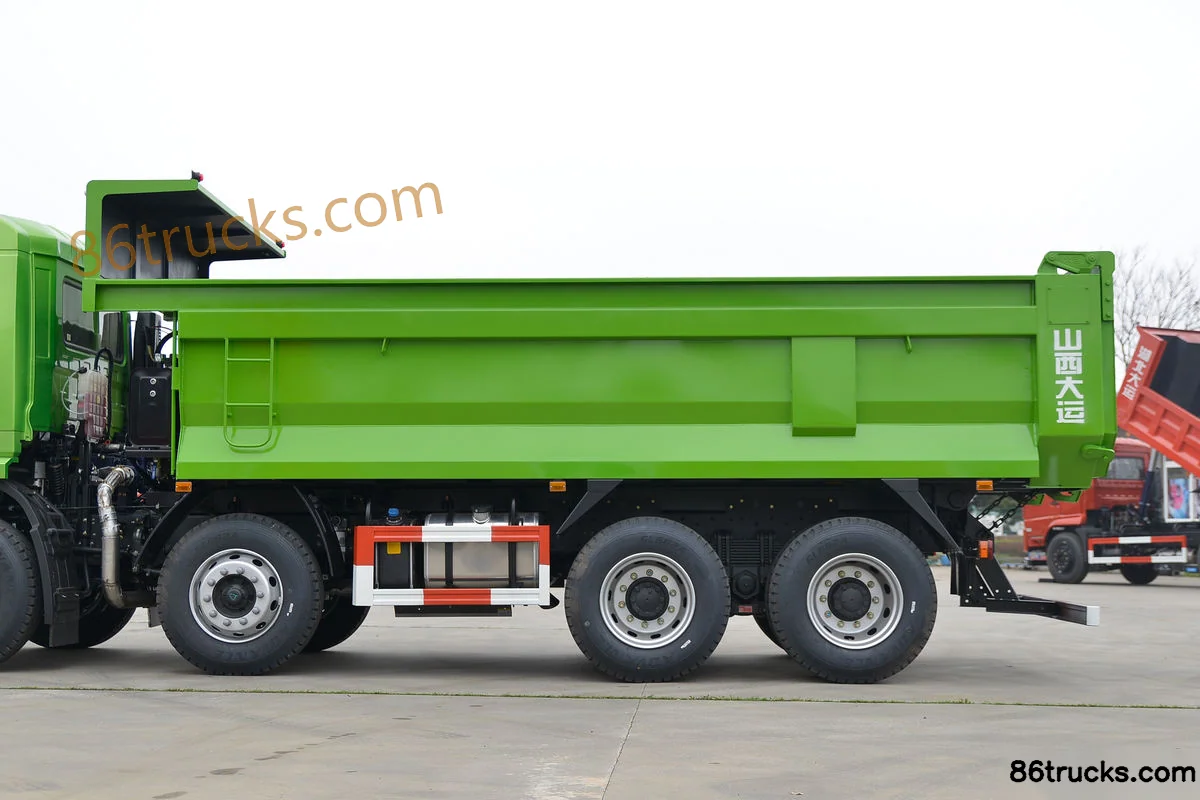

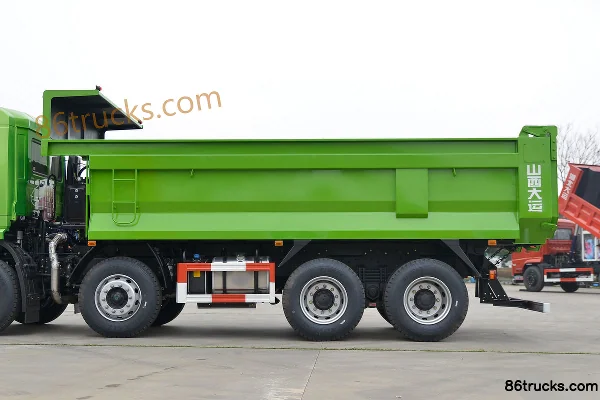

Body3

12 photos

FAQ

What emission standard does Dayun N6 Heavy Truck 300 hp 8X4(12 wheels) 5.8m Dump Truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Dayun N6 Heavy Truck 300 hp 8X4(12 wheels) 5.8m Dump Truck?

Key specs of Dayun N6 Heavy Truck 300 hp 8X4(12 wheels) 5.8m Dump Truck: Drive: 8x4; Horsepower: 300 hp; Emission: China V; Fuel: Diesel; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Dayun N6 Heavy Truck 300 hp 8X4(12 wheels) 5.8m Dump Truck suited for?

Dayun N6 Heavy Truck 300 hp 8X4(12 wheels) 5.8m Dump Truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Dayun N6 Heavy Truck 300 hp 8X4(12 wheels) 5.8m Dump Truck differ from other variants in the same series?

Dayun N6 Heavy Truck 300 hp 8X4(12 wheels) 5.8m Dump Truck belongs to Dayun N6 Medium-duty Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Dayun N6 Heavy Truck 300 hp 8X4(12 wheels) 5.8m Dump Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Dayun N6 Heavy Truck 300 hp 8X4(12 wheels) 5.8m Dump Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
