FARIZON FARIZON G1L 380hp 6X4(10 wheels) 5.6m Dump Truck

Export reference
From $62,500
MSRP ¥45M CNY
Emission: China VI
Fuel: LNG (liquefied natural gas)
Transmission: Fast Gear
Curb Weight:: 12.5ton
Wheelbase:: 3825+1400mm
Tire Size:: 12.00R20 16PR
FARIZON FARIZON G1L 380hp 6X4(10 wheels) 5.6m Dump Truck exterior
View more photos (3)
Rated payload: 12.37ton
Drive 6X4 (10 wheels)
Horsepower 380
Cargo box type: Dump type

Overview

The FARIZON FARIZON G1L 380hp 6X4(10 wheels) 5.6m Dump Truck is a Heavy truck featuring 12.37t payload, 25t GVW, Dump type cargo body and 6X4 (10 wheels) drive. On the powertrain side, it comes with a YuchaiYCK11380N-60 engine, 380 hp, China VI emissions and Fast Gear transmission.

China VI 380 LNG (liquefied natural gas) 6X4

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model code (announced): DNC3250GN6L2
Drive type: 6X4
Wheelbase: 3825+1400mm
engine: YuchaiYCK11380N-60
transmission: Fast Gear12JSD200T-B
Rear Axle Ratio: 5.262
Cab length: 8.5m
Cab width: 2.55m
Cab height: 3.52m
Front track width: 2020mm
rear track: 1865/1865mm
Curb Weight: 12.5ton
Rated payload: 12.37ton
GVWR: 25ton
Origin: Nanchong, Sichuan
tonnage class: Heavy truck
Approach angle: 18°
departure angle: 20°
Remarks: Optional multifunction steering wheel (must be selected with MP5), optional 4.769 ratio
Energy Type: LNG (liquefied natural gas)
Engine parameters
Engine Brand: Yuchai
Engine Model: YuchaiYCK11380N-60
Number of cylinders: 6cylinder
fuel type: LNG (liquefied natural gas)
Displacement: 10.98L
Emission standard: China VI
Max output power: 280kW
Max hp: 380Horsepower
Max torque: 1800N·m
Max torque speed: 1000-1400rpm
Rated speed: 1700rpm
Engine Type: Theoretical air-fuel ratio + EGR + TWC + ASC
Transmission Parameters
Transmission Model: Fast Gear12JSD200T-B
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 12Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Unloading Type: Dump type
Cargo box type: Dump type
Cargo box length: 5.6m
Cargo box width: 2.35m
Cargo box height:
Chassis Specs
Front axle description: 7.5T
Front axle allowable load: 7000kg
Frame Dimensions: variable-width framemm
rear axle description: 16T two-stage reduction axle
Steering gear: Domestic
rear axle allowable load: 18000 (tandem axle group)kg
Axle ratio: 5.262
Leaf spring count: 9/12
Aluminum wheels:
clutch: Φ430
Tire
Tire Size: 12.00R20 16PR
Number of tires: 10pcs
Control configuration
ABS:
interior configuration
Multifunction steering wheel:
Electric Heated Rearview Mirror:
Electronic Central Lock:
Service brake
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type

Photos

Exterior3

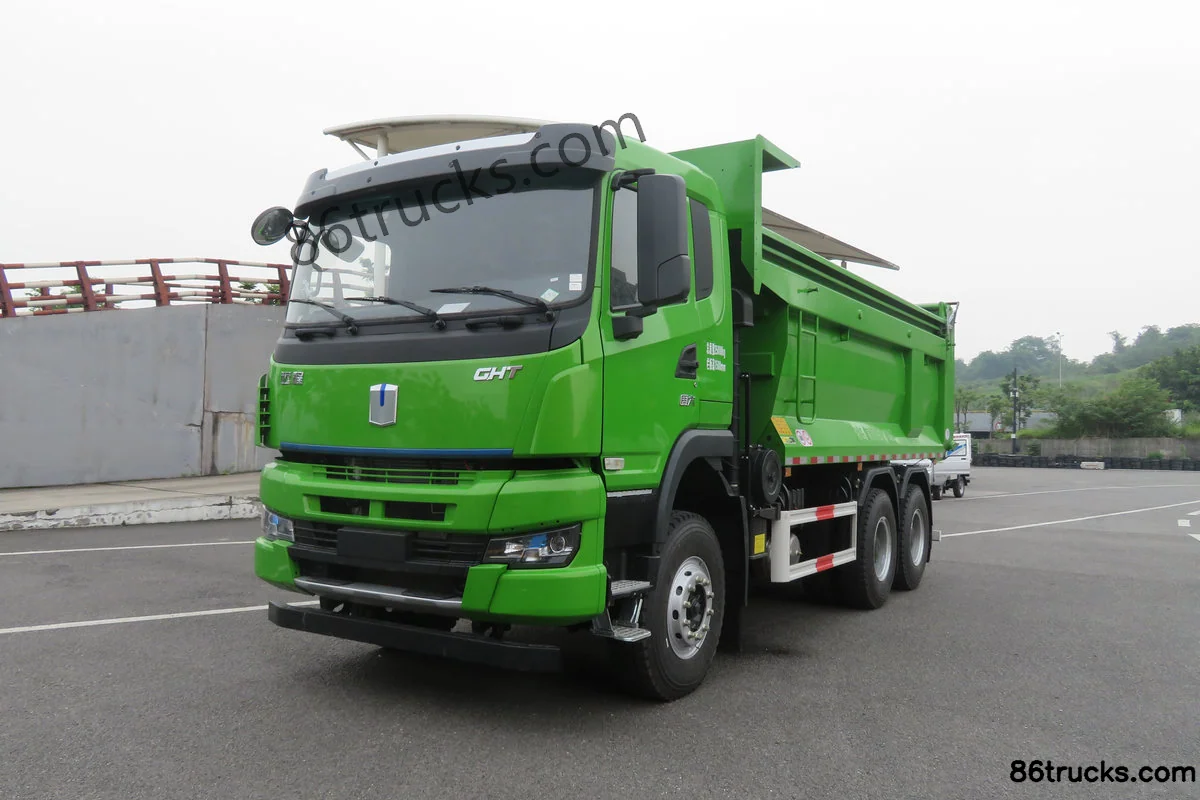

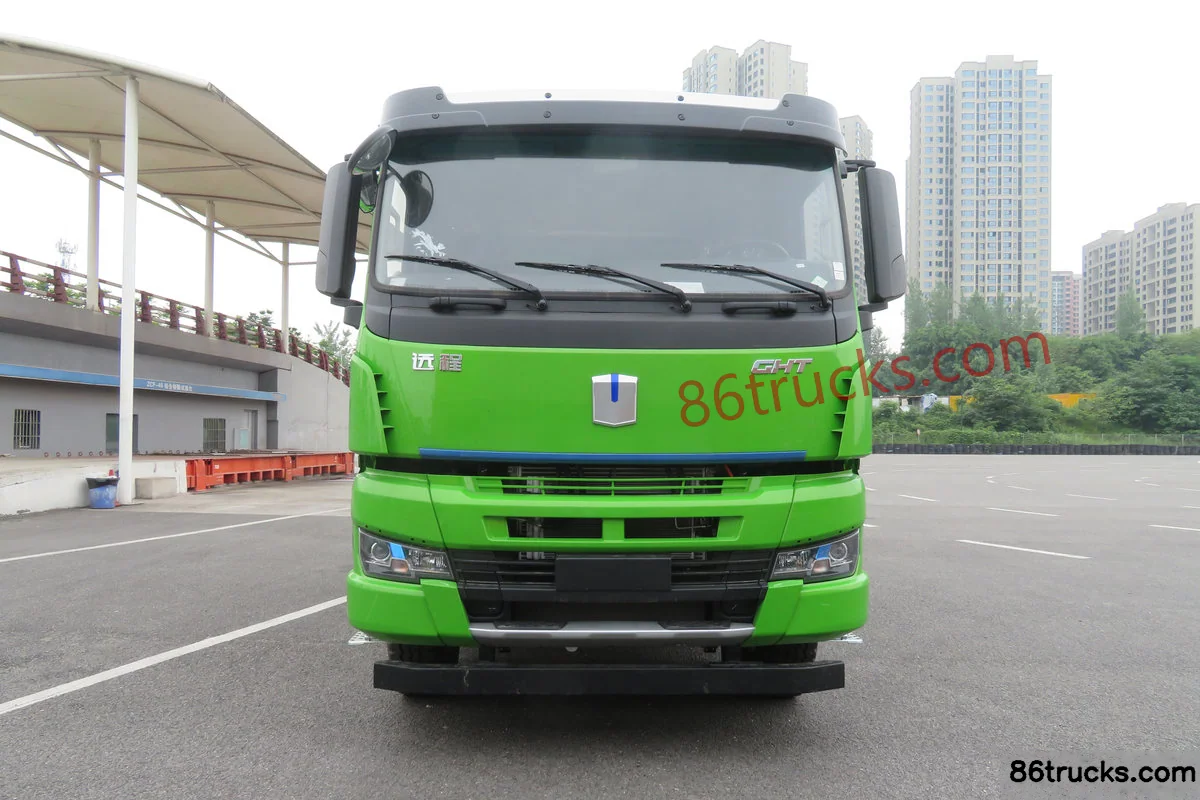

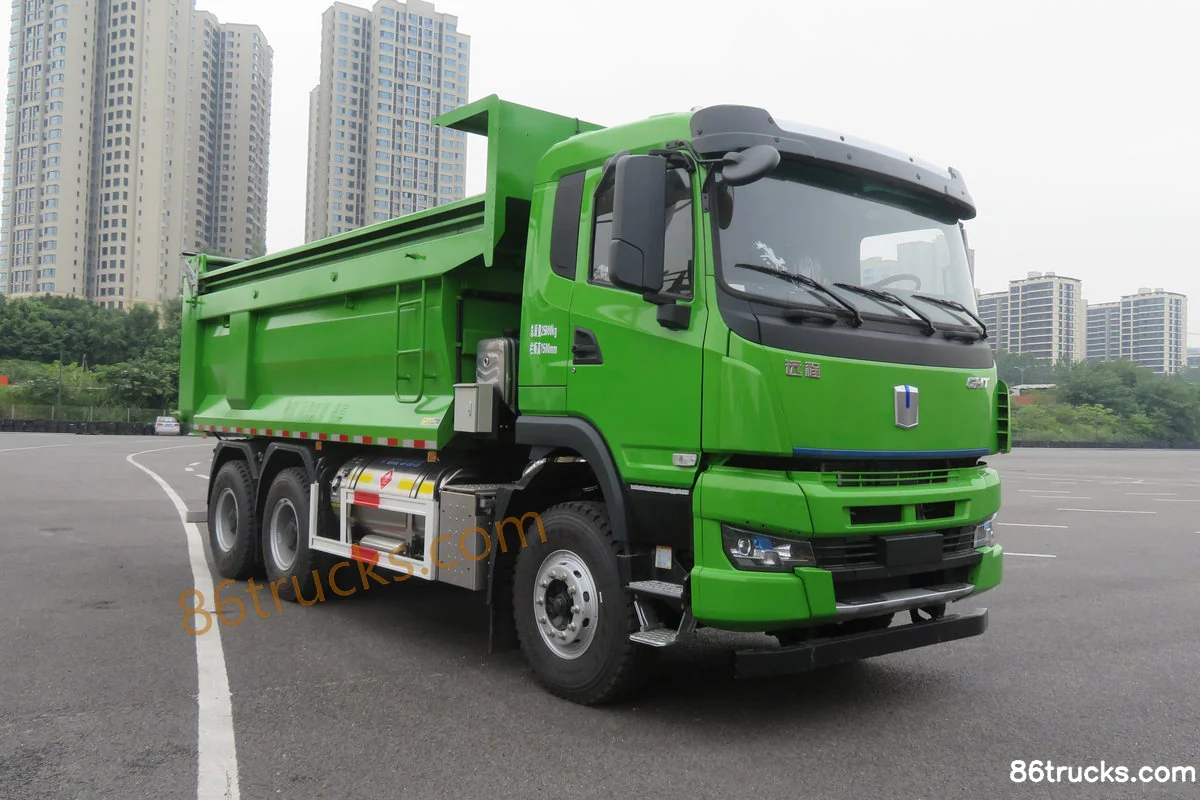

FARIZON FARIZON G1L 380hp 6X4(10 wheels) 5.6m Dump Truck Exterior (1) | 86Trucks FARIZON FARIZON G1L 380hp 6X4(10 wheels) 5.6m Dump Truck Exterior (2) | 86Trucks FARIZON FARIZON G1L 380hp 6X4(10 wheels) 5.6m Dump Truck Exterior (3) | 86Trucks

3 photos

FAQ

What is the export price of FARIZON FARIZON G1L 380hp 6X4(10 wheels) 5.6m Dump Truck, and what does it include?

FARIZON FARIZON G1L 380hp 6X4(10 wheels) 5.6m Dump Truck export reference is about From $62,500; MSRP is ¥45M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does FARIZON FARIZON G1L 380hp 6X4(10 wheels) 5.6m Dump Truck use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of FARIZON FARIZON G1L 380hp 6X4(10 wheels) 5.6m Dump Truck?

Key specs of FARIZON FARIZON G1L 380hp 6X4(10 wheels) 5.6m Dump Truck: Drive: 6x4; Horsepower: 380 hp; Emission: China VI; Fuel: LNG (liquefied natural gas); Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is FARIZON FARIZON G1L 380hp 6X4(10 wheels) 5.6m Dump Truck suited for?

FARIZON FARIZON G1L 380hp 6X4(10 wheels) 5.6m Dump Truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does FARIZON FARIZON G1L 380hp 6X4(10 wheels) 5.6m Dump Truck differ from other variants in the same series?

FARIZON FARIZON G1L 380hp 6X4(10 wheels) 5.6m Dump Truck belongs to FARIZON FARIZON G1L Heavy Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for FARIZON FARIZON G1L 380hp 6X4(10 wheels) 5.6m Dump Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export FARIZON FARIZON G1L 380hp 6X4(10 wheels) 5.6m Dump Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
