FAW Liute Jin Da Lu Heavy Truck 350 hp 6X4(10 wheels) 6.2m Dump Truck (Front Lift)

Export reference
From $50,472
MSRP ¥36.34M CNY
Emission: China IV
Fuel: Diesel
Transmission: Fast Gear
Curb Weight:: 12.41ton
Wheelbase:: 4250+1350mm
Tire Size:: 11.00R20
FAW Liute Jin Da Lu Heavy Truck 350 hp 6X4(10 wheels) 6.2m Dump Truck (Front Lift) exterior
View more photos (9)
Rated payload: 12.46ton
Drive 6X4 (10 wheels)
Horsepower 350
Cargo box type: Dump type

Overview

The FAW Liute Jin Da Lu Heavy Truck 350 hp 6X4(10 wheels) 6.2m Dump Truck (Front Lift) is a Heavy truck featuring 12.46t payload, 25t GVW, Dump type cargo body and 6X4 (10 wheels) drive. On the powertrain side, it comes with a XichaiCA6DL2-35E4 engine, 350 hp, China IV emissions and Fast Gear transmission.

China IV 350 Diesel 6X4

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model code (announced): LZT3252P31K2E4T1A93
Drive type: 6X4
Wheelbase: 4250+1350mm
engine: XichaiCA6DL2-35E4
transmission: Fast Gear12JS160T
Rear Axle Ratio: 5.921
Cab length: 9.08m
Cab width: 2.5m
Cab height: 3.65m
Front track width: 2020mm
rear track: 1860/1860mm
Curb Weight: 12.41ton
Rated payload: 12.46ton
GVWR: 25ton
Origin: Liuzhou, Guangxi
tonnage class: Heavy truck
Approach angle: 16°
departure angle: 18°
Remarks: Mining road rough and uneven, heavy load uphill, empty load downhill, steep slopes with many curves, economic speed 45 km/h; Cab color: Uros red; Air conditioning; Cab manual hydraulic tilting device; Mechanical damping 8-way adjustable driver seat; External sun visor; Extra-strong Steyr cast steel suspension; Rear axle suspension with double U-bolts; Extra-strong large rubber thrust rod; Large connecting plate; Transmission rear PTO; φ133 tube diameter four-hole end face tooth extra-strong drive shaft; Enlarged aluminum radiator; Desert air filter; Radiator protection device; Extra-strong large bore power steering gear; Exhaust brake; Air-to-air intercooler; Air handbrake; Air dryer; Cold start; Power distribution box; Frame full-length equal-width straight beam; 350L iron fuel tank; Electric window lift; ABS device
Energy Type: Diesel
Engine parameters
Engine Brand: Xichai
Engine Model: XichaiCA6DL2-35E4
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 8.75L
Emission standard: China IV
Max output power: 261kW
Max hp: 350Horsepower
Max torque: 1500N·m
Max torque speed: 1300-1700rpm
Rated speed: 2100rpm
Engine Type: 6-cylinder inline, direct injection, turbocharged intercooled, electronic common rail
Transmission Parameters
Transmission Model: Fast Gear12JS160T
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 12Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Unloading Type: Dump type
Cargo box type: Dump type
Cargo box length: 6.2m
Cargo box width: 2.3m
Cargo box height: 1.05m
fuel tank
Fuel tank capacity: 350L
Chassis Specs
Frame Dimensions: Double-layer 300 (8+8)mm
rear axle description: 16T Mercedes-Benz cast steel hub reduction axle
rear axle allowable load: 18000kg
Axle ratio: 5.921
Leaf spring count: 12/12
clutch: Φ430
Tire
Tire Size: 11.00R20
Number of tires: 10pcs

Photos

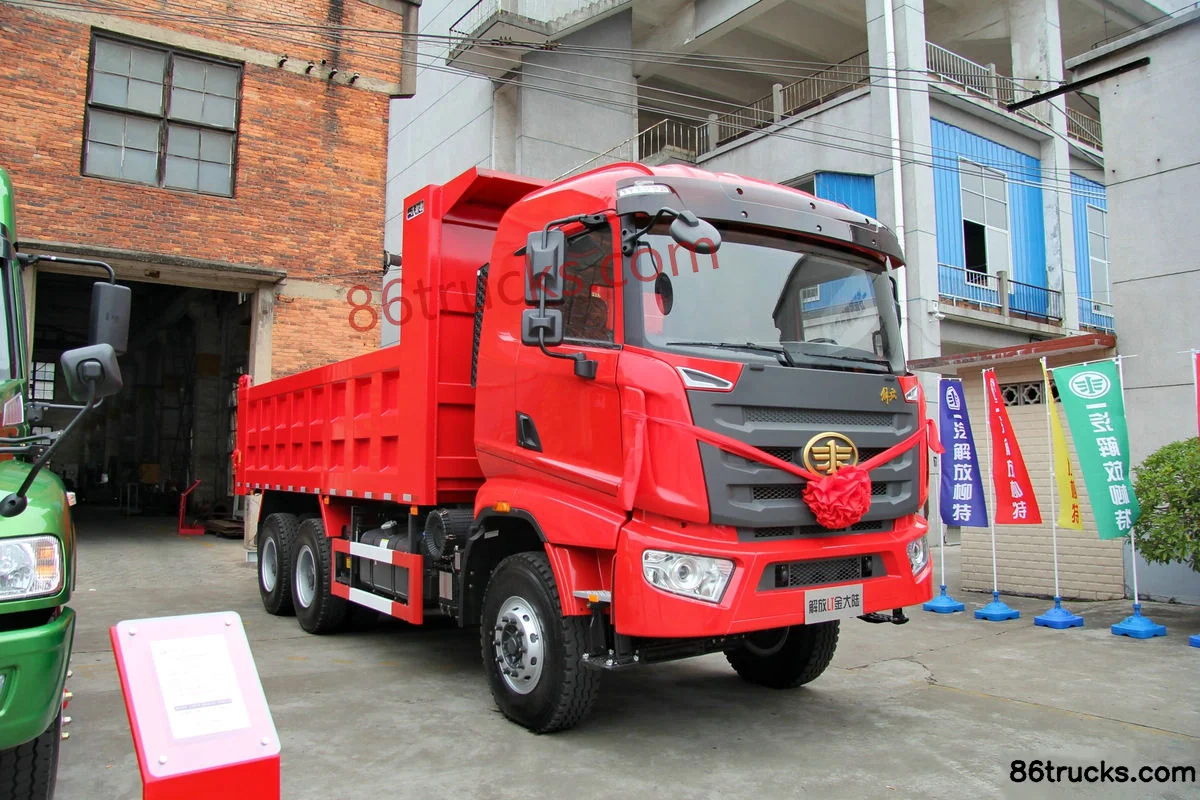

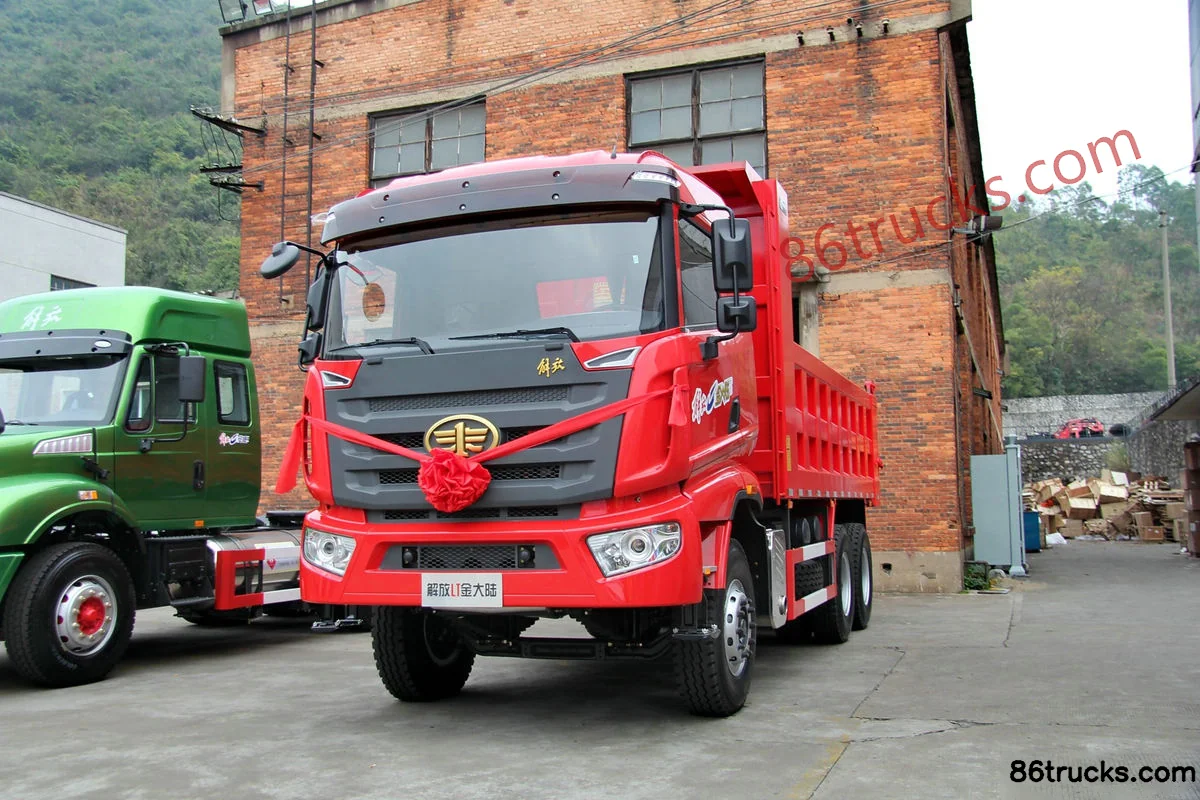

Exterior3

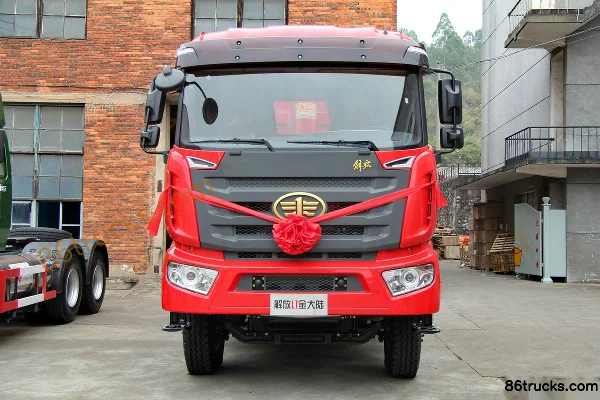

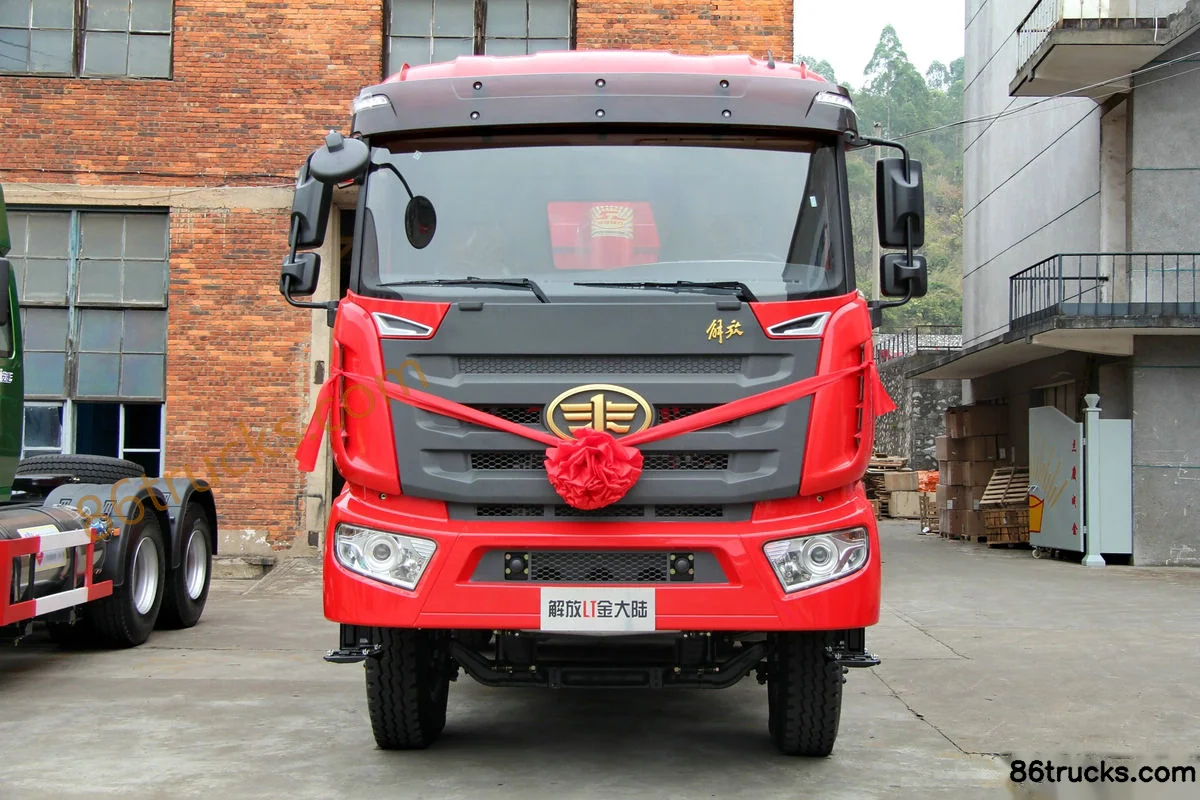

FAW Liute Jin Da Lu Heavy Truck 350 hp 6X4(10 wheels) 6.2m Dump Truck (Front Lift) Exterior (1) | 86Trucks FAW Liute Jin Da Lu Heavy Truck 350 hp 6X4(10 wheels) 6.2m Dump Truck (Front Lift) Exterior (2) | 86Trucks FAW Liute Jin Da Lu Heavy Truck 350 hp 6X4(10 wheels) 6.2m Dump Truck (Front Lift) Exterior (3) | 86Trucks

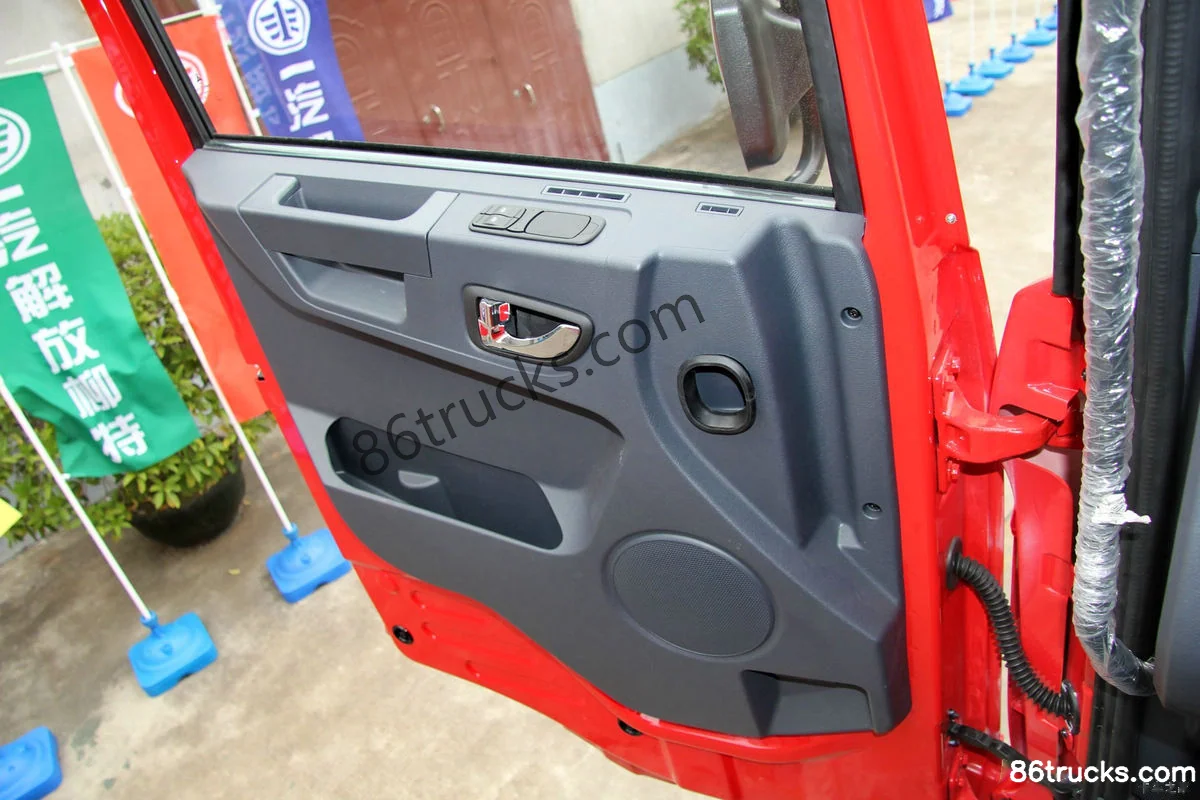

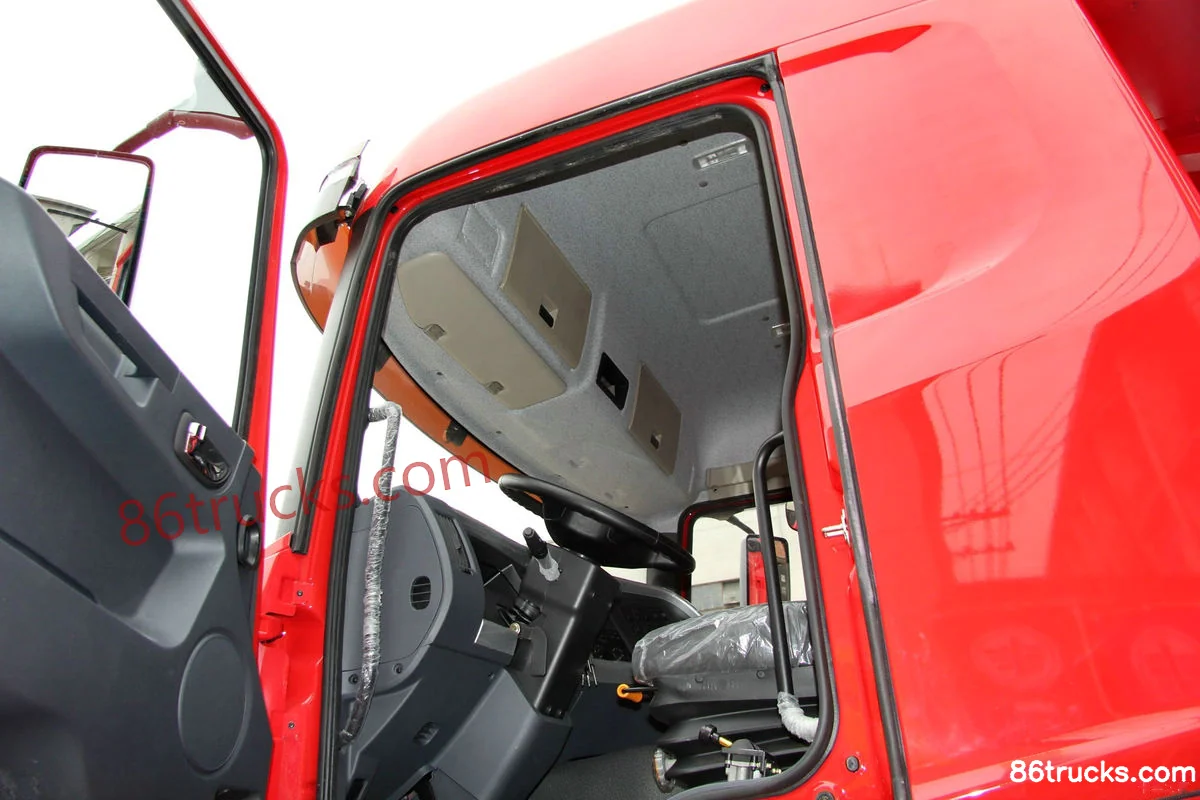

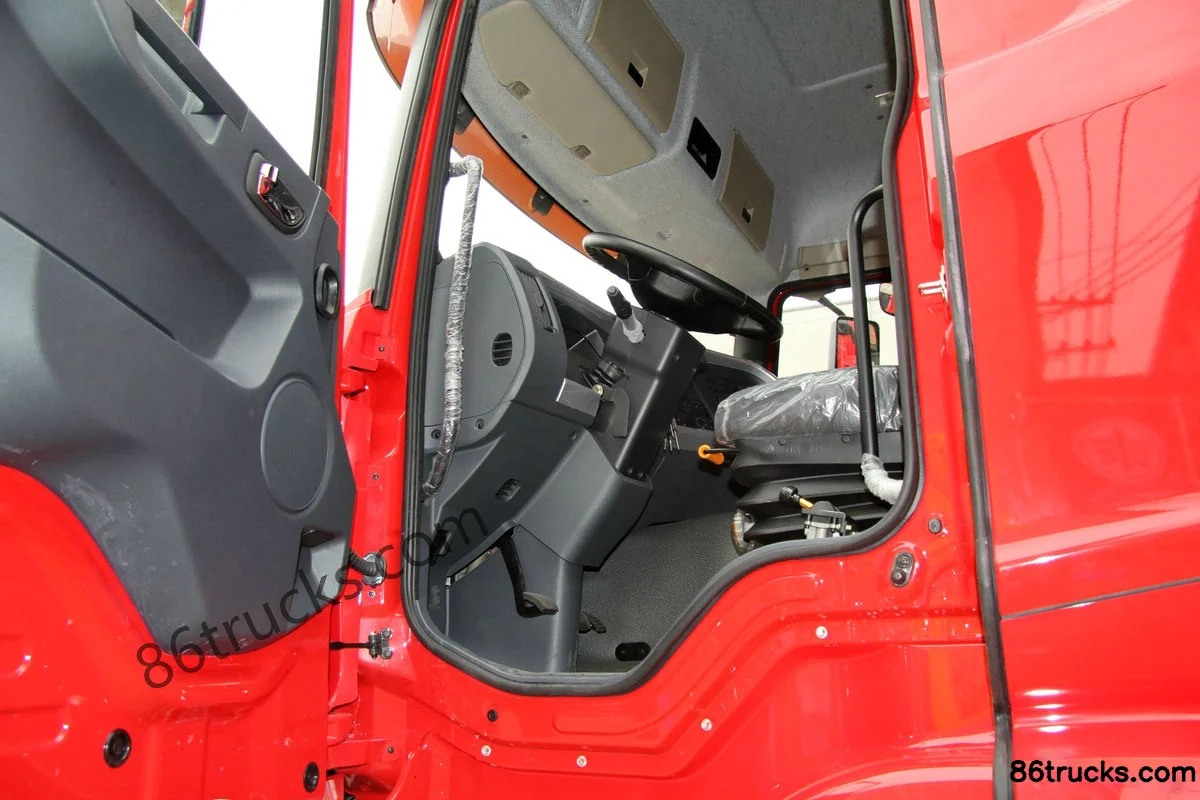

Cab3

FAW Liute Jin Da Lu Heavy Truck 350 hp 6X4(10 wheels) 6.2m Dump Truck (Front Lift) Cab (1) | 86Trucks FAW Liute Jin Da Lu Heavy Truck 350 hp 6X4(10 wheels) 6.2m Dump Truck (Front Lift) Cab (2) | 86Trucks FAW Liute Jin Da Lu Heavy Truck 350 hp 6X4(10 wheels) 6.2m Dump Truck (Front Lift) Cab (3) | 86Trucks

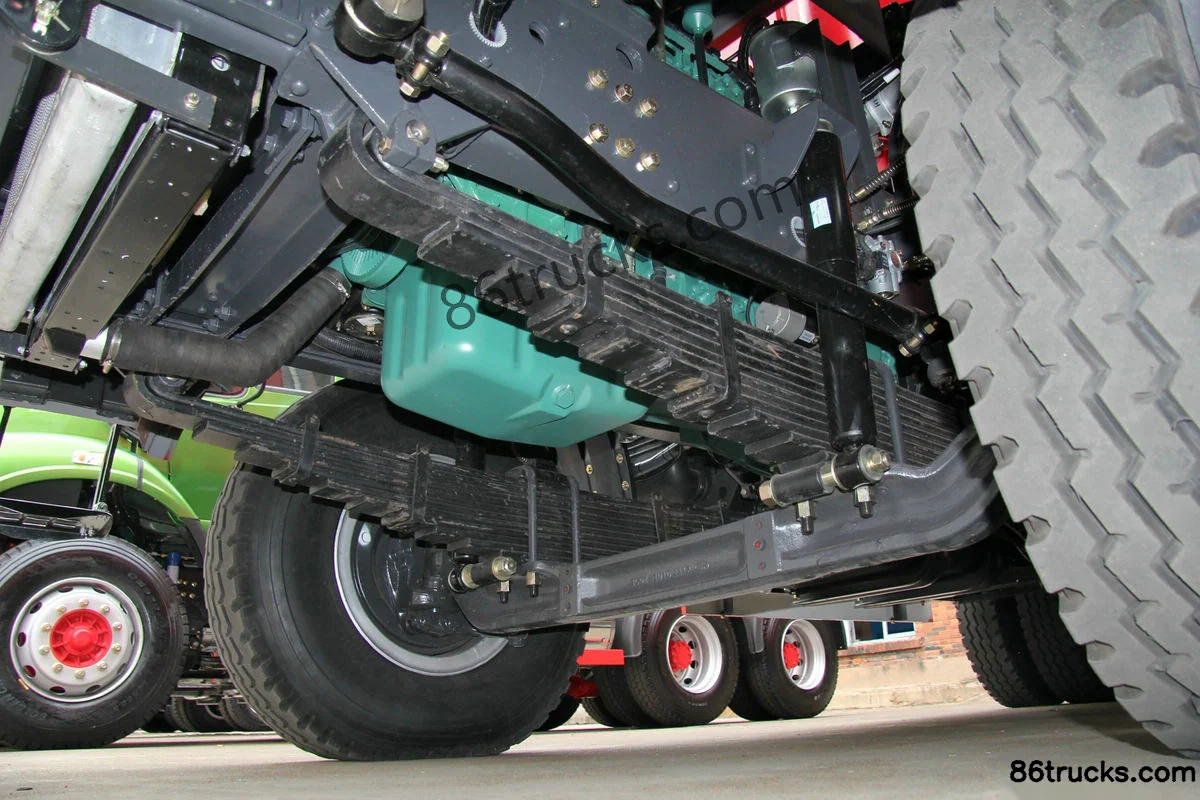

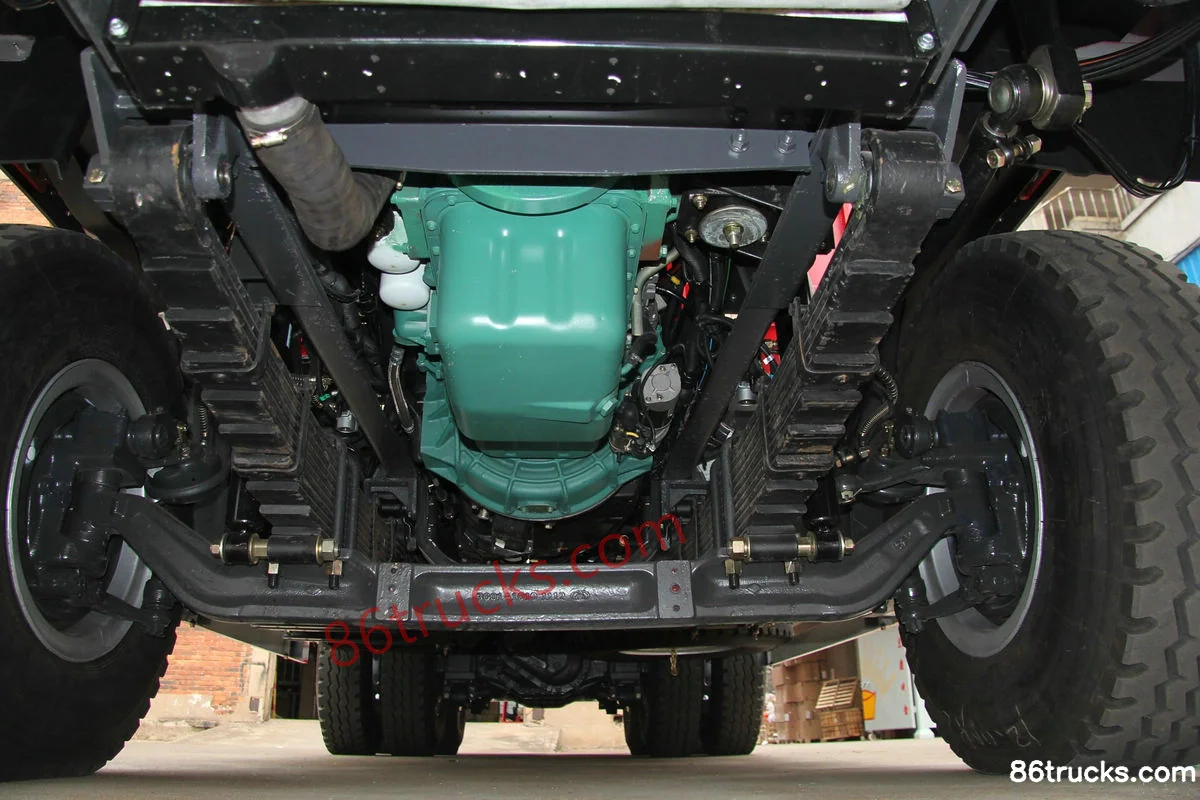

Chassis3

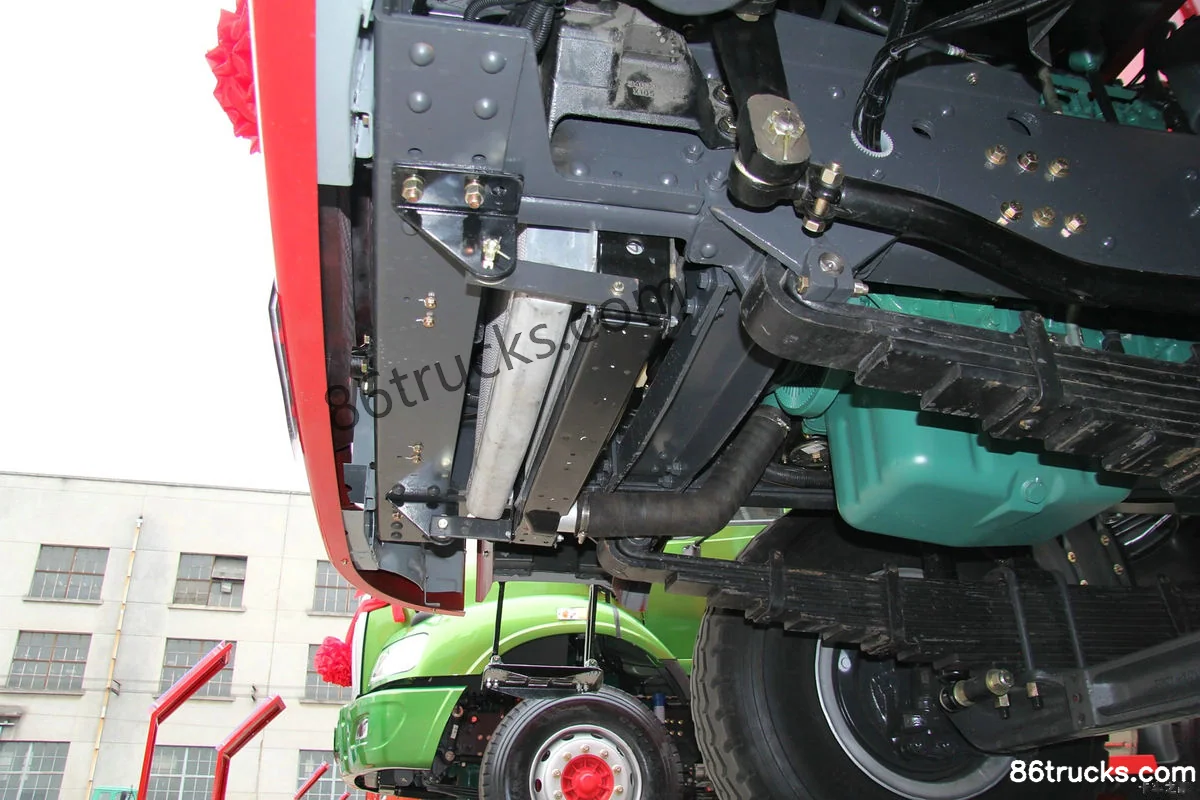

FAW Liute Jin Da Lu Heavy Truck 350 hp 6X4(10 wheels) 6.2m Dump Truck (Front Lift) Chassis (1) | 86Trucks FAW Liute Jin Da Lu Heavy Truck 350 hp 6X4(10 wheels) 6.2m Dump Truck (Front Lift) Chassis (2) | 86Trucks FAW Liute Jin Da Lu Heavy Truck 350 hp 6X4(10 wheels) 6.2m Dump Truck (Front Lift) Chassis (3) | 86Trucks

9 photos

FAQ

What is the export price of FAW Liute Jin Da Lu Heavy Truck 350 hp 6X4(10 wheels) 6.2m Dump Truck (Front Lift), and what does it include?

FAW Liute Jin Da Lu Heavy Truck 350 hp 6X4(10 wheels) 6.2m Dump Truck (Front Lift) export reference is about From $50,472; MSRP is ¥36.34M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does FAW Liute Jin Da Lu Heavy Truck 350 hp 6X4(10 wheels) 6.2m Dump Truck (Front Lift) use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of FAW Liute Jin Da Lu Heavy Truck 350 hp 6X4(10 wheels) 6.2m Dump Truck (Front Lift)?

Key specs of FAW Liute Jin Da Lu Heavy Truck 350 hp 6X4(10 wheels) 6.2m Dump Truck (Front Lift): Drive: 6x4; Horsepower: 350 hp; Emission: China IV; Fuel: Diesel; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is FAW Liute Jin Da Lu Heavy Truck 350 hp 6X4(10 wheels) 6.2m Dump Truck (Front Lift) suited for?

FAW Liute Jin Da Lu Heavy Truck 350 hp 6X4(10 wheels) 6.2m Dump Truck (Front Lift) is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does FAW Liute Jin Da Lu Heavy Truck 350 hp 6X4(10 wheels) 6.2m Dump Truck (Front Lift) differ from other variants in the same series?

FAW Liute Jin Da Lu Heavy Truck 350 hp 6X4(10 wheels) 6.2m Dump Truck (Front Lift) belongs to FAW Liute Jindalu Heavy Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for FAW Liute Jin Da Lu Heavy Truck 350 hp 6X4(10 wheels) 6.2m Dump Truck (Front Lift)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export FAW Liute Jin Da Lu Heavy Truck 350 hp 6X4(10 wheels) 6.2m Dump Truck (Front Lift)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
