NanJun Ruiyu R60D 160hp 4X2(6 wheels) 4.35m Dump Truck

Export reference
From $26,639
MSRP ¥19.18M CNY
Emission: China V
Fuel: Diesel
Transmission: Fast Gear
Curb Weight:: 7.81ton
Wheelbase:: 3700mm
Tire Size:: 10.00R20
Rated payload: 9.995ton
Drive 4X2 (6 wheels)
Horsepower 160
Cargo box thickness: floor 5 side 3mm

Overview

The NanJun Ruiyu R60D 160hp 4X2(6 wheels) 4.35m Dump Truck is a Light Truck featuring 9.995t payload, 18t GVW, Dump type cargo body and 4X2 (6 wheels) drive. On the powertrain side, it comes with a YuchaiYC4E160-56 engine, 160 hp, China V emissions and Fast Gear transmission.

China V 160 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): NJA3180PPB38V
Drive type: 4X2
Wheelbase: 3700mm
engine: YuchaiYC4E160-56
transmission: Fast Gear 10-Speed
Rear Axle Ratio: 6.833
Cab length: 6.7m
Cab width: 2.4m
Cab height: 2.85m
Front track width: 1900mm
rear track: 1750mm
Curb Weight: 7.81ton
Rated payload: 9.995ton
GVWR: 18ton
Origin: Ziyang, Sichuan
tonnage class: Light Truck
Approach angle: 17°
departure angle: 17°
Energy Type: Diesel
Engine parameters
Engine Brand: Yuchai
Engine Model: YuchaiYC4E160-56
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 4.26L
Emission standard: China V
Max output power: 118kW
Max hp: 160Horsepower
Max torque: 600N·m
Max torque speed: 1300-1600rpm
Rated speed: 2600rpm
Engine Type: Vertical, inline, water-cooled, four-stroke
Transmission Parameters
Transmission Model: Fast Gear 10-Speed
Transmission Brand: Fast Gear
Forward gears: 10Gear
Number of Reverse Gears: 2pcs

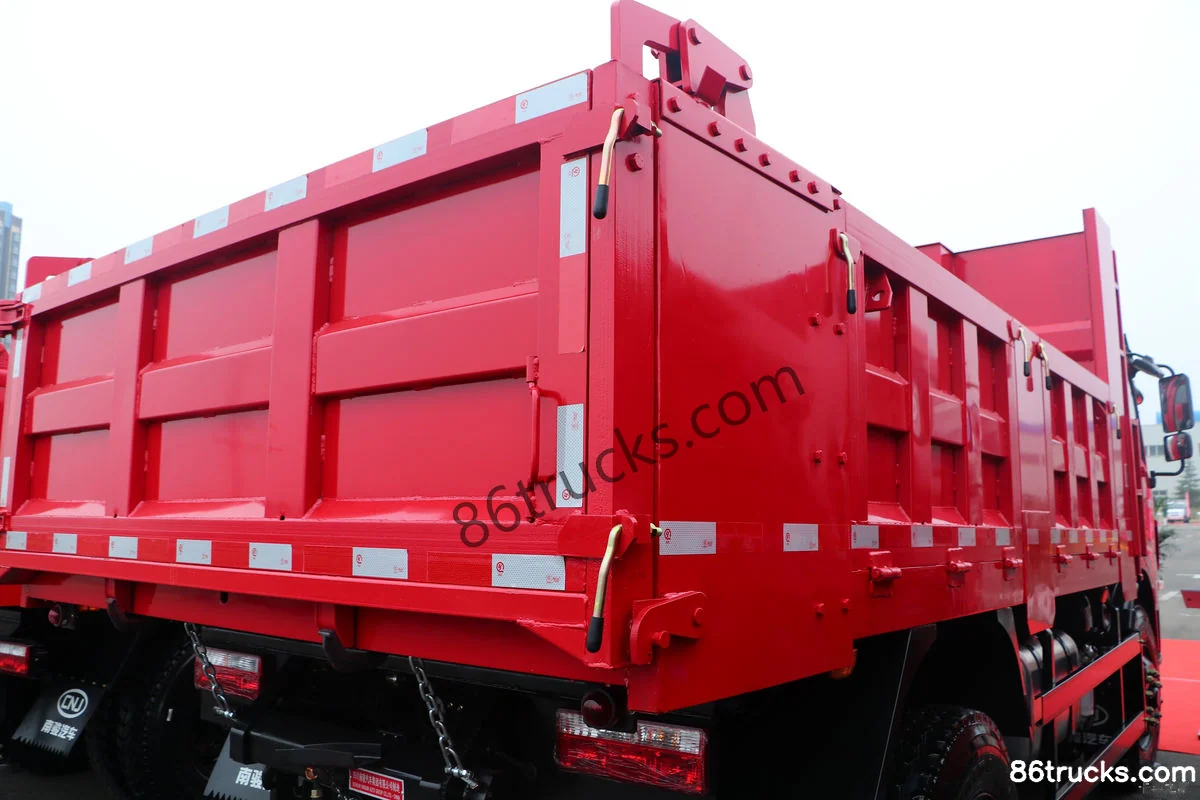

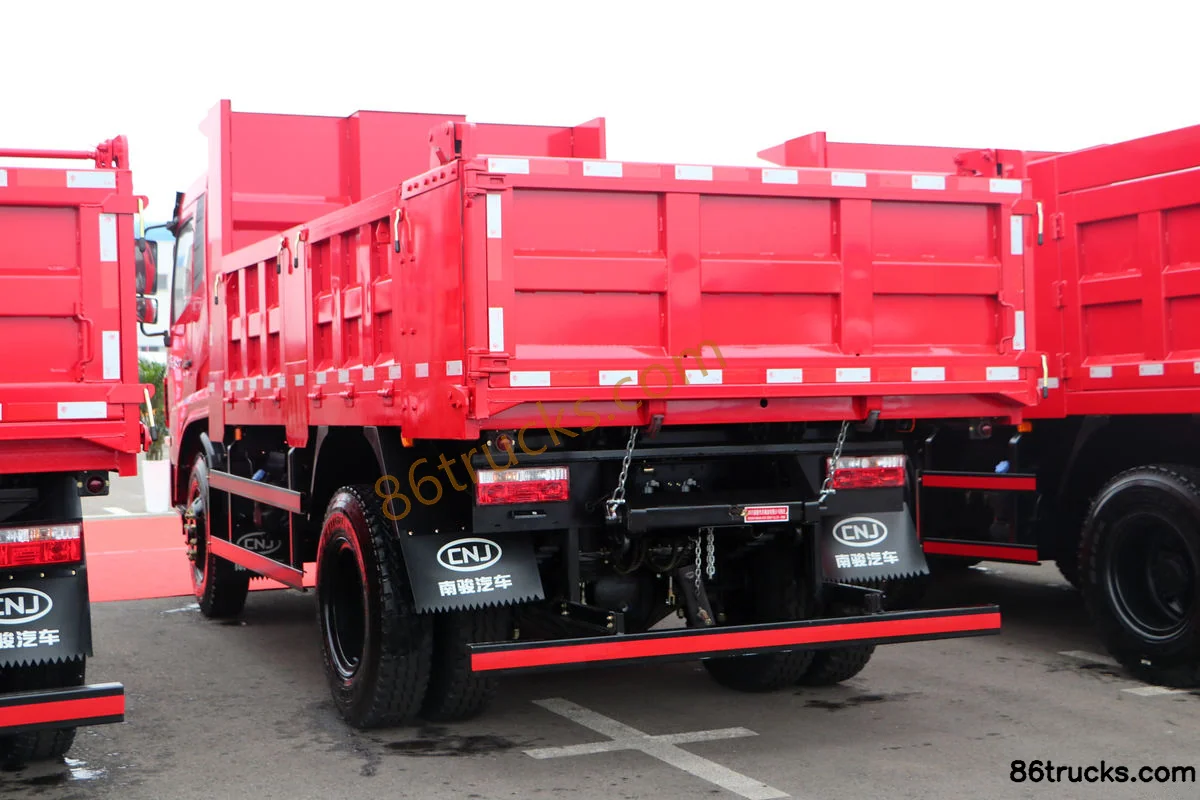

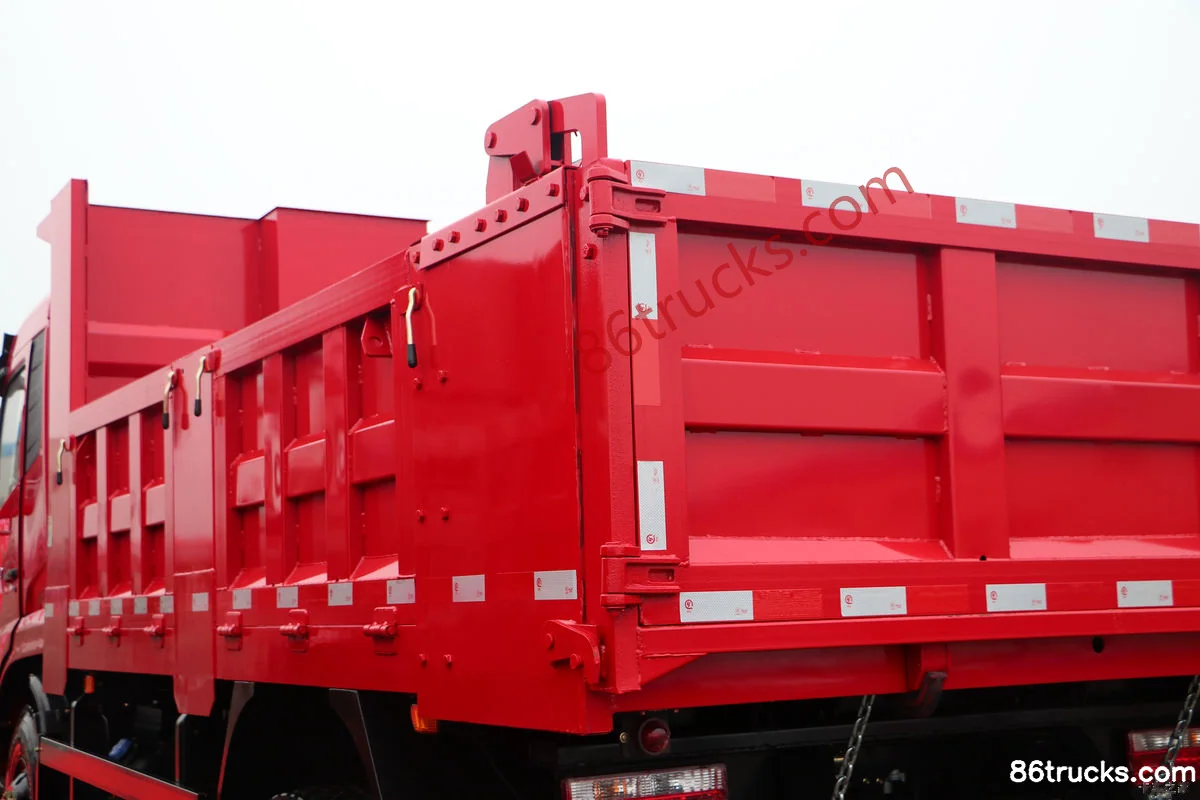

Cargo box parameters

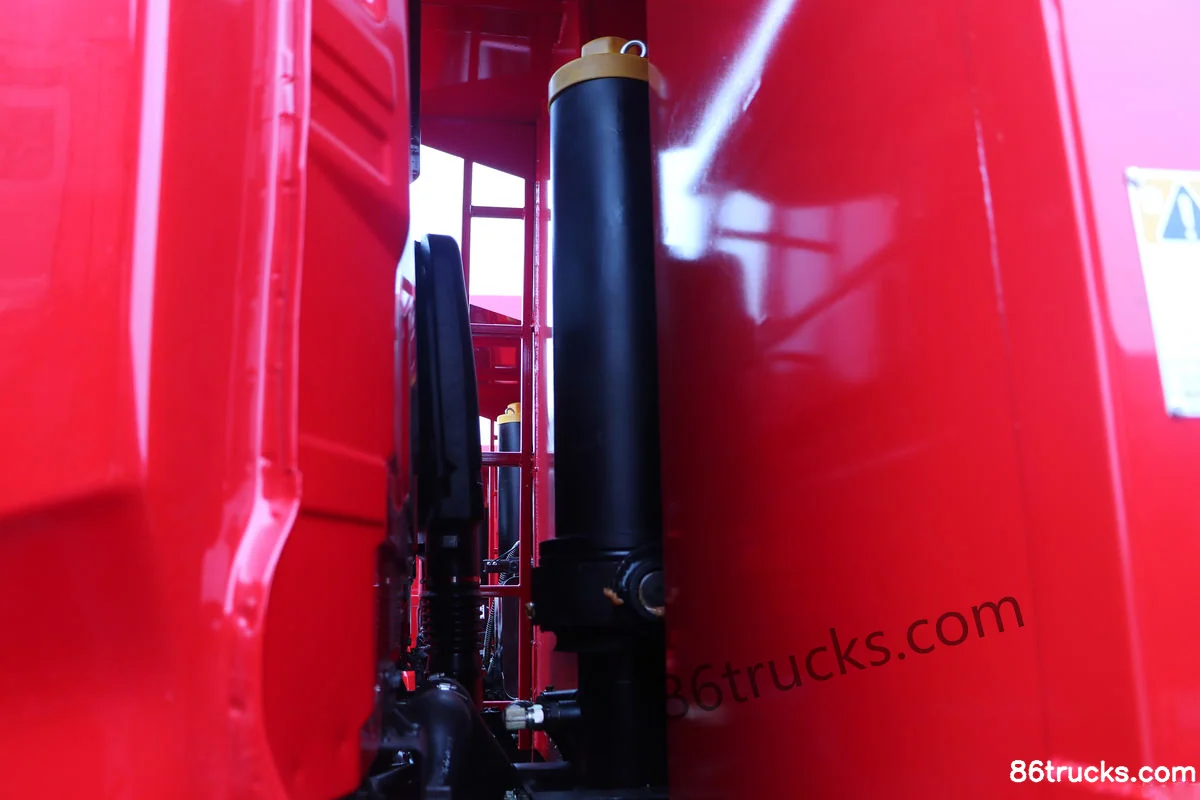

hydraulic cylinder brand & model: 3TG-130
Cargo box thickness: floor 5 side 3mm
Unloading Type: Dump type
Cargo box type: Dump type
Cargo box length: 4.35m
Cargo box width: 2.3m
Cargo box height: 0.8m

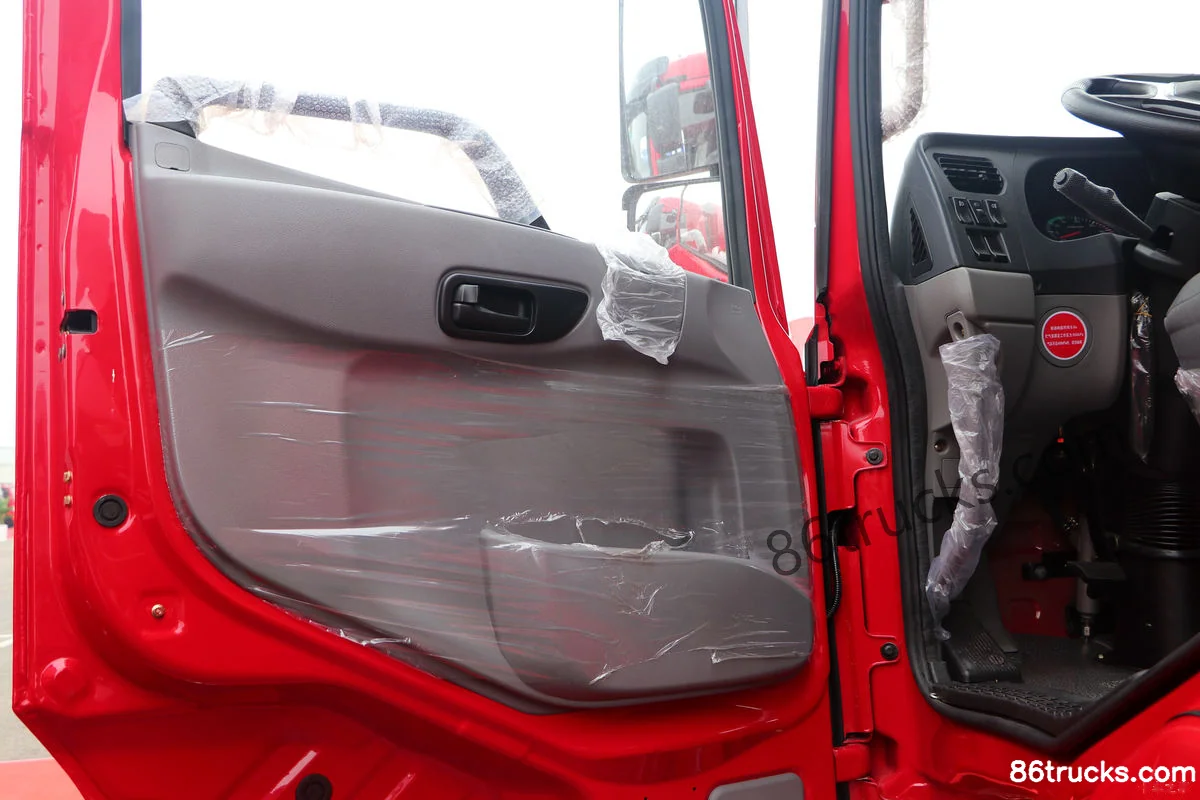

Cab parameters
Cab: Sleeper cab
Cab suspension: Four-point air suspension
Cab width: 2250mm
Driver seat type: air suspension seat
fuel tank
Fuel tank material: aluminum alloy

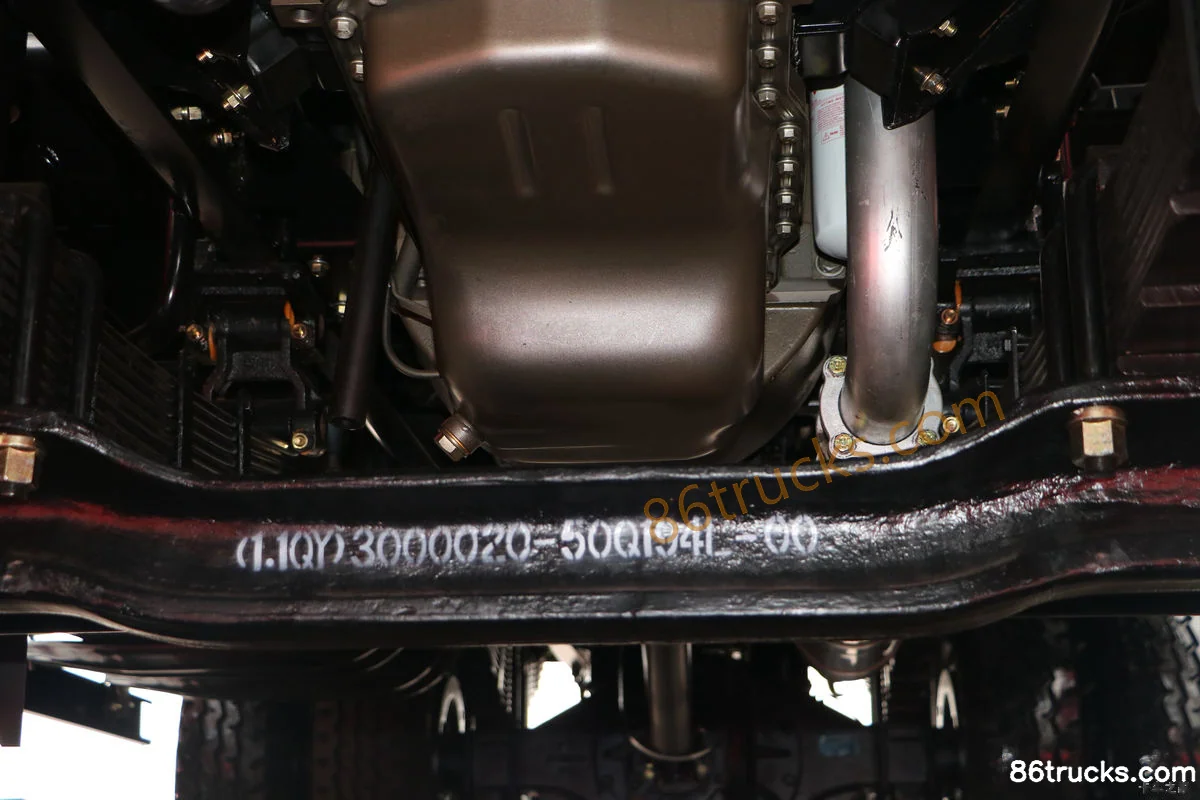

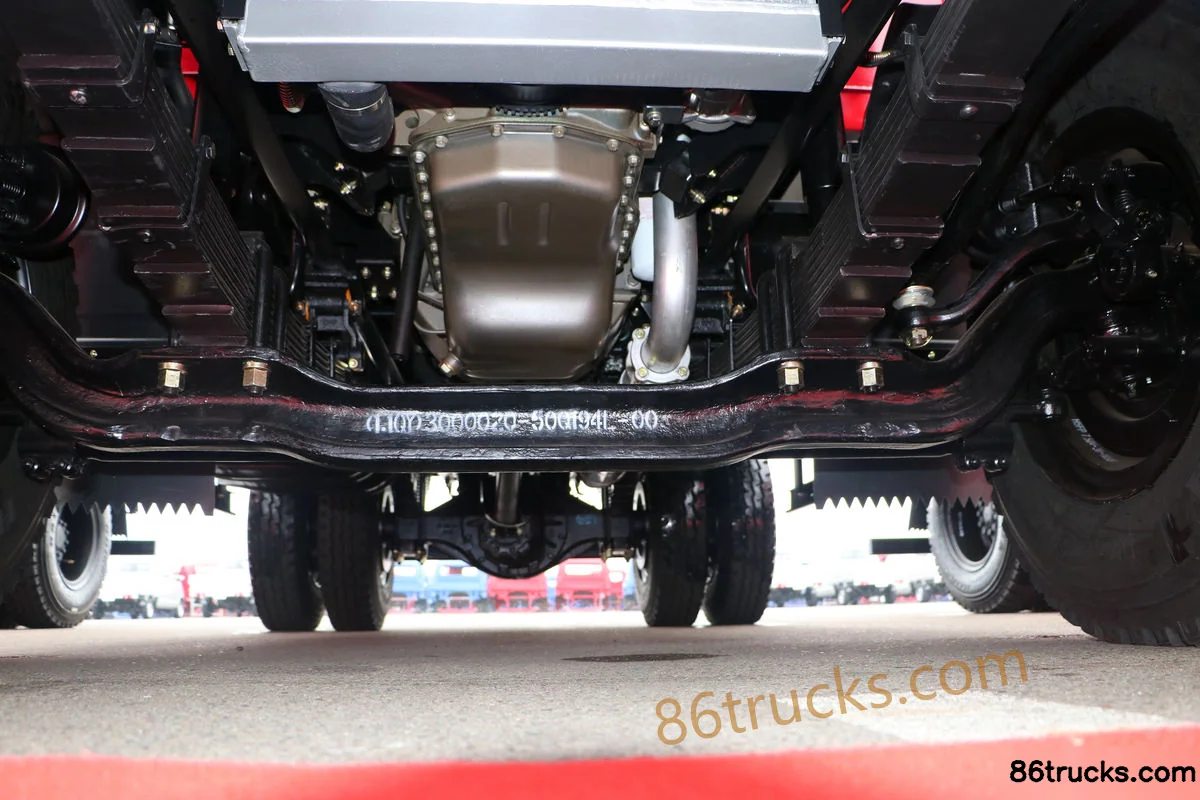

Chassis Specs
Front axle description: 153 front axle
Front axle allowable load: 6500kg
rear axle description: 457 rear axle
rear axle allowable load: 11500kg
Axle ratio: 6.833
Leaf spring count: 9/10+8
Tire
Tire Size: 10.00R20
Number of tires: 6pcs
Control configuration
ABS:
interior configuration
AC control type: Manual

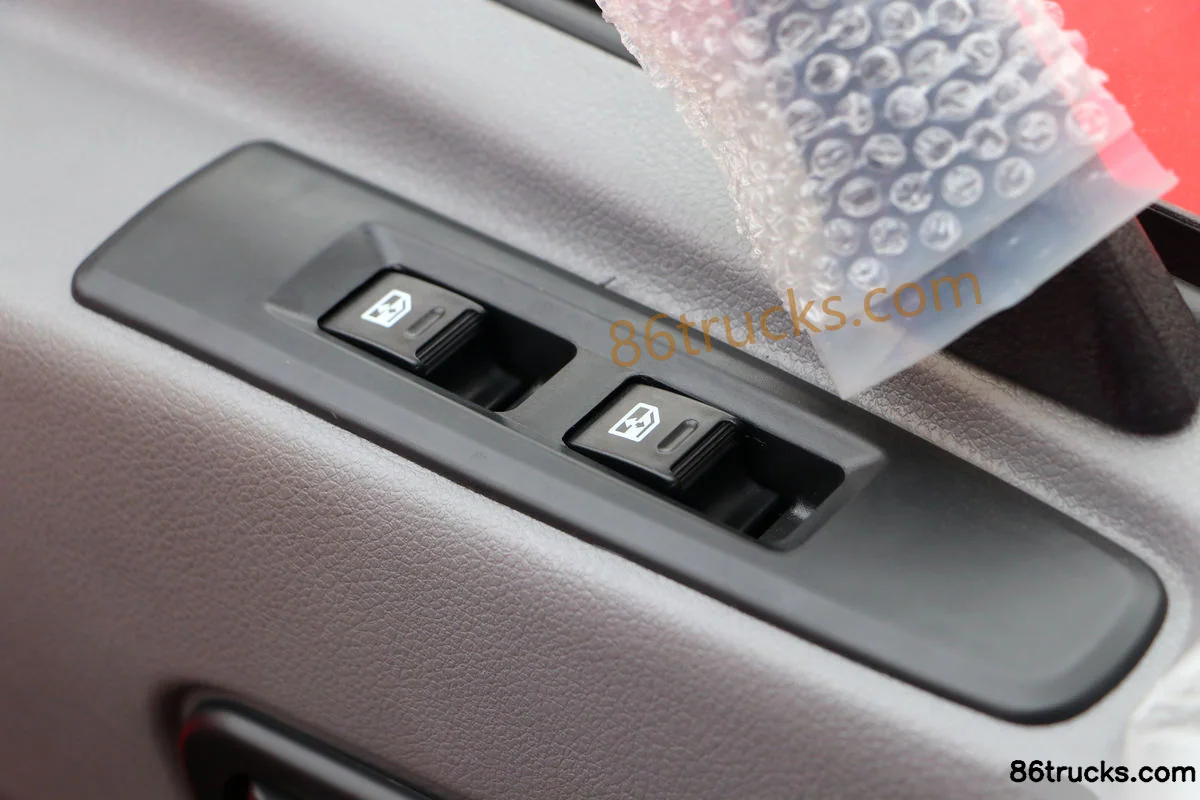

Power Windows:
Electronic Central Lock:

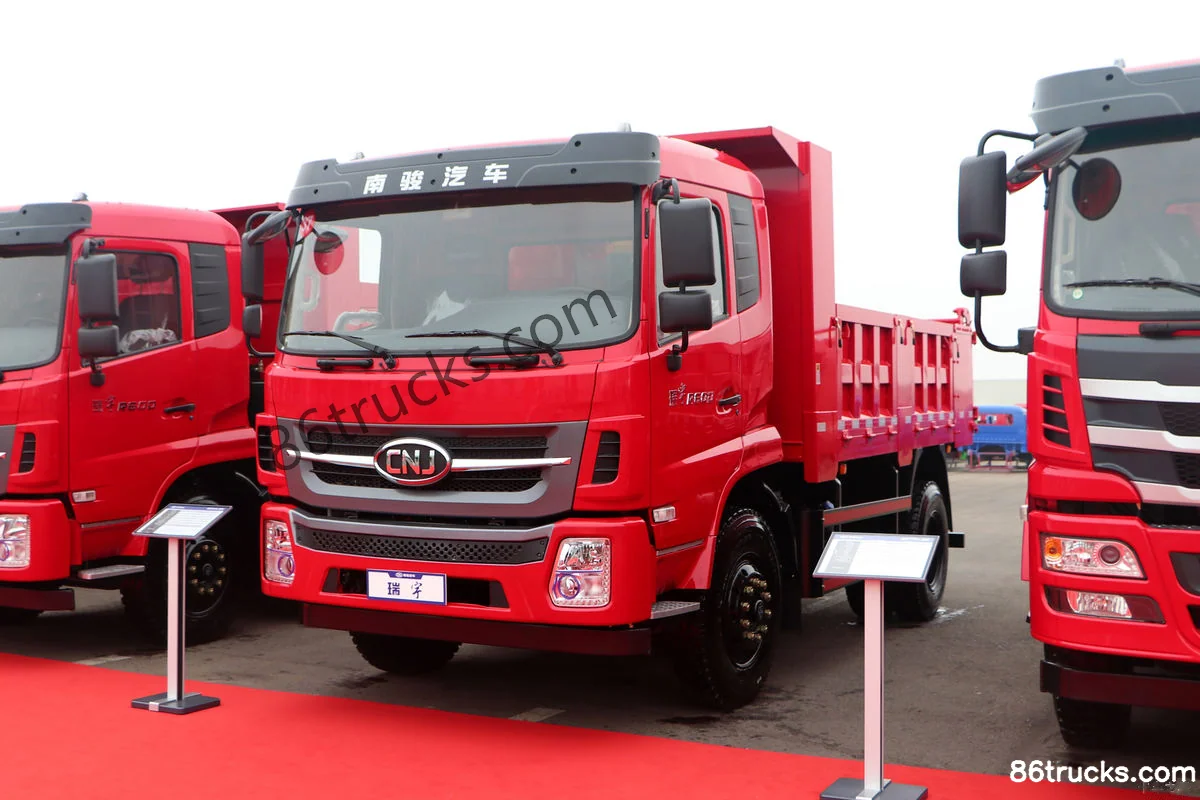

Photos

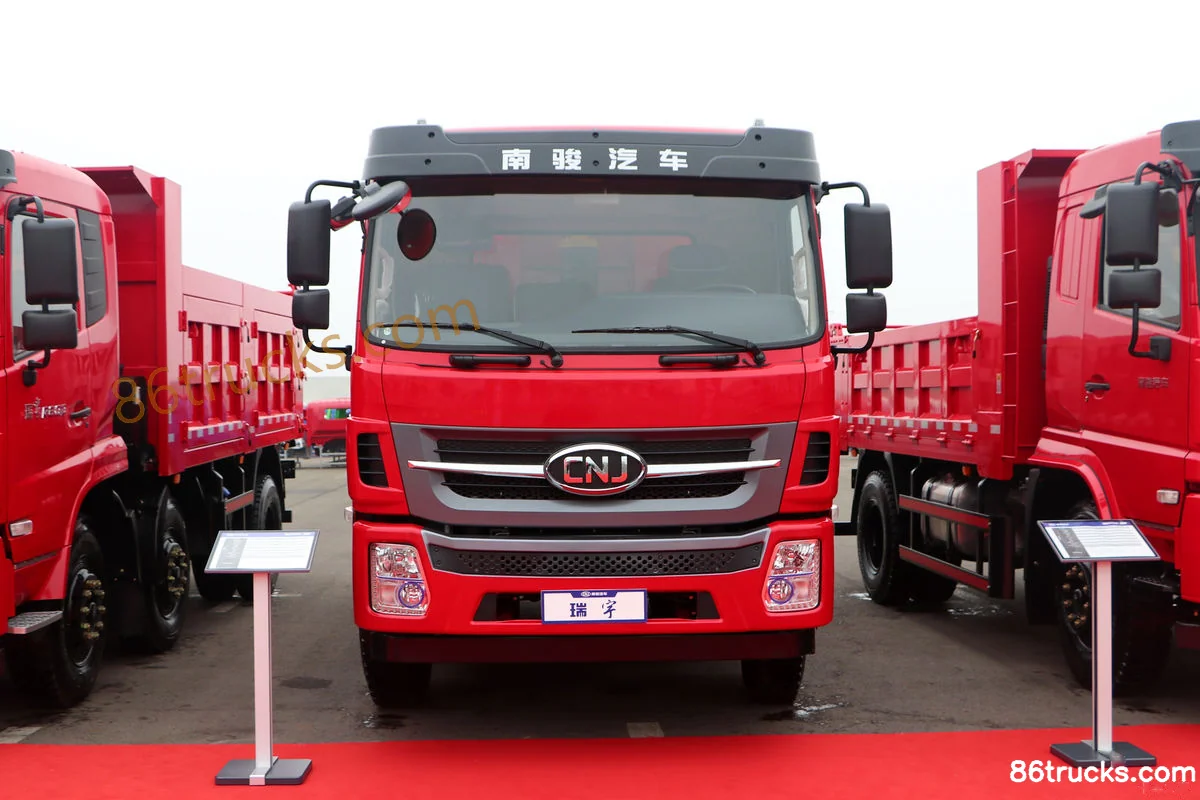

Exterior3

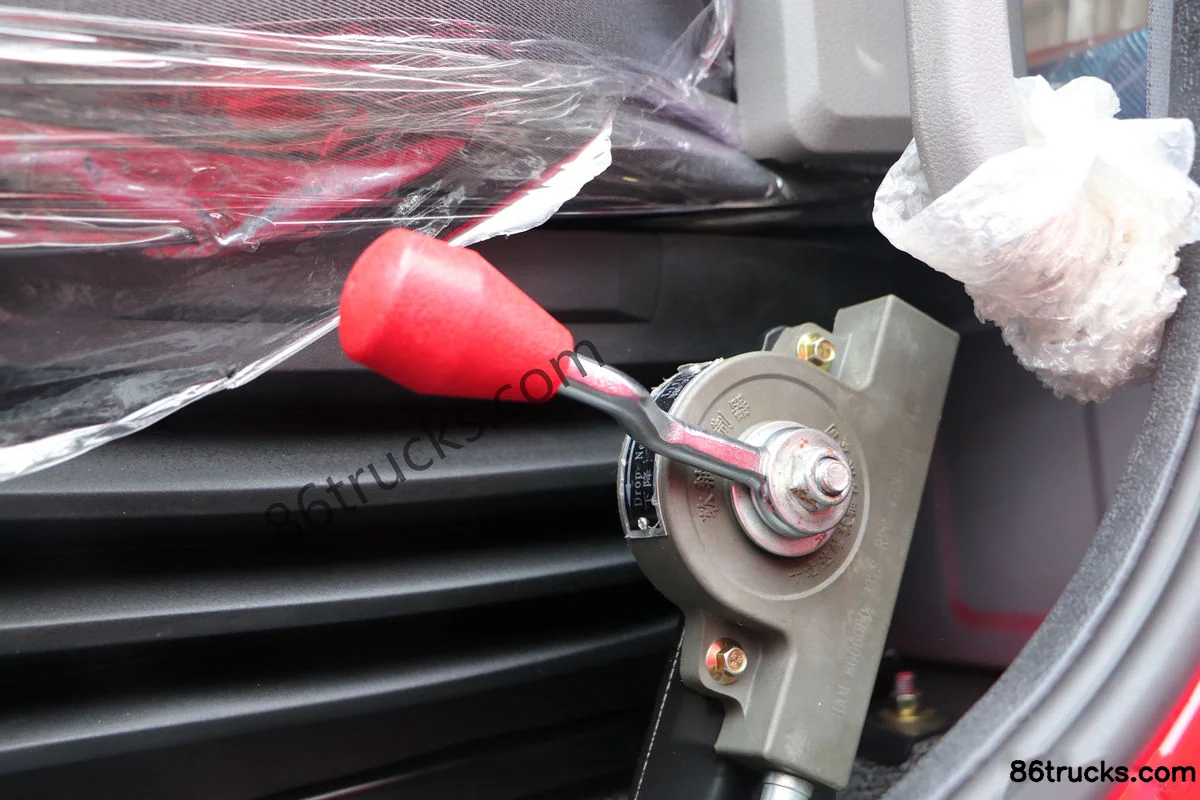

Cab3

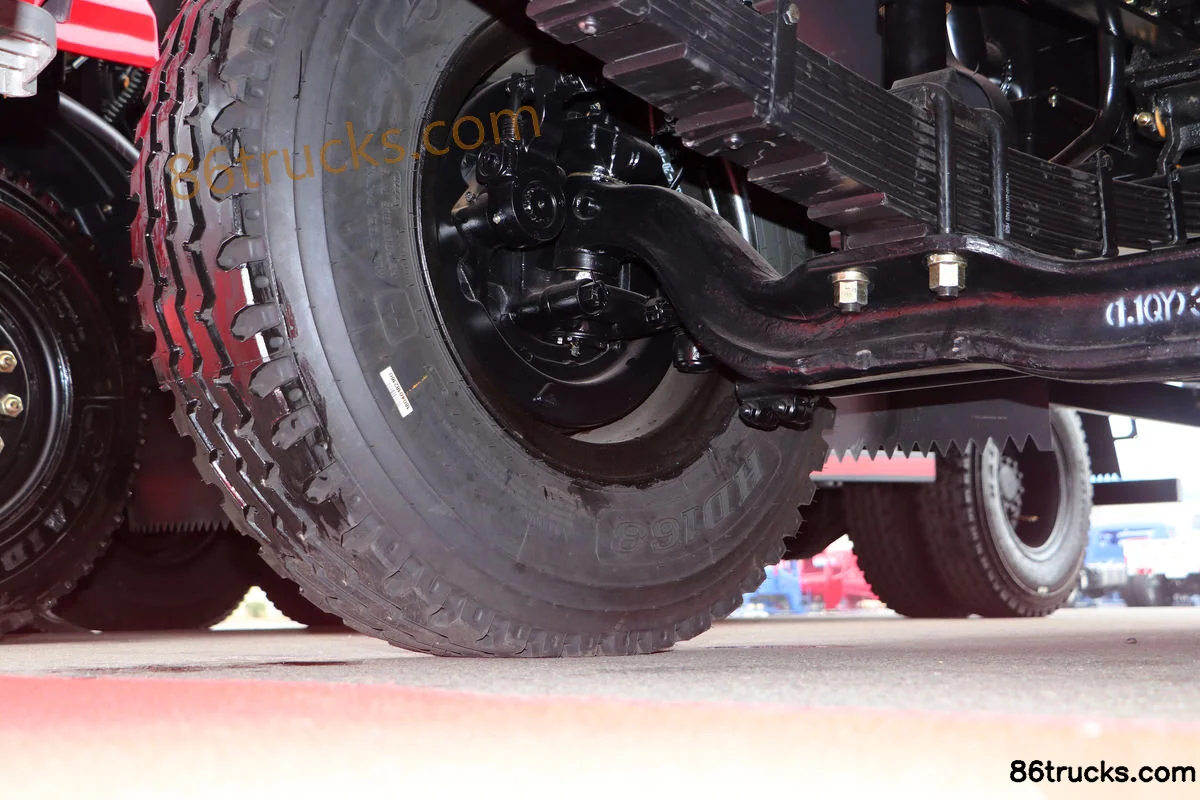

Chassis3

Body3

12 photos

FAQ

What is the export price of NanJun Ruiyu R60D 160hp 4X2(6 wheels) 4.35m Dump Truck, and what does it include?

NanJun Ruiyu R60D 160hp 4X2(6 wheels) 4.35m Dump Truck export reference is about From $26,639; MSRP is ¥19.18M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does NanJun Ruiyu R60D 160hp 4X2(6 wheels) 4.35m Dump Truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of NanJun Ruiyu R60D 160hp 4X2(6 wheels) 4.35m Dump Truck?

Key specs of NanJun Ruiyu R60D 160hp 4X2(6 wheels) 4.35m Dump Truck: Drive: 4x2; Horsepower: 160 hp; Emission: China V; Fuel: Diesel; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is NanJun Ruiyu R60D 160hp 4X2(6 wheels) 4.35m Dump Truck suited for?

NanJun Ruiyu R60D 160hp 4X2(6 wheels) 4.35m Dump Truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does NanJun Ruiyu R60D 160hp 4X2(6 wheels) 4.35m Dump Truck differ from other variants in the same series?

NanJun Ruiyu R60D 160hp 4X2(6 wheels) 4.35m Dump Truck belongs to NanJun Ruiyu Medium Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for NanJun Ruiyu R60D 160hp 4X2(6 wheels) 4.35m Dump Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export NanJun Ruiyu R60D 160hp 4X2(6 wheels) 4.35m Dump Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
