Sinotruk Sitrak G5 Heavy Truck 350 hp 8X4(12 wheels) 5.6m Dump Truck (China VI)

Export reference
MSRP N/A
Emission: China VI
Fuel: Diesel
Transmission: Sinotruk
Curb Weight:: 13ton
Wheelbase:: 1800+2600+1350mm
Tire Size:: 11.00R20
Rated payload: 17.87ton
Drive 8X4 (12 wheels)
Horsepower 350
Cargo box type: Dump type

Overview

The Sinotruk Sitrak G5 Heavy Truck 350 hp 8X4(12 wheels) 5.6m Dump Truck (China VI) is a Heavy truck featuring 17.87t payload, 31t GVW, Dump type cargo body and 8X4 (12 wheels) drive. On the powertrain side, it comes with a WeichaiWP8.350E61 engine, 350 hp, China VI emissions and Sinotruk transmission.

China VI 350 Diesel 8X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): ZZ3316N286GF1B
Drive type: 8X4
Wheelbase: 1800+2600+1350mm
engine: WeichaiWP8.350E61
transmission: SinotrukHW15710L
Rear Axle Ratio: 5.73
Cab length: 8.98m
Cab width: 2.55m
Cab height: 3.36m
Front track width: 2015/2015mm
rear track: 1850/1850mm
Curb Weight: 13ton
Rated payload: 17.87ton
GVWR: 31ton
Origin: Jinan, Shandong
tonnage class: Heavy truck
Approach angle: 16°
departure angle: 23°
Energy Type: Diesel
Engine parameters
Engine Brand: Weichai
Engine Model: WeichaiWP8.350E61
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 7.8L
Emission standard: China VI
Max output power: 257kW
Max hp: 350Horsepower
Max torque: 1400N·m
Max torque speed: 1200-1600rpm
Rated speed: 2100rpm
Engine Type: Inline 6-cylinder, water-cooled, 4-stroke, high-pressure common rail, turbocharged intercooled, EGR
Transmission Parameters
Transmission Model: SinotrukHW15710L
Transmission Brand: Sinotruk
shift method: Manual
Forward gears: 10Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Unloading Type: Dump type
Cargo box type: Dump type
Cargo box length: 5.6m
Cargo box width: 2.35m
Cargo box height: 1.2m
Cab parameters
Cab: G5-F
fuel tank
Fuel tank capacity: 270L
Chassis Specs
Front axle description: VGD75
Front axle allowable load: 6500/7000kg
rear axle description: MAT16ZG
rear axle allowable load: 17500 (two-axle group)kg
Axle ratio: 5.73
Leaf spring count: 4/4/5
Tire
Tire Size: 11.00R20
Number of tires: 12pcs

Photos

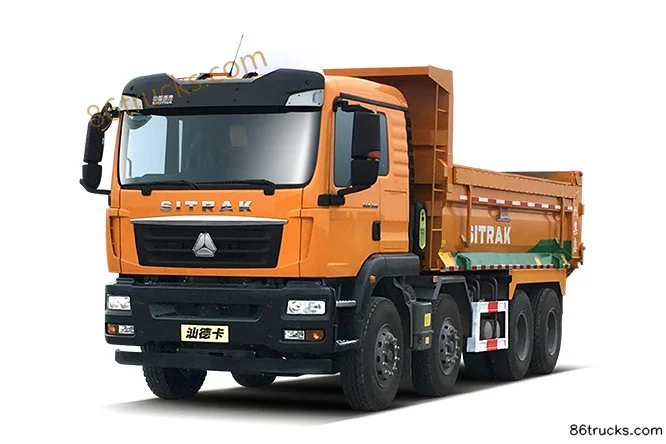

Exterior1

1 photos

FAQ

What emission standard does Sinotruk Sitrak G5 Heavy Truck 350 hp 8X4(12 wheels) 5.6m Dump Truck (China VI) use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Sinotruk Sitrak G5 Heavy Truck 350 hp 8X4(12 wheels) 5.6m Dump Truck (China VI)?

Key specs of Sinotruk Sitrak G5 Heavy Truck 350 hp 8X4(12 wheels) 5.6m Dump Truck (China VI): Drive: 8x4; Horsepower: 350 hp; Emission: China VI; Fuel: Diesel; Transmission: Sinotruk. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sinotruk Sitrak G5 Heavy Truck 350 hp 8X4(12 wheels) 5.6m Dump Truck (China VI) suited for?

Sinotruk Sitrak G5 Heavy Truck 350 hp 8X4(12 wheels) 5.6m Dump Truck (China VI) is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Sinotruk Sitrak G5 Heavy Truck 350 hp 8X4(12 wheels) 5.6m Dump Truck (China VI) differ from other variants in the same series?

Sinotruk Sitrak G5 Heavy Truck 350 hp 8X4(12 wheels) 5.6m Dump Truck (China VI) belongs to Sitrak G5 heavy truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sinotruk Sitrak G5 Heavy Truck 350 hp 8X4(12 wheels) 5.6m Dump Truck (China VI)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sinotruk Sitrak G5 Heavy Truck 350 hp 8X4(12 wheels) 5.6m Dump Truck (China VI)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
