XCMG Qilong T-Series 310hp 6X4(10 wheels) 5.2m dump truck

Export reference
From $38,889
MSRP ¥28M CNY
Emission: China V
Fuel: Diesel
Transmission: Fast Gear
Curb Weight:: 12.4ton
Wheelbase:: 3650+1350mm
Tire Size:: 12.00R20
Rated payload: 12.465ton
Drive 6X4 (10 wheels)
Horsepower 310
Cargo box type: Dump type

Overview

The XCMG Qilong T-Series 310hp 6X4(10 wheels) 5.2m dump truck is a Heavy truck featuring 12.465t payload, 24.995t GVW, Dump type cargo body and 6X4 (10 wheels) drive. On the powertrain side, it comes with a WeichaiWP10.310E53 engine, 310 hp, China V emissions and Fast Gear transmission.

China V 310 Diesel 6X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): NXG5250ZLJK5
Drive type: 6X4
Wheelbase: 3650+1350mm
engine: WeichaiWP10.310E53
transmission: Fast Gear10JSD160
Rear Axle Ratio: 5.262
Cab length: 8.15m
Cab width: 2.495m
Cab height: 3.55m
Front track width: 2047mm
rear track: 1860/1860mm
Curb Weight: 12.4ton
Rated payload: 12.465ton
GVWR: 24.995ton
Origin: Nanjing, Jiangsu
tonnage class: Heavy truck
Approach angle: 26°
departure angle: 31°
Energy Type: Diesel
Engine parameters
Engine Brand: Weichai
Engine Model: WeichaiWP10.310E53
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 9.726L
Emission standard: China V
Max output power: 228kW
Max hp: 310Horsepower
Max torque: 1500N·m
Max torque speed: 1200-1500rpm
Rated speed: 1900rpm
Engine Type: Inline 6-cylinder, electronic high-pressure common rail, SCR
Transmission Parameters
Transmission Model: Fast Gear10JSD160
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 10Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Unloading Type: Dump type
Cargo box type: Dump type
Cargo box length: 5.2m
Cargo box width: 2.3m
Cargo box height: 1.13m
Cab parameters
Cab tilting: Manual
Driver seat type: air suspension seat
fuel tank
Fuel tank capacity: 300L
Chassis Specs
Front axle description: 7.5T
Front axle allowable load: 6995kg
Frame Dimensions: 320×(8+6)mm
rear axle description: 16T cast steel
rear axle allowable load: 18000 (tandem axle group)kg
Axle ratio: 5.262
Leaf spring count: 9/13
Tire
Tire Size: 12.00R20
Number of tires: 10pcs
Control configuration
ABS:
interior configuration
AC control type: Automatic
Power Windows:
Electronic Central Lock:
Multimedia features
GPS/Beidou driving recorder:

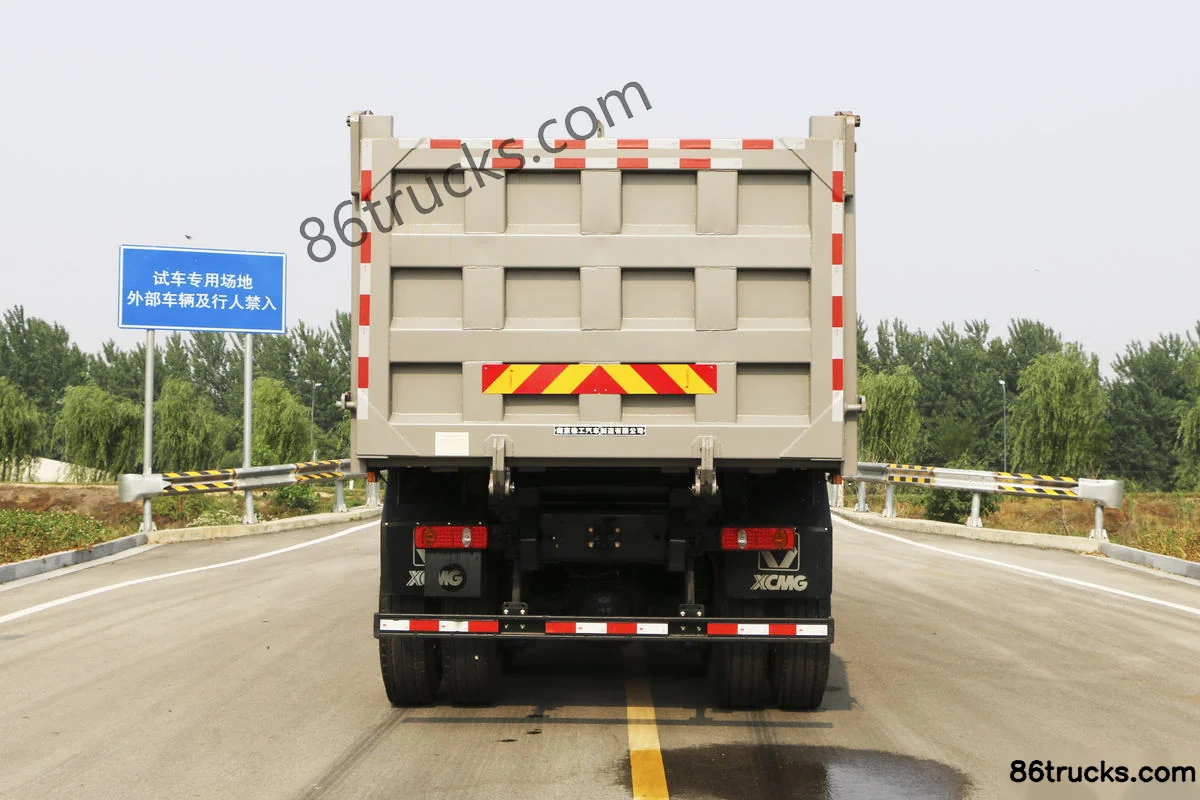

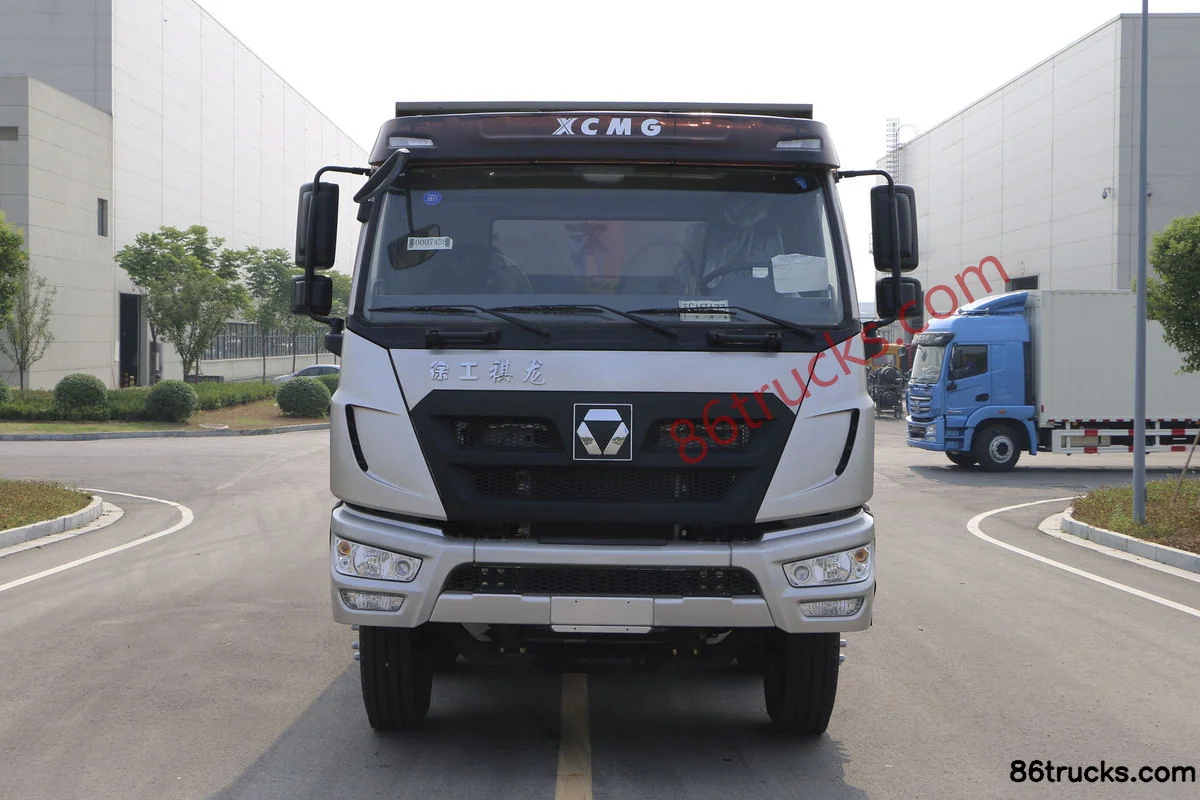

Photos

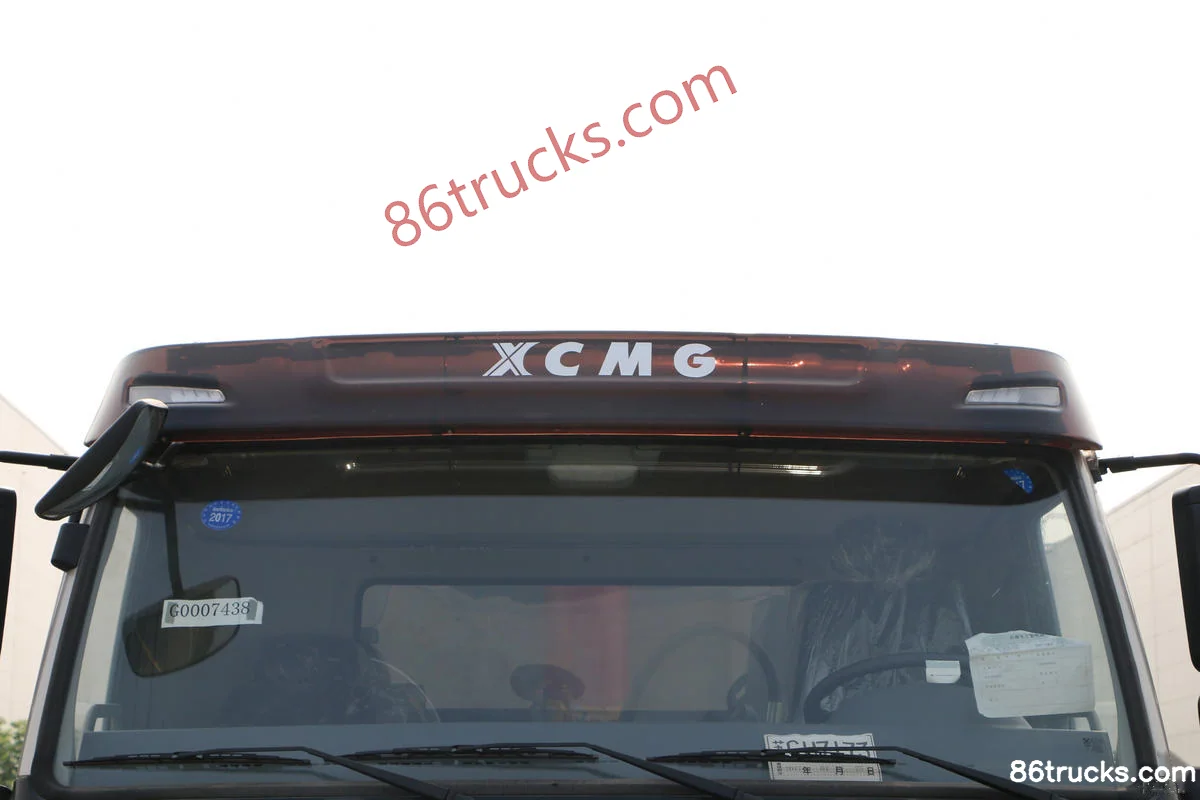

Exterior3

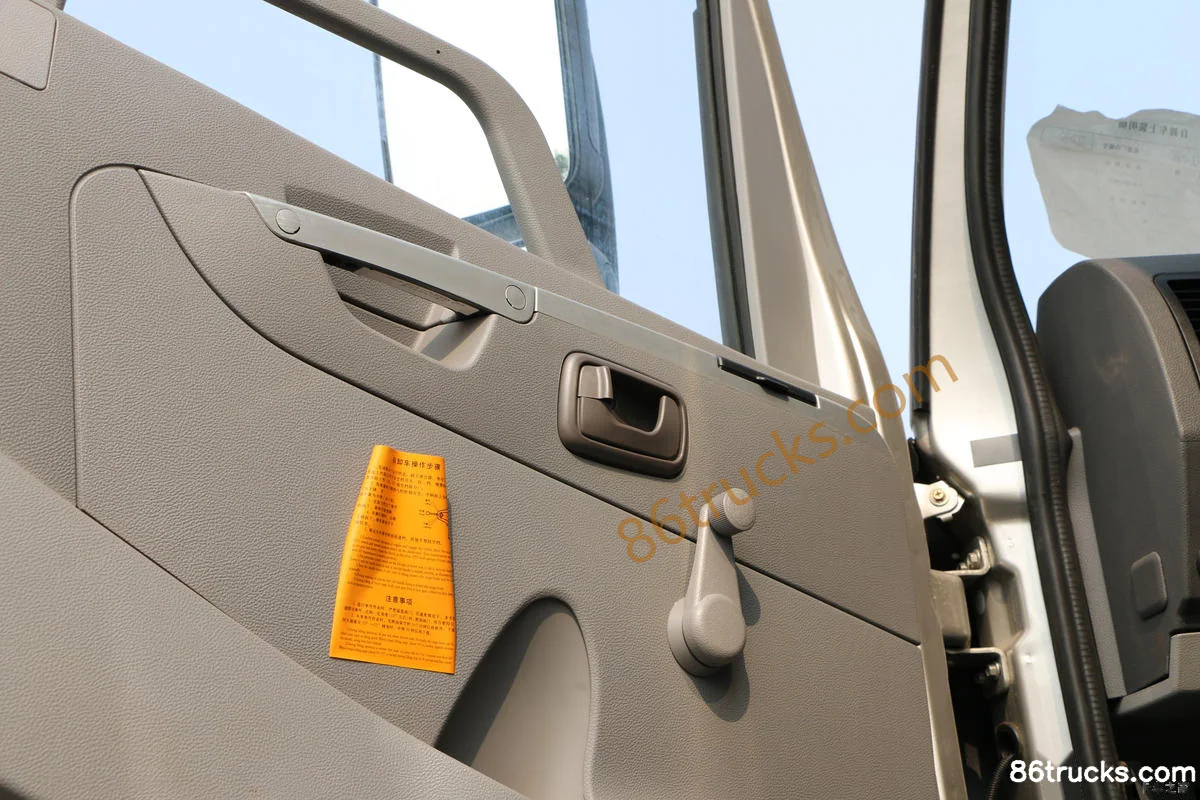

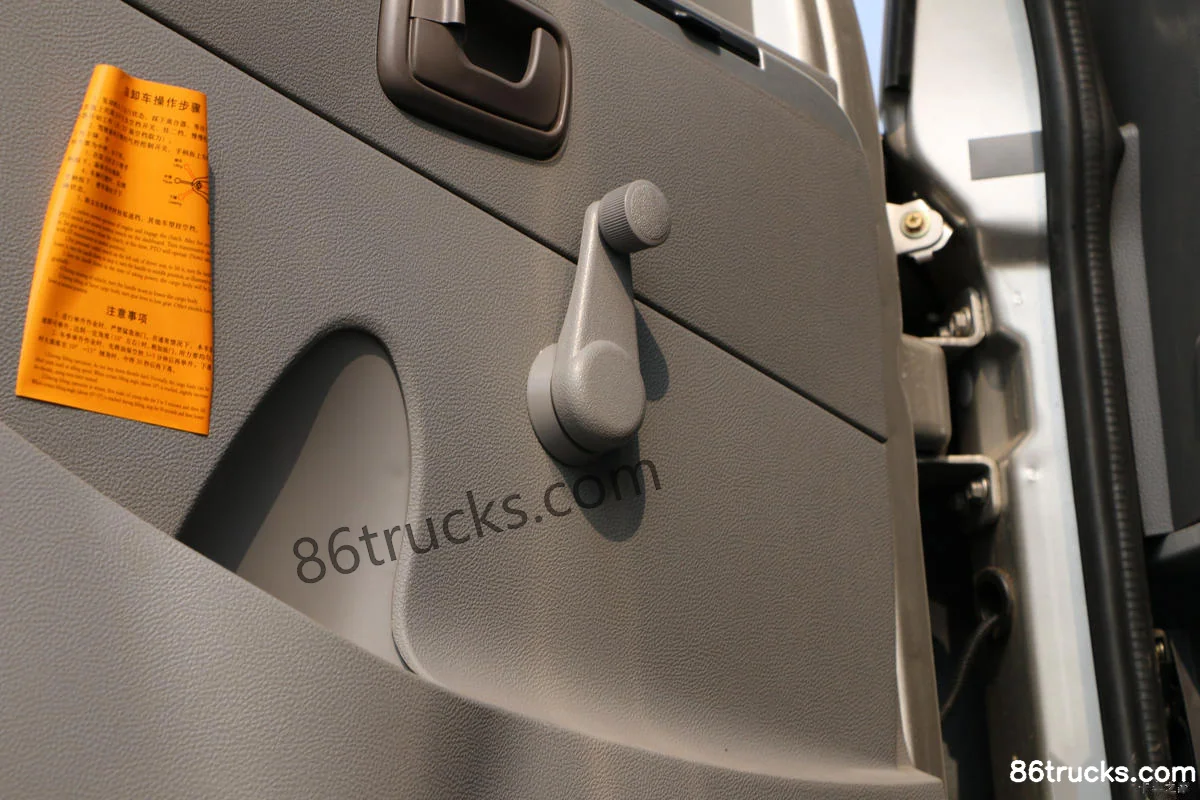

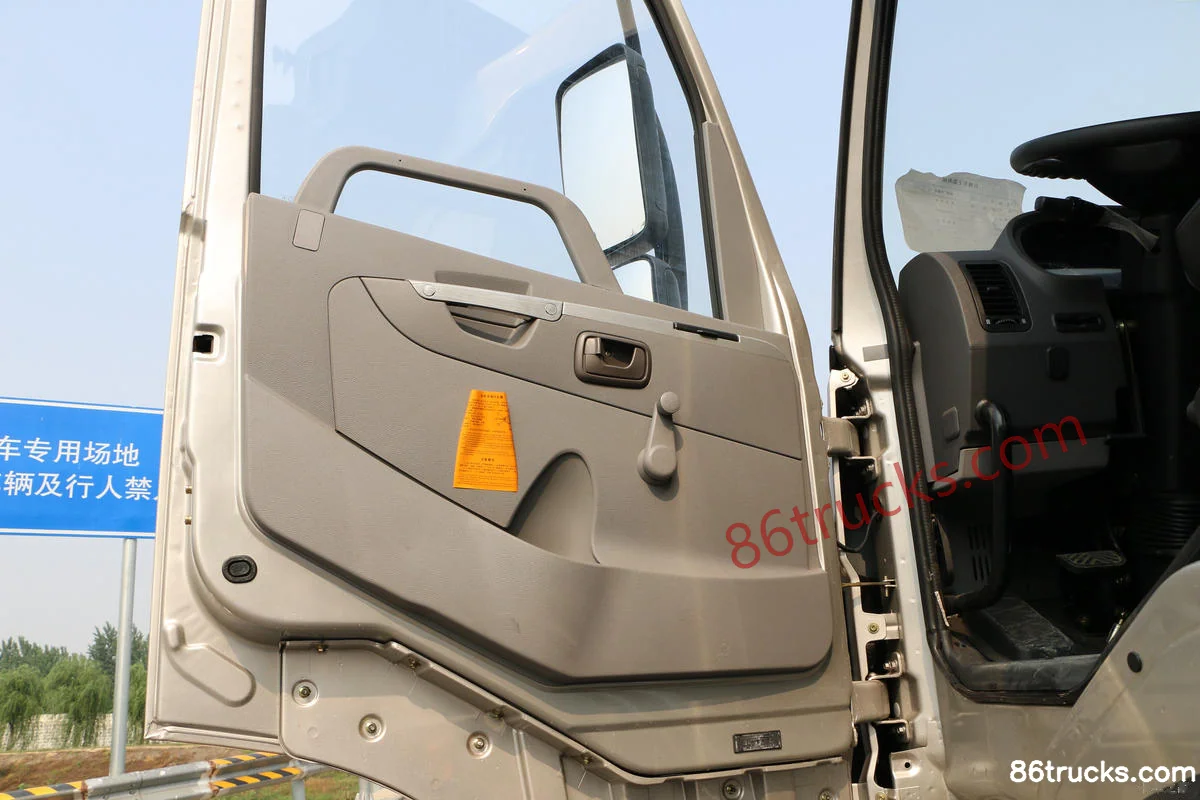

Cab3

6 photos

FAQ

What is the export price of XCMG Qilong T-Series 310hp 6X4(10 wheels) 5.2m dump truck, and what does it include?

XCMG Qilong T-Series 310hp 6X4(10 wheels) 5.2m dump truck export reference is about From $38,889; MSRP is ¥28M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does XCMG Qilong T-Series 310hp 6X4(10 wheels) 5.2m dump truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of XCMG Qilong T-Series 310hp 6X4(10 wheels) 5.2m dump truck?

Key specs of XCMG Qilong T-Series 310hp 6X4(10 wheels) 5.2m dump truck: Drive: 6x4; Horsepower: 310 hp; Emission: China V; Fuel: Diesel; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is XCMG Qilong T-Series 310hp 6X4(10 wheels) 5.2m dump truck suited for?

XCMG Qilong T-Series 310hp 6X4(10 wheels) 5.2m dump truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does XCMG Qilong T-Series 310hp 6X4(10 wheels) 5.2m dump truck differ from other variants in the same series?

XCMG Qilong T-Series 310hp 6X4(10 wheels) 5.2m dump truck belongs to XCMG Truck Qilong T Series (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for XCMG Qilong T-Series 310hp 6X4(10 wheels) 5.2m dump truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export XCMG Qilong T-Series 310hp 6X4(10 wheels) 5.2m dump truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
