Shidai Jingang 130 hp 4X2(6 wheels) concrete mixer truck

Export reference
MSRP N/A
Fuel: Diesel
Curb Weight:: 7.99ton
Wheelbase:: 3600mm
Tire Size:: 9.00-20
Cab dimensions:: 6.765×2.499×3.42m
Truck Type:: Concrete mixer truck
Shidai Jingang 130 hp 4X2(6 wheels) concrete mixer truck exterior
View more photos (9)
Rated payload: 7.805ton
Drive 4X2 (6 wheels)
Horsepower 130
Emission China III / Euro III

Overview

The Foton Shidai Jingang 130 hp 4X2(6 wheels) concrete mixer truck is a concrete mixer truck featuring 7.805t payload, 7.99ton GVW, 4X2 (6 wheels) drive and 6.765×2.499×3.42m cab. On the powertrain side, it comes with 130 hp, China III / Euro III emissions and Diesel fuel.

China III / Euro III 130 Diesel 4X2

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Cab dimensions: 6.765×2.499×3.42m
Drive type: 4X2
Truck Type: Concrete mixer truck
Wheelbase: 3600mm
Front/rear track width: Front track: 1790mm; Rear track: 1725mm
Vehicle origin: Hunan
Curb Weight: 7.99ton
Rated payload: 7.805ton
Max. speed: 80km/h
Front/rear suspension: 1.19/1.975m
Body Parameters
Drum geometric volume: 6m³
Slump: 50mm
Mixing drum capacity: 4m³
Drum rotation speed: 6-8r/min
Feed rate: 3m³/min
Discharge speed: 2m³/min
Discharge residue rate: <0.7%
Filling Rate: 58.7%
water supply method: Air pressure water supply
Vehicle certification code: BJ5162GJB1

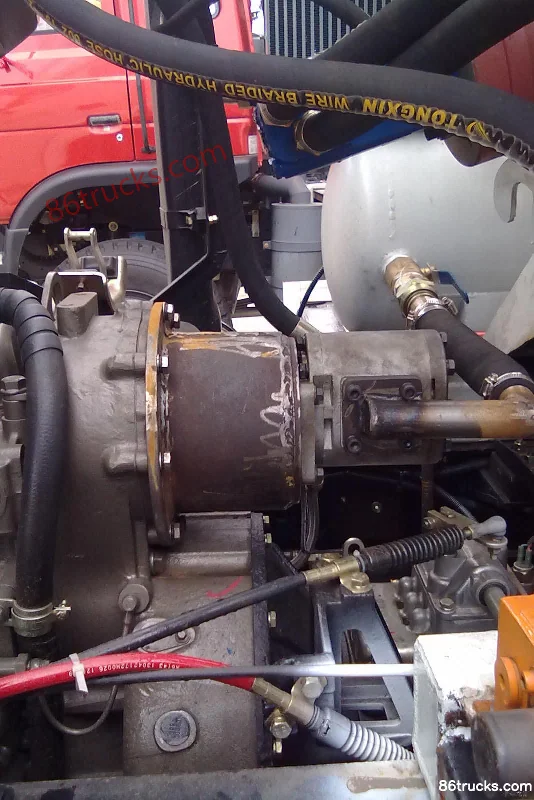

hydraulic system: Closed hydraulic circuit
Engine parameters
Engine Model: Yuchai YC4D130-33
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 4L
Emission standard: China III / Euro III
Max output power: 96kW
Max hp: 130Horsepower
Rated speed: 2800rpm
Engine Type: Inline

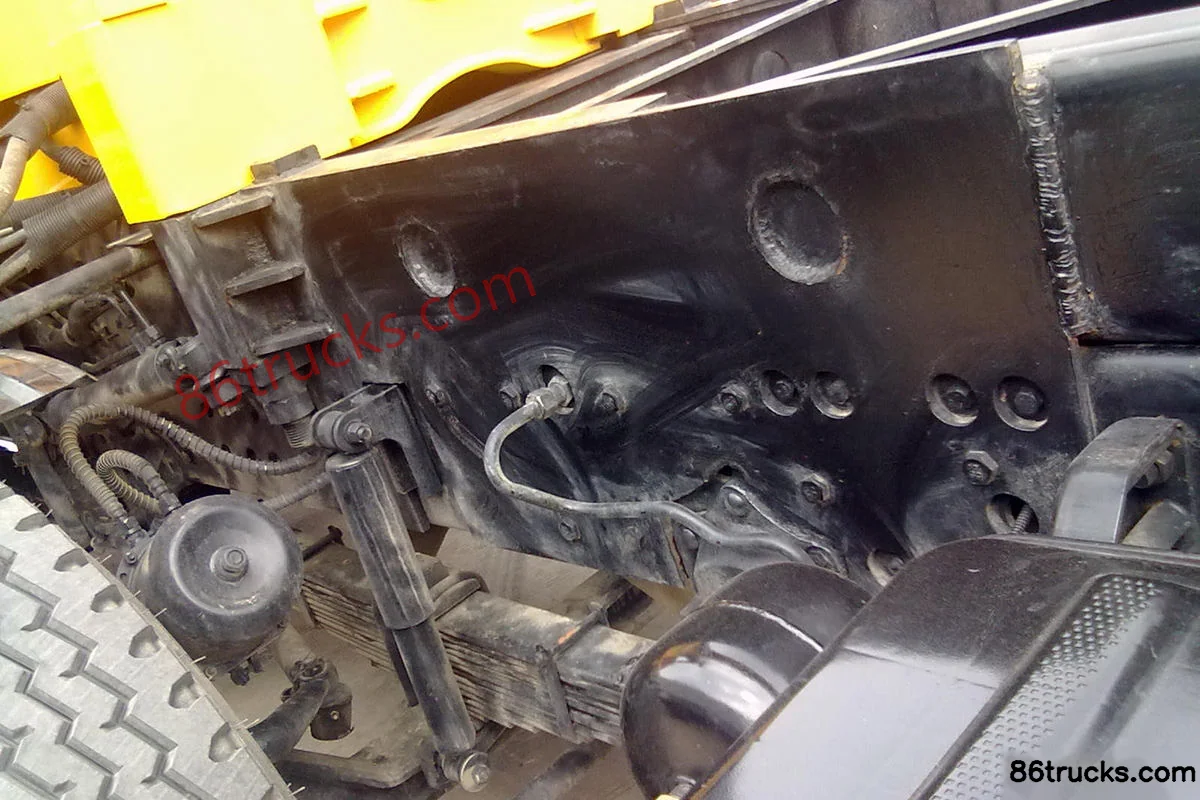

Chassis Specs
Chassis Series: King Kong
Chassis Model: BJ1162V5PDB-E1
rear axle description: 8
Leaf spring count: 9/11+9
Transmission Parameters
Number of gears: 5Gear
Transmission Model: 145HF
Tire
Tire Size: 9.00-20
Number of tires: 6pcs

Photos

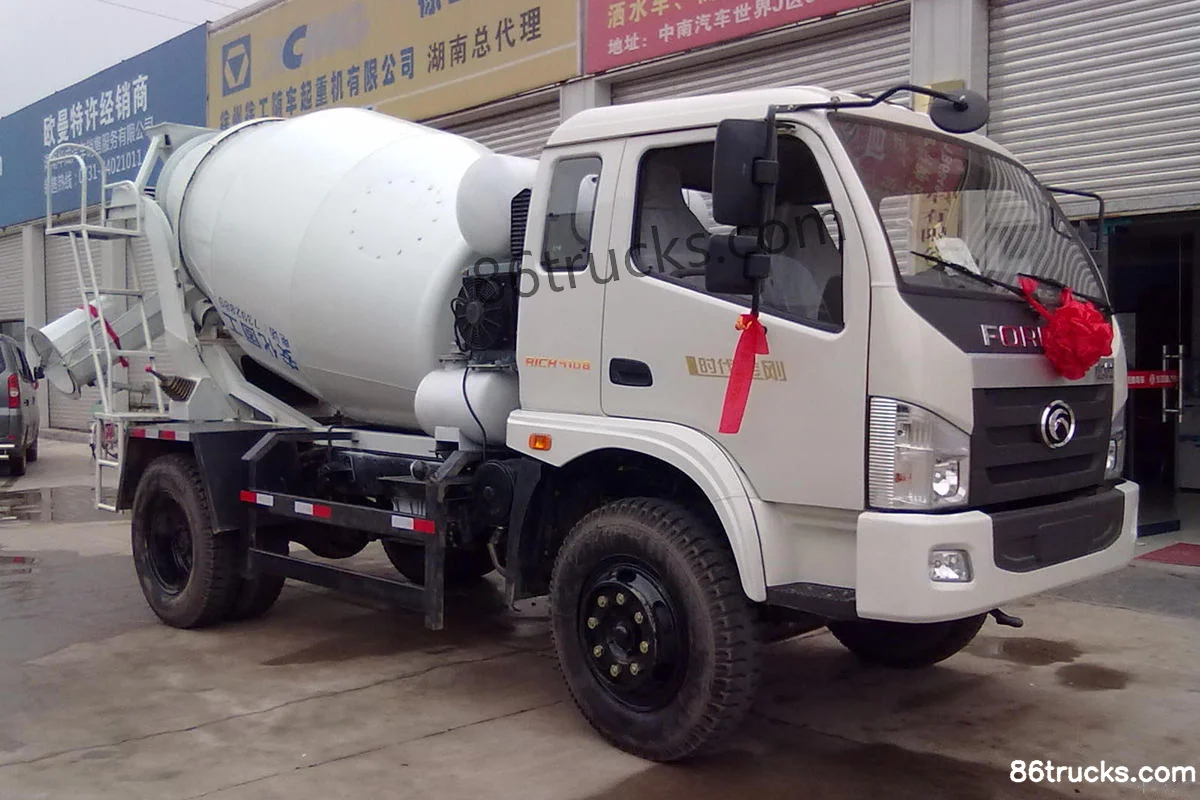

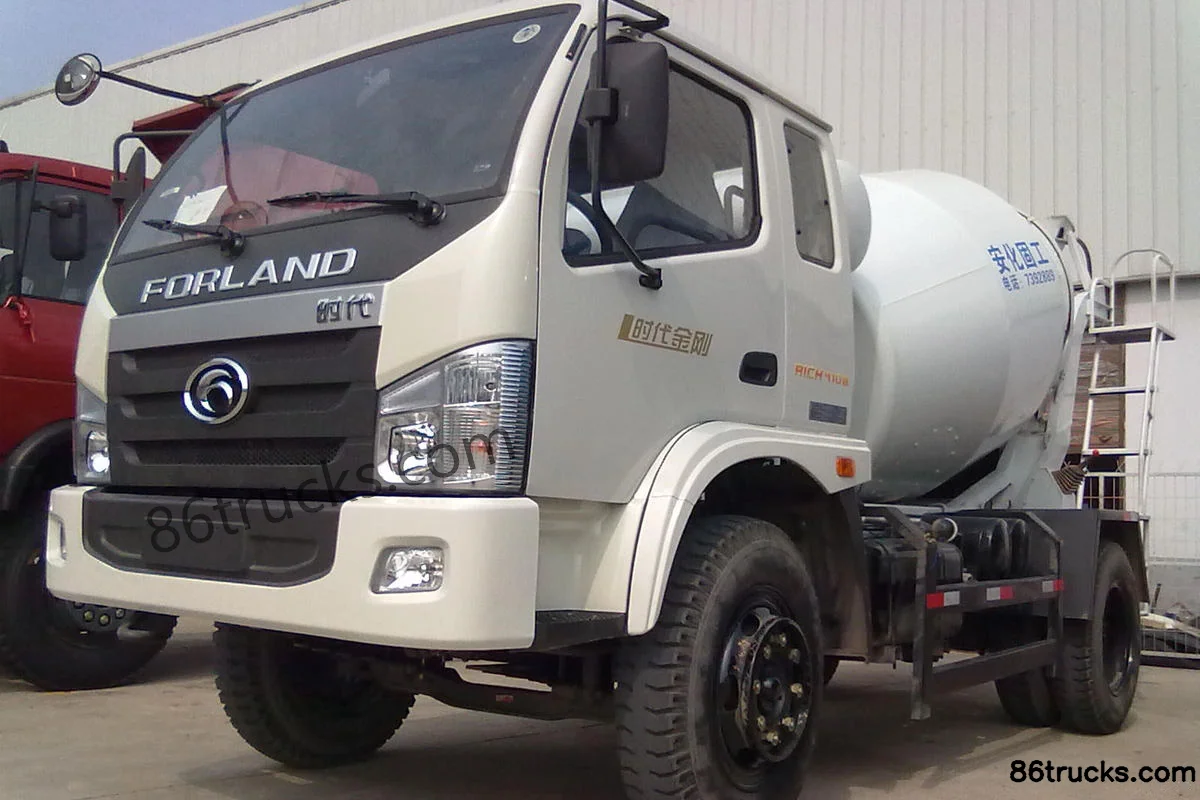

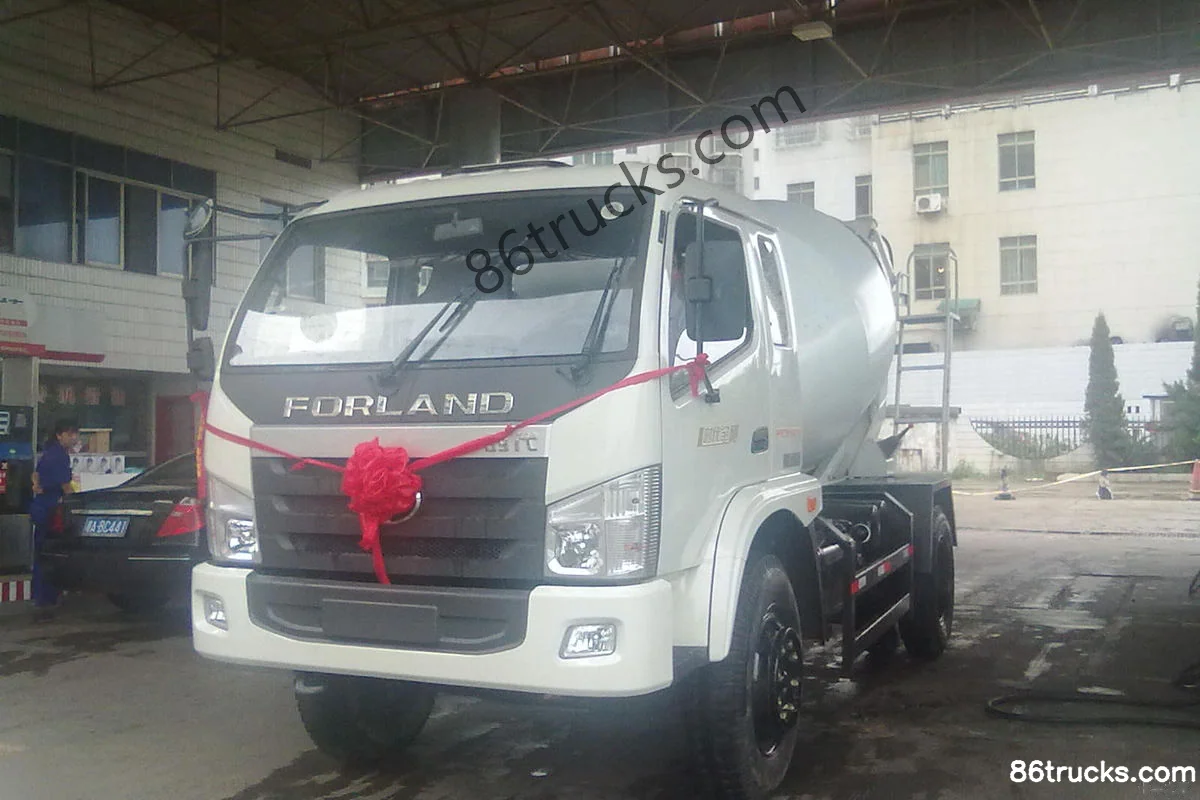

Exterior3

Shidai Jingang 130 hp 4X2(6 wheels) concrete mixer truck Exterior (1) | 86Trucks Shidai Jingang 130 hp 4X2(6 wheels) concrete mixer truck Exterior (2) | 86Trucks Shidai Jingang 130 hp 4X2(6 wheels) concrete mixer truck Exterior (3) | 86Trucks

Cab3

Shidai Jingang 130 hp 4X2(6 wheels) concrete mixer truck Cab (1) | 86Trucks Shidai Jingang 130 hp 4X2(6 wheels) concrete mixer truck Cab (2) | 86Trucks Shidai Jingang 130 hp 4X2(6 wheels) concrete mixer truck Cab (3) | 86Trucks

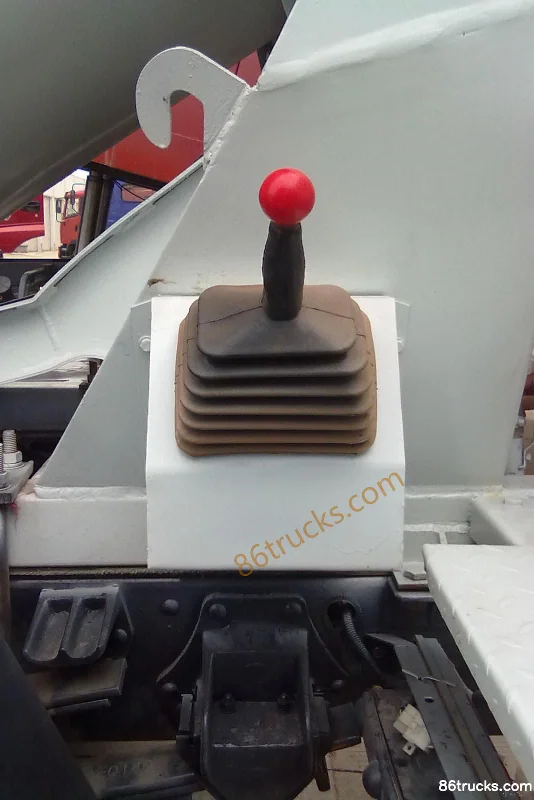

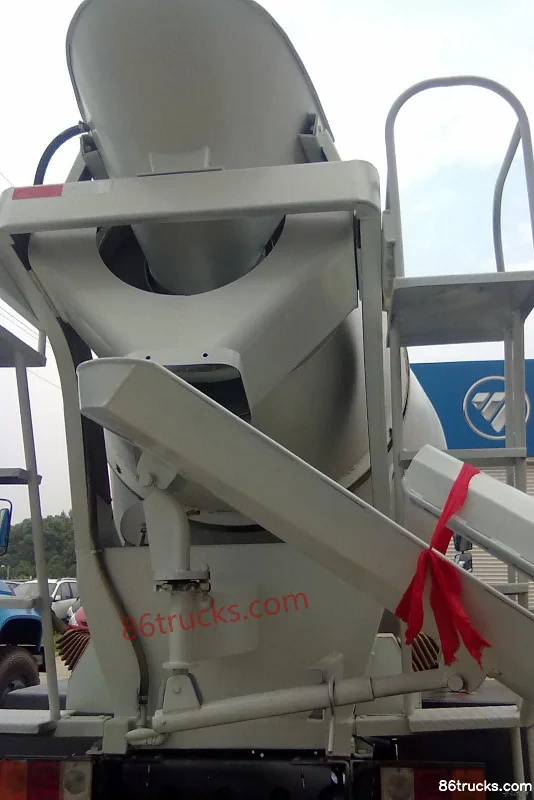

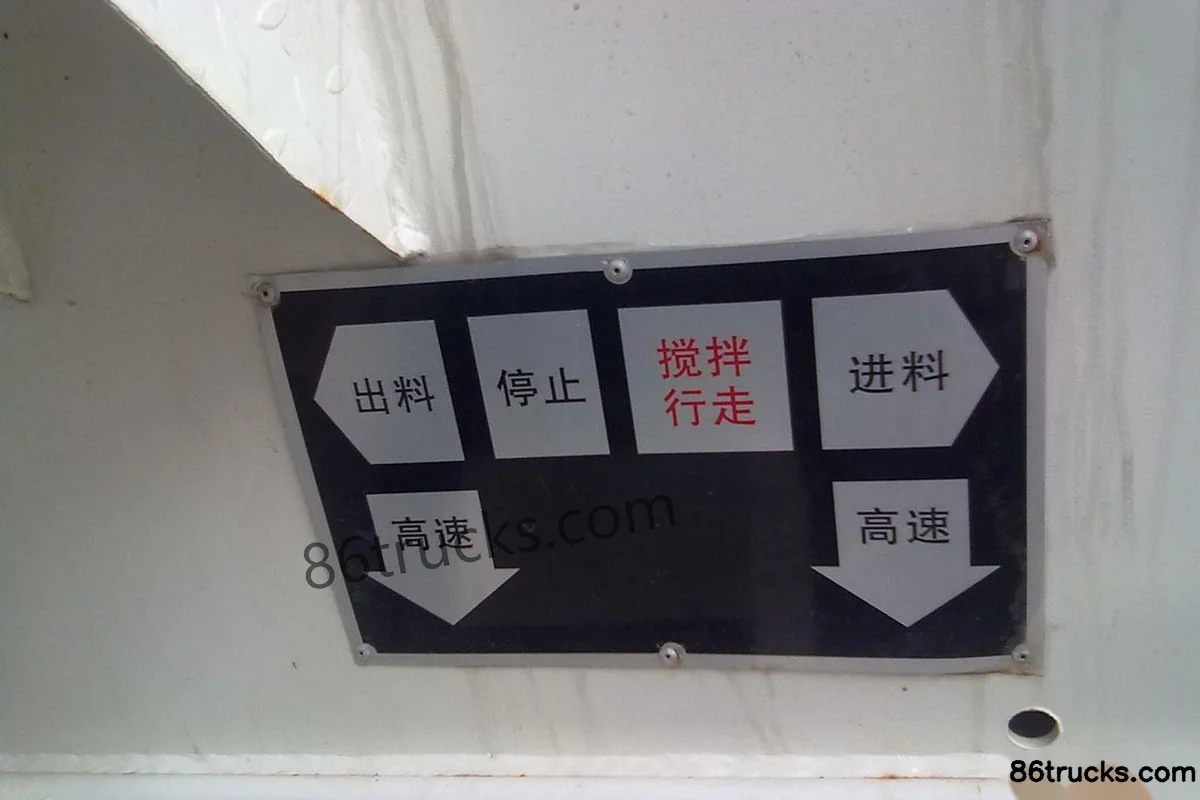

Body3

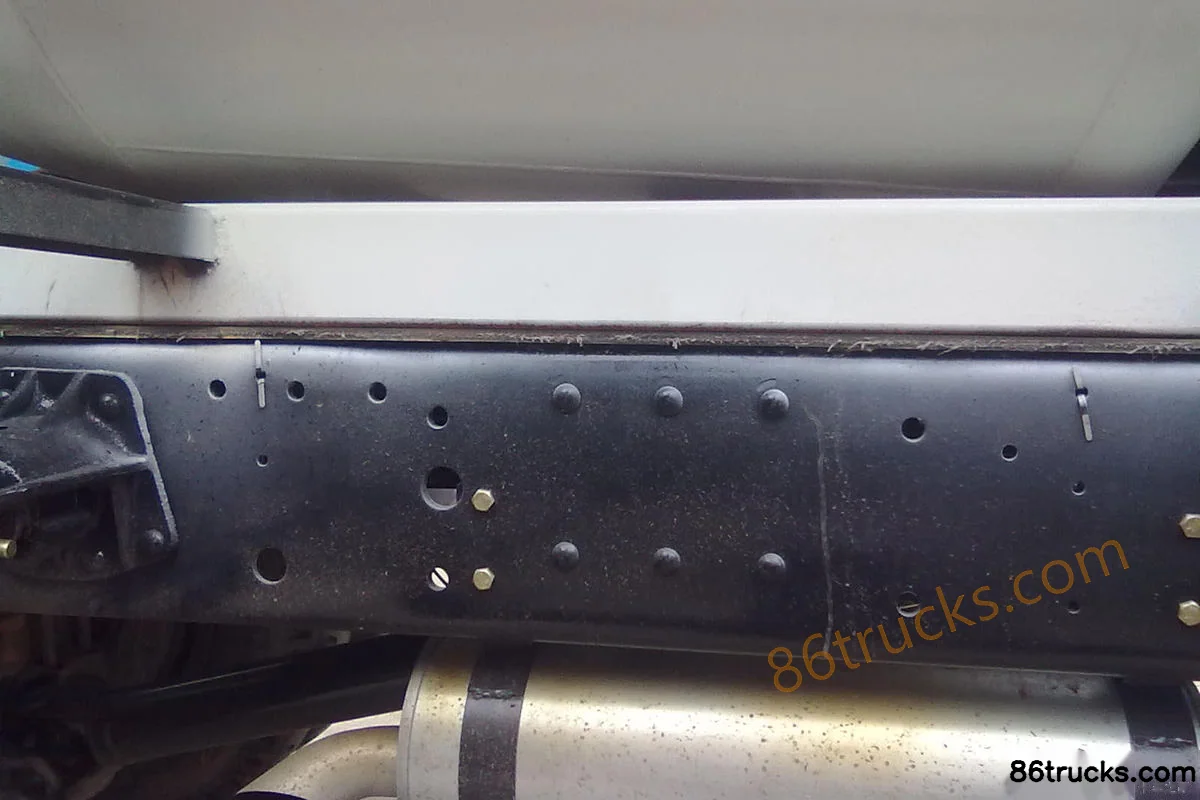

Shidai Jingang 130 hp 4X2(6 wheels) concrete mixer truck Body (1) | 86Trucks Shidai Jingang 130 hp 4X2(6 wheels) concrete mixer truck Body (2) | 86Trucks Shidai Jingang 130 hp 4X2(6 wheels) concrete mixer truck Body (3) | 86Trucks

9 photos

FAQ

What emission standard does Shidai Jingang 130 hp 4X2(6 wheels) concrete mixer truck use, and can it enter my country?

This model is listed as China III / Euro III. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Shidai Jingang 130 hp 4X2(6 wheels) concrete mixer truck?

Key specs of Shidai Jingang 130 hp 4X2(6 wheels) concrete mixer truck: Drive: 4x2; Horsepower: 130 hp; Emission: China III / Euro III; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Shidai Jingang 130 hp 4X2(6 wheels) concrete mixer truck suited for?

Shidai Jingang 130 hp 4X2(6 wheels) concrete mixer truck is a concrete mixer truck model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Shidai Jingang 130 hp 4X2(6 wheels) concrete mixer truck differ from other variants in the same series?

Shidai Jingang 130 hp 4X2(6 wheels) concrete mixer truck belongs to Foton King Light Truck (concrete mixer truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Shidai Jingang 130 hp 4X2(6 wheels) concrete mixer truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Shidai Jingang 130 hp 4X2(6 wheels) concrete mixer truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
