KOMATSU PC200-8N1 Crawler Excavator

Export reference
MSRP N/A
Model:: PC200-8N1
Engine Model:: crawler excavator
Tonnage:: 20ton
Bucket capacity:: 0.8cubic meter
Arm Length:: 2900mm
Machine dimensions:: 9.425×2.8×3.04mm
Operating weight: 19.5ton
Bucket type: backhoe
Fuel Tank Capacity: 400L
Product power: Conventional Power

Overview

The KOMATSU PC200-8N1 Crawler Excavator is a excavator featuring 19.5ton GVW, backhoe bucket capacity, 400L tank capacity and Conventional Power power. On the powertrain side, it comes with a crawler excavator engine.

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model: PC200-8N1
Engine Model: crawler excavator
Product power: Conventional Power
Bucket type: backhoe
Tonnage: 20ton
Bucket capacity: 0.8cubic meter
Operating weight: 19.5ton
Arm Length: 2900mm
Machine dimensions: 9.425×2.8×3.04mm
Track shoe width: 600mm
Track gauge: 2200mm
Rear Overhang Radius: 2750mm
Oil capacity
Fuel Tank Capacity: 400L
hydraulic oil tank: 135L
performance specs
Travel speed: 5.5/4.1/3.0km/h
Bucket digging force: 149kN
Arm Digging Force: 108kN
hydraulic system
Working hydraulic circuit: 34.8
travel hydraulic circuit: 37.3Mpa
Operating Range
Max digging radius: 9875mm
Max digging depth: 6620mm
Max digging height: 10000mm
Max unloading height: 1110mm
Engine parameters
Engine Model: KOMATSU SAA6D107E-1-A
Max output power: 110kW

Photos

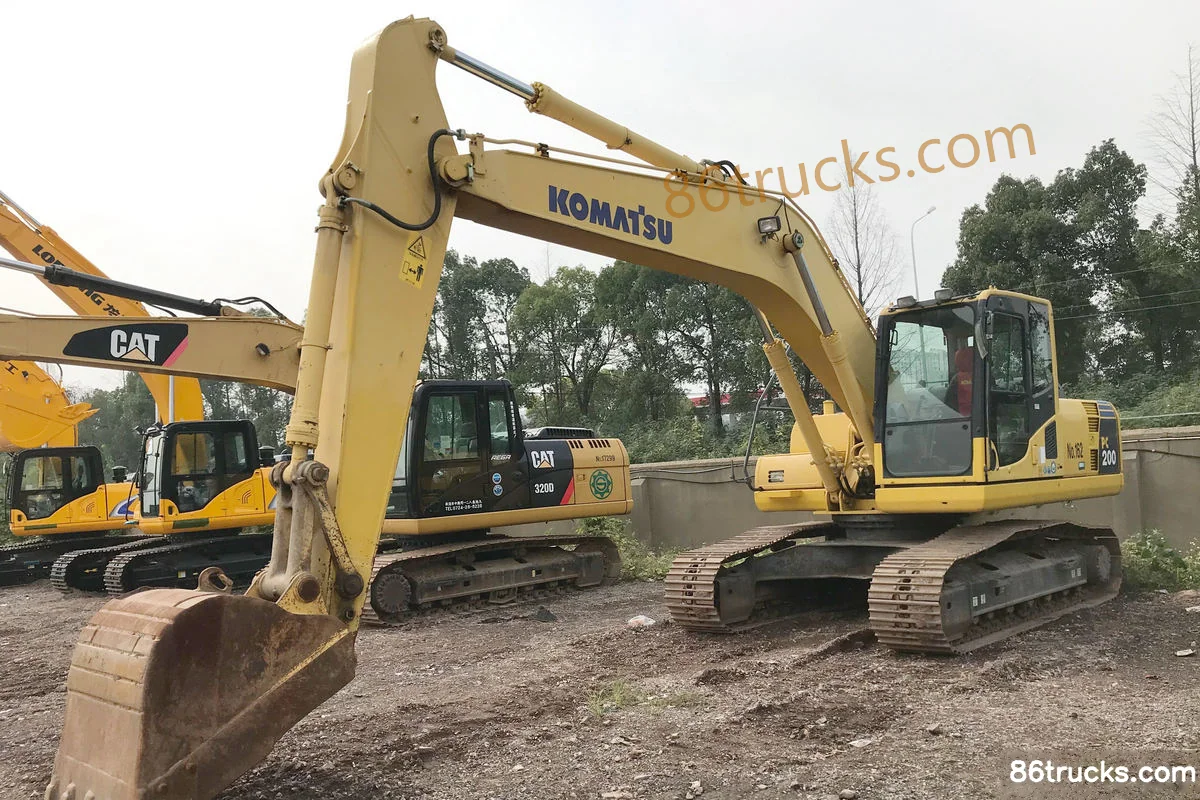

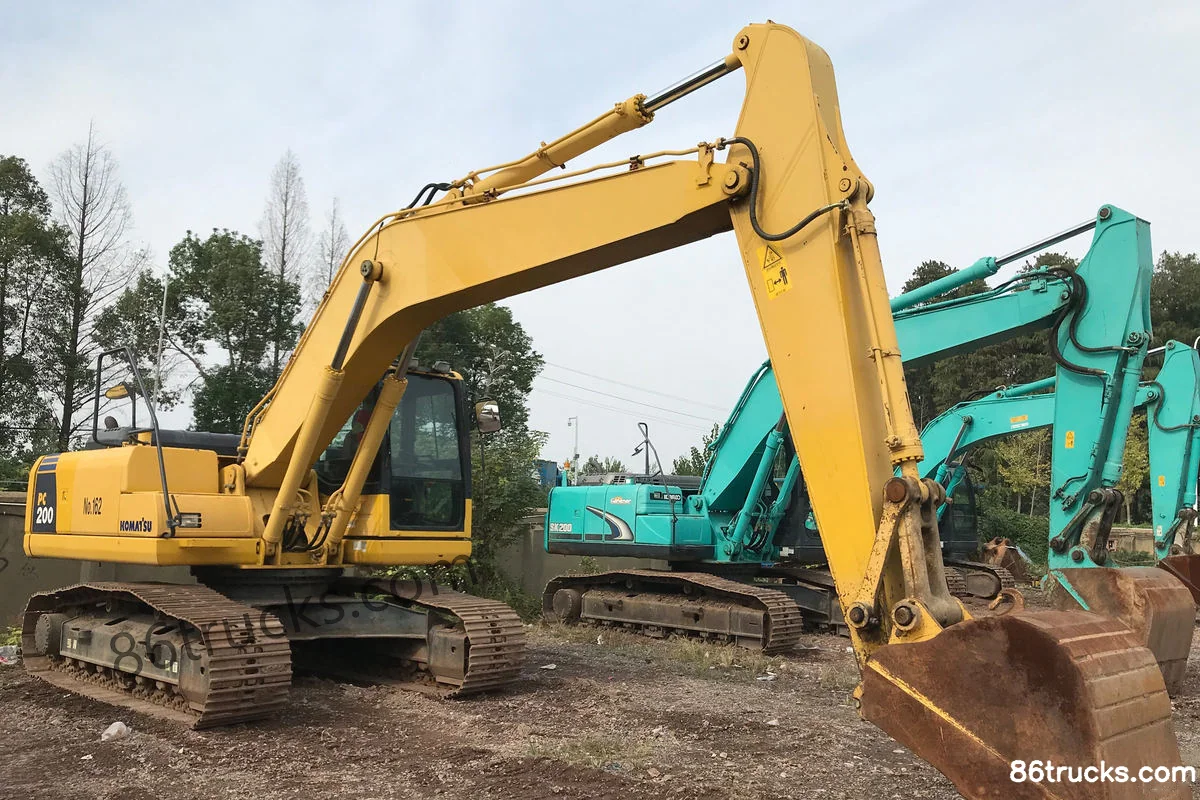

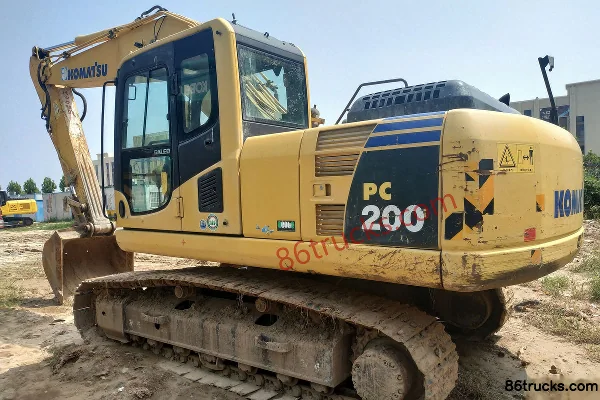

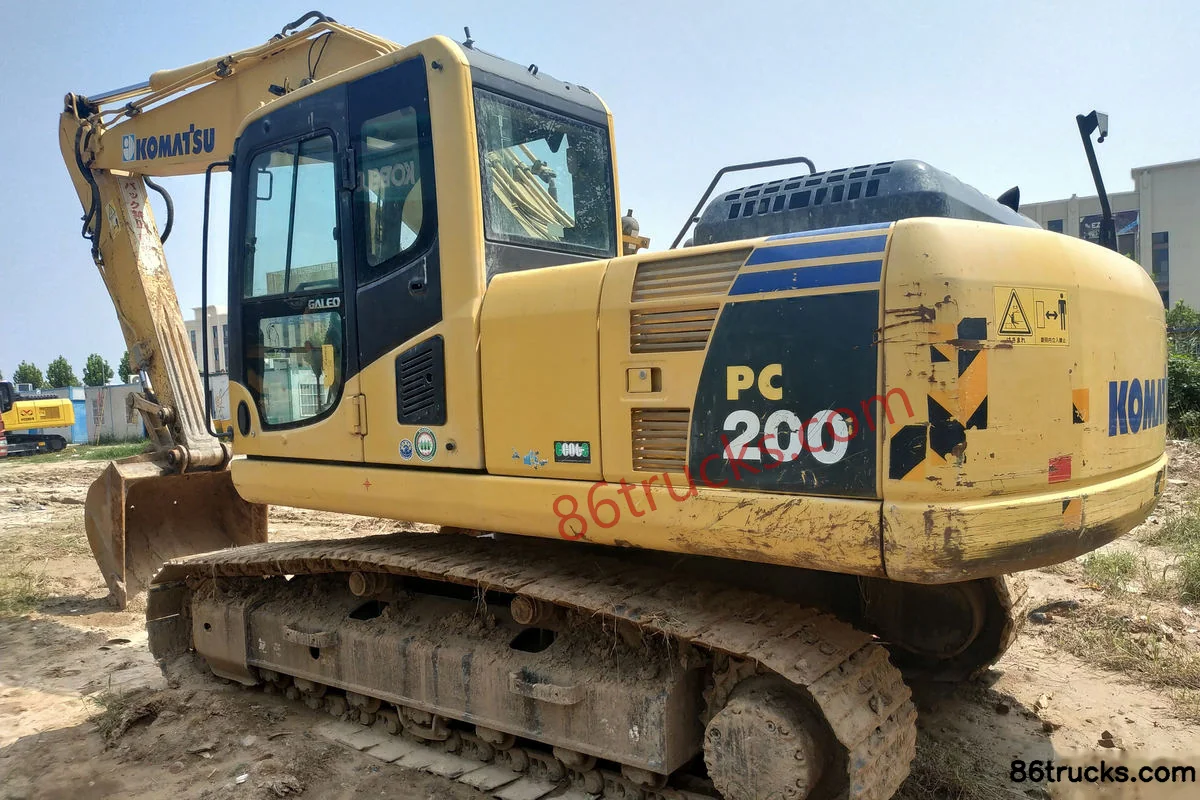

Exterior3

3 photos

FAQ

What transport jobs is KOMATSU PC200-8N1 Crawler Excavator suited for?

KOMATSU PC200-8N1 Crawler Excavator is a excavator model; configuration should match the job. State the application, emission and LHD/RHD needs in your quote.

How does KOMATSU PC200-8N1 Crawler Excavator differ from other variants in the same series?

KOMATSU PC200-8N1 Crawler Excavator belongs to KOMATSU KOMATSU Crawler Excavator (excavator). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for KOMATSU PC200-8N1 Crawler Excavator?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export KOMATSU PC200-8N1 Crawler Excavator?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
