Hualing Heavy Truck 345 hp 8X4(12 wheels) 8.6m Dump Truck

Export reference

MSRP N/A

Emission: China V

Fuel: Diesel

Transmission: Hanma

Curb Weight:: 15.5ton

Wheelbase:: 1850+4605+1350mm

Tire Size:: 12.00R20 18PR

Hualing Heavy Truck 345 hp 8X4(12 wheels) 8.6m Dump Truck exterior

View more photos (12)

Rated payload: 15.305ton

Drive 8X4 (12 wheels)

Horsepower 345

Cargo box type: Dump type

Overview

The Hualing Heavy Truck 345 hp 8X4(12 wheels) 8.6m Dump Truck is a Heavy truck featuring 15.305t payload, 31t GVW, Dump type cargo body and 8X4 (12 wheels) drive. On the powertrain side, it comes with a HanmaCM6D18.345 50 engine, 345 hp, China V emissions and Hanma transmission.

China V 345 Diesel 8X4

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info

Model code (announced): HN3310B38D6M5

Drive type: 8X4

Wheelbase: 1850+4605+1350mm

engine: HanmaCM6D18.345 50

transmission: Hanma12SDC1851

Rear Axle Ratio: 5.263

Cab length: 11.38m

Cab width: 2.495m

Cab height: 3.36m

Front track width: 2065/2065mm

rear track: 1860/1860mm

Curb Weight: 15.5ton

Rated payload: 15.305ton

GVWR: 31ton

Origin: Ma'anshan, Anhui

tonnage class: Heavy truck

Approach angle: 20°

departure angle: 17°

Remarks: Standard: Radio with MP3, laminated front windshield, equal-length main and auxiliary frame rails, thickened front and rear leaf springs, 130-C balance shaft with shim, 22000 driveshaft, axle oil lubrication, GPS lock device. Optional: air suspension seat, Hanma engine compression brake, aluminum fuel tank, 9SDB1851 transmission; optional Hanma H9 flat-top cab, 8+10 (auxiliary height 310) frame

Energy Type: Diesel

Engine parameters

Engine Brand: Hanma

Engine Model: HanmaCM6D18.345 50

Number of cylinders: 6cylinder

fuel type: Diesel

Displacement: 9.84L

Emission standard: China V

Max output power: 254kW

Max hp: 345Horsepower

Max torque: 1660N·m

Max torque speed: 1100-1400rpm

Rated speed: 1900rpm

Engine Type: Inline, high-pressure common rail

Transmission Parameters

Transmission Model: Hanma12SDC1851

Transmission Brand: Hanma

shift method: Manual

Forward gears: 12Gear

Number of Reverse Gears: 2pcs

Cargo box parameters

Unloading Type: Dump type

Cargo box type: Dump type

Cargo box length: 8.6m

Cargo box width: 2.3m

Cargo box height: 0.96m

Cab parameters

Cab: all-steel flat-top cab

Driver seat type: Mechanical suspension seat

Chassis Specs

Front axle description: 7.5T

Front axle allowable load: 6500/6500kg

Frame Dimensions: 8+8 (web height 310)mm

rear axle description: HL300A(5.263) Cast Steel

rear axle allowable load: 18000 (tandem axle group)kg

Axle ratio: 5.263

Leaf spring count: 4/4/4

Tire

Tire Size: 12.00R20 18PR

Tire Type: 12-ply steel

Number of tires: 12pcs

Control configuration

ABS:

Inter-axle Differential Lock:

interior configuration

AC control type: Manual

Power Windows:

Electronic Central Lock:

Multimedia features

Center Console Color Screen:

GPS/Beidou driving recorder:

Photos

Exterior3

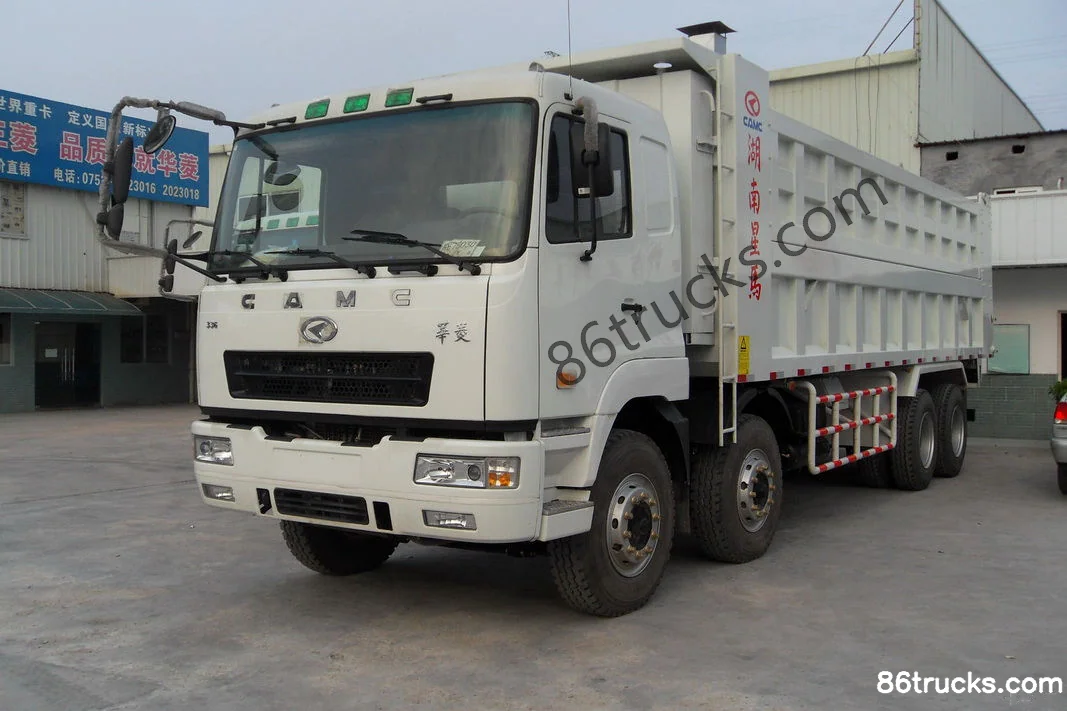

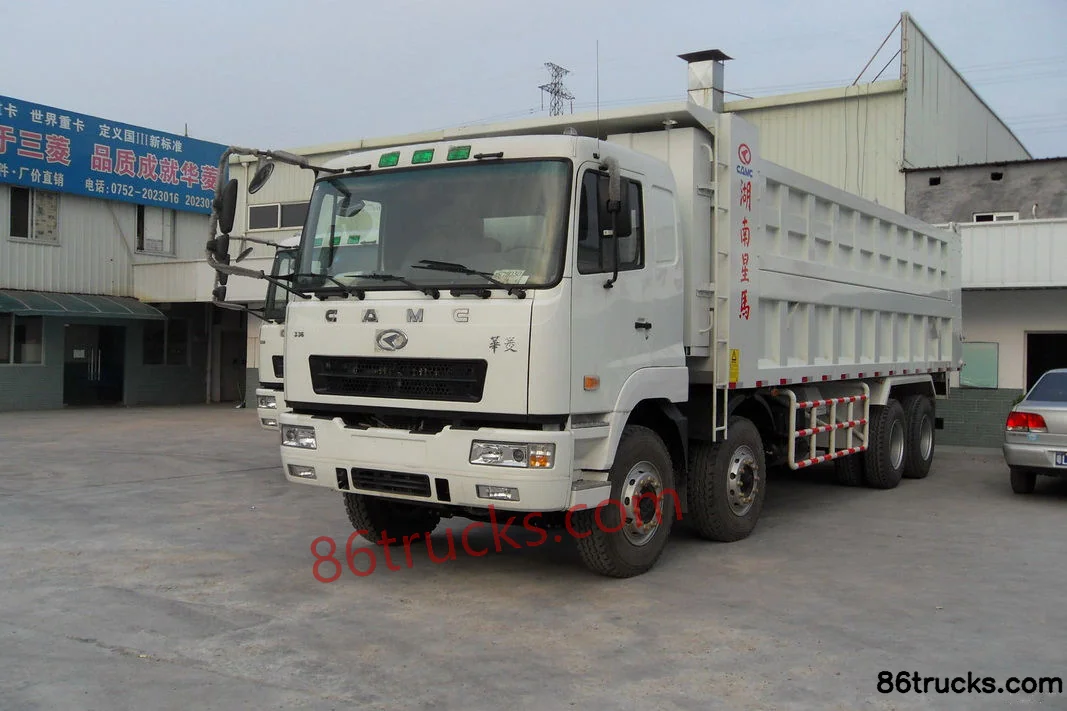

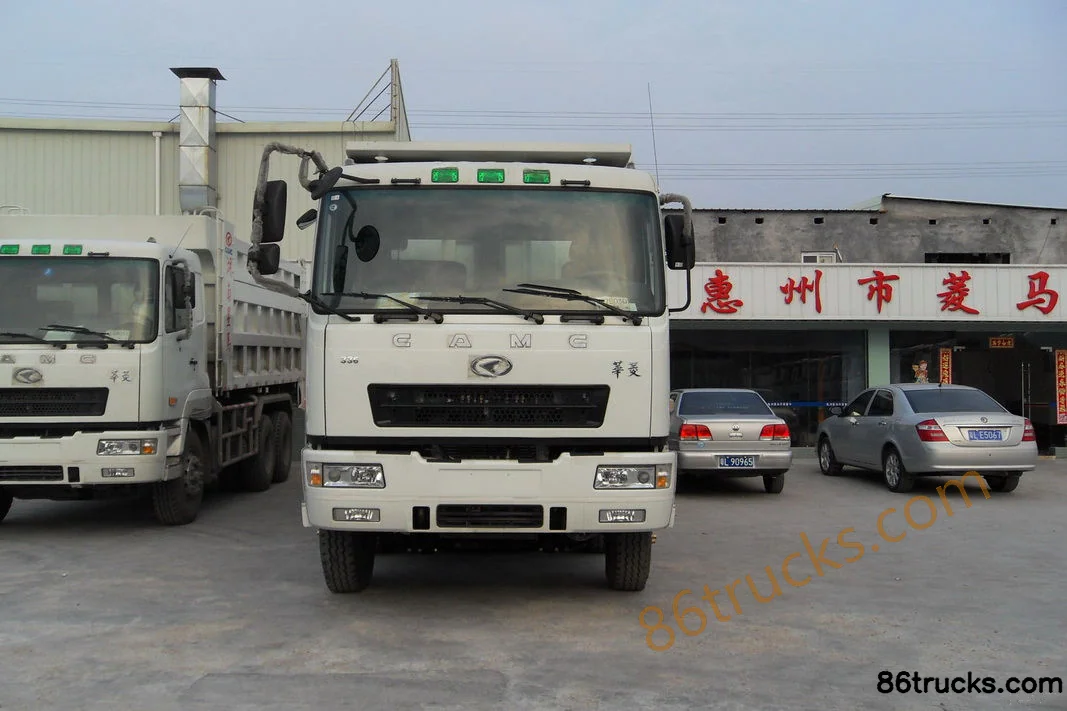

Hualing Heavy Truck 345 hp 8X4(12 wheels) 8.6m Dump Truck Exterior (1) | 86Trucks

Hualing Heavy Truck 345 hp 8X4(12 wheels) 8.6m Dump Truck Exterior (2) | 86Trucks

Hualing Heavy Truck 345 hp 8X4(12 wheels) 8.6m Dump Truck Exterior (3) | 86Trucks

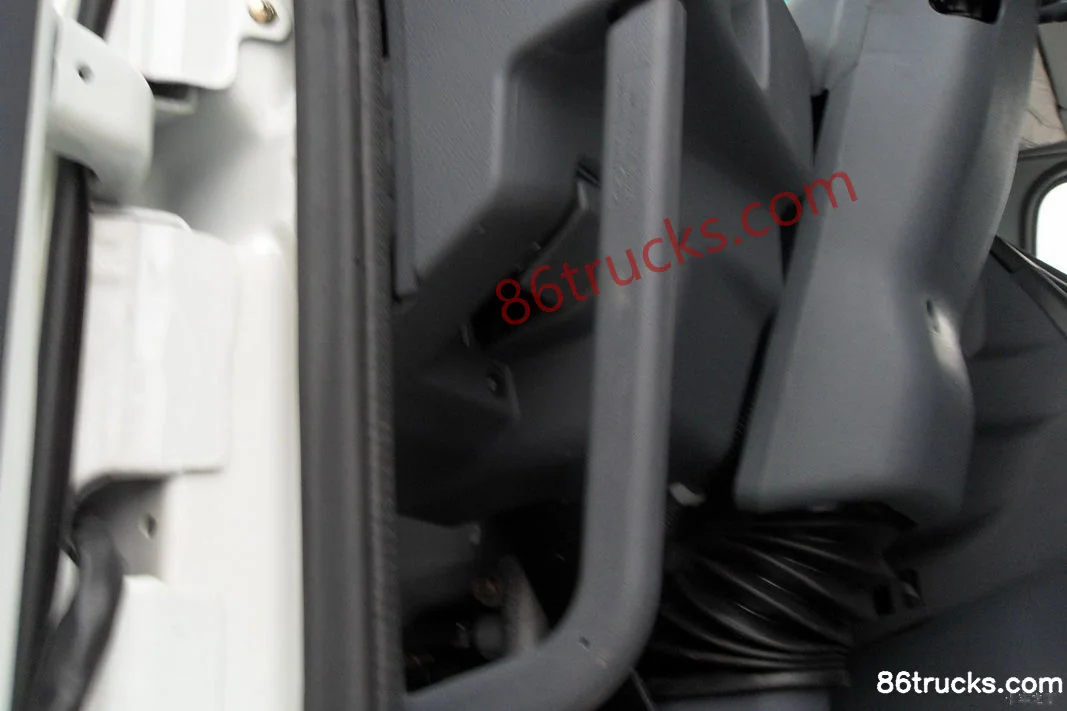

Cab3

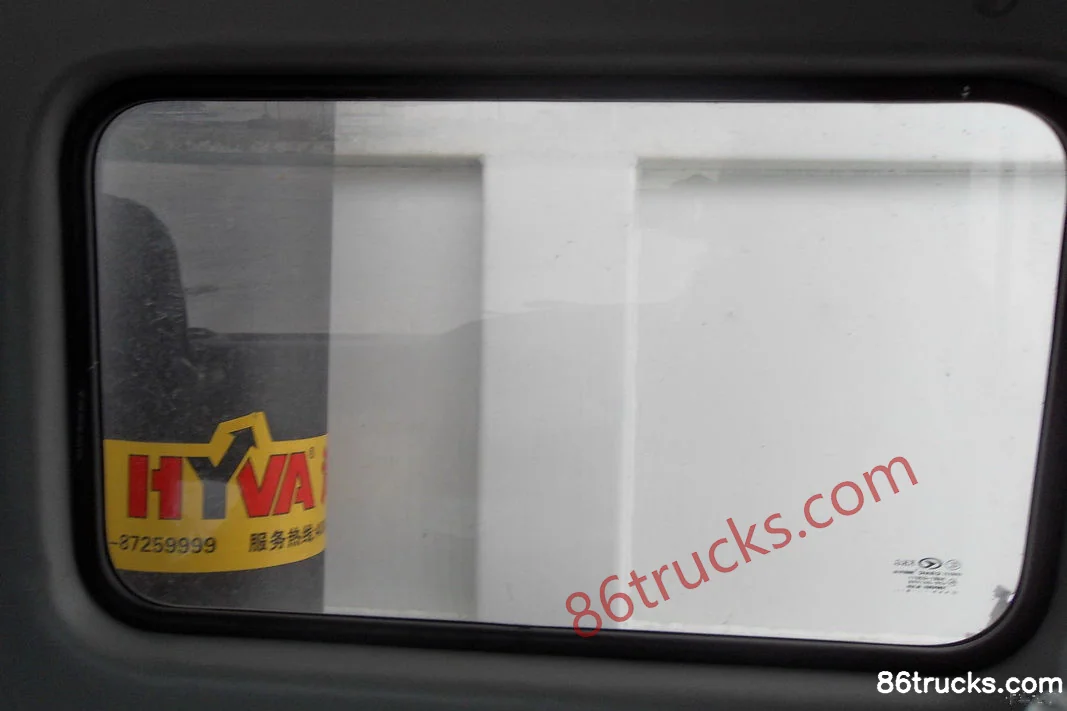

Hualing Heavy Truck 345 hp 8X4(12 wheels) 8.6m Dump Truck Cab (1) | 86Trucks

Hualing Heavy Truck 345 hp 8X4(12 wheels) 8.6m Dump Truck Cab (2) | 86Trucks

Hualing Heavy Truck 345 hp 8X4(12 wheels) 8.6m Dump Truck Cab (3) | 86Trucks

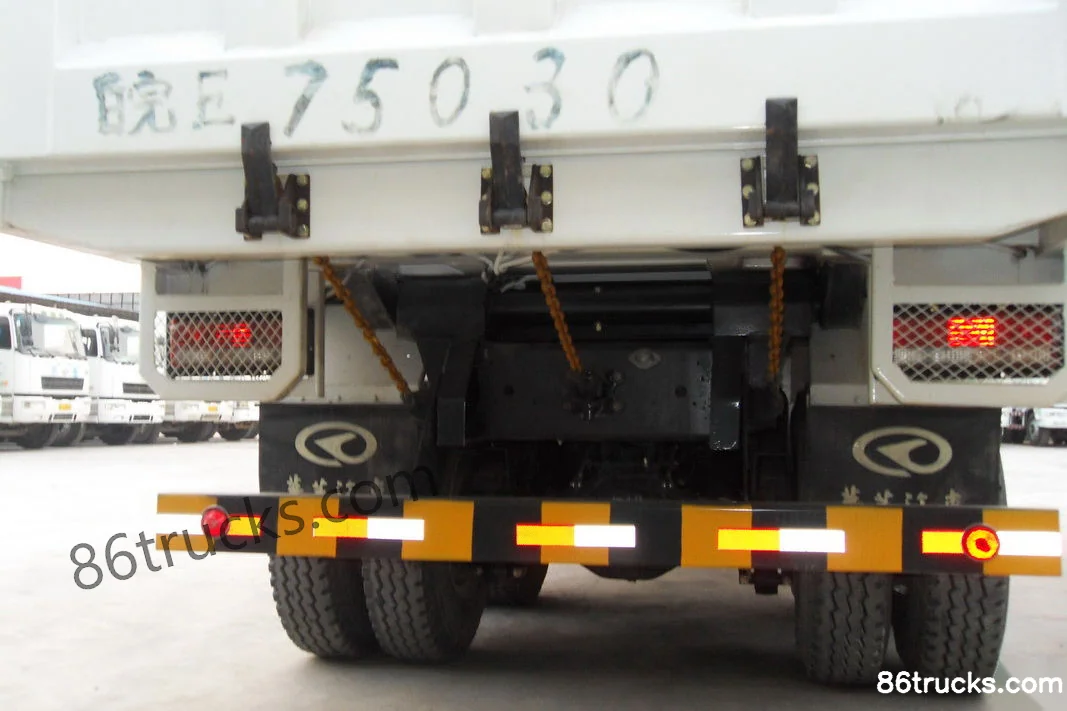

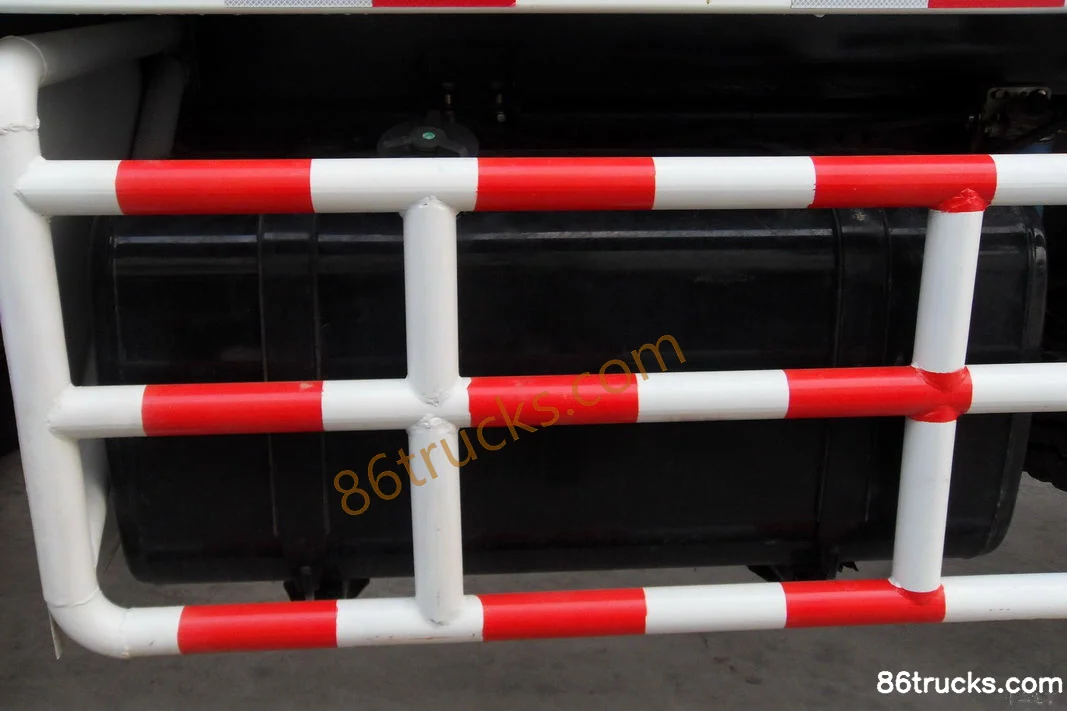

Chassis3

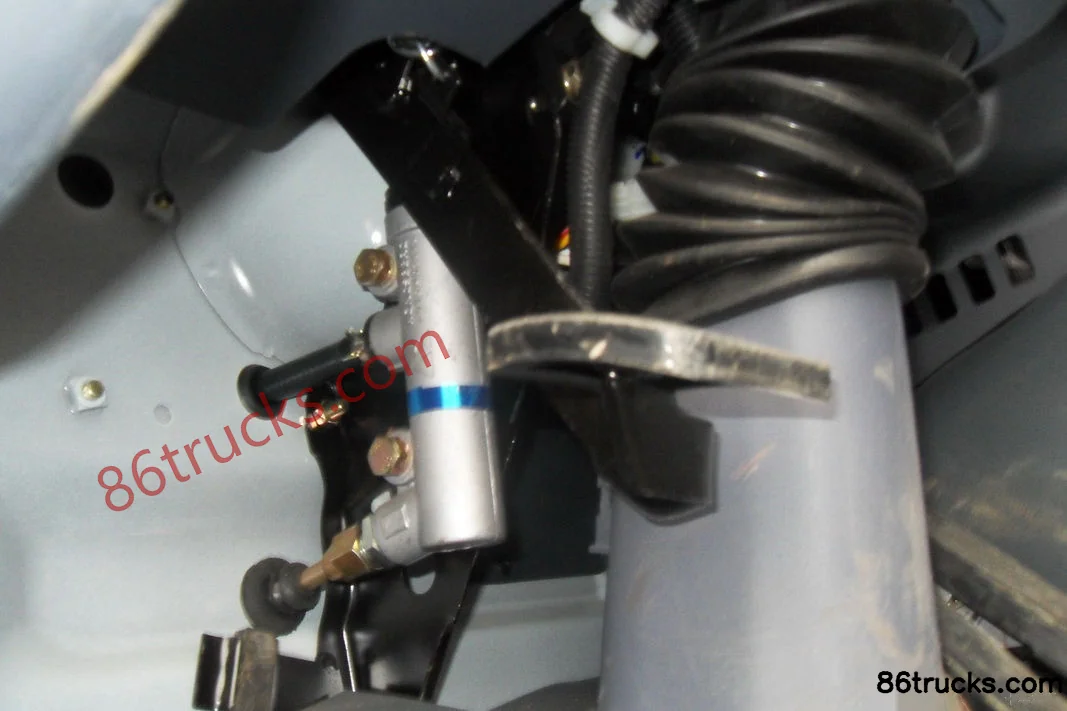

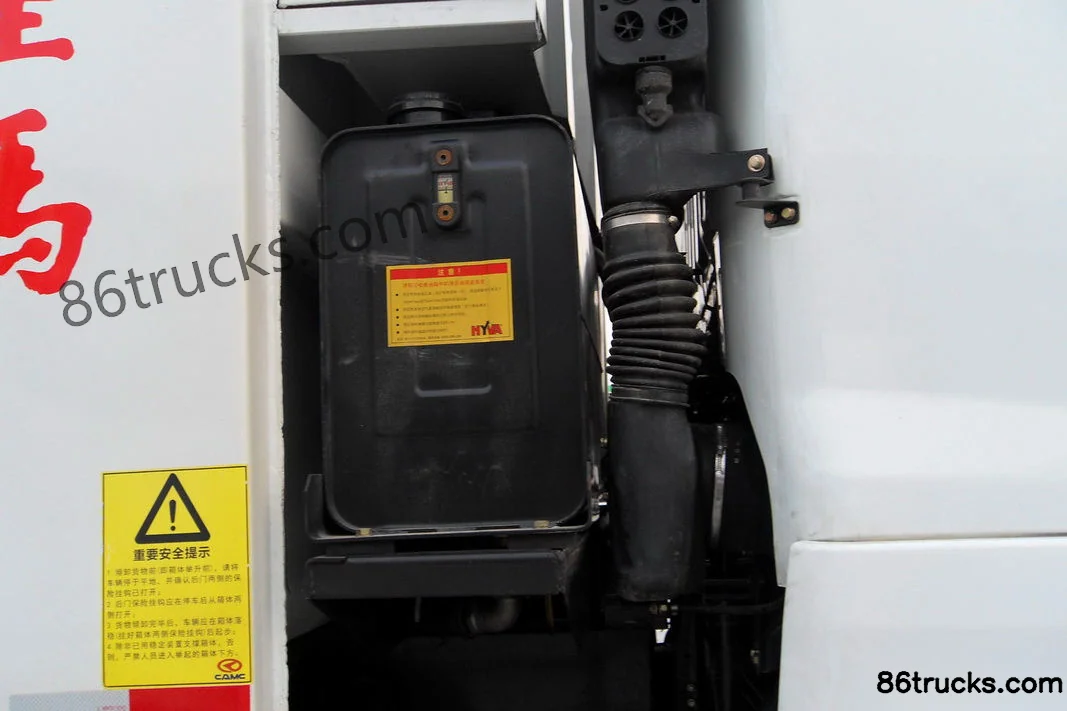

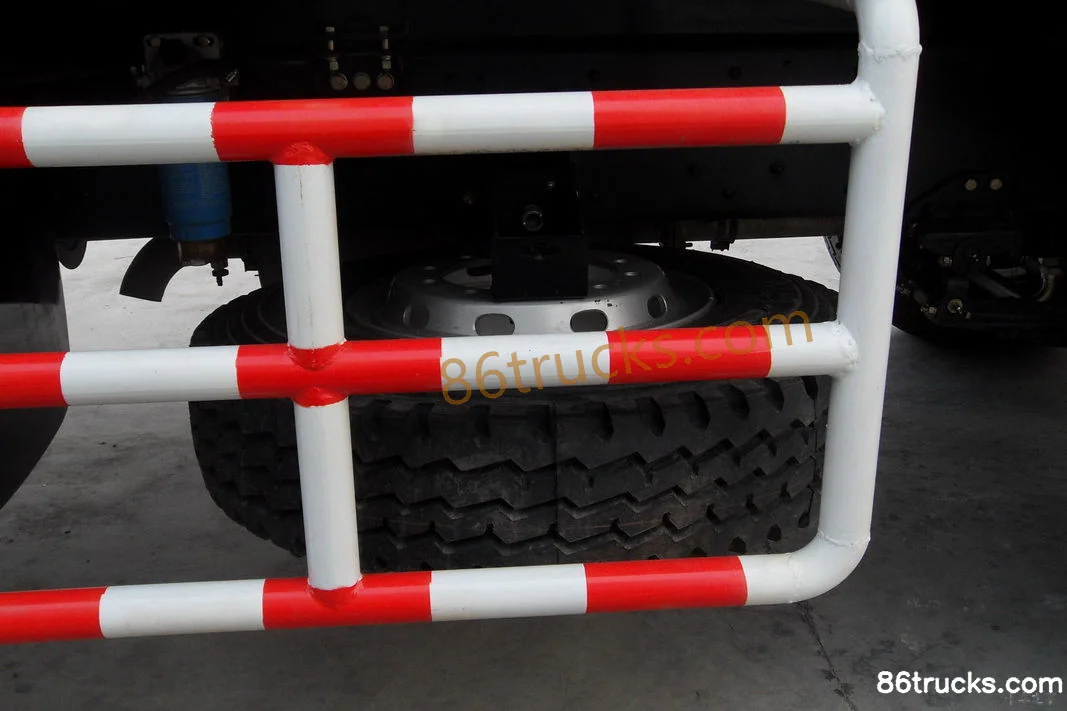

Hualing Heavy Truck 345 hp 8X4(12 wheels) 8.6m Dump Truck Chassis (1) | 86Trucks

Hualing Heavy Truck 345 hp 8X4(12 wheels) 8.6m Dump Truck Chassis (2) | 86Trucks

Hualing Heavy Truck 345 hp 8X4(12 wheels) 8.6m Dump Truck Chassis (3) | 86Trucks

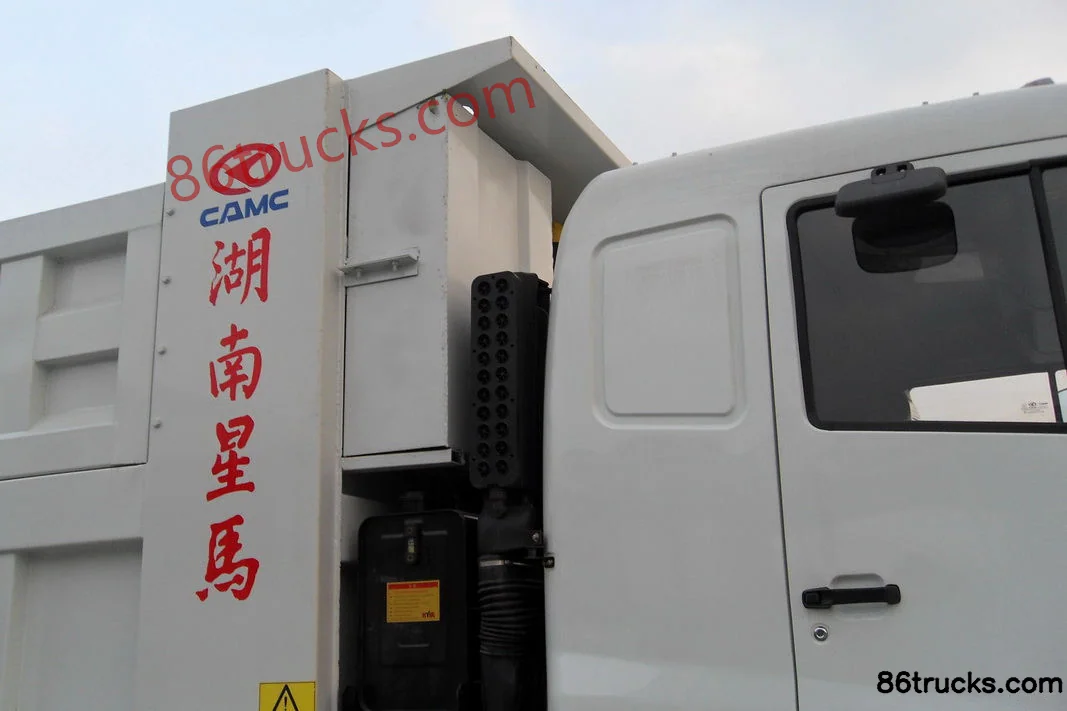

Body3

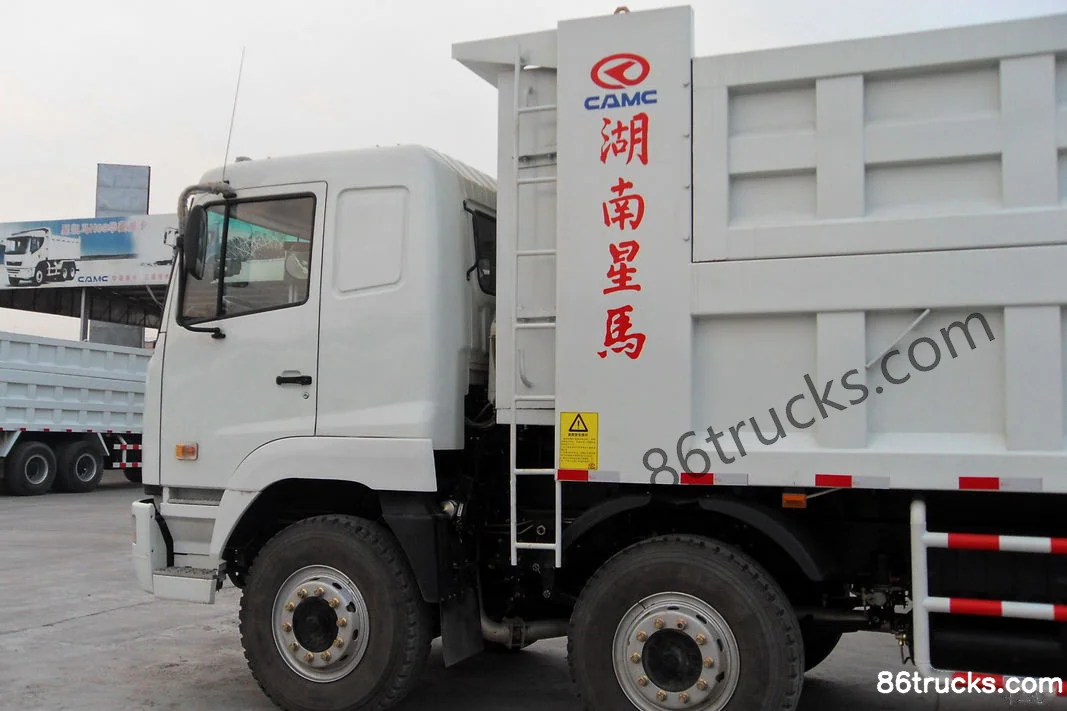

Hualing Heavy Truck 345 hp 8X4(12 wheels) 8.6m Dump Truck Body (1) | 86Trucks

Hualing Heavy Truck 345 hp 8X4(12 wheels) 8.6m Dump Truck Body (2) | 86Trucks

Hualing Heavy Truck 345 hp 8X4(12 wheels) 8.6m Dump Truck Body (3) | 86Trucks

12 photos

FAQ

What emission standard does Hualing Heavy Truck 345 hp 8X4(12 wheels) 8.6m Dump Truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Hualing Heavy Truck 345 hp 8X4(12 wheels) 8.6m Dump Truck?

Key specs of Hualing Heavy Truck 345 hp 8X4(12 wheels) 8.6m Dump Truck: Drive: 8x4; Horsepower: 345 hp; Emission: China V; Fuel: Diesel; Transmission: Hanma. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Hualing Heavy Truck 345 hp 8X4(12 wheels) 8.6m Dump Truck suited for?

Hualing Heavy Truck 345 hp 8X4(12 wheels) 8.6m Dump Truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Hualing Heavy Truck 345 hp 8X4(12 wheels) 8.6m Dump Truck differ from other variants in the same series?

Hualing Heavy Truck 345 hp 8X4(12 wheels) 8.6m Dump Truck belongs to Hualing M5 Heavy Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Hualing Heavy Truck 345 hp 8X4(12 wheels) 8.6m Dump Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Hualing Heavy Truck 345 hp 8X4(12 wheels) 8.6m Dump Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
