Dongfeng Liuqi New Chenglong M3 160 hp 4X2(6 wheels) 4.5m dump truck chassis

Export reference
MSRP N/A
Emission: China V
Fuel: Diesel
Transmission: Fast Gear
Curb Weight:: 6.8ton
Wheelbase:: 3800mm
Tire Size:: 9.00R20
Rated payload: 4.995ton
Drive 4X2 (6 wheels)
Horsepower 160
Cargo box type: Dump type

Overview

The Dongfeng Liuqi New Chenglong M3 160 hp 4X2(6 wheels) 4.5m dump truck chassis is a Medium-duty truck featuring 4.995t payload, 11.99t GVW, Dump type cargo body and 4X2 (6 wheels) drive. On the powertrain side, it comes with a YuchaiYC4E160-56 engine, 160 hp, China V emissions and Fast Gear transmission.

China V 160 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): LZ3120M3AB
Drive type: 4X2
Wheelbase: 3800mm
engine: YuchaiYC4E160-56
transmission: Fast Gear8JS85F
Rear Axle Ratio: 6.33
Cab length: 6.995m
Cab width: 2.495m
Cab height: 3m
Front track width: 1830mm
rear track: 1750mm
Curb Weight: 6.8ton
Rated payload: 4.995ton
GVWR: 11.99ton
Origin: Liuzhou, Guangxi
tonnage class: Medium-duty truck
Approach angle: 20°
departure angle: 21°
Energy Type: Diesel
Engine parameters
Engine Brand: Yuchai
Engine Model: YuchaiYC4E160-56
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 4.26L
Emission standard: China V
Max output power: 118kW
Max hp: 160Horsepower
Max torque: 600N·m
Max torque speed: 1300-1600rpm
Rated speed: 2600rpm
Engine Type: Vertical, inline, water-cooled, four-stroke
Transmission Parameters
Transmission Model: Fast Gear8JS85F
Transmission Brand: Fast Gear
Forward gears: 8Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Unloading Type: Dump type
Cargo box type: Dump type
Cargo box length: 4.5m
Cargo box width: 2.3m
Cargo box height: 0.8m
Cab parameters
Cab: M30BD
Chassis Specs
Front axle allowable load: 4490kg
Frame Dimensions: 231(6+4)mm
rear axle description: 457 (narrow)
rear axle allowable load: 7500kg
Axle ratio: 6.33
Leaf spring count: 11/12+9
clutch: Φ395
Tire
Tire Size: 9.00R20
Number of tires: 6pcs
Control configuration
ABS:

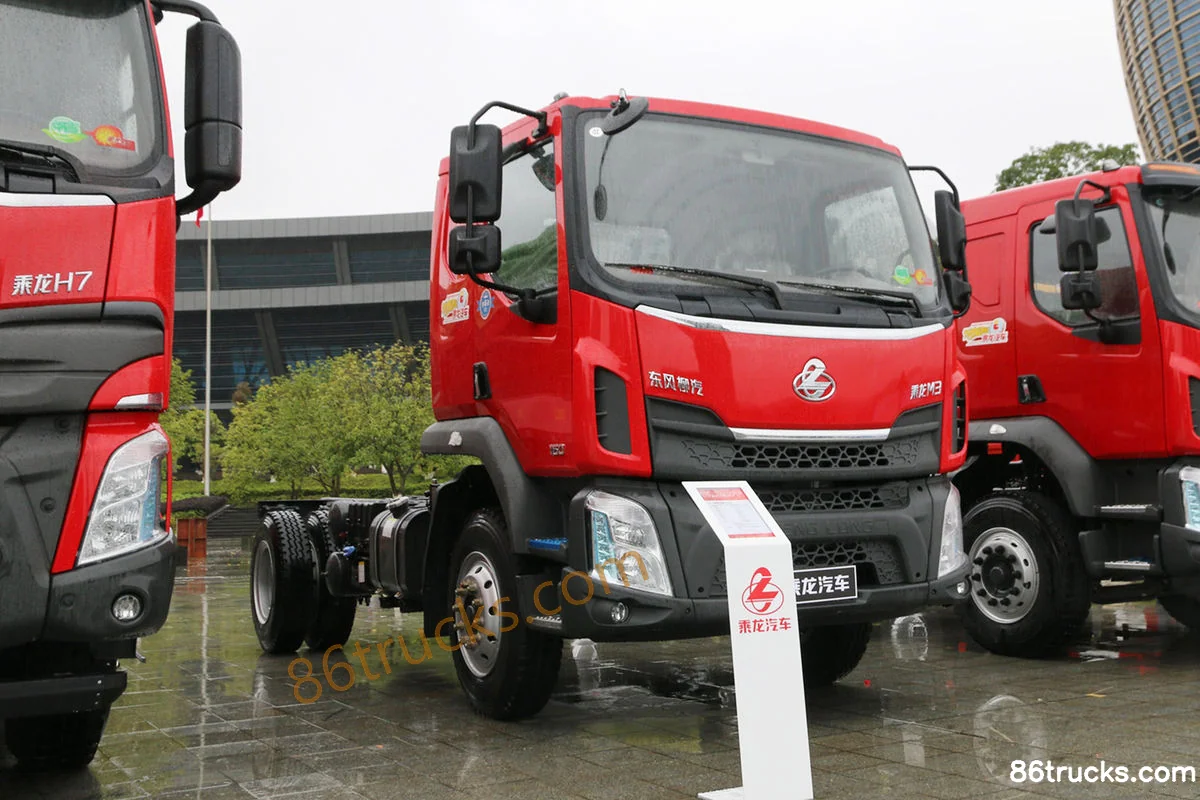

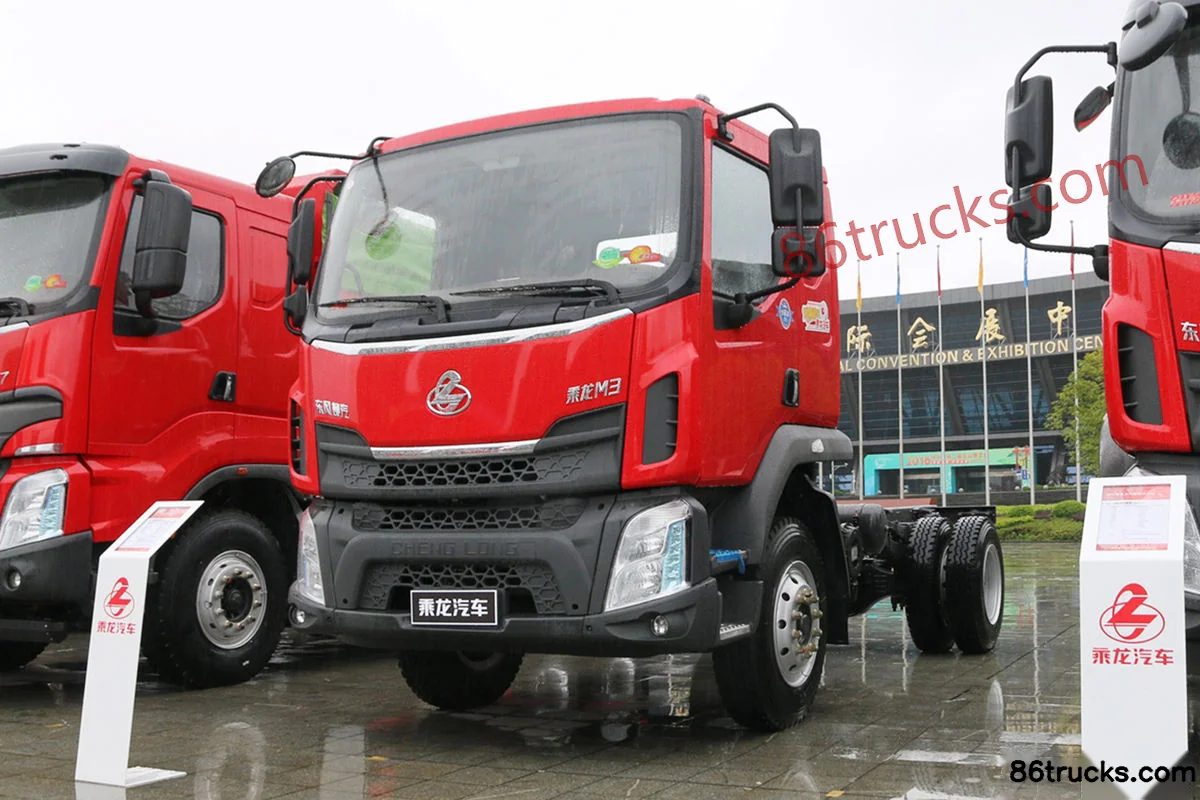

Photos

Exterior2

2 photos

FAQ

What emission standard does Dongfeng Liuqi New Chenglong M3 160 hp 4X2(6 wheels) 4.5m dump truck chassis use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Dongfeng Liuqi New Chenglong M3 160 hp 4X2(6 wheels) 4.5m dump truck chassis?

Key specs of Dongfeng Liuqi New Chenglong M3 160 hp 4X2(6 wheels) 4.5m dump truck chassis: Drive: 4x2; Horsepower: 160 hp; Emission: China V; Fuel: Diesel; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Dongfeng Liuqi New Chenglong M3 160 hp 4X2(6 wheels) 4.5m dump truck chassis suited for?

Dongfeng Liuqi New Chenglong M3 160 hp 4X2(6 wheels) 4.5m dump truck chassis is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Dongfeng Liuqi New Chenglong M3 160 hp 4X2(6 wheels) 4.5m dump truck chassis differ from other variants in the same series?

Dongfeng Liuqi New Chenglong M3 160 hp 4X2(6 wheels) 4.5m dump truck chassis belongs to Dongfeng New Chenglong M3 Medium Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Dongfeng Liuqi New Chenglong M3 160 hp 4X2(6 wheels) 4.5m dump truck chassis?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Dongfeng Liuqi New Chenglong M3 160 hp 4X2(6 wheels) 4.5m dump truck chassis?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
