SHACMAN Delong X5000E 8X4(12 wheels) 8.6m Electric Dump Truck 400.61kWh

Export reference
From $82,194
MSRP ¥59.18M CNY
Rated payload:: 6.47ton
Wheelbase:: 1950+4625+1400mm
Cargo box type:: Rear dump type
Model code (announced):: SX3317XF506BEVC1
Cab length:: 11.55m
GVWR:: 31ton
Drive 8X4 (12 wheels)
CLTC range: 300km
Motor 1 Brand: Shaanxi
Curb Weight: 24.4ton

Overview

The SHACMAN Delong X5000E 8X4(12 wheels) 8.6m Electric Dump Truck 400.61kWh is a Heavy truck featuring 300km battery/range, Shaanxi motor, 8X4 (12 wheels) drive and 6.47t payload.

8X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): SX3317XF506BEVC1
Drive type: 8X4
Wheelbase: 1950+4625+1400mm
Cab length: 11.55m
Cab width: 2.55m
Cab height: 3.5m
CLTC range: 300km
Curb Weight: 24.4ton
Rated payload: 6.47ton
GVWR: 31ton
Max. speed: 89km/h
Origin: Xi'an, Shaanxi
tonnage class: Heavy truck
Energy Type: Electric
electric motor
Motor 1 Brand: Shaanxi
Motor 1 Model: TZ445XSWDM2806
Motor Type: Permanent magnet synchronous motor
total rated power: 290kW
Peak power: 430kW
total rated torque: 1750N·m
total peak torque: 2800N·m
Motor 1 Peak Power: 430kW
Battery/Charging
Battery Brand: CATL
Battery type: Lithium Iron Phosphate Battery
Battery capacity: 400.61kWh
Cargo box parameters
Cargo box type: Rear dump type
Cargo box length: 8.6m
Cargo box width: 2.35m
Cargo box height: 1.5m
Cab parameters
seating capacity: 2Personnel
Seat rows: Sleeper cab
Chassis Specs
Front axle allowable load: 6500/6500kg
rear axle description: drum drive axle
rear axle allowable load: 18000 (tandem axle group)kg
Tire
Tire Size: 12.00R20 18PR
Number of tires: 12pcs
Control configuration
ABS:
interior configuration
Multifunction steering wheel:
AC control type: Automatic
Power Windows:
Power Mirrors:
Reverse Camera:
Remote key:
Electronic Central Lock:
Multimedia features
Center Console Color Screen:
GPS/Beidou driving recorder:
lighting configuration
Headlight height adjustment:
Service brake
Brake Type: Air brake
Parking brake: Spring brake
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type

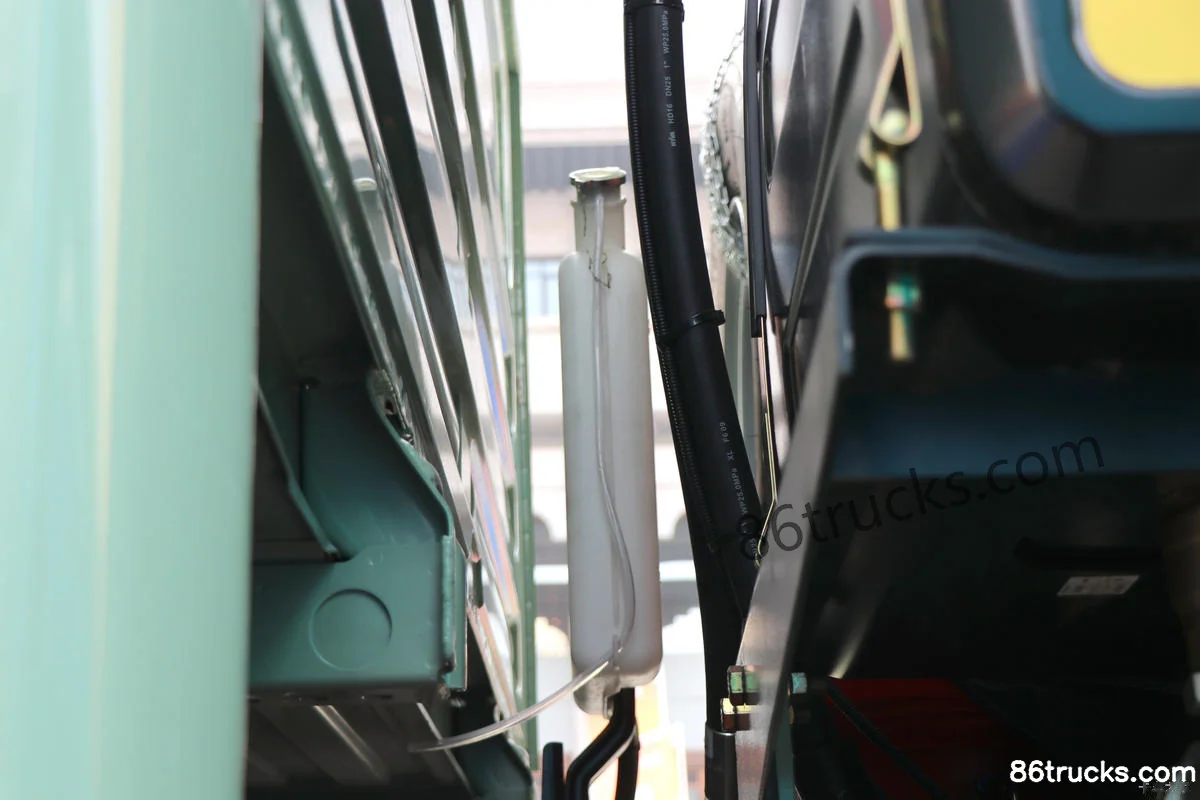

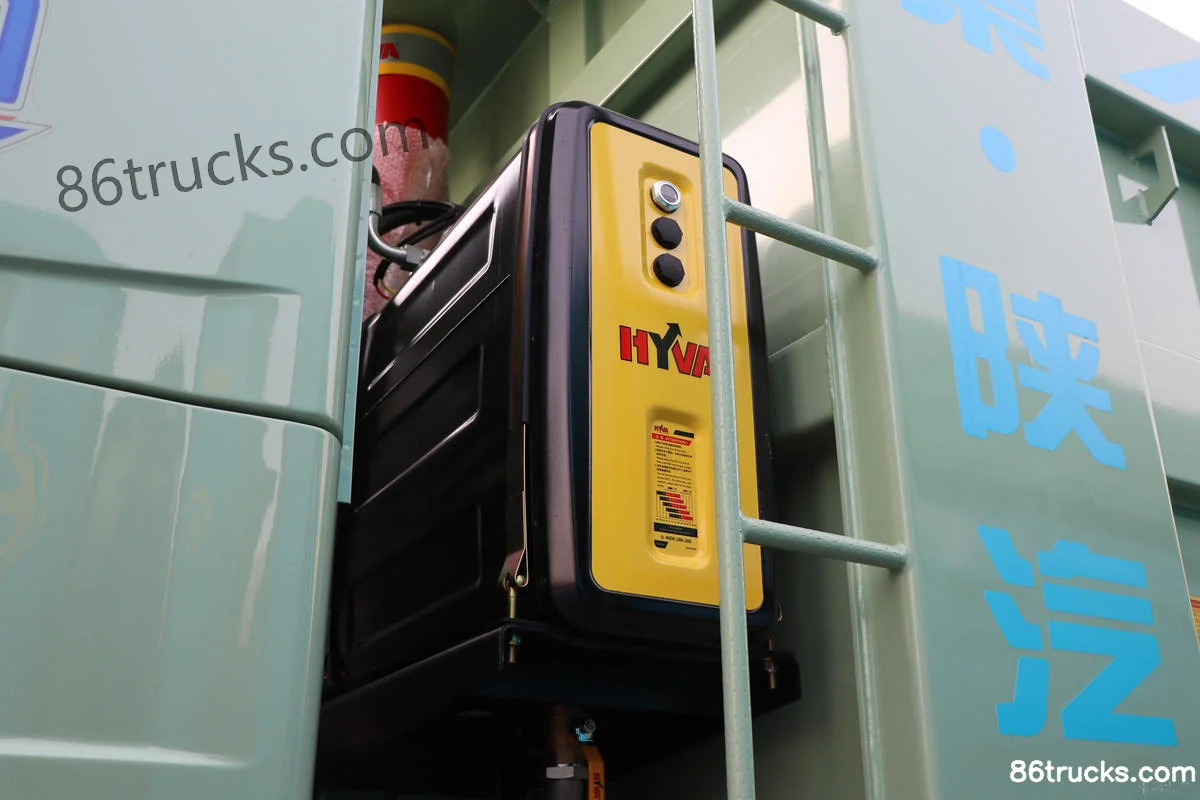

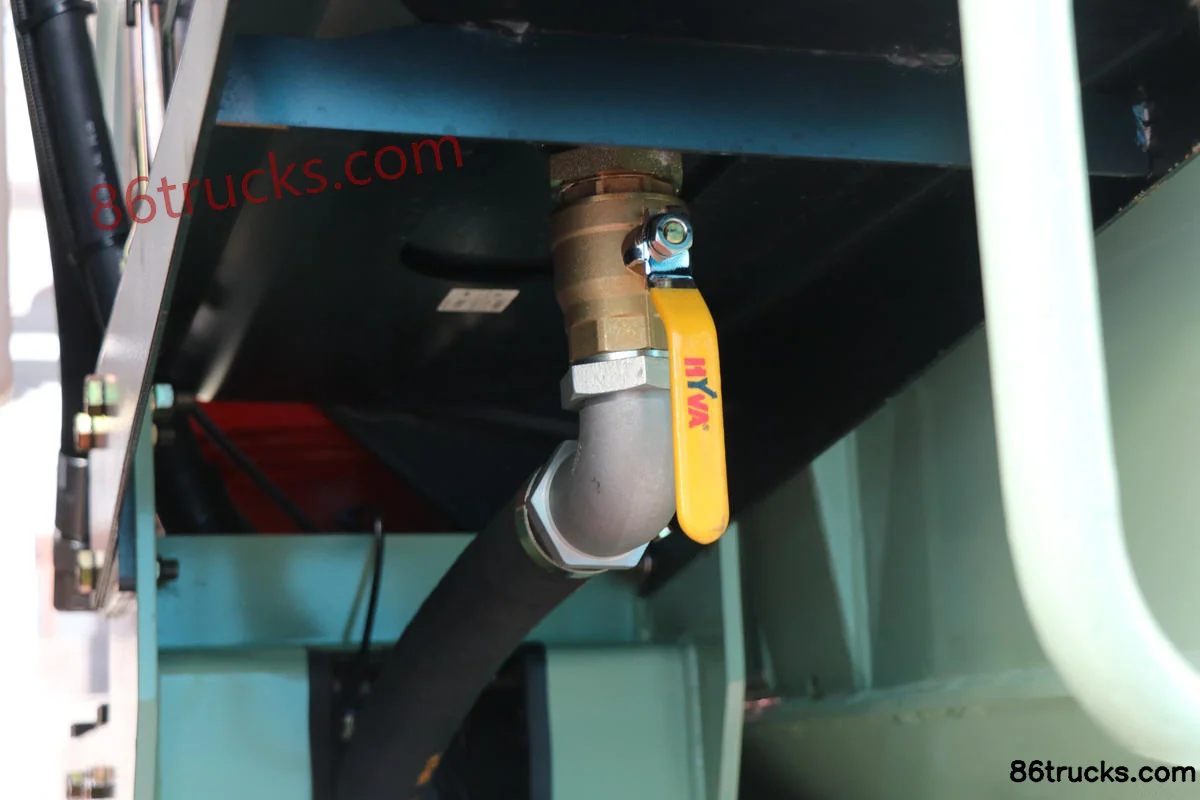

Photos

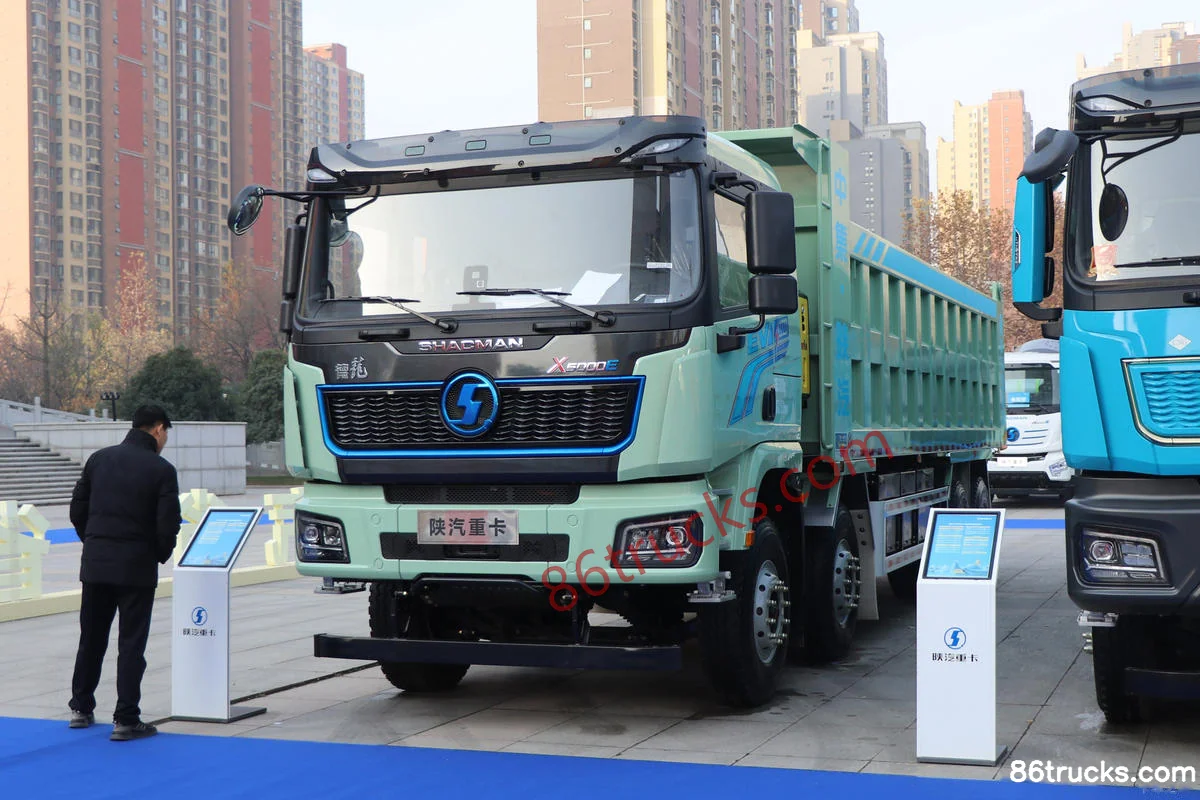

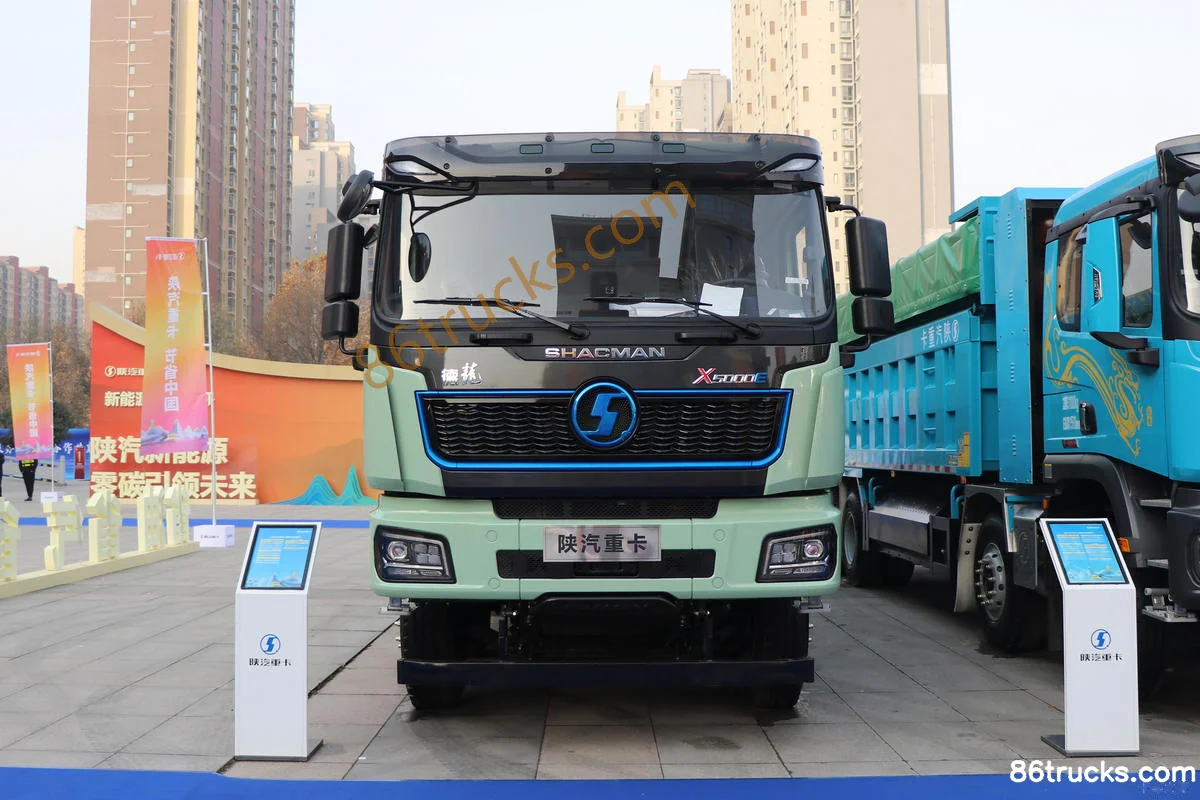

Exterior3

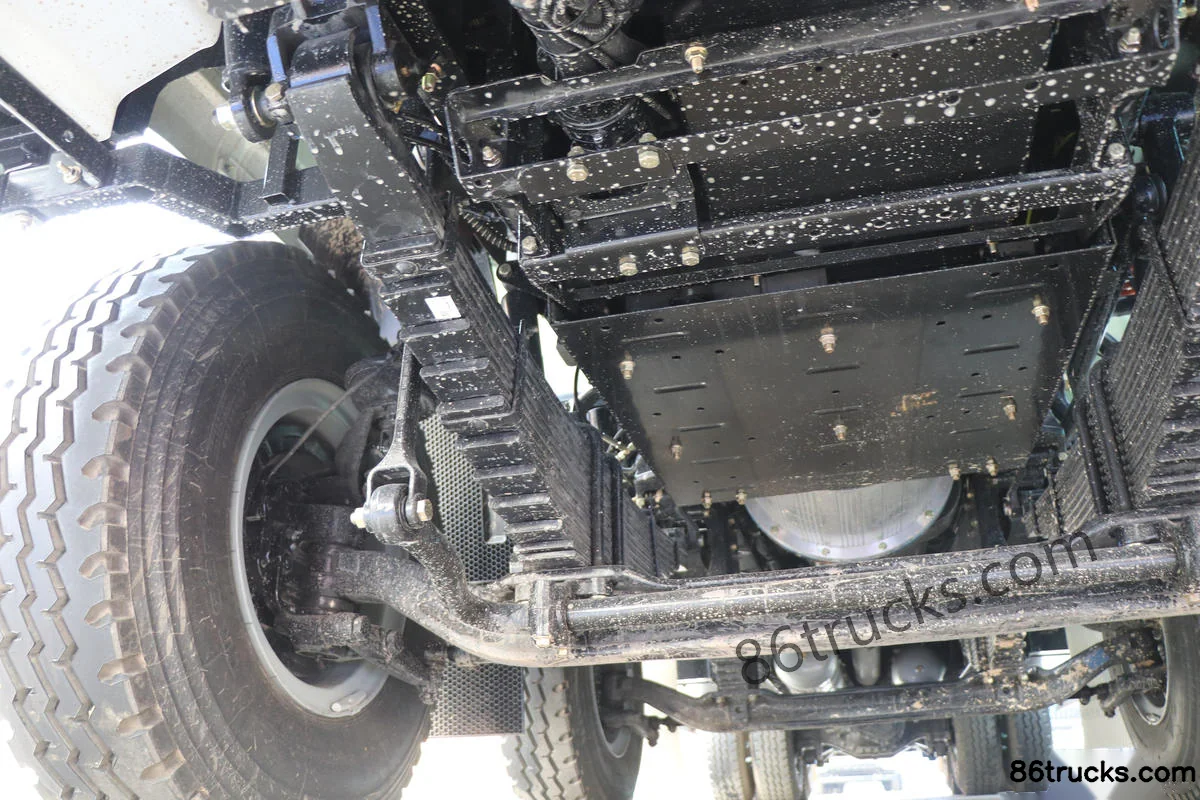

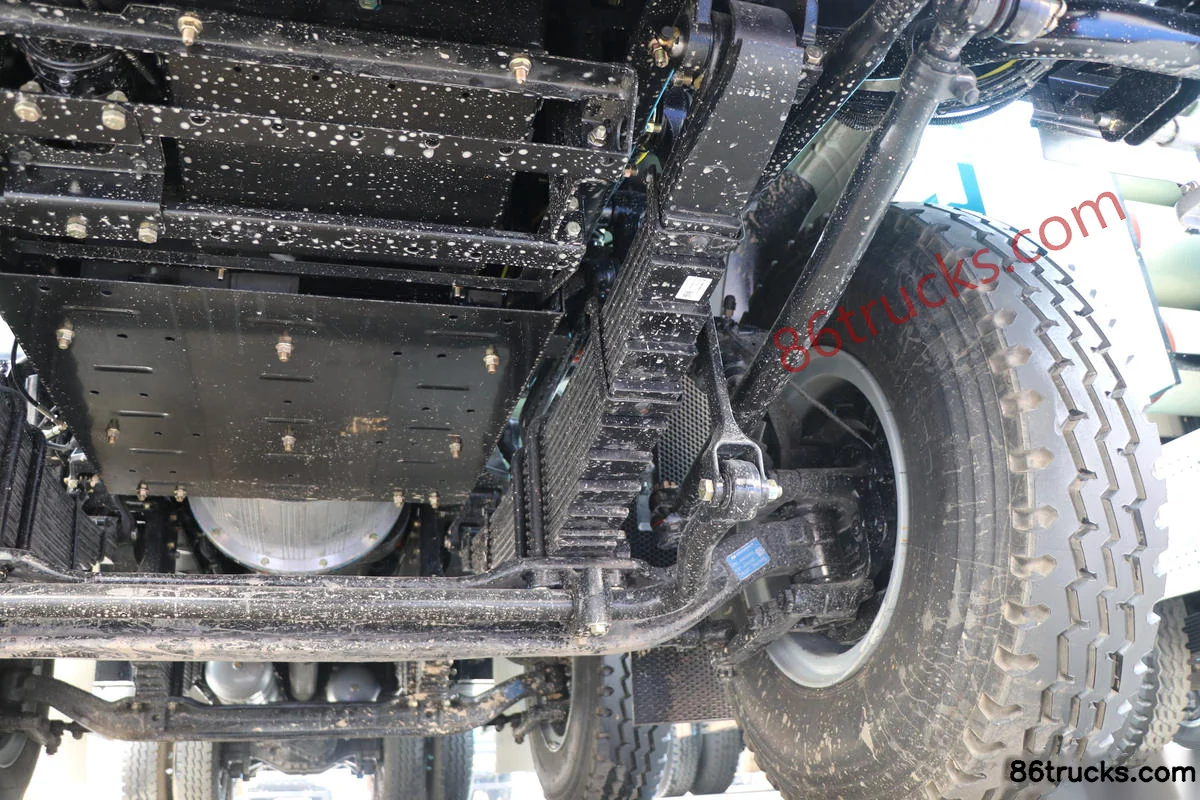

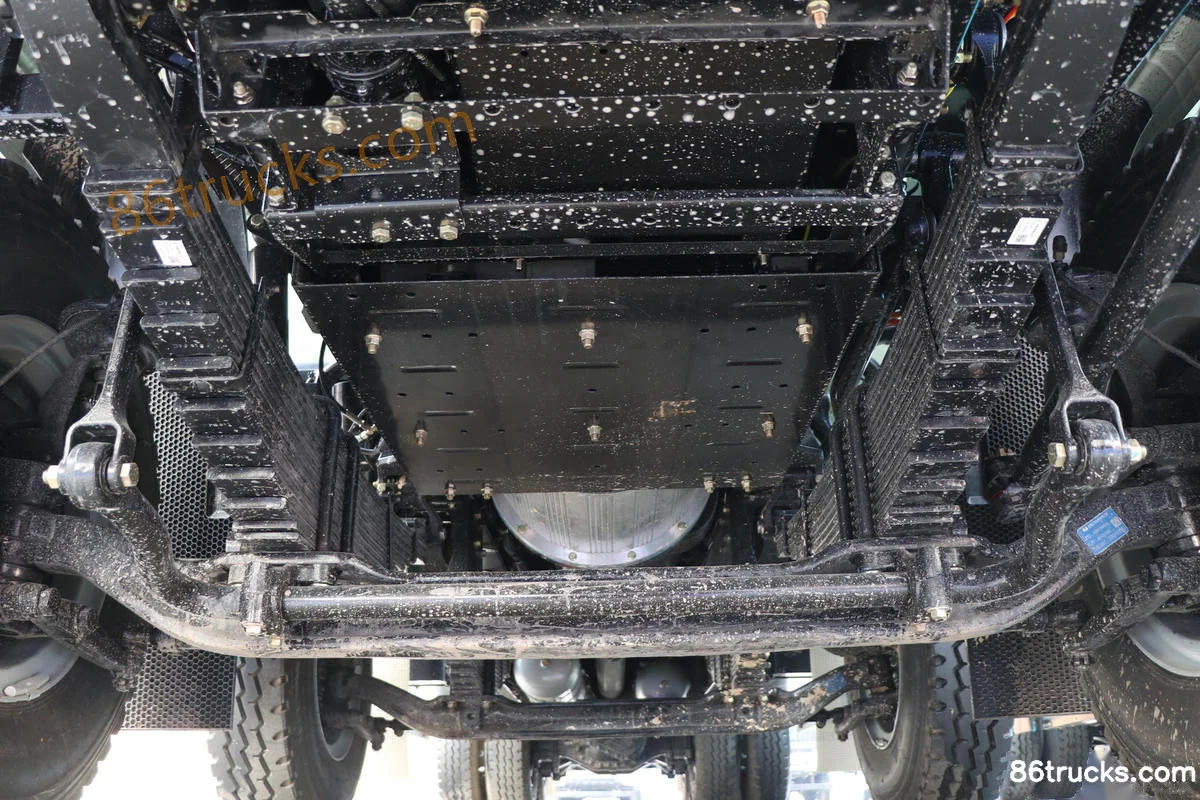

Chassis3

Body3

9 photos

FAQ

What is the export price of SHACMAN Delong X5000E 8X4(12 wheels) 8.6m Electric Dump Truck 400.61kWh, and what does it include?

SHACMAN Delong X5000E 8X4(12 wheels) 8.6m Electric Dump Truck 400.61kWh export reference is about From $82,194; MSRP is ¥59.18M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What are the key specs of SHACMAN Delong X5000E 8X4(12 wheels) 8.6m Electric Dump Truck 400.61kWh?

Key specs of SHACMAN Delong X5000E 8X4(12 wheels) 8.6m Electric Dump Truck 400.61kWh: Drive: 8x4. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is SHACMAN Delong X5000E 8X4(12 wheels) 8.6m Electric Dump Truck 400.61kWh suited for?

SHACMAN Delong X5000E 8X4(12 wheels) 8.6m Electric Dump Truck 400.61kWh is a electric dump truck model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does SHACMAN Delong X5000E 8X4(12 wheels) 8.6m Electric Dump Truck 400.61kWh differ from other variants in the same series?

SHACMAN Delong X5000E 8X4(12 wheels) 8.6m Electric Dump Truck 400.61kWh belongs to SHACMAN Delong X5000E (electric dump truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for SHACMAN Delong X5000E 8X4(12 wheels) 8.6m Electric Dump Truck 400.61kWh?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export SHACMAN Delong X5000E 8X4(12 wheels) 8.6m Electric Dump Truck 400.61kWh?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
