Hualing Heavy Truck 360hp 8X4(12 wheels) 8m³ Concrete Mixer Truck (China VI)

Export reference
MSRP N/A
Fuel: Diesel
Curb Weight:: 12.8ton
Wheelbase:: 1850+3000+1350mm
Tire Size:: 11.00R20 18PR
Cab dimensions:: 9.7×2.525×3.94m
Truck Type:: Concrete mixer truck
Rated payload: 18.07ton
Drive 8X4 (12 wheels)
Horsepower 360
Emission China VI

Overview

The Hualing Heavy Truck 360hp 8X4(12 wheels) 8m³ Concrete Mixer Truck (China VI) is a concrete mixer truck featuring 18.07t payload, 12.8ton GVW, 8X4 (12 wheels) drive and 9.7×2.525×3.94m cab. On the powertrain side, it comes with 360 hp, China VI emissions and Diesel fuel.

China VI 360 Diesel 8X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 9.7×2.525×3.94m
Drive type: 8X4
Truck Type: Concrete mixer truck
Front/rear track width: Front: 2065/2065mm; Rear: 1860/1860
Wheelbase: 1850+3000+1350mm
Vehicle origin: Ma'anshan, Anhui
Curb Weight: 12.8ton
Rated payload: 18.07ton
Max. speed: 82km/h
Front/rear suspension: 1.37/2.13m
Body Parameters
Mixing drum capacity: 8m³
Vehicle certification code: AH5313GJBAL6
Body Brand: Hualing
Engine parameters
Engine Model: HanmaHM09.360 60
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 8.87L
Emission standard: China VI
Max output power: 265kW
Max hp: 360Horsepower
Chassis Specs
Chassis Series: Hualing Heavy Truck
Chassis Model: HN1311B36CLM6J
Front axle description: 6T front axle
Frame Dimensions: 310(8+5mm)
rear axle description: HL439(5.143) lightweight maintenance-free middle-rear axle
Axle ratio: 5.143
Leaf spring count: 9/9/12
Transmission Parameters
Number of gears: 9Gear
Transmission Model: Hanma9SDB2050
Tire
Tire Size: 11.00R20 18PR
Number of tires: 12pcs

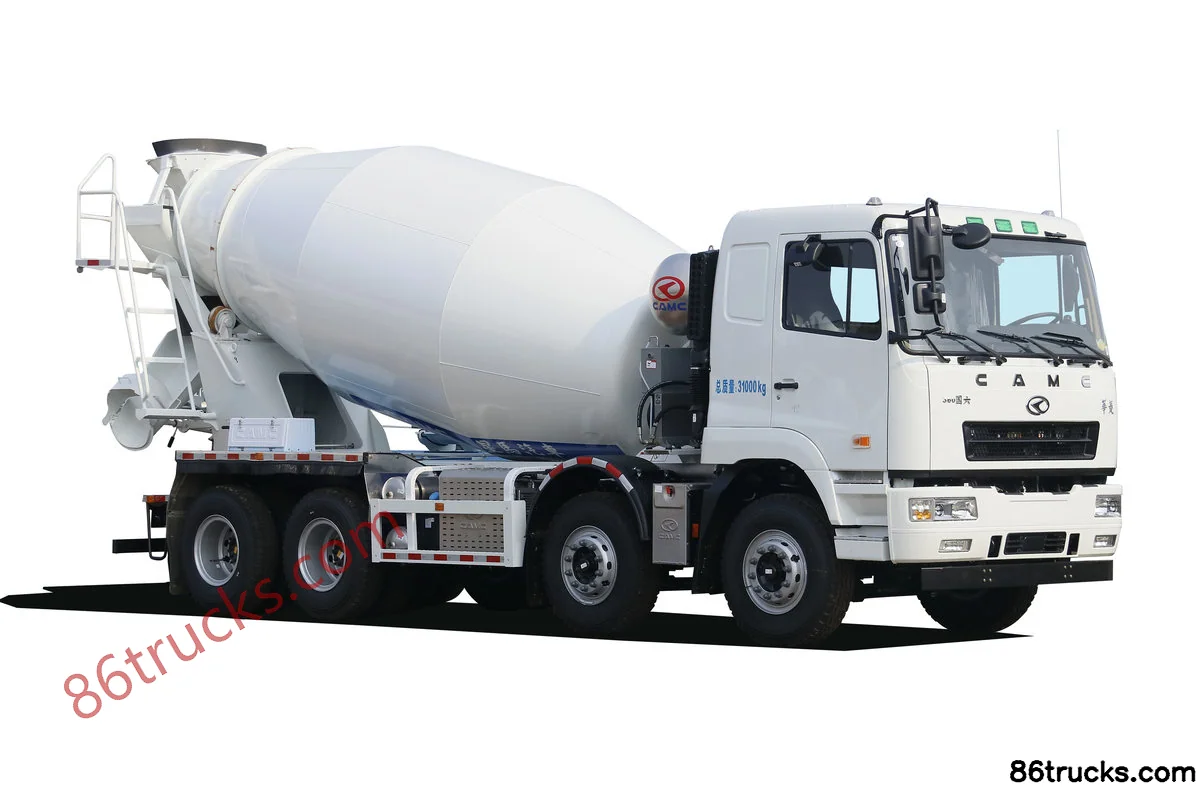

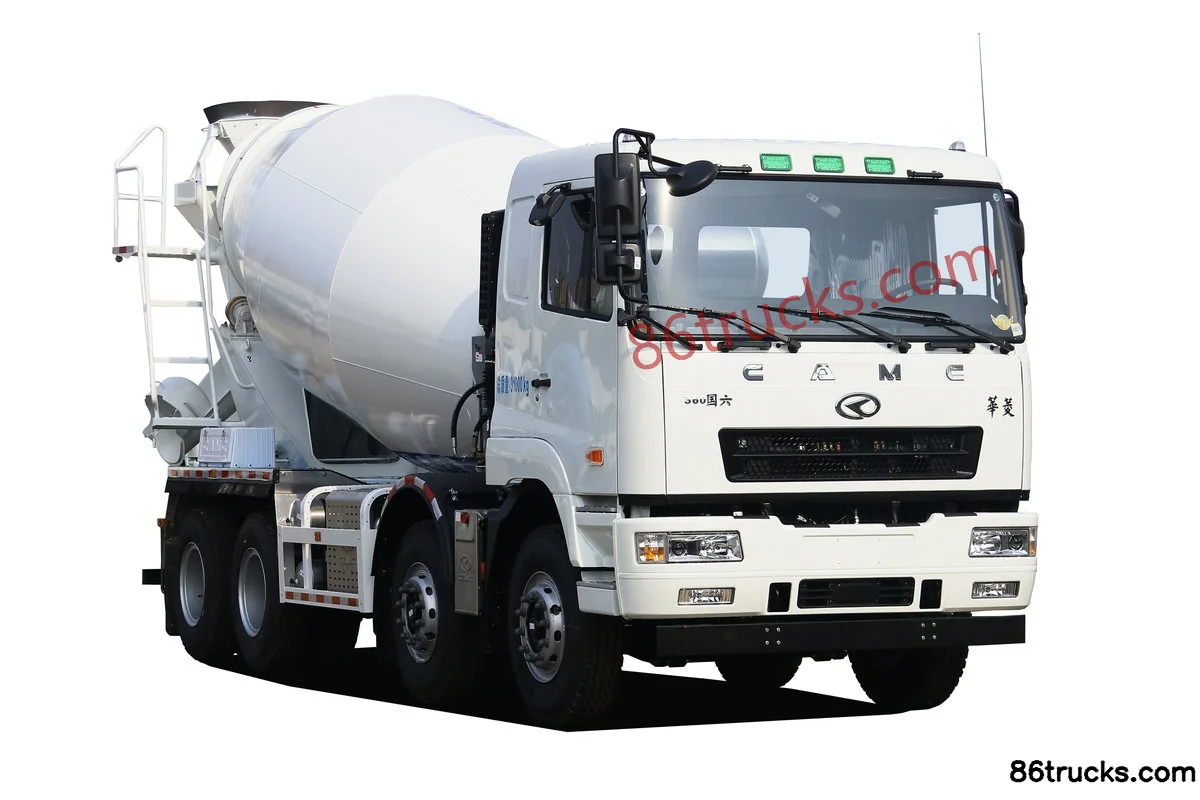

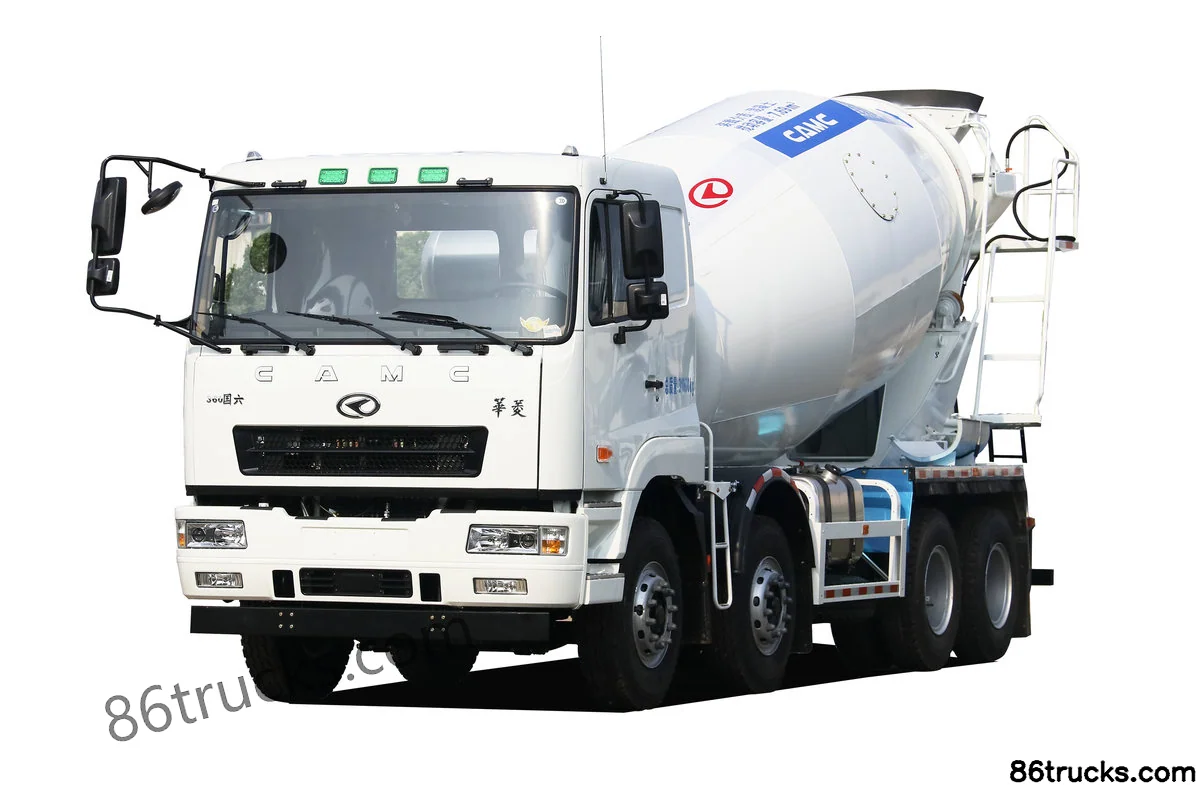

Photos

Exterior3

3 photos

FAQ

What emission standard does Hualing Heavy Truck 360hp 8X4(12 wheels) 8m³ Concrete Mixer Truck (China VI) use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Hualing Heavy Truck 360hp 8X4(12 wheels) 8m³ Concrete Mixer Truck (China VI)?

Key specs of Hualing Heavy Truck 360hp 8X4(12 wheels) 8m³ Concrete Mixer Truck (China VI): Drive: 8x4; Horsepower: 360 hp; Emission: China VI; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Hualing Heavy Truck 360hp 8X4(12 wheels) 8m³ Concrete Mixer Truck (China VI) suited for?

Hualing Heavy Truck 360hp 8X4(12 wheels) 8m³ Concrete Mixer Truck (China VI) is a concrete mixer truck model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Hualing Heavy Truck 360hp 8X4(12 wheels) 8m³ Concrete Mixer Truck (China VI) differ from other variants in the same series?

Hualing Heavy Truck 360hp 8X4(12 wheels) 8m³ Concrete Mixer Truck (China VI) belongs to Hualing M5 Heavy Truck (concrete mixer truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Hualing Heavy Truck 360hp 8X4(12 wheels) 8m³ Concrete Mixer Truck (China VI)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Hualing Heavy Truck 360hp 8X4(12 wheels) 8m³ Concrete Mixer Truck (China VI)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
