Sanlong Longjiang 140 hp 4X2(6 wheels) 3.58m Dump Truck

Export reference
MSRP N/A
Emission: China V
Fuel: Diesel
Transmission: Fast Gear
Curb Weight:: 2.5ton
Wheelbase:: 3100mm
Tire Size:: 7.50R16LT 8PR,8.25R16LT 6PR
Rated payload: 1.43ton
Drive 4X2 (6 wheels)
Horsepower 140
Cargo box type: Dump type

Overview

The Sanlong Longjiang 140 hp 4X2(6 wheels) 3.58m Dump Truck is a Light Truck featuring 1.43t payload, 4.125t GVW, Dump type cargo body and 4X2 (6 wheels) drive. On the powertrain side, it comes with a YuchaiYC4D140-50 engine, 140 hp, China V emissions and Fast Gear transmission.

China V 140 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): CZW3040-E5
Drive type: 4X2
Wheelbase: 3100mm
engine: YuchaiYC4D140-50
transmission: Fast Gear10JS90
Rear Axle Ratio: 5.286
Cab length: 5.8m
Cab width: 2.2m
Cab height: 2.4m
Front track width: 1650mm
rear track: 1640mm
Curb Weight: 2.5ton
Rated payload: 1.43ton
GVWR: 4.125ton
Origin: Zhangzhou, Fujian
tonnage class: Light Truck
Approach angle: 24°
departure angle: 15°
Energy Type: Diesel
Engine parameters
Engine Brand: Yuchai
Engine Model: YuchaiYC4D140-50
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 4.214L
Emission standard: China V
Max output power: 103kW
Max hp: 140Horsepower
Max torque: 450N·m
Max torque speed: 1400-1800rpm
Rated speed: 2800rpm
Engine Type: Vertical, inline, water-cooled, four-stroke
Transmission Parameters
Transmission Model: Fast Gear10JS90
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 10Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Unloading Type: Dump type
Cargo box type: Dump type
Cargo box length: 3.58m
Cargo box width: 2.1m
Cargo box height: 0.6m
Cab parameters
Cab: Sleeper cab
Cab width: 2080mm
fuel tank
Fuel tank material: aluminum alloy
Fuel tank capacity: 200L
Chassis Specs
Front axle description: 1069
Front axle allowable load: 1500kg
Frame Dimensions: 230mm
rear axle description: 1089
rear axle allowable load: 2625kg
Axle ratio: 5.286
Leaf spring count: 9/11+8
Tire
Tire Size: 7.50R16LT 8PR,8.25R16LT 6PR
Tire Type: Steel-belted tire
Number of tires: 6pcs
Control configuration
ABS:

Photos

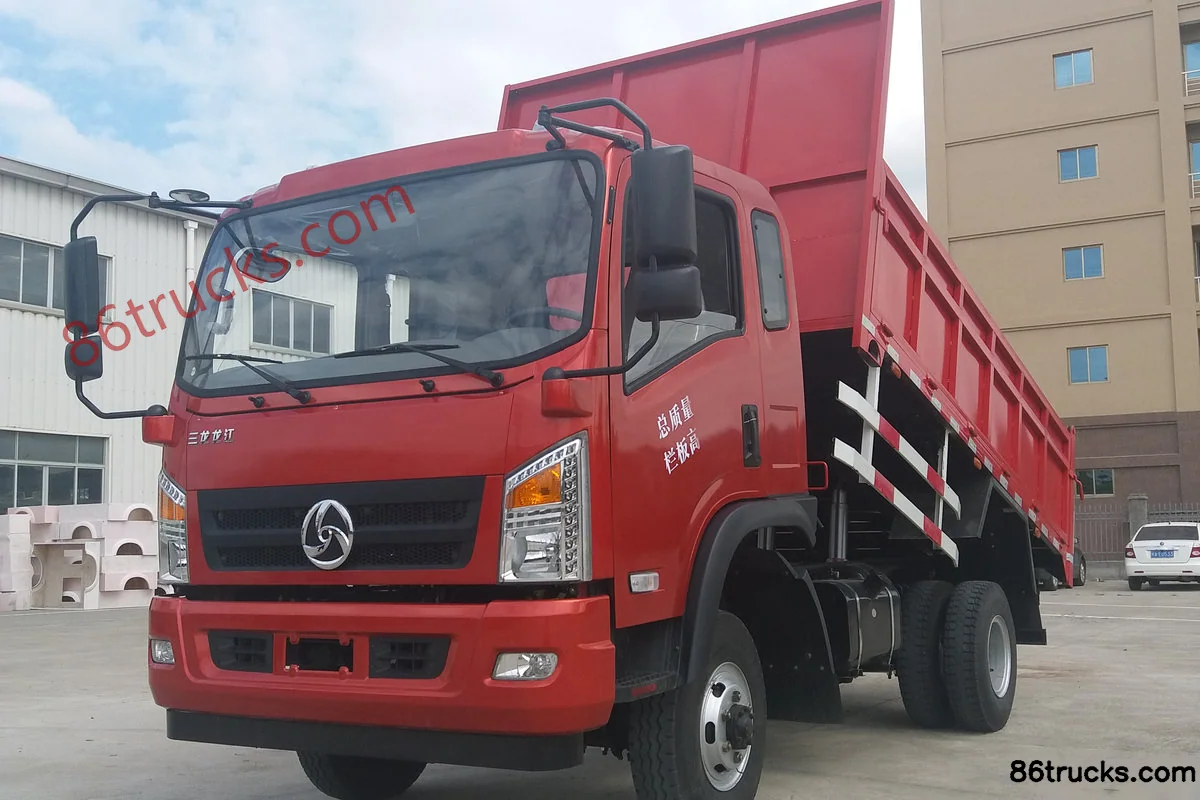

Exterior1

1 photos

FAQ

What emission standard does Sanlong Longjiang 140 hp 4X2(6 wheels) 3.58m Dump Truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Sanlong Longjiang 140 hp 4X2(6 wheels) 3.58m Dump Truck?

Key specs of Sanlong Longjiang 140 hp 4X2(6 wheels) 3.58m Dump Truck: Drive: 4x2; Horsepower: 140 hp; Emission: China V; Fuel: Diesel; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sanlong Longjiang 140 hp 4X2(6 wheels) 3.58m Dump Truck suited for?

Sanlong Longjiang 140 hp 4X2(6 wheels) 3.58m Dump Truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Sanlong Longjiang 140 hp 4X2(6 wheels) 3.58m Dump Truck differ from other variants in the same series?

Sanlong Longjiang 140 hp 4X2(6 wheels) 3.58m Dump Truck belongs to Sanlong Longjiang Light Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sanlong Longjiang 140 hp 4X2(6 wheels) 3.58m Dump Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sanlong Longjiang 140 hp 4X2(6 wheels) 3.58m Dump Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
