JAC Shuailing G Series W Transport Type 190hp 4X2(6 wheels) 6.5m dump truck

Export reference
From $25,111
MSRP ¥18.08M CNY
Emission: China V
Fuel: Diesel
Transmission: Fast Gear
Curb Weight:: 7.5ton
Wheelbase:: 5000mm
Tire Size:: 9.00-20
Rated payload: 7.9ton
Drive 4X2 (6 wheels)
Horsepower 190
Cargo box type: Dump type

Overview

The JAC Shuailing G Series W Transport Type 190hp 4X2(6 wheels) 6.5m dump truck is a Medium-duty truck featuring 7.9t payload, 15.595t GVW, Dump type cargo body and 4X2 (6 wheels) drive. On the powertrain side, it comes with a MaxxForce JND412D190-52 engine, 190 hp, China V emissions and Fast Gear transmission.

China V 190 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): HFC3161P70K1E2V
Drive type: 4X2
Wheelbase: 5000mm
engine: MaxxForce JND412D190-52
transmission: Fast Gear8JS75C
Rear Axle Ratio: 4.875
Cab length: 8.995m
Cab width: 2.495m
Cab height: 3.04m
Front track width: 1830mm
rear track: 1810mm
Curb Weight: 7.5ton
Rated payload: 7.9ton
GVWR: 15.595ton
Origin: Hefei, Anhui
tonnage class: Medium-duty truck
Approach angle: 22°
departure angle: 18°
Remarks: Optional air-suspension seat, 5.125 rear axle ratio
Version: Transport type
Energy Type: Diesel
Engine parameters
Engine Brand: JAC
Engine Model: MaxxForce JND412D190-52
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 4.748L
Emission standard: China V
Max output power: 140kW
Max hp: 190Horsepower
Max torque: 740N·m
Max torque speed: 1200-1800rpm
Rated speed: 2200rpm
Engine Type: Inline, water-cooled, 4-cylinder, air-to-air intercooled
Transmission Parameters
Transmission Model: Fast Gear8JS75C
Transmission Brand: Fast Gear
Forward gears: 8Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Unloading Type: Dump type
Cargo box type: Dump type
Cargo box length: 6.5m
Cargo box width: 2.3m
Cargo box height: 0.8m
Cab parameters
Cab: Shuailing W
fuel tank
Fuel tank capacity: 200L
Chassis Specs
Front axle description: 3.5T
Front axle allowable load: 5600kg
rear axle description: 9T
rear axle allowable load: 9995kg
Axle ratio: 4.875
Leaf spring count: 10/11+7
Tire
Tire Size: 9.00-20
Number of tires: 6pcs
Control configuration
ABS:
interior configuration
AC control type: Manual
Power Windows:
Electronic Central Lock:
Multimedia features
GPS/Beidou driving recorder:
Service brake
Parking brake: Spring brake

Photos

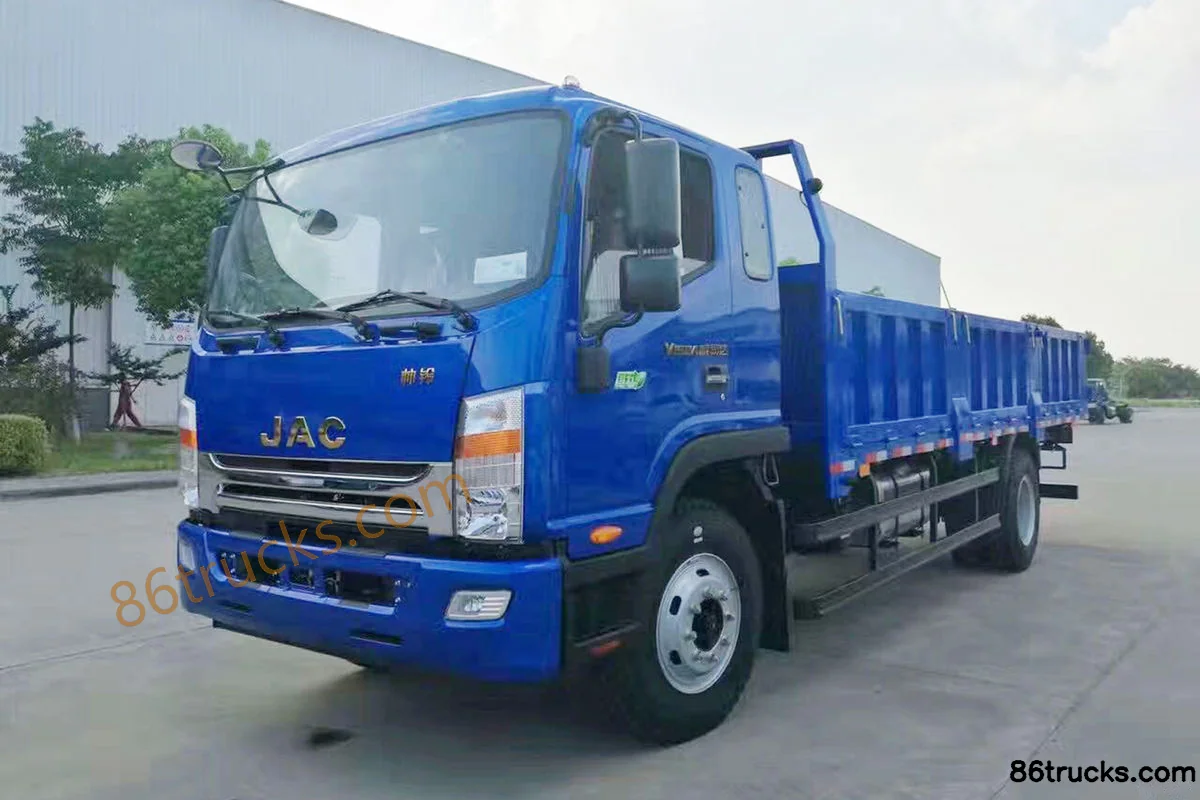

Exterior1

1 photos

FAQ

What is the export price of JAC Shuailing G Series W Transport Type 190hp 4X2(6 wheels) 6.5m dump truck, and what does it include?

JAC Shuailing G Series W Transport Type 190hp 4X2(6 wheels) 6.5m dump truck export reference is about From $25,111; MSRP is ¥18.08M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does JAC Shuailing G Series W Transport Type 190hp 4X2(6 wheels) 6.5m dump truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of JAC Shuailing G Series W Transport Type 190hp 4X2(6 wheels) 6.5m dump truck?

Key specs of JAC Shuailing G Series W Transport Type 190hp 4X2(6 wheels) 6.5m dump truck: Drive: 4x2; Horsepower: 190 hp; Emission: China V; Fuel: Diesel; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is JAC Shuailing G Series W Transport Type 190hp 4X2(6 wheels) 6.5m dump truck suited for?

JAC Shuailing G Series W Transport Type 190hp 4X2(6 wheels) 6.5m dump truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does JAC Shuailing G Series W Transport Type 190hp 4X2(6 wheels) 6.5m dump truck differ from other variants in the same series?

JAC Shuailing G Series W Transport Type 190hp 4X2(6 wheels) 6.5m dump truck belongs to JACG (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for JAC Shuailing G Series W Transport Type 190hp 4X2(6 wheels) 6.5m dump truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export JAC Shuailing G Series W Transport Type 190hp 4X2(6 wheels) 6.5m dump truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
