Yuejin Kaituo X500 Engineering Type 140 hp 4X2(6 wheels) 4m dump truck

Export reference
From $18,444
MSRP ¥13.28M CNY
Emission: China V
Fuel: Diesel
Transmission: Fast Gear
Curb Weight:: 7.605ton
Wheelbase:: 3500mm
Tire Size:: 9.00-20 16PR
Rated payload: 7.995ton
Drive 4X2 (6 wheels)
Horsepower 140
Cargo box length: 4m

Overview

The Yuejin Kaituo X500 Engineering Type 140 hp 4X2(6 wheels) 4m dump truck is a Light Truck featuring 7.995t payload, 15.795t GVW, 4m cargo body and 4X2 (6 wheels) drive. On the powertrain side, it comes with a WeichaiWP4.1Q140E50 engine, 140 hp, China V emissions and Fast Gear transmission.

China V 140 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): SH3162VGDCMW
Drive type: 4X2
Wheelbase: 3500mm
engine: WeichaiWP4.1Q140E50
transmission: Fast Gear8JS85E
Cab length: 6.33m
Cab width: 2.28m
Cab height: 2.66m
Front track width: 1740mm
rear track: 1725mm
Curb Weight: 7.605ton
Rated payload: 7.995ton
GVWR: 15.795ton
Origin: Nanjing, Jiangsu
tonnage class: Light Truck
Approach angle: 30°
departure angle: 13°
Remarks: Cab with tilt, power steering, spare tire.
Version: Heavy-duty type
Energy Type: Diesel
Engine parameters
Engine Brand: Weichai
Engine Model: WeichaiWP4.1Q140E50
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 4.088L
Emission standard: China V
Max output power: 103kW
Max hp: 140Horsepower
Max torque: 450N·m
Max torque speed: 1400-1800rpm
Rated speed: 2600rpm
Engine Type: Common Rail+SCR
Transmission Parameters
Transmission Model: Fast Gear8JS85E
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 8Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Cargo box length: 4m
Cargo box width: 2.1m
Cargo box height: 0.8m
Cab parameters
Cab: Wide-body Extended Cab
Chassis Specs
Front axle allowable load: 5800kg
Frame Dimensions: 250×6+5mm
rear axle description: 145D axle, 8-ton
rear axle allowable load: 9995kg
Leaf spring count: 9/13+8
Tire
Tire Size: 9.00-20 16PR
Number of tires: 6pcs
Control configuration
ABS:
interior configuration
Power Windows:
Service brake
Parking brake: Spring brake

Photos

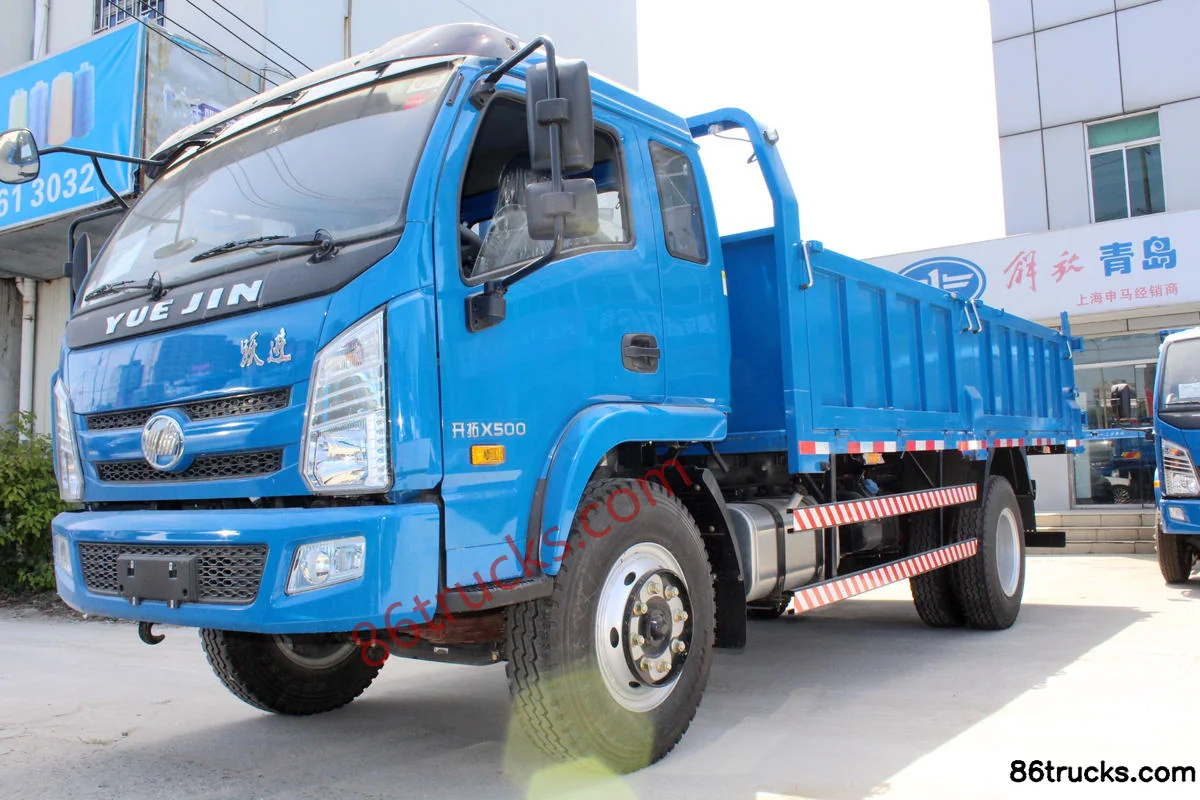

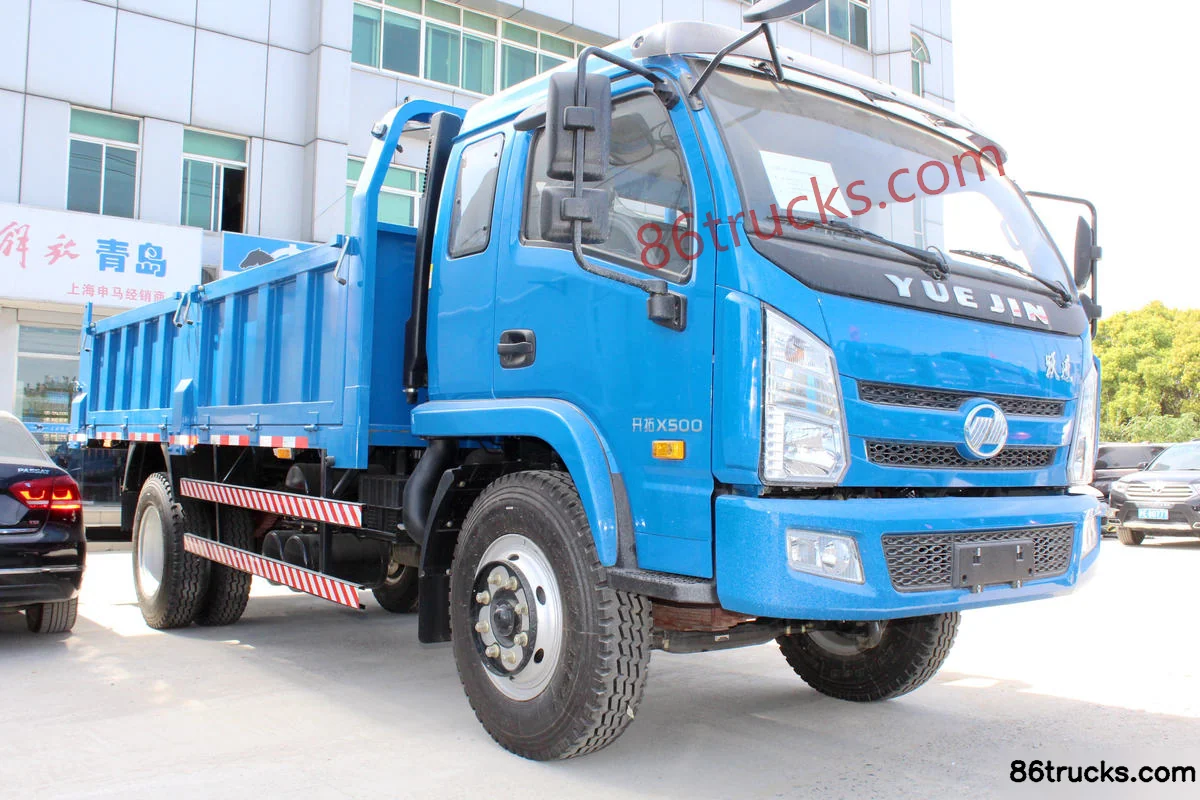

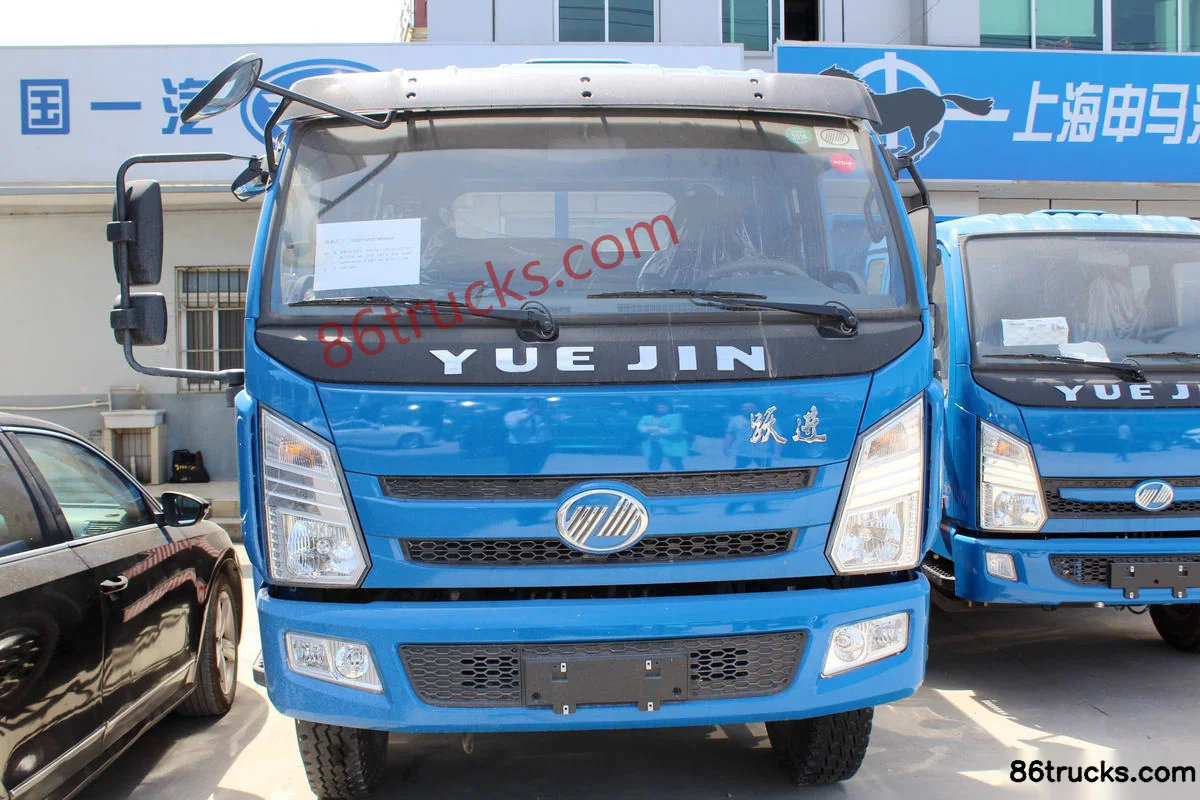

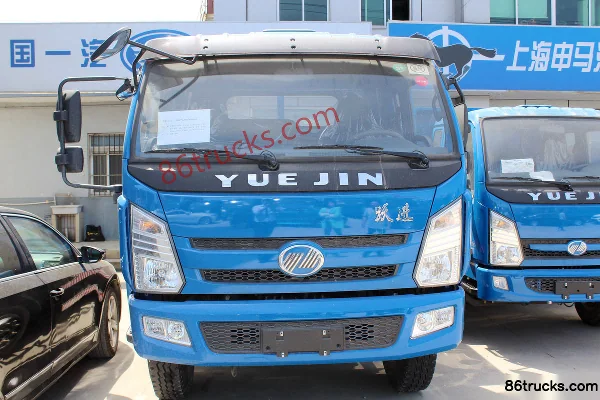

Exterior3

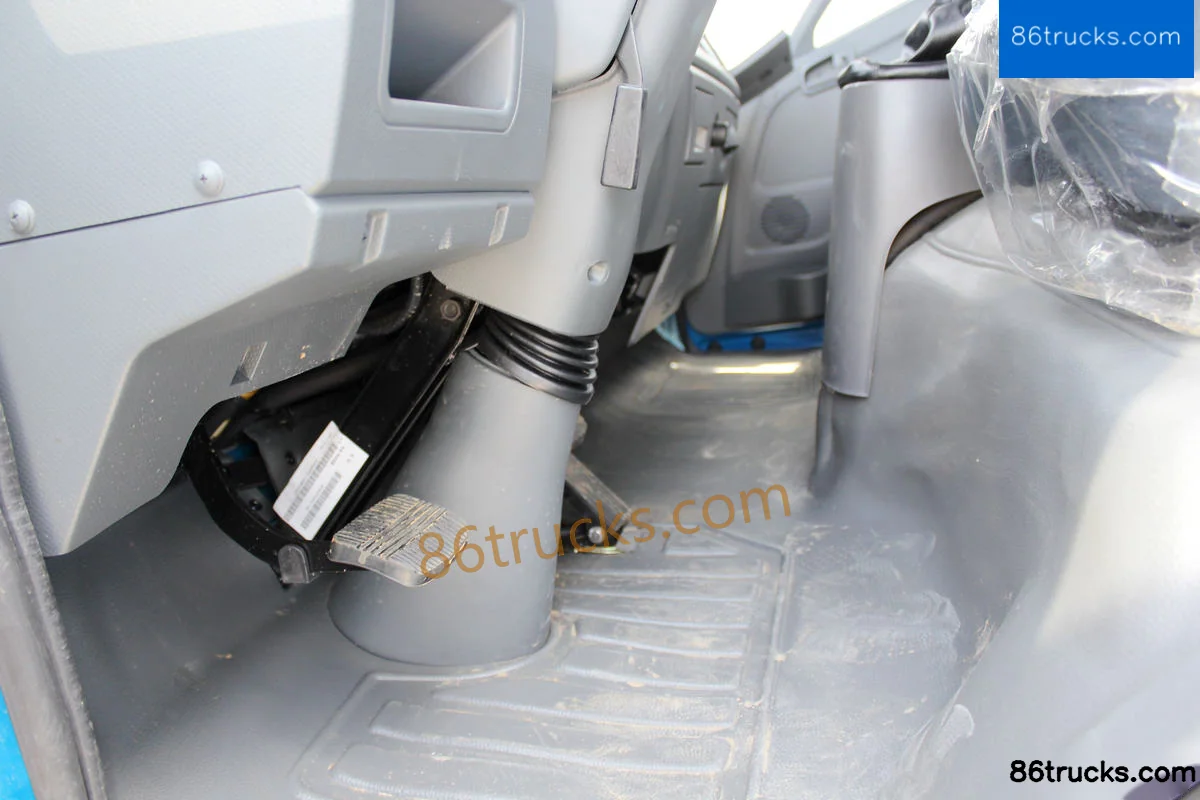

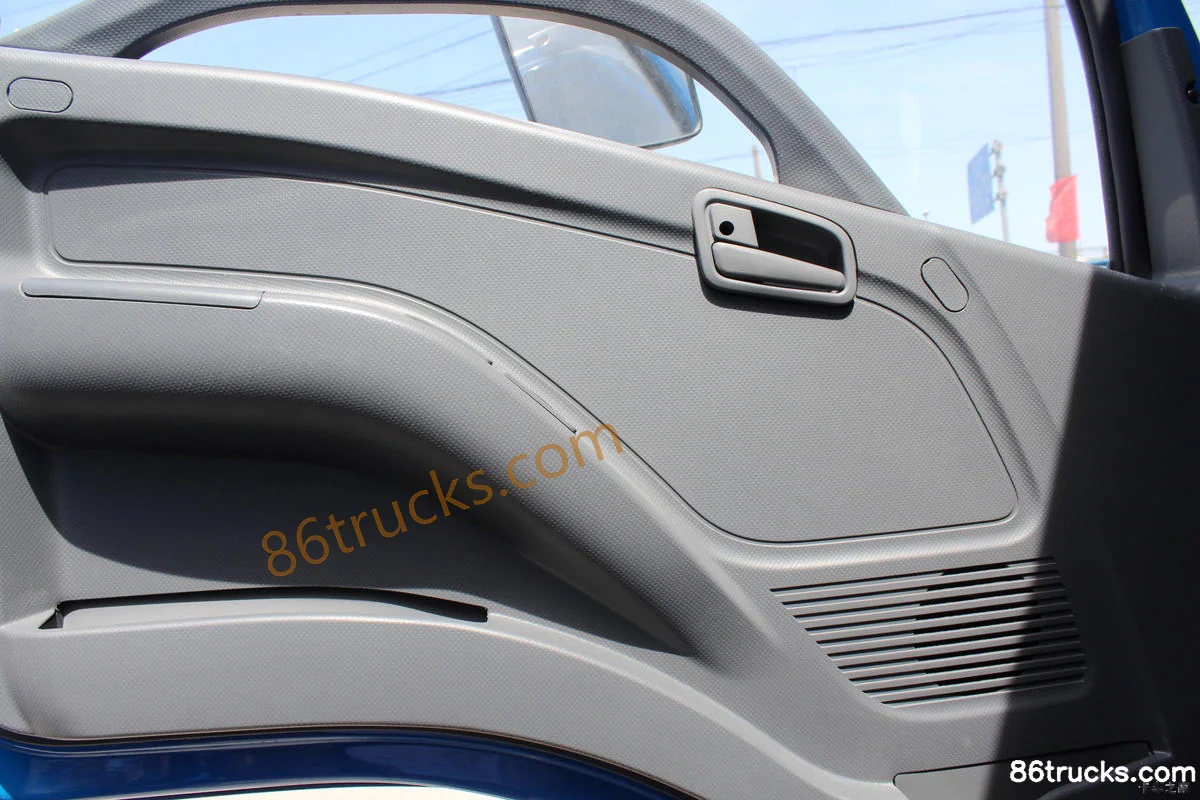

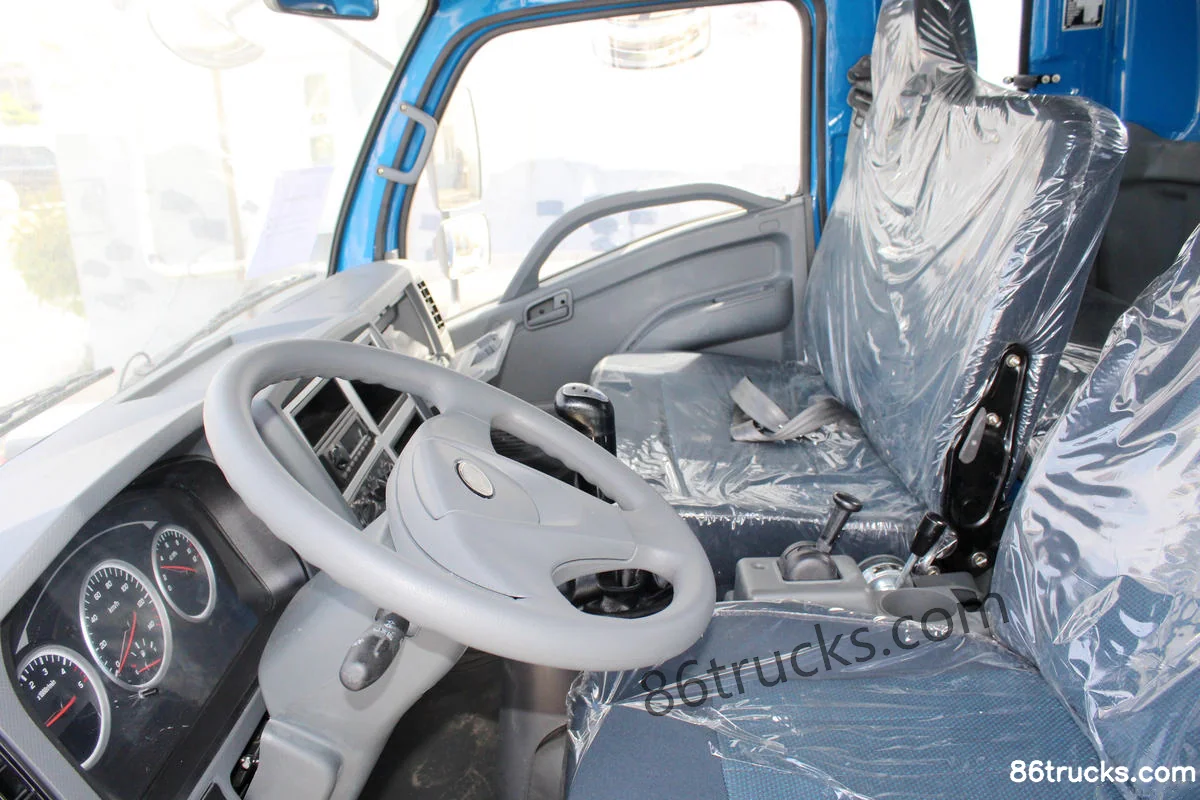

Cab3

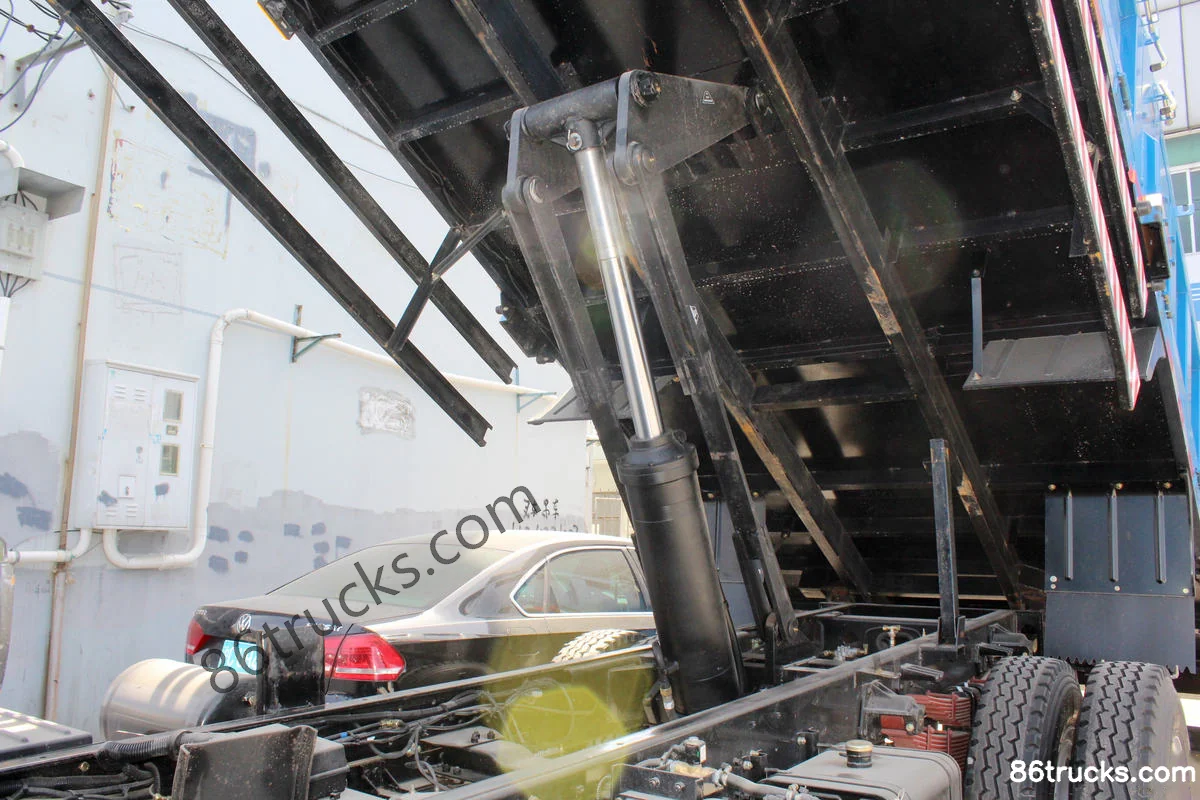

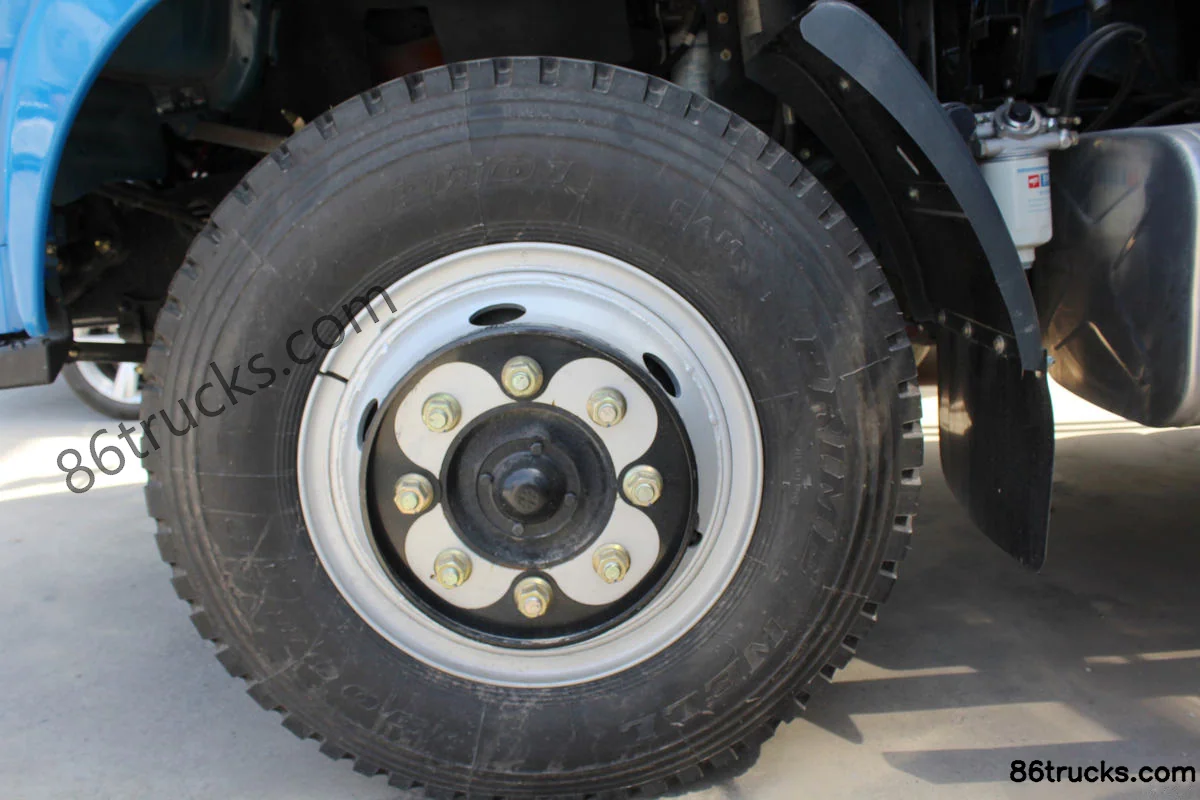

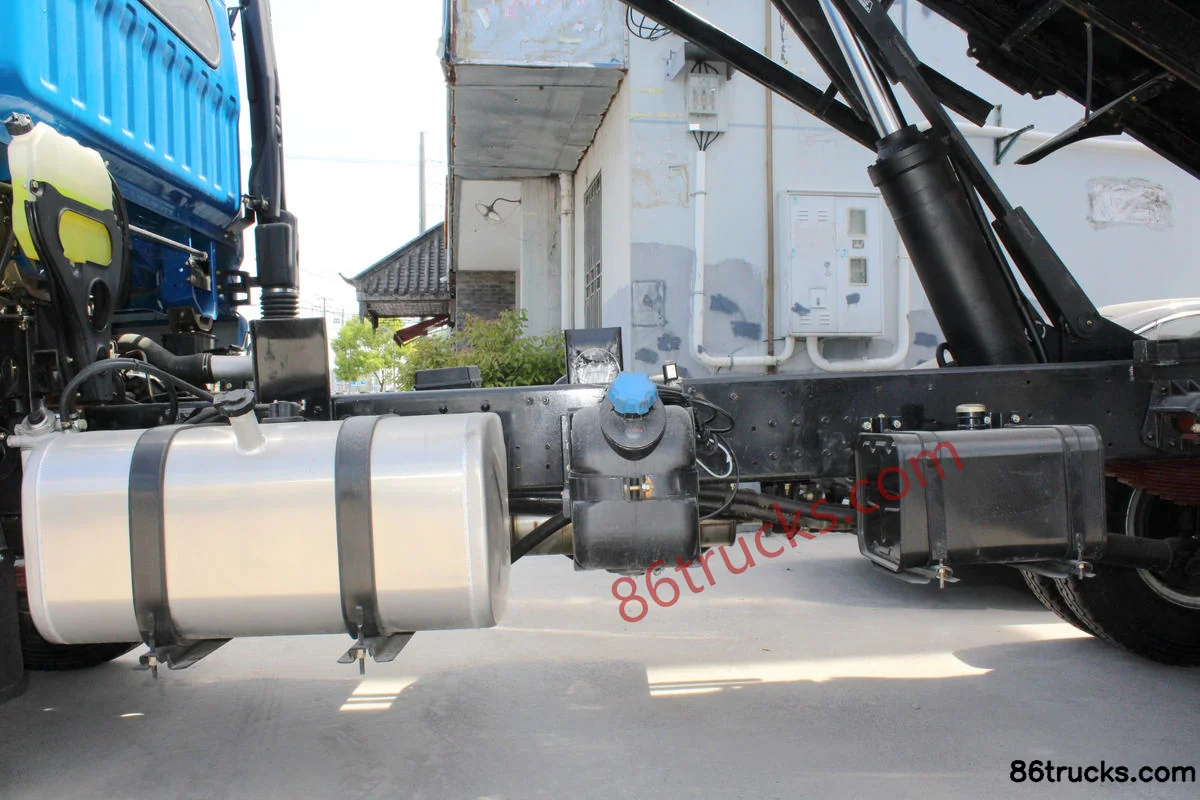

Chassis3

9 photos

FAQ

What is the export price of Yuejin Kaituo X500 Engineering Type 140 hp 4X2(6 wheels) 4m dump truck, and what does it include?

Yuejin Kaituo X500 Engineering Type 140 hp 4X2(6 wheels) 4m dump truck export reference is about From $18,444; MSRP is ¥13.28M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Yuejin Kaituo X500 Engineering Type 140 hp 4X2(6 wheels) 4m dump truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Yuejin Kaituo X500 Engineering Type 140 hp 4X2(6 wheels) 4m dump truck?

Key specs of Yuejin Kaituo X500 Engineering Type 140 hp 4X2(6 wheels) 4m dump truck: Drive: 4x2; Horsepower: 140 hp; Emission: China V; Fuel: Diesel; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Yuejin Kaituo X500 Engineering Type 140 hp 4X2(6 wheels) 4m dump truck suited for?

Yuejin Kaituo X500 Engineering Type 140 hp 4X2(6 wheels) 4m dump truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Yuejin Kaituo X500 Engineering Type 140 hp 4X2(6 wheels) 4m dump truck differ from other variants in the same series?

Yuejin Kaituo X500 Engineering Type 140 hp 4X2(6 wheels) 4m dump truck belongs to Yuejin Kaituo X500 Light-duty Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Yuejin Kaituo X500 Engineering Type 140 hp 4X2(6 wheels) 4m dump truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Yuejin Kaituo X500 Engineering Type 140 hp 4X2(6 wheels) 4m dump truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
