NanJun Ruiyu 160hp 6X2(8 wheels) 4.7m Dump Truck

Export reference
From $25,500
MSRP ¥18.36M CNY
Emission: China V
Fuel: Diesel
Transmission: Fast Gear
Curb Weight:: 8.07ton
Wheelbase:: 1700+2600mm
Tire Size:: 10.00R20
Rated payload: 9.995ton
Drive 6X2 (8 wheels)
Horsepower 160
Cargo box type: Dump type

Overview

The NanJun Ruiyu 160hp 6X2(8 wheels) 4.7m Dump Truck is a Light Truck featuring 9.995t payload, 18.26t GVW, Dump type cargo body and 6X2 (8 wheels) drive. On the powertrain side, it comes with a YuchaiYC4E160-56 engine, 160 hp, China V emissions and Fast Gear transmission.

China V 160 Diesel 6X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): CNJ3180RPC43V
Drive type: 6X2
Wheelbase: 1700+2600mm
engine: YuchaiYC4E160-56
transmission: Fast Gear10JS90A
Rear Axle Ratio: 6.333
Cab length: 7.45m
Cab width: 2.34m
Cab height: 3.017m
Front track width: 1780/1780mm
rear track: 1750mm
Curb Weight: 8.07ton
Rated payload: 9.995ton
GVWR: 18.26ton
Origin: Ziyang, Sichuan
tonnage class: Light Truck
Approach angle: 18°
departure angle: 14°
Energy Type: Diesel
Engine parameters
Engine Brand: Yuchai
Engine Model: YuchaiYC4E160-56
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 4.26L
Emission standard: China V
Max output power: 118kW
Max hp: 160Horsepower
Max torque: 600N·m
Max torque speed: 1300-1600rpm
Rated speed: 2600rpm
Engine Type: Vertical, inline, water-cooled, four-stroke
Transmission Parameters
Transmission Model: Fast Gear10JS90A
Transmission Brand: Fast Gear
Forward gears: 10Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Unloading Type: Dump type
Cargo box type: Dump type
Cargo box length: 4.7m
Cargo box width: 2.2m
Cargo box height: 1.2m
Cab parameters
Cab: Ruiyu 160
Chassis Specs
Front axle description: 145
Front axle allowable load: 4480/4480kg
rear axle description: 457
rear axle allowable load: 9300kg
Axle ratio: 6.333
Leaf spring count: 9/9/10+8
Tire
Tire Size: 10.00R20
Number of tires: 8pcs
Control configuration
ABS:

Photos

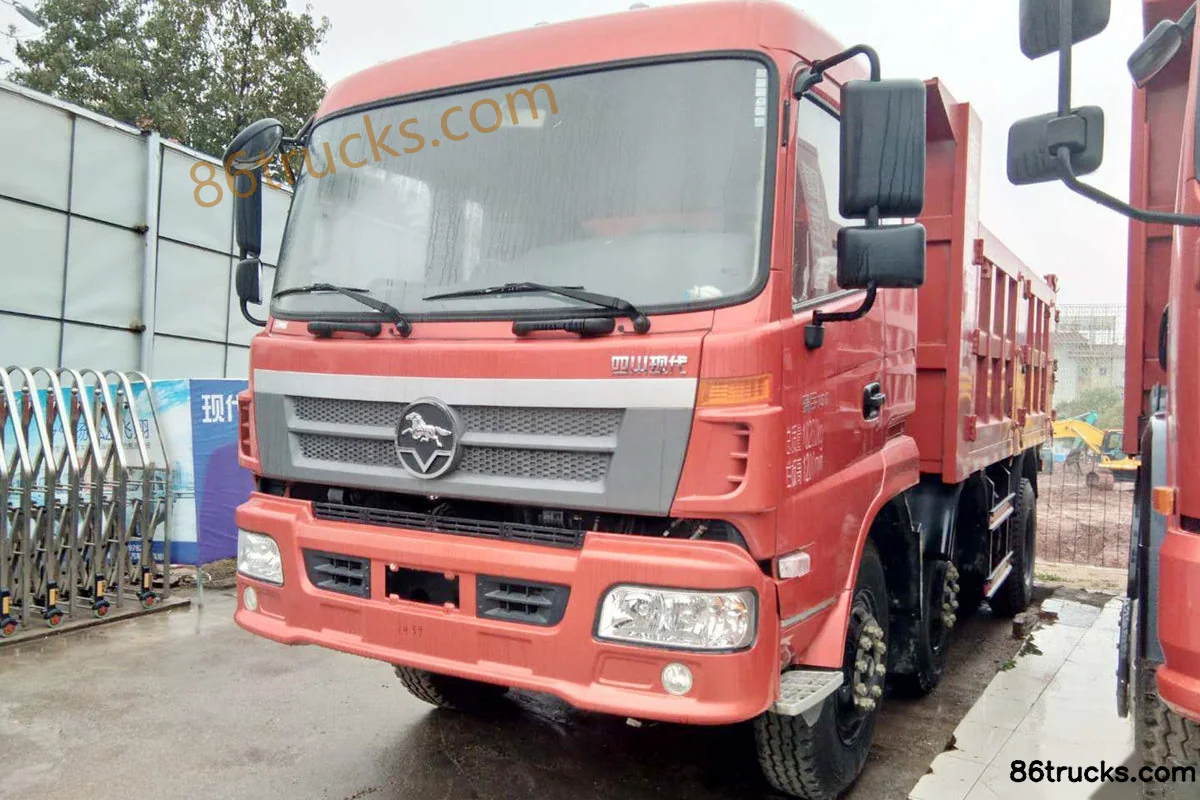

Exterior1

1 photos

FAQ

What is the export price of NanJun Ruiyu 160hp 6X2(8 wheels) 4.7m Dump Truck, and what does it include?

NanJun Ruiyu 160hp 6X2(8 wheels) 4.7m Dump Truck export reference is about From $25,500; MSRP is ¥18.36M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does NanJun Ruiyu 160hp 6X2(8 wheels) 4.7m Dump Truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of NanJun Ruiyu 160hp 6X2(8 wheels) 4.7m Dump Truck?

Key specs of NanJun Ruiyu 160hp 6X2(8 wheels) 4.7m Dump Truck: Drive: 6x2; Horsepower: 160 hp; Emission: China V; Fuel: Diesel; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is NanJun Ruiyu 160hp 6X2(8 wheels) 4.7m Dump Truck suited for?

NanJun Ruiyu 160hp 6X2(8 wheels) 4.7m Dump Truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does NanJun Ruiyu 160hp 6X2(8 wheels) 4.7m Dump Truck differ from other variants in the same series?

NanJun Ruiyu 160hp 6X2(8 wheels) 4.7m Dump Truck belongs to NanJun Ruiyu Medium Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for NanJun Ruiyu 160hp 6X2(8 wheels) 4.7m Dump Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export NanJun Ruiyu 160hp 6X2(8 wheels) 4.7m Dump Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
