Dongfeng Liuqi New Chenglong M3 230 hp 6X2(8 wheels) Dump Truck

Export reference
MSRP N/A
Fuel: Diesel
Transmission: Fast Gear
Wheelbase:: 1950+2550mm
Tire Size:: 10.00R20 18PR
Model code (announced):: LZ3240M3CC1T
engine:: YuchaiYCK05230-60
Dongfeng Liuqi New Chenglong M3 230 hp 6X2(8 wheels) Dump Truck exterior
View more photos (9)
Drive 6X2 (8 wheels)
Horsepower 230
Cargo box type: Dump type
Emission China VI

Overview

The Dongfeng Liuqi New Chenglong M3 230 hp 6X2(8 wheels) Dump Truck is a Medium-duty truck featuring Dump type cargo body, 6X2 (8 wheels) drive and M30B cab. On the powertrain side, it comes with a YuchaiYCK05230-60 engine, 230 hp, China VI emissions and Fast Gear transmission.

China VI 230 Diesel 6X2

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model code (announced): LZ3240M3CC1T
Drive type: 6X2
Wheelbase: 1950+2550mm
engine: YuchaiYCK05230-60
transmission: Fast Gear10JS90A-B
Rear Axle Ratio: 5.286
Origin: Liuzhou, Guangxi
tonnage class: Medium-duty truck
Remarks: Desert air filter, on-board terminal, automatic adjuster arm, 110 steering gear, LCD instrument cluster
Energy Type: Diesel
Engine parameters
Engine Brand: Yuchai
Engine Model: YuchaiYCK05230-60
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 5.13L
Emission standard: China VI
Max output power: 169kW
Max hp: 230Horsepower
Max torque: 840N·m
Max torque speed: 1200-1700rpm
Rated speed: 2200rpm
Engine Type: High-pressure common rail + EGR + DOC + DPF + SCR + ASC
Transmission Parameters
Transmission Model: Fast Gear10JS90A-B
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 10Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Unloading Type: Dump type
Cargo box type: Dump type
Cab parameters
Cab: M30B
Cab tilting: Electric
fuel tank
Fuel tank material: aluminum alloy
Fuel tank capacity: 250L
Chassis Specs
Front axle description: 2*5T
Frame Dimensions: 264 (6+4)mm
rear axle description: 457 narrow rear axle
Axle ratio: 5.286
Leaf spring count: 11/11/12+9
clutch: Φ395
Tire
Tire Size: 10.00R20 18PR
Number of tires: 8pcs
Control configuration
ABS:
Stability control system:
interior configuration
Steering Wheel Material: leather
steering wheel adjustment: pneumatic
Multifunction steering wheel:
AC control type: Manual
Power Windows:
Power Mirrors:
Electric Heated Rearview Mirror:
Power interface:
Reverse Radar:
Reverse Camera:
Remote key:
Electronic Central Lock:
Exterior features
Aluminum air tank:
Multimedia features
Center Console Color Screen:
GPS/Beidou driving recorder:
External audio input (AUX/USB/iPod etc.):
Bluetooth / hands-free calling:
Radio:
lighting configuration
Headlight brand: none
Front fog lamp:
daytime running lights:
Headlight height adjustment:
LED taillight:
Service brake
Parking brake: Spring brake
Exhaust brake:
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type
smart configuration
Telematics System:
Cruise control (CCS):
adaptive cruise control (ACC):
Tire Pressure Monitoring System (TPMS):
Lane change assist (ALC):
AEB automatic emergency braking system:

Photos

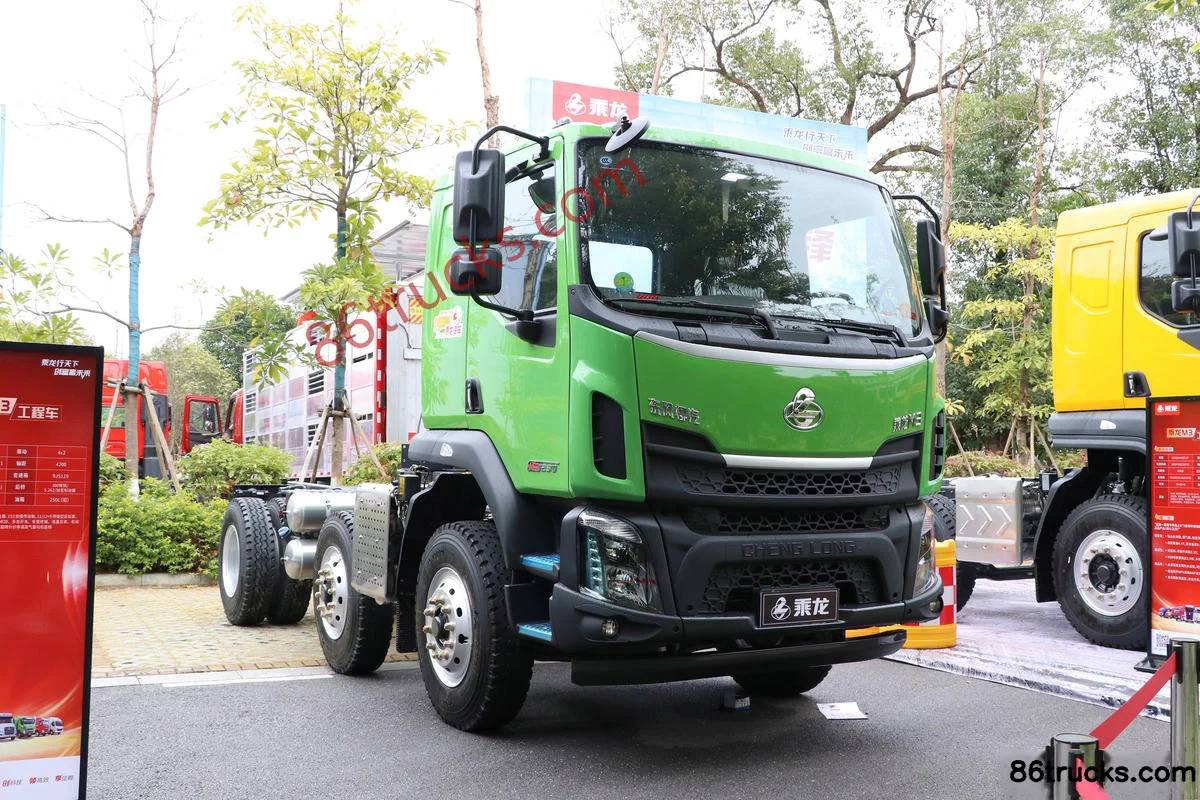

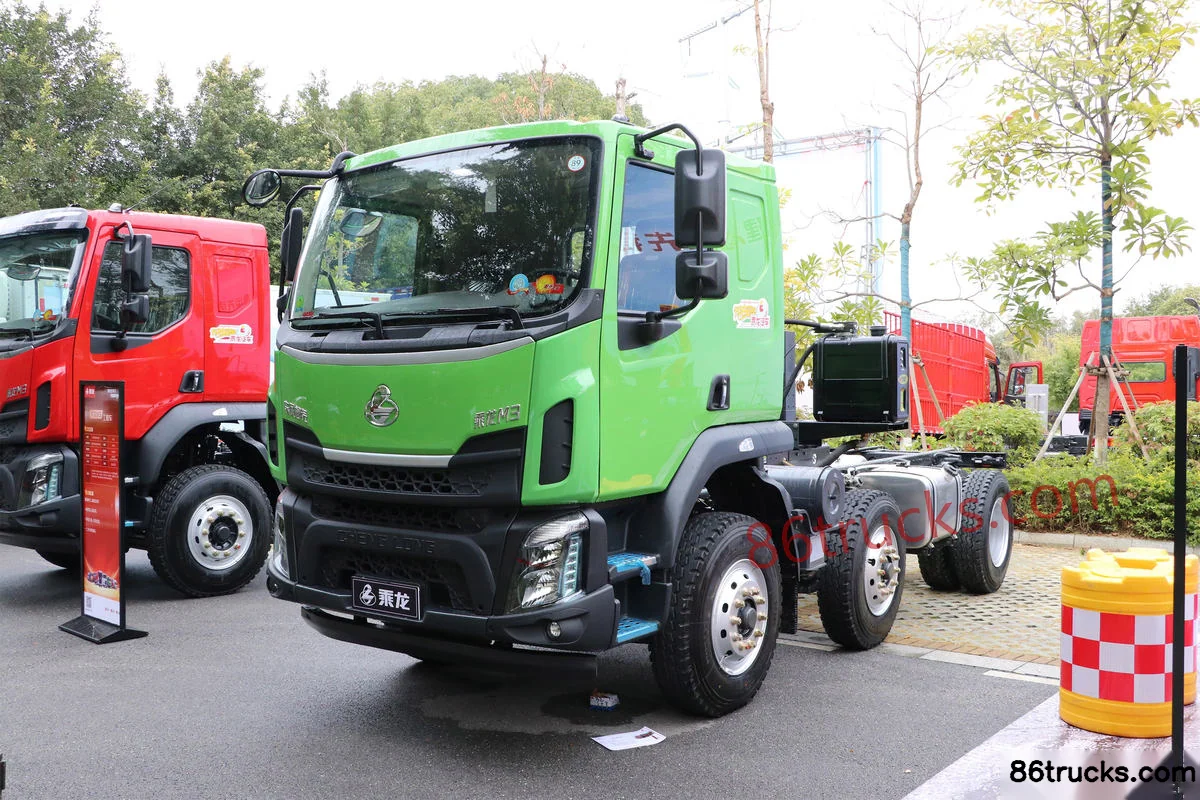

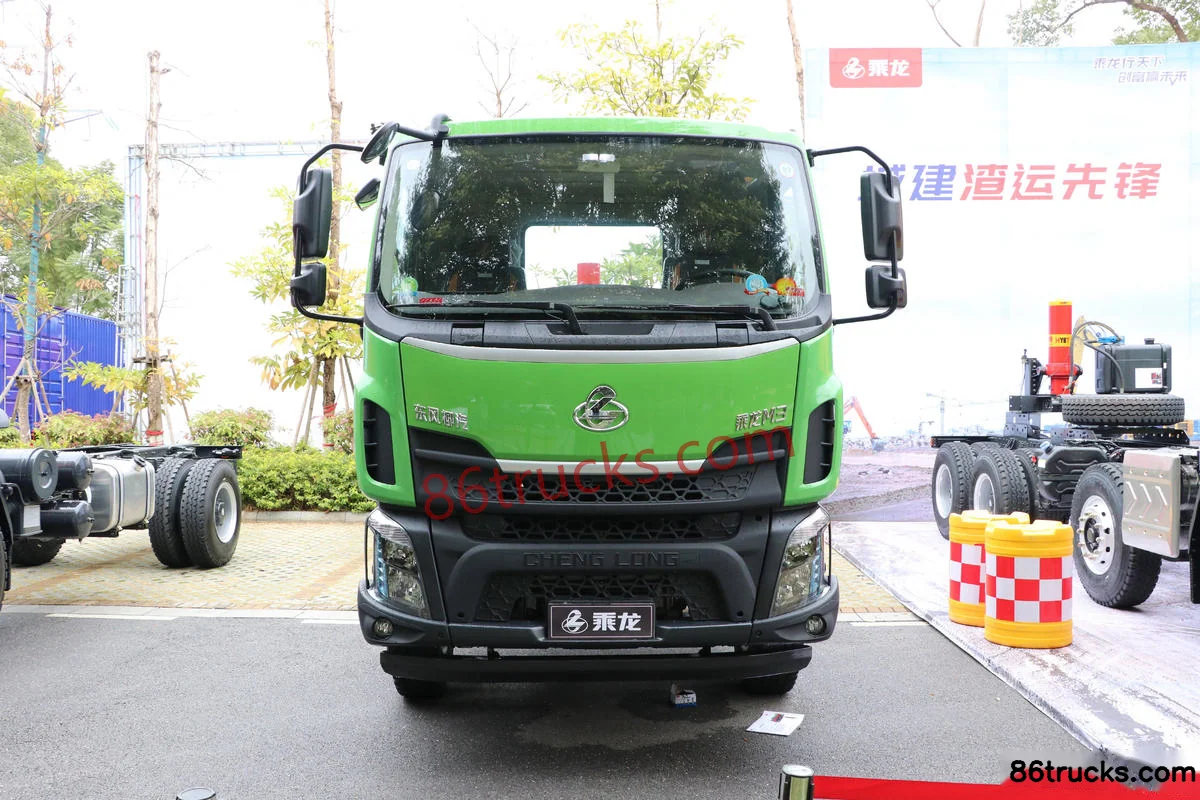

Exterior3

Dongfeng Liuqi New Chenglong M3 230 hp 6X2(8 wheels) Dump Truck Exterior (1) | 86Trucks Dongfeng Liuqi New Chenglong M3 230 hp 6X2(8 wheels) Dump Truck Exterior (2) | 86Trucks Dongfeng Liuqi New Chenglong M3 230 hp 6X2(8 wheels) Dump Truck Exterior (3) | 86Trucks

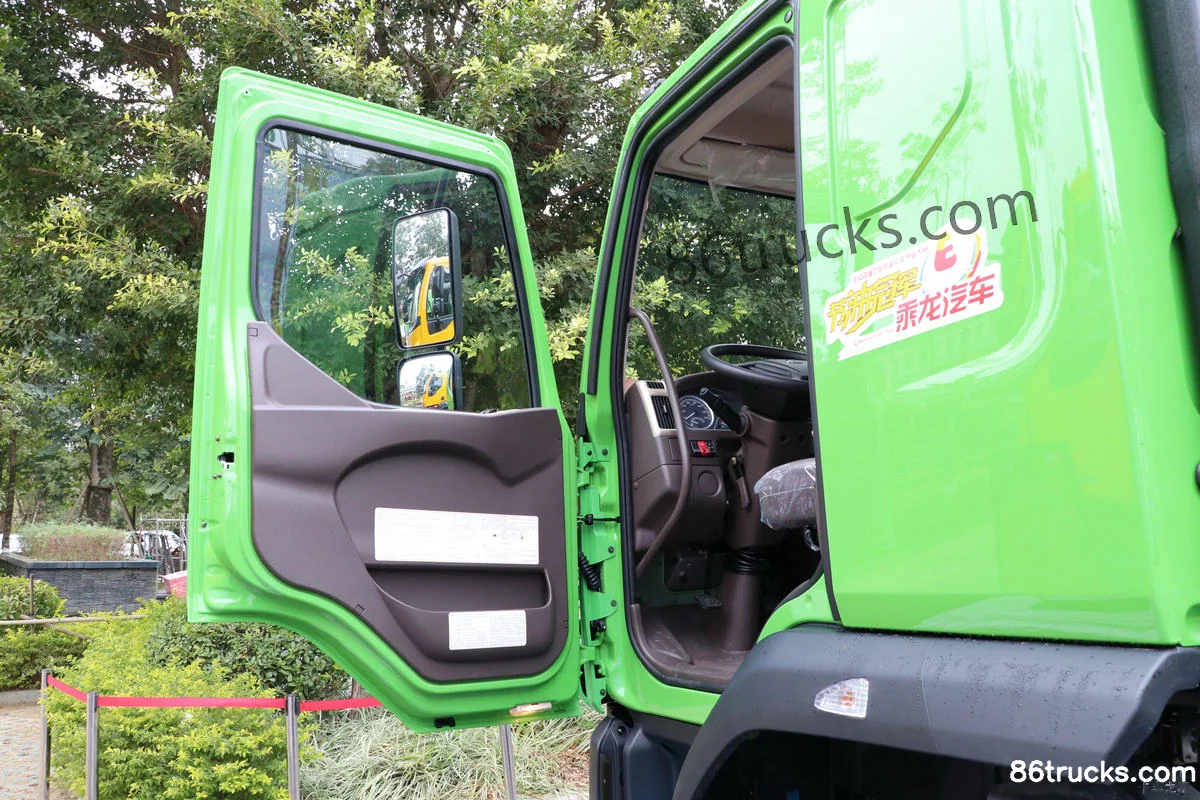

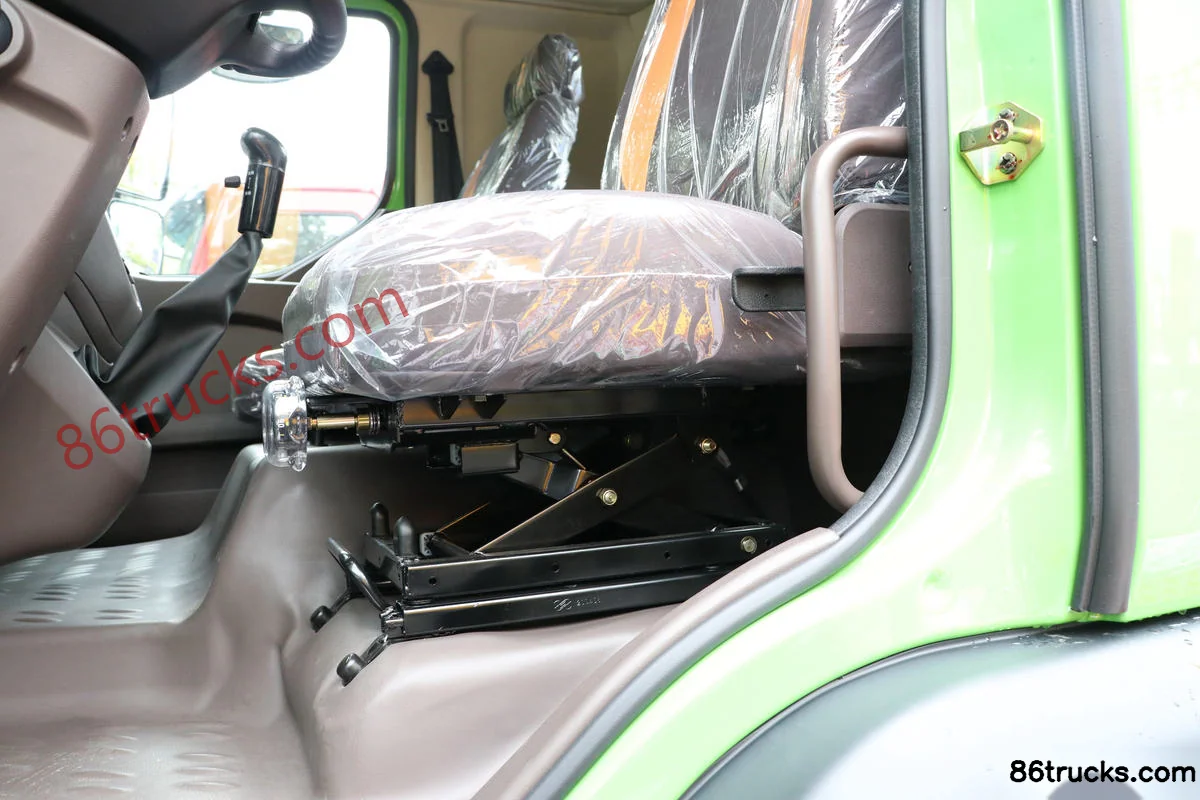

Cab3

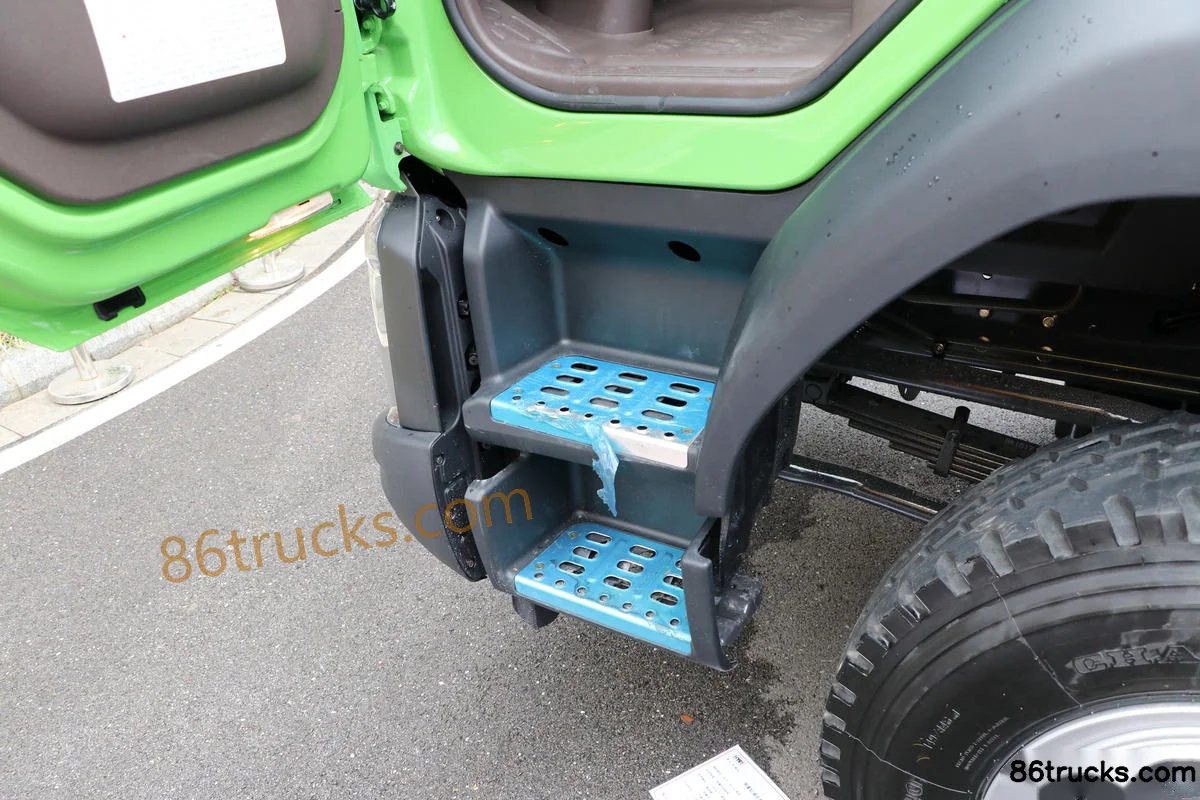

Dongfeng Liuqi New Chenglong M3 230 hp 6X2(8 wheels) Dump Truck Cab (1) | 86Trucks Dongfeng Liuqi New Chenglong M3 230 hp 6X2(8 wheels) Dump Truck Cab (2) | 86Trucks Dongfeng Liuqi New Chenglong M3 230 hp 6X2(8 wheels) Dump Truck Cab (3) | 86Trucks

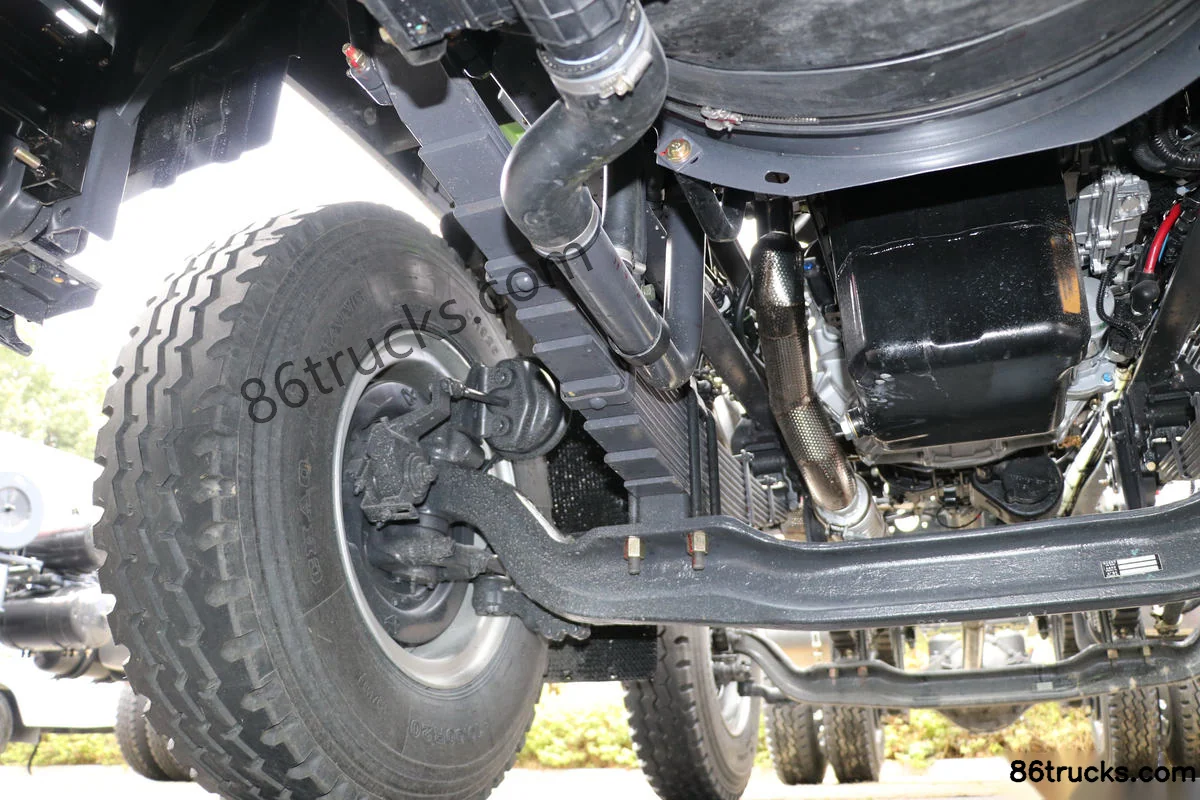

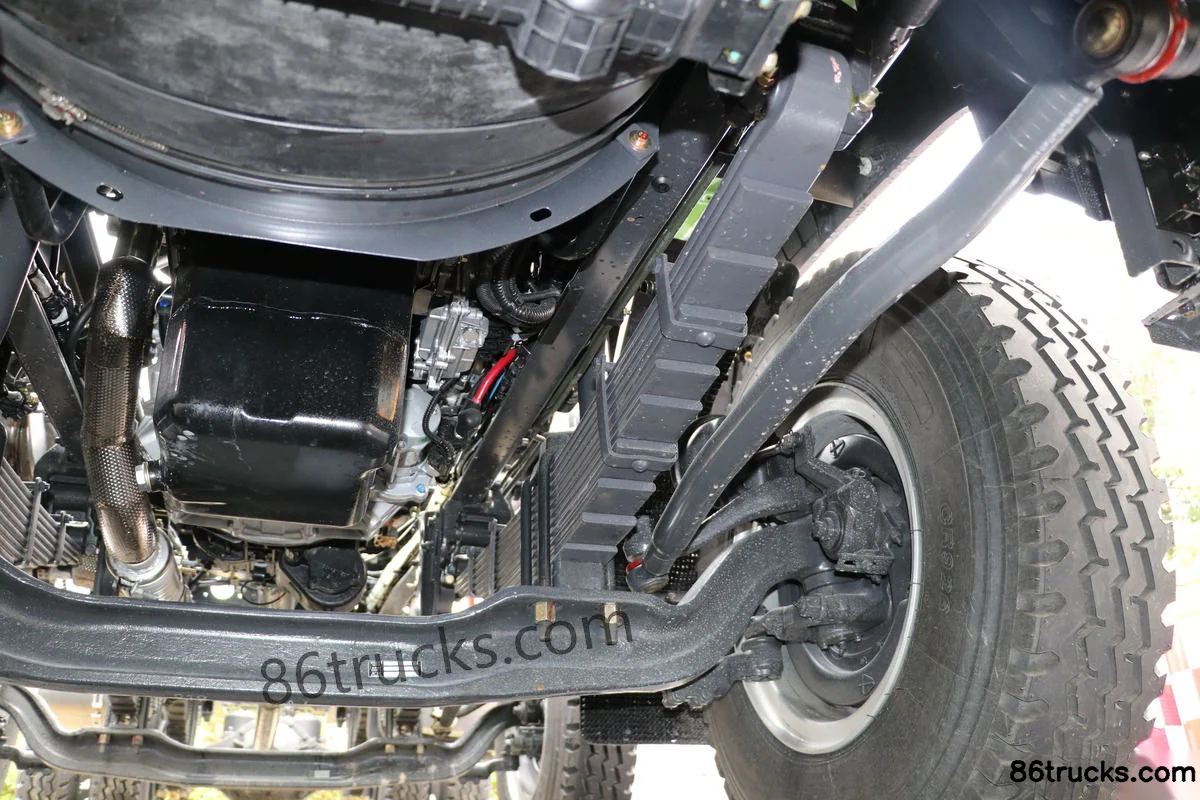

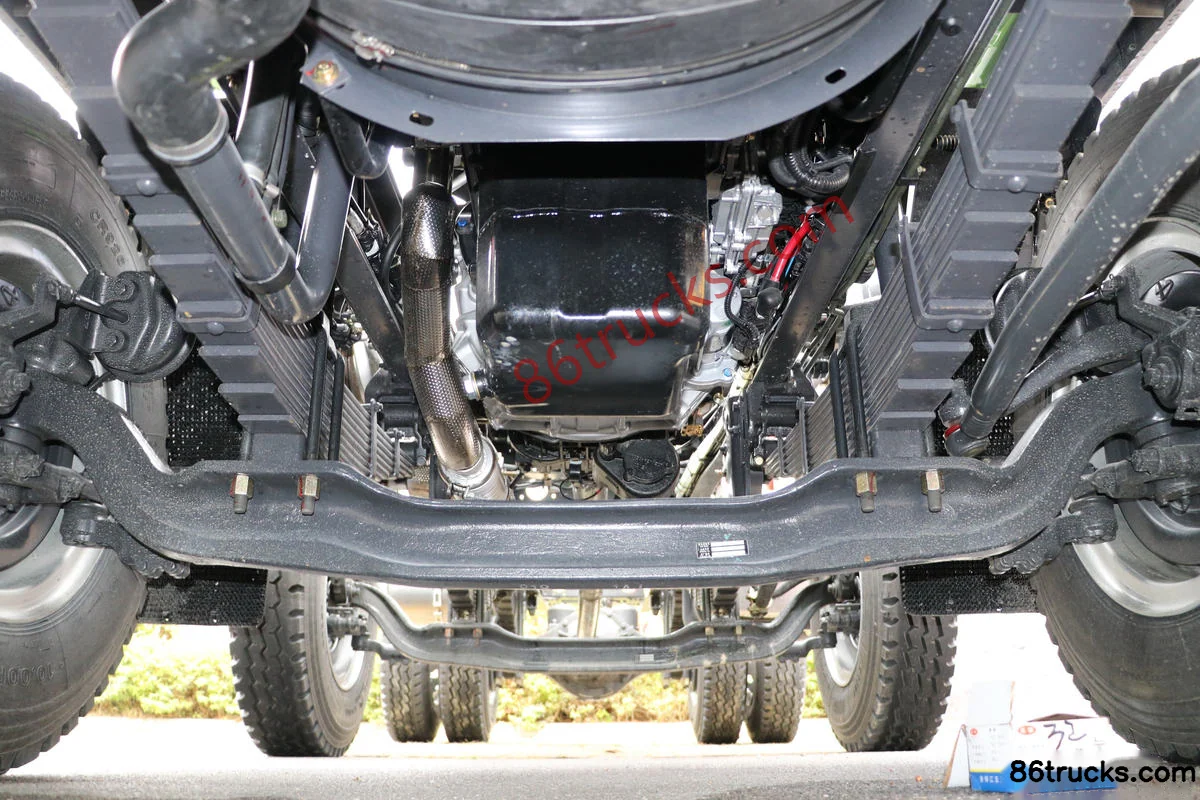

Chassis3

Dongfeng Liuqi New Chenglong M3 230 hp 6X2(8 wheels) Dump Truck Chassis (1) | 86Trucks Dongfeng Liuqi New Chenglong M3 230 hp 6X2(8 wheels) Dump Truck Chassis (2) | 86Trucks Dongfeng Liuqi New Chenglong M3 230 hp 6X2(8 wheels) Dump Truck Chassis (3) | 86Trucks

9 photos

FAQ

What emission standard does Dongfeng Liuqi New Chenglong M3 230 hp 6X2(8 wheels) Dump Truck use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Dongfeng Liuqi New Chenglong M3 230 hp 6X2(8 wheels) Dump Truck?

Key specs of Dongfeng Liuqi New Chenglong M3 230 hp 6X2(8 wheels) Dump Truck: Drive: 6x2; Horsepower: 230 hp; Emission: China VI; Fuel: Diesel; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Dongfeng Liuqi New Chenglong M3 230 hp 6X2(8 wheels) Dump Truck suited for?

Dongfeng Liuqi New Chenglong M3 230 hp 6X2(8 wheels) Dump Truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Dongfeng Liuqi New Chenglong M3 230 hp 6X2(8 wheels) Dump Truck differ from other variants in the same series?

Dongfeng Liuqi New Chenglong M3 230 hp 6X2(8 wheels) Dump Truck belongs to Dongfeng New Chenglong M3 Medium Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Dongfeng Liuqi New Chenglong M3 230 hp 6X2(8 wheels) Dump Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Dongfeng Liuqi New Chenglong M3 230 hp 6X2(8 wheels) Dump Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
