NanJun Ruijie D50 Luxury Edition 220 hp 6X2(8 wheels) 6X2R 4.1m Dump Truck (Lift Axle)

Export reference
From $29,056
MSRP ¥20.92M CNY
Emission: China VI
Fuel: Diesel
Curb Weight:: 7.805ton
Wheelbase:: 2360+1320mm
Tire Size:: 11.00R20 18PR
Model code (announced):: NJA3251RPD38A
Rated payload: 17ton
Drive 6X2 (8 wheels)
Horsepower 220
Cargo box thickness: floor 3mm side 2mm five-door

Overview

The NanJun Ruijie D50 Luxury Edition 220 hp 6X2(8 wheels) 6X2R 4.1m Dump Truck (Lift Axle) is a Heavy truck featuring 17t payload, 25t GVW, Dump type cargo body and 6X2 (8 wheels) drive. On the powertrain side, it comes with a YuchaiYCS04220-61A engine, 220 hp, China VI emissions and 10-speed transmission transmission.

China VI 220 Diesel 6X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): NJA3251RPD38A
Drive type: 6X2
Wheelbase: 2360+1320mm
engine: YuchaiYCS04220-61A
transmission: 10-speed transmission
Rear Axle Ratio: 5.833
Cab length: 6.45m
Cab width: 2.46m
Cab height: 2.92m
Front track width: 1870mm
rear track: 1930/1780mm
Curb Weight: 7.805ton
Rated payload: 17ton
GVWR: 25ton
Origin: Ziyang, Sichuan
tonnage class: Heavy truck
Approach angle: 13°
departure angle: 18°
Version: Luxury Edition
Energy Type: Diesel
Engine parameters
Engine Brand: Yuchai
Engine Model: YuchaiYCS04220-61A
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 4.295L
Emission standard: China VI
Max output power: 162kW
Max hp: 220Horsepower
Max torque: 850N·m
Transmission Parameters
Transmission Model: 10-speed transmission
shift method: Manual
Forward gears: 10Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
hydraulic cylinder brand & model: 4TG-140×3420C
Cargo box thickness: floor 3mm side 2mm five-door
Unloading Type: Dump type
Cargo box type: Dump type
Cargo box length: 4.1m
Cargo box width: 2.3m
Cargo box height: 1.2m
Body Parameters
Lifting type: dual cylinder
Cab parameters
Cab: Sleeper cab
Cab width: 2100mm
seating capacity: 3Personnel
Chassis Specs
Front axle description: 5T
Front axle allowable load: 7000kg
Frame Dimensions: 280mm
rear axle description: 10T
rear axle allowable load: 18000 (tandem axle group)kg
Axle ratio: 5.833
Leaf spring count: 3/3/10+8
Tire
Tire Size: 11.00R20 18PR
Number of tires: 8pcs
Control configuration
ABS:

Photos

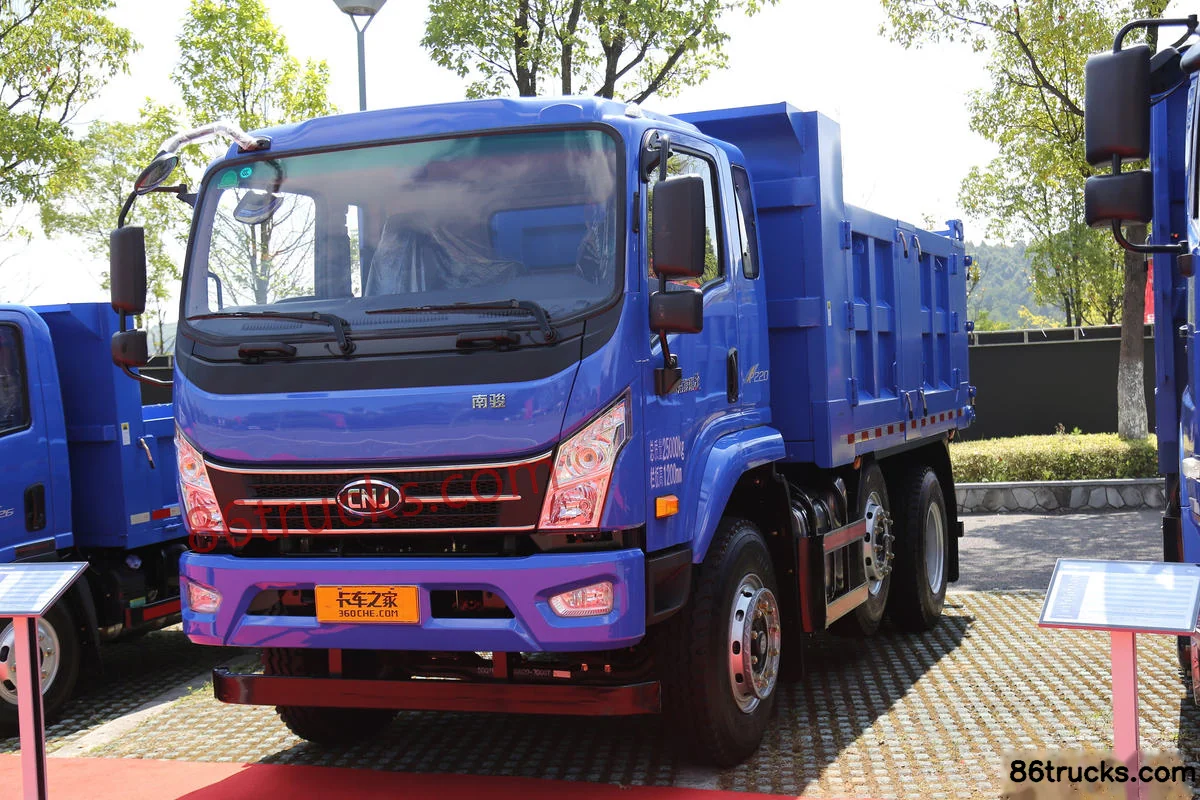

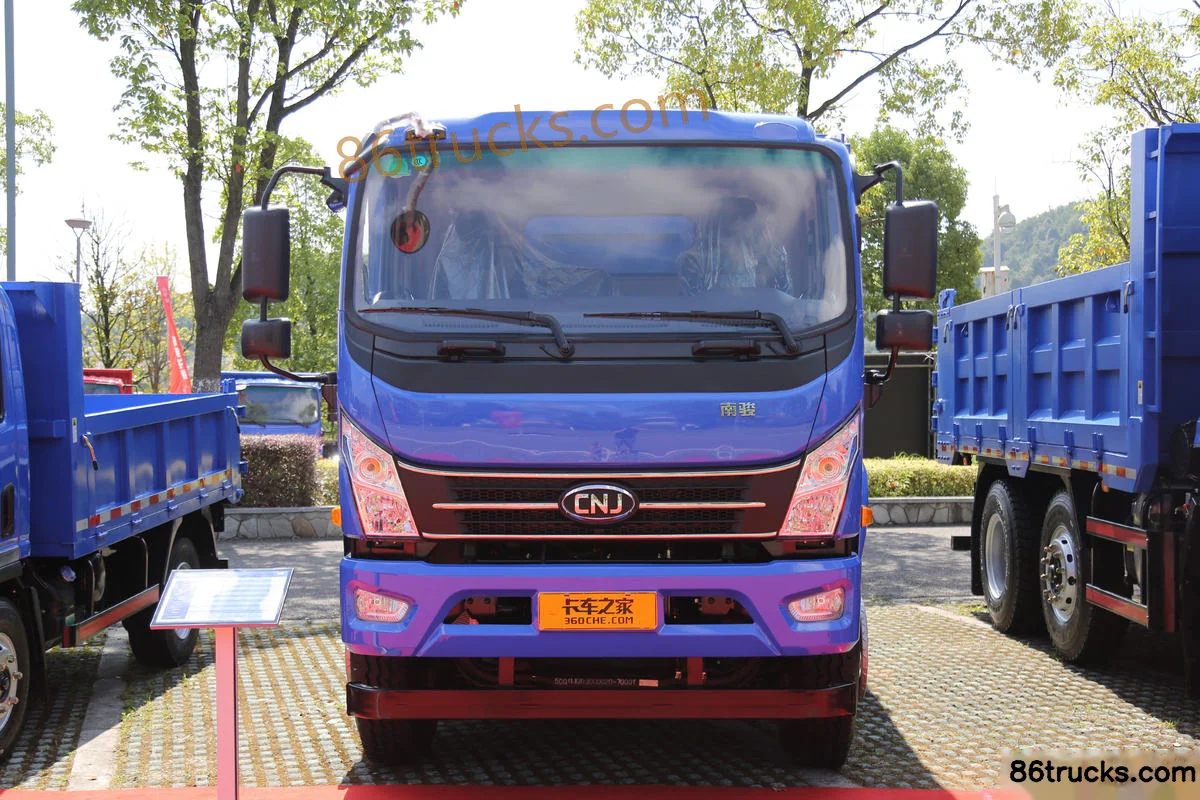

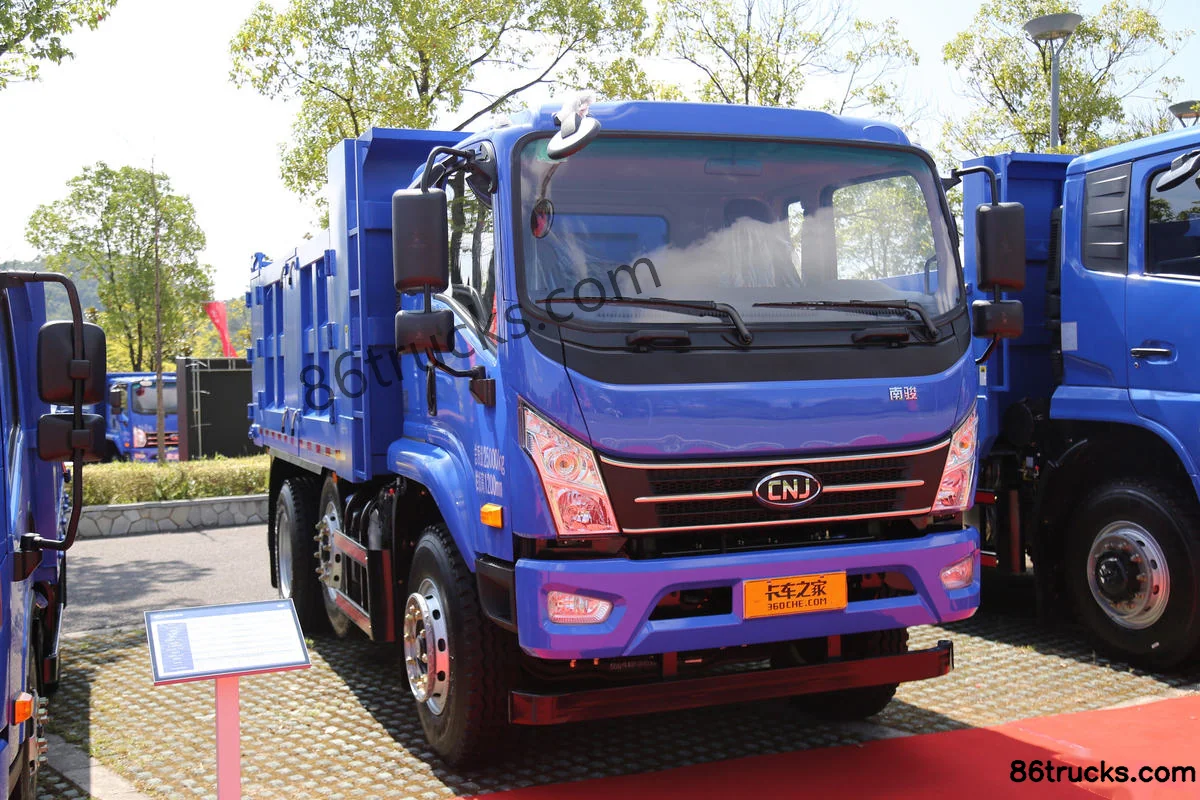

Exterior3

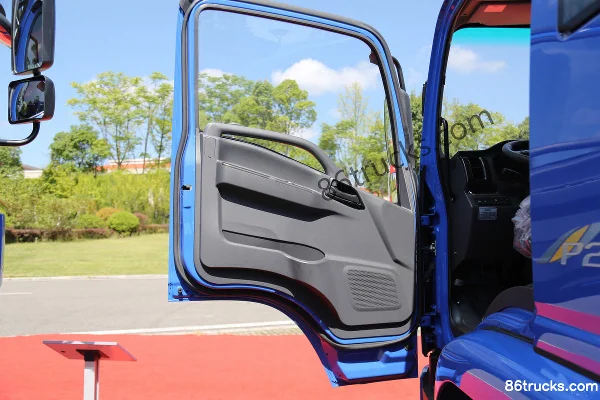

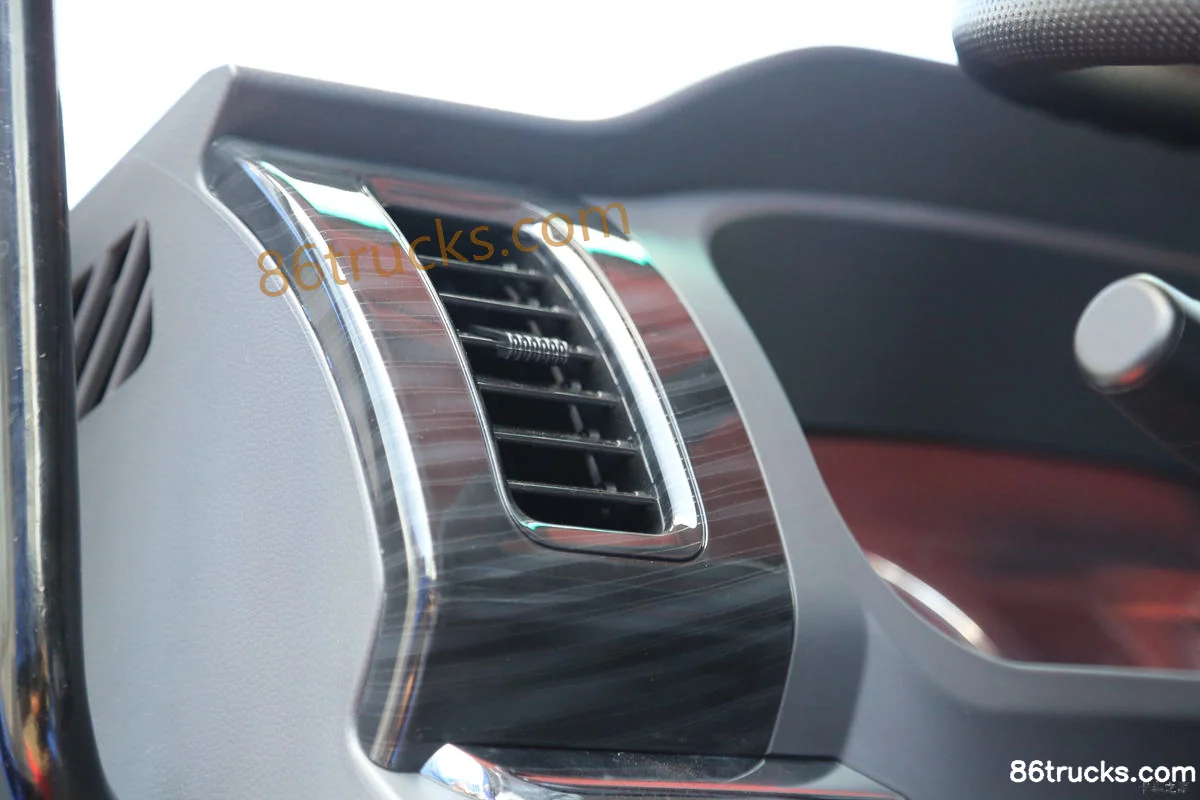

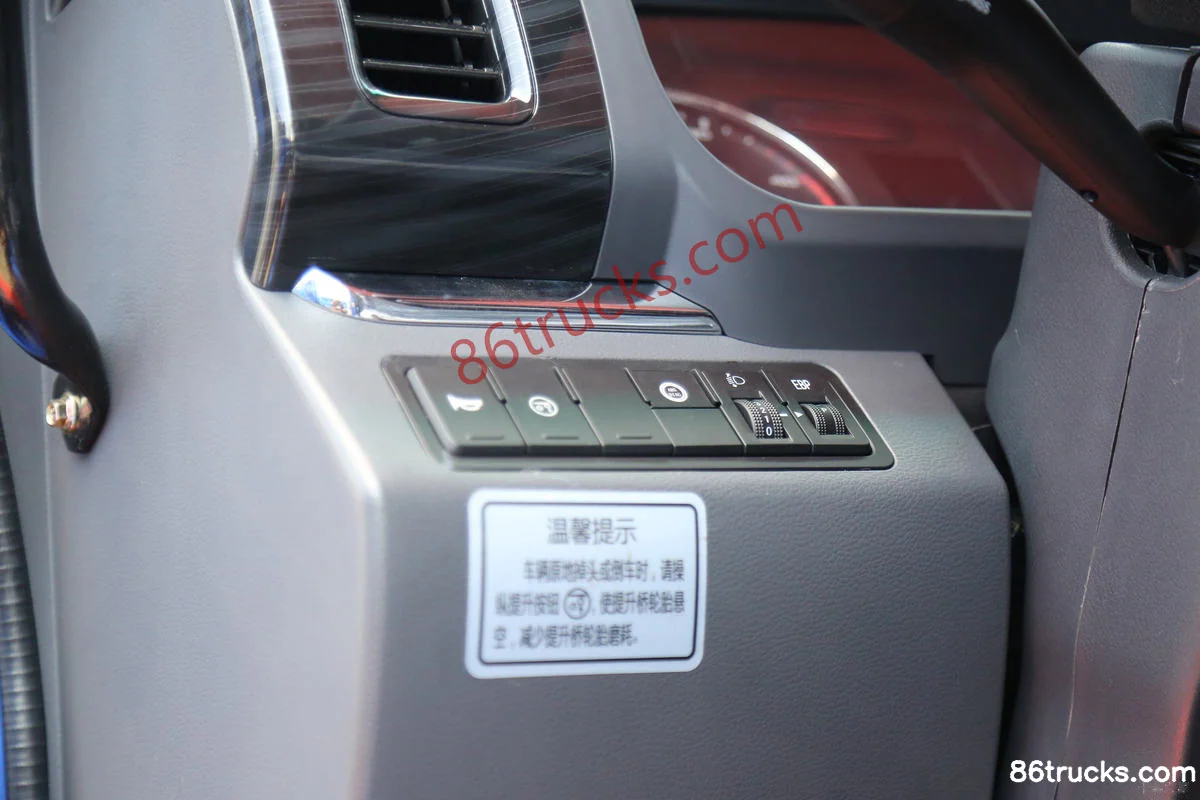

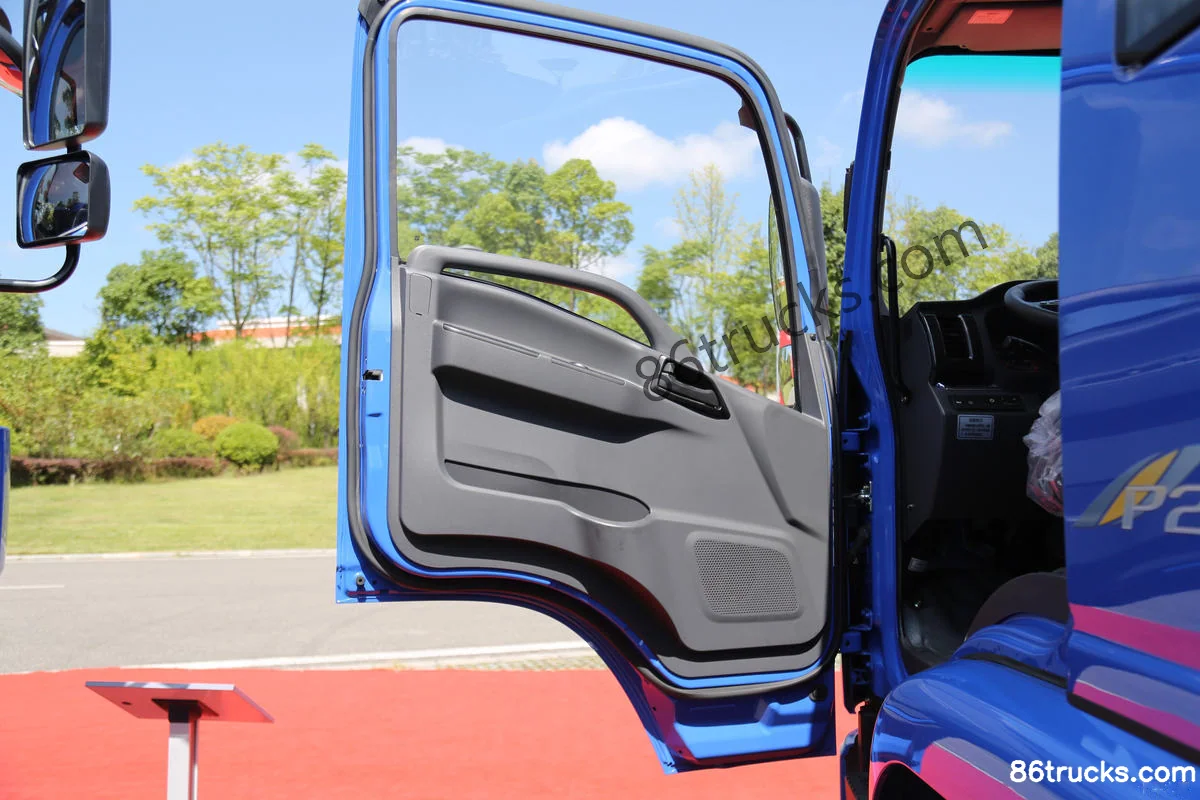

Cab3

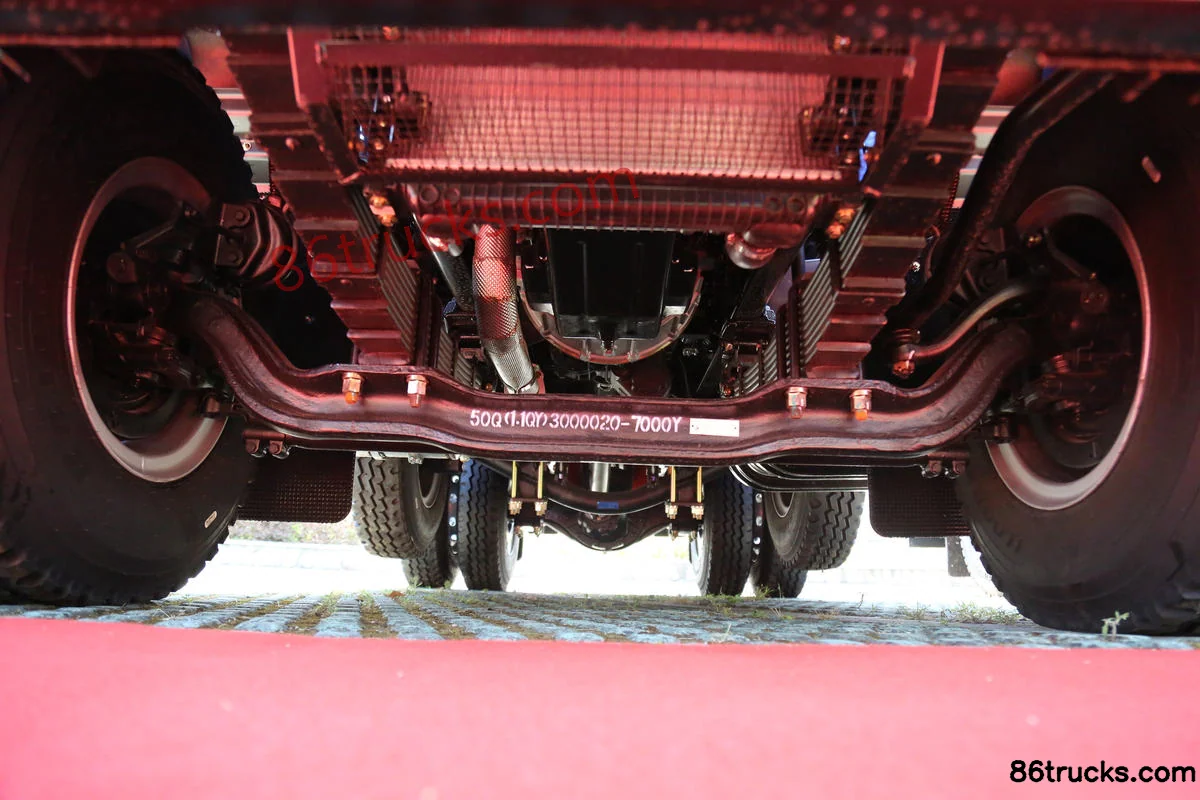

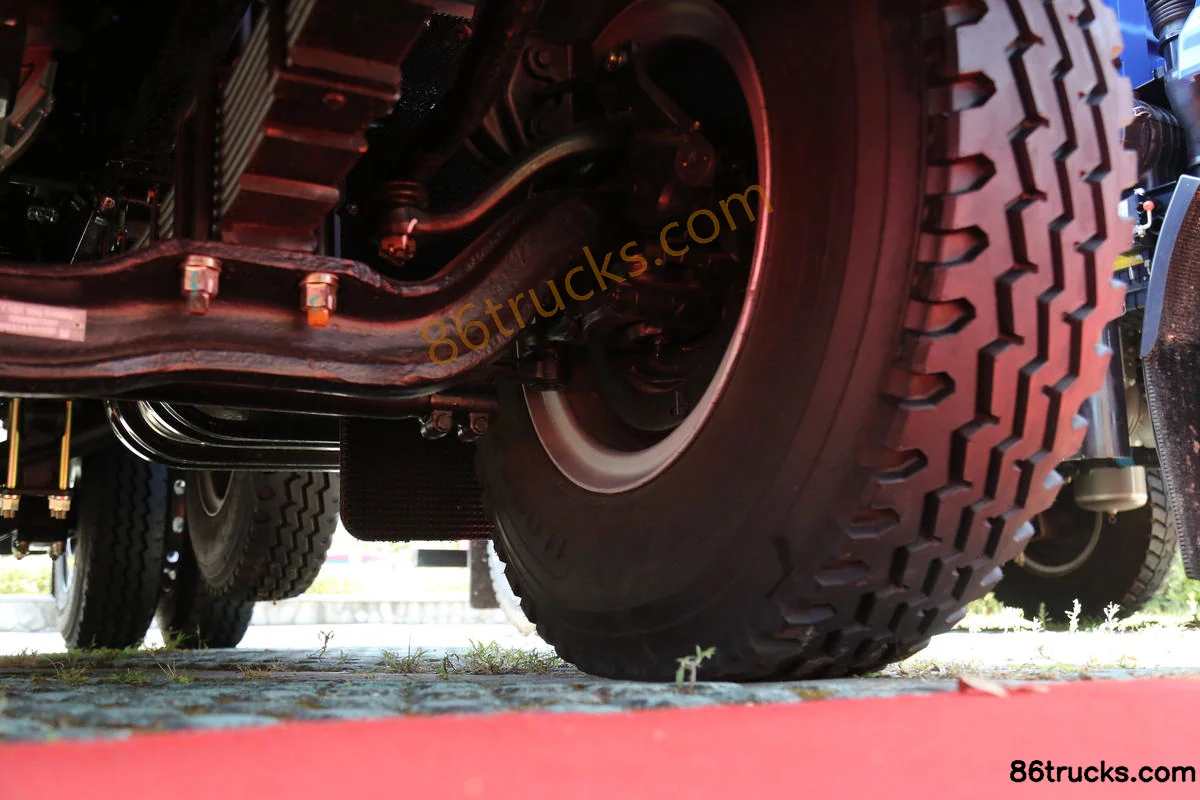

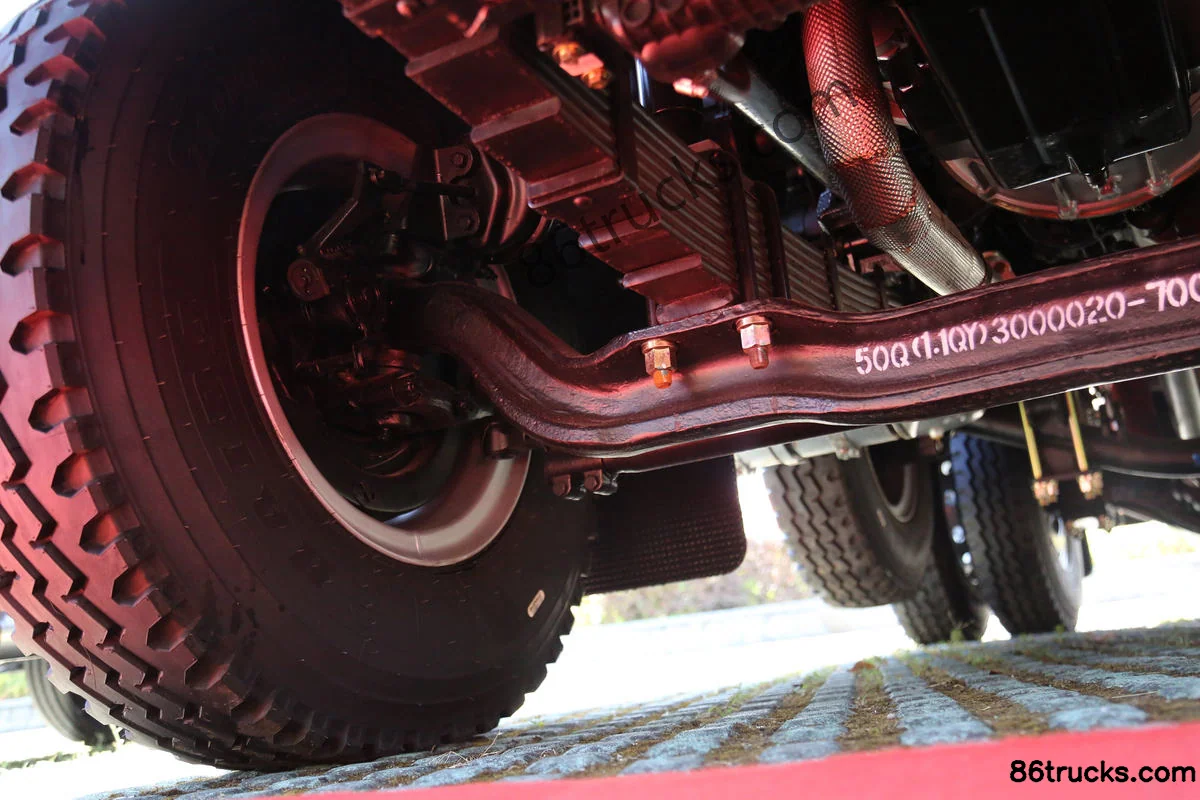

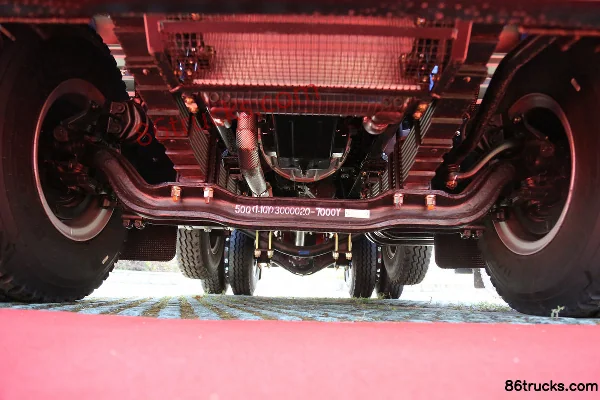

Chassis3

9 photos

FAQ

What is the export price of NanJun Ruijie D50 Luxury Edition 220 hp 6X2(8 wheels) 6X2R 4.1m Dump Truck (Lift Axle), and what does it include?

NanJun Ruijie D50 Luxury Edition 220 hp 6X2(8 wheels) 6X2R 4.1m Dump Truck (Lift Axle) export reference is about From $29,056; MSRP is ¥20.92M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does NanJun Ruijie D50 Luxury Edition 220 hp 6X2(8 wheels) 6X2R 4.1m Dump Truck (Lift Axle) use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of NanJun Ruijie D50 Luxury Edition 220 hp 6X2(8 wheels) 6X2R 4.1m Dump Truck (Lift Axle)?

Key specs of NanJun Ruijie D50 Luxury Edition 220 hp 6X2(8 wheels) 6X2R 4.1m Dump Truck (Lift Axle): Drive: 6x2; Horsepower: 220 hp; Emission: China VI; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is NanJun Ruijie D50 Luxury Edition 220 hp 6X2(8 wheels) 6X2R 4.1m Dump Truck (Lift Axle) suited for?

NanJun Ruijie D50 Luxury Edition 220 hp 6X2(8 wheels) 6X2R 4.1m Dump Truck (Lift Axle) is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does NanJun Ruijie D50 Luxury Edition 220 hp 6X2(8 wheels) 6X2R 4.1m Dump Truck (Lift Axle) differ from other variants in the same series?

NanJun Ruijie D50 Luxury Edition 220 hp 6X2(8 wheels) 6X2R 4.1m Dump Truck (Lift Axle) belongs to NanJun Ruijie D50 (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for NanJun Ruijie D50 Luxury Edition 220 hp 6X2(8 wheels) 6X2R 4.1m Dump Truck (Lift Axle)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export NanJun Ruijie D50 Luxury Edition 220 hp 6X2(8 wheels) 6X2R 4.1m Dump Truck (Lift Axle)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
