Sinotruk HOWO TH7 12.5L Diesel 510hp 8X4(12 wheels) Sinotruk 13-Speed 8.2m Dump Truck
EXW
From $66,667
Export quote
Sinotruk HOWO TH7 heavy-duty truck Dump Trucks
Main model photos
504 photos
Models
On sale
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Sinotruk HOWO TH7 12.5L Diesel 510hp 8X4(12 wheels) Sinotruk 13-Speed 8.2m Dump Truck | 8x4 / 510hp / China VI | From $66,667 | |
| Sinotruk HOWO TH7 550 hp 6X4(10 wheels) 6.5m Dump Truck (China VI) | 6x4 / 550hp / China VI | From $69,278 | |
| Sinotruk HOWO TH7 500 hp 6X4(10 wheels) 6.2m Dump Truck (China VI) | 6x4 / 500hp / China VI | From $67,472 | |

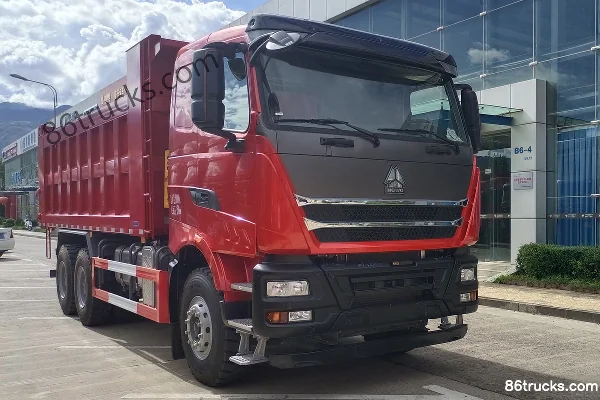

| Sinotruk HOWO TH7 510 hp 6X4(10 wheels) 6m Dump Truck (China VI) | 6x4 / 510hp / China VI | From $63,306 | |
| Sinotruk HOWO TH7 550 hp 8X4(12 wheels) 8m dump truck (China VI) | 8x4 / 550hp / China VI | From $70,667 |
Sinotruk HOWO TH7 550 hp 6X4(10 wheels) 6.5m Dump Truck (China VI)
EXW
From $69,278
Export quote
Sinotruk HOWO TH7 500 hp 6X4(10 wheels) 6.2m Dump Truck (China VI)
EXW
From $67,472
Export quote
Sinotruk HOWO TH7 510 hp 6X4(10 wheels) 6m Dump Truck (China VI)
EXW
From $63,306
Export quote
Sinotruk HOWO TH7 550 hp 8X4(12 wheels) 8m dump truck (China VI)
EXW
From $70,667
Export quote
Inventory
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Sinotruk HOWO TH7 460 hp 6X4(10 wheels) 5.2m Dump Truck (China VI) | 6x4 / 460hp / China VI |
Series Specs
Basic Info
Model code (announced): ZZ3317W466HF1 / ZZ3257W464HF1 / ZZ3257V434HF1 / ZZ3257W414HF1 / ZZ3317W446HF1 / ZZ3317W486HF1 / ZZ3317W426HF1 / ZZ3317V386HF1 / ZZ3317V326HF1 / ZZ3317V446HF1 / ZZ3317W326HF1 / ZZ3317V506HF1 / ZZ3317V406HF1 / ZZ3257V344HF1 / ZZ3317W386HF1
Drive type: 8X4 / 6X4
Wheelbase: 1800+4600+1400 / 4600+1400 / 4325+1350 / 4100+1400 / 1800+4400+1400 / 1800+4800+1400 / 1800+4200+1400 / 1950+3825+1350 / 1800+3200+1400 / 1800+4425+1350 / 1800+3225+1350 / 1800+5025+1350 / 1950+4025+1350 / 3825+1350 / 1800+3825+1350 / 4125+1350mm
Engine Model: WeichaiWP13.510E62 / WeichaiWP13.550E62 / SinotrukMC13.50-61 / SinotrukMC13.54-61 / SinotrukMC11.46-61 / WeichaiWP12.460E62 / WP13.510E62 / SinotrukMC13H.54-61
Transmission Model: SinotrukHW25713C / SinotrukHW25712XSJ / SinotrukHW25712XSCJ / HW25713C
Rear Axle Ratio: 5.92 / 5.26 / 4.77
Cab length: 11.31 / 9.565 / 9.185 / 8.915 / 11.11 / 11.8 / 10.91 / 10.565 / 9.61 / 9.91 / 11.91 / 10.845 / 8 / 9.765m
Cab width: 2.55 / 2.52 / 2496m
Cab height: 3.98 / 3.49 / 3.45 / 1.5 / 3.85m
Front track width: 2022/2022 / 2041 / 2041/2041mm
rear track: 1860/1860mm
Curb Weight: 15.5 / 12.5ton
Rated payload: 15.37 / 12.37ton
GVWR: 31 / 25ton
Origin: Jinan, Shandong / Mianyang, Sichuan / Jinan
tonnage class: Heavy truck
Approach angle: 16°
departure angle: 18 / 20 / 19 / 21 / 17°
Remarks: Four-way camera. / Option: 12.3-inch full HD center console screen, 360° surround view; / HW50 direct-connected PTO, four-way camera, with hydraulic retarder
Version: Flagship Edition / load capacity / Ultra Strong / Cargo version
Energy Type: Diesel
Engine parameters
Engine Brand: Weichai / Sinotruk
Number of cylinders: 6cylinder
Displacement: 12.54 / 12.419 / 10.518 / 11.6 / 13.02L
Emission standard: China VI
Max output power: 382 / 405 / 371 / 375 / 400 / 341 / 338kW
Max hp: 510 / 550 / 500 / 540 / 460Horsepower
Max torque: 2400 / 2550 / 2500 / 2200N·m
Max torque speed: 950-1400 / 1000-1400rpm
Rated speed: 1900rpm
Engine Type: CR+DOC+DPF+Hi_SCR / High-pressure common rail, SCR aftertreatment / Inline 6-cylinder, water-cooled, 4-stroke, turbocharged intercooled, high-pressure common rail
Transmission Parameters
Transmission Brand: Sinotruk
shift method: Manual
Forward gears: 13 / 12Gear
Number of Reverse Gears: 1 / 2pcs
Cargo box parameters
Unloading Type: Rear dump / Dump type
Cargo box length: 8.2 / 6.5 / 6.2 / 6 / 8 / 8.8 / 7.6 / 6.8 / 5.2 / 7.8m
Cargo box width: 2.35m
Cargo box height: 1.5 / 0.8m
Body Parameters
Lifting type: Front lift
FAQ
What kind of truck is Sinotruk HOWO Sinotruk HOWO TH7 heavy-duty truck Dump Trucks?
Sinotruk HOWO Sinotruk HOWO TH7 heavy-duty truck is an export-oriented Dump Trucks lineup with about 26 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for Sinotruk HOWO TH7 heavy-duty truck Dump Trucks?
Sinotruk HOWO TH7 heavy-duty truck Dump Trucks export reference is about $59,444 – $78,569. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does Sinotruk HOWO TH7 heavy-duty truck Dump Trucks cover?
Sinotruk HOWO TH7 heavy-duty truck Dump Trucks mainly covers: Drive: 6x4 / 8x4; Horsepower: 460 hp / 500 hp / 510 hp / 550 hp; Emission: China VI; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in Sinotruk HOWO TH7 heavy-duty truck Dump Trucks?
For Sinotruk HOWO TH7 heavy-duty truck Dump Trucks: 1) confirm emission and duty (site/mine); 2) match drive and horsepower; 3) compare price band and photos; 4) open a model for full specs, then quote.
What is Dump Trucks typically used for?
Dump Trucks is common for earth, aggregate and mining tipper work. Match drive and power to the duty, and confirm destination emission.
How many models does Sinotruk HOWO TH7 heavy-duty truck Dump Trucks include?
Sinotruk HOWO TH7 heavy-duty truck Dump Trucks currently lists about 26 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Sinotruk HOWO TH7 heavy-duty truck Dump Trucks?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
