Caterpillar 324D Crawler Excavator

Export reference
MSRP N/A
Model:: 324D
Engine Model:: crawler excavator
Tonnage:: 24ton
boom length:: 5900mm
Arm Length:: 2950mm
Machine dimensions:: 10.06×2.99×3.17mm
Caterpillar 324D Crawler Excavator exterior
View more photos (3)
Operating weight: 24.24ton
Bucket type: backhoe
Fuel Tank Capacity: 520L
Product power: Conventional Power

Overview

The Caterpillar 324D Crawler Excavator is a excavator featuring 24.24ton GVW, backhoe bucket capacity, 520L tank capacity and Conventional Power power. On the powertrain side, it comes with a crawler excavator engine.

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model: 324D
Engine Model: crawler excavator
Product power: Conventional Power
Bucket type: backhoe
Tonnage: 24ton
Bucket capacity:
Operating weight: 24.24ton
boom length: 5900mm
Arm Length: 2950mm
Machine dimensions: 10.06×2.99×3.17mm
Track shoe width: 600mm
Track gauge: 2380mm
Counterweight ground clearance: 1060mm
Min ground clearance: 470cm
Rear Overhang Radius: 2940mm
hydraulic system
Max flow of main pump: 235L/min
Working hydraulic circuit: 35
travel hydraulic circuit: 35Mpa
Swing Hydraulic Circuit: 24.5Mpa
performance specs
Travel speed: 3.5/5.5km/h
Oil capacity
Fuel Tank Capacity: 520L
coolant: 30L
hydraulic oil tank: 145L
Engine Oil Capacity: 30L
Operating Range
Max digging radius: 10030mm
Max digging depth: 6740mm
Max digging height: 9660mm
Max unloading height: 6700mm
Max vertical digging depth: 5830mm
Engine parameters
Engine Model: C7 ACERT
Max output power: 140kW

Photos

Exterior3

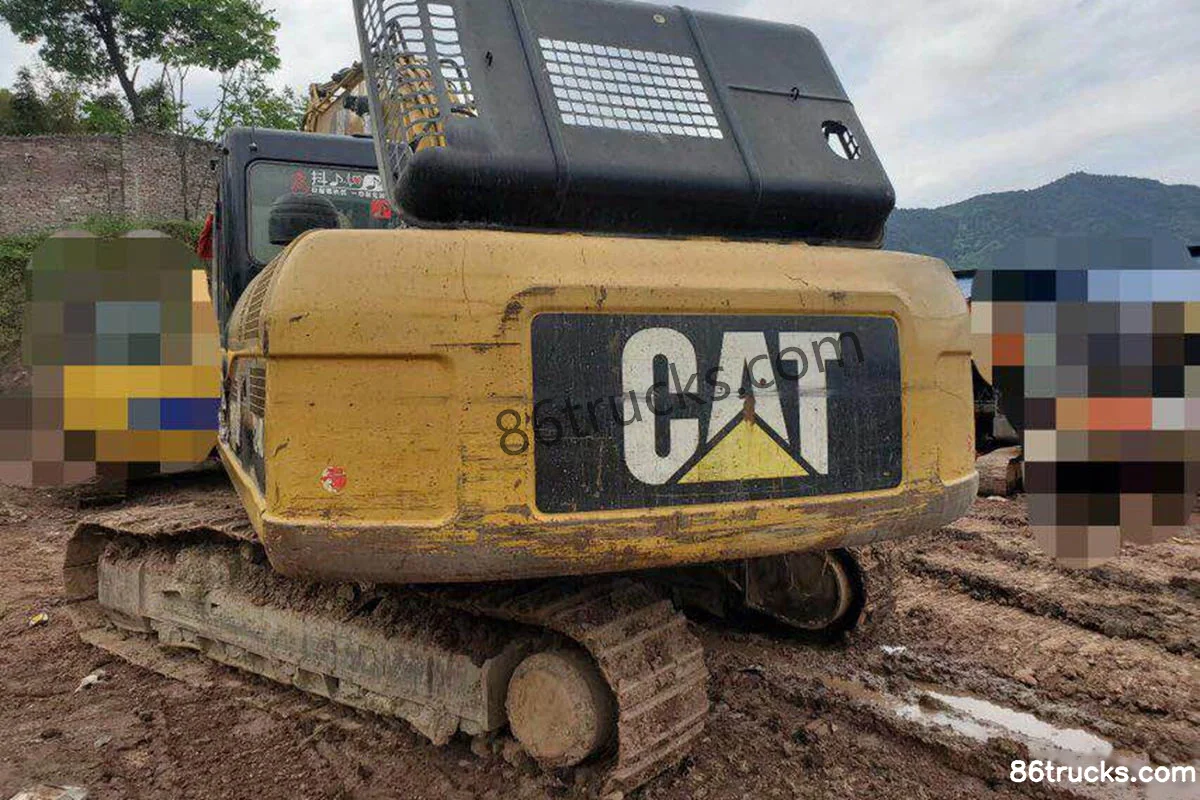

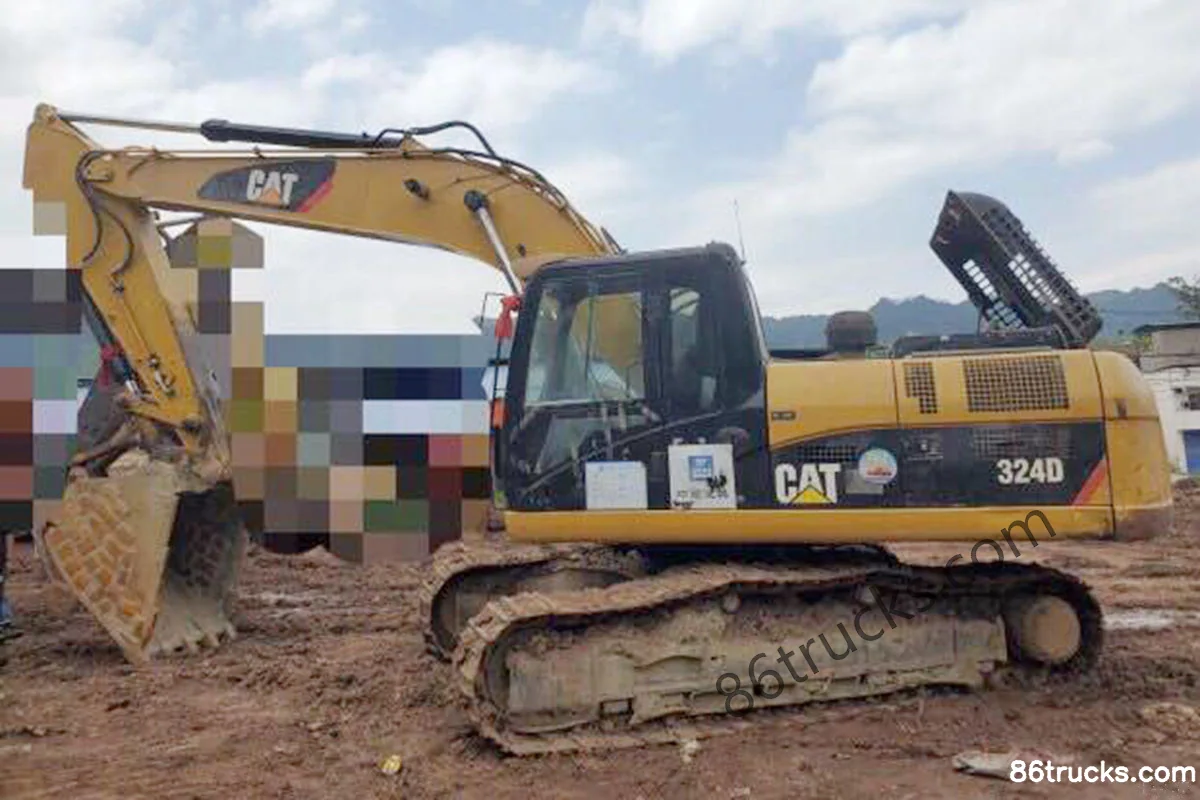

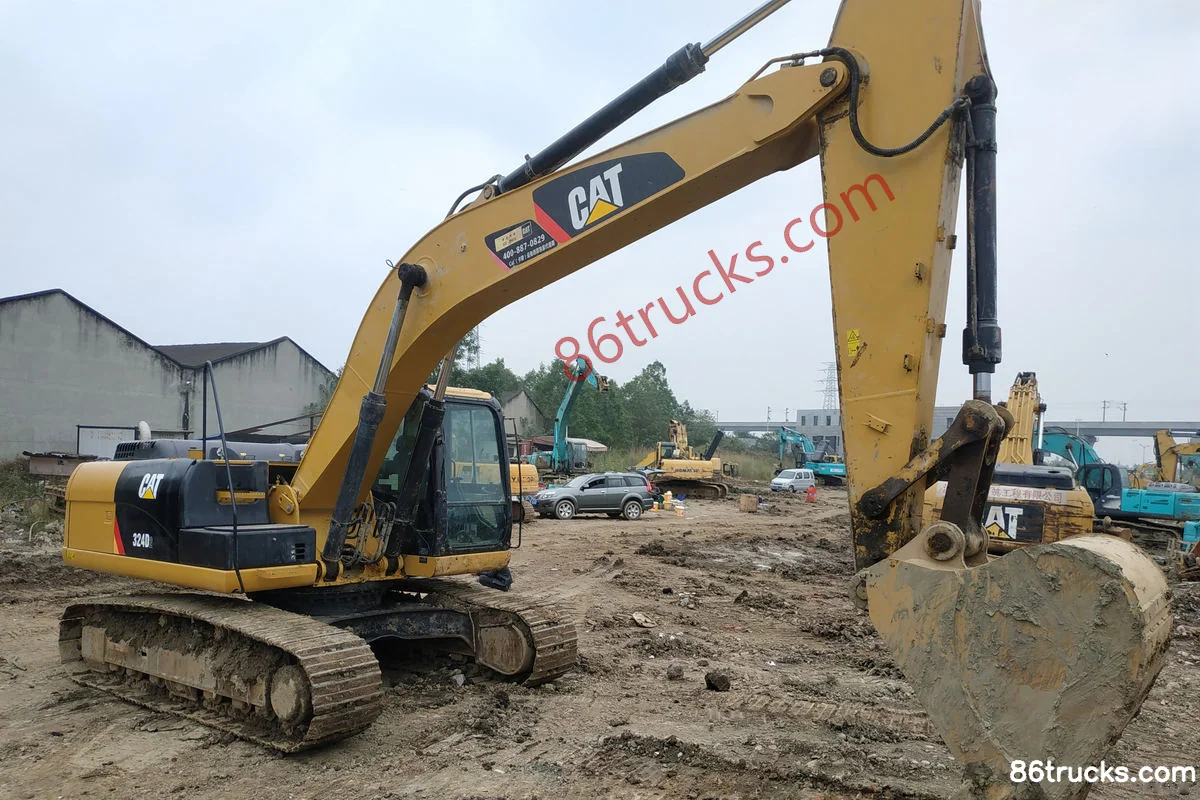

Caterpillar 324D Crawler Excavator Exterior (1) | 86Trucks Caterpillar 324D Crawler Excavator Exterior (2) | 86Trucks Caterpillar 324D Crawler Excavator Exterior (3) | 86Trucks

3 photos

FAQ

What transport jobs is Caterpillar 324D Crawler Excavator suited for?

Caterpillar 324D Crawler Excavator is a excavator model; configuration should match the job. State the application, emission and LHD/RHD needs in your quote.

How does Caterpillar 324D Crawler Excavator differ from other variants in the same series?

Caterpillar 324D Crawler Excavator belongs to Caterpillar Caterpillar crawler excavator (excavator). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Caterpillar 324D Crawler Excavator?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Caterpillar 324D Crawler Excavator?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
