Sinotruk Steyr D5 340 hp 8X4(12 wheels) 8 Cubic Meter Concrete Mixer Truck

Export reference
From $67,361
MSRP ¥48.5M CNY
Fuel: Diesel
Curb Weight:: 14ton
Wheelbase:: 1800+3050+1350mm
Tire Size:: 11R22.5
Cab dimensions:: 10.1×2.55×3.85m
Truck Type:: Concrete mixer truck
Rated payload: 16.87ton
Drive 8X4 (12 wheels)
Horsepower 340
Emission China V

Overview

The Sinotruk Steyr D5 340 hp 8X4(12 wheels) 8 Cubic Meter Concrete Mixer Truck is a concrete mixer truck featuring 16.87t payload, 14ton GVW, 8X4 (12 wheels) drive and 10.1×2.55×3.85m cab. On the powertrain side, it comes with 340 hp, China V emissions and Diesel fuel.

China V 340 Diesel 8X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 10.1×2.55×3.85m
Drive type: 8X4
Truck Type: Concrete mixer truck
Wheelbase: 1800+3050+1350mm
Vehicle origin: Chengdu, Sichuan
Front/rear track width: Front track: 1965/1965mm; Rear track: 1800/1800mm
Curb Weight: 14ton
Rated payload: 16.87ton
Max. speed: 82km/h
Front/rear suspension: 1.46/2.24m
Body Parameters
Mixing drum capacity: 8m³
Vehicle certification code: ZZ5314GJBN3067E1B
Body Brand: Sinotruk Group Chengdu Commercial Vehicle
Engine parameters
Engine Model: WeichaiWP8.340E51
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 7.8L
Emission standard: China V
Max output power: 250kW
Max hp: 340Horsepower
Rated speed: 2100rpm
Engine Type: High-pressure common rail+EGR
Chassis Specs
Chassis Series: Steyr D5
Chassis Model: CDW3313N3661E1BN
Front axle description: 5T
Axle ratio: 4.875
Leaf spring count: 4/4/5
Transmission Parameters
Number of gears: 10Gear
Transmission Model: SinotrukHW15710L
Tire
Tire Size: 11R22.5
Number of tires: 12pcs

Photos

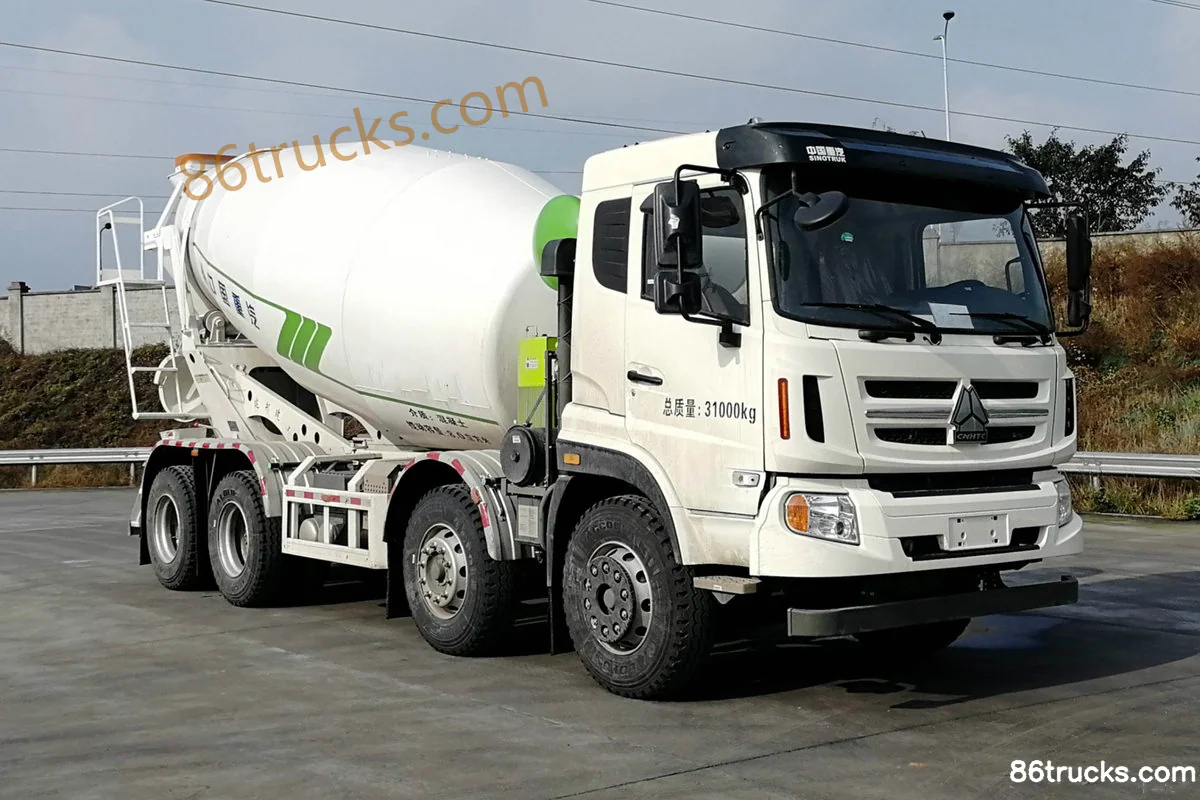

Exterior1

1 photos

FAQ

What is the export price of Sinotruk Steyr D5 340 hp 8X4(12 wheels) 8 Cubic Meter Concrete Mixer Truck, and what does it include?

Sinotruk Steyr D5 340 hp 8X4(12 wheels) 8 Cubic Meter Concrete Mixer Truck export reference is about From $67,361; MSRP is ¥48.5M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Sinotruk Steyr D5 340 hp 8X4(12 wheels) 8 Cubic Meter Concrete Mixer Truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Sinotruk Steyr D5 340 hp 8X4(12 wheels) 8 Cubic Meter Concrete Mixer Truck?

Key specs of Sinotruk Steyr D5 340 hp 8X4(12 wheels) 8 Cubic Meter Concrete Mixer Truck: Drive: 8x4; Horsepower: 340 hp; Emission: China V; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sinotruk Steyr D5 340 hp 8X4(12 wheels) 8 Cubic Meter Concrete Mixer Truck suited for?

Sinotruk Steyr D5 340 hp 8X4(12 wheels) 8 Cubic Meter Concrete Mixer Truck is a concrete mixer truck model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Sinotruk Steyr D5 340 hp 8X4(12 wheels) 8 Cubic Meter Concrete Mixer Truck differ from other variants in the same series?

Sinotruk Steyr D5 340 hp 8X4(12 wheels) 8 Cubic Meter Concrete Mixer Truck belongs to Sinotruk Steyr D5 Heavy Truck (concrete mixer truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sinotruk Steyr D5 340 hp 8X4(12 wheels) 8 Cubic Meter Concrete Mixer Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sinotruk Steyr D5 340 hp 8X4(12 wheels) 8 Cubic Meter Concrete Mixer Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
