SHACMAN Delong F3000 336hp 6X4(10 wheels) 5.02m³ Concrete Mixer Truck (Dali Brand)

Export reference
MSRP N/A
Fuel: Diesel
Curb Weight:: 13.815ton
Wheelbase:: 3975+1400mm
Tire Size:: 12.00R20 steel radial tire
Cab dimensions:: 9.85×2.5×3.95m
Truck Type:: Concrete mixer truck
Rated payload: 11.055ton
Drive 6X4 (10 wheels)
Horsepower 336
Emission China V

Overview

The SHACMAN Delong F3000 336hp 6X4(10 wheels) 5.02m³ Concrete Mixer Truck (Dali Brand) is a concrete mixer truck featuring 11.055t payload, 13.815ton GVW, 6X4 (10 wheels) drive and 9.85×2.5×3.95m cab. On the powertrain side, it comes with 336 hp, China V emissions and Diesel fuel.

China V 336 Diesel 6X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 9.85×2.5×3.95m
Drive type: 6X4
Truck Type: Concrete mixer truck
Wheelbase: 3975+1400mm
Vehicle origin: Suizhou, Hubei
Front/rear track width: Front: 2011mm; Rear: 1860/1860
Curb Weight: 13.815ton
Rated payload: 11.055ton
Max. speed: 80km/h
Front/rear suspension: 1.525/2.9m
Body Parameters
Mixing drum capacity: 5.02m³
Vehicle certification code: DLQ5250GJBL5
Body Brand: Dali Brand
Others: with ABS, urea tank, air conditioning, power steering, spring brake, tachograph; body: tank made of high-strength manganese steel Q345, tank thickness 6mm, blade thickness 5mm, head 8mm, hydraulic system using (Italian brand) Interpump pump and motor, (German brand) Reid reducer.
Engine parameters
Injection System: Common Rail (China V)
Engine Model: WeichaiWP10.336E53
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 9.726L
Emission standard: China V
Max output power: 247kW
Max hp: 336Horsepower
Rated speed: 1900rpm
Engine Type: Water-cooled, 4-stroke, with exhaust brake, direct injection, turbocharged intercooled, electronically controlled high-pressure common rail + SCR
Chassis Specs
Chassis Series: Delong F3000
Chassis Model: SX1250FB
Front axle description: 7.5 ton
rear axle description: 16t Steyr rear axle
Leaf spring count: 9/12
Transmission Parameters
Number of gears: 9Gear
Transmission Model: Fast Gear9JS150
Tire
Tire Size: 12.00R20 steel radial tire
Number of tires: 10pcs

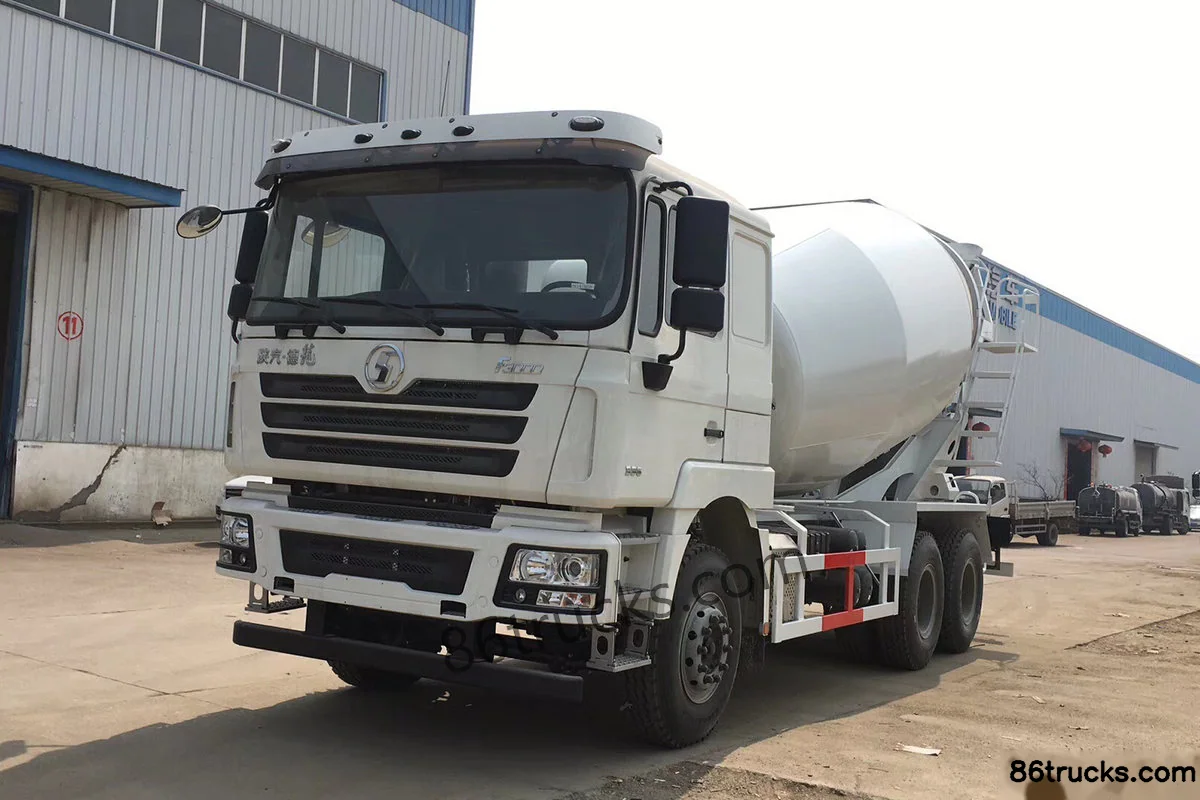

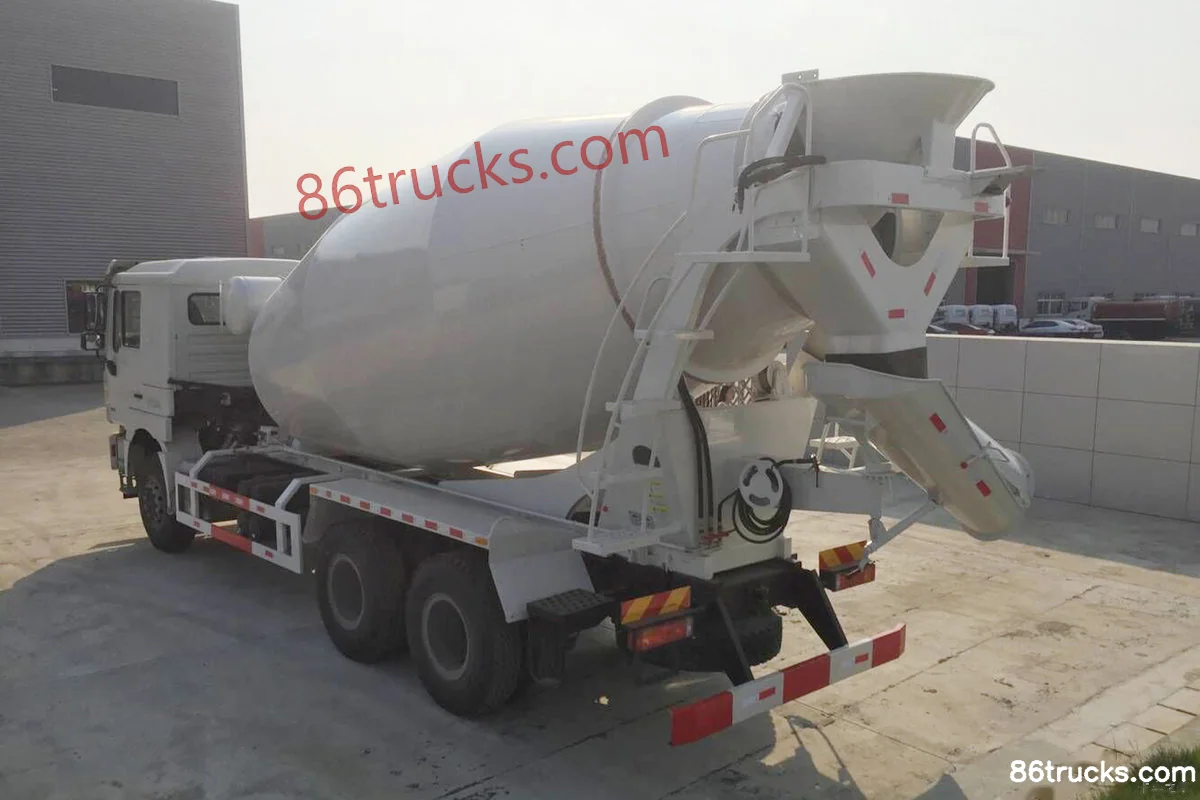

Photos

Exterior2

2 photos

FAQ

What emission standard does SHACMAN Delong F3000 336hp 6X4(10 wheels) 5.02m³ Concrete Mixer Truck (Dali Brand) use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of SHACMAN Delong F3000 336hp 6X4(10 wheels) 5.02m³ Concrete Mixer Truck (Dali Brand)?

Key specs of SHACMAN Delong F3000 336hp 6X4(10 wheels) 5.02m³ Concrete Mixer Truck (Dali Brand): Drive: 6x4; Horsepower: 336 hp; Emission: China V; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is SHACMAN Delong F3000 336hp 6X4(10 wheels) 5.02m³ Concrete Mixer Truck (Dali Brand) suited for?

SHACMAN Delong F3000 336hp 6X4(10 wheels) 5.02m³ Concrete Mixer Truck (Dali Brand) is a concrete mixer truck model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does SHACMAN Delong F3000 336hp 6X4(10 wheels) 5.02m³ Concrete Mixer Truck (Dali Brand) differ from other variants in the same series?

SHACMAN Delong F3000 336hp 6X4(10 wheels) 5.02m³ Concrete Mixer Truck (Dali Brand) belongs to Dali SHACMAN chassis (concrete mixer truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for SHACMAN Delong F3000 336hp 6X4(10 wheels) 5.02m³ Concrete Mixer Truck (Dali Brand)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export SHACMAN Delong F3000 336hp 6X4(10 wheels) 5.02m³ Concrete Mixer Truck (Dali Brand)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
