Sinotruk V3 4.3L Diesel 220 hp 4X2(6 wheels) Fast Gear 10-Speed 4.14m Half Row Dump Truck

Export reference
From $22,611
MSRP ¥16.28M CNY
Emission: China VI
Fuel: Diesel
Transmission: Fast Gear
Curb Weight:: 7.81ton
Wheelbase:: 3650mm
Tire Size:: 10.00R20 18PR
Rated payload: 9.995ton
Drive 4X2 (6 wheels)
Horsepower 220
Cargo box type: Dump type

Overview

The Sinotruk V3 4.3L Diesel 220 hp 4X2(6 wheels) Fast Gear 10-Speed 4.14m Half Row Dump Truck is a Heavy truck featuring 9.995t payload, 18t GVW, Dump type cargo body and 4X2 (6 wheels) drive. On the powertrain side, it comes with a YuchaiYCS04220-61A engine, 220 hp, China VI emissions and Fast Gear transmission.

China VI 220 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): CDW3181A2Q6
Drive type: 4X2
Wheelbase: 3650mm
engine: YuchaiYCS04220-61A
transmission: Fast Gear10JS90-B
Rear Axle Ratio: 5.571
Cab length: 6.44m
Cab width: 2.36m
Cab height: 2.78m
Front track width: 1875mm
rear track: 1750mm
Curb Weight: 7.81ton
Rated payload: 9.995ton
GVWR: 18ton
Origin: Chengdu, Sichuan
tonnage class: Heavy truck
Approach angle: 17°
departure angle: 15°
Energy Type: Diesel
Engine parameters
Engine Brand: Yuchai
Engine Model: YCS04220-61A
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 4.295L
Emission standard: China VI
Max output power: 162kW
Max hp: 220Horsepower
Max torque: 850N·m
Transmission Parameters
Transmission Model: Fast Gear10JS90-B
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 10Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
hydraulic cylinder brand & model: Front-mounted forward push φ130, single cylinder 180×660
Unloading Type: Dump type
Cargo box type: Dump type
Cargo box length: 4.14m
Cargo box width: 2.2m
Cargo box height: 0.8m
Cab parameters
Cab: Sleeper cab
Cab suspension: Front mechanical, rear air suspension
Cab width: 2080mm
seating capacity: 3Personnel
Driver seat type: air suspension seat
fuel tank
Fuel tank capacity: 180L
Chassis Specs
Front axle description: 153 front axle
Front axle allowable load: 6500kg
Frame Dimensions: Single-layer frame (10/280)mm
rear axle description: 457 wheel differential rear axle
rear axle allowable load: 11500kg
Axle ratio: 5.571
Leaf spring count: 11/11+9
Tire
Tire Size: 10.00R20 18PR
Number of tires: 6pcs
Control configuration
ABS:
interior configuration
Multifunction steering wheel:
AC control type: Manual
Power Windows:
Remote key:
Electronic Central Lock:
Exterior features
Aluminum air tank:
Multimedia features
Center Console Color Screen:
GPS/Beidou driving recorder:
External audio input (AUX/USB/iPod etc.):
Service brake
Parking brake: Spring brake
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type

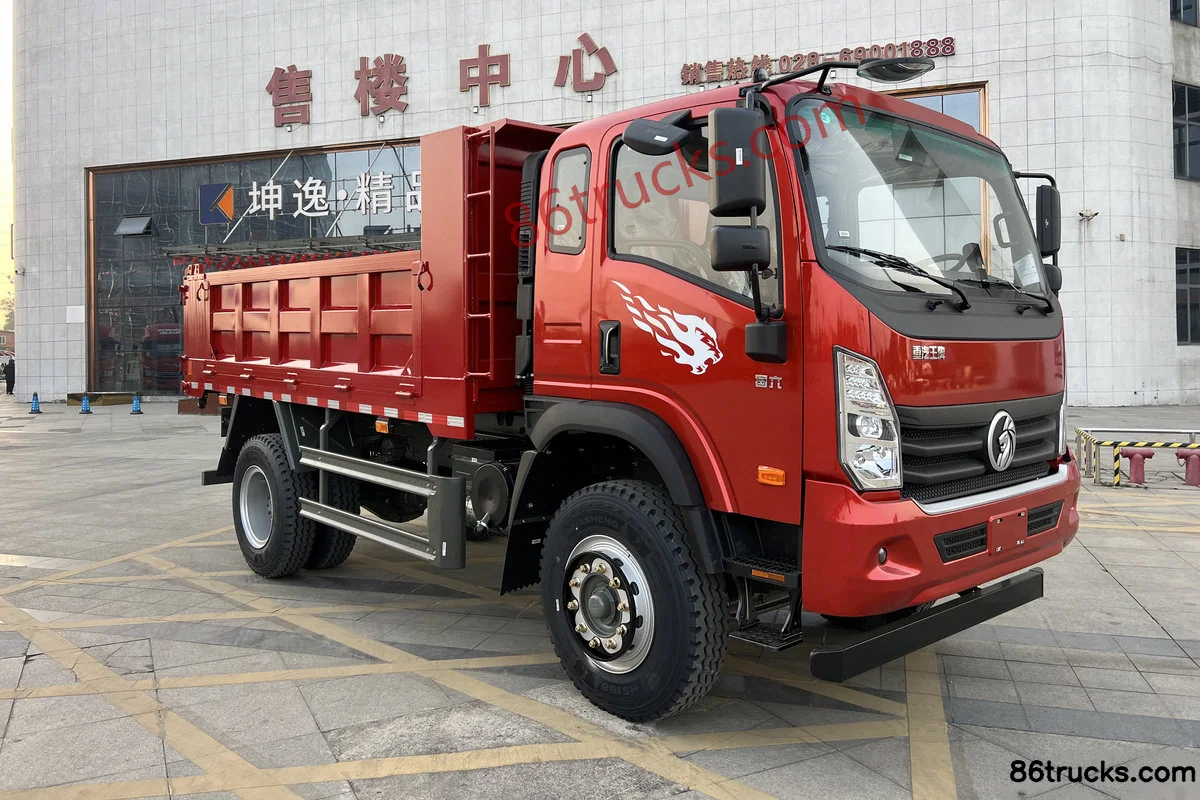

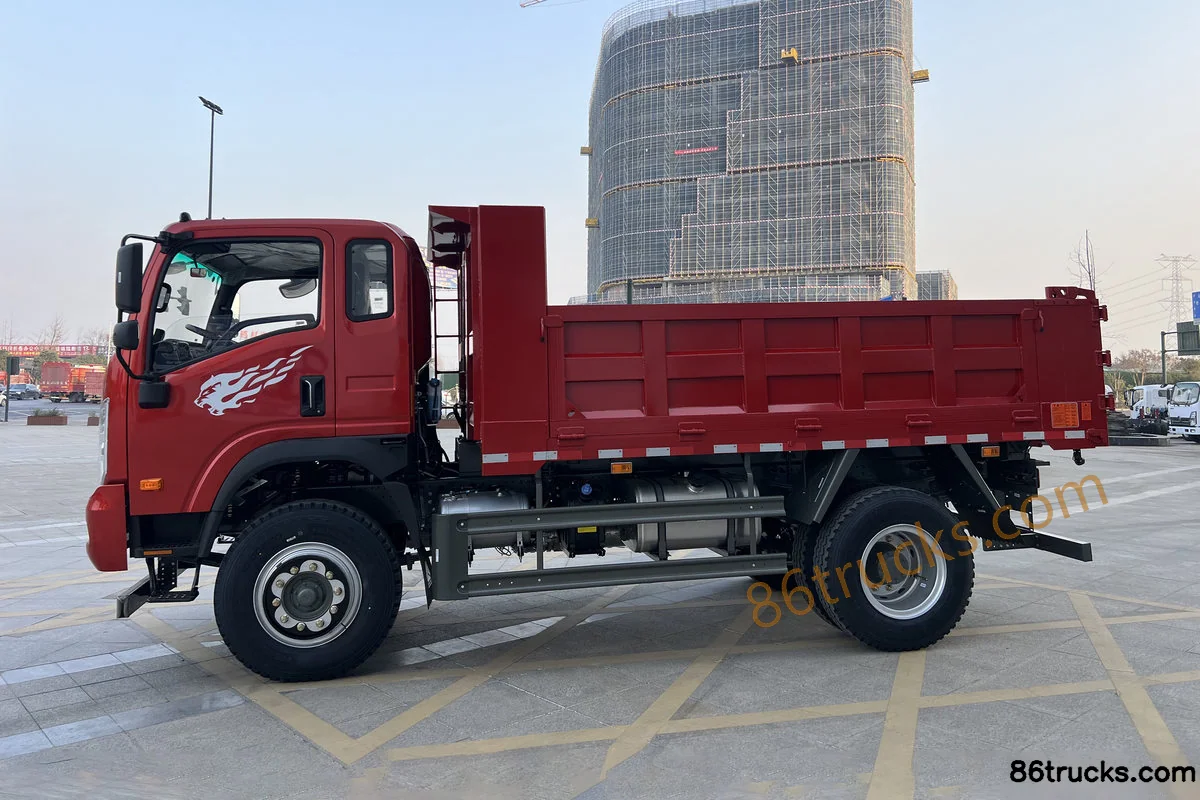

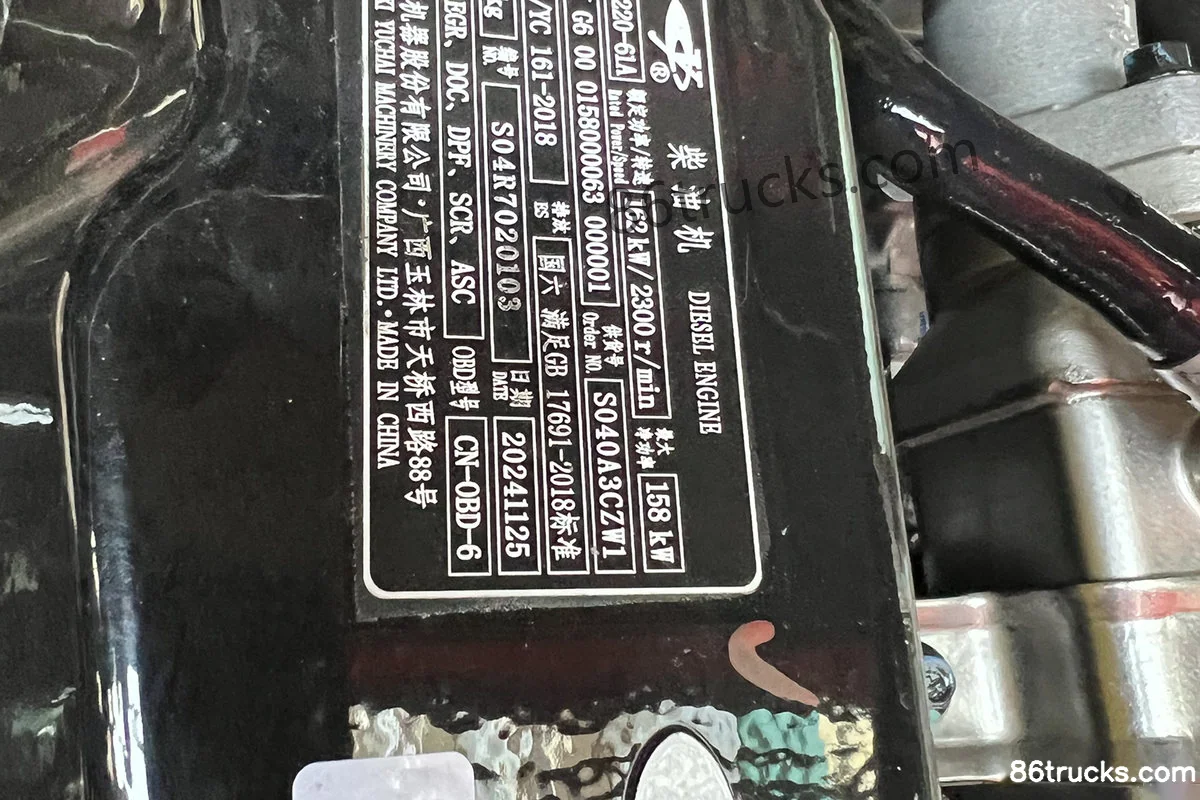

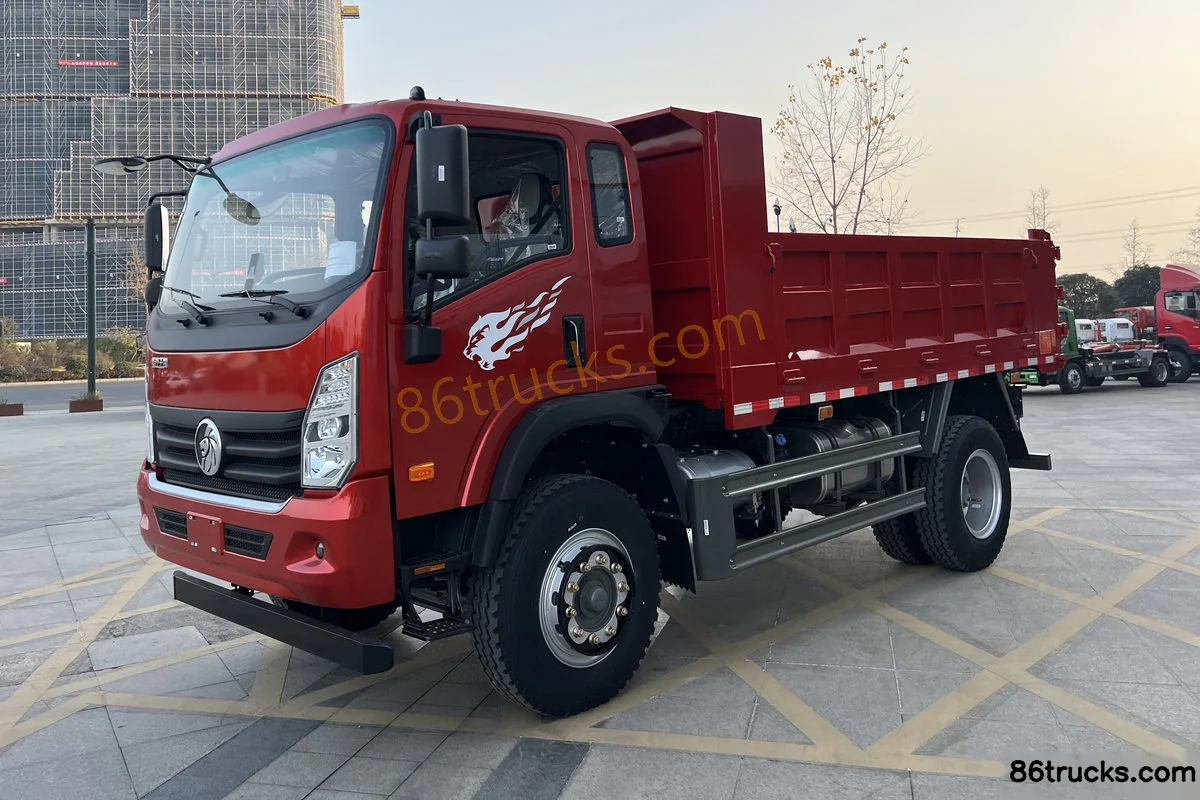

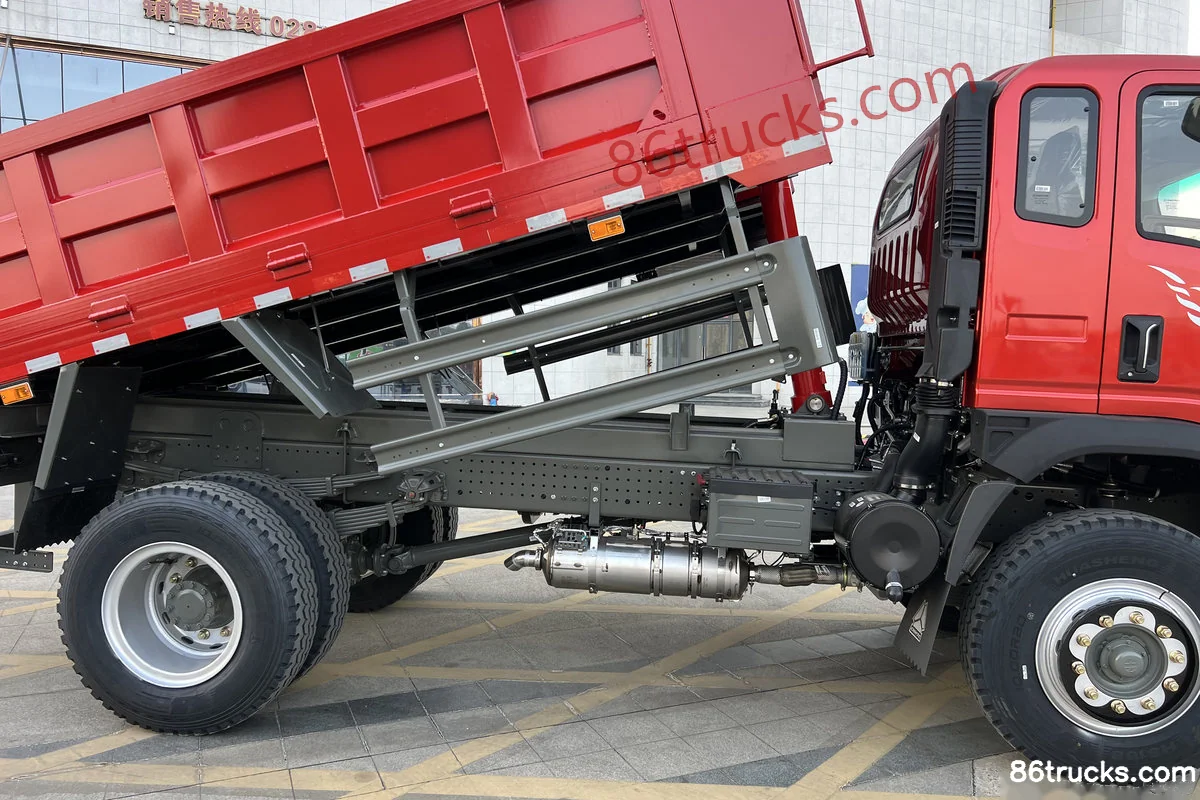

Photos

Exterior3

Cab2

5 photos

FAQ

What is the export price of Sinotruk V3 4.3L Diesel 220 hp 4X2(6 wheels) Fast Gear 10-Speed 4.14m Half Row Dump Truck, and what does it include?

Sinotruk V3 4.3L Diesel 220 hp 4X2(6 wheels) Fast Gear 10-Speed 4.14m Half Row Dump Truck export reference is about From $22,611; MSRP is ¥16.28M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Sinotruk V3 4.3L Diesel 220 hp 4X2(6 wheels) Fast Gear 10-Speed 4.14m Half Row Dump Truck use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Sinotruk V3 4.3L Diesel 220 hp 4X2(6 wheels) Fast Gear 10-Speed 4.14m Half Row Dump Truck?

Key specs of Sinotruk V3 4.3L Diesel 220 hp 4X2(6 wheels) Fast Gear 10-Speed 4.14m Half Row Dump Truck: Drive: 4x2; Horsepower: 220 hp; Emission: China VI; Fuel: Diesel; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sinotruk V3 4.3L Diesel 220 hp 4X2(6 wheels) Fast Gear 10-Speed 4.14m Half Row Dump Truck suited for?

Sinotruk V3 4.3L Diesel 220 hp 4X2(6 wheels) Fast Gear 10-Speed 4.14m Half Row Dump Truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Sinotruk V3 4.3L Diesel 220 hp 4X2(6 wheels) Fast Gear 10-Speed 4.14m Half Row Dump Truck differ from other variants in the same series?

Sinotruk V3 4.3L Diesel 220 hp 4X2(6 wheels) Fast Gear 10-Speed 4.14m Half Row Dump Truck belongs to Sinotruk V Series (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sinotruk V3 4.3L Diesel 220 hp 4X2(6 wheels) Fast Gear 10-Speed 4.14m Half Row Dump Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sinotruk V3 4.3L Diesel 220 hp 4X2(6 wheels) Fast Gear 10-Speed 4.14m Half Row Dump Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
