FAW Jiefang Junwei (J5K) Medium Truck 180 hp 4X2(6 wheels) 4.9m Dump Truck

Export reference
From $18,889
MSRP ¥13.6M CNY
Emission: China III / Euro III
Fuel: Diesel
Transmission: Fast Gear
Curb Weight:: 6.64ton
Wheelbase:: 4090mm
Tire Size:: 10.00-20
Rated payload: 5ton
Drive 4X2 (6 wheels)
Horsepower 180
Cargo box type: Dump type

Overview

The FAW Jiefang Junwei (J5K) Medium Truck 180 hp 4X2(6 wheels) 4.9m Dump Truck is a Medium-duty truck featuring 5t payload, 11.835t GVW, Dump type cargo body and 4X2 (6 wheels) drive. On the powertrain side, it comes with a XichaiCA6DE3-18E3F engine, 180 hp, China III / Euro III emissions and Fast Gear transmission.

China III / Euro III 180 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): CA3120P9K2E
Drive type: 4X2
Wheelbase: 4090mm
engine: XichaiCA6DE3-18E3F
transmission: Fast Gear8JS85E
Rear Axle Ratio: 6.33
Cab length: 7.1m
Cab width: 2.49m
Cab height: 3m
Front track width: 1914mm
rear track: 1847mm
Curb Weight: 6.64ton
Rated payload: 5ton
GVWR: 11.835ton
Origin: Changchun, Jilin
tonnage class: Medium-duty truck
Approach angle: 28°
departure angle: 32°
Remarks: Engine optional Xichai CA6DF3-18E3
Energy Type: Diesel
Engine parameters
Engine Brand: Dachai
Engine Model: XichaiCA6DE3-18E3F
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 6.618L
Emission standard: China III / Euro III
Max output power: 136kW
Max hp: 180Horsepower
Max torque: 650N·m
Max torque speed: 1400rpm
Rated speed: 2300rpm
Engine Type: Turbocharged Air-to-Air Intercooling
Transmission Parameters
Transmission Model: Fast Gear8JS85E
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 8Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Unloading Type: Dump type
Cargo box type: Dump type
Cargo box length: 4.9m
Cargo box width: 2.26m
Cargo box height: 0.8m

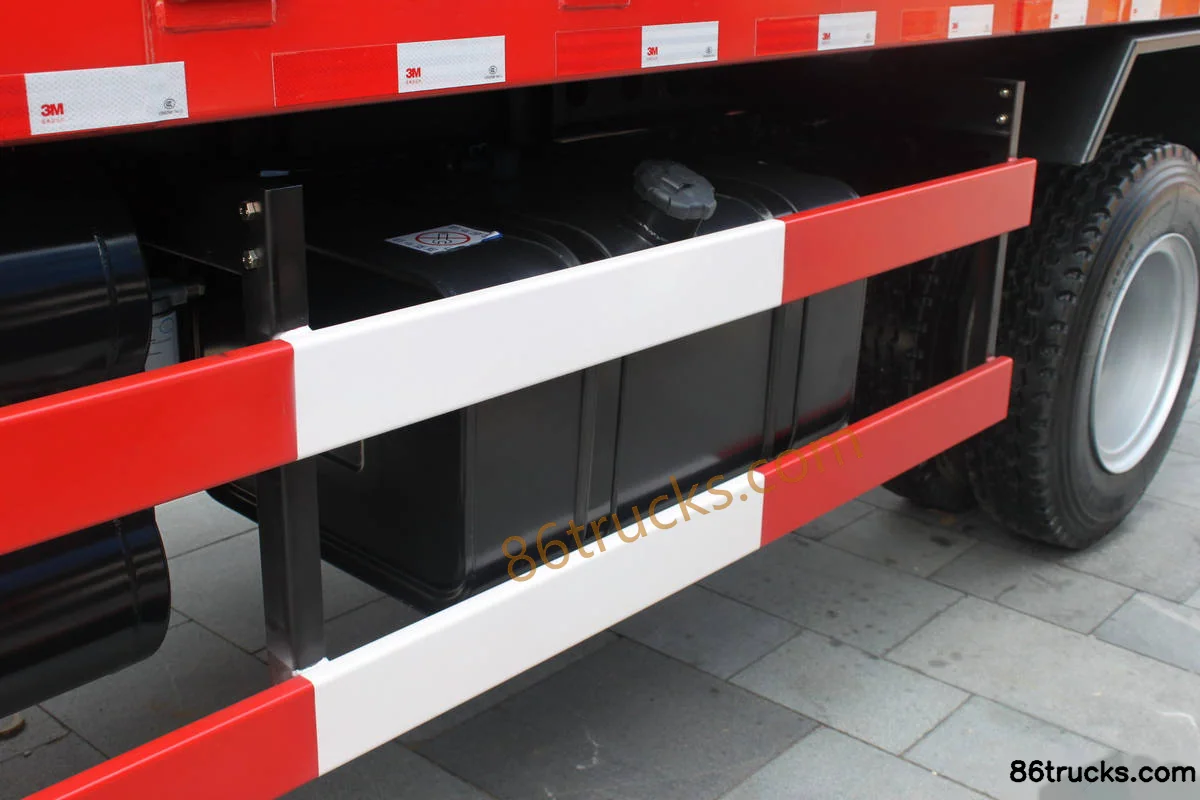

fuel tank
Fuel tank capacity: 200L
Chassis Specs
rear axle description: ф457
rear axle allowable load: 8590kg
Axle ratio: 6.33
Leaf spring count: 12/14+9,13/10+9

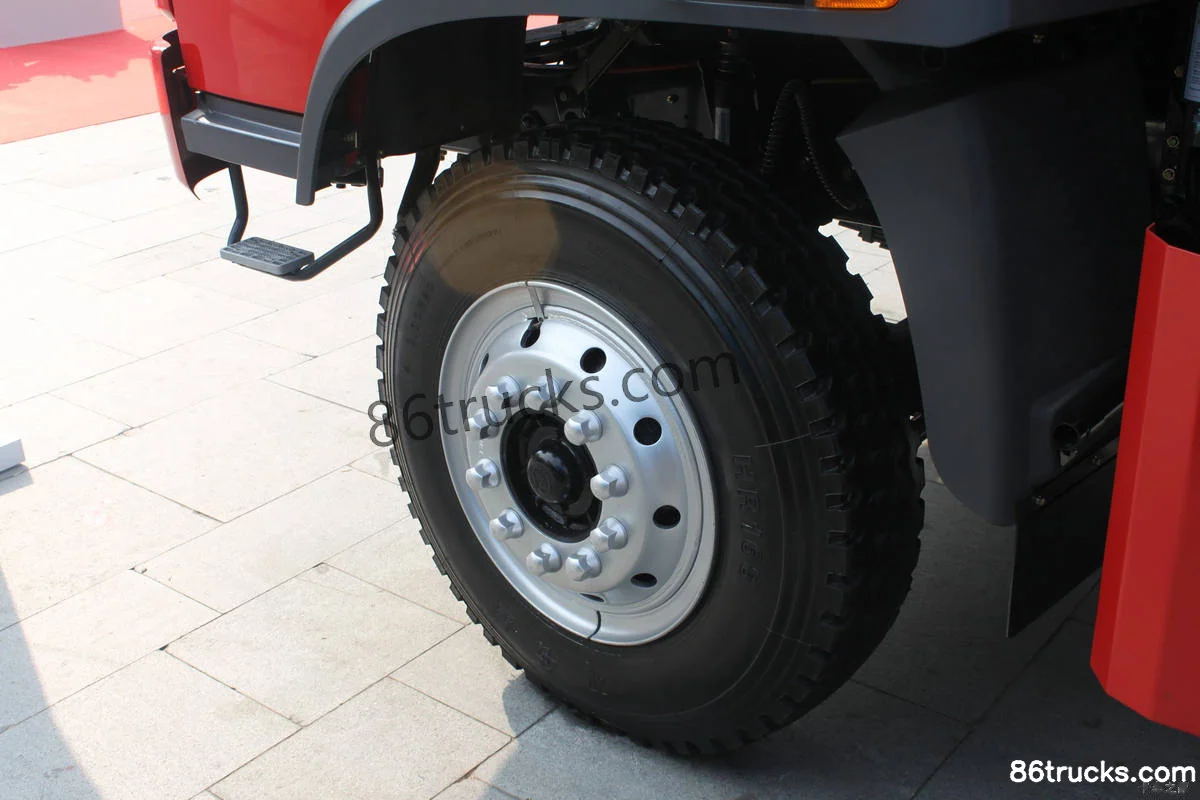

Tire
Tire Size: 10.00-20
Number of tires: 6pcs

Photos

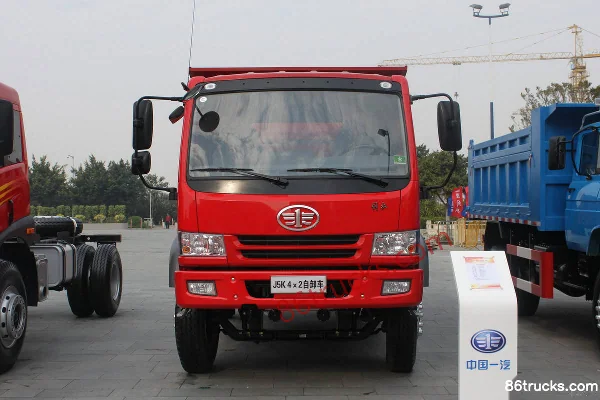

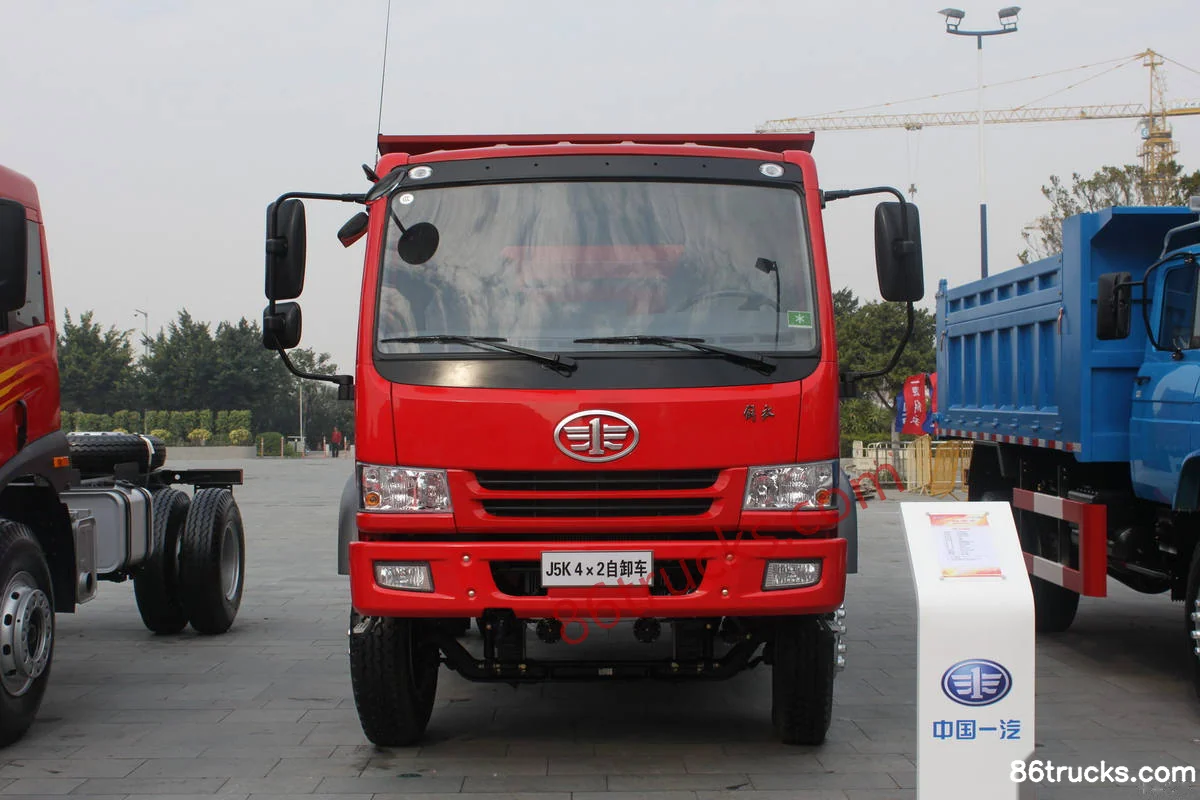

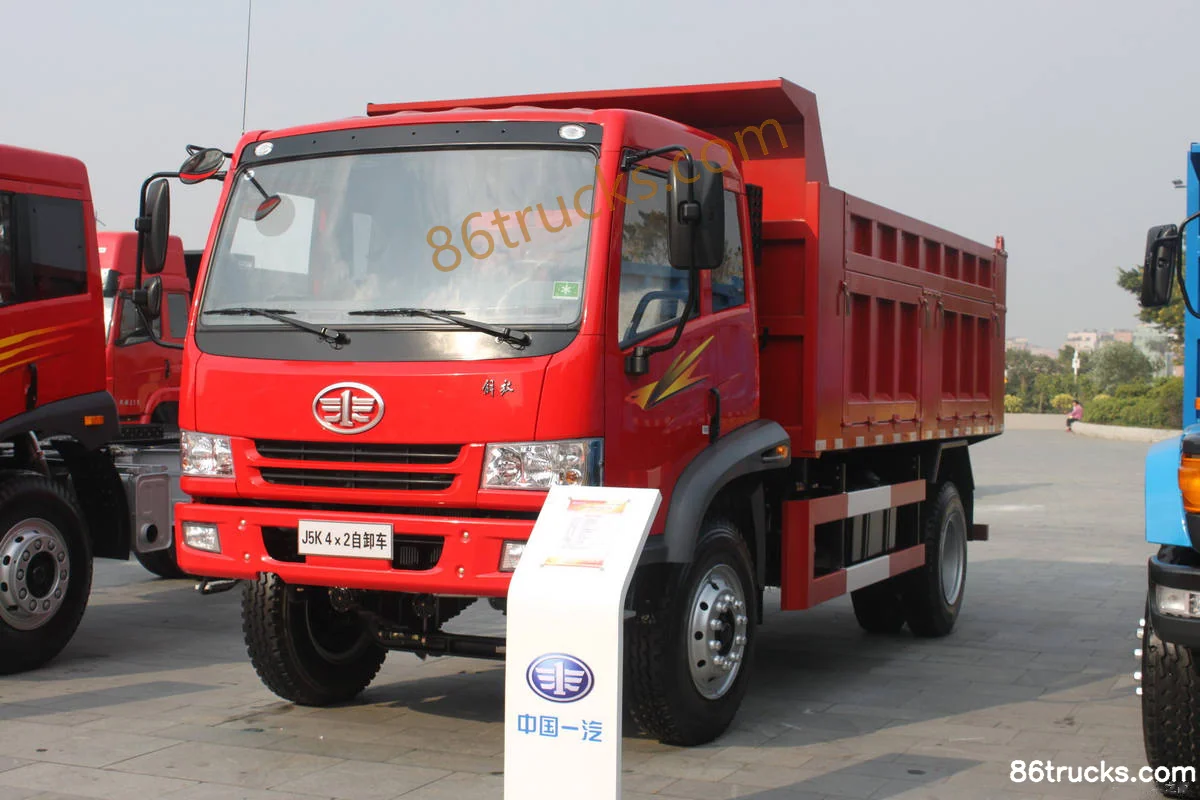

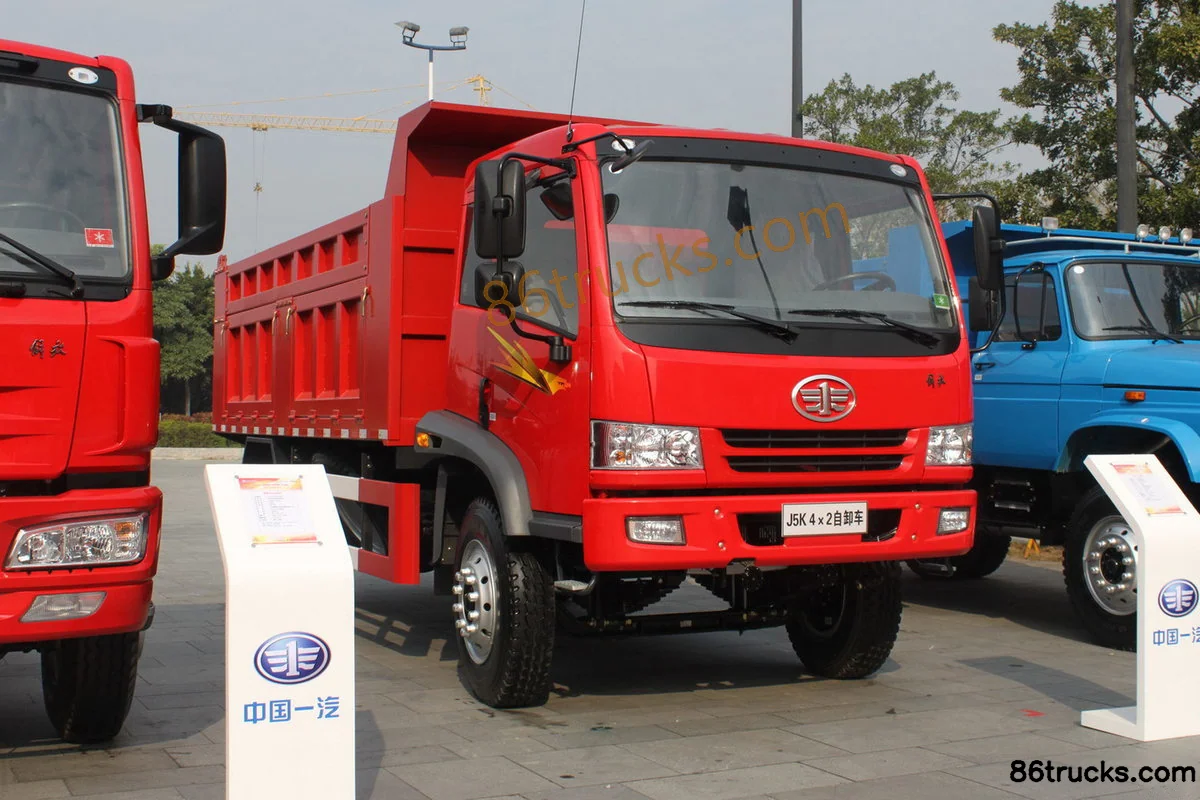

Exterior3

Cab3

6 photos

FAQ

What is the export price of FAW Jiefang Junwei (J5K) Medium Truck 180 hp 4X2(6 wheels) 4.9m Dump Truck, and what does it include?

FAW Jiefang Junwei (J5K) Medium Truck 180 hp 4X2(6 wheels) 4.9m Dump Truck export reference is about From $18,889; MSRP is ¥13.6M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does FAW Jiefang Junwei (J5K) Medium Truck 180 hp 4X2(6 wheels) 4.9m Dump Truck use, and can it enter my country?

This model is listed as China III / Euro III. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of FAW Jiefang Junwei (J5K) Medium Truck 180 hp 4X2(6 wheels) 4.9m Dump Truck?

Key specs of FAW Jiefang Junwei (J5K) Medium Truck 180 hp 4X2(6 wheels) 4.9m Dump Truck: Drive: 4x2; Horsepower: 180 hp; Emission: China III / Euro III; Fuel: Diesel; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is FAW Jiefang Junwei (J5K) Medium Truck 180 hp 4X2(6 wheels) 4.9m Dump Truck suited for?

FAW Jiefang Junwei (J5K) Medium Truck 180 hp 4X2(6 wheels) 4.9m Dump Truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does FAW Jiefang Junwei (J5K) Medium Truck 180 hp 4X2(6 wheels) 4.9m Dump Truck differ from other variants in the same series?

FAW Jiefang Junwei (J5K) Medium Truck 180 hp 4X2(6 wheels) 4.9m Dump Truck belongs to FAW Jiefang Junwei J5K Medium-duty Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for FAW Jiefang Junwei (J5K) Medium Truck 180 hp 4X2(6 wheels) 4.9m Dump Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export FAW Jiefang Junwei (J5K) Medium Truck 180 hp 4X2(6 wheels) 4.9m Dump Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
