Kama Ruihang HX3 95 hp 4X2(6 wheels) 3.83m Dump Truck (China VI)

Export reference
MSRP N/A
Emission: China VI
Fuel: Diesel
Transmission: Mengwo
Curb Weight:: 2.72ton
Wheelbase:: 3030mm
Tire Size:: 6.00R15LT 10PR
Kama Ruihang HX3 95 hp 4X2(6 wheels) 3.83m Dump Truck (China VI) exterior
View more photos (12)
Rated payload: 1.645ton
Drive 4X2 (6 wheels)
Horsepower 95
Cargo box type: Dump type

Overview

The Kama Ruihang HX3 95 hp 4X2(6 wheels) 3.83m Dump Truck (China VI) is a Light Truck featuring 1.645t payload, 4.495t GVW, Dump type cargo body and 4X2 (6 wheels) drive. On the powertrain side, it comes with a QuanchaiQ23-95E60 engine, 95 hp, China VI emissions and Mengwo transmission.

China VI 95 Diesel 4X2

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model code (announced): KMC3040HQ318D6
Drive type: 4X2
Wheelbase: 3030mm
engine: QuanchaiQ23-95E60
transmission: Mengwo525HQ
Rear Axle Ratio: 5.535
Cab length: 5.88m
Cab width: 1.96m
Cab height: 2.06m
Front track width: 1500mm
rear track: 1375mm
Curb Weight: 2.72ton
Rated payload: 1.645ton
GVWR: 4.495ton
Origin: Shouguang, Shandong; Ganzhou, Jiangxi
tonnage class: Light Truck
Approach angle: 19°
departure angle: 15°
Energy Type: Diesel
Engine parameters
Engine Brand: Quanchai
Engine Model: QuanchaiQ23-95E60
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 2.3L
Emission standard: China VI
Max output power: 70kW
Max hp: 95Horsepower
Max torque: 240N·m
Max torque speed: 2000rpm
Rated speed: 3000rpm
Transmission Parameters
Transmission Model: Mengwo525HQ
Transmission Brand: Mengwo
shift method: Manual
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
Unloading Type: Dump type
Cargo box type: Dump type
Cargo box length: 3.83m
Cargo box width: 1.86m
Cargo box height: 0.4m
Cab parameters
Cab width: 1750mm
seating capacity: 2Personnel
Chassis Specs
Front axle allowable load: 1620kg
rear axle allowable load: 2875kg
Axle ratio: 5.535
Leaf spring count: 3/5+3
Tire
Tire Size: 6.00R15LT 10PR
Number of tires: 6pcs
Control configuration
ABS:
interior configuration
AC control type: Manual

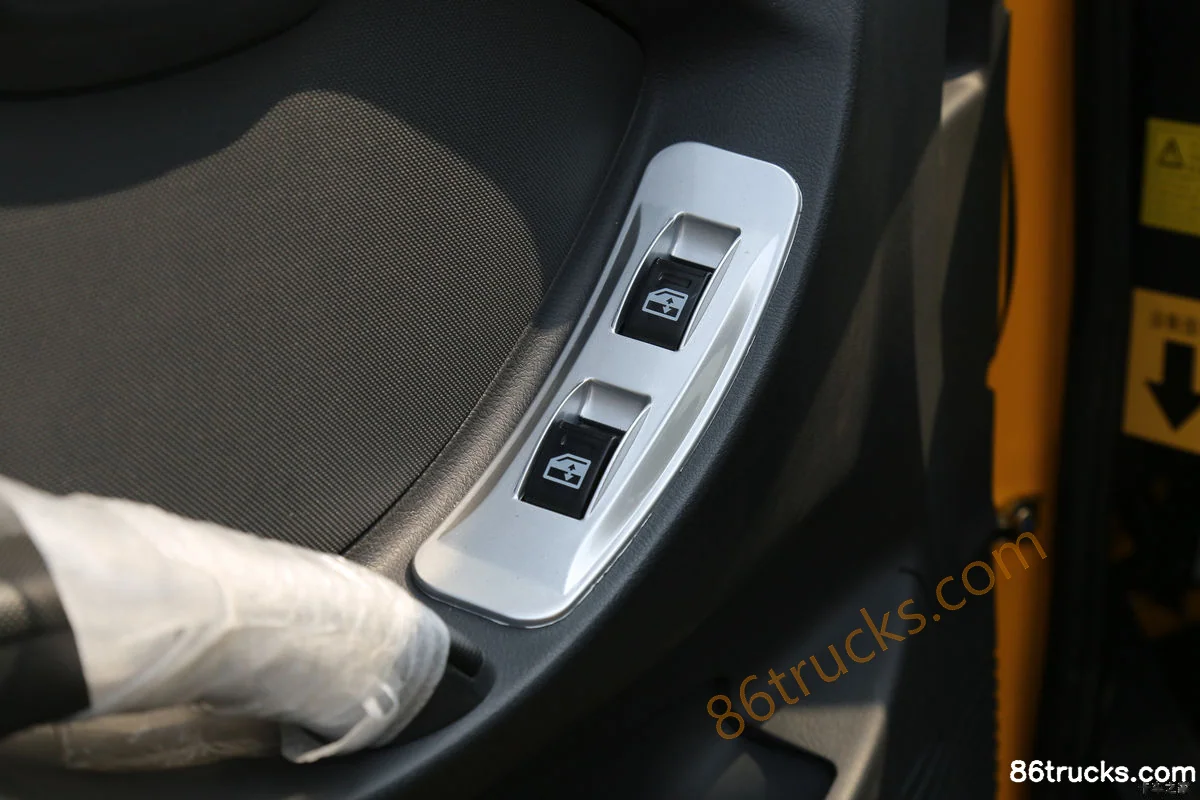

Power Windows:
Multimedia features
Center Console Color Screen:
lighting configuration
Headlight height adjustment:

Photos

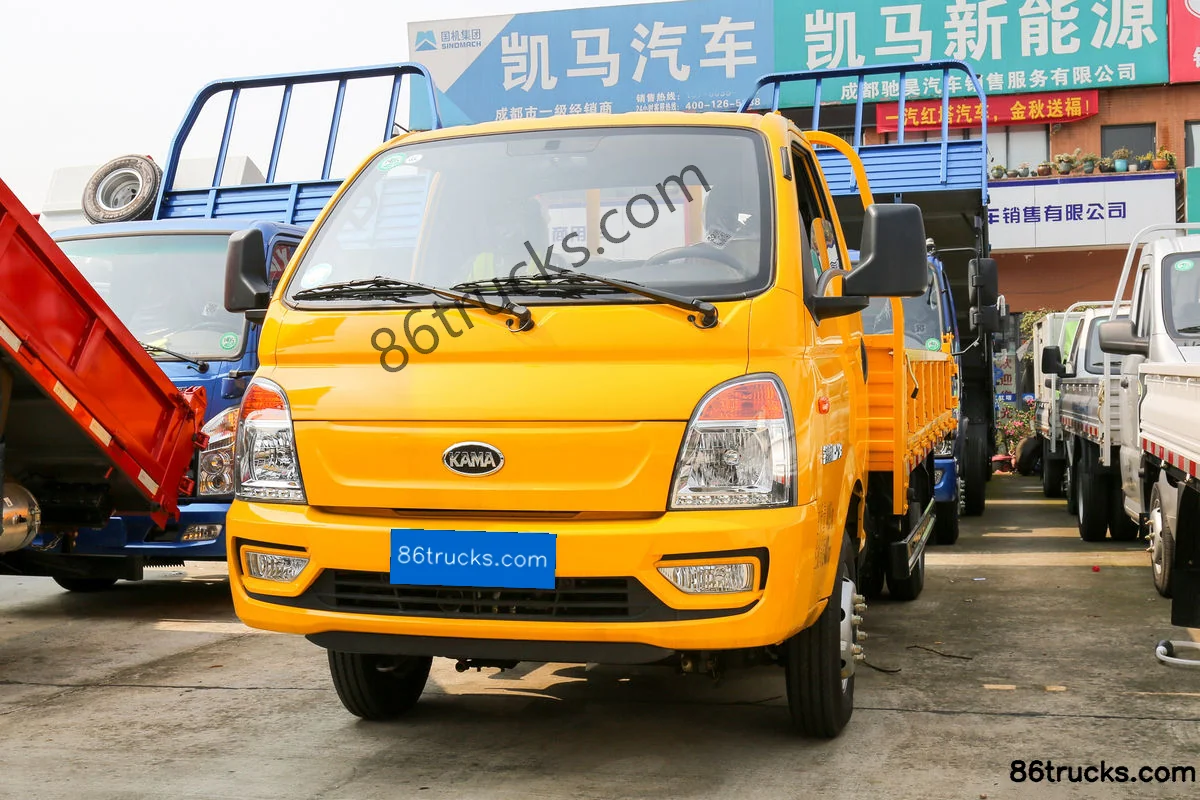

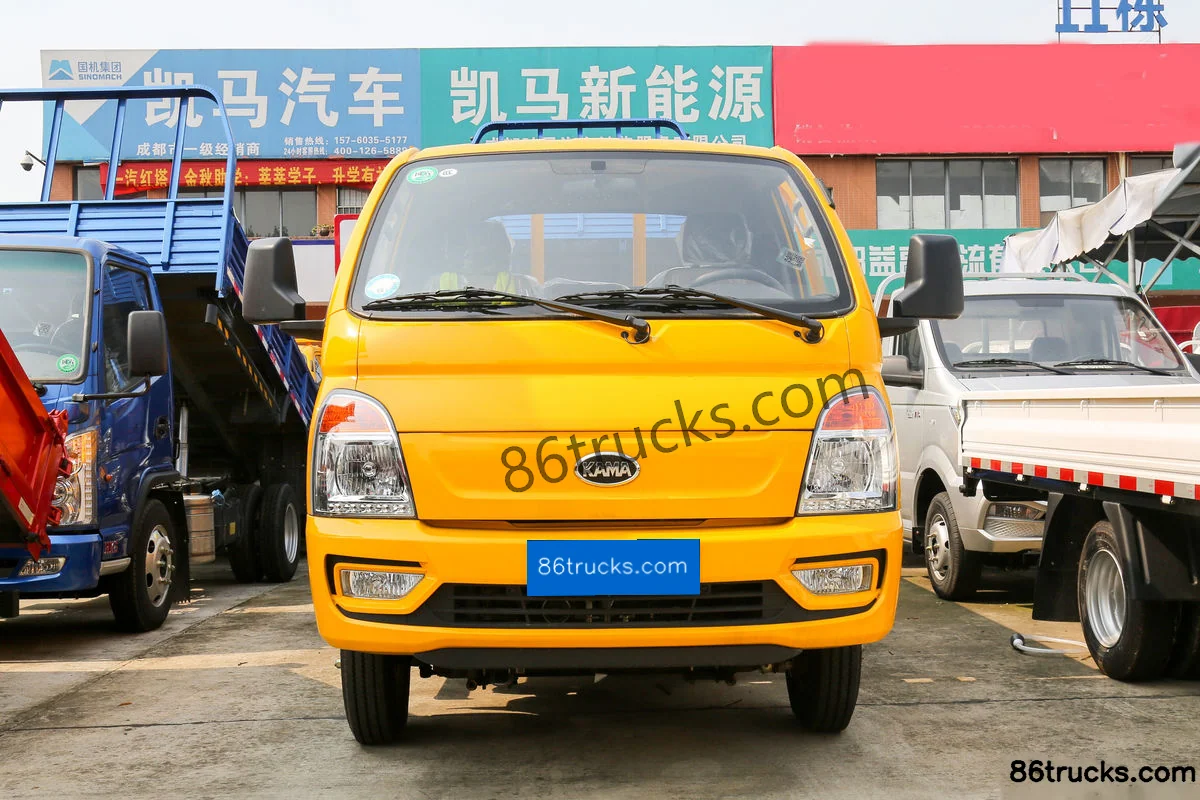

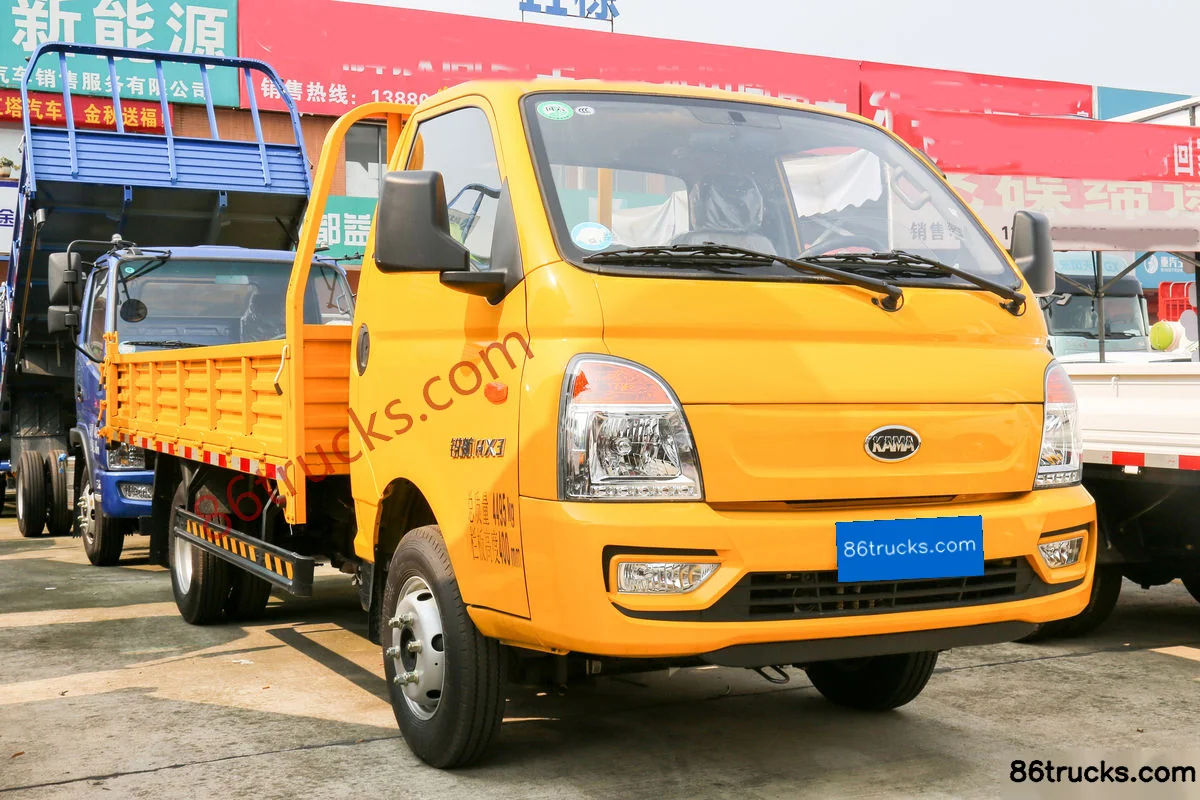

Exterior3

Kama Ruihang HX3 95 hp 4X2(6 wheels) 3.83m Dump Truck (China VI) Exterior (1) | 86Trucks Kama Ruihang HX3 95 hp 4X2(6 wheels) 3.83m Dump Truck (China VI) Exterior (2) | 86Trucks Kama Ruihang HX3 95 hp 4X2(6 wheels) 3.83m Dump Truck (China VI) Exterior (3) | 86Trucks

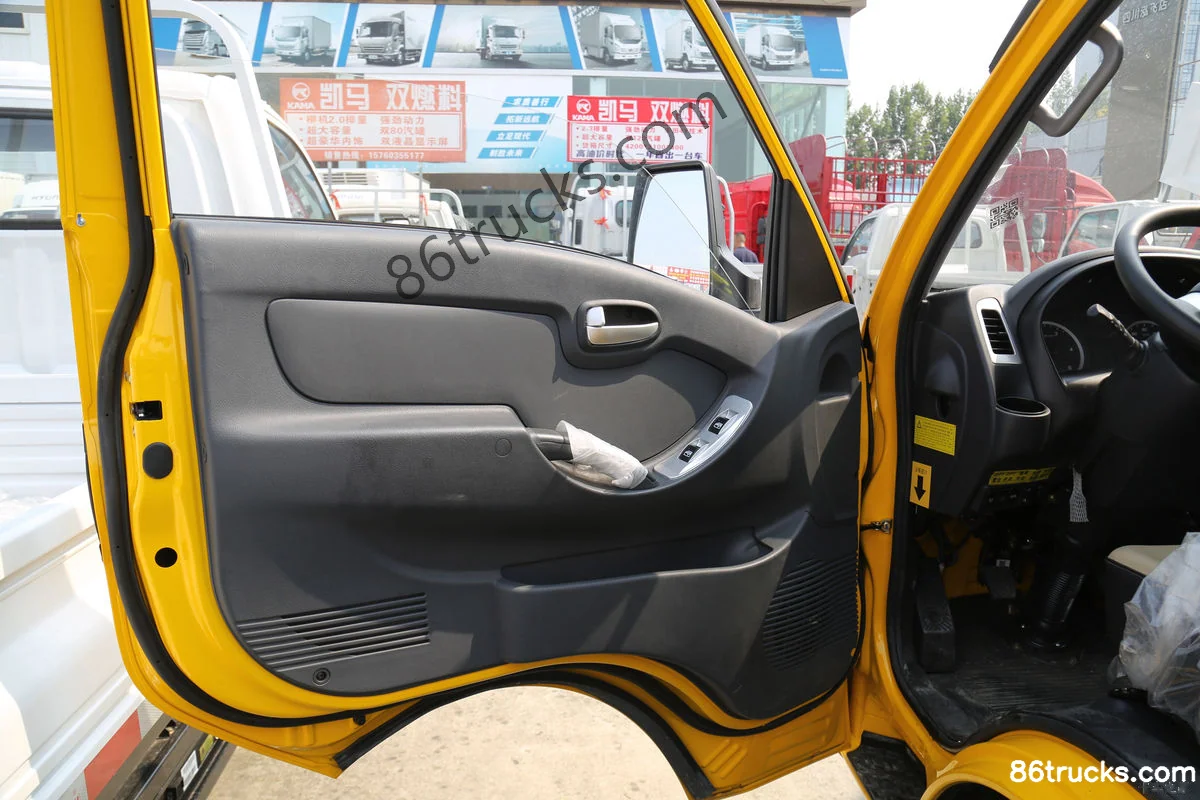

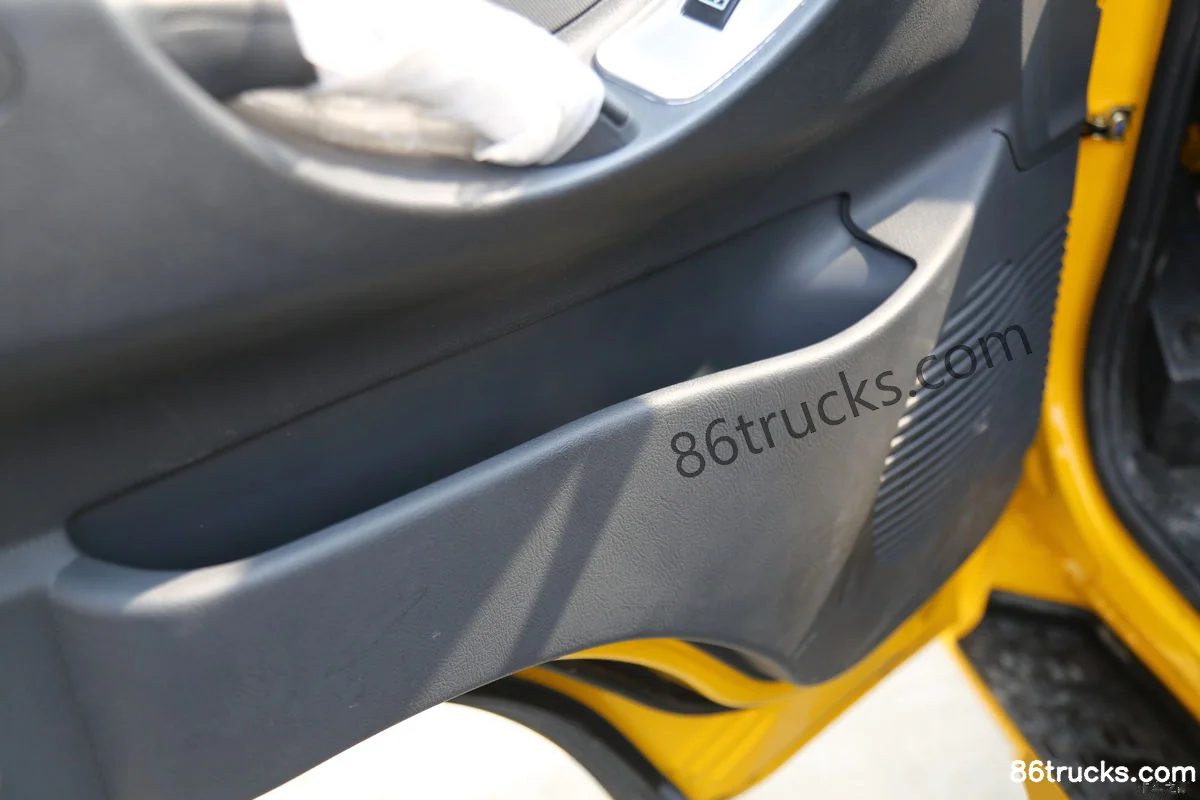

Cab3

Kama Ruihang HX3 95 hp 4X2(6 wheels) 3.83m Dump Truck (China VI) Cab (1) | 86Trucks Kama Ruihang HX3 95 hp 4X2(6 wheels) 3.83m Dump Truck (China VI) Cab (2) | 86Trucks Kama Ruihang HX3 95 hp 4X2(6 wheels) 3.83m Dump Truck (China VI) Cab (3) | 86Trucks

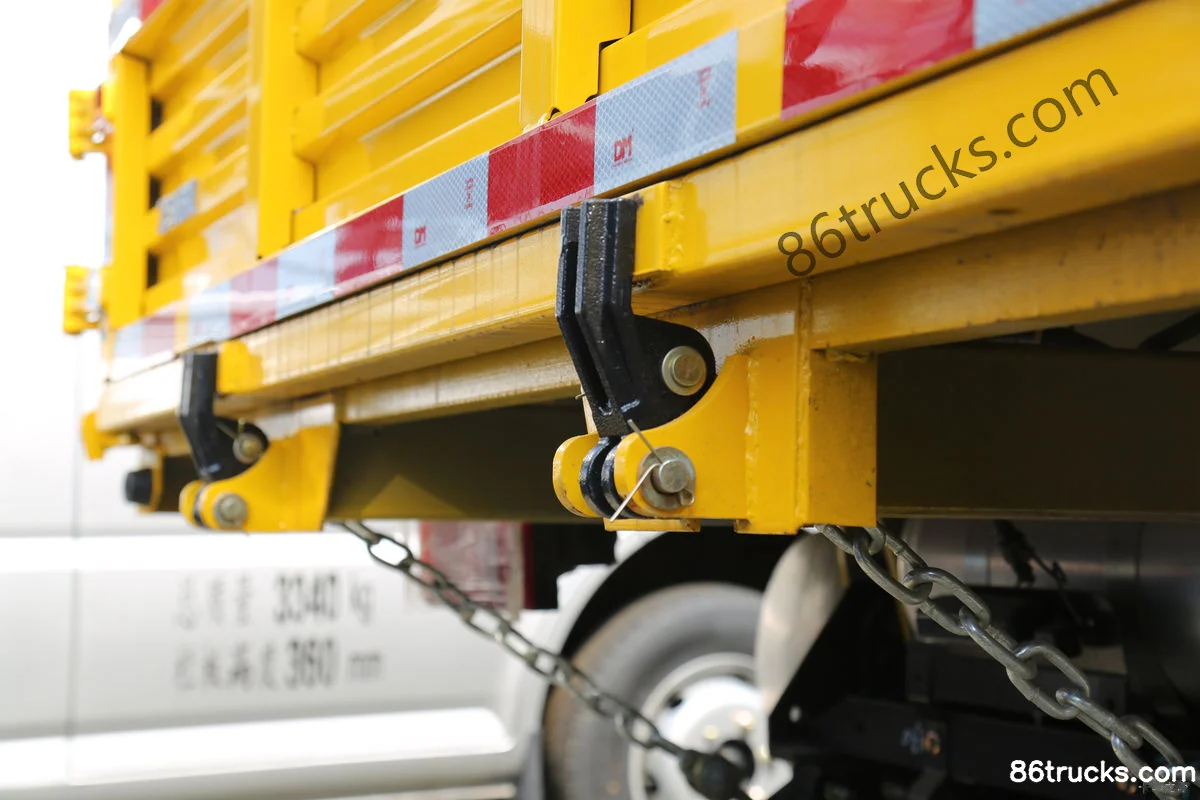

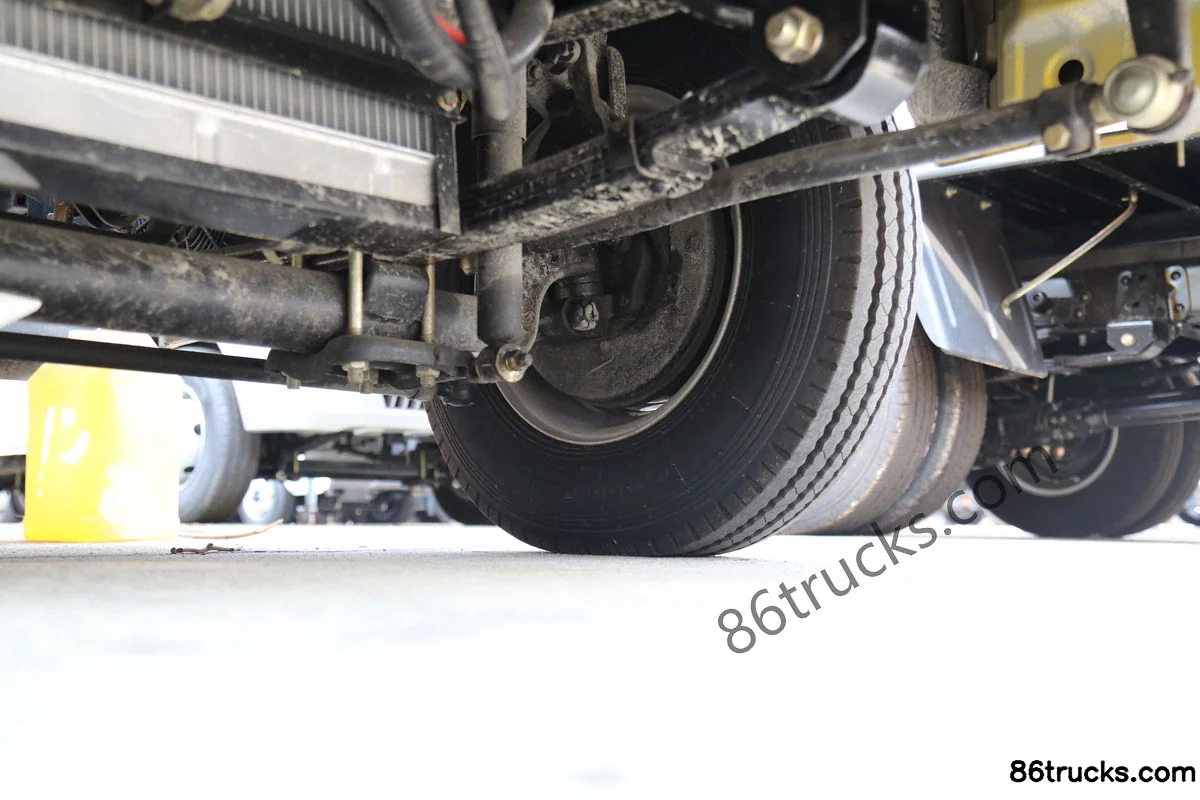

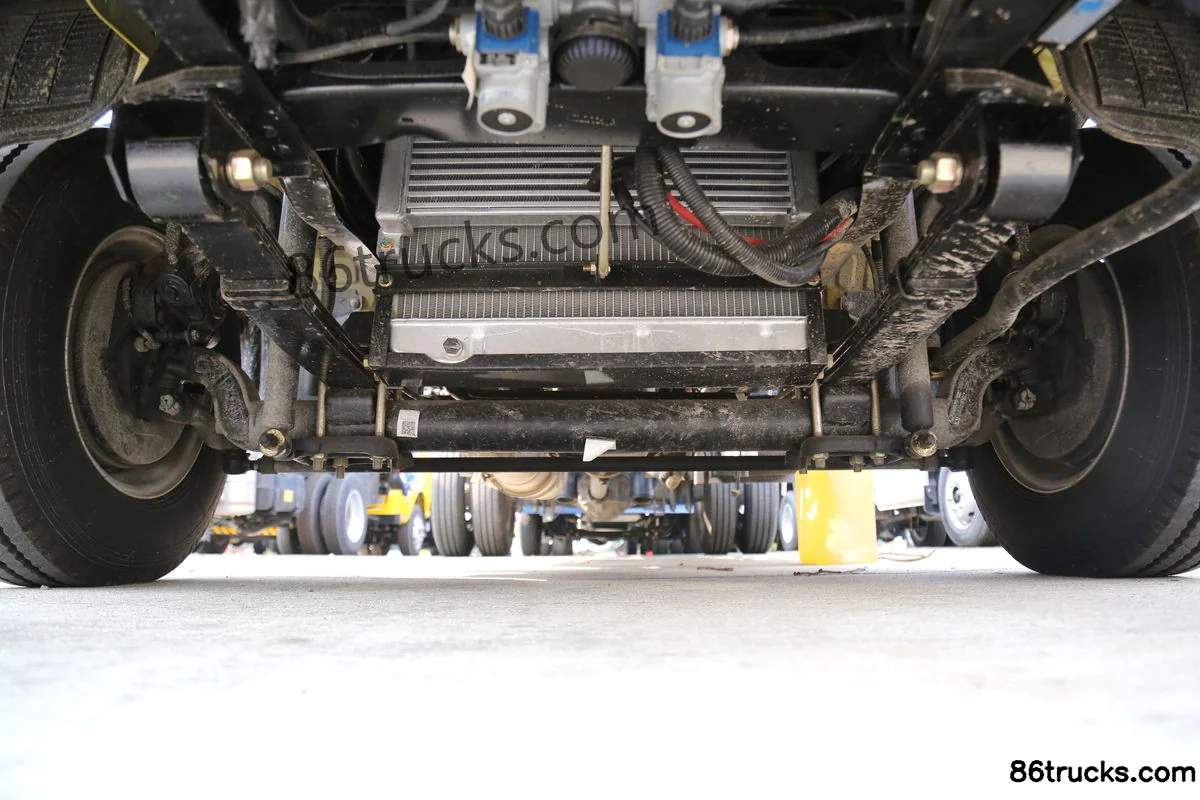

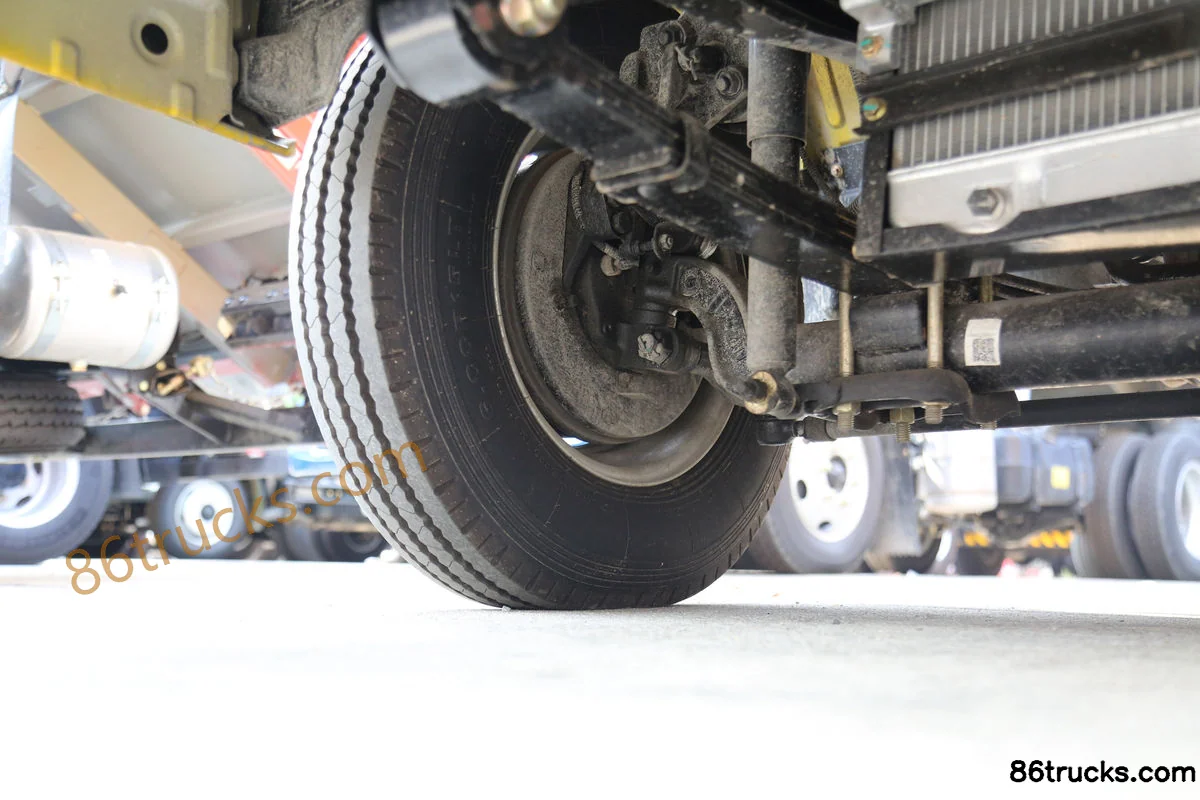

Chassis3

Kama Ruihang HX3 95 hp 4X2(6 wheels) 3.83m Dump Truck (China VI) Chassis (1) | 86Trucks Kama Ruihang HX3 95 hp 4X2(6 wheels) 3.83m Dump Truck (China VI) Chassis (2) | 86Trucks Kama Ruihang HX3 95 hp 4X2(6 wheels) 3.83m Dump Truck (China VI) Chassis (3) | 86Trucks

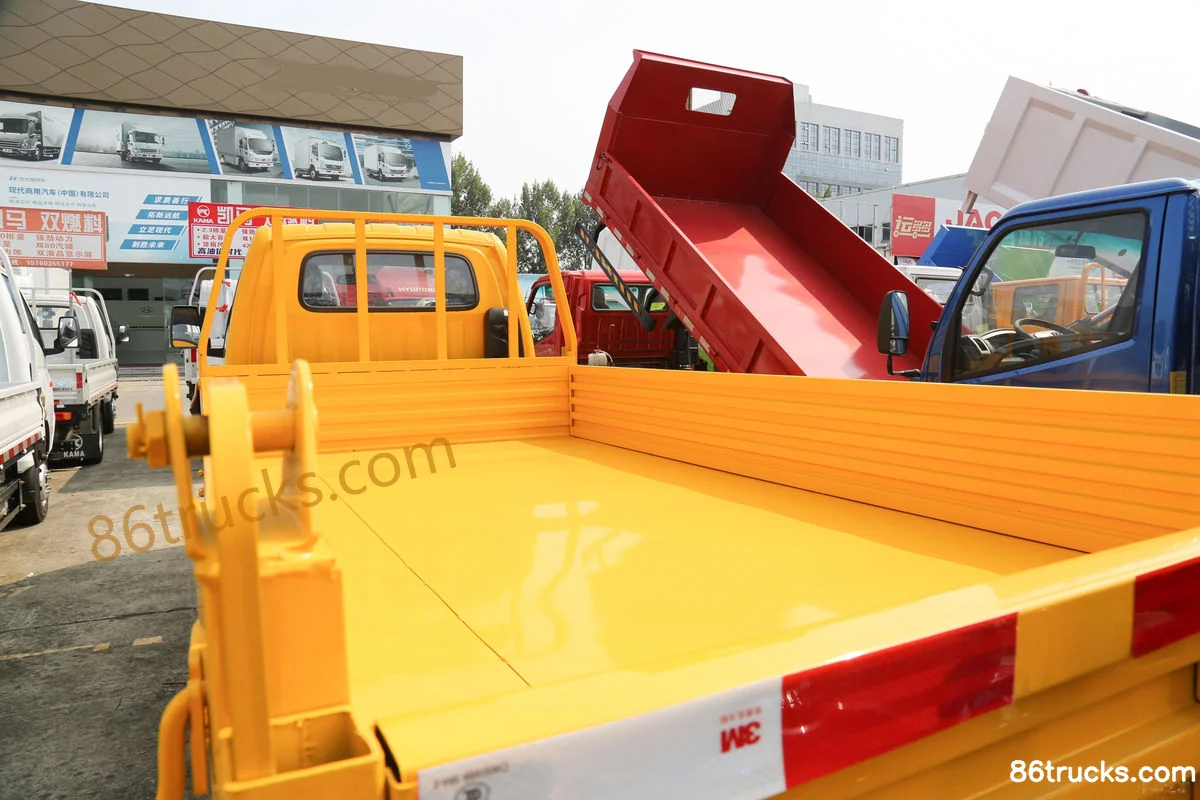

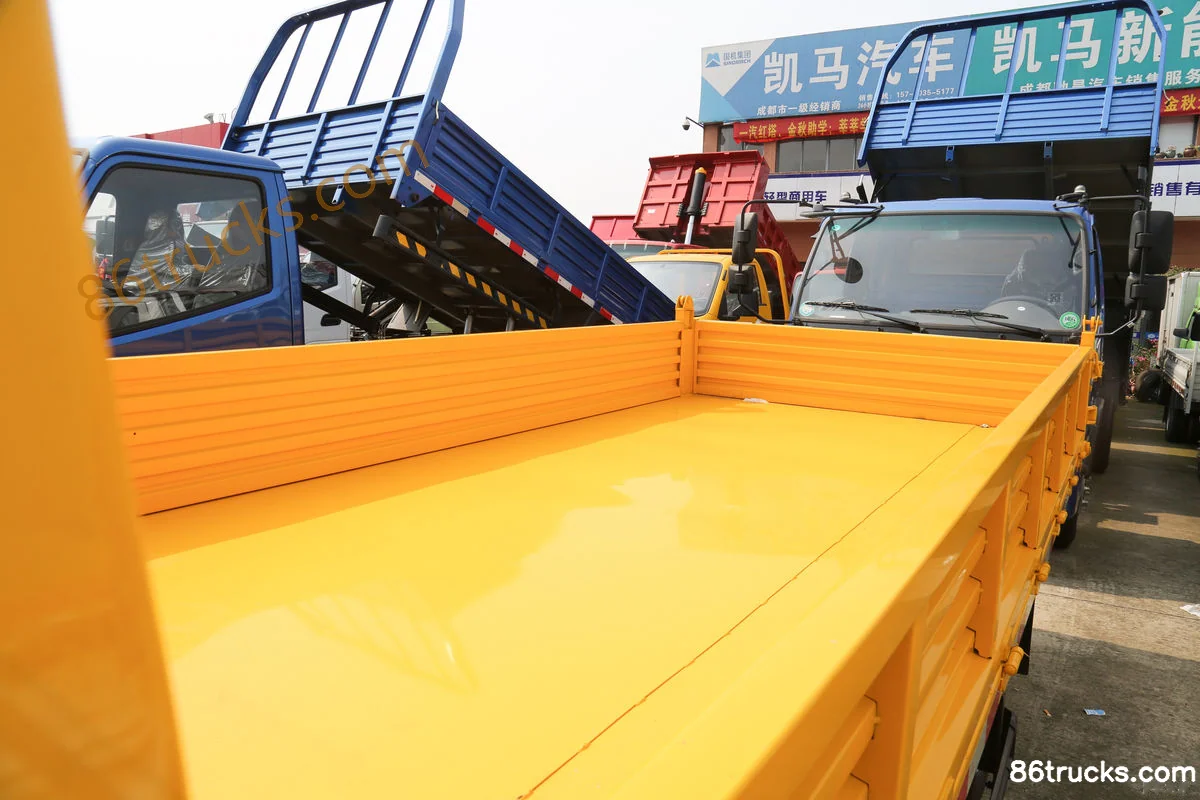

Body3

Kama Ruihang HX3 95 hp 4X2(6 wheels) 3.83m Dump Truck (China VI) Body (1) | 86Trucks Kama Ruihang HX3 95 hp 4X2(6 wheels) 3.83m Dump Truck (China VI) Body (2) | 86Trucks Kama Ruihang HX3 95 hp 4X2(6 wheels) 3.83m Dump Truck (China VI) Body (3) | 86Trucks

12 photos

FAQ

What emission standard does Kama Ruihang HX3 95 hp 4X2(6 wheels) 3.83m Dump Truck (China VI) use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Kama Ruihang HX3 95 hp 4X2(6 wheels) 3.83m Dump Truck (China VI)?

Key specs of Kama Ruihang HX3 95 hp 4X2(6 wheels) 3.83m Dump Truck (China VI): Drive: 4x2; Horsepower: 95 hp; Emission: China VI; Fuel: Diesel; Transmission: Mengwo. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Kama Ruihang HX3 95 hp 4X2(6 wheels) 3.83m Dump Truck (China VI) suited for?

Kama Ruihang HX3 95 hp 4X2(6 wheels) 3.83m Dump Truck (China VI) is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Kama Ruihang HX3 95 hp 4X2(6 wheels) 3.83m Dump Truck (China VI) differ from other variants in the same series?

Kama Ruihang HX3 95 hp 4X2(6 wheels) 3.83m Dump Truck (China VI) belongs to Kama Ruihang HX3 Mini Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Kama Ruihang HX3 95 hp 4X2(6 wheels) 3.83m Dump Truck (China VI)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Kama Ruihang HX3 95 hp 4X2(6 wheels) 3.83m Dump Truck (China VI)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
