Yuejin Big Qilin 4.2L diesel 200hp 4X2(6 wheels) Fast Gear 8-speed 4.2m dump truck

Export reference
From $24,306
MSRP ¥17.5M CNY
Emission: China VI
Fuel: Diesel
Transmission: Fast Gear
Curb Weight:: 7.802ton
Wheelbase:: 3600mm
Tire Size:: 10.00R20 18PR
Rated payload: 9.998ton
Drive 4X2 (6 wheels)
Horsepower 200
Cargo box length: 4.2m

Overview

The Yuejin Big Qilin 4.2L diesel 200hp 4X2(6 wheels) Fast Gear 8-speed 4.2m dump truck is a Medium-duty truck featuring 9.998t payload, 17.995t GVW, 4.2m cargo body and 4X2 (6 wheels) drive. On the powertrain side, it comes with a YuchaiYCS04200-68 engine, 200 hp, China VI emissions and Fast Gear transmission.

China VI 200 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): SH3183VPDCWW5
Drive type: 4X2
Wheelbase: 3600mm
engine: YuchaiYCS04200-68
transmission: Fast Gear8JS85
Rear Axle Ratio: 6.5
Cab length: 6.6m
Cab width: 2.55m
Cab height: 2.72m
Front track width: 1815mm
rear track: 1800mm
Curb Weight: 7.802ton
Rated payload: 9.998ton
GVWR: 17.995ton
Origin: Nanjing, Jiangsu
tonnage class: Medium-duty truck
Approach angle: 25°
departure angle: 18°
Energy Type: Diesel
Engine parameters
Engine Brand: Yuchai
Engine Model: YuchaiYCS04200-68
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 4.16L
Emission standard: China VI
Max output power: 147kW
Max hp: 200Horsepower
Max torque: 720N·m
Max torque speed: 1200-1600rpm
Rated speed: 2300rpm
Engine Type: High-pressure common rail + EGR + DOC + DPF + SCR + ASC
Transmission Parameters
Transmission Model: 8JS85
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 8Gear
Number of Reverse Gears: 2pcs
Body Parameters
Lifting type: Front lift
Cargo box parameters
Cargo box length: 4.2m
Cargo box width: 2.2m
Cargo box height: 0.8m
Cab parameters
Cab width: 2120mm
seating capacity: 3Personnel
fuel tank
Fuel tank capacity: 160L
Chassis Specs
Front axle allowable load: 6400kg
rear axle description: 153 rear axle
rear axle allowable load: 11595kg
Axle ratio: 6.5
Leaf spring count: 9/13+8
Tire
Tire Size: 10.00R20 18PR
Number of tires: 6pcs
Control configuration
ABS:
interior configuration
Multifunction steering wheel:
AC control type: Manual
Power Windows:
Remote key:
Electronic Central Lock:
Multimedia features
External audio input (AUX/USB/iPod etc.):
Bluetooth / hands-free calling:
Radio:
lighting configuration
Front fog lamp:
Service brake
Parking brake: Spring brake
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type

Photos

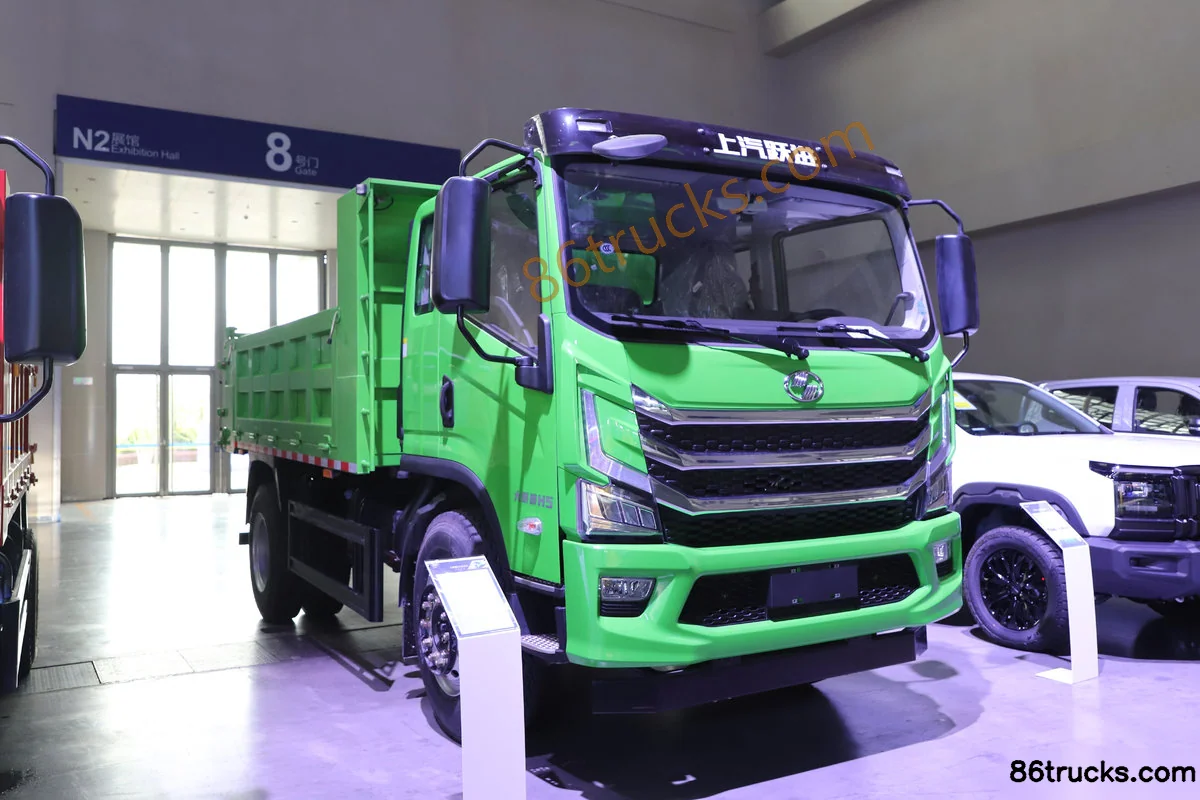

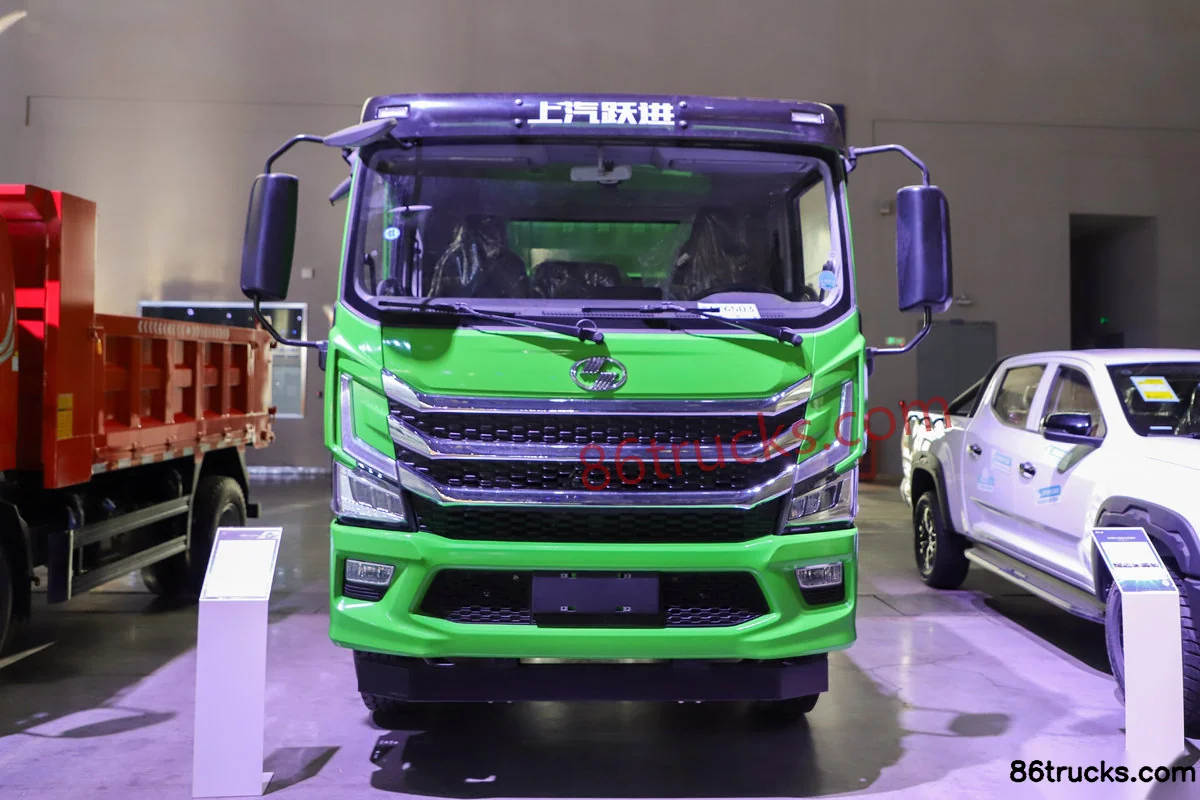

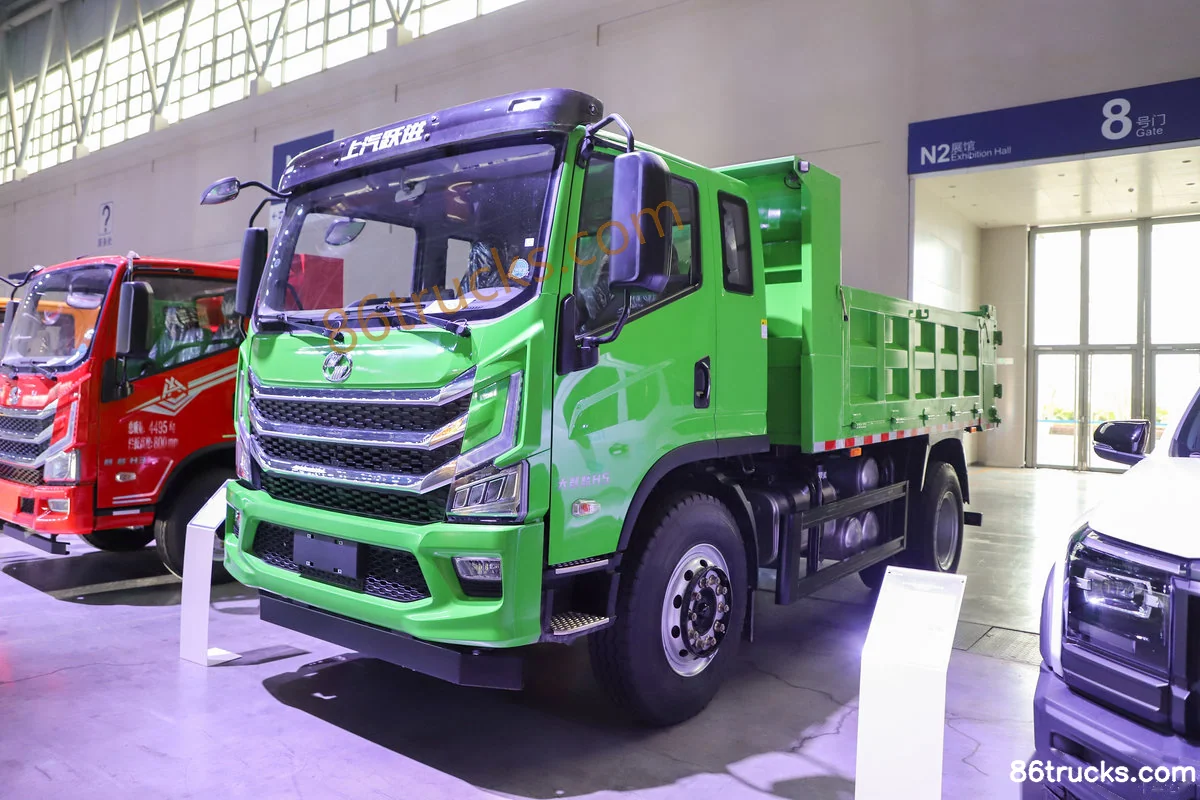

Exterior3

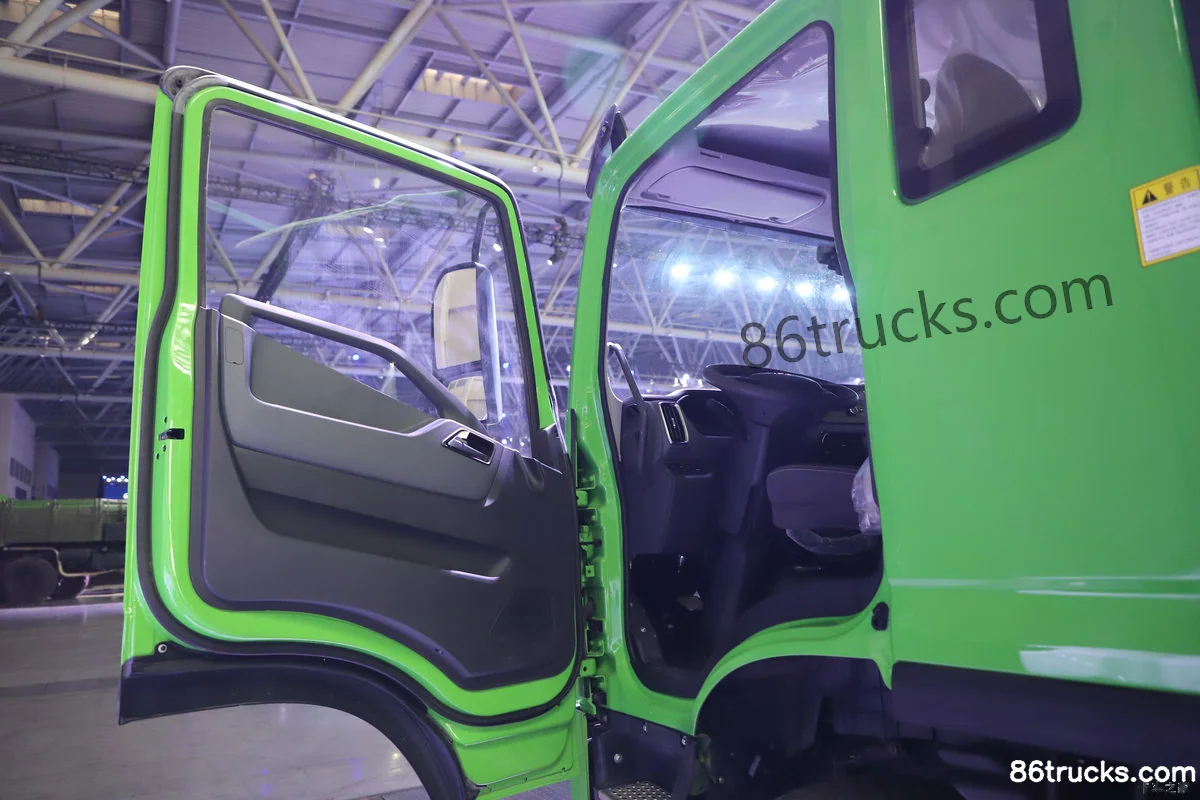

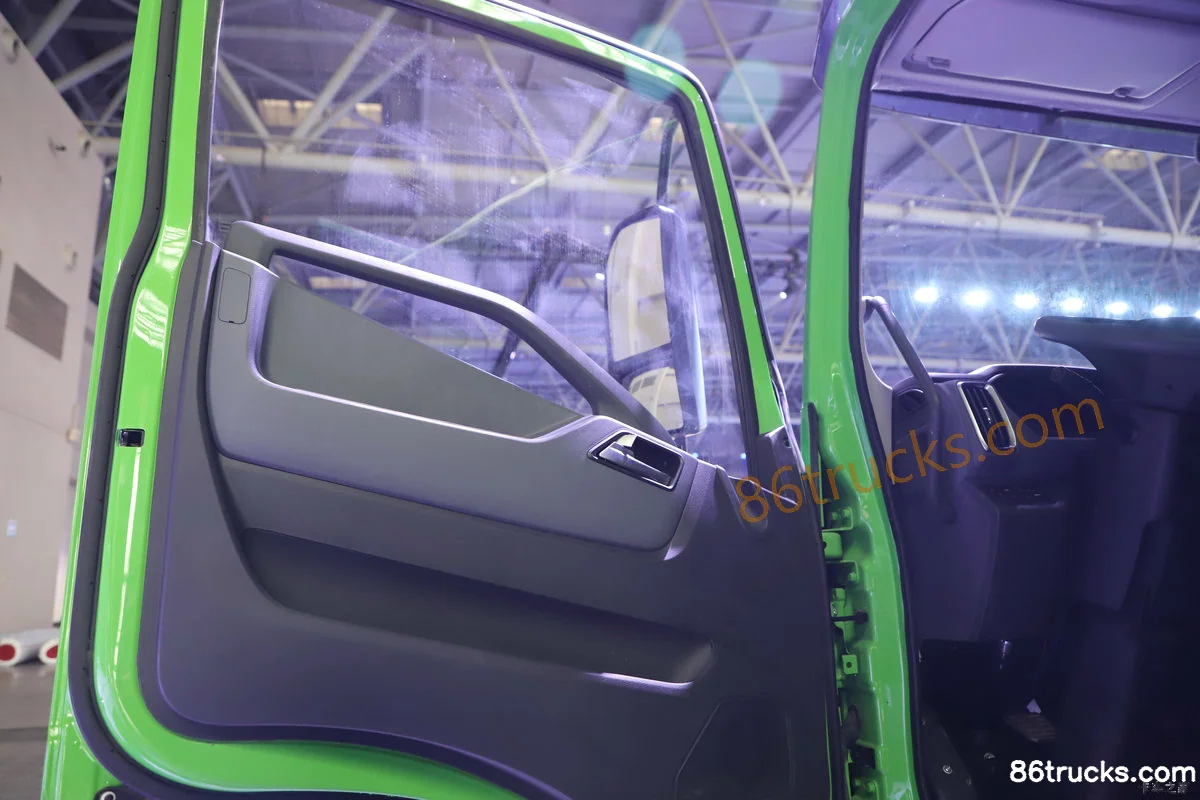

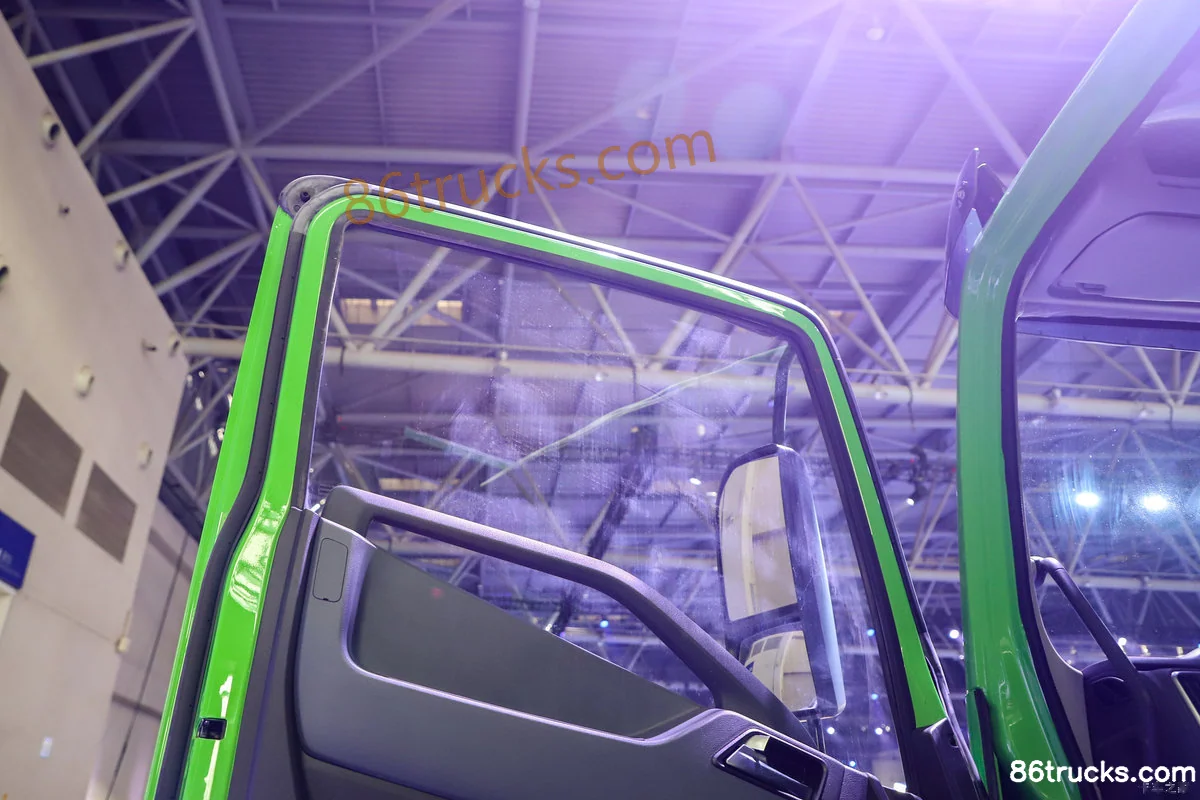

Cab3

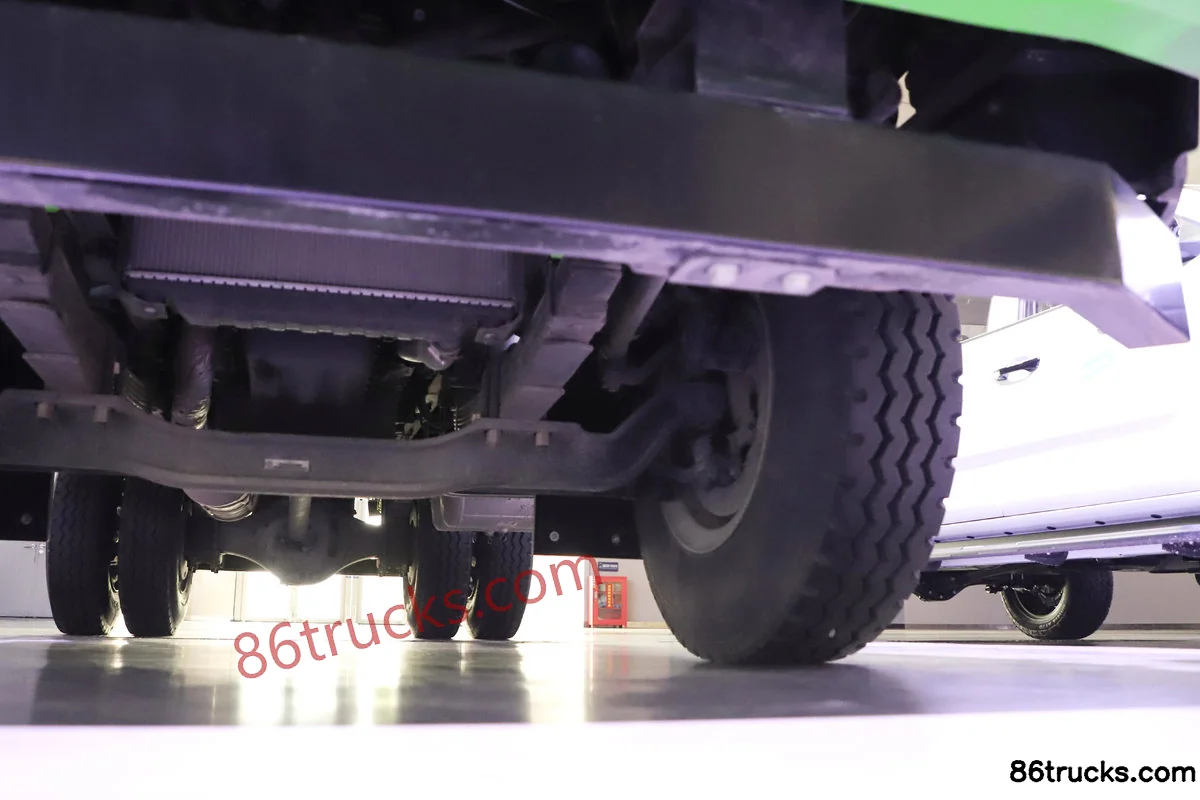

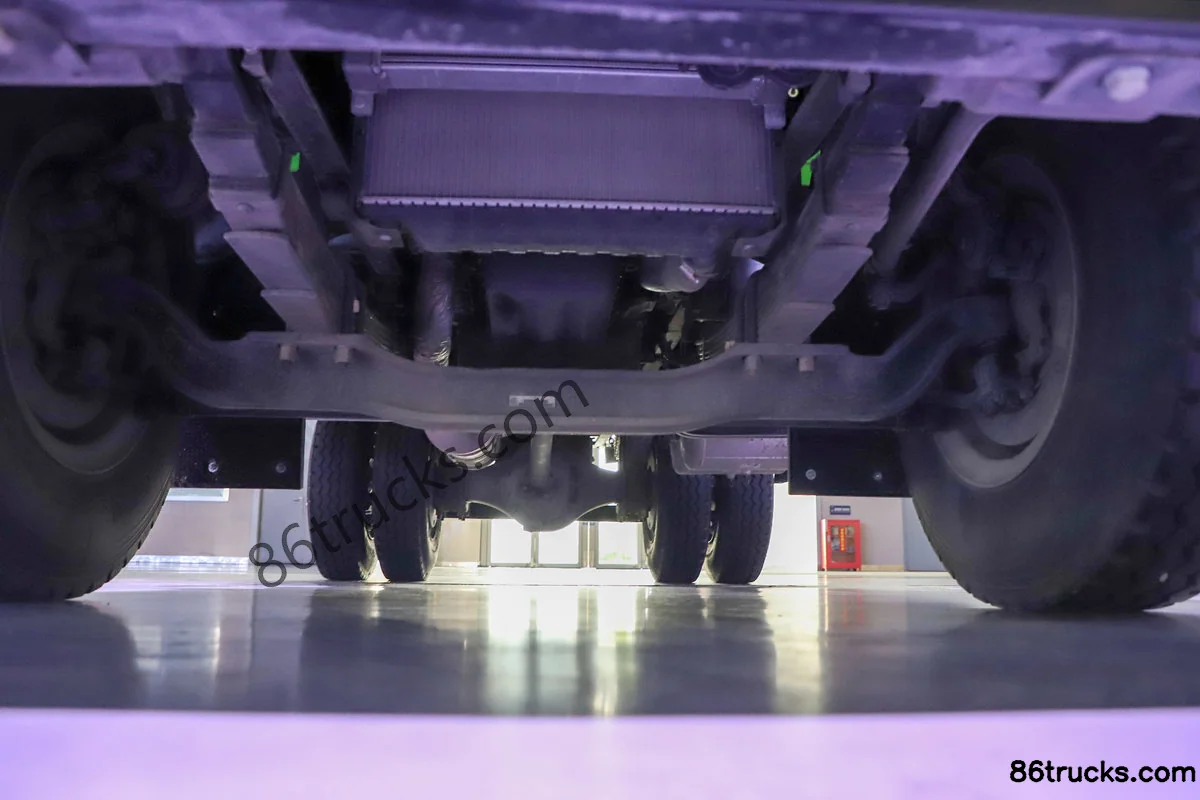

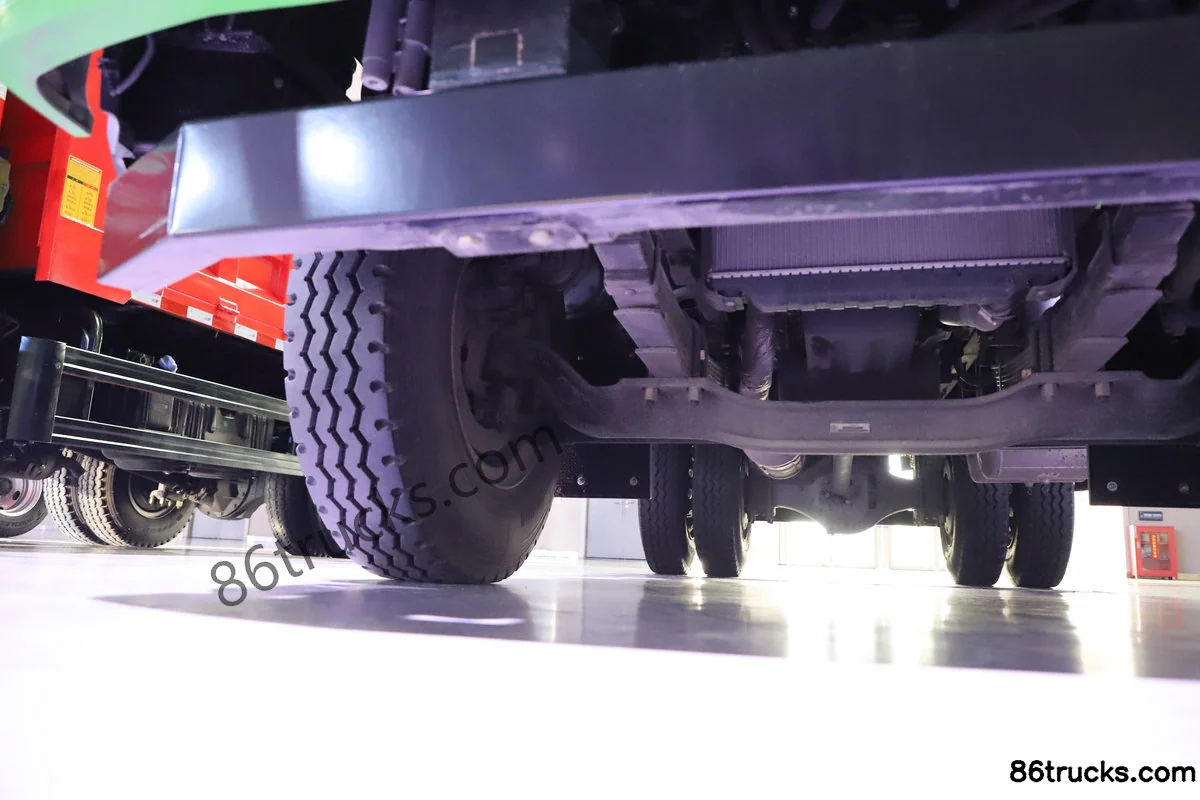

Chassis3

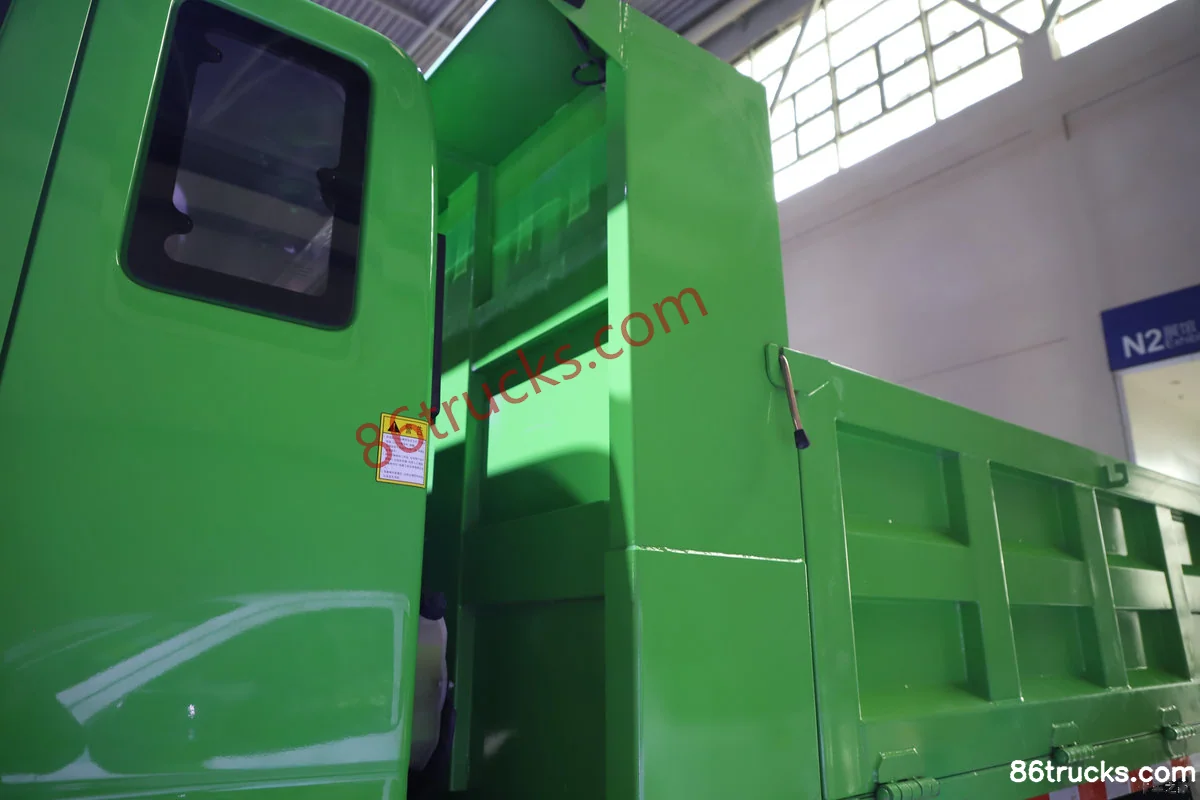

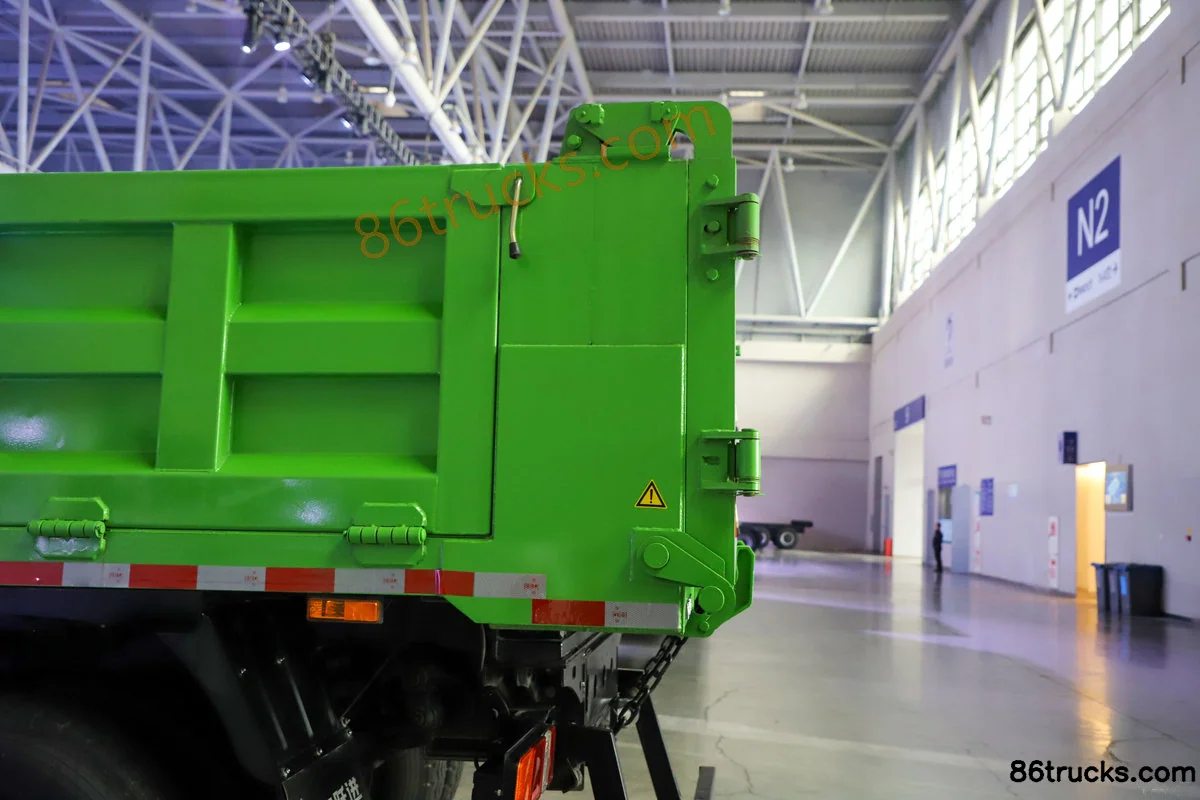

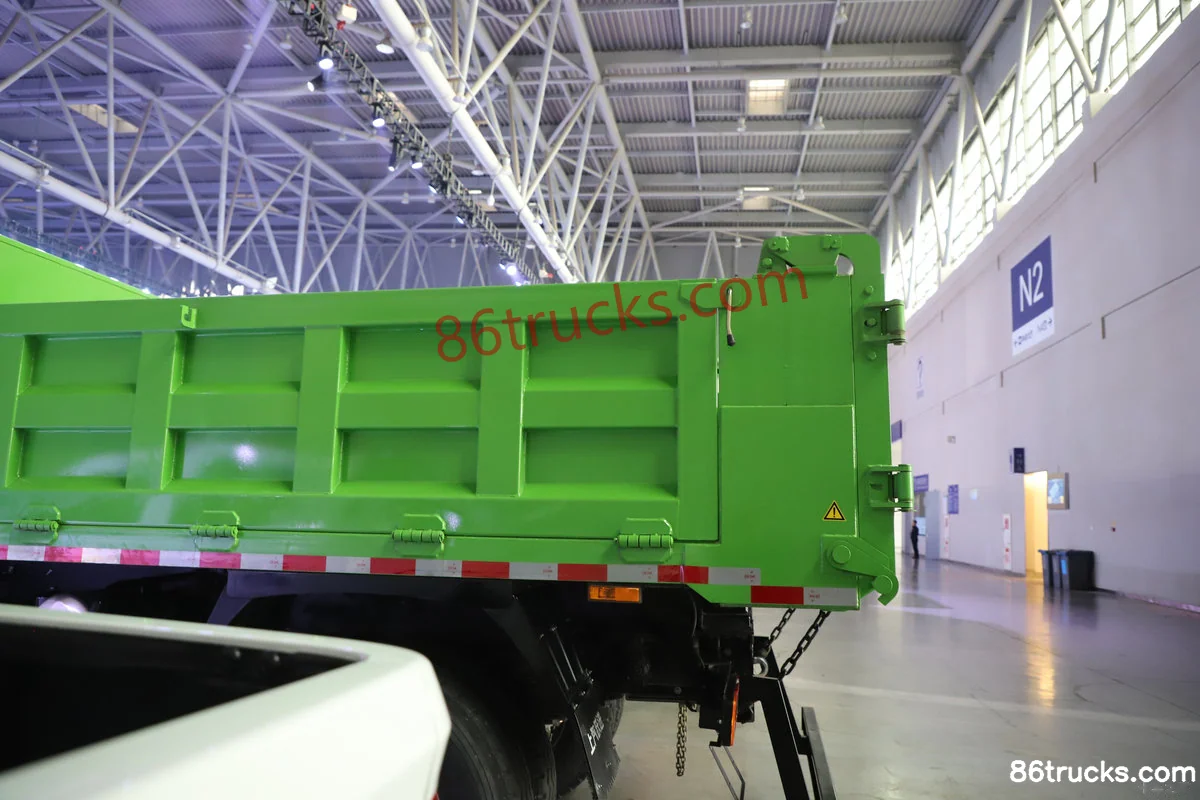

Body3

12 photos

FAQ

What is the export price of Yuejin Big Qilin 4.2L diesel 200hp 4X2(6 wheels) Fast Gear 8-speed 4.2m dump truck, and what does it include?

Yuejin Big Qilin 4.2L diesel 200hp 4X2(6 wheels) Fast Gear 8-speed 4.2m dump truck export reference is about From $24,306; MSRP is ¥17.5M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Yuejin Big Qilin 4.2L diesel 200hp 4X2(6 wheels) Fast Gear 8-speed 4.2m dump truck use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Yuejin Big Qilin 4.2L diesel 200hp 4X2(6 wheels) Fast Gear 8-speed 4.2m dump truck?

Key specs of Yuejin Big Qilin 4.2L diesel 200hp 4X2(6 wheels) Fast Gear 8-speed 4.2m dump truck: Drive: 4x2; Horsepower: 200 hp; Emission: China VI; Fuel: Diesel; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Yuejin Big Qilin 4.2L diesel 200hp 4X2(6 wheels) Fast Gear 8-speed 4.2m dump truck suited for?

Yuejin Big Qilin 4.2L diesel 200hp 4X2(6 wheels) Fast Gear 8-speed 4.2m dump truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Yuejin Big Qilin 4.2L diesel 200hp 4X2(6 wheels) Fast Gear 8-speed 4.2m dump truck differ from other variants in the same series?

Yuejin Big Qilin 4.2L diesel 200hp 4X2(6 wheels) Fast Gear 8-speed 4.2m dump truck belongs to Yuejin Big Kirin (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Yuejin Big Qilin 4.2L diesel 200hp 4X2(6 wheels) Fast Gear 8-speed 4.2m dump truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Yuejin Big Qilin 4.2L diesel 200hp 4X2(6 wheels) Fast Gear 8-speed 4.2m dump truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
