FAW Jiefang Aowei (J5P) Heavy Truck 280 hp 6X4(10 wheels) 6.5m Dump Truck (Dachai)

Export reference
From $41,667
MSRP ¥30M CNY
Emission: China III / Euro III
Fuel: Diesel
Transmission: Fast Gear
Curb Weight:: 12.5ton
Wheelbase:: 4800+1350mm
Tire Size:: 11.00-20 11.00R20 12.00-20 12.00R20
Rated payload: 12.4ton
Drive 6X4 (10 wheels)
Horsepower 280
Cargo box type: Dump type

Overview

The FAW Jiefang Aowei (J5P) Heavy Truck 280 hp 6X4(10 wheels) 6.5m Dump Truck (Dachai) is a Heavy truck featuring 12.4t payload, 25t GVW, Dump type cargo body and 6X4 (10 wheels) drive. On the powertrain side, it comes with a DachaiBF6M1013-28E3 engine, 280 hp, China III / Euro III emissions and Fast Gear transmission.

China III / Euro III 280 Diesel 6X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): CA3252P2K2L1T1E
Drive type: 6X4
Wheelbase: 4800+1350mm
engine: DachaiBF6M1013-28E3
transmission: Fast Gear9JS135
Rear Axle Ratio: 5.769
Cab length: 9.468m
Cab width: 2.49m
Cab height: 3.44m
Front track width: 2020mm
rear track: 1830/1830mm
Curb Weight: 12.5ton
Rated payload: 12.4ton
GVWR: 25ton
Origin: Changchun, Jilin
tonnage class: Heavy truck
Approach angle: 25°
departure angle: 18°
Remarks: Optional high-top cab. Cargo box size 6500×2300×1000mm corresponds to rated payload 12355kg; 7000×2300×850mm corresponds to 12355kg; 7200×2300×820mm corresponds to 12305kg; 7500×2300×800mm corresponds to 12305kg. Overall dimensions L×W×H (mm): 9468,9868 ×2490 ×3090,3440. Wheelbase (mm): 4800+1350,5100+1350. Front/rear overhang (mm): 1418/1900,1418/2000. Transmission also available: 12JS160, RT11509C.
Energy Type: Diesel
Engine parameters
Engine Brand: Dachai
Engine Model: DachaiBF6M1013-28E3
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 7.146L
Emission standard: China III / Euro III
Max output power: 206kW
Max hp: 280Horsepower
Max torque: 1050N·m
Max torque speed: 1100-1400rpm
Rated speed: 2300rpm
Engine Type: 6-cylinder inline, direct injection, turbocharged intercooled, electronic unit pump
Transmission Parameters
Transmission Model: Fast Gear9JS135
Transmission Brand: Fast Gear
Forward gears: 9Gear
Number of Reverse Gears:
Cargo box parameters
Unloading Type: Dump type
Cargo box type: Dump type
Cargo box length: 6.5m
Cargo box width: 2.3m
Cargo box height:
fuel tank
Fuel tank capacity: 400L
Chassis Specs
rear axle description: Diameter 300
rear axle allowable load: 17975kg
Axle ratio: 5.769
Leaf spring count: 11/12
Tire
Tire Size: 11.00-20 11.00R20 12.00-20 12.00R20
Number of tires: 10pcs

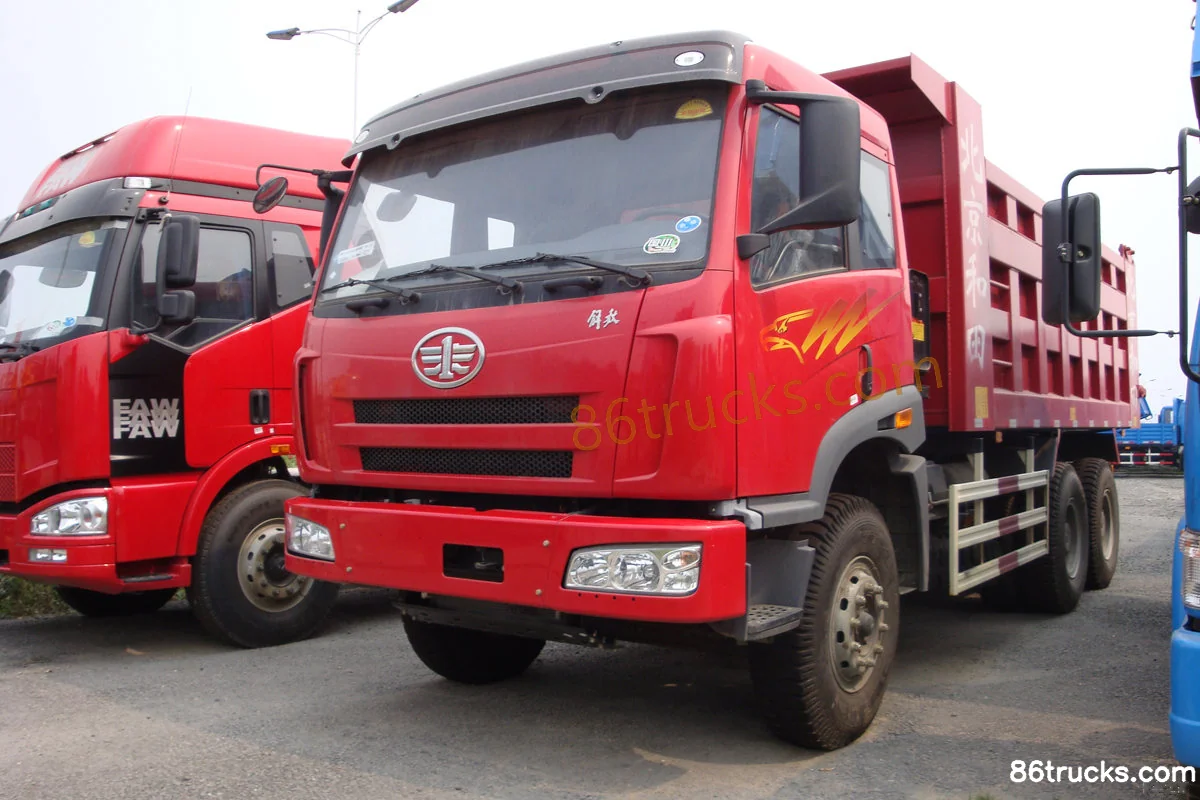

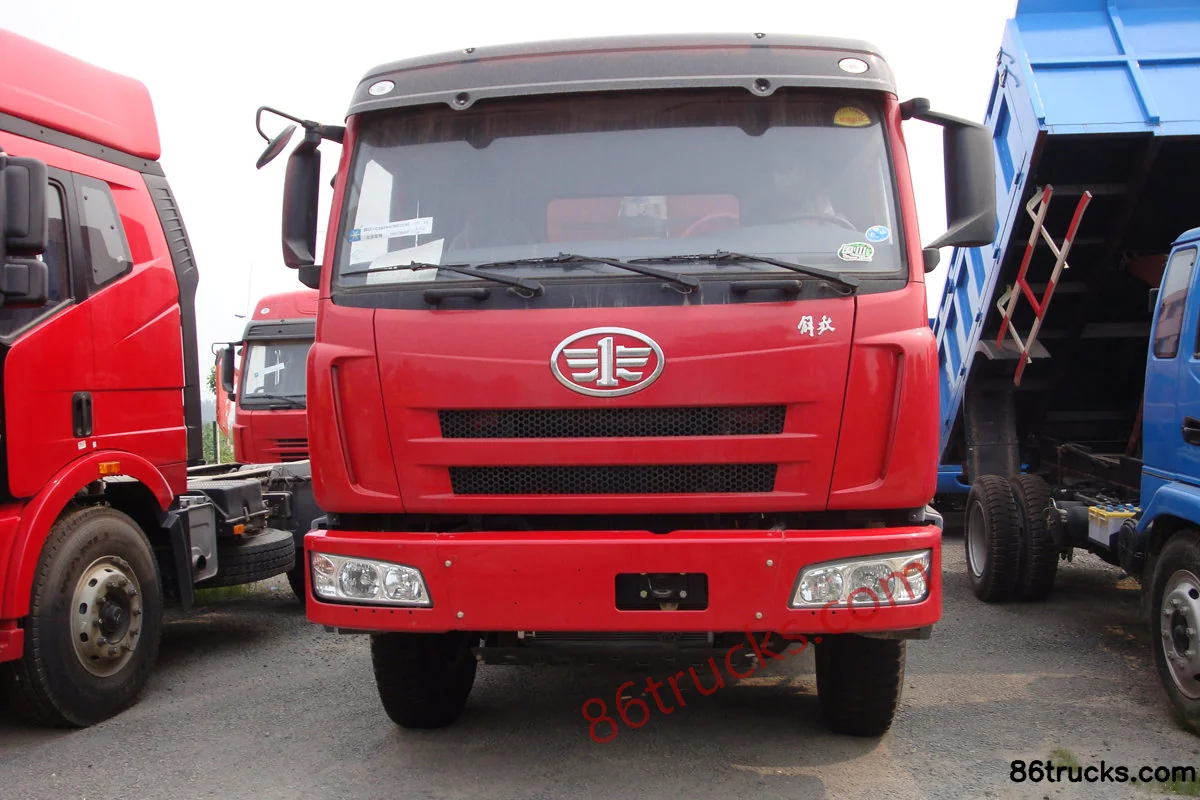

Photos

Exterior2

2 photos

FAQ

What is the export price of FAW Jiefang Aowei (J5P) Heavy Truck 280 hp 6X4(10 wheels) 6.5m Dump Truck (Dachai), and what does it include?

FAW Jiefang Aowei (J5P) Heavy Truck 280 hp 6X4(10 wheels) 6.5m Dump Truck (Dachai) export reference is about From $41,667; MSRP is ¥30M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does FAW Jiefang Aowei (J5P) Heavy Truck 280 hp 6X4(10 wheels) 6.5m Dump Truck (Dachai) use, and can it enter my country?

This model is listed as China III / Euro III. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of FAW Jiefang Aowei (J5P) Heavy Truck 280 hp 6X4(10 wheels) 6.5m Dump Truck (Dachai)?

Key specs of FAW Jiefang Aowei (J5P) Heavy Truck 280 hp 6X4(10 wheels) 6.5m Dump Truck (Dachai): Drive: 6x4; Horsepower: 280 hp; Emission: China III / Euro III; Fuel: Diesel; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is FAW Jiefang Aowei (J5P) Heavy Truck 280 hp 6X4(10 wheels) 6.5m Dump Truck (Dachai) suited for?

FAW Jiefang Aowei (J5P) Heavy Truck 280 hp 6X4(10 wheels) 6.5m Dump Truck (Dachai) is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does FAW Jiefang Aowei (J5P) Heavy Truck 280 hp 6X4(10 wheels) 6.5m Dump Truck (Dachai) differ from other variants in the same series?

FAW Jiefang Aowei (J5P) Heavy Truck 280 hp 6X4(10 wheels) 6.5m Dump Truck (Dachai) belongs to FAW Jiefang Aowei J5P Heavy-duty Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for FAW Jiefang Aowei (J5P) Heavy Truck 280 hp 6X4(10 wheels) 6.5m Dump Truck (Dachai)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export FAW Jiefang Aowei (J5P) Heavy Truck 280 hp 6X4(10 wheels) 6.5m Dump Truck (Dachai)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
