Sinotruk Wangpai 7 Series 63 hp 4X2(6 wheels) 3.34m Dump Truck

Export reference
MSRP N/A
Emission: China III / Euro III
Fuel: Diesel
Curb Weight:: 2.16ton
Wheelbase:: 3000mm
Tire Size:: 7.00-16
Model code (announced):: CDW4010PD3A2
Rated payload: 0.995ton
Drive 4X2 (6 wheels)
Horsepower 63
Cargo box type: Dump type

Overview

The Sinotruk Wangpai 7 Series 63 hp 4X2(6 wheels) 3.34m Dump Truck is a Light Truck featuring 0.995t payload, 3.35t GVW, Dump type cargo body and 4X2 (6 wheels) drive. On the powertrain side, it comes with a Xichai4DW91-63NG2 engine, 63 hp, China III / Euro III emissions and 5-speed transmission transmission.

China III / Euro III 63 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): CDW4010PD3A2
Drive type: 4X2
Wheelbase: 3000mm
engine: Xichai4DW91-63NG2
transmission: 5-speed transmission
Cab length: 5.685m
Cab width: 1.99m
Cab height: 2.46m
Front track width: 1525mm
rear track: 1540mm
Curb Weight: 2.16ton
Rated payload: 0.995ton
GVWR: 3.35ton
Origin: Chengdu, Sichuan
tonnage class: Light Truck
Approach angle: 35°
departure angle: 23°
Energy Type: Diesel
Engine parameters
Engine Brand: Xichai
Engine Model: Xichai4DW91-63NG2
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 2.545L
Emission standard: China III / Euro III
Max output power: 46kW
Max hp: 63Horsepower
Transmission Parameters
Transmission Model: 5-speed transmission
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
Unloading Type: Dump type
Cargo box type: Dump type
Cargo box length: 3.34m
Cargo box width: 1.9m
Cargo box height: 0.5m
Chassis Specs
Leaf spring count: 9/10+8
Tire
Tire Size: 7.00-16
Number of tires: 6pcs

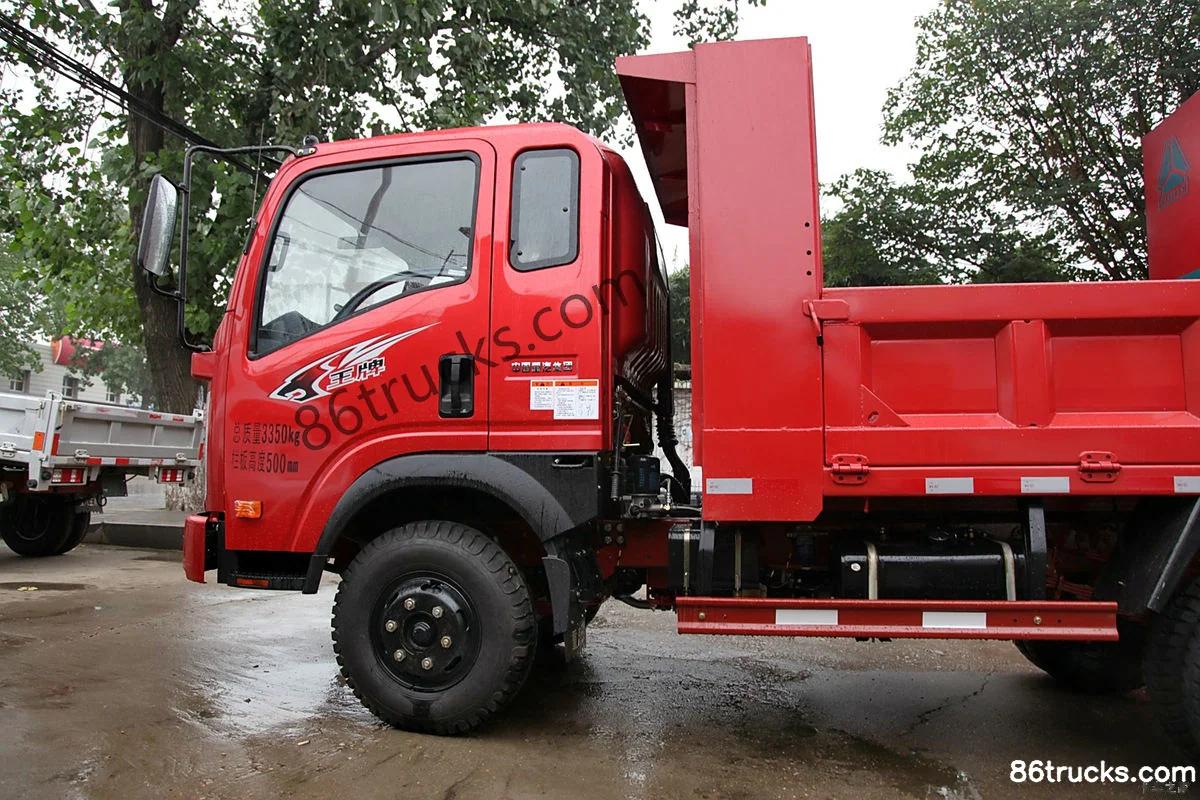

Photos

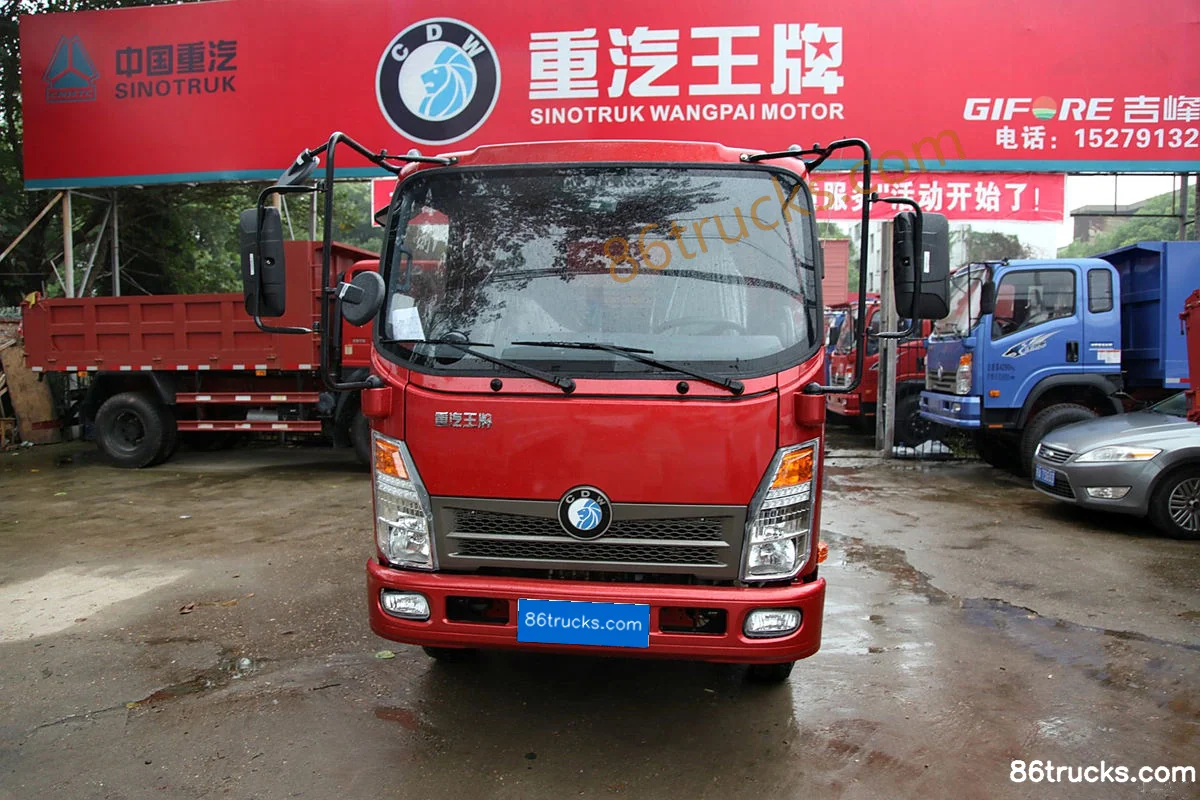

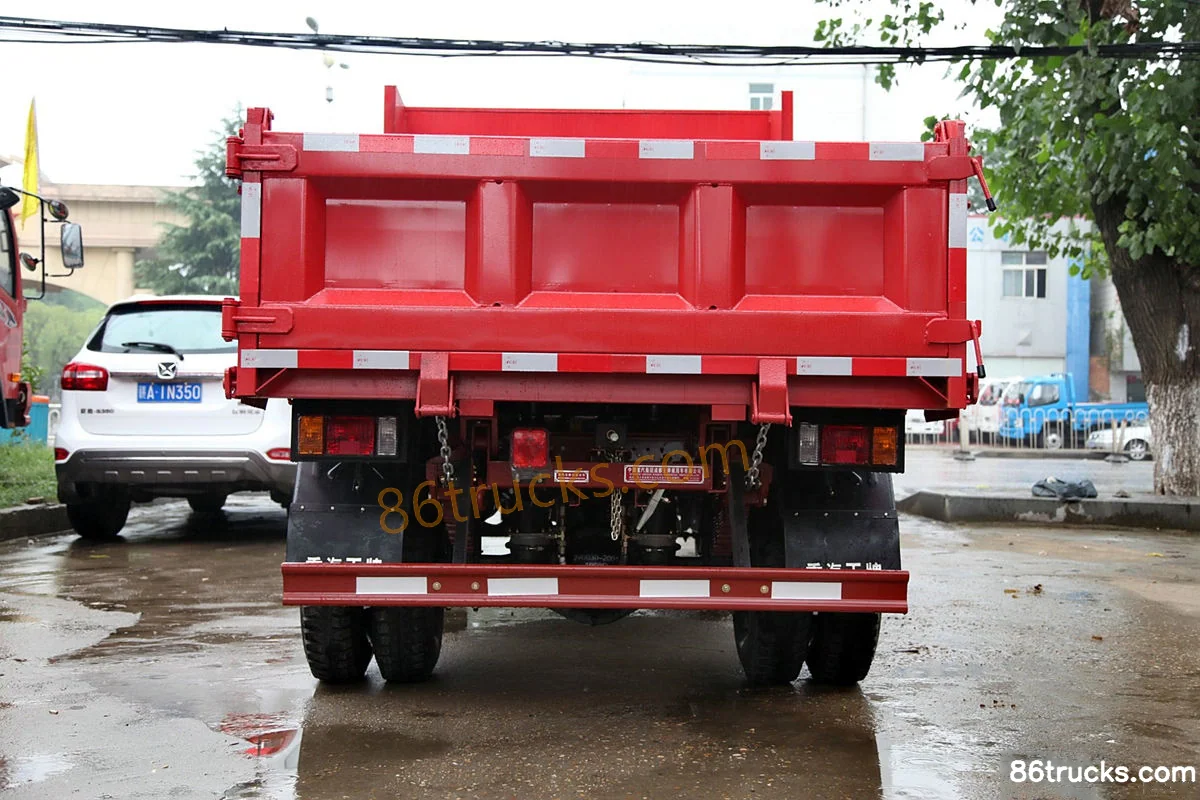

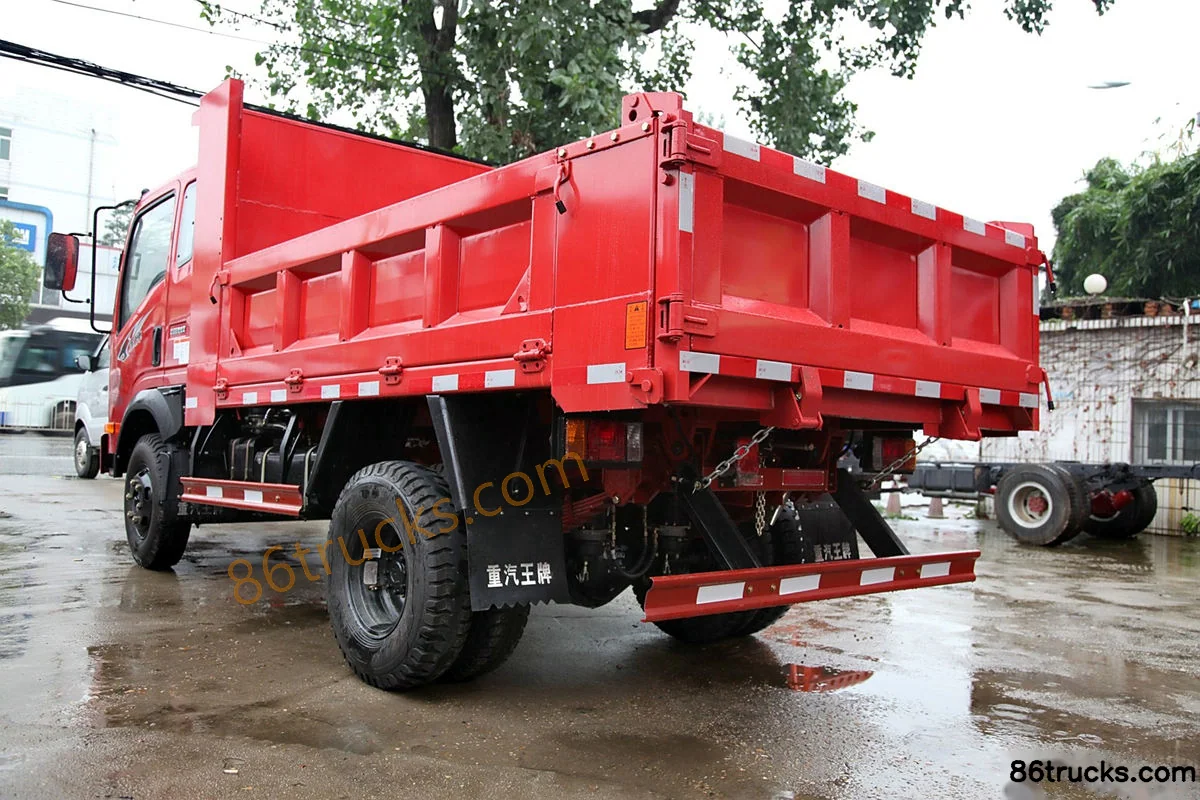

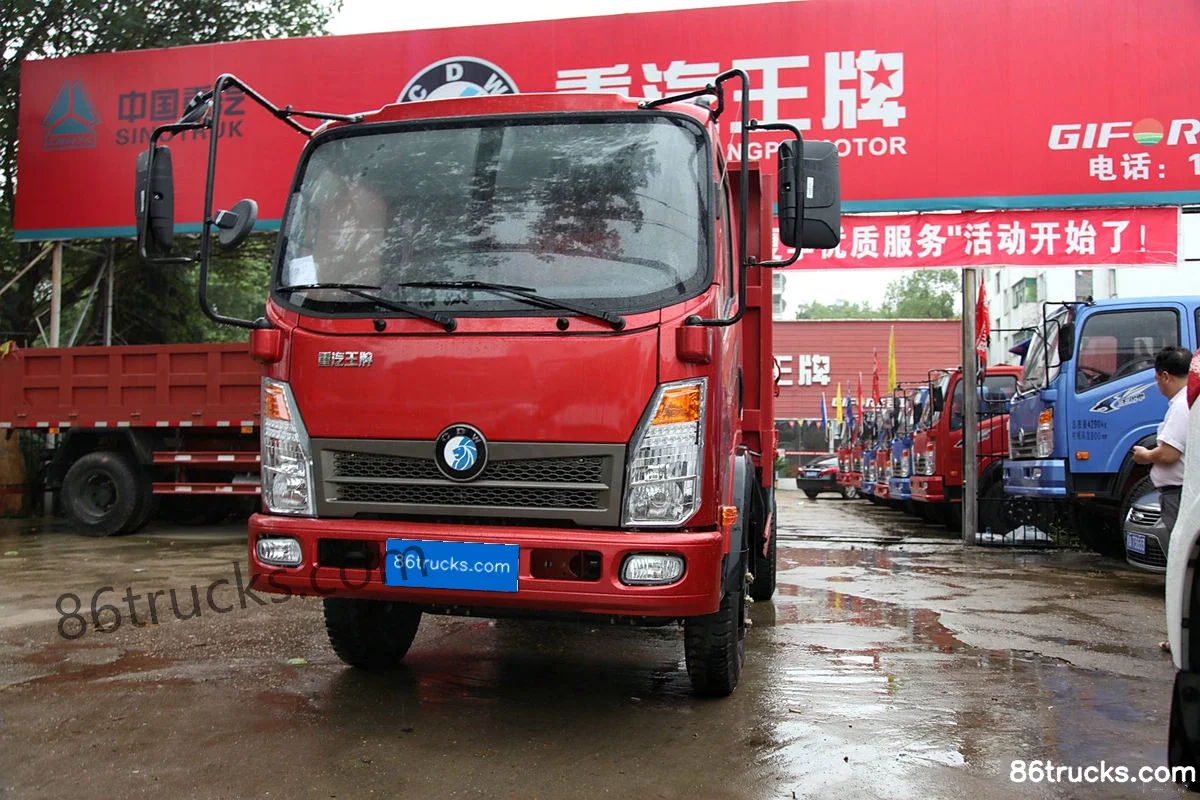

Exterior3

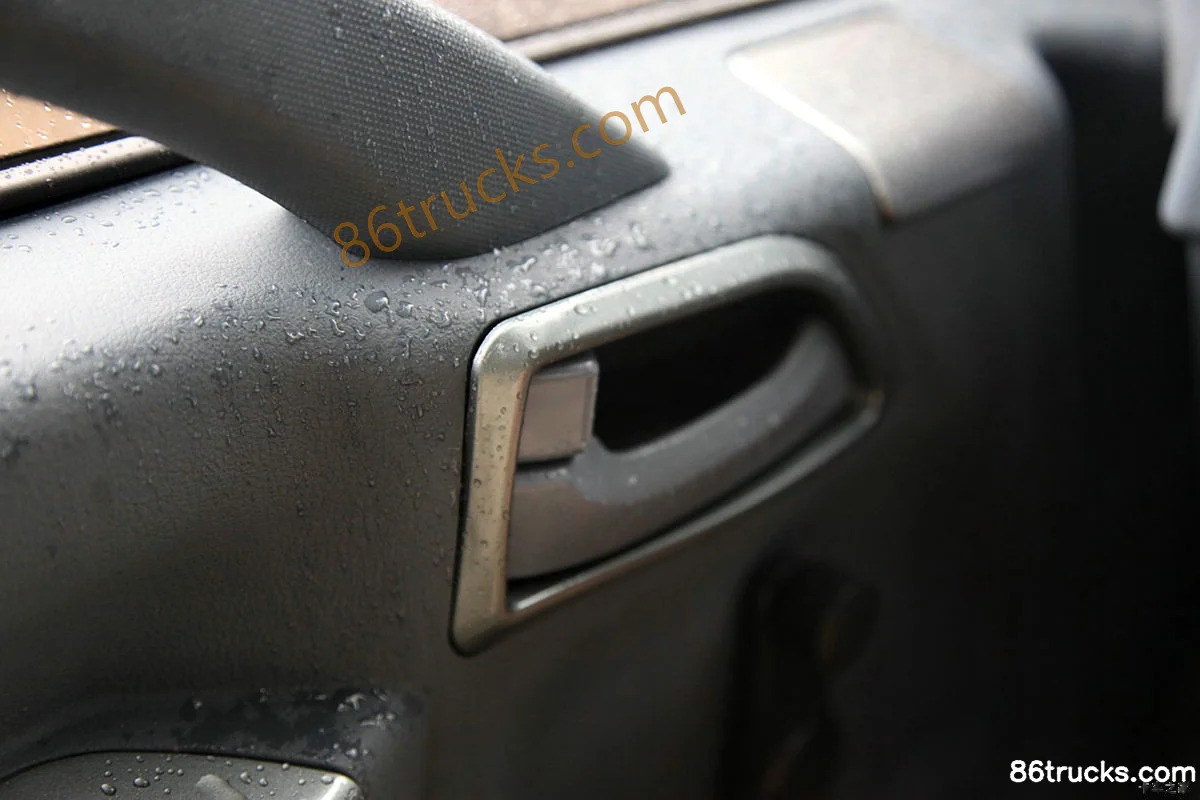

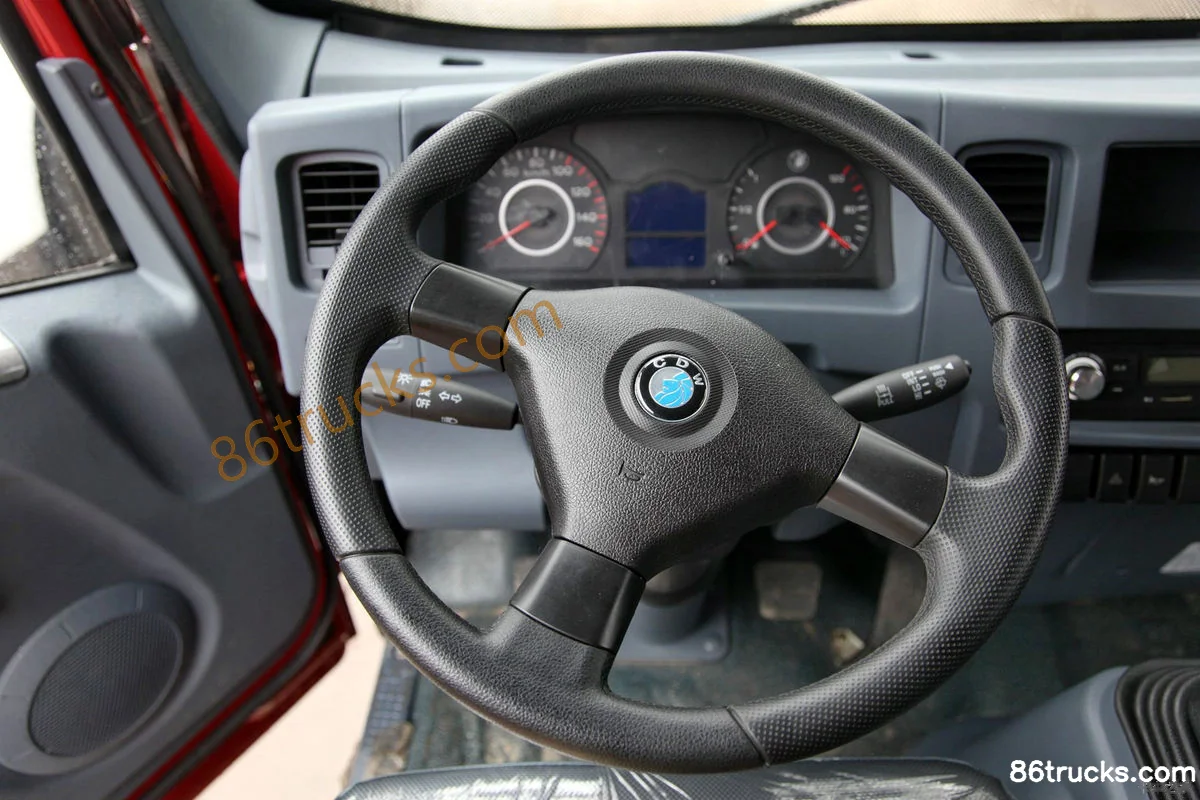

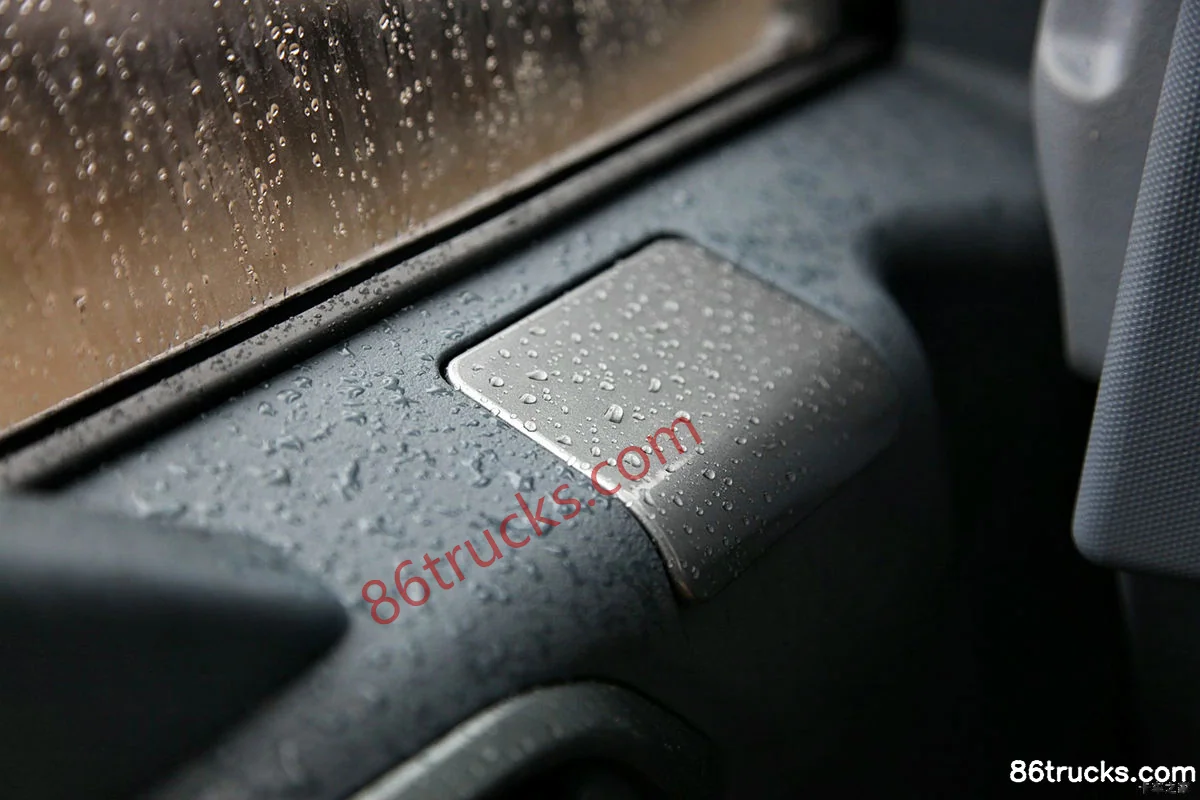

Cab3

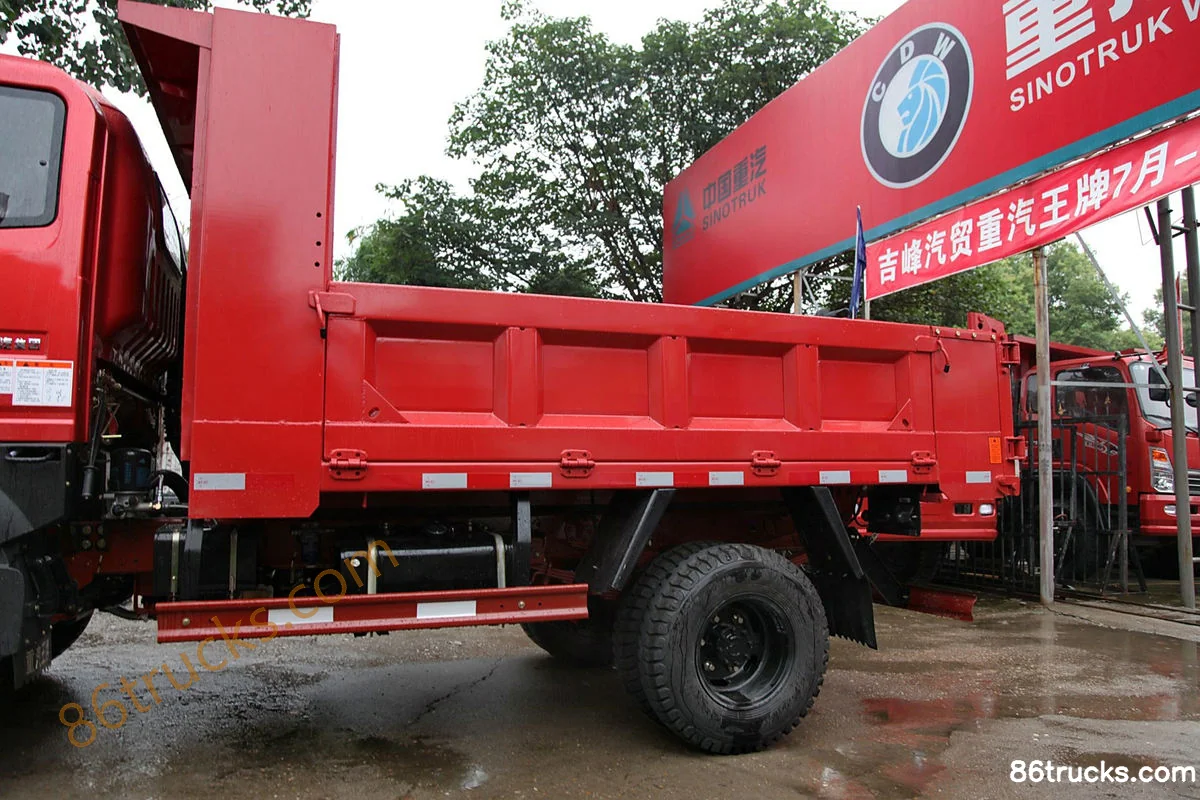

Chassis3

9 photos

FAQ

What emission standard does Sinotruk Wangpai 7 Series 63 hp 4X2(6 wheels) 3.34m Dump Truck use, and can it enter my country?

This model is listed as China III / Euro III. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Sinotruk Wangpai 7 Series 63 hp 4X2(6 wheels) 3.34m Dump Truck?

Key specs of Sinotruk Wangpai 7 Series 63 hp 4X2(6 wheels) 3.34m Dump Truck: Drive: 4x2; Horsepower: 63 hp; Emission: China III / Euro III; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sinotruk Wangpai 7 Series 63 hp 4X2(6 wheels) 3.34m Dump Truck suited for?

Sinotruk Wangpai 7 Series 63 hp 4X2(6 wheels) 3.34m Dump Truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Sinotruk Wangpai 7 Series 63 hp 4X2(6 wheels) 3.34m Dump Truck differ from other variants in the same series?

Sinotruk Wangpai 7 Series 63 hp 4X2(6 wheels) 3.34m Dump Truck belongs to Sinotruk Wangpai 7 series light truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sinotruk Wangpai 7 Series 63 hp 4X2(6 wheels) 3.34m Dump Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sinotruk Wangpai 7 Series 63 hp 4X2(6 wheels) 3.34m Dump Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
