Hongyan Genlyon M500 320 hp 8X4(12 wheels) 7.88 m³ Concrete Mixer Truck (Ruijiang brand) (WL5310GJBCQ30)

Export reference
From $65,000
MSRP ¥46.8M CNY
Fuel: Diesel
Curb Weight:: 14.9ton
Wheelbase:: 1800+3000+1400mm
Tire Size:: 11.00R20
Cab dimensions:: 10.1×2.5×3.99m
Truck Type:: concrete mixer truck
Rated payload: 15.97ton
Drive 8X4 (12 wheels)
Horsepower 320
Emission China V

Overview

The Hongyan Genlyon M500 320 hp 8X4(12 wheels) 7.88 m³ Concrete Mixer Truck (Ruijiang brand) (WL5310GJBCQ30) is a concrete mixer truck featuring 15.97t payload, 14.9ton GVW, 8X4 (12 wheels) drive and Flat roof cab. On the powertrain side, it comes with 320 hp, China V emissions and Diesel fuel.

China V 320 Diesel 8X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 10.1×2.5×3.99m
Truck Type: concrete mixer truck
Drive type: 8X4
Vehicle origin: Wuhu, Anhui
Front/rear track width: Front: 2006/2006mm; Rear: 1850/1850
Wheelbase: 1800+3000+1400mm
Curb Weight: 14.9ton
Rated payload: 15.97ton
Max. speed: 100km/h
Front/rear suspension: 1.435/1.915m
Body Parameters
Mixing drum capacity: 7.88m³
Vehicle certification code: WL5310GJBCQ30
Body Brand: Ruijiang
Engine parameters
Engine Model: SAIC Fiat Powertrain HongyanF2CCE611C*L
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 8.709L
Emission standard: China V
Max output power: 235kW
Max hp: 320Horsepower
Chassis Specs
Chassis Series: GENLYON
Chassis Model: CQ1316HMVG27-366
Front axle description: 5.5T
rear axle description: HY300S
Axle ratio: 4.8
Leaf spring count: 3/3/6
Transmission Parameters
Number of gears: 9Gear
Transmission Model: Fast Gear9JSD150T-B
Cab parameters
Cab: Flat roof
Tire
Tire Size: 11.00R20
Number of tires: 12pcs

Photos

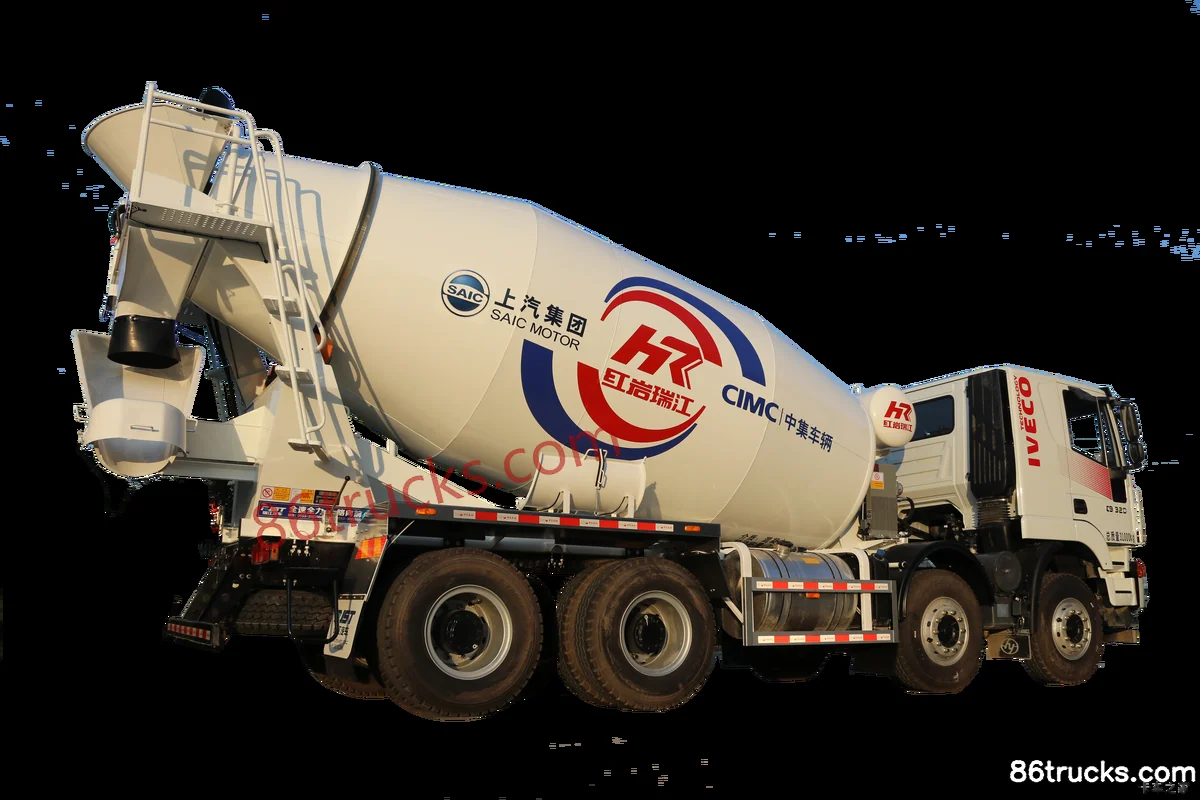

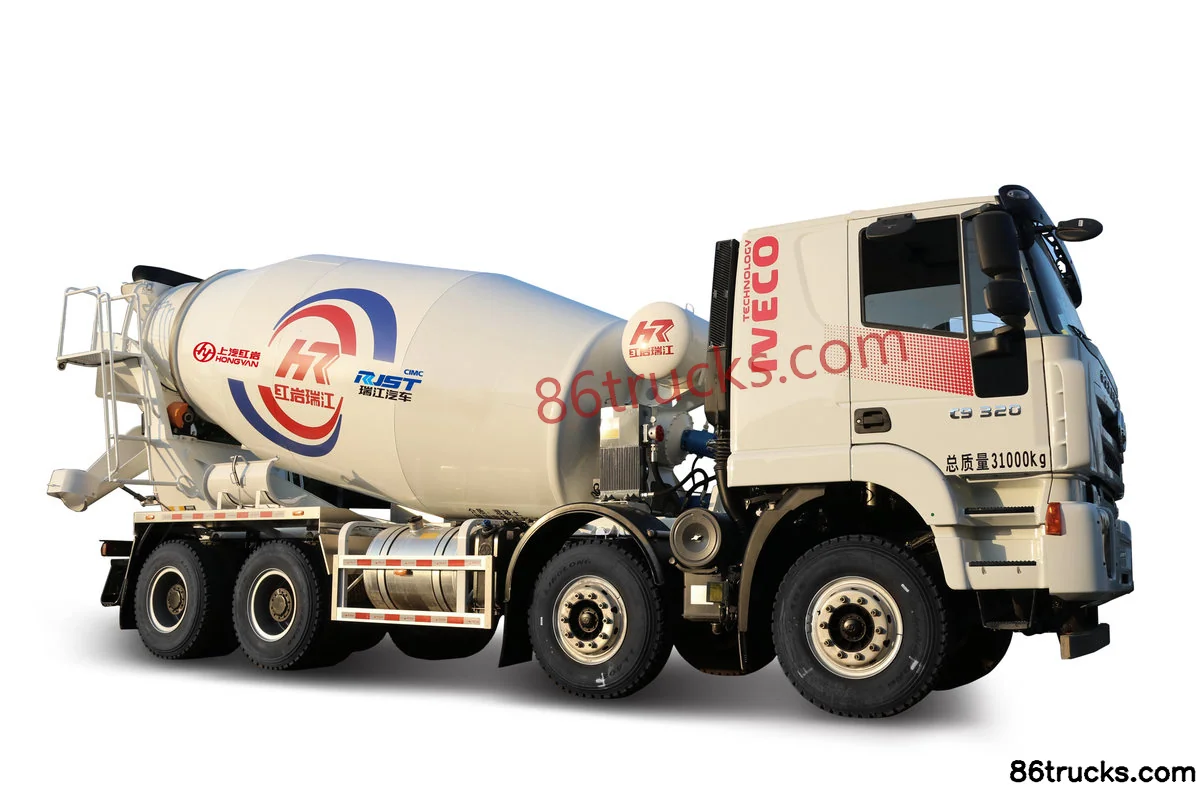

Exterior2

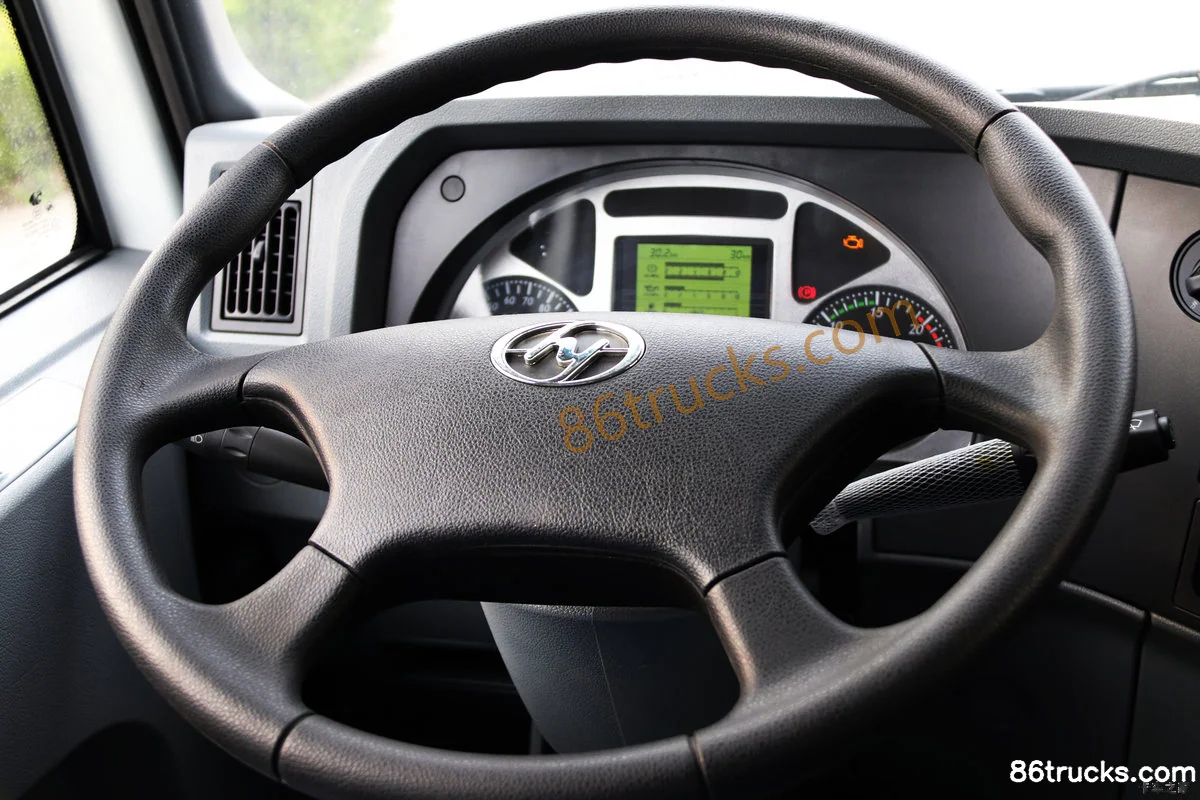

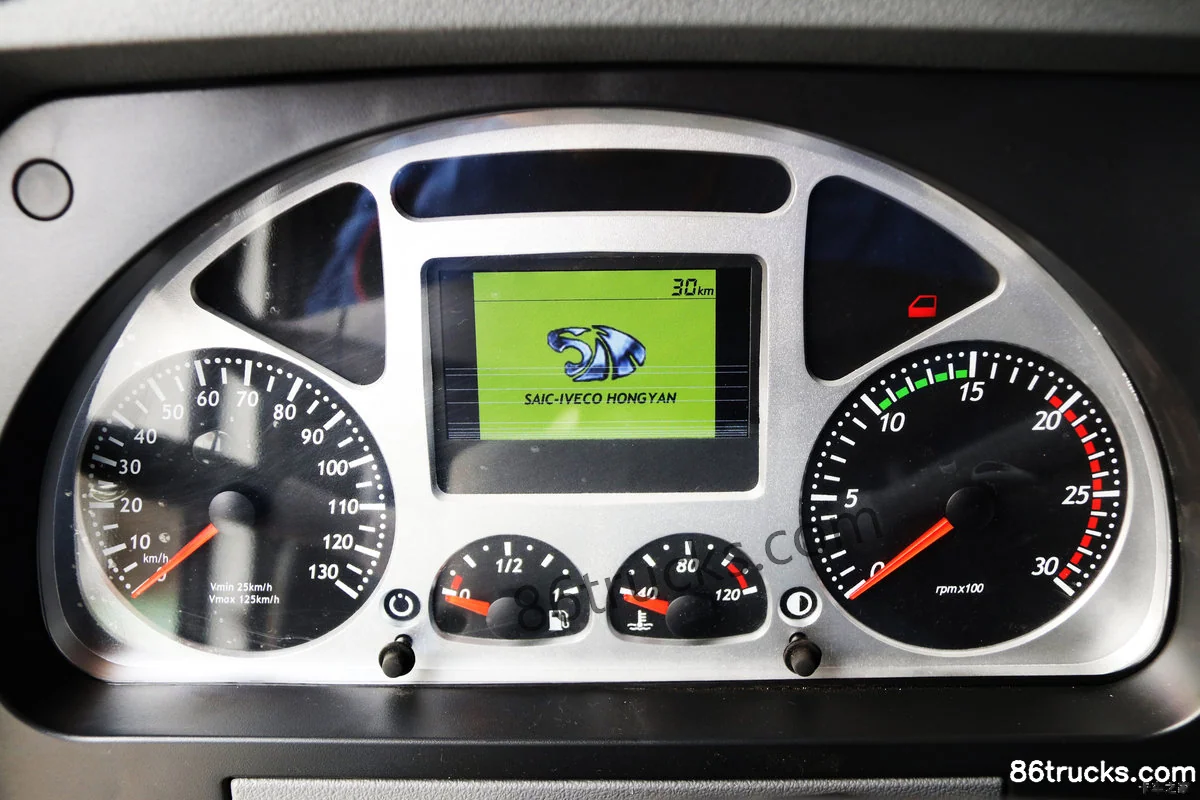

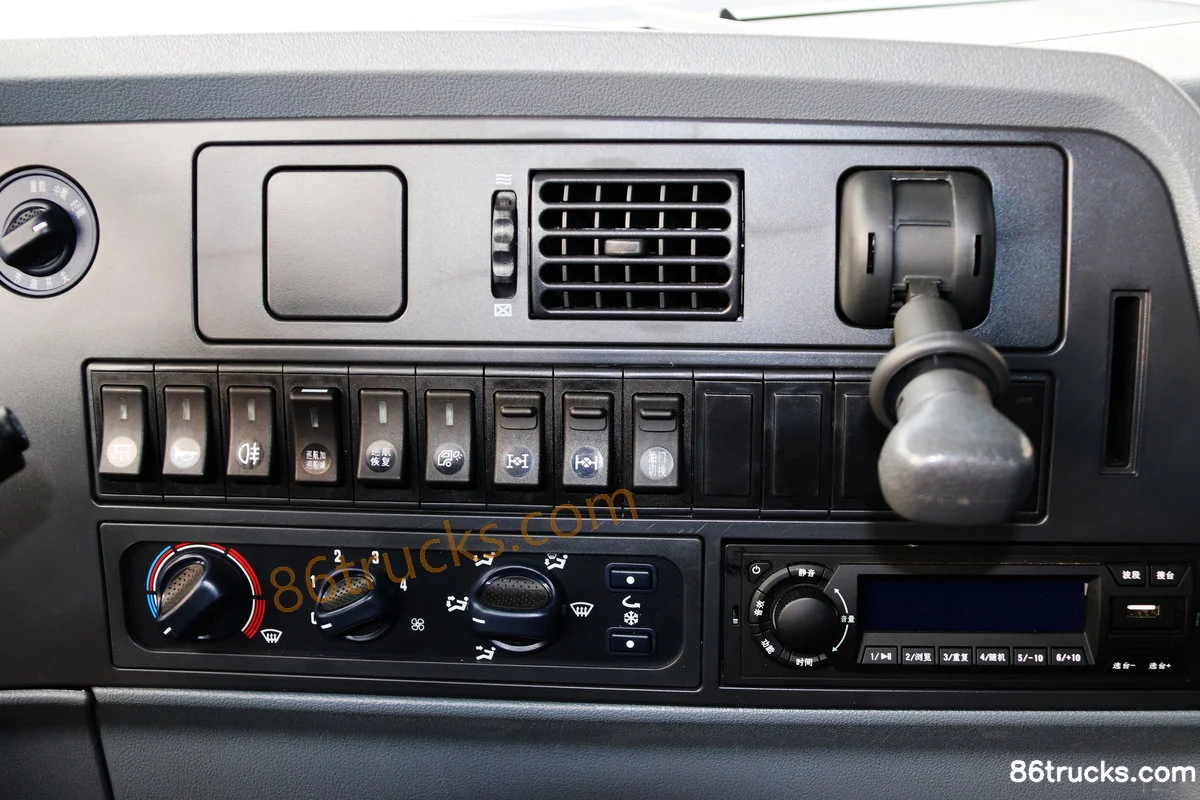

Cab3

Chassis2

7 photos

FAQ

What is the export price of Hongyan Genlyon M500 320 hp 8X4(12 wheels) 7.88 m³ Concrete Mixer Truck (Ruijiang brand) (WL5310GJBCQ30), and what does it include?

Hongyan Genlyon M500 320 hp 8X4(12 wheels) 7.88 m³ Concrete Mixer Truck (Ruijiang brand) (WL5310GJBCQ30) export reference is about From $65,000; MSRP is ¥46.8M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Hongyan Genlyon M500 320 hp 8X4(12 wheels) 7.88 m³ Concrete Mixer Truck (Ruijiang brand) (WL5310GJBCQ30) use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Hongyan Genlyon M500 320 hp 8X4(12 wheels) 7.88 m³ Concrete Mixer Truck (Ruijiang brand) (WL5310GJBCQ30)?

Key specs of Hongyan Genlyon M500 320 hp 8X4(12 wheels) 7.88 m³ Concrete Mixer Truck (Ruijiang brand) (WL5310GJBCQ30): Drive: 8x4; Horsepower: 320 hp; Emission: China V; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Hongyan Genlyon M500 320 hp 8X4(12 wheels) 7.88 m³ Concrete Mixer Truck (Ruijiang brand) (WL5310GJBCQ30) suited for?

Hongyan Genlyon M500 320 hp 8X4(12 wheels) 7.88 m³ Concrete Mixer Truck (Ruijiang brand) (WL5310GJBCQ30) is a concrete mixer truck model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Hongyan Genlyon M500 320 hp 8X4(12 wheels) 7.88 m³ Concrete Mixer Truck (Ruijiang brand) (WL5310GJBCQ30) differ from other variants in the same series?

Hongyan Genlyon M500 320 hp 8X4(12 wheels) 7.88 m³ Concrete Mixer Truck (Ruijiang brand) (WL5310GJBCQ30) belongs to Hongyan Genlyon (concrete mixer truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Hongyan Genlyon M500 320 hp 8X4(12 wheels) 7.88 m³ Concrete Mixer Truck (Ruijiang brand) (WL5310GJBCQ30)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Hongyan Genlyon M500 320 hp 8X4(12 wheels) 7.88 m³ Concrete Mixer Truck (Ruijiang brand) (WL5310GJBCQ30)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
