Sanhuan Shitong T3 Chuangke 150hp 4X2(6 wheels) 3.3m³ Concrete Mixer Truck

Export reference
MSRP N/A
Fuel: Diesel
Curb Weight:: 7.955ton
Wheelbase:: 3650mm
Tire Size:: 9.00R20 16PR
Cab dimensions:: 7.25×2.45×3.68m
Truck Type:: concrete mixer truck
Rated payload: 7.85ton
Drive 4X2 (6 wheels)
Horsepower 150
Emission China V

Overview

The Sanhuan Shitong T3 Chuangke 150hp 4X2(6 wheels) 3.3m³ Concrete Mixer Truck is a concrete mixer truck featuring 7.85t payload, 7.955ton GVW, 4X2 (6 wheels) drive and T3 Creator Deluxe Cab cab. On the powertrain side, it comes with 150 hp, China V emissions and Diesel fuel.

China V 150 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 7.25×2.45×3.68m
Truck Type: concrete mixer truck
Drive type: 4X2
Vehicle origin: Shiyan, Hubei
Front/rear track width: Front track: 1750mm; Rear track: 1670
Wheelbase: 3650mm
Curb Weight: 7.955ton
Rated payload: 7.85ton
Max. speed: 90km/h
Front/rear suspension: 1.235/2.365m
Body Parameters
Mixing drum capacity: 3.3m³
Vehicle certification code: STQ5161GJBN5
Body Brand: Sanhuan Shitong
Engine parameters
Engine Model: YuchaiYC4S150-50
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 3.767L
Emission standard: China V
Max output power: 110kW
Max hp: 150Horsepower
Rated speed: 2600rpm
Engine Type: Vertical, inline, water-cooled, four-stroke
Chassis Specs
Chassis Series: T3 Creator
Chassis Model: STQ1161L05Y2N5
rear axle description: 153
Leaf spring count: 8/11+8
Transmission Parameters
Number of gears: 8Gear
Transmission Model: Fast Gear8JS85E
Cab parameters
Cab: T3 Creator Deluxe Cab
Tire
Tire Size: 9.00R20 16PR
Number of tires: 6pcs

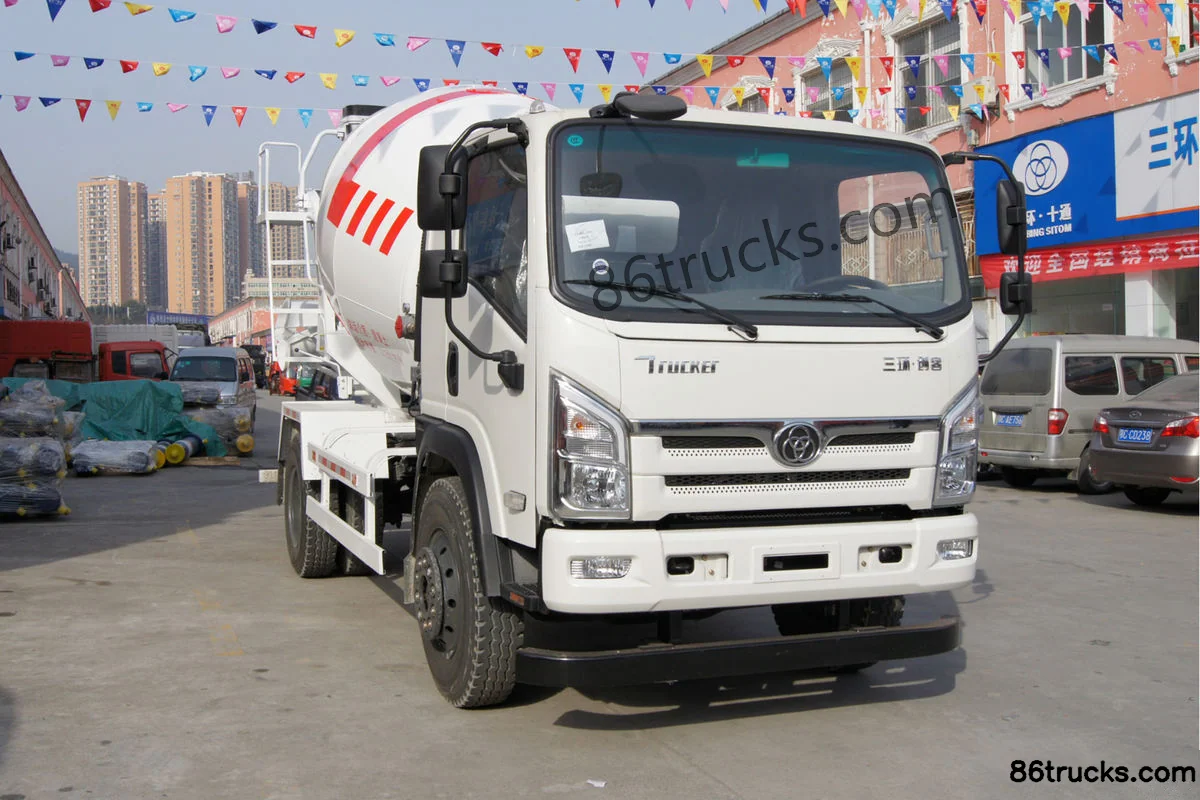

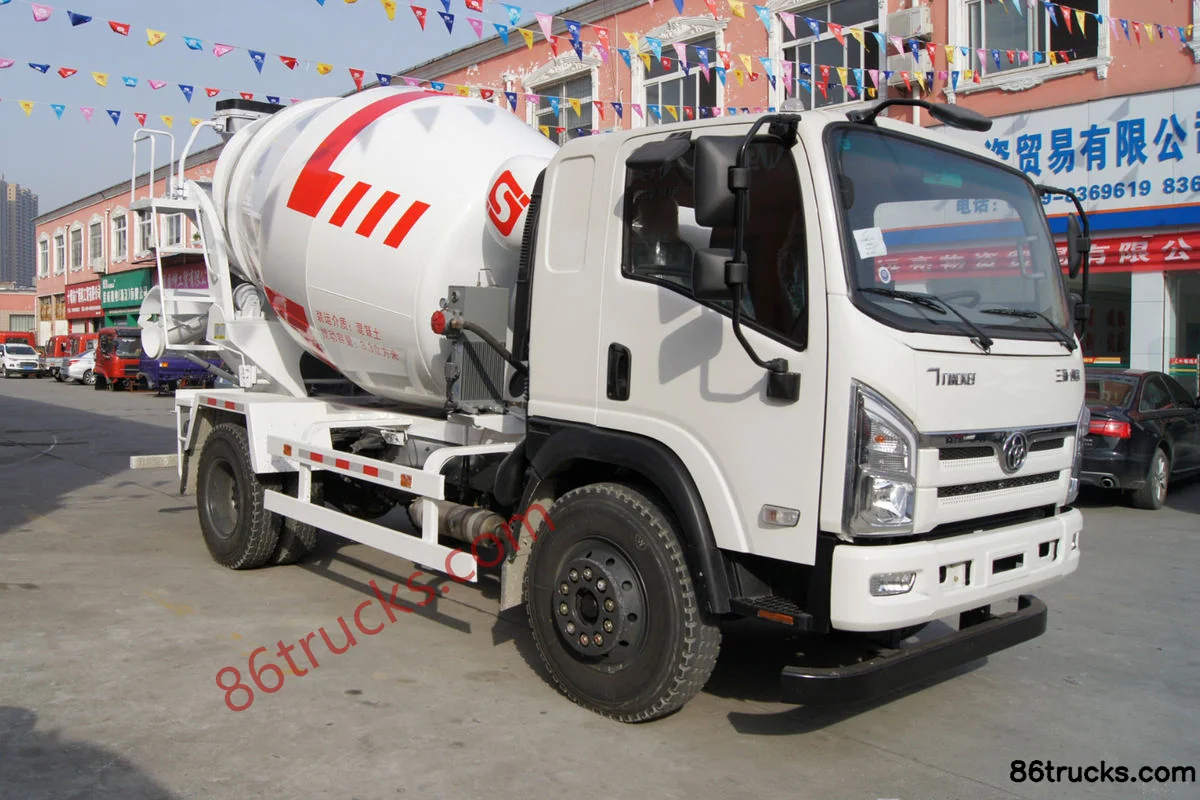

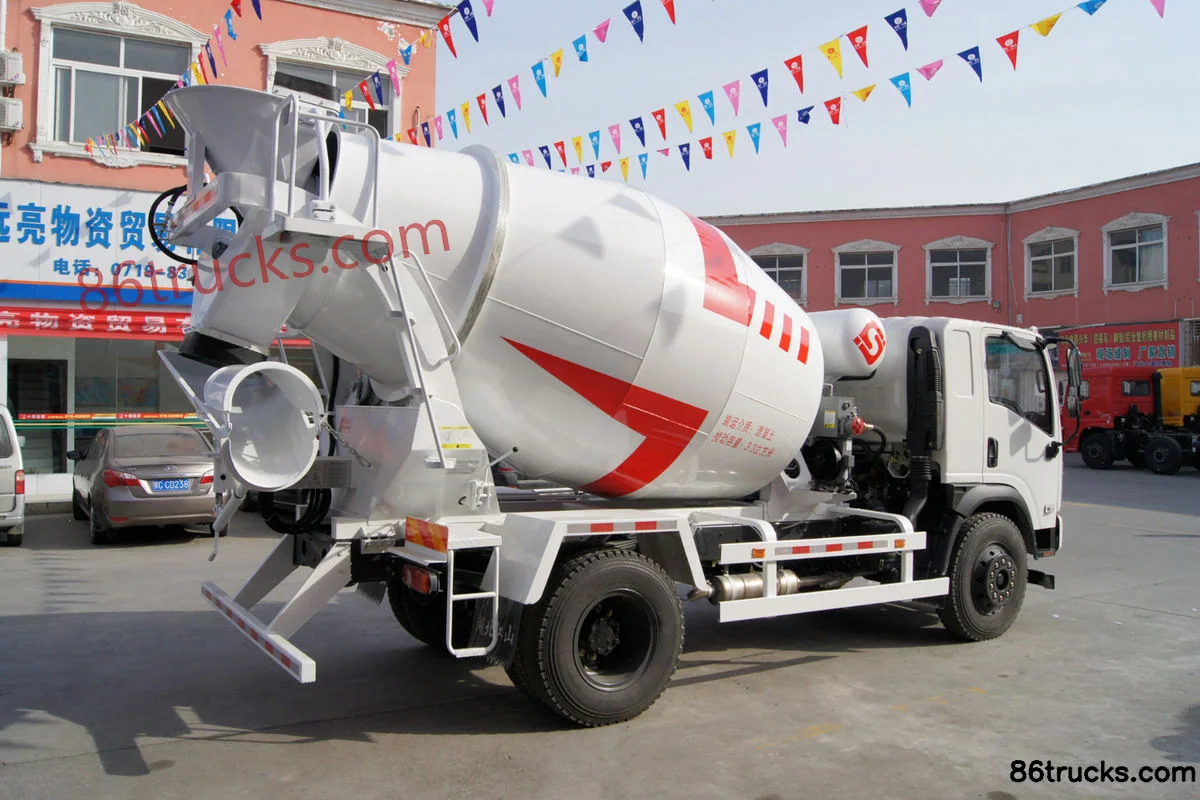

Photos

Exterior3

3 photos

FAQ

What emission standard does Sanhuan Shitong T3 Chuangke 150hp 4X2(6 wheels) 3.3m³ Concrete Mixer Truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Sanhuan Shitong T3 Chuangke 150hp 4X2(6 wheels) 3.3m³ Concrete Mixer Truck?

Key specs of Sanhuan Shitong T3 Chuangke 150hp 4X2(6 wheels) 3.3m³ Concrete Mixer Truck: Drive: 4x2; Horsepower: 150 hp; Emission: China V; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sanhuan Shitong T3 Chuangke 150hp 4X2(6 wheels) 3.3m³ Concrete Mixer Truck suited for?

Sanhuan Shitong T3 Chuangke 150hp 4X2(6 wheels) 3.3m³ Concrete Mixer Truck is a concrete mixer truck model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Sanhuan Shitong T3 Chuangke 150hp 4X2(6 wheels) 3.3m³ Concrete Mixer Truck differ from other variants in the same series?

Sanhuan Shitong T3 Chuangke 150hp 4X2(6 wheels) 3.3m³ Concrete Mixer Truck belongs to Sanhuan Shitong Chuanke Light Truck (concrete mixer truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sanhuan Shitong T3 Chuangke 150hp 4X2(6 wheels) 3.3m³ Concrete Mixer Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sanhuan Shitong T3 Chuangke 150hp 4X2(6 wheels) 3.3m³ Concrete Mixer Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
