Hyundai Commercial Vehicle Hongtu 500 170hp 4X2(6 wheels) 4.165m dump truck

Export reference
From $19,278
MSRP ¥13.88M CNY
Emission: China V
Fuel: Diesel
Transmission: Fast Gear
Curb Weight:: 4ton
Wheelbase:: 3300mm
Tire Size:: 8.25R16
Rated payload: 7.006ton
Drive 4X2 (6 wheels)
Horsepower 170
Cargo box type: Dump type

Overview

The Hyundai Commercial Vehicle Hongtu 500 170hp 4X2(6 wheels) 4.165m dump truck is a Light Truck featuring 7.006t payload, 11.2t GVW, Dump type cargo body and 4X2 (6 wheels) drive. On the powertrain side, it comes with a Yunnei PowerYNF40E1 engine, 170 hp, China V emissions and Fast Gear transmission.

China V 170 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): CHM3110QDA33V
Drive type: 4X2
Wheelbase: 3300mm
engine: Yunnei PowerYNF40E1
transmission: Fast Gear 8-speed
Cab length: 5.995m
Cab width: 2.4m
Cab height: 2.5m
Front track width: 1750mm
rear track: 1800mm
Curb Weight: 4ton
Rated payload: 7.006ton
GVWR: 11.2ton
Origin: Ziyang, Sichuan
tonnage class: Light Truck
Approach angle: 22°
departure angle: 14°
Energy Type: Diesel
Engine parameters
Engine Brand: Yunnei Power
Engine Model: Yunnei PowerYNF40E1
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 3.92L
Emission standard: China V
Max output power: 125kW
Max hp: 170Horsepower
Max torque: 600N·m
Max torque speed: 1300-1900rpm
Rated speed: 2600rpm
Engine Type: 4-valve, centrally mounted injector, centrally mounted camshaft, high-pressure common rail fuel injection, rear-mounted gear train
Transmission Parameters
Transmission Model: Fast Gear 8-speed
Transmission Brand: Fast Gear
Forward gears: 8Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Unloading Type: Dump type
Cargo box type: Dump type
Cargo box length: 4.165m
Cargo box width: 2.3m
Cargo box height: 0.55m
Chassis Specs
Front axle allowable load: 4000kg
rear axle allowable load: 7200kg
Leaf spring count: 9/11+8
Tire
Tire Size: 8.25R16
Number of tires: 6pcs
Control configuration
ABS:

Photos

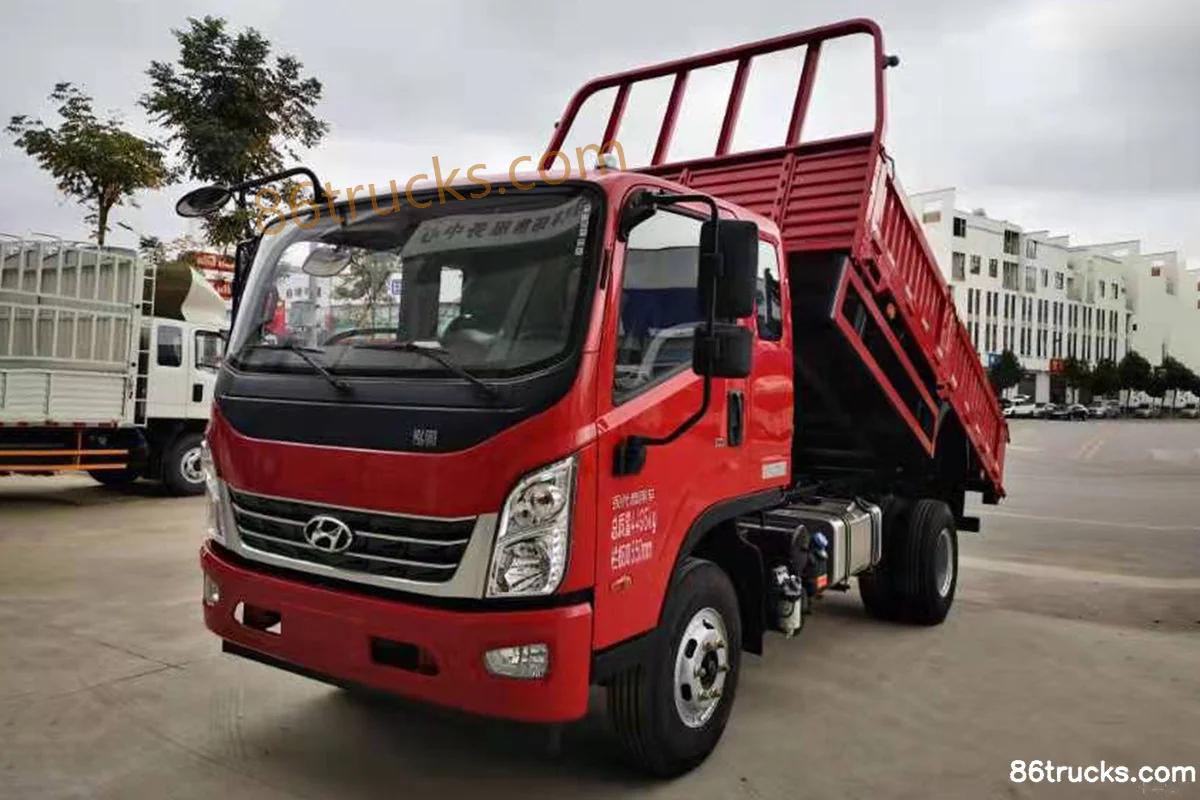

Exterior1

1 photos

FAQ

What is the export price of Hyundai Commercial Vehicle Hongtu 500 170hp 4X2(6 wheels) 4.165m dump truck, and what does it include?

Hyundai Commercial Vehicle Hongtu 500 170hp 4X2(6 wheels) 4.165m dump truck export reference is about From $19,278; MSRP is ¥13.88M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Hyundai Commercial Vehicle Hongtu 500 170hp 4X2(6 wheels) 4.165m dump truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Hyundai Commercial Vehicle Hongtu 500 170hp 4X2(6 wheels) 4.165m dump truck?

Key specs of Hyundai Commercial Vehicle Hongtu 500 170hp 4X2(6 wheels) 4.165m dump truck: Drive: 4x2; Horsepower: 170 hp; Emission: China V; Fuel: Diesel; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Hyundai Commercial Vehicle Hongtu 500 170hp 4X2(6 wheels) 4.165m dump truck suited for?

Hyundai Commercial Vehicle Hongtu 500 170hp 4X2(6 wheels) 4.165m dump truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Hyundai Commercial Vehicle Hongtu 500 170hp 4X2(6 wheels) 4.165m dump truck differ from other variants in the same series?

Hyundai Commercial Vehicle Hongtu 500 170hp 4X2(6 wheels) 4.165m dump truck belongs to Sichuan Hyundai Hongtu 500 Light Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Hyundai Commercial Vehicle Hongtu 500 170hp 4X2(6 wheels) 4.165m dump truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Hyundai Commercial Vehicle Hongtu 500 170hp 4X2(6 wheels) 4.165m dump truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
