Foton Ruivo E3 129hp 4X2(6 wheels) 4.75m Dump Truck

Export reference
MSRP N/A
Emission: China V
Fuel: Diesel
Transmission: Fast Gear
Curb Weight:: 6.79ton
Wheelbase:: 3850mm
Tire Size:: 8.25R20 16PR

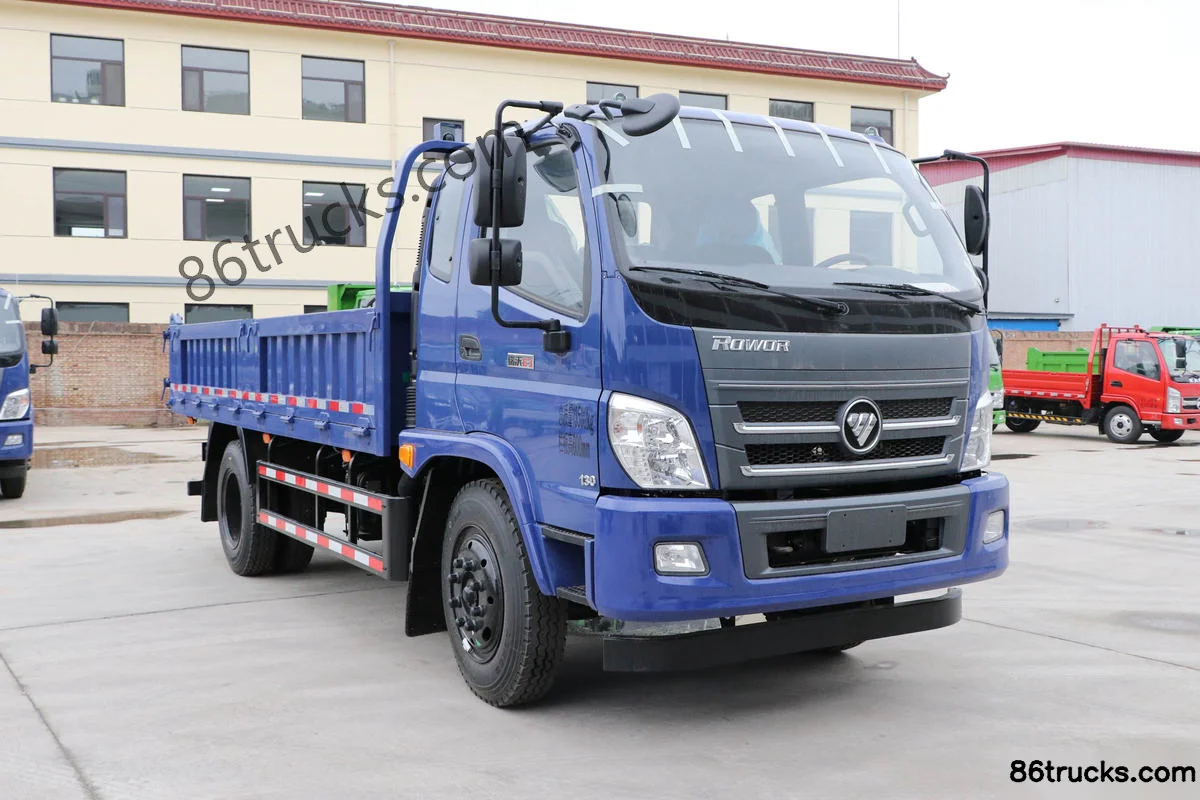

Foton Ruivo E3 129hp 4X2(6 wheels) 4.75m Dump Truck exterior
View more photos (12)
Rated payload: 6.66ton
Drive 4X2 (6 wheels)
Horsepower 129
Cargo box type: Dump type

Overview

The Foton Ruivo E3 129hp 4X2(6 wheels) 4.75m Dump Truck is a Light Truck featuring 6.66t payload, 13.58t GVW, Dump type cargo body and 4X2 (6 wheels) drive. On the powertrain side, it comes with a Yunnei PowerYN38CRE1 engine, 129 hp, China V emissions and Fast Gear transmission.

China V 129 Diesel 4X2

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model code (announced): BJ3143DJPDD-FA
Drive type: 4X2
Wheelbase: 3850mm
engine: Yunnei PowerYN38CRE1
transmission: Fast Gear 8-speed
Rear Axle Ratio: 5.833
Cab length: 7.12m
Cab width: 2.27m
Cab height: 2.65m
Front track width: 1785mm
rear track: 1630mm
Curb Weight: 6.79ton
Rated payload: 6.66ton
GVWR: 13.58ton
Origin: Shandong Zhucheng
tonnage class: Light Truck
Approach angle: 22°
departure angle: 17°
Remarks: Optional A/C, electronic engine stop, power steering, clutch booster
Energy Type: Diesel
Engine parameters
Engine Brand: Yunnei Power
Engine Model: Yunnei PowerYN38CRE1
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 3.76L
Emission standard: China V
Max output power: 95kW
Max hp: 129Horsepower
Max torque: 365N·m
Max torque speed: 1600-2400rpm
Rated speed: 3000rpm
Engine Type: 4-cylinder inline, 8-valve, turbocharged intercooled, high-pressure common rail fuel injection
Transmission Parameters
Transmission Model: Fast Gear 8-speed
Transmission Brand: Fast Gear
Forward gears: 8Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Unloading Type: Dump type
Cargo box type: Dump type
Cargo box length: 4.75m
Cargo box width: 2.07m
Cargo box height: 0.6m
Cab parameters
Cab: Sleeper cab
Cab width: 1995mm
Chassis Specs
Front axle allowable load: 4860kg
rear axle description: 1093Z
rear axle allowable load: 8720kg
Axle ratio: 5.833
Leaf spring count: 10/12+9
Tire
Tire Size: 8.25R20 16PR
Number of tires: 6pcs
Control configuration
ABS:

Photos

Exterior3

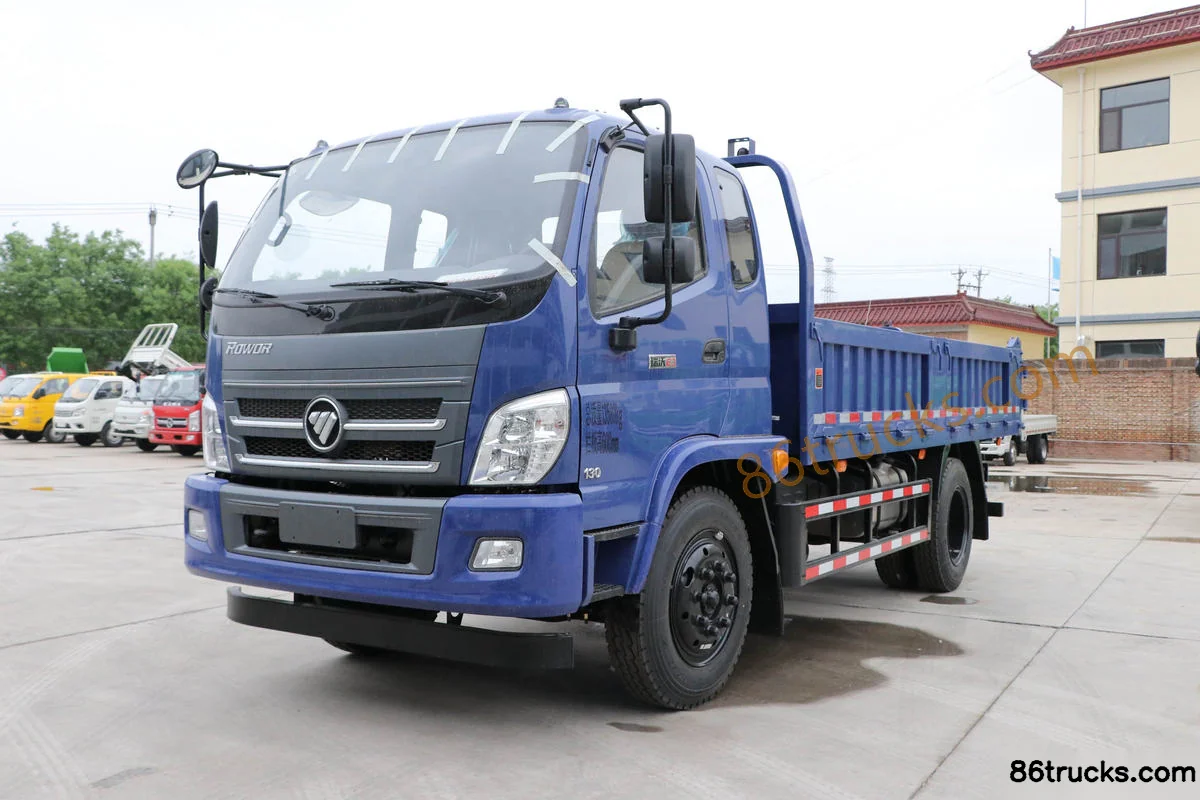

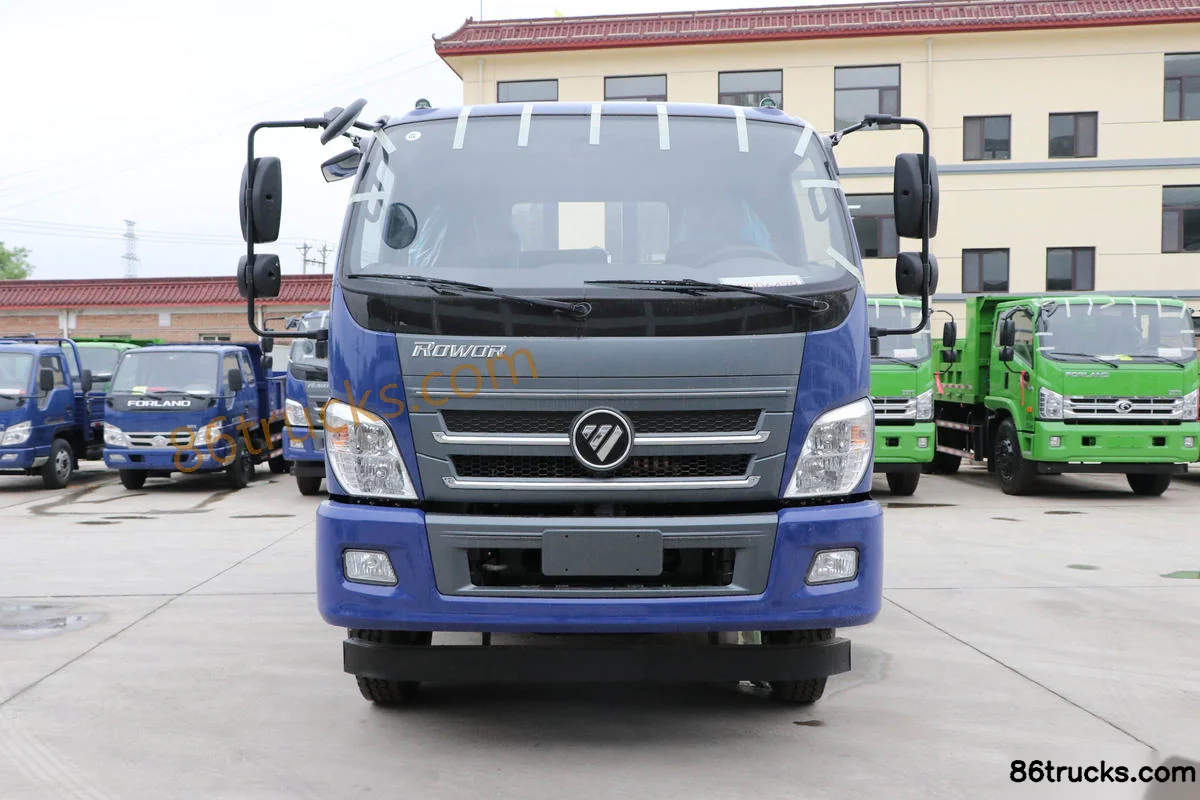

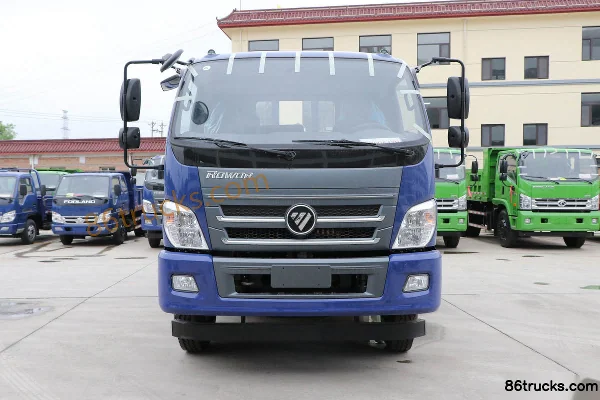

Foton Ruivo E3 129hp 4X2(6 wheels) 4.75m Dump Truck Exterior (1) | 86Trucks Foton Ruivo E3 129hp 4X2(6 wheels) 4.75m Dump Truck Exterior (2) | 86Trucks Foton Ruivo E3 129hp 4X2(6 wheels) 4.75m Dump Truck Exterior (3) | 86Trucks

Cab3

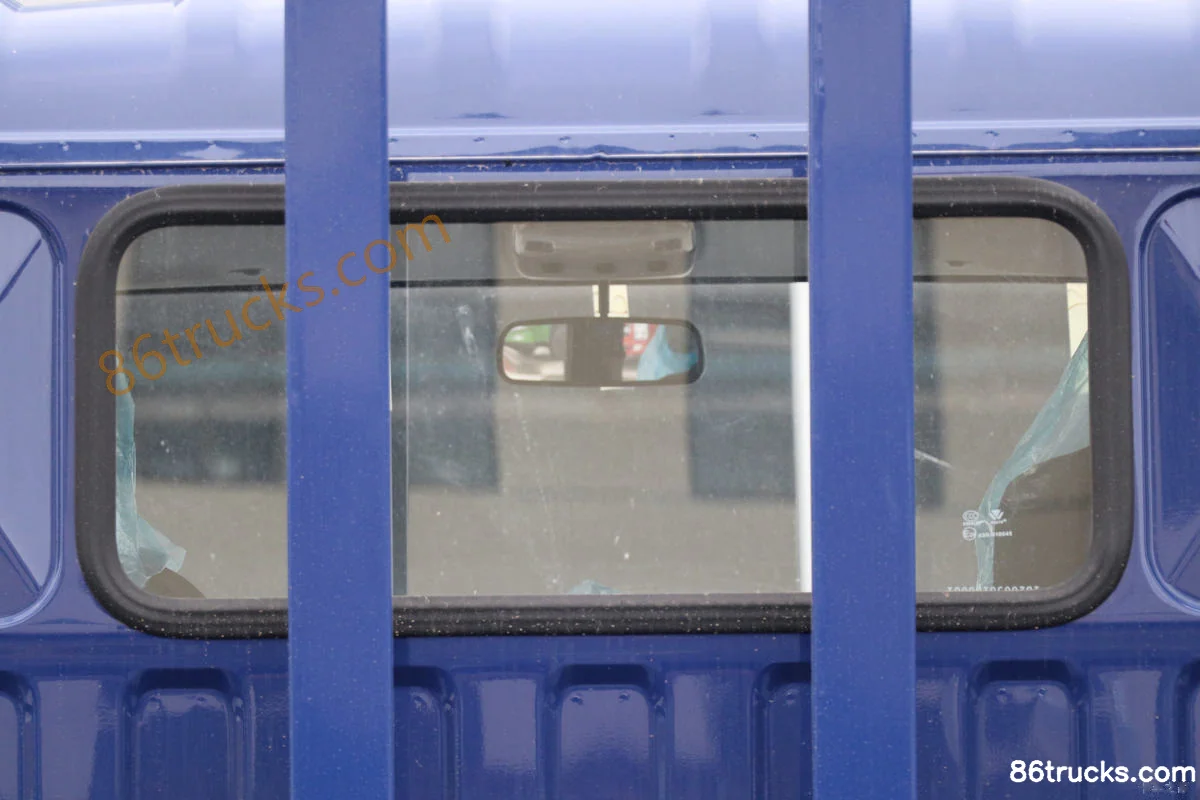

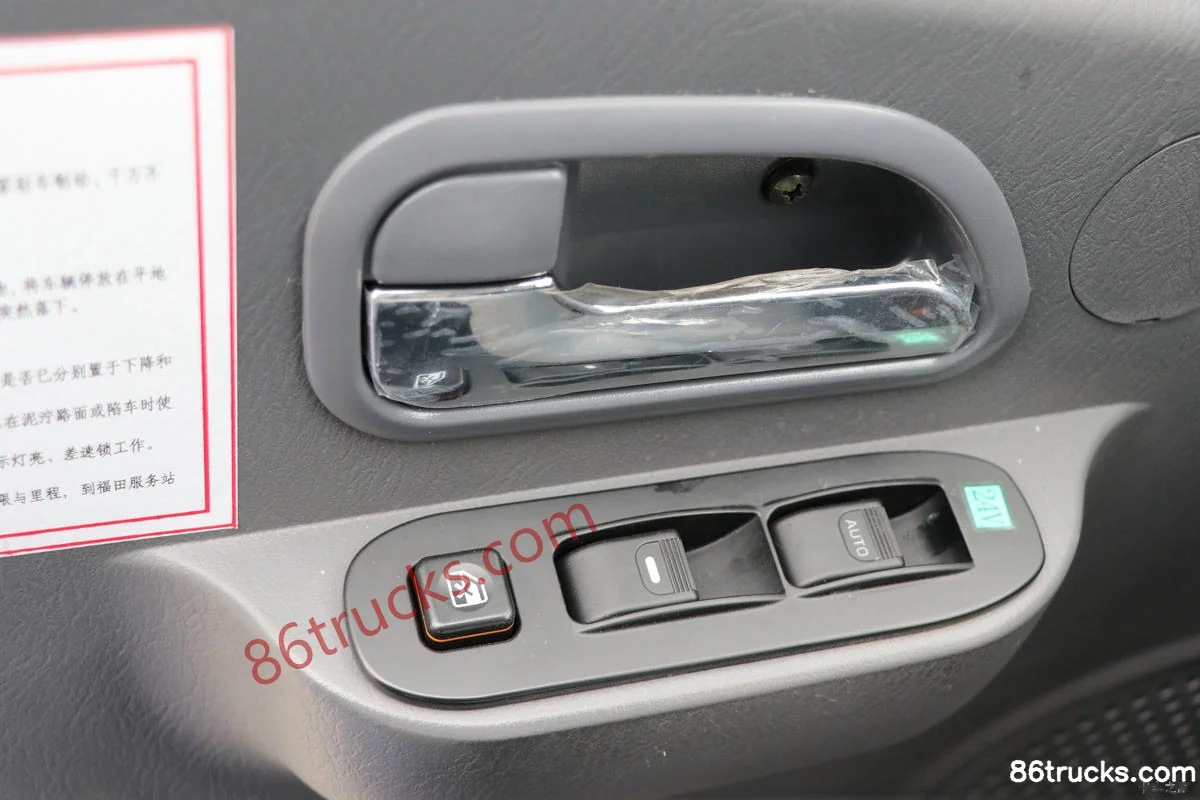

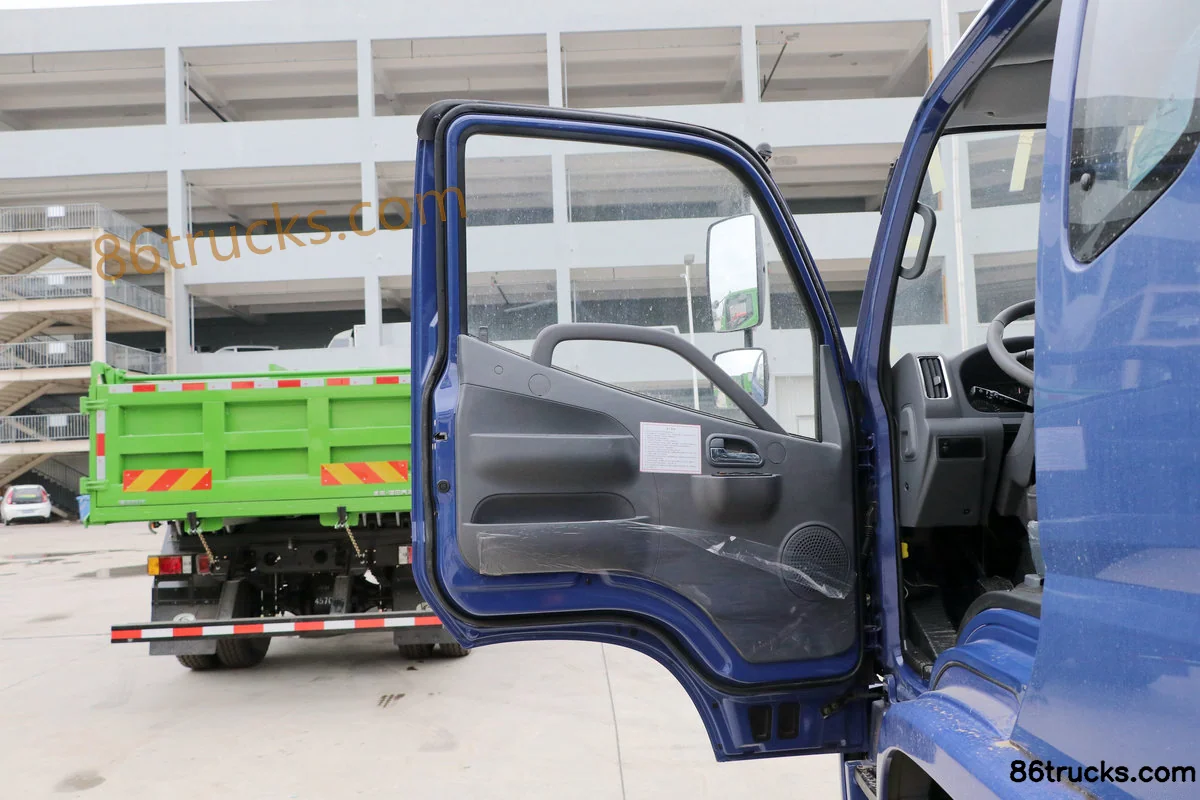

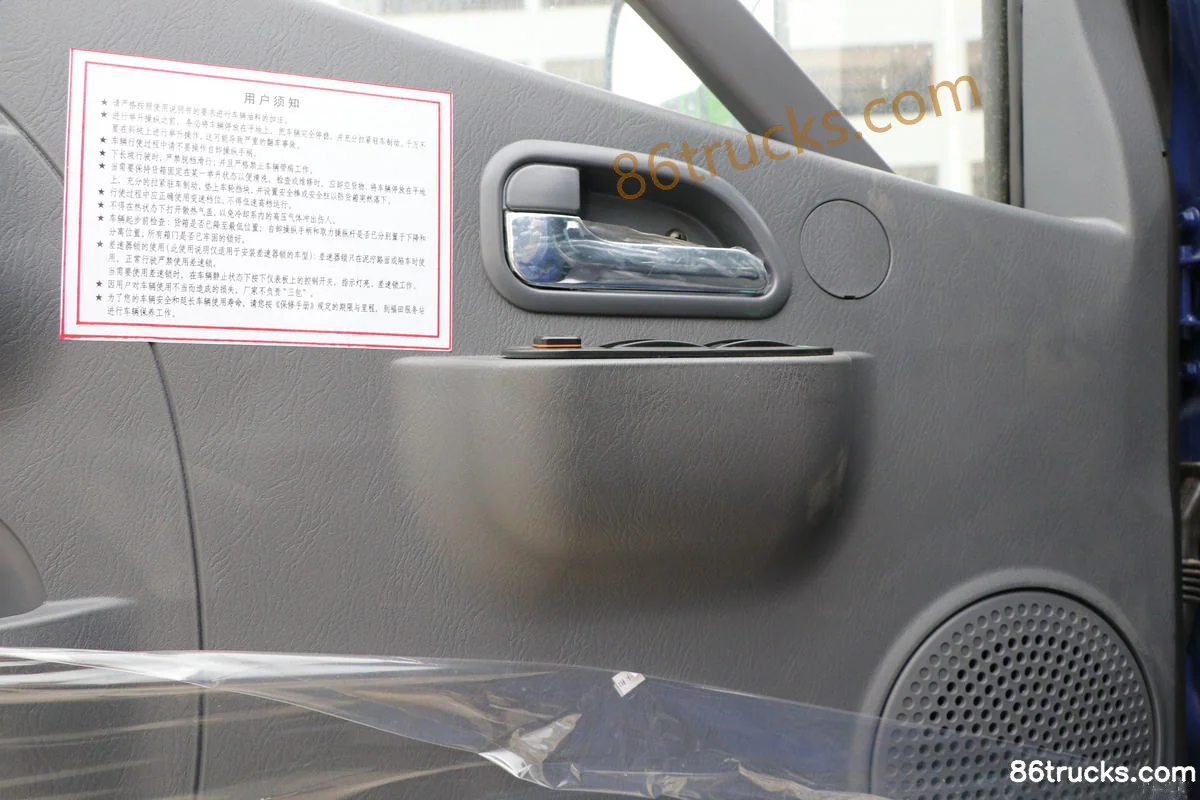

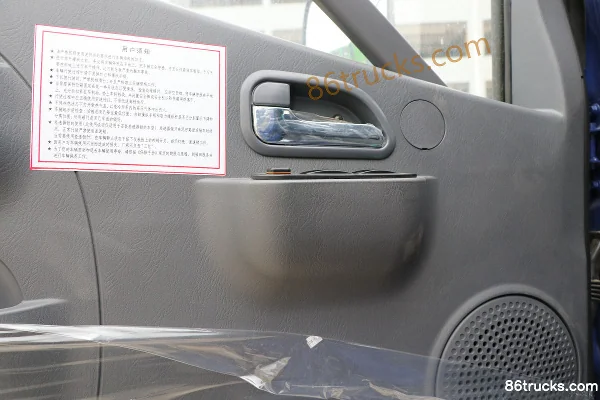

Foton Ruivo E3 129hp 4X2(6 wheels) 4.75m Dump Truck Cab (1) | 86Trucks Foton Ruivo E3 129hp 4X2(6 wheels) 4.75m Dump Truck Cab (2) | 86Trucks Foton Ruivo E3 129hp 4X2(6 wheels) 4.75m Dump Truck Cab (3) | 86Trucks

Chassis3

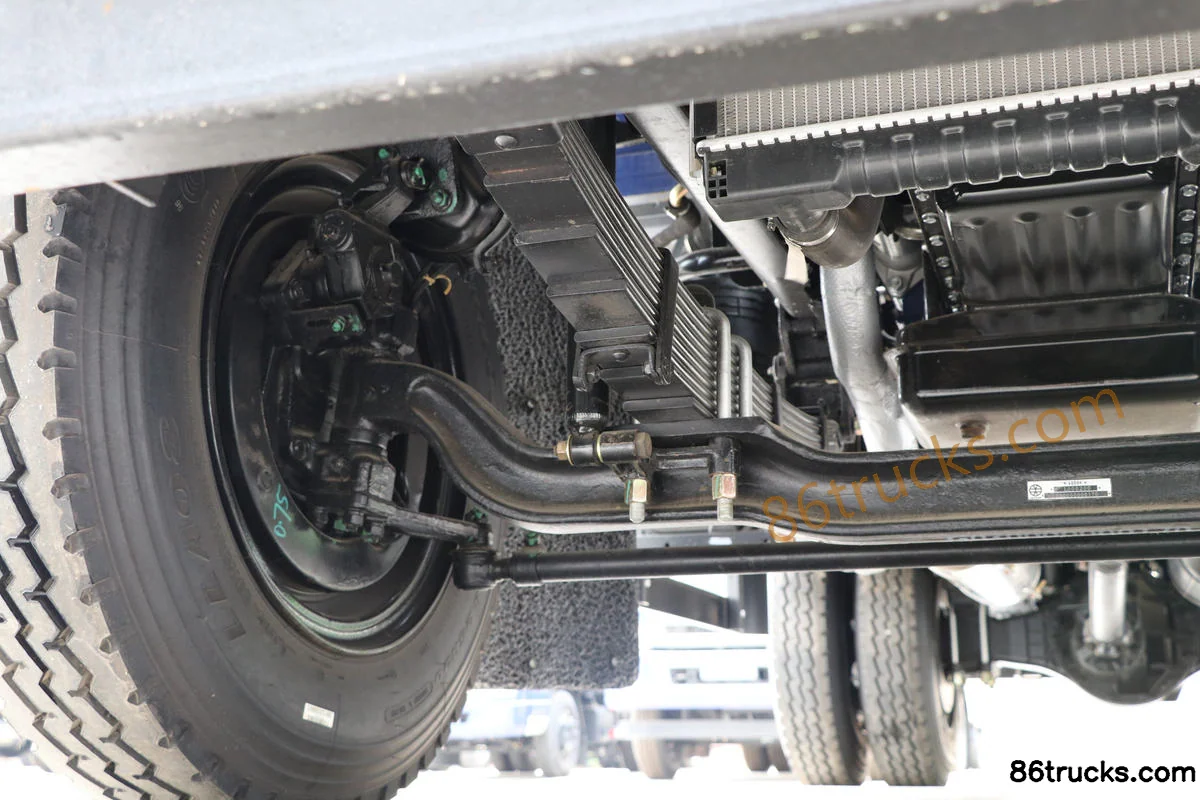

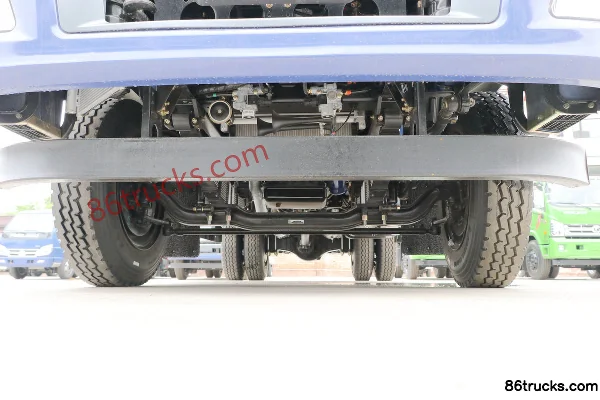

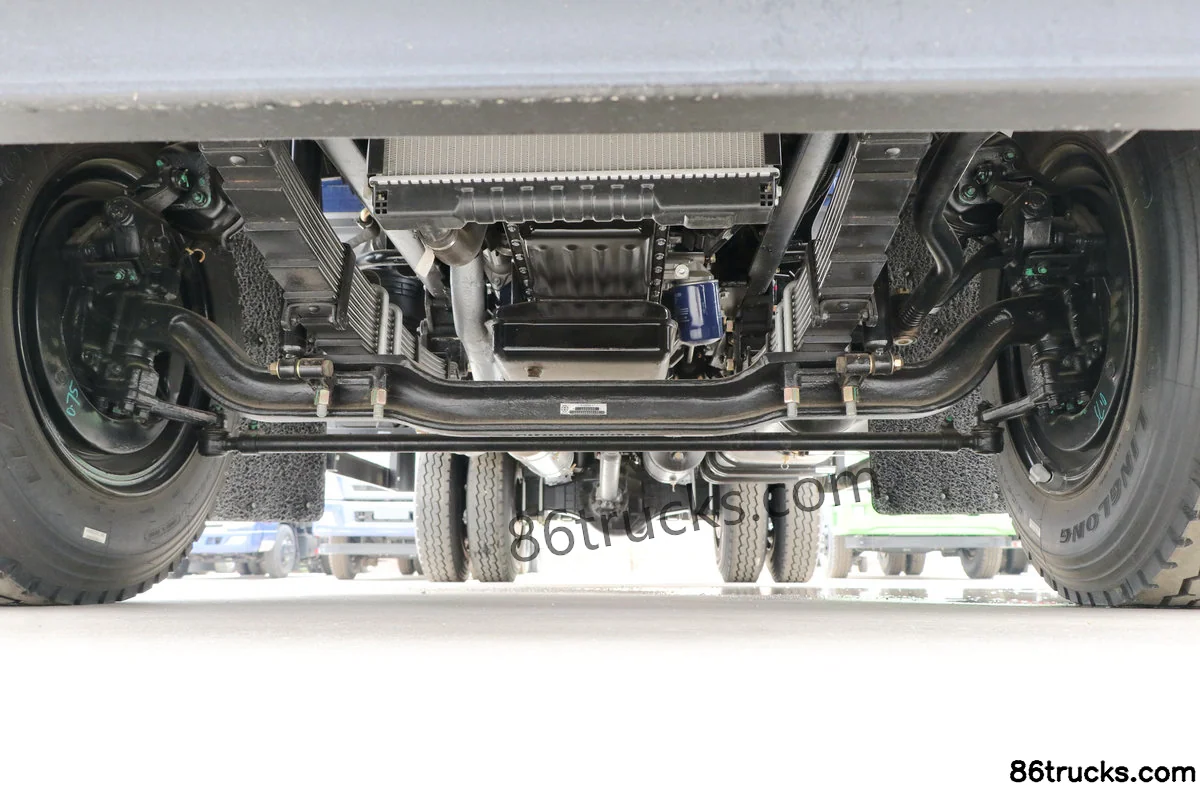

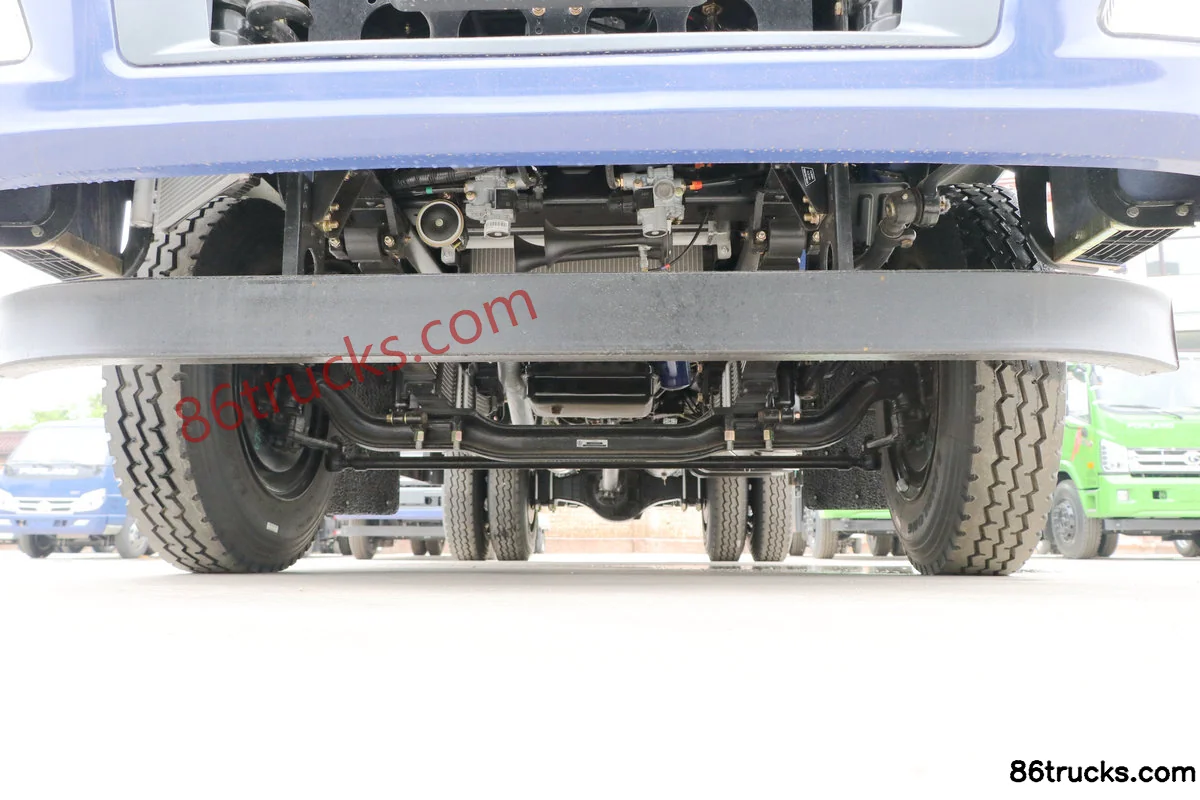

Foton Ruivo E3 129hp 4X2(6 wheels) 4.75m Dump Truck Chassis (1) | 86Trucks Foton Ruivo E3 129hp 4X2(6 wheels) 4.75m Dump Truck Chassis (2) | 86Trucks Foton Ruivo E3 129hp 4X2(6 wheels) 4.75m Dump Truck Chassis (3) | 86Trucks

Body3

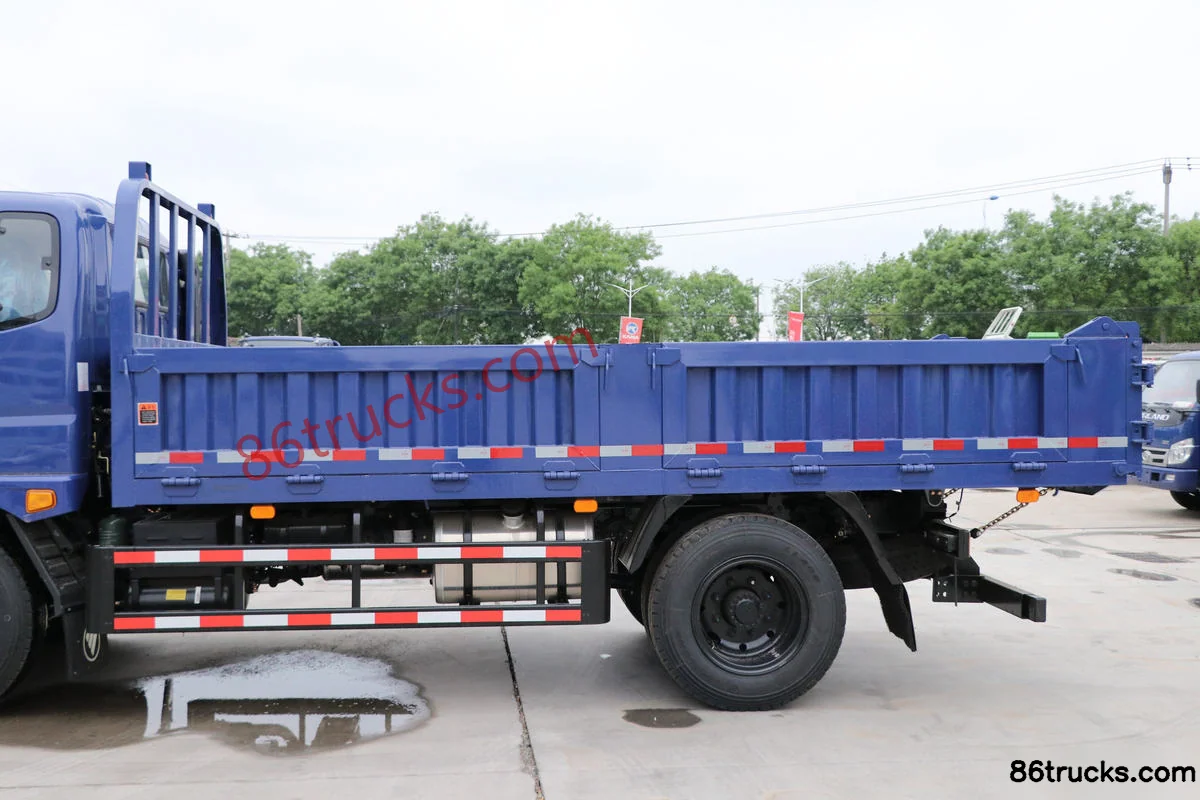

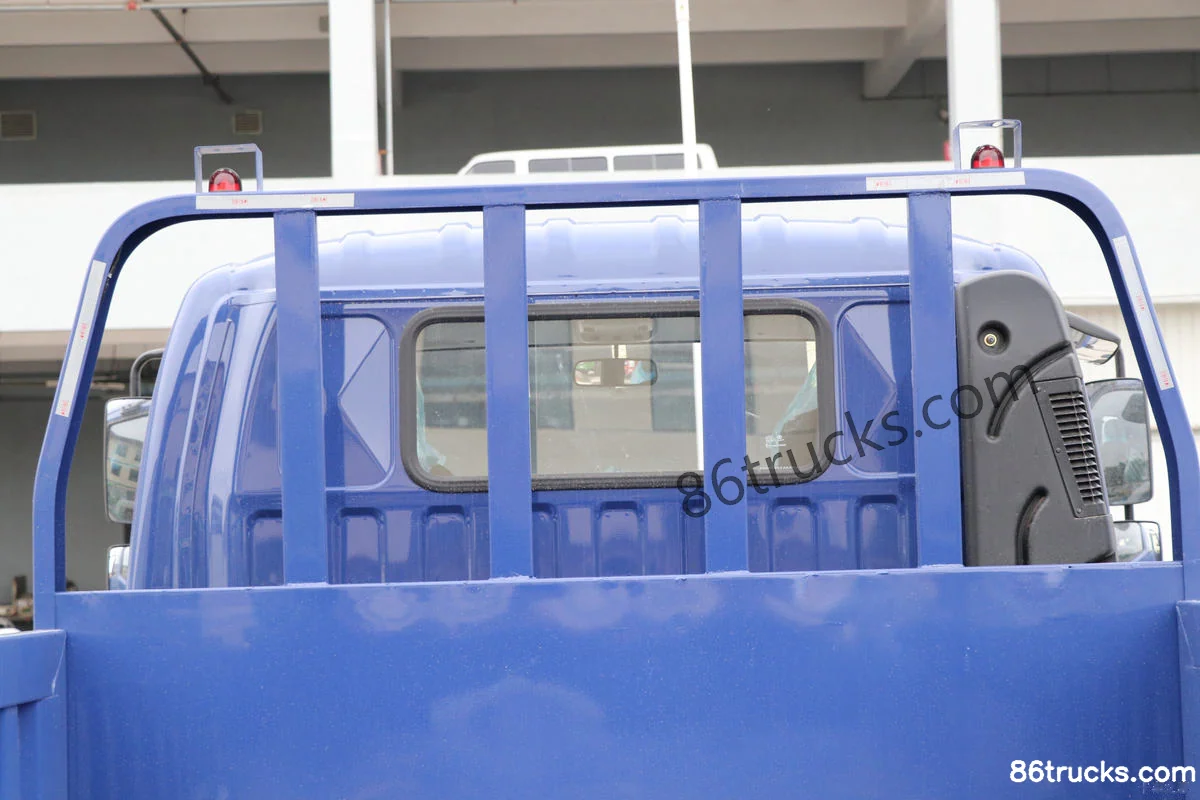

Foton Ruivo E3 129hp 4X2(6 wheels) 4.75m Dump Truck Body (1) | 86Trucks Foton Ruivo E3 129hp 4X2(6 wheels) 4.75m Dump Truck Body (2) | 86Trucks Foton Ruivo E3 129hp 4X2(6 wheels) 4.75m Dump Truck Body (3) | 86Trucks

12 photos

FAQ

What emission standard does Foton Ruivo E3 129hp 4X2(6 wheels) 4.75m Dump Truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Foton Ruivo E3 129hp 4X2(6 wheels) 4.75m Dump Truck?

Key specs of Foton Ruivo E3 129hp 4X2(6 wheels) 4.75m Dump Truck: Drive: 4x2; Horsepower: 129 hp; Emission: China V; Fuel: Diesel; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Foton Ruivo E3 129hp 4X2(6 wheels) 4.75m Dump Truck suited for?

Foton Ruivo E3 129hp 4X2(6 wheels) 4.75m Dump Truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Foton Ruivo E3 129hp 4X2(6 wheels) 4.75m Dump Truck differ from other variants in the same series?

Foton Ruivo E3 129hp 4X2(6 wheels) 4.75m Dump Truck belongs to Foton E3 Light Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Foton Ruivo E3 129hp 4X2(6 wheels) 4.75m Dump Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Foton Ruivo E3 129hp 4X2(6 wheels) 4.75m Dump Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
