Proton Auto 8X4(12 wheels) battery-swap pure electric concrete mixer truck chassis 350.07kWh

Export reference
From $92,903
MSRP ¥66.89M CNY
Tire Size:: 11.00R20 18PR,12R22.5 18PR,12.00R20 18PR
Cab dimensions:: 9.325×2.53×3.65m
Truck Type:: electric concrete mixer truck
Vehicle origin:: Xi'an, Shaanxi
Front/rear track width:: Front track: 2011/2011, Rear track: 1860/1860mm
Max. speed:: 89km/h
Drive 8X4 (12 wheels)
Fuel Electric
Curb Weight: 11.98ton
Wheelbase: 1800+3400+1400mm

Overview

The Proton Auto 8X4(12 wheels) battery-swap pure electric concrete mixer truck chassis 350.07kWh is a concrete mixer truck featuring 11.98ton GVW, 8X4 (12 wheels) drive and 9.325×2.53×3.65m cab. On the powertrain side, it comes with Electric fuel.

Electric 8X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 9.325×2.53×3.65m
Drive type: 8X4
Truck Type: electric concrete mixer truck
Vehicle origin: Xi'an, Shaanxi
Front/rear track width: Front track: 2011/2011, Rear track: 1860/1860mm
Wheelbase: 1800+3400+1400mm
Curb Weight: 11.98ton
Max. speed: 89km/h
Front/rear suspension: 1.525/1.2m
electric motor
Motor 1 Brand: Zhide Motor
Motor 1 Model: TZ400XS033
Motor Type: Permanent magnet synchronous motor
Peak power: 410kW
total peak torque: 2400N·m
total rated torque: 1400N·m
Body Parameters
Vehicle certification code: SX1317MF6XSEV1
Engine parameters
fuel type: Electric
Chassis Specs
Chassis Series: Dechuang Heavy Truck
Chassis Model: SX1317MF6XSEV1
Front axle description: 5.5T
Frame Dimensions: 850×300(8+5)mm
rear axle description: 16T
Leaf spring count: 3/3/5
Transmission Parameters
Number of gears: 4Gear
Transmission Model: 4-speed AMT
Tire
Tire Size: 11.00R20 18PR,12R22.5 18PR,12.00R20 18PR
Number of tires: 12pcs

Photos

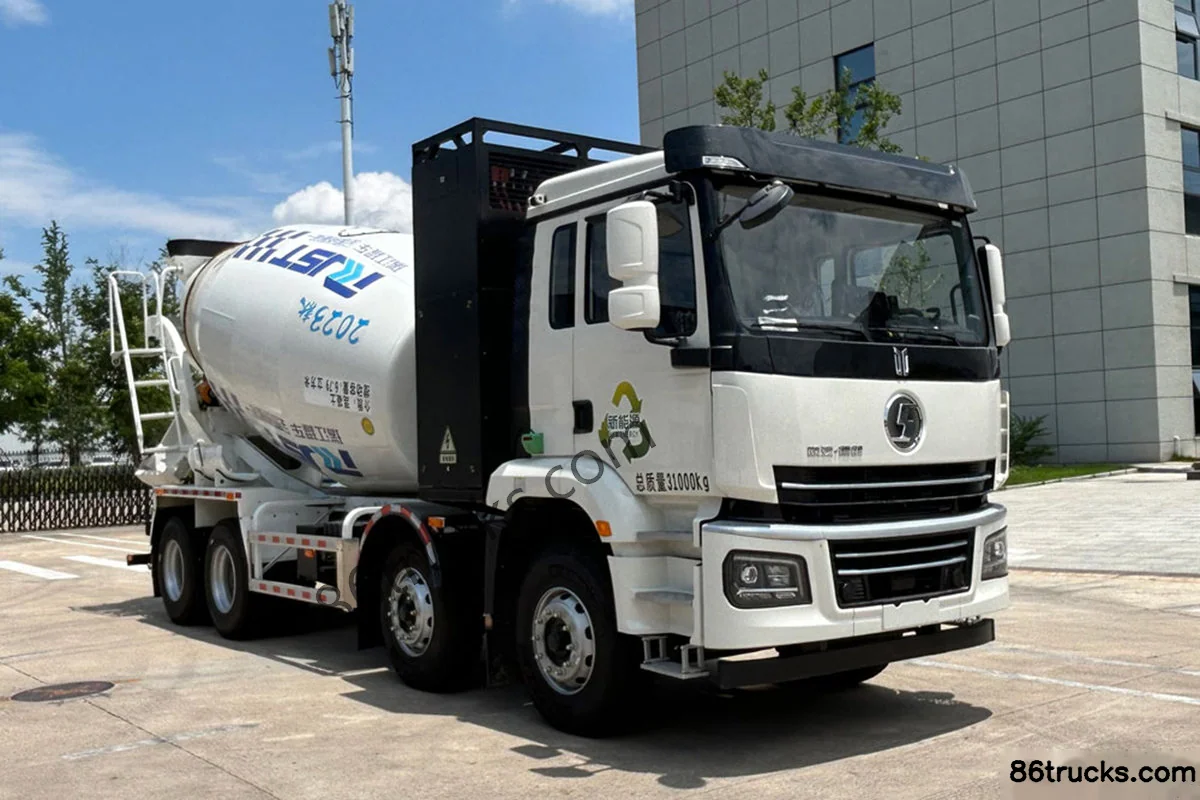

Exterior1

1 photos

FAQ

What is the export price of Proton Auto 8X4(12 wheels) battery-swap pure electric concrete mixer truck chassis 350.07kWh, and what does it include?

Proton Auto 8X4(12 wheels) battery-swap pure electric concrete mixer truck chassis 350.07kWh export reference is about From $92,903; MSRP is ¥66.89M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What are the key specs of Proton Auto 8X4(12 wheels) battery-swap pure electric concrete mixer truck chassis 350.07kWh?

Key specs of Proton Auto 8X4(12 wheels) battery-swap pure electric concrete mixer truck chassis 350.07kWh: Drive: 8x4; Fuel: Electric. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Proton Auto 8X4(12 wheels) battery-swap pure electric concrete mixer truck chassis 350.07kWh suited for?

Proton Auto 8X4(12 wheels) battery-swap pure electric concrete mixer truck chassis 350.07kWh is a concrete mixer truck model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Proton Auto 8X4(12 wheels) battery-swap pure electric concrete mixer truck chassis 350.07kWh differ from other variants in the same series?

Proton Auto 8X4(12 wheels) battery-swap pure electric concrete mixer truck chassis 350.07kWh belongs to Dechuang Battery-Swap Truck (concrete mixer truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Proton Auto 8X4(12 wheels) battery-swap pure electric concrete mixer truck chassis 350.07kWh?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Proton Auto 8X4(12 wheels) battery-swap pure electric concrete mixer truck chassis 350.07kWh?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
