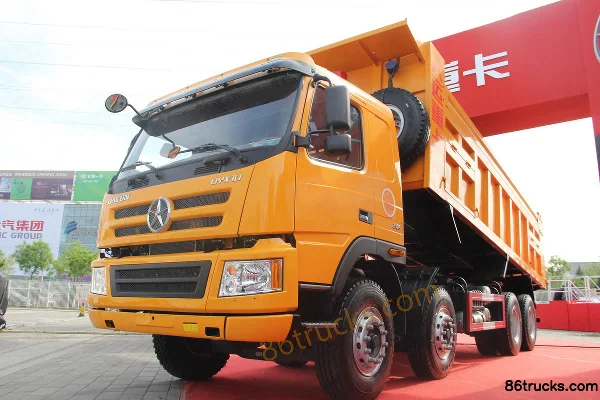

Dayun New N8E Heavy Truck 336hp 8X4(12 wheels) 6.8m LNG dump truck

Export reference
From $51,500
MSRP ¥37.08M CNY
Emission: China V
Fuel: LNG (liquefied natural gas)
Transmission: Fast Gear
Curb Weight:: 14.8ton
Wheelbase:: 1800+3400+1350mm
Tire Size:: 11.00R2016PR
Rated payload: 16.005ton
Drive 8X4 (12 wheels)
Horsepower 336
Cargo box type: Dump type

Overview

The Dayun New N8E Heavy Truck 336hp 8X4(12 wheels) 6.8m LNG dump truck is a Heavy truck featuring 16.005t payload, 31t GVW, Dump type cargo body and 8X4 (12 wheels) drive. On the powertrain side, it comes with a WeichaiWP10NG336E51 engine, 336 hp, China V emissions and Fast Gear transmission.

China V 336 LNG (liquefied natural gas) 8X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): CGC3313N52DA
Drive type: 8X4
Wheelbase: 1800+3400+1350mm
engine: WeichaiWP10NG336E51
transmission: Fast Gear10JSD160TB
Rear Axle Ratio: 4.875
Cab length: 9.73m
Cab width: 2.55m
Cab height: 3.6m
Front track width: 2032/2032mm
rear track: 1860/1860mm
Curb Weight: 14.8ton
Rated payload: 16.005ton
GVWR: 31ton
Origin: Chengdu, Sichuan
tonnage class: Heavy truck
Approach angle: 24°
departure angle: 22°
Remarks: QH70 PTO
Version: LNG Edition
Energy Type: LNG (liquefied natural gas)
Engine parameters
Engine Brand: Weichai
Engine Model: WeichaiWP10NG336E51
Number of cylinders: 6cylinder
fuel type: LNG (liquefied natural gas)
Displacement: 9.726L
Emission standard: China V
Max output power: 247kW
Max hp: 336Horsepower
Max torque: 1450N·m
Max torque speed: 1200-1500rpm
Rated speed: 1900rpm
Engine Type: Inline 6-cylinder, 4-stroke, single-point injection + oxidation catalyst
Transmission Parameters
Transmission Model: Fast Gear10JSD160TB
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 10Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Unloading Type: Dump type
Cargo box type: Dump type
Cargo box length: 6.8m
Cargo box width: 2.35m
Cargo box height: 1.5m
fuel tank
Fuel tank capacity: 450L
Chassis Specs
Front axle description: 153
Front axle allowable load: 7000kg
Frame Dimensions: 300x80x(8+5)mm
rear axle description: 457
rear axle allowable load: 18000 (tandem axle group)kg
Axle ratio: 4.875
Leaf spring count: 12/12/10
Tire
Tire Size: 11.00R2016PR
Number of tires: 12pcs
Control configuration
ABS:
interior configuration
AC control type: Automatic
Independent Heater:
Power Windows:
Service brake
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type

Photos

0 photos

FAQ

What is the export price of Dayun New N8E Heavy Truck 336hp 8X4(12 wheels) 6.8m LNG dump truck, and what does it include?

Dayun New N8E Heavy Truck 336hp 8X4(12 wheels) 6.8m LNG dump truck export reference is about From $51,500; MSRP is ¥37.08M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Dayun New N8E Heavy Truck 336hp 8X4(12 wheels) 6.8m LNG dump truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Dayun New N8E Heavy Truck 336hp 8X4(12 wheels) 6.8m LNG dump truck?

Key specs of Dayun New N8E Heavy Truck 336hp 8X4(12 wheels) 6.8m LNG dump truck: Drive: 8x4; Horsepower: 336 hp; Emission: China V; Fuel: LNG (liquefied natural gas); Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Dayun New N8E Heavy Truck 336hp 8X4(12 wheels) 6.8m LNG dump truck suited for?

Dayun New N8E Heavy Truck 336hp 8X4(12 wheels) 6.8m LNG dump truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Dayun New N8E Heavy Truck 336hp 8X4(12 wheels) 6.8m LNG dump truck differ from other variants in the same series?

Dayun New N8E Heavy Truck 336hp 8X4(12 wheels) 6.8m LNG dump truck belongs to Dayun New N8E quasi-heavy truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Dayun New N8E Heavy Truck 336hp 8X4(12 wheels) 6.8m LNG dump truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Dayun New N8E Heavy Truck 336hp 8X4(12 wheels) 6.8m LNG dump truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
