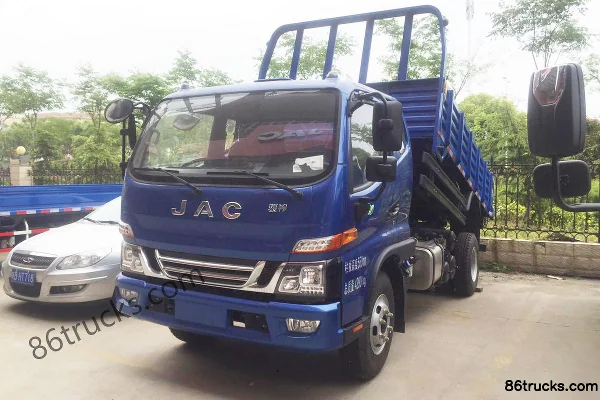

JAC Junling G-series V5 transport type 116hp 4X2(6 wheels) 3.6m dump truck

Export reference
From $15,542
MSRP ¥11.19M CNY
Emission: China V
Fuel: Diesel
Transmission: WLY
Curb Weight:: 2.5ton
Wheelbase:: 3000mm
Tire Size:: 7.50-16LT 6PR
Rated payload: 1.495ton
Drive 4X2 (6 wheels)
Horsepower 116
Cargo box type: Dump type

Overview

The JAC Junling G-series V5 transport type 116hp 4X2(6 wheels) 3.6m dump truck is a Light Truck featuring 1.495t payload, 4.125t GVW, Dump type cargo body and 4X2 (6 wheels) drive. On the powertrain side, it comes with a Yunnei PowerYN33CRE1 engine, 116 hp, China V emissions and WLY transmission.

China V 116 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): HFC3040P93K1C1V
Drive type: 4X2
Wheelbase: 3000mm
engine: Yunnei PowerYN33CRE1
transmission: WLYWLY10H41
Rear Axle Ratio: 5.83
Cab length: 5.5m
Cab width: 2.01m
Cab height: 2.4m
Front track width: 1470mm
rear track: 1530mm
Curb Weight: 2.5ton
Rated payload: 1.495ton
GVWR: 4.125ton
Origin: Hefei, Anhui
tonnage class: Light Truck
Approach angle: 21°
departure angle: 22°
Energy Type: Diesel
Engine parameters
Engine Brand: Yunnei Power
Engine Model: Yunnei PowerYN33CRE1
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 3.298L
Emission standard: China V
Max output power: 85kW
Max hp: 116Horsepower
Max torque: 315N·m
Max torque speed: 1600-2400rpm
Rated speed: 3200rpm
Engine Type: 4-cylinder inline, 8-valve, turbocharged intercooled, high-pressure common rail fuel injection
Transmission Parameters
Transmission Model: WLYWLY10H41
Transmission Brand: WLY
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
Unloading Type: Dump type
Cargo box type: Dump type
Cargo box length: 3.6m
Cargo box width: 1.9m
Cargo box height: 0.8m
Cab parameters
Cab: Flat roof
fuel tank
Fuel tank material: aluminum alloy
Fuel tank capacity: 80L
Chassis Specs
Front axle allowable load: 1485kg
rear axle allowable load: 2640kg
Axle ratio: 5.83
Leaf spring count: 10/10+8
Suspension (front/rear): leaf spring suspension
Tire
Tire Size: 7.50-16LT 6PR
Number of tires: 6pcs
Control configuration
ABS:

Photos

0 photos

FAQ

What is the export price of JAC Junling G-series V5 transport type 116hp 4X2(6 wheels) 3.6m dump truck, and what does it include?

JAC Junling G-series V5 transport type 116hp 4X2(6 wheels) 3.6m dump truck export reference is about From $15,542; MSRP is ¥11.19M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does JAC Junling G-series V5 transport type 116hp 4X2(6 wheels) 3.6m dump truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of JAC Junling G-series V5 transport type 116hp 4X2(6 wheels) 3.6m dump truck?

Key specs of JAC Junling G-series V5 transport type 116hp 4X2(6 wheels) 3.6m dump truck: Drive: 4x2; Horsepower: 116 hp; Emission: China V; Fuel: Diesel; Transmission: WLY. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is JAC Junling G-series V5 transport type 116hp 4X2(6 wheels) 3.6m dump truck suited for?

JAC Junling G-series V5 transport type 116hp 4X2(6 wheels) 3.6m dump truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does JAC Junling G-series V5 transport type 116hp 4X2(6 wheels) 3.6m dump truck differ from other variants in the same series?

JAC Junling G-series V5 transport type 116hp 4X2(6 wheels) 3.6m dump truck belongs to JAC G light truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for JAC Junling G-series V5 transport type 116hp 4X2(6 wheels) 3.6m dump truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export JAC Junling G-series V5 transport type 116hp 4X2(6 wheels) 3.6m dump truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
