Foton RE1 140 hp 4X2(6 wheels) 3.7m dump truck

Export reference
MSRP N/A
Emission: China IV
Fuel: Diesel
Transmission: Fast Gear
Curb Weight:: 7.615ton
Wheelbase:: 3300mm
Tire Size:: 9.00R20
Foton RE1 140 hp 4X2(6 wheels) 3.7m dump truck exterior
View more photos (12)
Rated payload: 7.99ton
Drive 4X2 (6 wheels)
Horsepower 140
Cargo box type: Dump type

Overview

The Foton RE1 140 hp 4X2(6 wheels) 3.7m dump truck is a Light Truck featuring 7.99t payload, 15.8t GVW, Dump type cargo body and 4X2 (6 wheels) drive. On the powertrain side, it comes with a YuchaiYC4E140-42 engine, 140 hp, China IV emissions and Fast Gear transmission.

China IV 140 Diesel 4X2

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model code (announced): BJ3165DJPFA-1
Drive type: 4X2
Wheelbase: 3300mm
engine: YuchaiYC4E140-42
transmission: Fast Gear 8-speed
Rear Axle Ratio: 6.33
Cab length: 6.13m
Cab width: 2.25m
Cab height: 2.79m
Front track width: 1761mm
rear track: 1638mm
Curb Weight: 7.615ton
Rated payload: 7.99ton
GVWR: 15.8ton
Origin: Shandong Zhucheng
tonnage class: Light Truck
Approach angle: 27°
departure angle: 17°
Energy Type: Diesel
Engine parameters
Engine Brand: Yuchai
Engine Model: YuchaiYC4E140-42
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 4.26L
Emission standard: China IV
Max output power: 103kW
Max hp: 140Horsepower
Max torque: 430N·m
Max torque speed: 1300-1600rpm
Rated speed: 2600rpm
Engine Type: Vertical, inline 4-cylinder, water-cooled, 4-stroke, electronic direct injection
Transmission Parameters
Transmission Model: Fast Gear 8-speed
Transmission Brand: Fast Gear
Forward gears: 8Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Unloading Type: Dump type
Cargo box type: Dump type
Cargo box length: 3.7m
Cargo box width: 2.07m
Cargo box height: 0.8m
Chassis Specs
rear axle allowable load: 10000kg
Axle ratio: 6.33
Leaf spring count: 9/12+9
Tire
Tire Size: 9.00R20
Number of tires: 6pcs

Photos

Exterior3

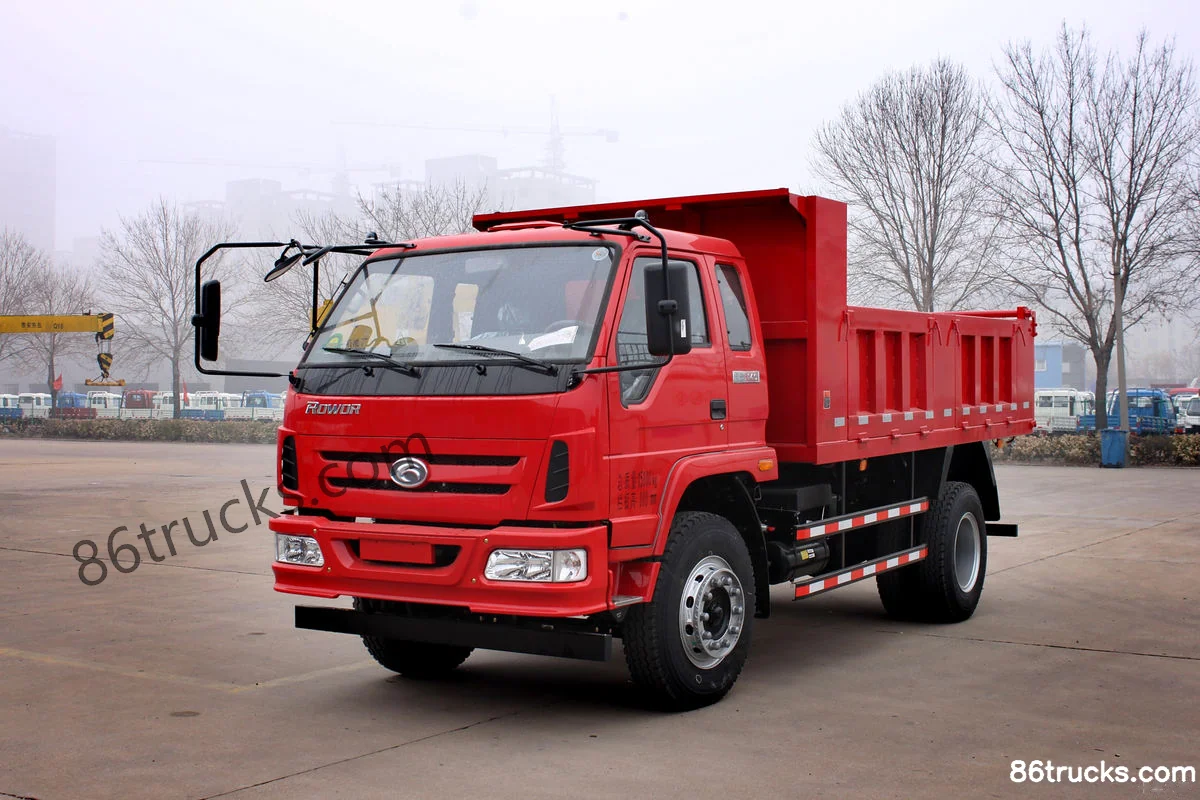

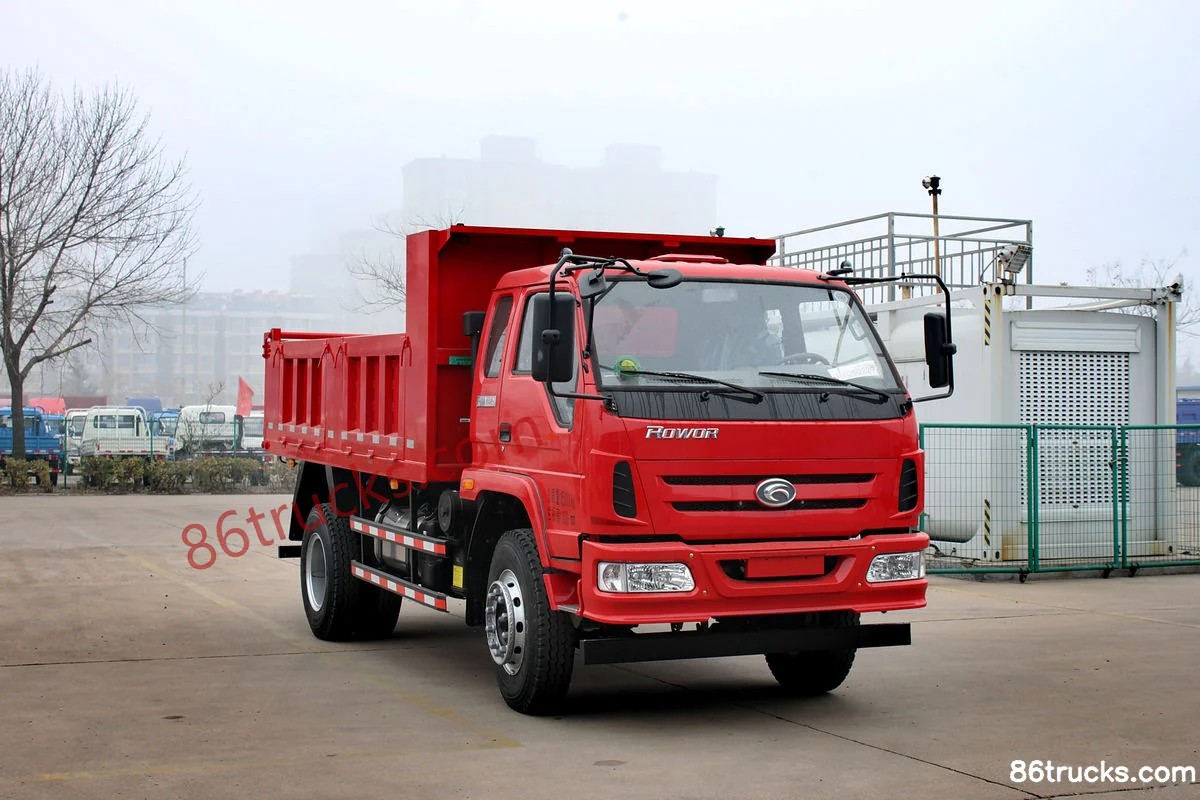

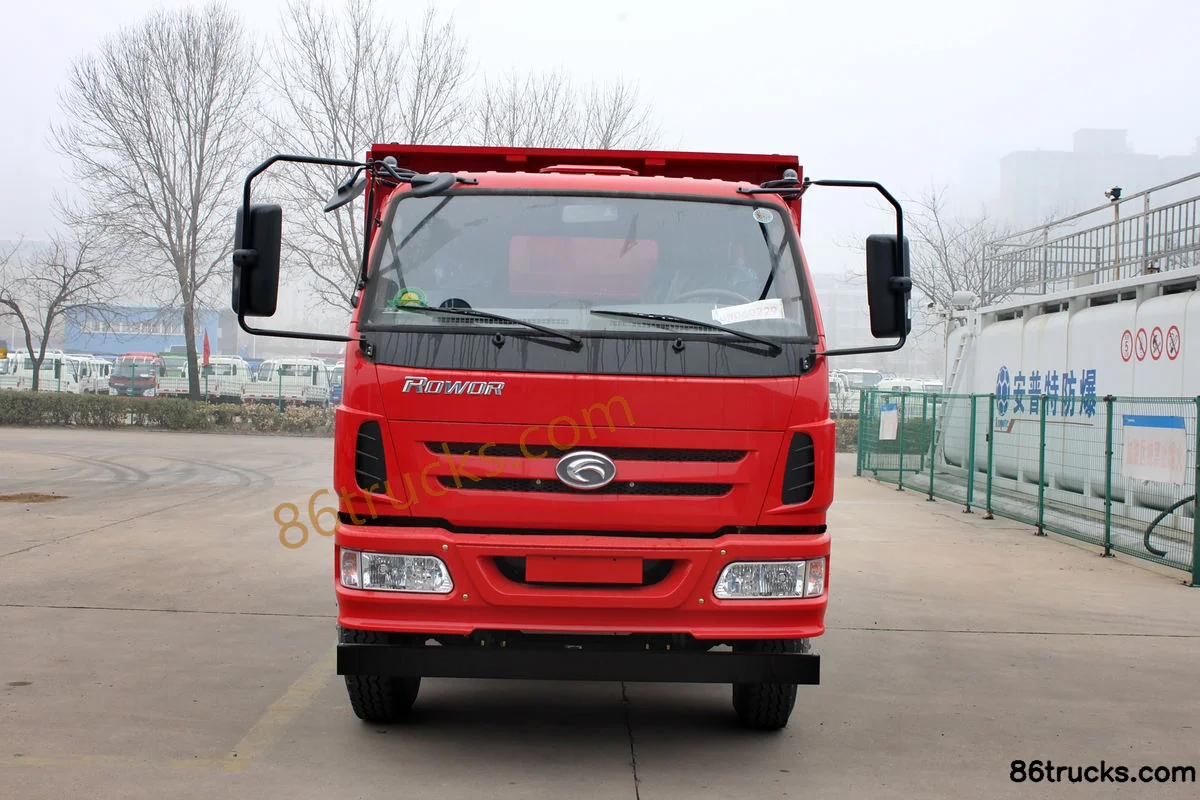

Foton RE1 140 hp 4X2(6 wheels) 3.7m dump truck Exterior (1) | 86Trucks Foton RE1 140 hp 4X2(6 wheels) 3.7m dump truck Exterior (2) | 86Trucks Foton RE1 140 hp 4X2(6 wheels) 3.7m dump truck Exterior (3) | 86Trucks

Cab3

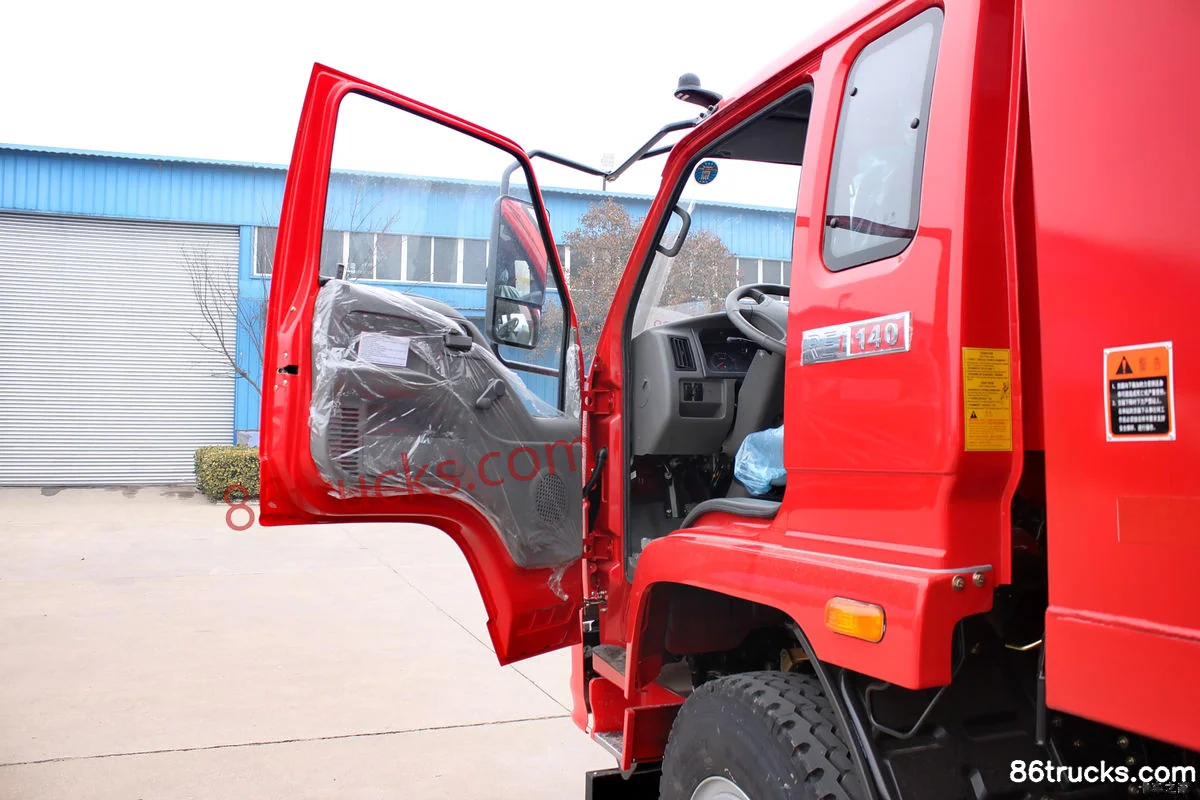

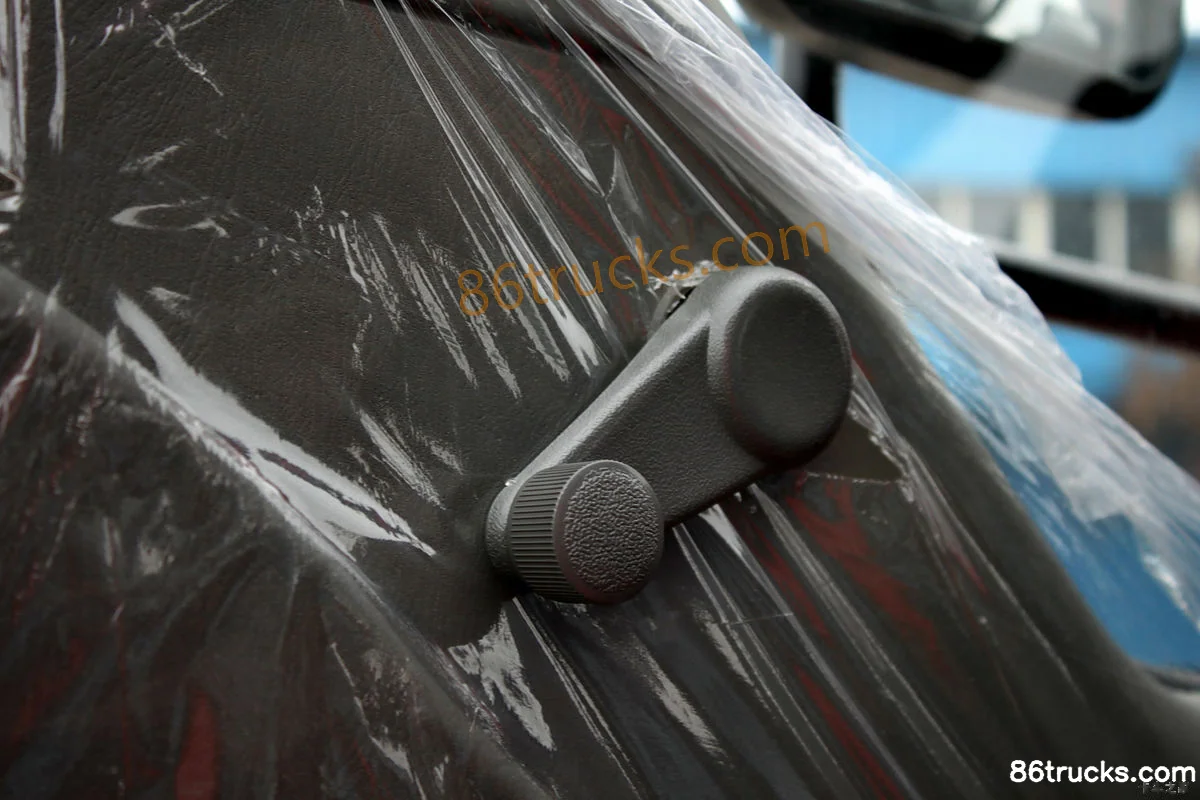

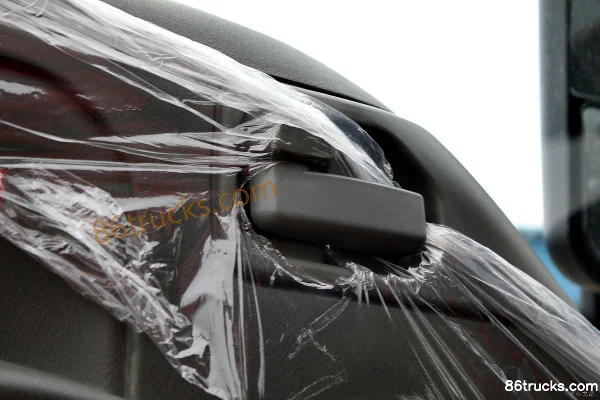

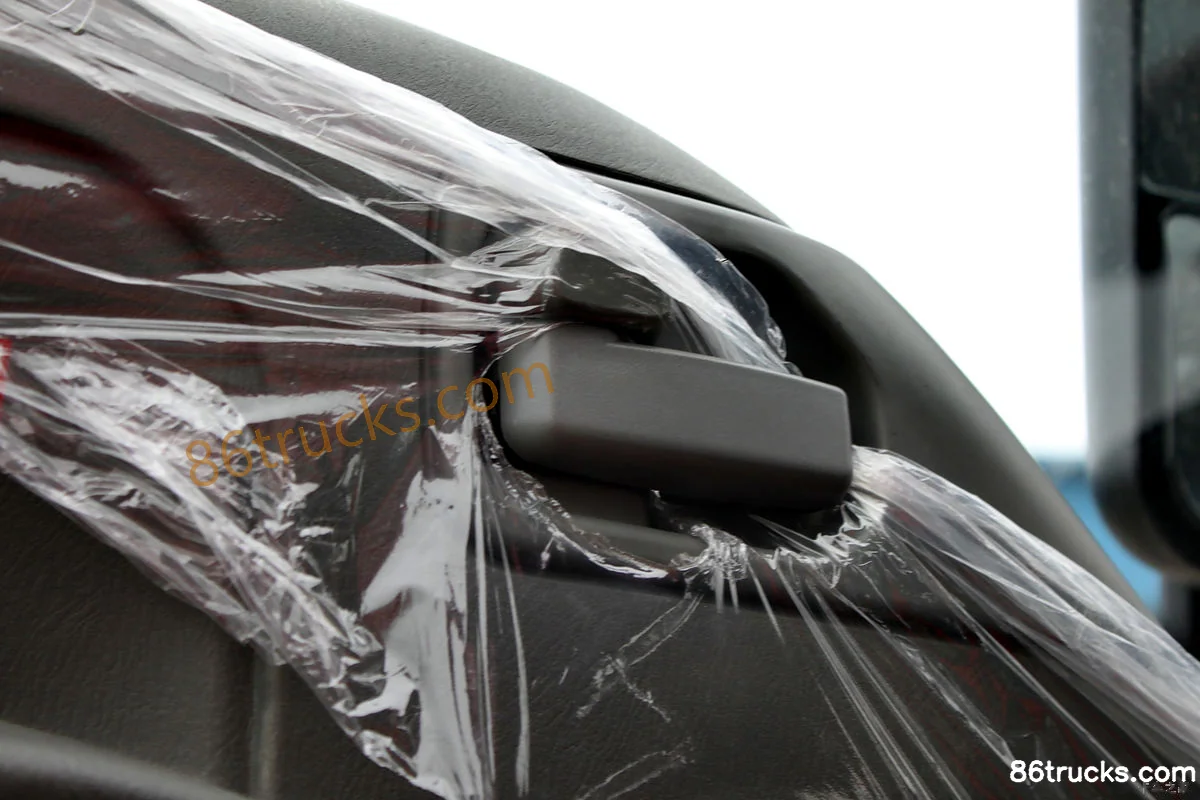

Foton RE1 140 hp 4X2(6 wheels) 3.7m dump truck Cab (1) | 86Trucks Foton RE1 140 hp 4X2(6 wheels) 3.7m dump truck Cab (2) | 86Trucks Foton RE1 140 hp 4X2(6 wheels) 3.7m dump truck Cab (3) | 86Trucks

Chassis3

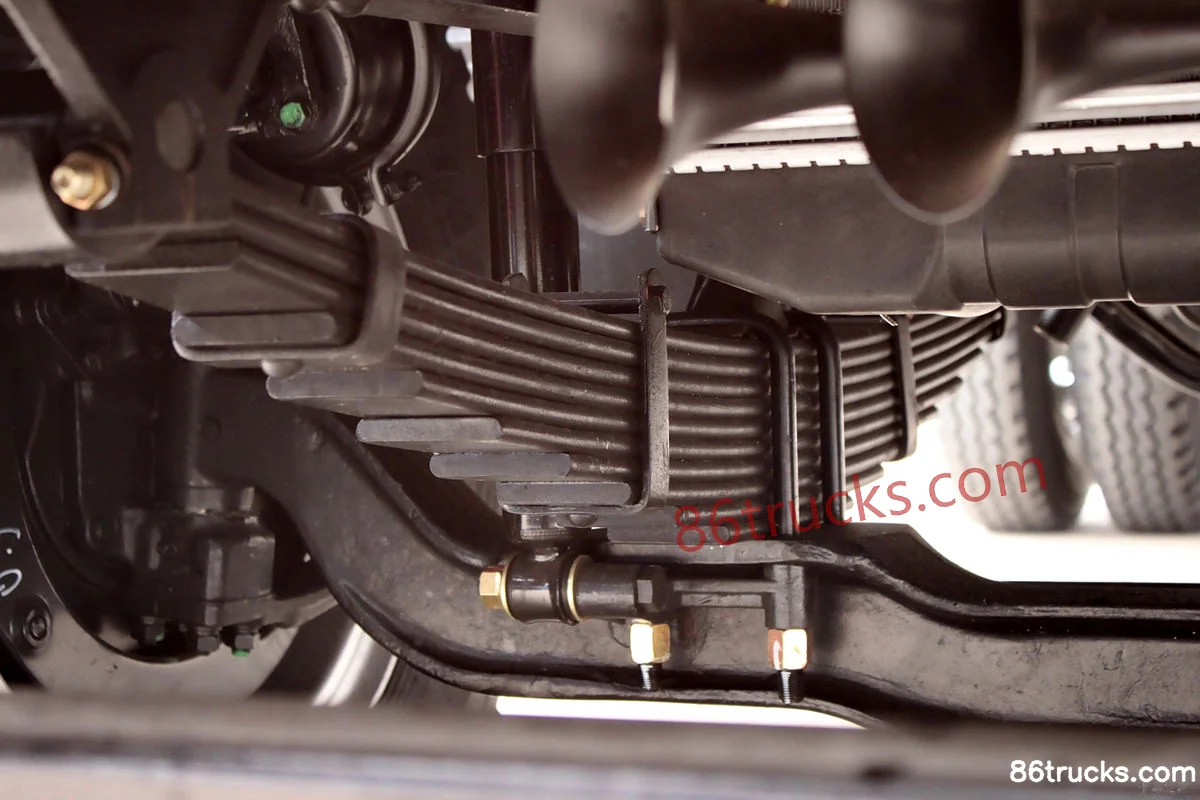

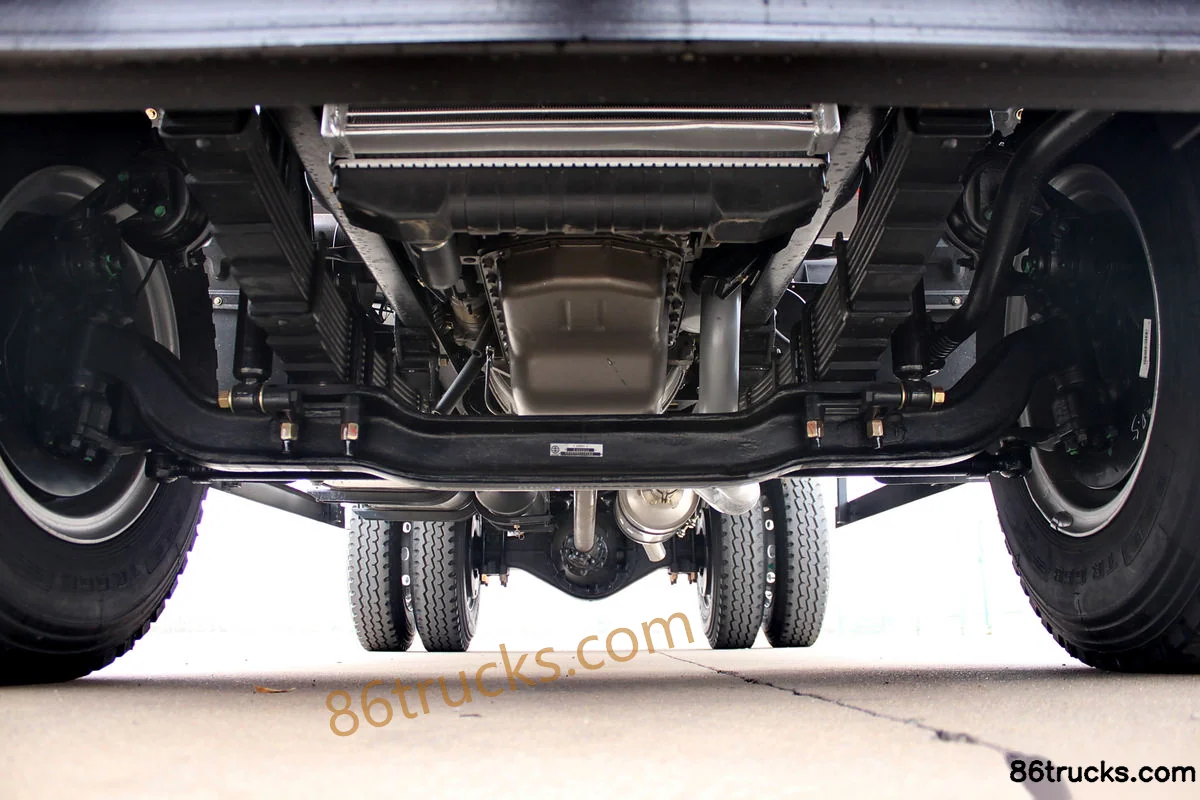

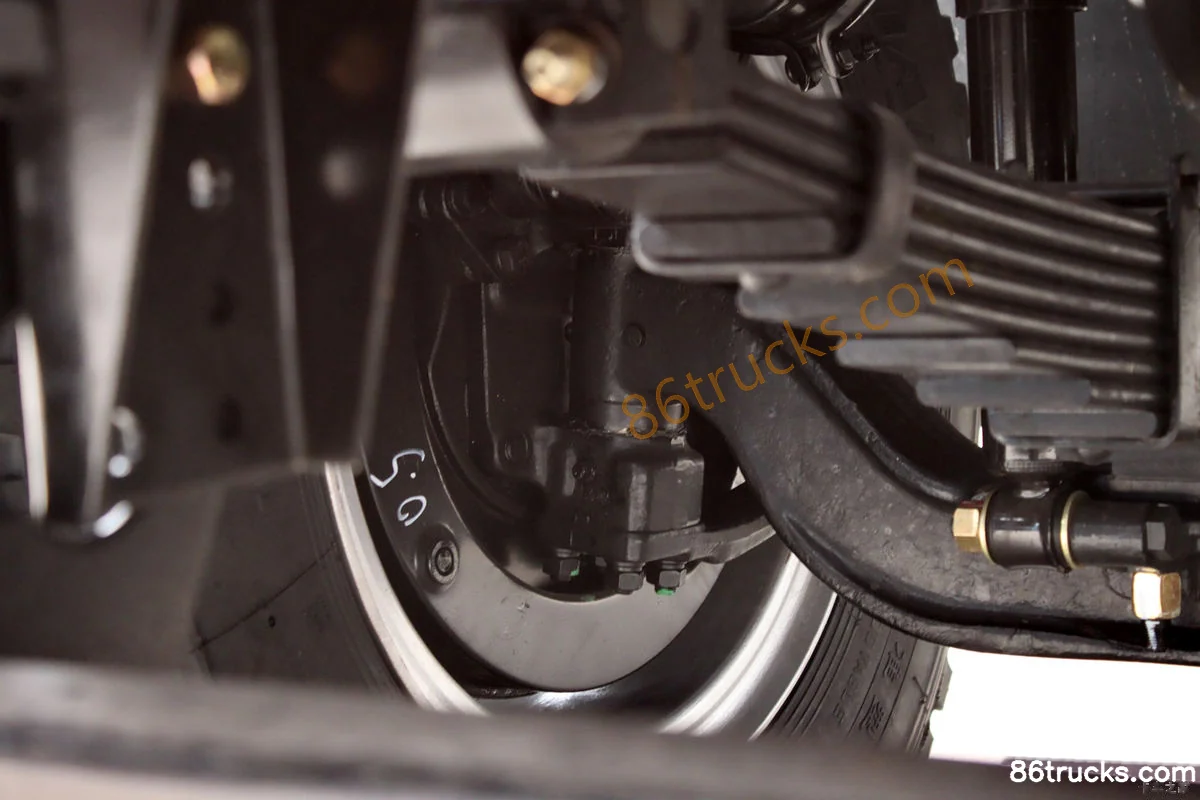

Foton RE1 140 hp 4X2(6 wheels) 3.7m dump truck Chassis (1) | 86Trucks Foton RE1 140 hp 4X2(6 wheels) 3.7m dump truck Chassis (2) | 86Trucks Foton RE1 140 hp 4X2(6 wheels) 3.7m dump truck Chassis (3) | 86Trucks

Body3

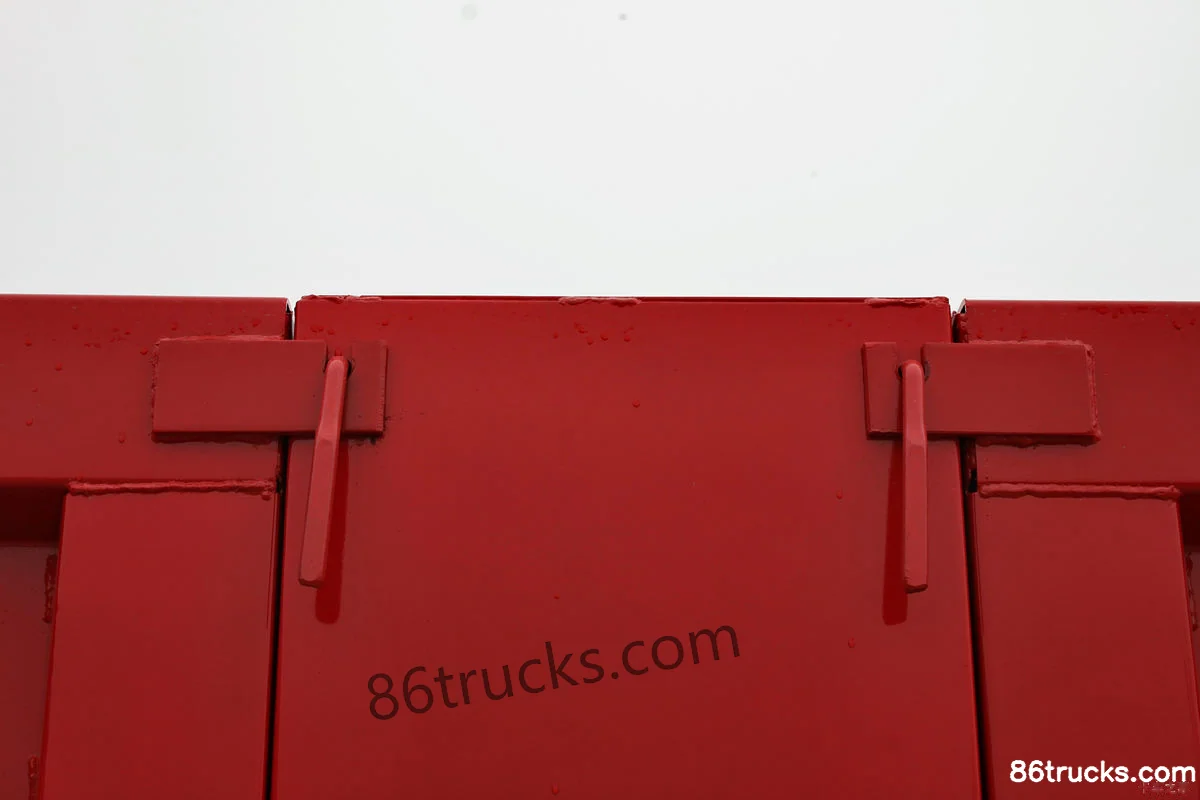

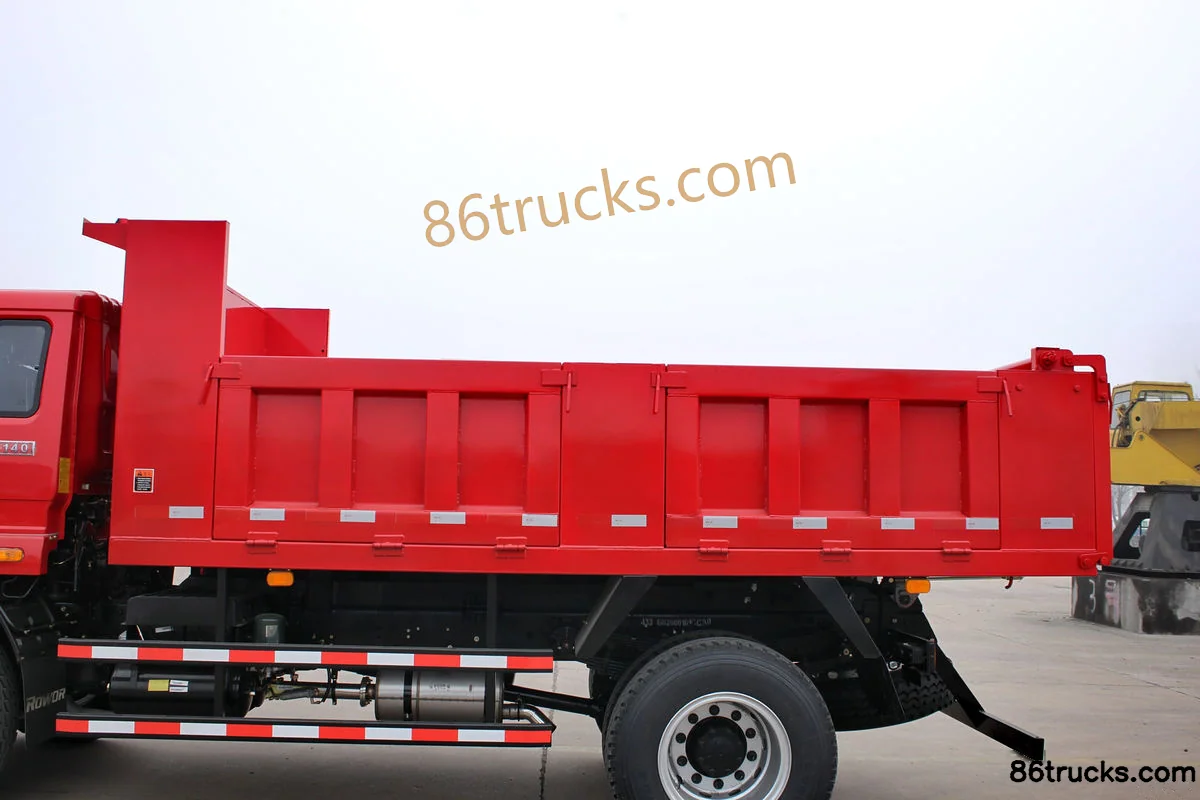

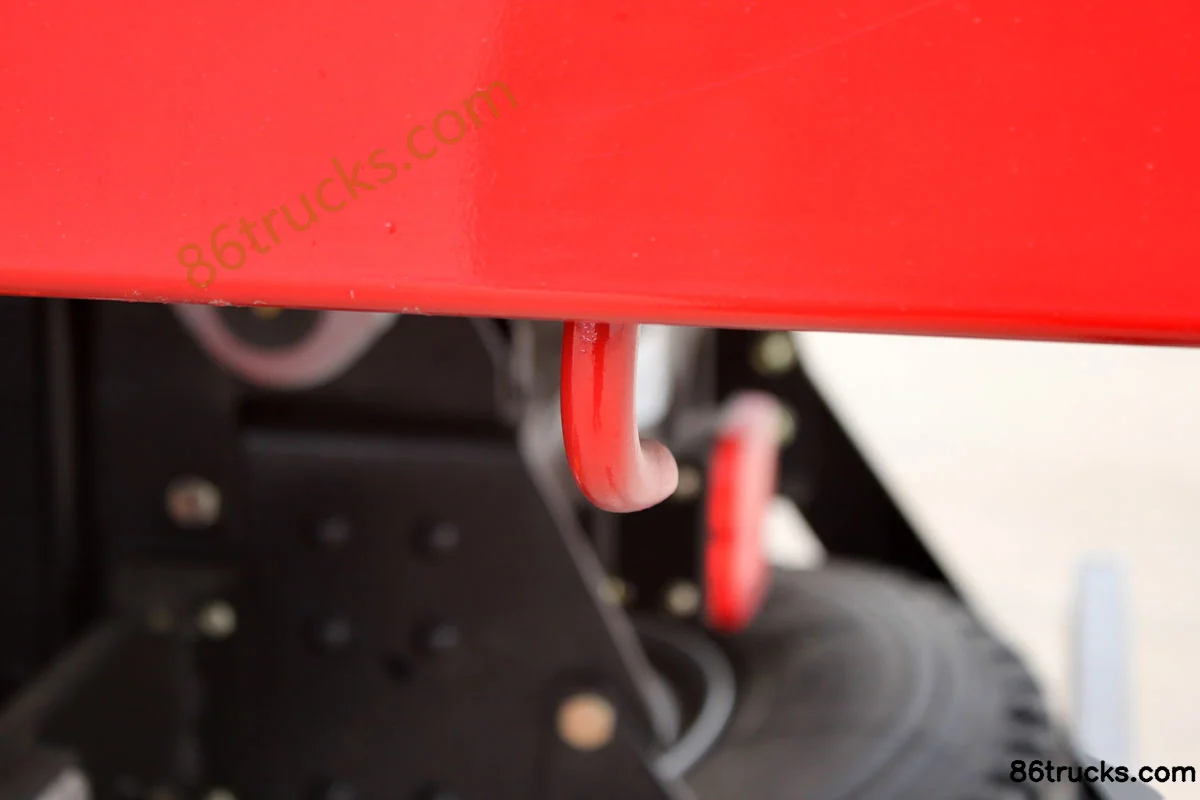

Foton RE1 140 hp 4X2(6 wheels) 3.7m dump truck Body (1) | 86Trucks Foton RE1 140 hp 4X2(6 wheels) 3.7m dump truck Body (2) | 86Trucks Foton RE1 140 hp 4X2(6 wheels) 3.7m dump truck Body (3) | 86Trucks

12 photos

FAQ

What emission standard does Foton RE1 140 hp 4X2(6 wheels) 3.7m dump truck use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Foton RE1 140 hp 4X2(6 wheels) 3.7m dump truck?

Key specs of Foton RE1 140 hp 4X2(6 wheels) 3.7m dump truck: Drive: 4x2; Horsepower: 140 hp; Emission: China IV; Fuel: Diesel; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Foton RE1 140 hp 4X2(6 wheels) 3.7m dump truck suited for?

Foton RE1 140 hp 4X2(6 wheels) 3.7m dump truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Foton RE1 140 hp 4X2(6 wheels) 3.7m dump truck differ from other variants in the same series?

Foton RE1 140 hp 4X2(6 wheels) 3.7m dump truck belongs to Foton Medium Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Foton RE1 140 hp 4X2(6 wheels) 3.7m dump truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Foton RE1 140 hp 4X2(6 wheels) 3.7m dump truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
