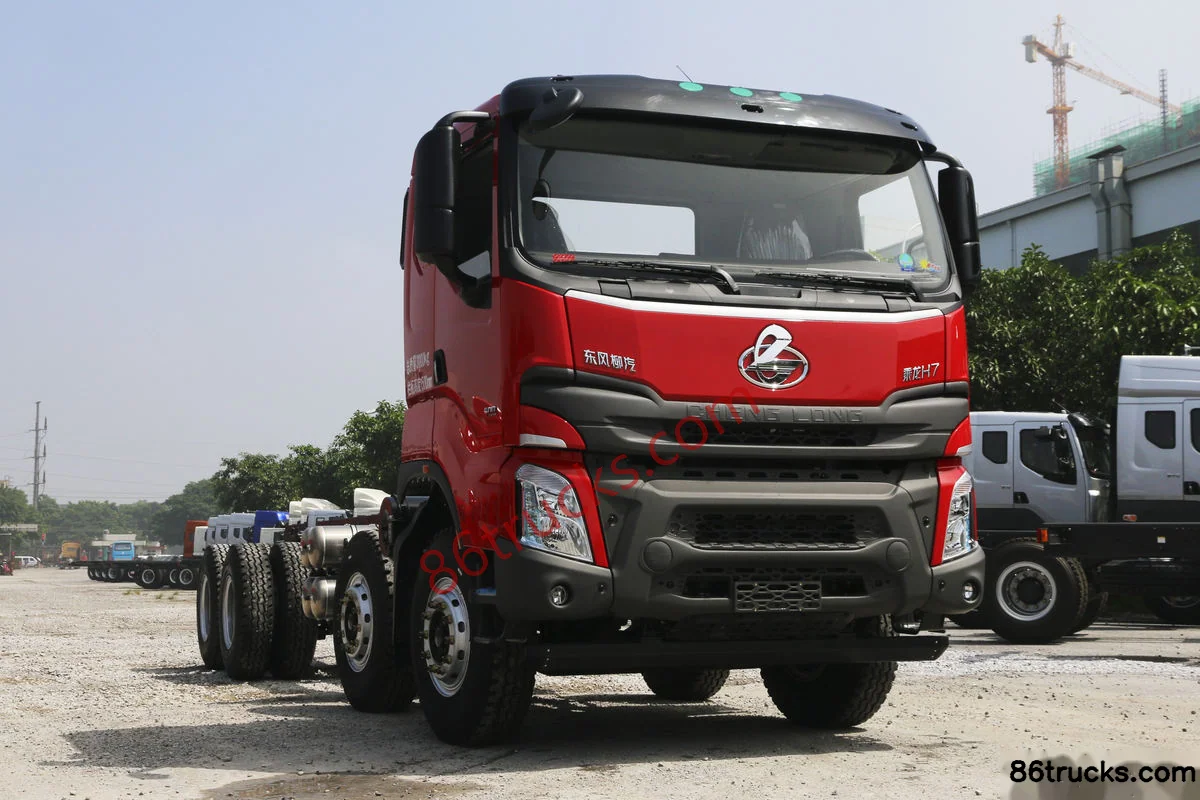

Dongfeng Liuqi Chenglong H7 400hp 8X4(12 wheels) 8.2m dump truck chassis

Export reference
From $49,417
MSRP ¥35.58M CNY
Emission: China V
Fuel: Diesel
Transmission: Fast Gear
Curb Weight:: 15.475ton
Wheelbase:: 1950+4150+1350mm
Tire Size:: 12.00R20
Rated payload: 15.395ton
Drive 8X4 (12 wheels)
Horsepower 400
Cargo box type: Dump type

Overview

The Dongfeng Liuqi Chenglong H7 400hp 8X4(12 wheels) 8.2m dump truck chassis is a Heavy truck featuring 15.395t payload, 31t GVW, Dump type cargo body and 8X4 (12 wheels) drive. On the powertrain side, it comes with a WeichaiWP12.400E50 engine, 400 hp, China V emissions and Fast Gear transmission.

China V 400 Diesel 8X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): LZ3314M5FB
Drive type: 8X4
Wheelbase: 1950+4150+1350mm
engine: WeichaiWP12.400E50
transmission: Fast Gear12JSD200T
Rear Axle Ratio: 4.769
Cab length: 11.16m
Cab width: 2.495m
Cab height: 3.45m
Front track width: 2060/2060mm
rear track: 1860/1860mm
Curb Weight: 15.475ton
Rated payload: 15.395ton
GVWR: 31ton
Origin: Liuzhou, Guangxi
tonnage class: Heavy truck
Approach angle: 20°
departure angle: 17°
Remarks: Double U-bolts, Mercedes-Benz driveshaft, large connecting plate, European swirl dual-channel intake pipe, desert air filter, reinforced steel rim, no spare tire carrier, WABCO valves (air processing unit, parking brake hand control valve, brake master cylinder), ZF steering gear
Energy Type: Diesel
Engine parameters
Engine Brand: Weichai
Engine Model: WeichaiWP12.400E50
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 11.596L
Emission standard: China V
Max output power: 294kW
Max hp: 400Horsepower
Max torque: 1920N·m
Max torque speed: 1000-1400rpm
Rated speed: 1900rpm
Engine Type: Inline 6-cylinder, electronic high-pressure common rail, SCR
Technology route: Common Rail SCR
Transmission Parameters
Transmission Model: Fast Gear12JSD200T
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 12Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Unloading Type: Dump type
Cargo box type: Dump type
Cargo box length: 8.2m
Cargo box width: 2.3m
Cargo box height: 1.5m
Cab parameters
Cab: H72S Cab
fuel tank
Fuel tank material: aluminum alloy
Fuel tank capacity: 350L
Chassis Specs
Front axle allowable load: 6500/6500kg
Frame Dimensions: 300(8+8)mm
rear axle description: 2*300 cast steel (reinforced)
rear axle allowable load: 18000 (tandem axle group)kg
Axle ratio: 4.769
Leaf spring count: 11/11/13
clutch: Φ430
Tire
Tire Size: 12.00R20
Number of tires: 12pcs
Control configuration
ABS:
interior configuration
AC control type: Automatic
Exterior features
Aluminum air tank:
Multimedia features
GPS/Beidou driving recorder:

Photos

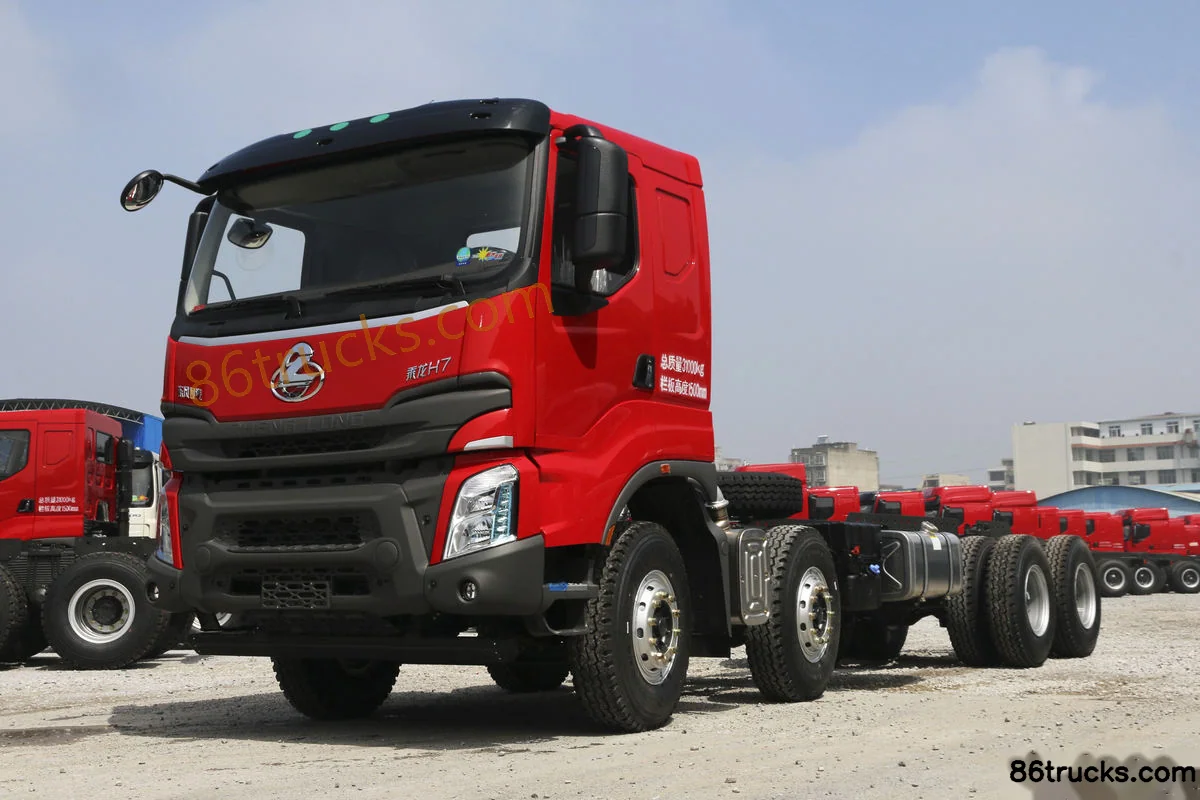

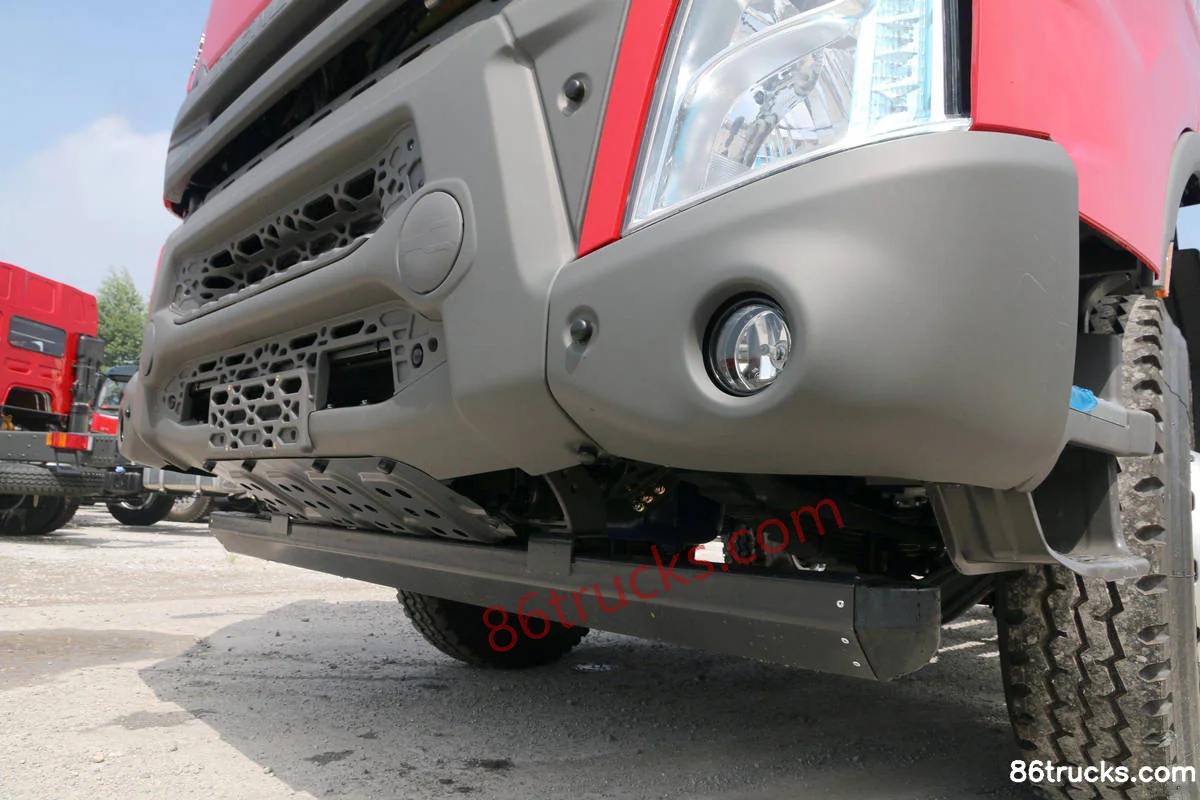

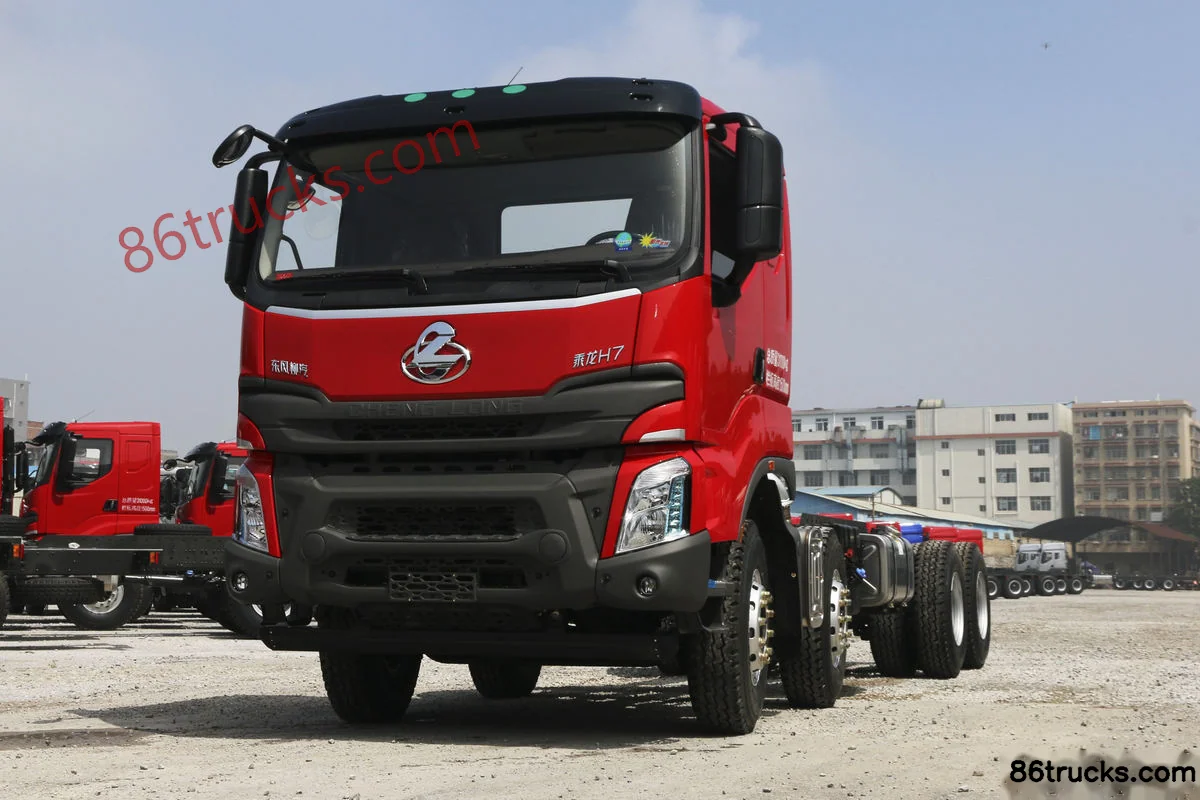

Exterior3

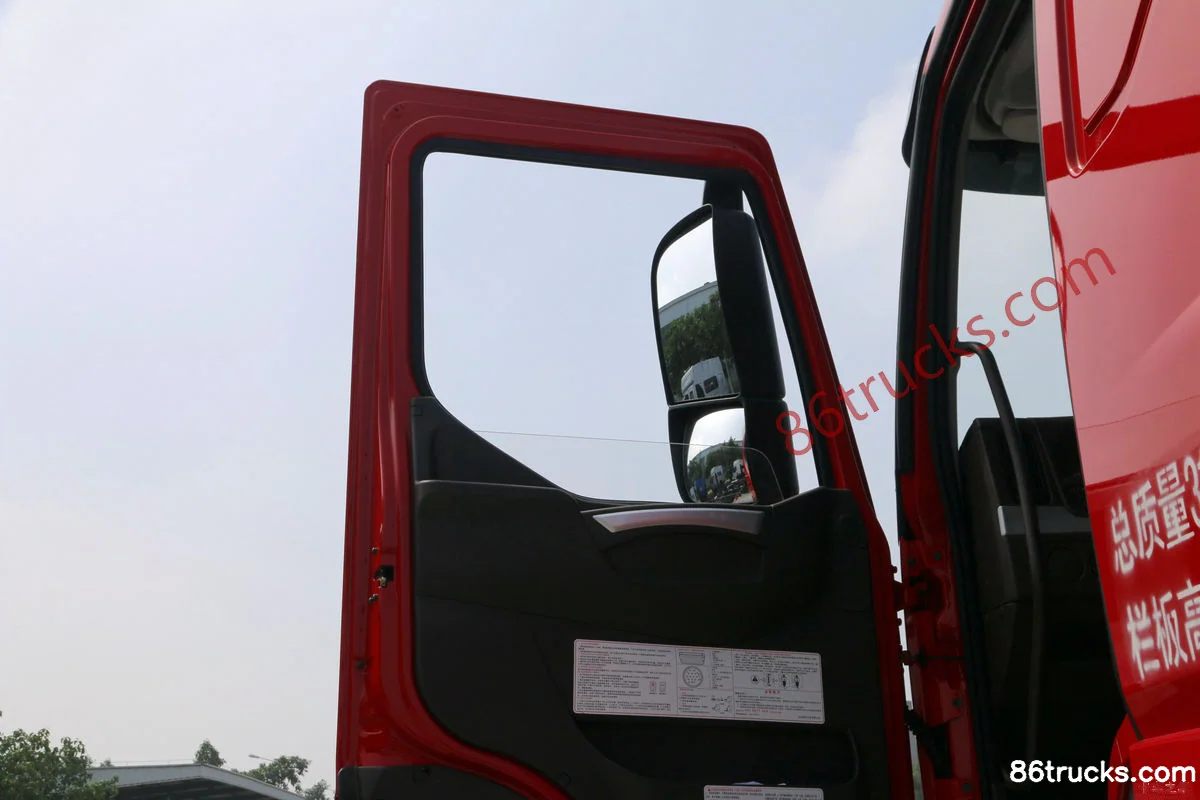

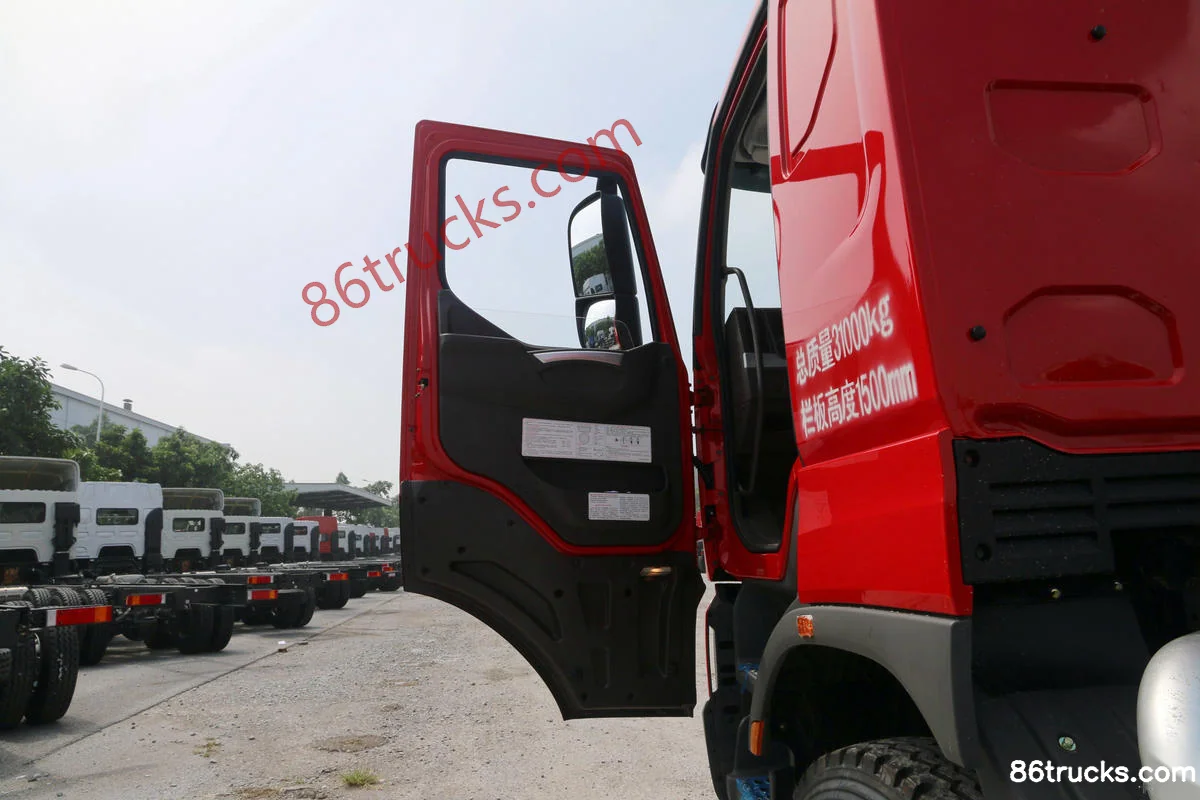

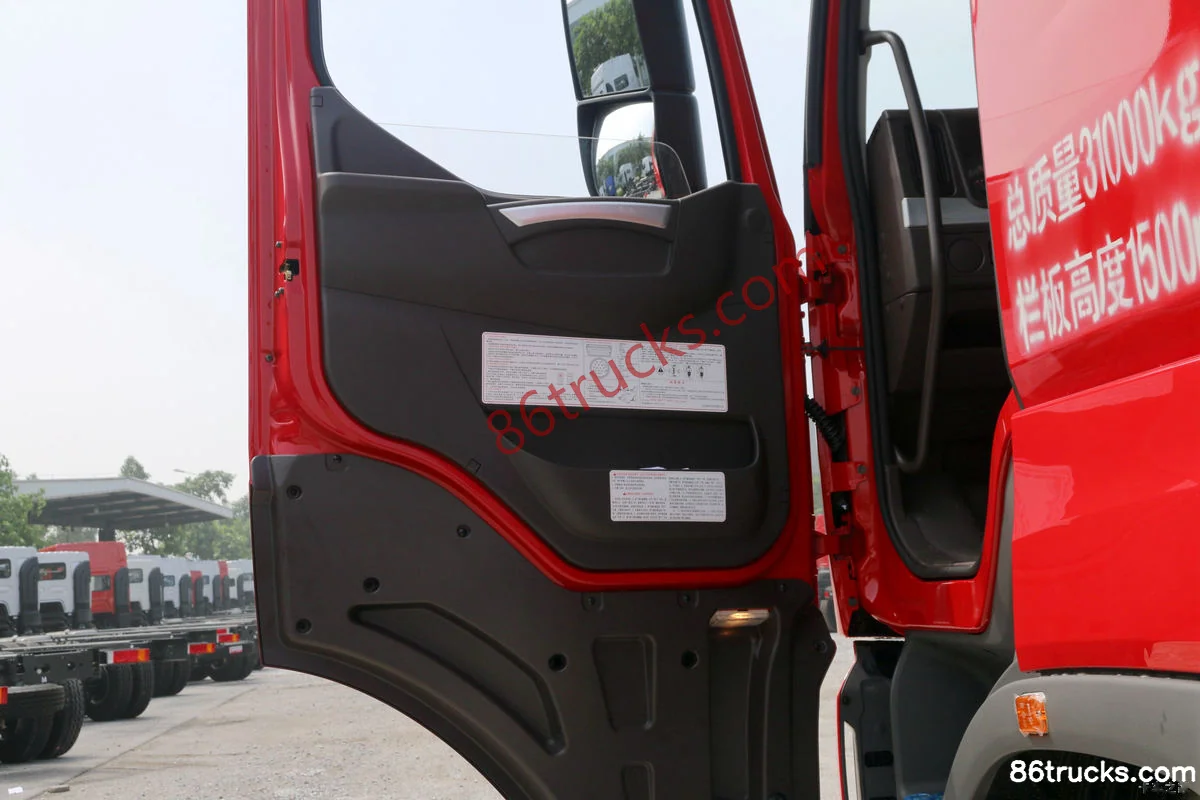

Cab3

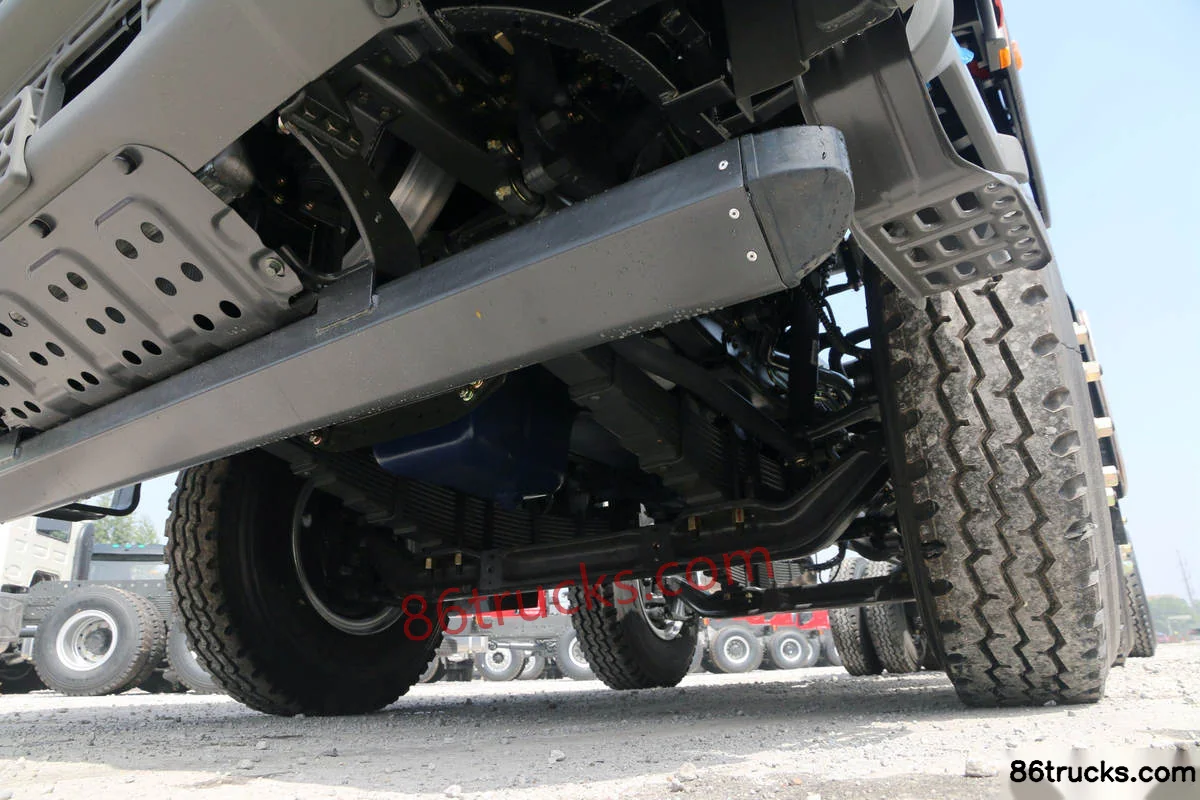

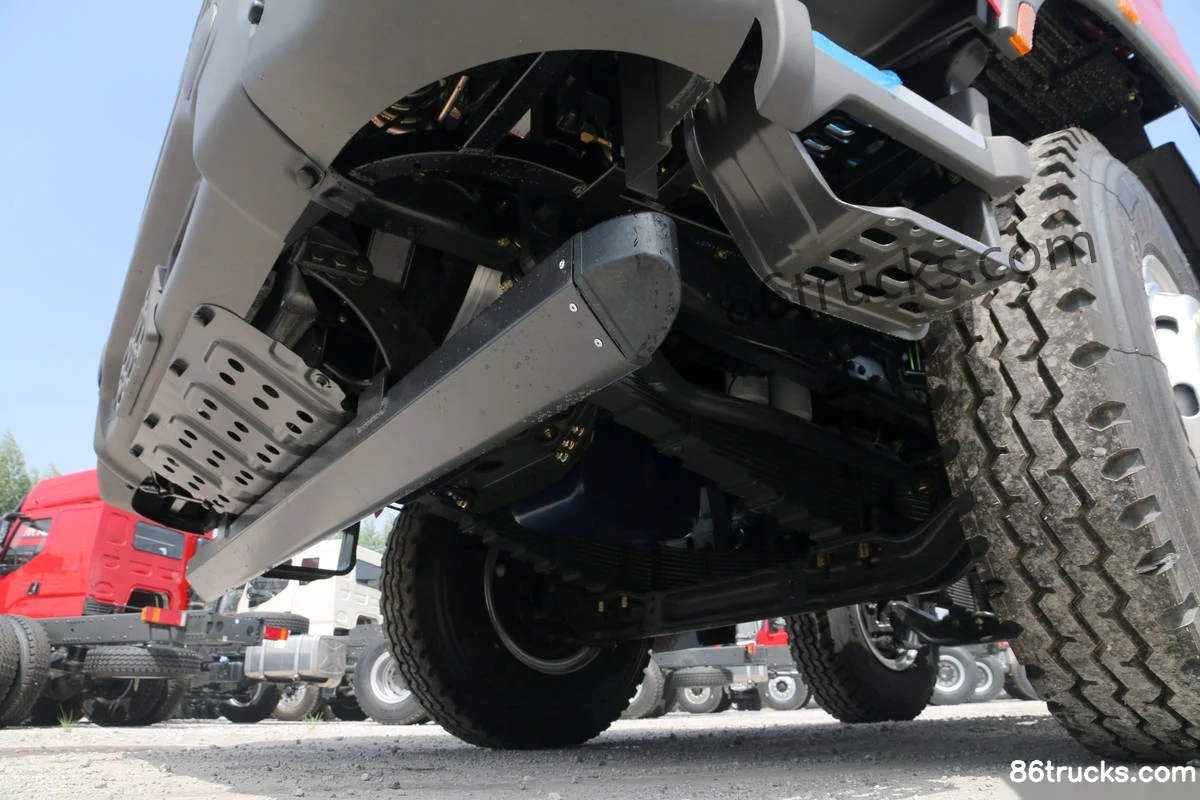

Chassis3

9 photos

FAQ

What is the export price of Dongfeng Liuqi Chenglong H7 400hp 8X4(12 wheels) 8.2m dump truck chassis, and what does it include?

Dongfeng Liuqi Chenglong H7 400hp 8X4(12 wheels) 8.2m dump truck chassis export reference is about From $49,417; MSRP is ¥35.58M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Dongfeng Liuqi Chenglong H7 400hp 8X4(12 wheels) 8.2m dump truck chassis use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Dongfeng Liuqi Chenglong H7 400hp 8X4(12 wheels) 8.2m dump truck chassis?

Key specs of Dongfeng Liuqi Chenglong H7 400hp 8X4(12 wheels) 8.2m dump truck chassis: Drive: 8x4; Horsepower: 400 hp; Emission: China V; Fuel: Diesel; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Dongfeng Liuqi Chenglong H7 400hp 8X4(12 wheels) 8.2m dump truck chassis suited for?

Dongfeng Liuqi Chenglong H7 400hp 8X4(12 wheels) 8.2m dump truck chassis is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Dongfeng Liuqi Chenglong H7 400hp 8X4(12 wheels) 8.2m dump truck chassis differ from other variants in the same series?

Dongfeng Liuqi Chenglong H7 400hp 8X4(12 wheels) 8.2m dump truck chassis belongs to Dongfeng Chenglong H7 Heavy Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Dongfeng Liuqi Chenglong H7 400hp 8X4(12 wheels) 8.2m dump truck chassis?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Dongfeng Liuqi Chenglong H7 400hp 8X4(12 wheels) 8.2m dump truck chassis?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
