Jindong JDS540T 5-speed manual transmission

Export reference
MSRP N/A
Features:: 1. 5 forward gears + 1 reverse; 2. Reverse and 1st: sliding sleeve; 2nd/3rd, 4th/5th: lock-pin synchronizer; 3. Remote or direct shift; 4. Front and rear auxiliary boxes; auxiliary box: manual or pneumatic; 5. Optional parking brake and PTO.
Max input torque:: 390N·m
1st gear ratio:: 5.71

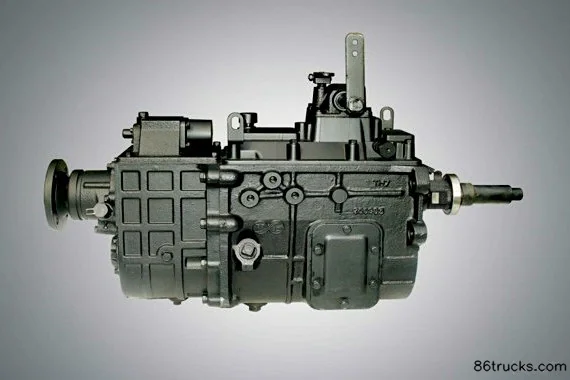

Jindong JDS540T 5-speed manual transmission exterior
Transmission Model: JDS540T
Transmission Brand: Jindong
Matching Range: Dongfeng (2nd Auto Works): Dongfeng (26 seats and below). NAVECO: Yuejin Kaituo series. Hangzhou Xingdi: Hangqi Dongfeng Jiekun, Jiewo; Engines: YC4F115, CY4102-C3C, SL2110, YC2115ZQ, CA190, CA4100, CA4DX23-110, YC4110ZQ, YZ4DB1-30, YC4108, CA4102

Overview

The Jindong JDS540T 5-speed manual transmission is a parts product with spec JDS540T.

Model Specs

Legend: ● Standard　○ Optional　- N/A

Transmission Parameters
Transmission Brand: Jindong
Transmission series: 5-speed series
Matching Range: Dongfeng (2nd Auto Works): Dongfeng (26 seats and below). NAVECO: Yuejin Kaituo series. Hangzhou Xingdi: Hangqi Dongfeng Jiekun, Jiewo; Engines: YC4F115, CY4102-C3C, SL2110, YC2115ZQ, CA190, CA4100, CA4DX23-110, YC4110ZQ, YZ4DB1-30, YC4108, CA4102
Features: 1. 5 forward gears + 1 reverse; 2. Reverse and 1st: sliding sleeve; 2nd/3rd, 4th/5th: lock-pin synchronizer; 3. Remote or direct shift; 4. Front and rear auxiliary boxes; auxiliary box: manual or pneumatic; 5. Optional parking brake and PTO.
Max input torque: 390N·m
1st gear ratio: 5.71
synchronizer: Yes
Main box center distance: 121.125mm
2nd gear ratio: 3.37
3rd gear ratio: 2.19
4th gear ratio: 1.47
5th gear ratio:
Reverse Gear 1 Ratio: 5.98
Transmission weight: 120kg
Transmission oil capacity: 5.5L
Number of gears: 5Gear
shift type: Manual
Transmission Model: JDS540T
shift method: Manual
Forward gears: 5Gear
Number of Reverse Gears:

Photos

0 photos

FAQ

What transport jobs is Jindong JDS540T 5-speed manual transmission suited for?

Match Jindong JDS540T 5-speed manual transmission to your job using drive, horsepower and emission on this page. Include use case, destination and quantity in your quote request.

How does Jindong JDS540T 5-speed manual transmission differ from other variants in the same series?

Jindong JDS540T 5-speed manual transmission belongs to Jindong 5-speed series (transmission). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Jindong JDS540T 5-speed manual transmission?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Jindong JDS540T 5-speed manual transmission?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
