JMC New Shunda 109 hp 4X2(6 wheels) 3.6m Dump Truck

Export reference
From $14,278
MSRP ¥10.28M CNY
Emission: China IV
Fuel: Diesel
Transmission: JMC
Curb Weight:: 2.5ton
Wheelbase:: 2800mm
Tire Size:: 7.00R16LT
Rated payload: 1.495ton
Drive 4X2 (6 wheels)
Horsepower 109
Cargo box type: Rear-dump body

Overview

The JMC New Shunda 109 hp 4X2(6 wheels) 3.6m Dump Truck is a Light Truck featuring 1.495t payload, 4.125t GVW, Rear-dump body cargo body and 4X2 (6 wheels) drive. On the powertrain side, it comes with a JMCJX493ZLQ4 engine, 109 hp, China IV emissions and JMC transmission.

China IV 109 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): JMT3040XC2
Drive type: 4X2
Wheelbase: 2800mm
engine: JMCJX493ZLQ4
transmission: JMC 5-speed
Cab length: 5.36m
Cab width: 1.89m
Cab height: 2.055m
Front track width: 1385mm
rear track: 1425mm
Curb Weight: 2.5ton
Rated payload: 1.495ton
GVWR: 4.125ton
Origin: Nanchang, Jiangxi
tonnage class: Light Truck
Approach angle: 27°
departure angle: 14.5°
Energy Type: Diesel
Engine parameters
Engine Brand: JMC
Engine Model: JX493ZLQ4
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 2.771L
Emission standard: China IV
Max output power: 80kW
Max hp: 109Horsepower
Max torque: 260N·m
Max torque speed: 1800-2000rpm
Rated speed: 3800rpm
Engine Type: Inline, high-pressure common rail
Transmission Parameters
Transmission Model: JMC 5-speed
Transmission Brand: JMC
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
Unloading Type: Rear-dump body
Cargo box type: Rear-dump body
Cargo box length: 3.626m
Cargo box width: 1.8m
Cargo box height: 0.6m
Chassis Specs
rear axle allowable load: 2605kg
Leaf spring count: 7/4+5
Tire
Tire Size: 7.00R16LT
Number of tires: 6pcs

Photos

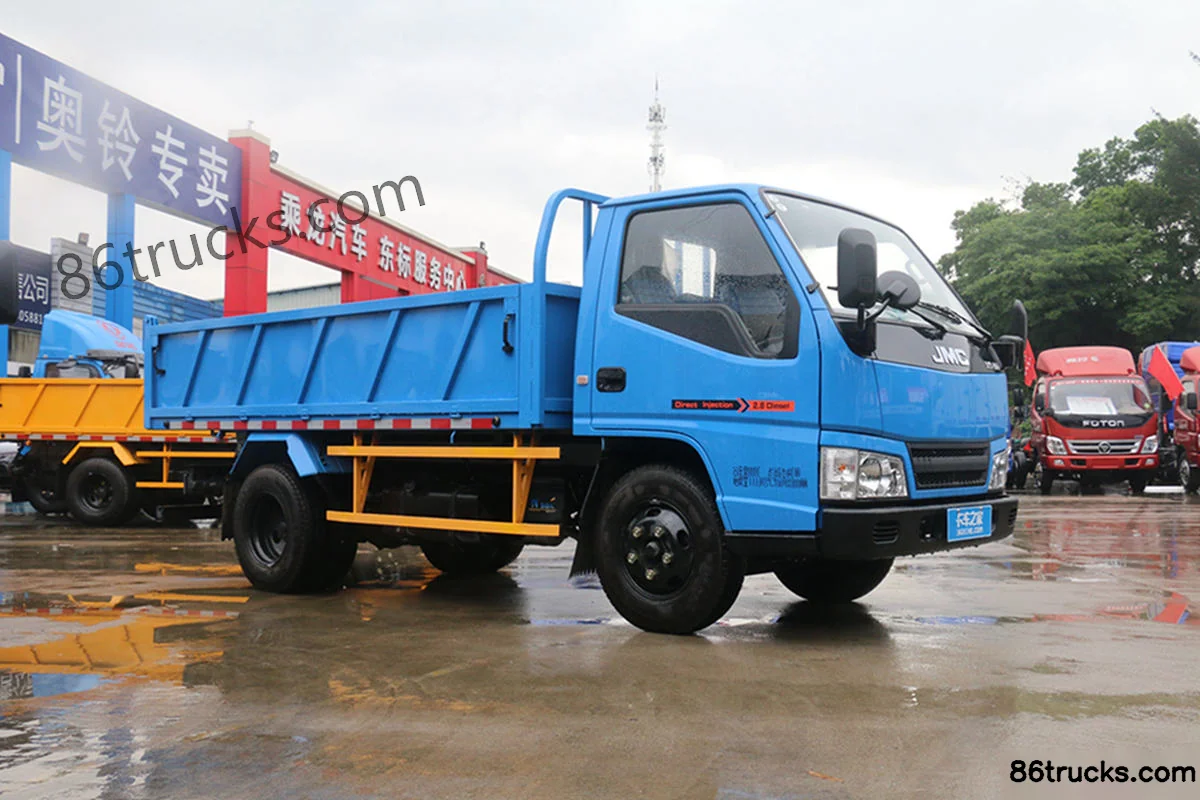

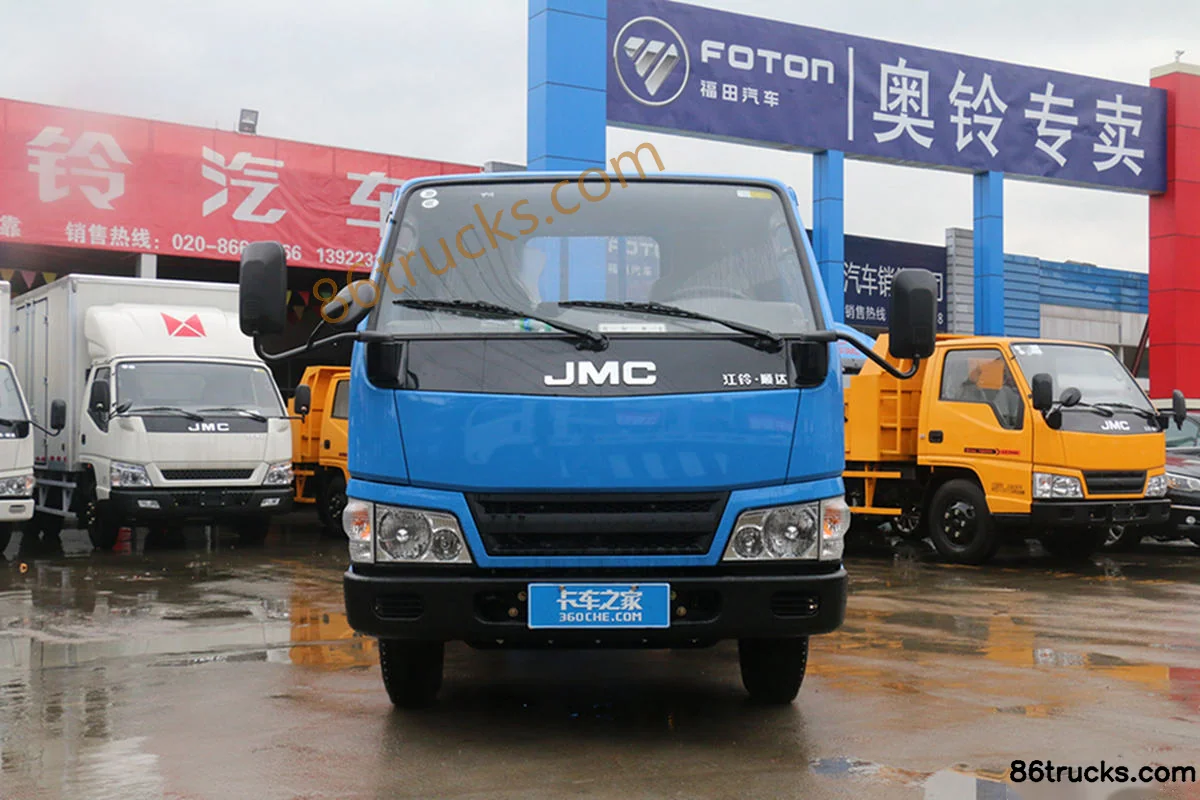

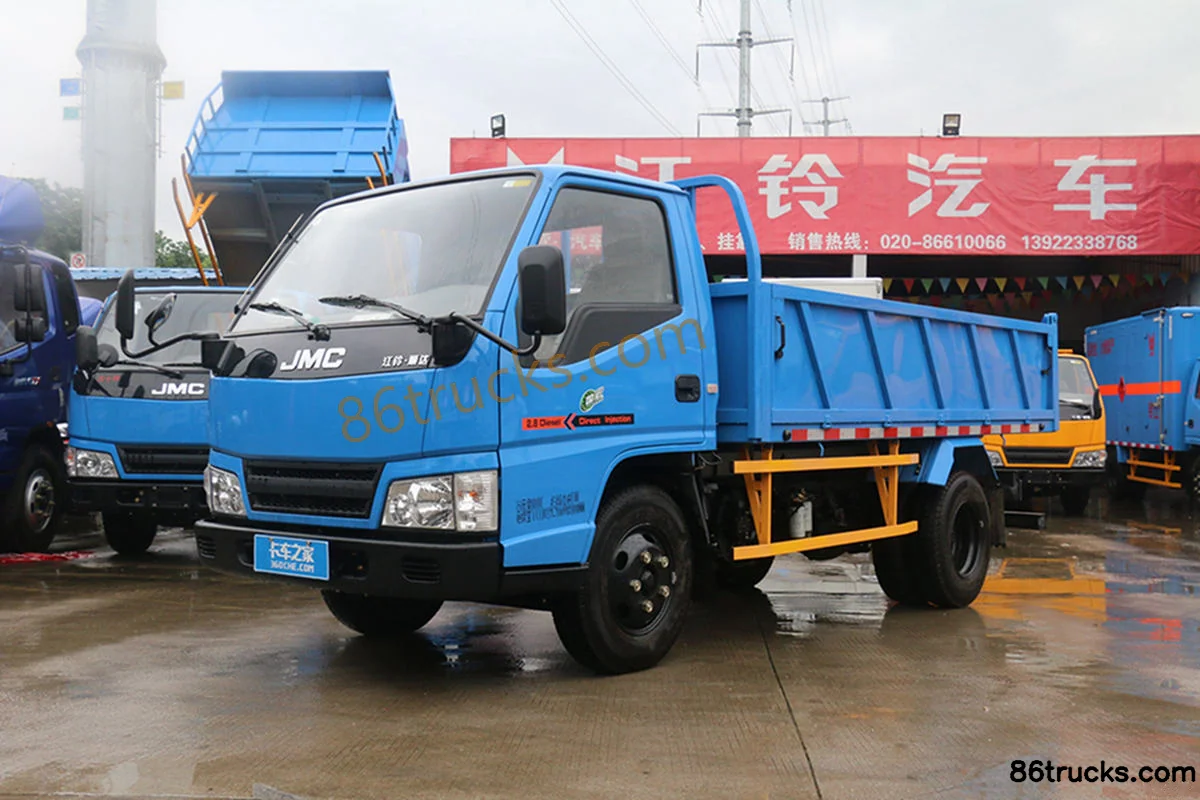

Exterior3

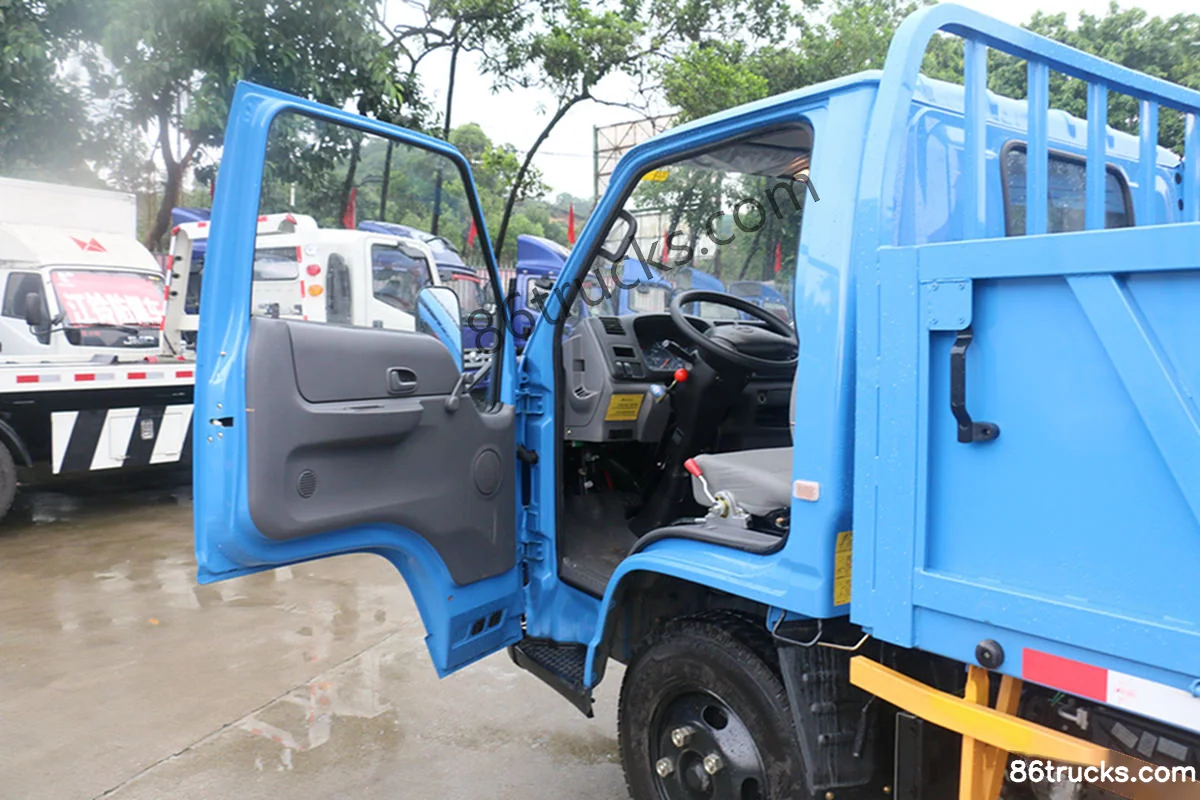

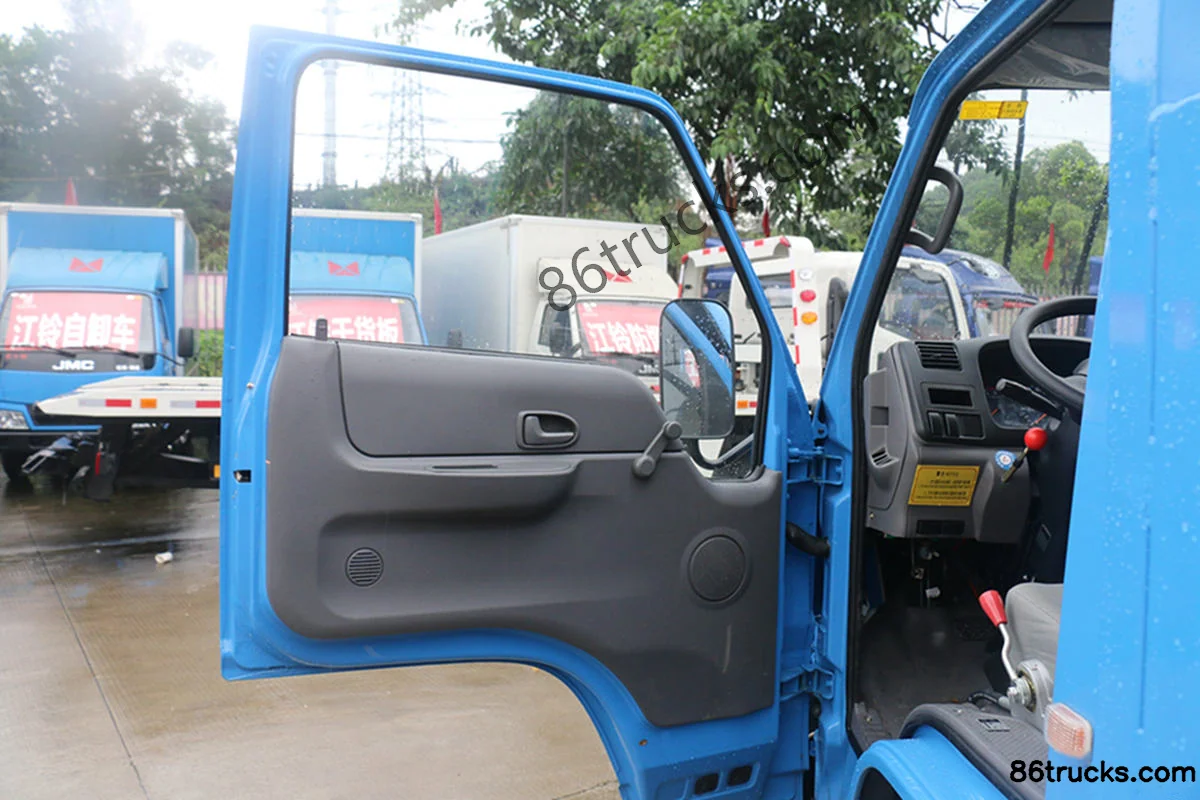

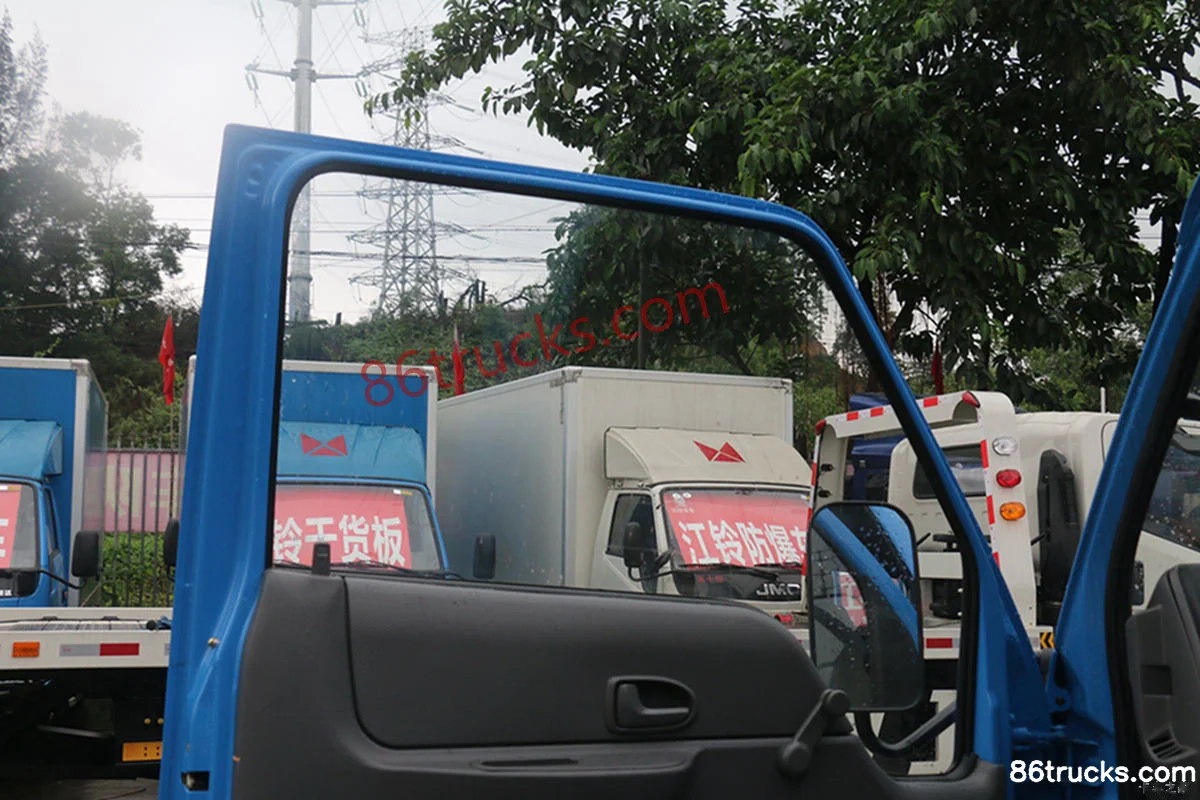

Cab3

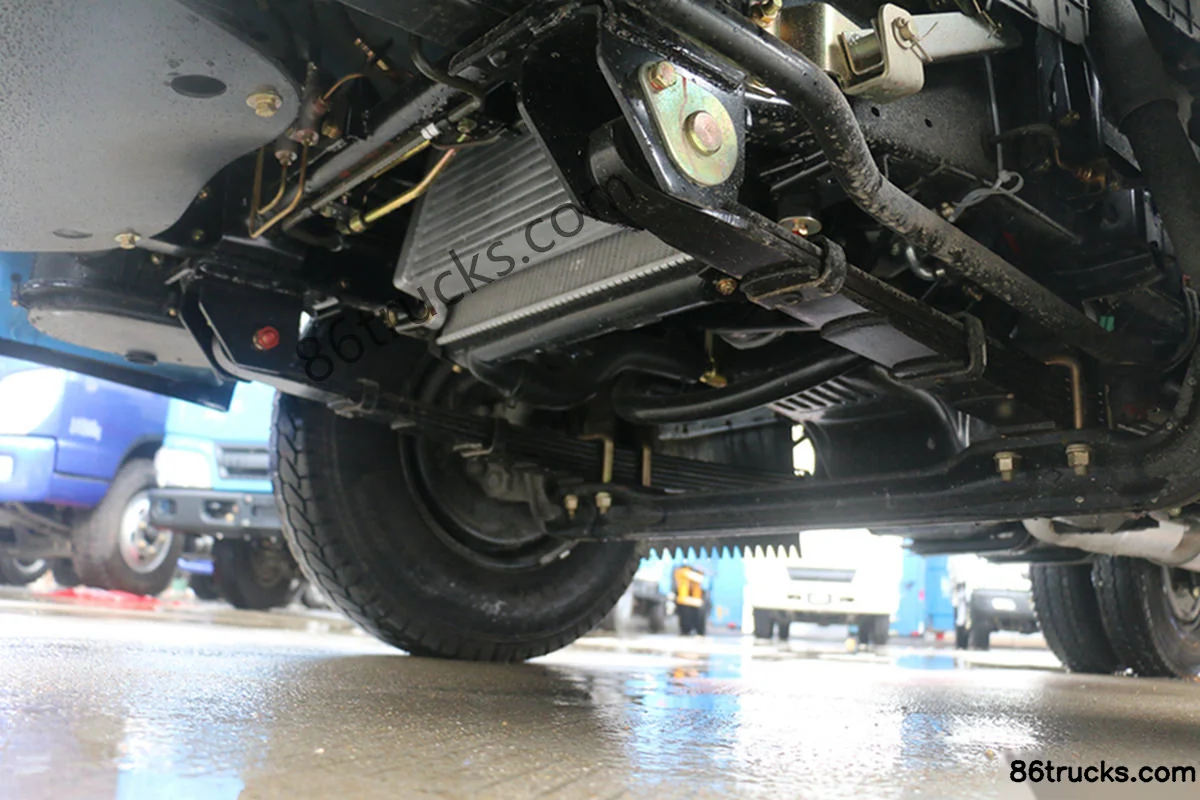

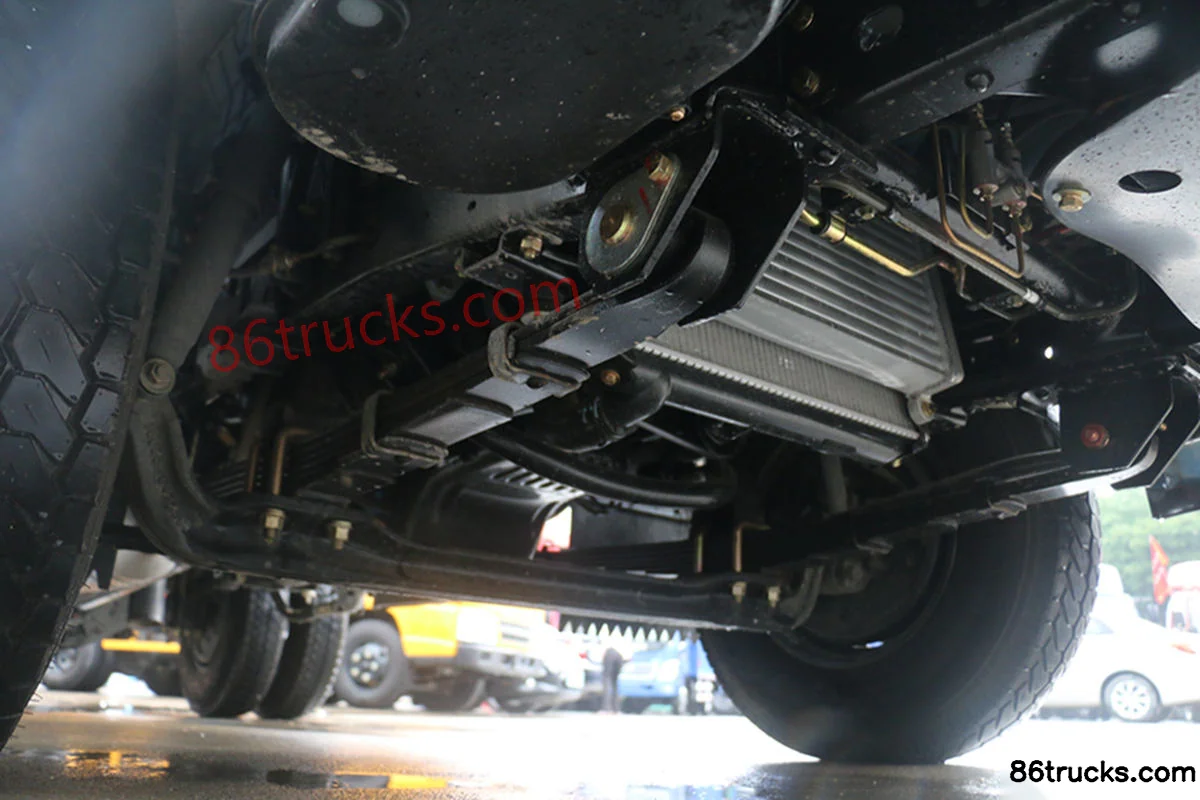

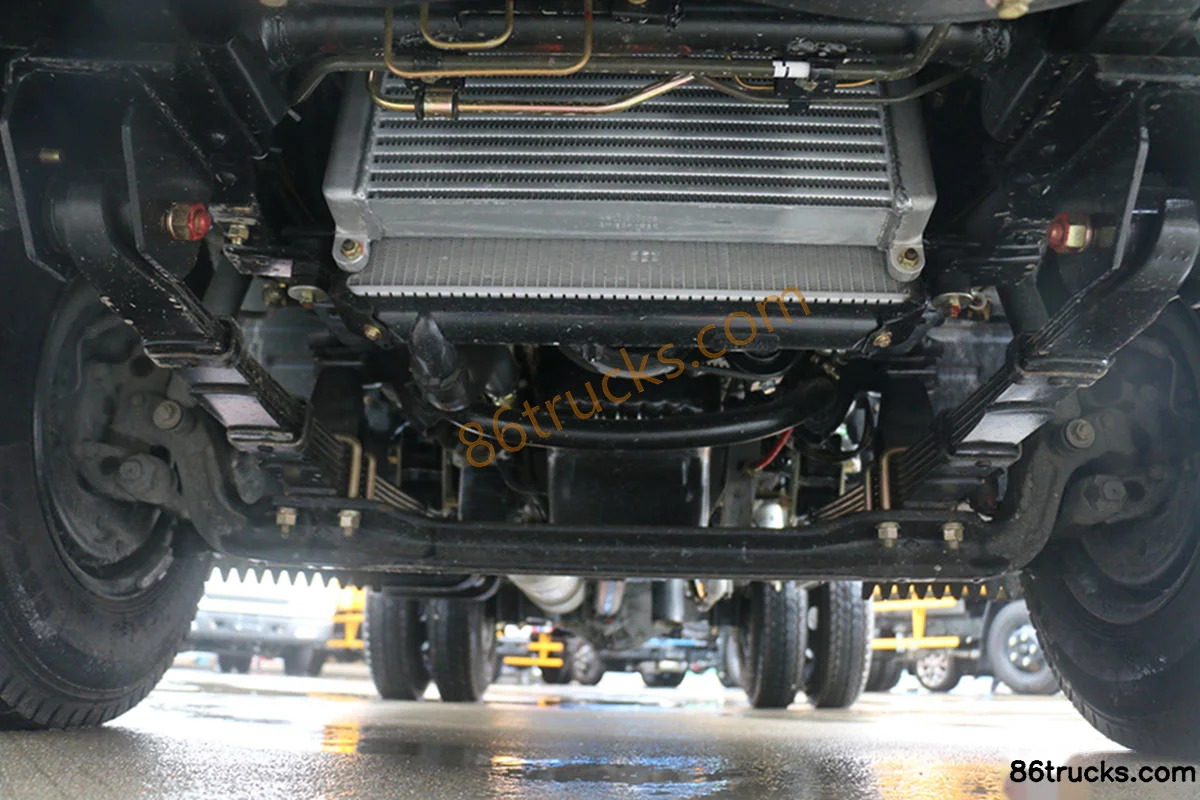

Chassis3

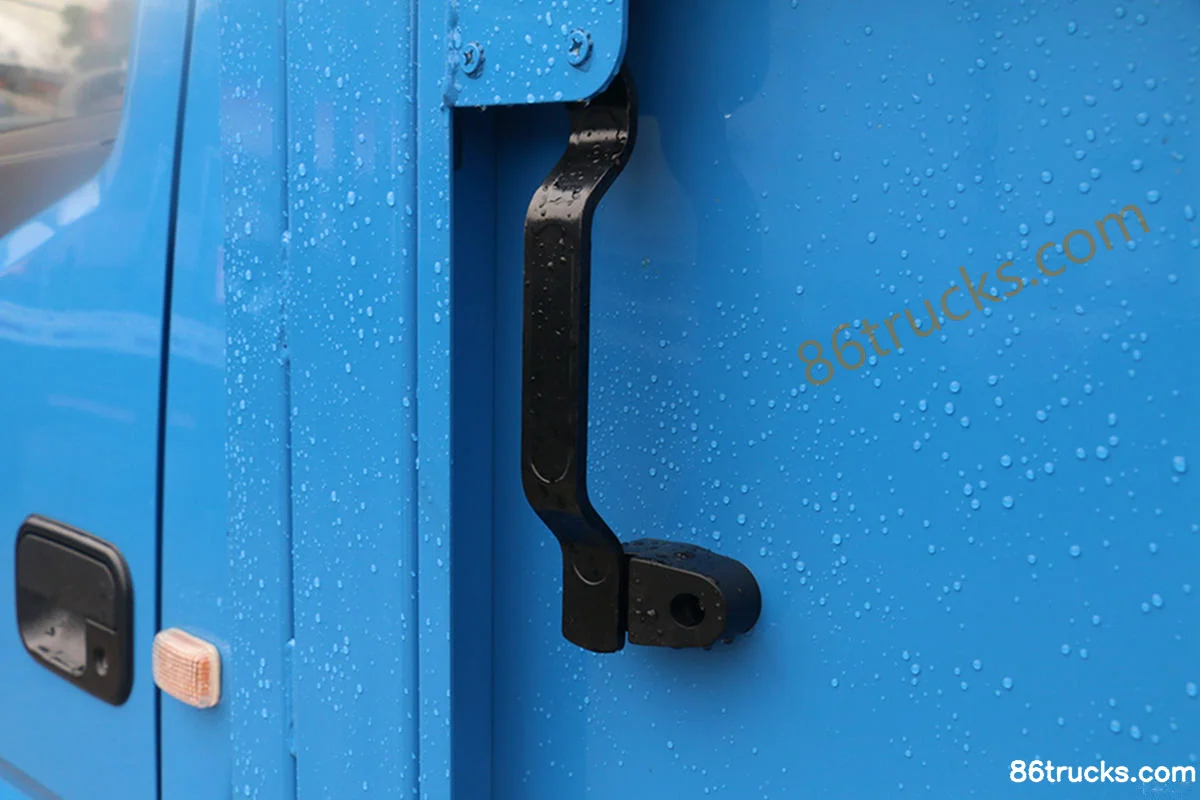

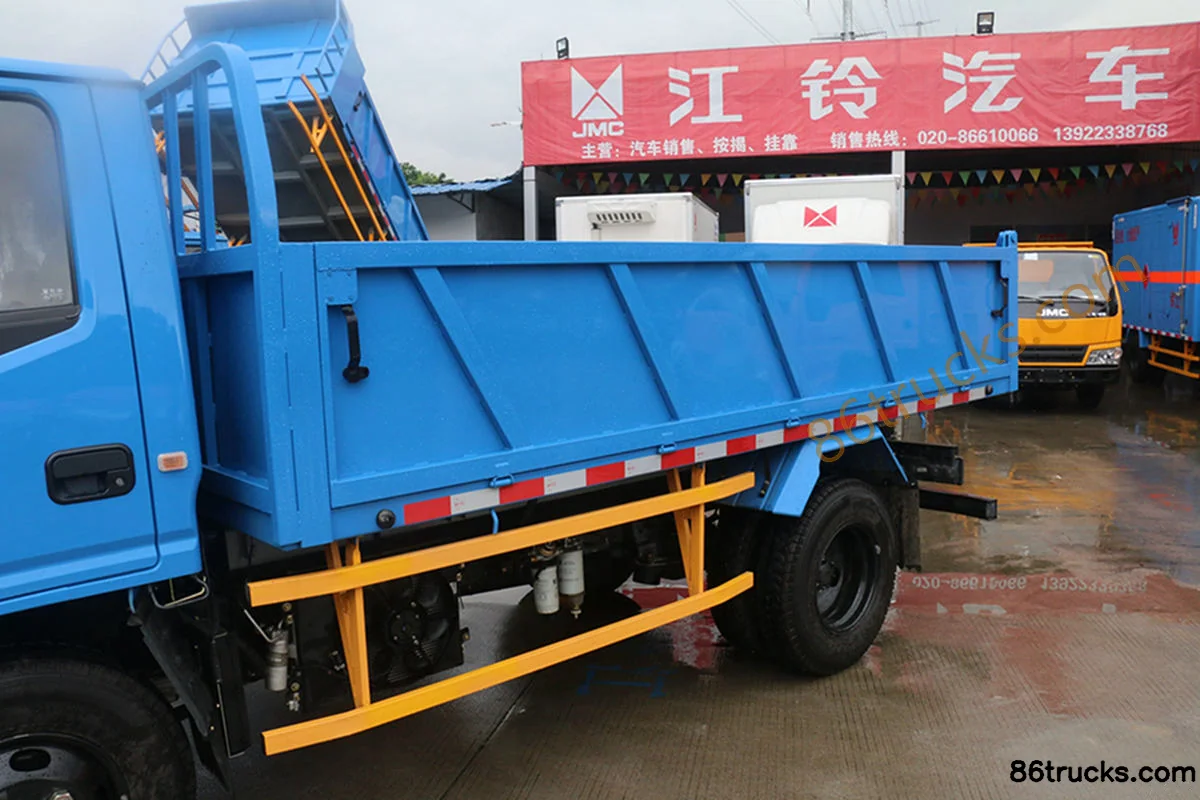

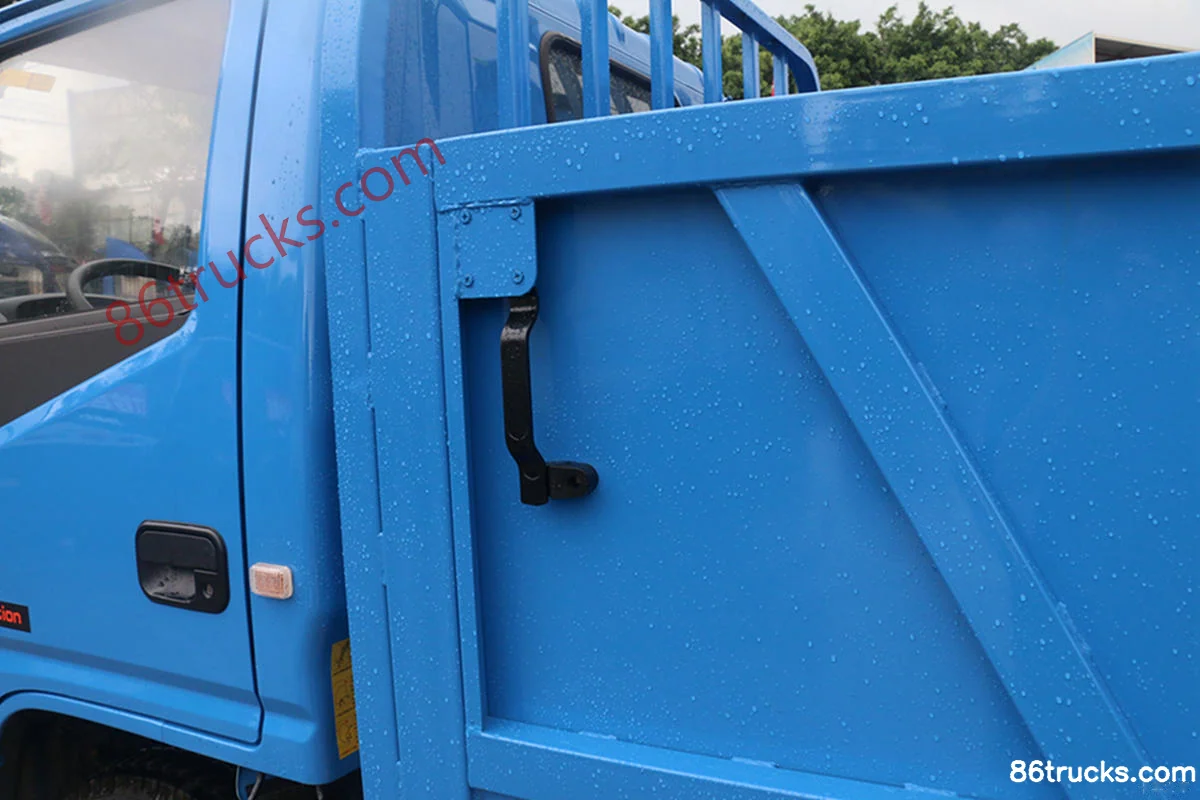

Body3

12 photos

FAQ

What is the export price of JMC New Shunda 109 hp 4X2(6 wheels) 3.6m Dump Truck, and what does it include?

JMC New Shunda 109 hp 4X2(6 wheels) 3.6m Dump Truck export reference is about From $14,278; MSRP is ¥10.28M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does JMC New Shunda 109 hp 4X2(6 wheels) 3.6m Dump Truck use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of JMC New Shunda 109 hp 4X2(6 wheels) 3.6m Dump Truck?

Key specs of JMC New Shunda 109 hp 4X2(6 wheels) 3.6m Dump Truck: Drive: 4x2; Horsepower: 109 hp; Emission: China IV; Fuel: Diesel; Transmission: JMC. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is JMC New Shunda 109 hp 4X2(6 wheels) 3.6m Dump Truck suited for?

JMC New Shunda 109 hp 4X2(6 wheels) 3.6m Dump Truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does JMC New Shunda 109 hp 4X2(6 wheels) 3.6m Dump Truck differ from other variants in the same series?

JMC New Shunda 109 hp 4X2(6 wheels) 3.6m Dump Truck belongs to JMC New Shunda Light Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for JMC New Shunda 109 hp 4X2(6 wheels) 3.6m Dump Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export JMC New Shunda 109 hp 4X2(6 wheels) 3.6m Dump Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
