JMC Xinshunda 109 hp 4X2(6 wheels) 3.626m Dump Truck
EXW
From $14,833
Export quote
JMC New Shunda Light Truck Dump Trucks
Main model photos
222 photos
Models
Inventory
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| JMC Xinshunda 109 hp 4X2(6 wheels) 3.626m Dump Truck | 4x2 / 109hp / China IV | From $14,833 | |
| JMC New Shunda 109 hp 4X2(6 wheels) 3.6m Dump Truck | 4x2 / 109hp / China IV | From $14,278 | |
| JMC New Shunda 109 hp 4X2(6 wheels) 3.9m Dump Truck | 4x2 / 109hp / China IV | From $14,556 | |
| JMC New Shunda 109 hp 4X2(6 wheels) 3.88 m Dump Truck | 4x2 / 109hp / China IV | From $14,417 | |
| JMC New Shunda 109 hp 4X2(6 wheels) 3.19m dump truck | 4x2 / 109hp / China IV | From $15,278 |

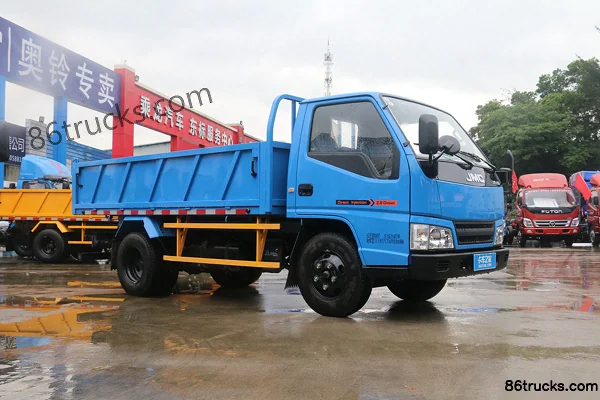

JMC New Shunda 109 hp 4X2(6 wheels) 3.6m Dump Truck
EXW
From $14,278
Export quote

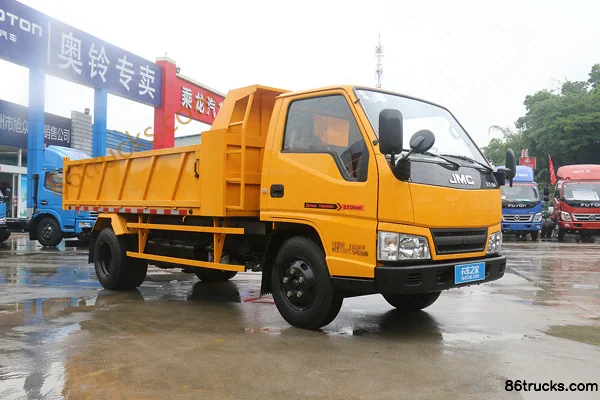

JMC New Shunda 109 hp 4X2(6 wheels) 3.9m Dump Truck
EXW
From $14,556
Export quote
JMC New Shunda 109 hp 4X2(6 wheels) 3.88 m Dump Truck
EXW
From $14,417
Export quote
JMC New Shunda 109 hp 4X2(6 wheels) 3.19m dump truck
EXW
From $15,278
Export quote
Series Specs
Basic Info
Model code (announced): JMT3040XPG2 / JMT3040XC2 / JX3044XG2 / JX3045XG2 / JX3045XSG2 / JX3044XSG2
Drive type: 4X2
Wheelbase: 3360 / 2800mm
Engine Model: JMCJX493ZLQ4 / JX493ZLQ4
Transmission Model: JMC 5-speed / JMCJC528T8
Rear Axle Ratio: 6.142
Cab length: 5.97 / 5.36 / 5.985 / 5.95 / 5.9m
Cab width: 1.89 / 1.895m
Cab height: 2.055 / 2.075 / 2.1 / 2.07m
Front track width: 1385mm
rear track: 1425mm
Curb Weight: 2.5 / 2.72 / 2.7ton
Rated payload: 1.495 / 1.645 / 1.47 / 1.45ton
GVWR: 4.125 / 4.495ton
Origin: Nanchang, Jiangxi
tonnage class: Light Truck
Approach angle: 27°
departure angle: 14.5 / 17.5°
Energy Type: Diesel
Engine parameters
Engine Brand: JMC
Number of cylinders: 4cylinder
Displacement: 2.771L
Emission standard: China IV
Max output power: 80kW
Max hp: 109Horsepower
Max torque: 260N·m
Max torque speed: 1800-2000rpm
Rated speed: 3800rpm
Engine Type: Inline, high-pressure common rail
Transmission Parameters
Transmission Brand: JMC
Forward gears: 5 / 8Gear
Number of Reverse Gears:
Cargo box parameters
Unloading Type: Rear-dump body
Cargo box type: Rear-dump body
Cargo box length: 3.626 / 3.88 / 3.19m
Cargo box width: 1.8m
Cargo box height: 0.6 / 0.4 / 0.38m
Chassis Specs
rear axle allowable load: 2615 / 2605 / 2635 / 2570 / 2640kg
Axle ratio: 6.142
Leaf spring count: 7/4+5
FAQ
What kind of truck is JMC JMC New Shunda Light Truck Dump Trucks?
JMC JMC New Shunda Light Truck is an export-oriented Dump Trucks lineup with about 6 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for JMC New Shunda Light Truck Dump Trucks?
JMC New Shunda Light Truck Dump Trucks export reference is about $14,278 – $15,278. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does JMC New Shunda Light Truck Dump Trucks cover?
JMC New Shunda Light Truck Dump Trucks mainly covers: Drive: 4x2; Horsepower: 109 hp; Emission: China IV; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in JMC New Shunda Light Truck Dump Trucks?
For JMC New Shunda Light Truck Dump Trucks: 1) confirm emission and duty (site/mine); 2) match drive and horsepower; 3) compare price band and photos; 4) open a model for full specs, then quote.
What is Dump Trucks typically used for?
Dump Trucks is common for earth, aggregate and mining tipper work. Match drive and power to the duty, and confirm destination emission.
How many models does JMC New Shunda Light Truck Dump Trucks include?
JMC New Shunda Light Truck Dump Trucks currently lists about 6 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for JMC New Shunda Light Truck Dump Trucks?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
