FAW Jiefang Qingdao JH6 Heavy Truck 410 hp 8X4(12 wheels) 5.8m LNG Dump Truck

Export reference
MSRP N/A
Emission: China V
Fuel: LNG (liquefied natural gas)
Transmission: Fast Gear
Curb Weight:: 15.5ton
Wheelbase:: 1900+2900+1350mm
Tire Size:: 12.00R20 18PR
Rated payload: 15.37ton
Drive 8X4 (12 wheels)
Horsepower 410
Cargo box type: Dump type

Overview

The FAW Jiefang Qingdao JH6 Heavy Truck 410 hp 8X4(12 wheels) 5.8m LNG Dump Truck is a Heavy truck featuring 15.37t payload, 31t GVW, Dump type cargo body and 8X4 (12 wheels) drive. On the powertrain side, it comes with a WeichaiWP10.5HNG410E62 engine, 410 hp, China V emissions and Fast Gear transmission.

China V 410 LNG (liquefied natural gas) 8X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): CA3310P27K15L1T4NE6A80
Drive type: 8X4
Wheelbase: 1900+2900+1350mm
engine: WeichaiWP10.5HNG410E62
transmission: Fast Gear12JSD200TA-B
Rear Axle Ratio: 5.921
Cab length: 9.475m
Cab width: 2.55m
Cab height: 3.325m
Front track width: 2020/2020mm
rear track: 1878/1878mm
Curb Weight: 15.5ton
Rated payload: 15.37ton
GVWR: 31ton
Origin: Qingdao, Chengdu
tonnage class: Heavy truck
Approach angle: 18°
departure angle: 40°
Energy Type: LNG (liquefied natural gas)
Engine parameters
Engine Brand: Weichai
Engine Model: WeichaiWP10.5HNG410E62
Number of cylinders: 6cylinder
fuel type: LNG (liquefied natural gas)
Displacement: 10.5L
Emission standard: China V
Max output power: 301kW
Max hp: 410Horsepower
Max torque: 1935N·m
Max torque speed: 1100-1300rpm
Rated speed: 1900rpm
Transmission Parameters
Transmission Model: Fast Gear12JSD200TA-B
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 12Gear
Number of Reverse Gears: 2pcs
Housing Material: aluminum housing
Cargo box parameters
Unloading Type: Dump type
Cargo box type: Dump type
Cargo box length: 5.8m
Cargo box width: 2.35m
Cargo box height: 0.8m
Cab parameters
Cab suspension: Four-point air suspension
Cab width: 2500mm
Cab tilting: Electric
Driver seat type: air suspension seat
fuel tank
Fuel tank material: aluminum alloy
Fuel tank capacity: 500L
Chassis Specs
Front axle description: 2020 front axle
Front axle allowable load: 6500/6500kg
Frame Dimensions: 300×80×(8+5)mm
rear axle description: 300 hub reduction axle
rear axle allowable load: 18000 (tandem axle group)kg
Axle ratio: 5.921
Leaf spring count: 10/10/10
clutch: Φ430
Tire
Tire Size: 12.00R20 18PR
Number of tires: 12pcs
Control configuration
ABS:
Inter-axle Differential Lock:
interior configuration
Multifunction steering wheel:
AC control type: Automatic
Power Windows:
Remote key:
Electronic Central Lock:
Exterior features
Aluminum air tank:
Multimedia features
GPS/Beidou driving recorder:

Photos

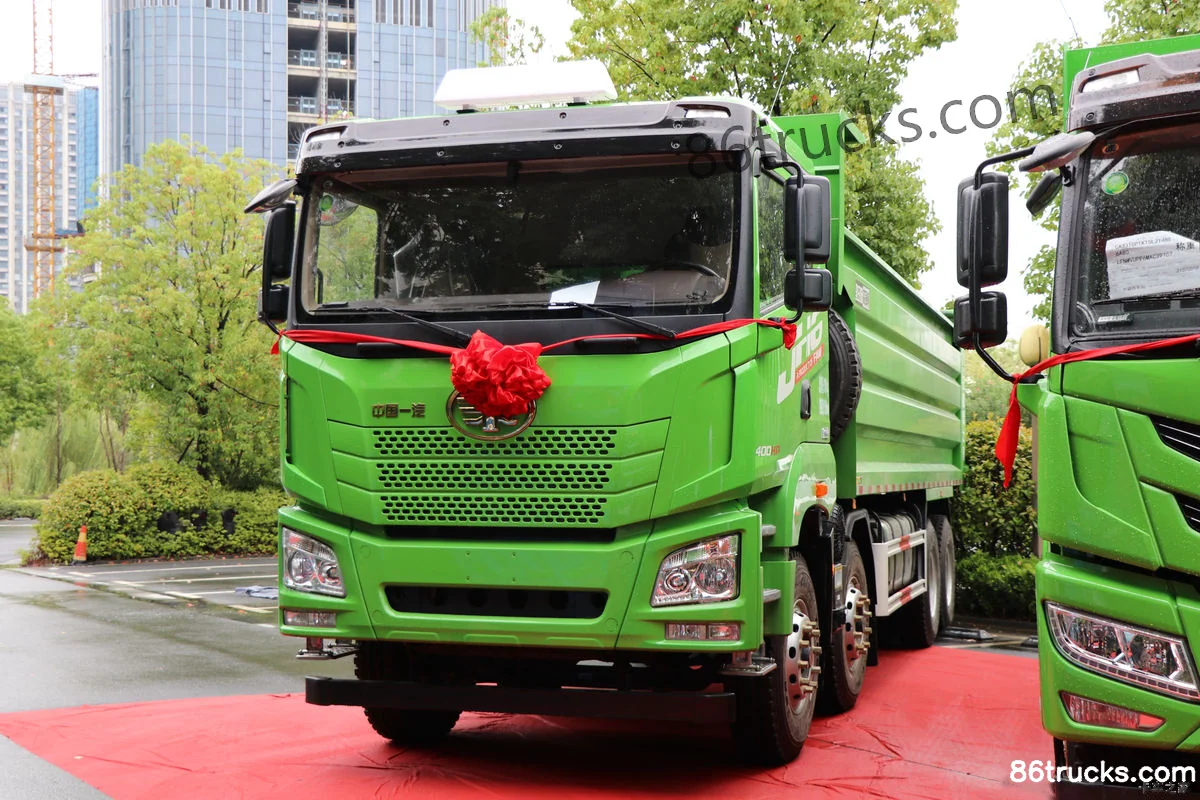

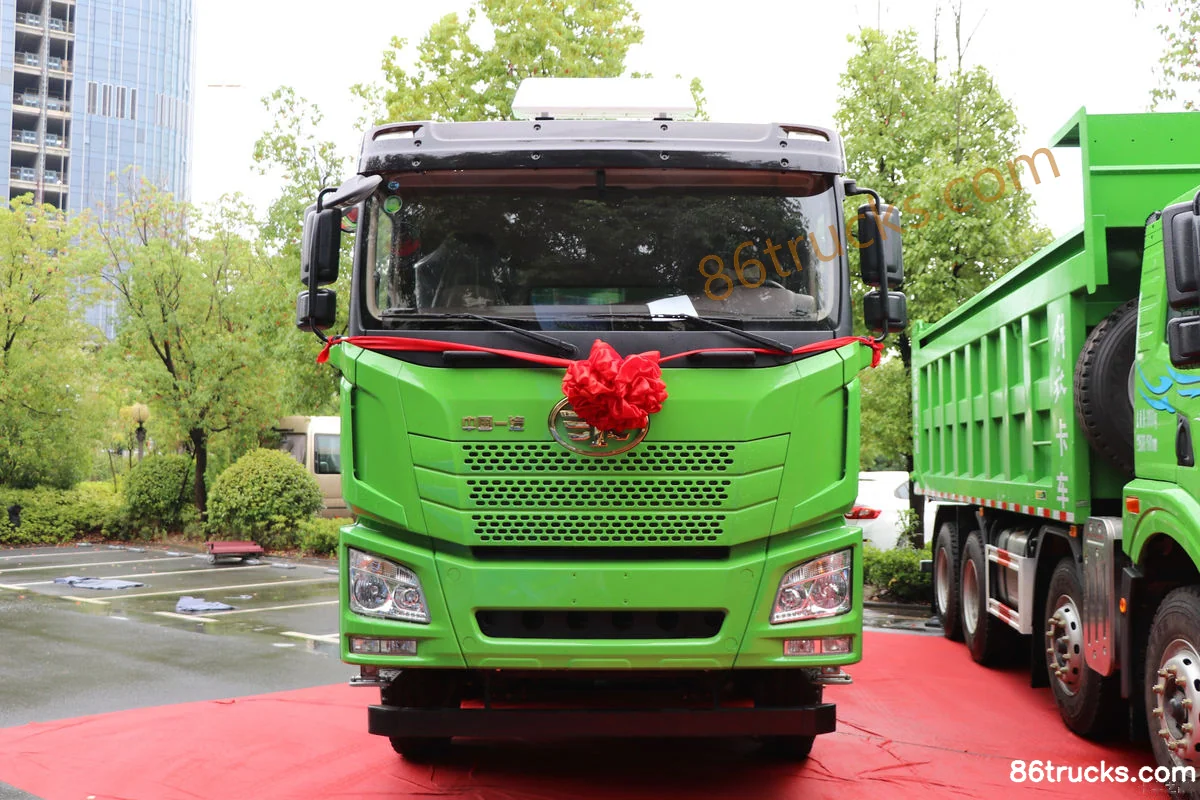

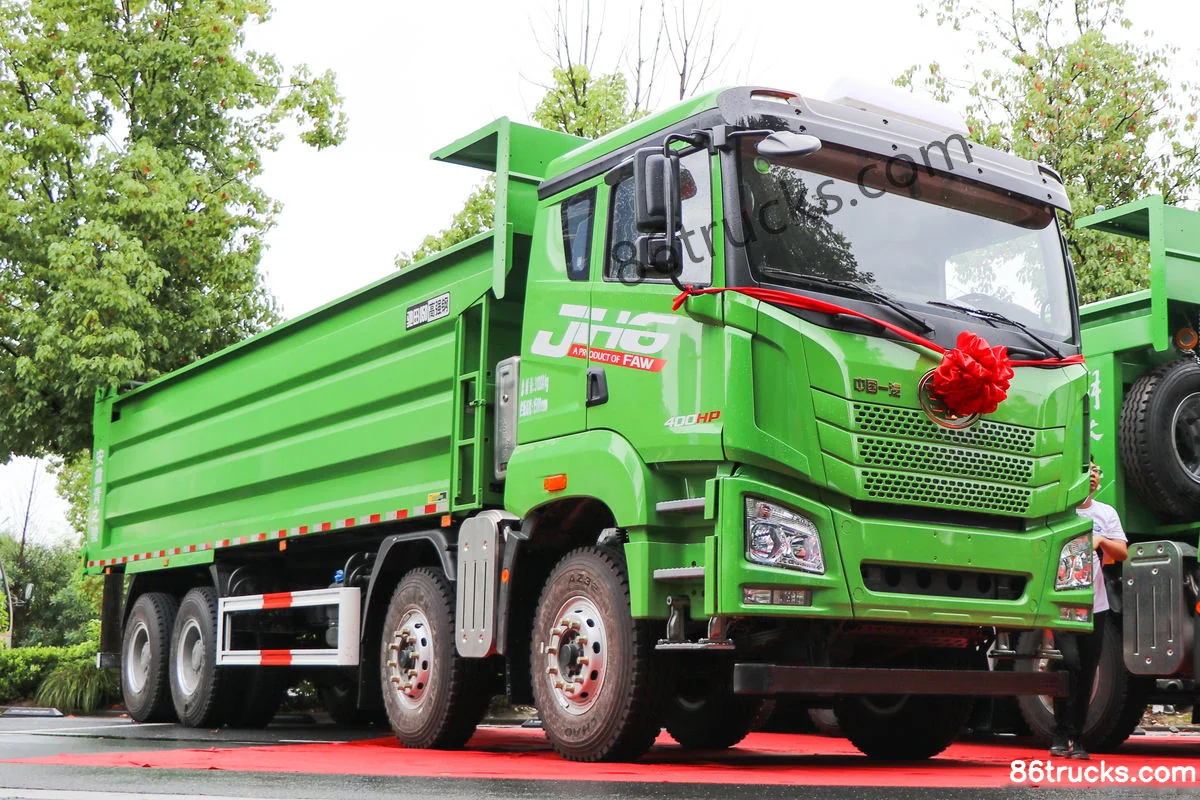

Exterior3

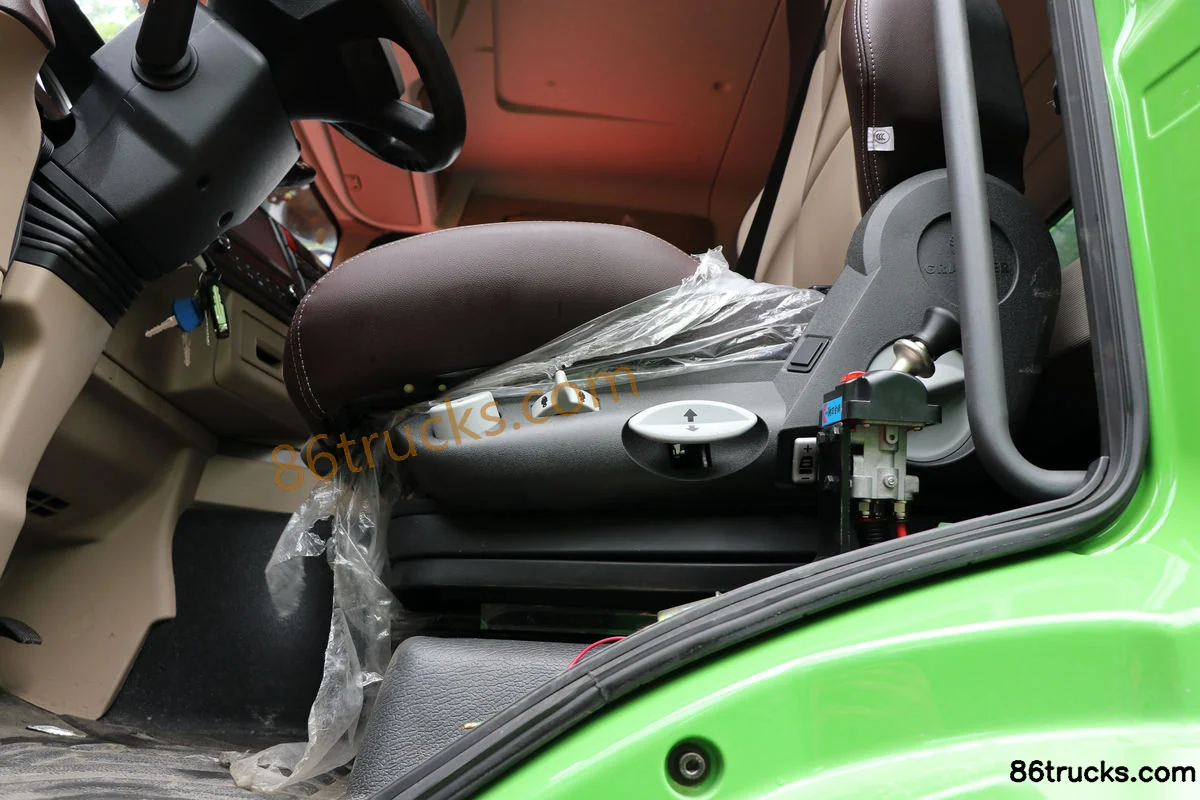

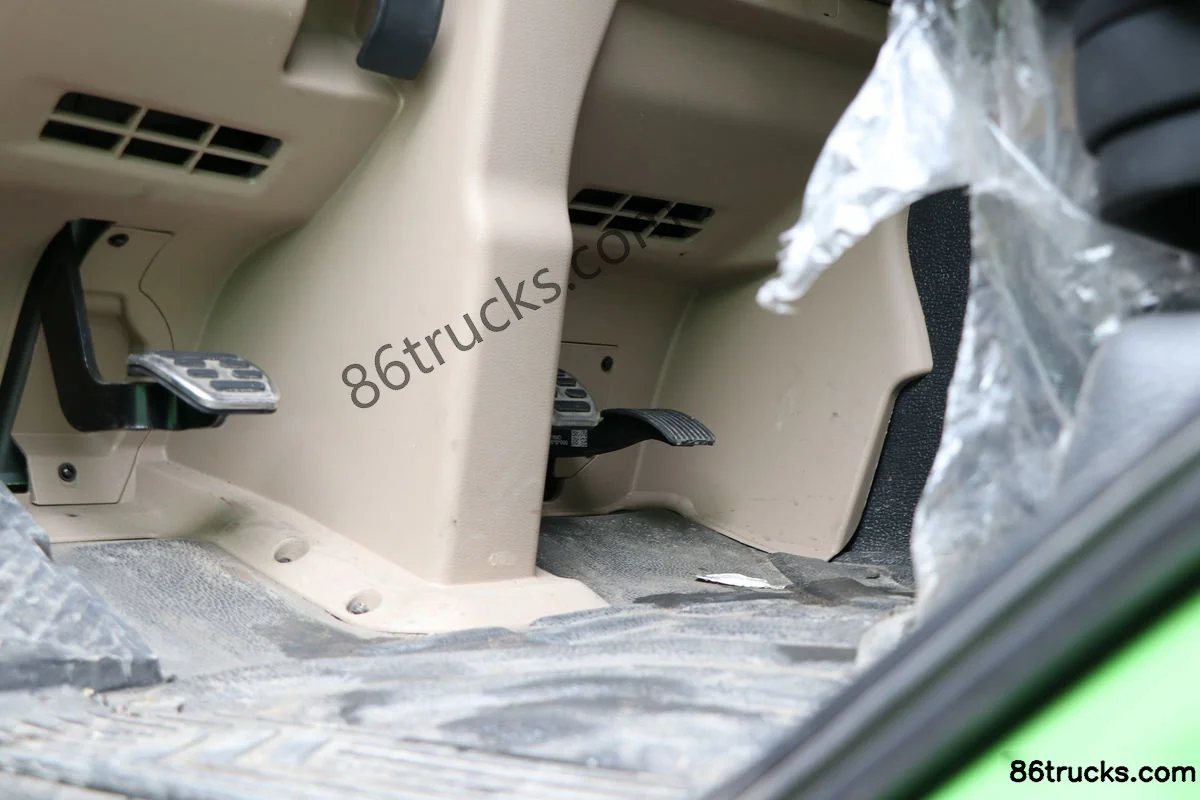

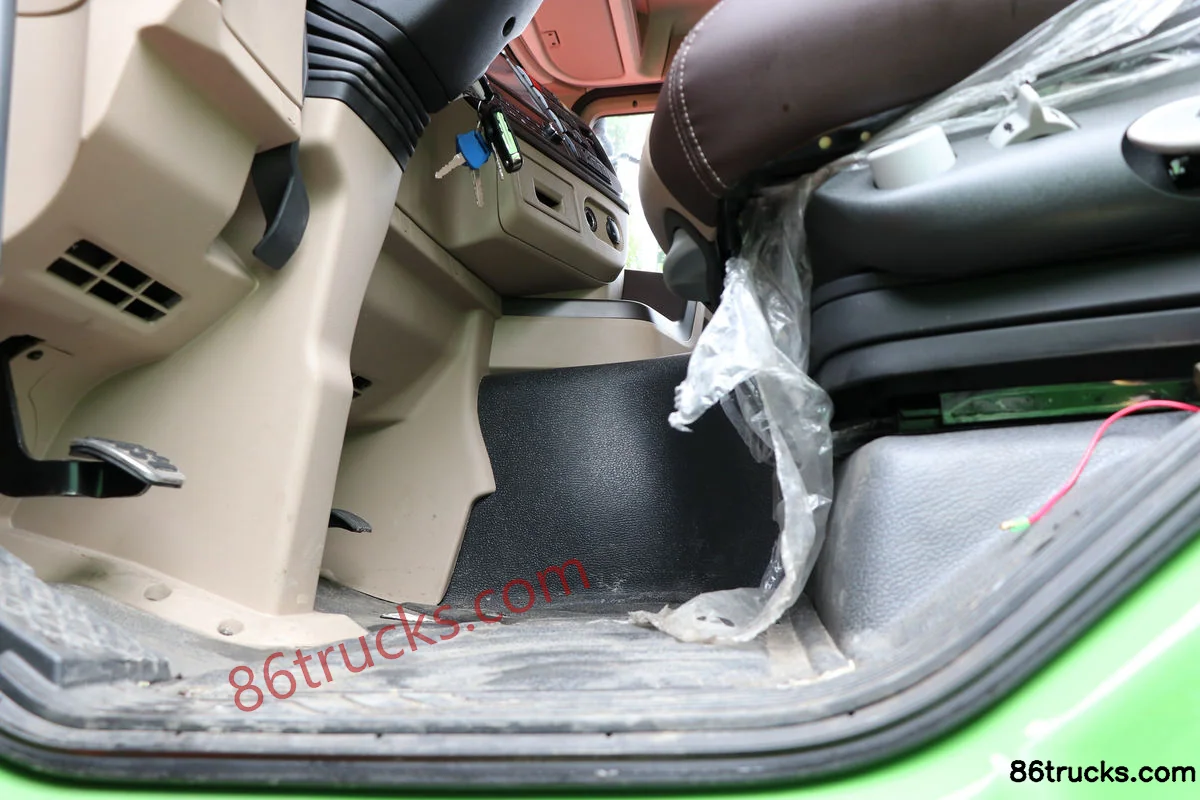

Cab3

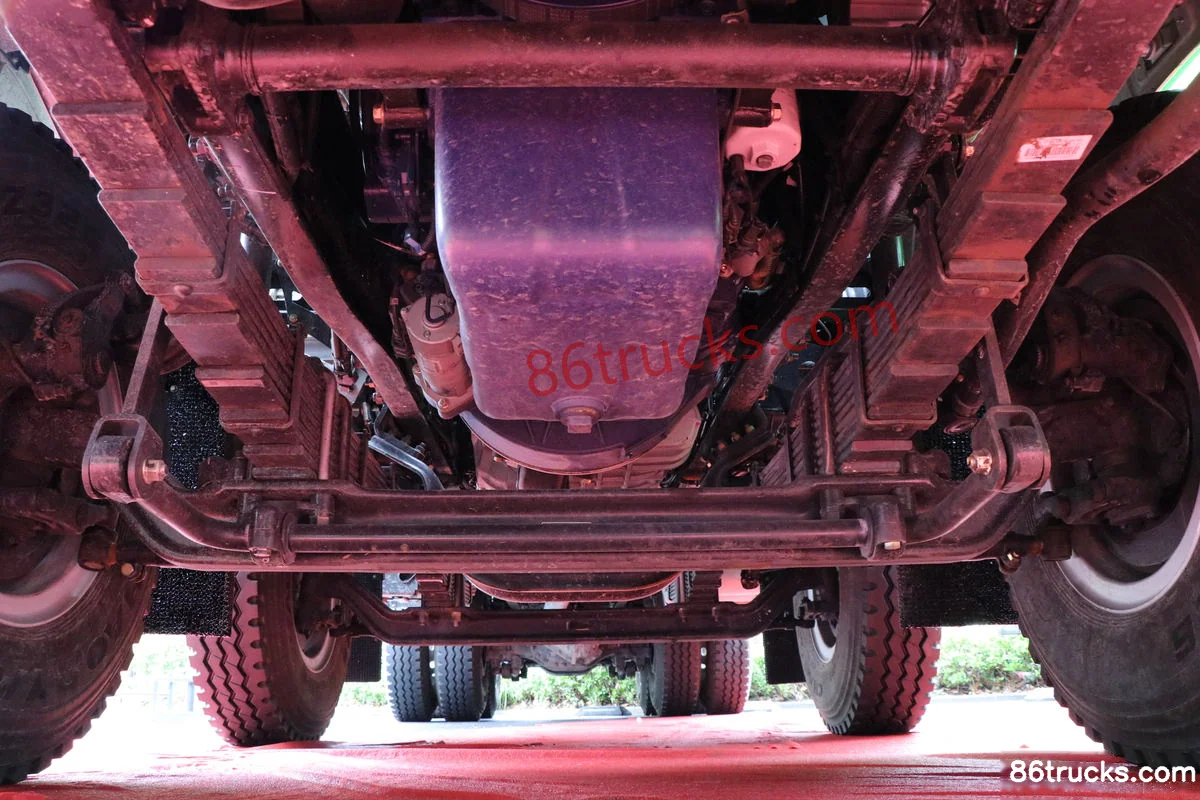

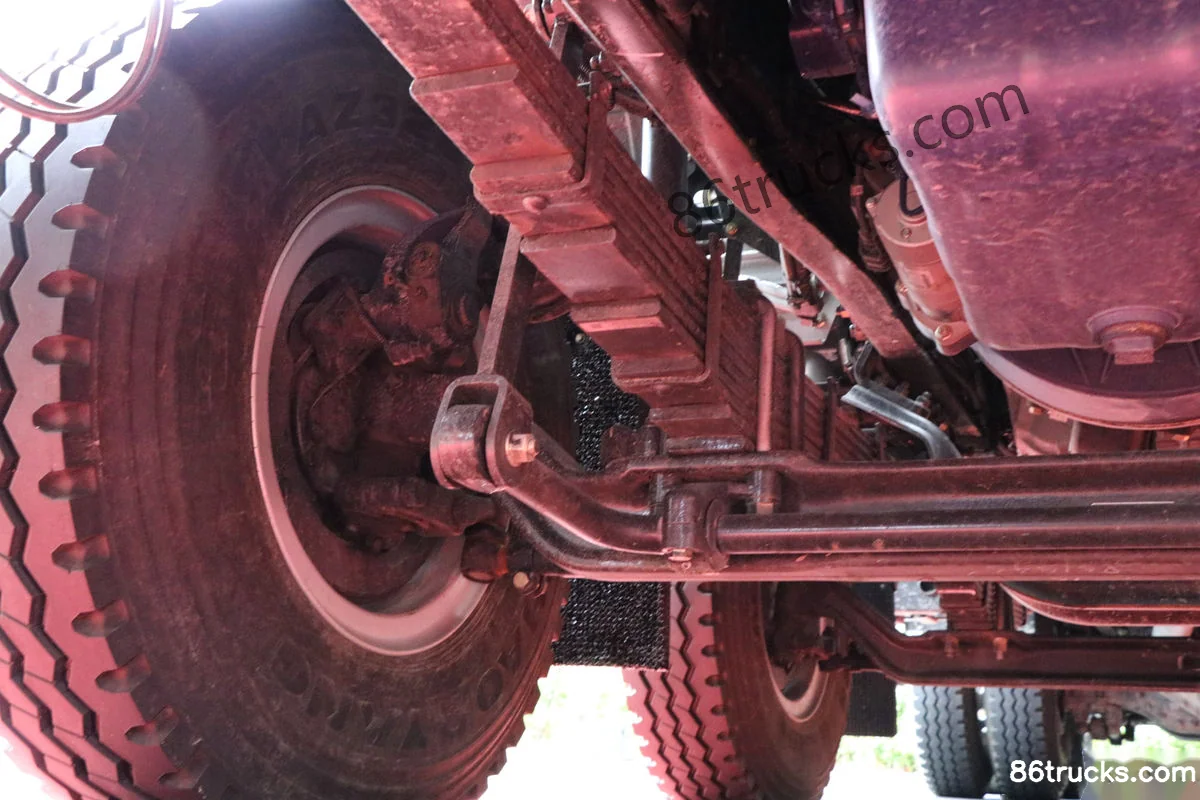

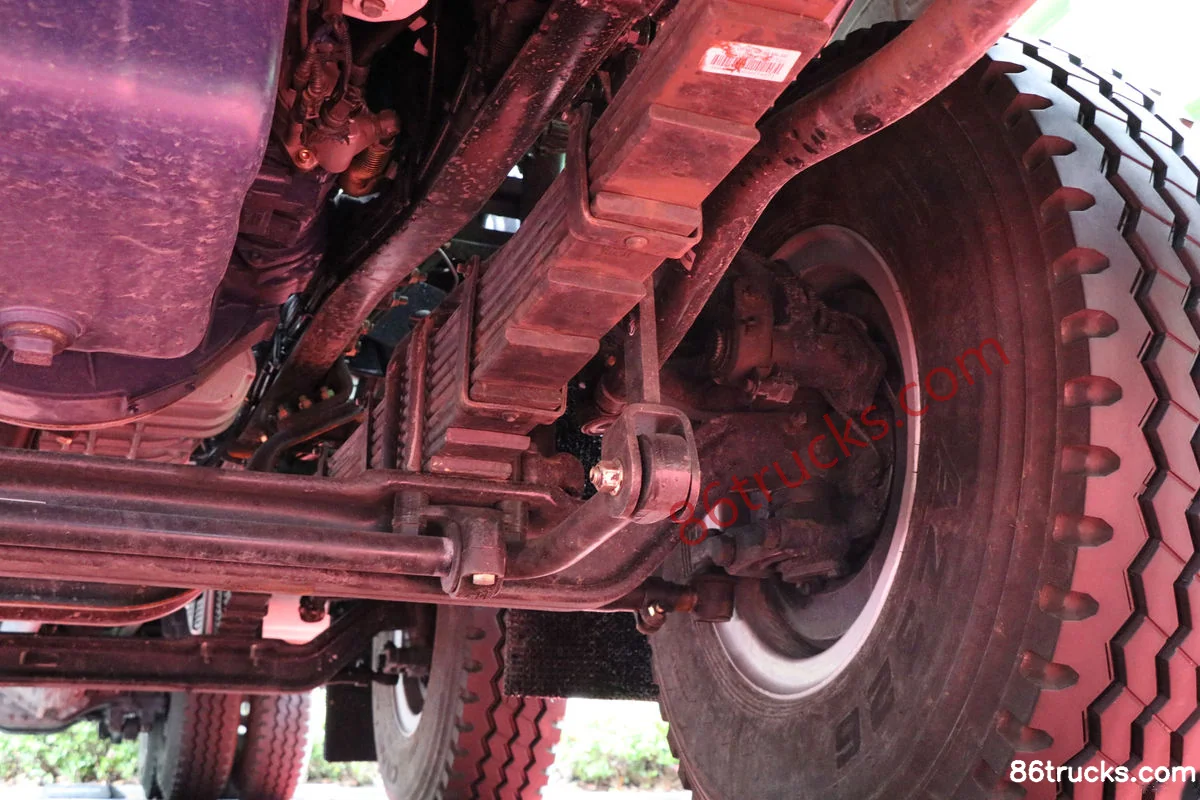

Chassis3

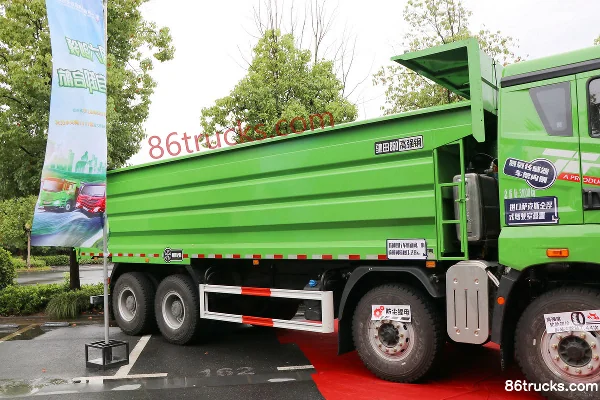

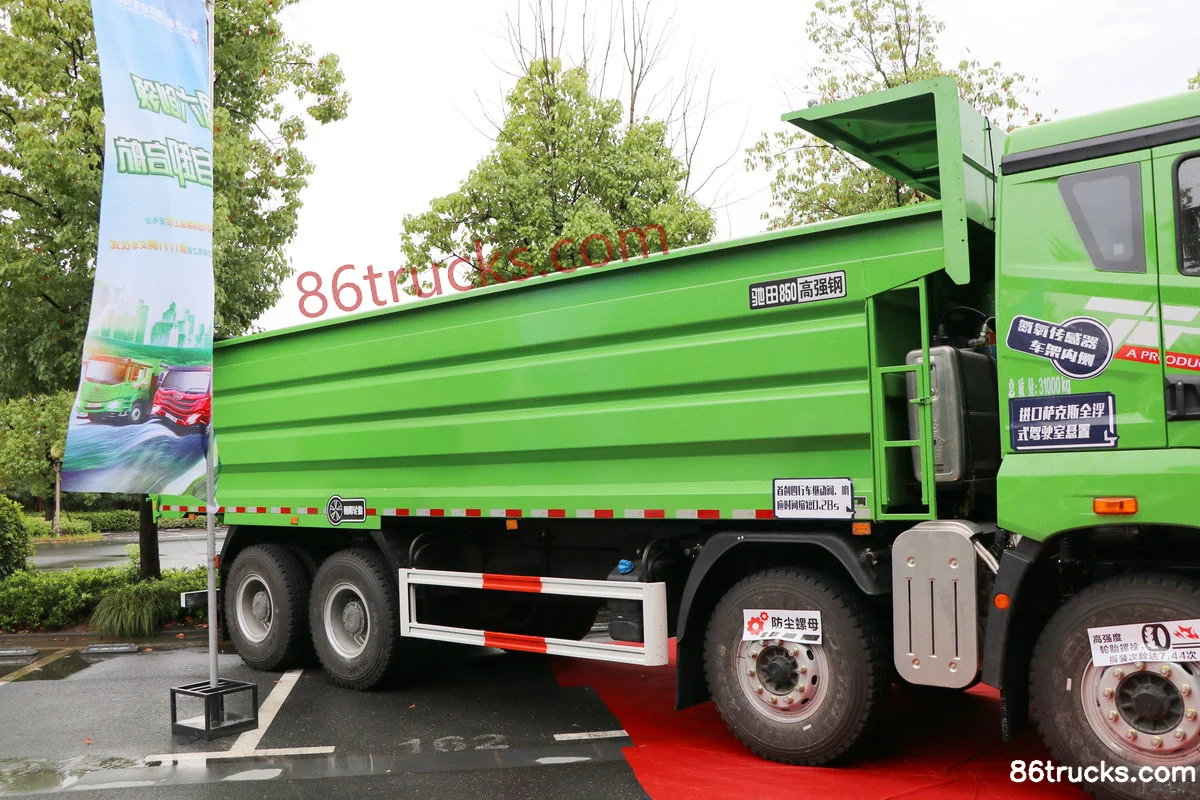

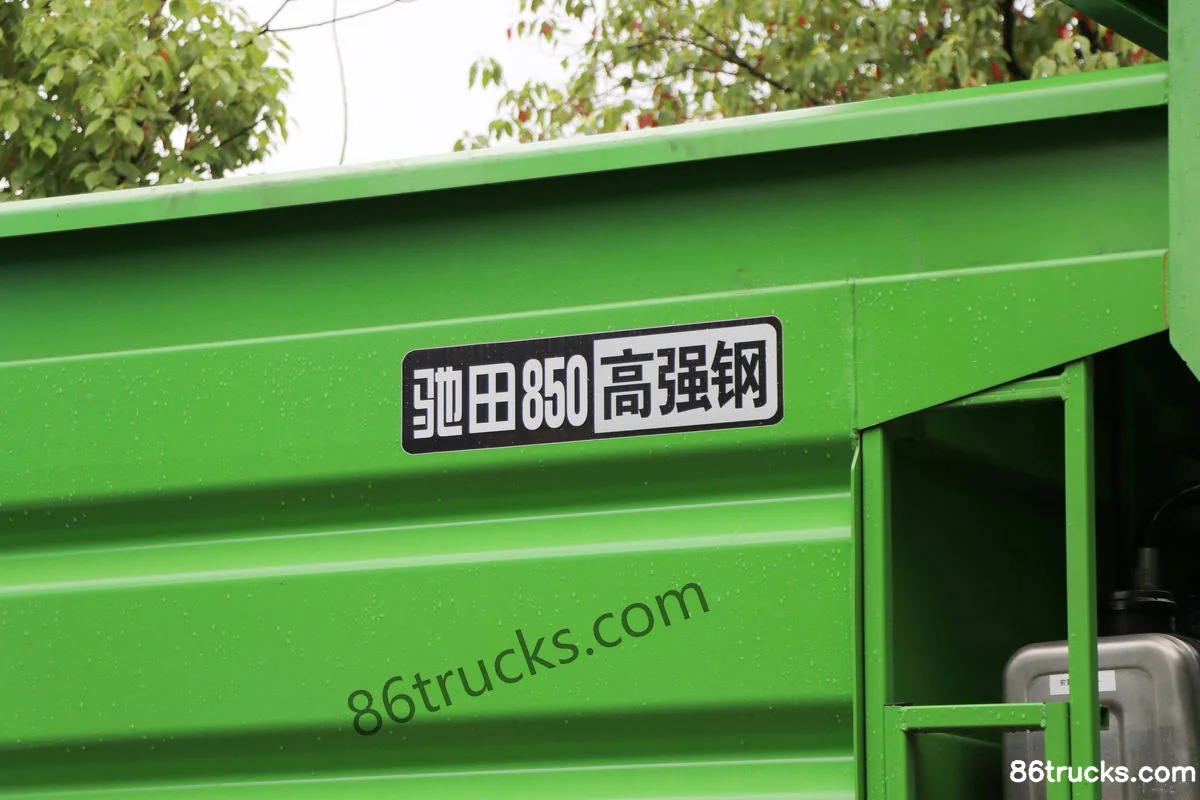

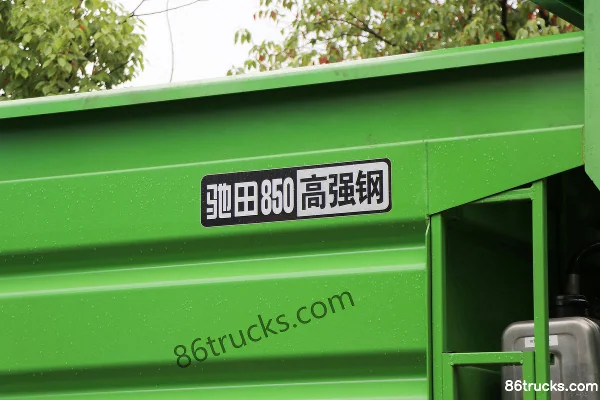

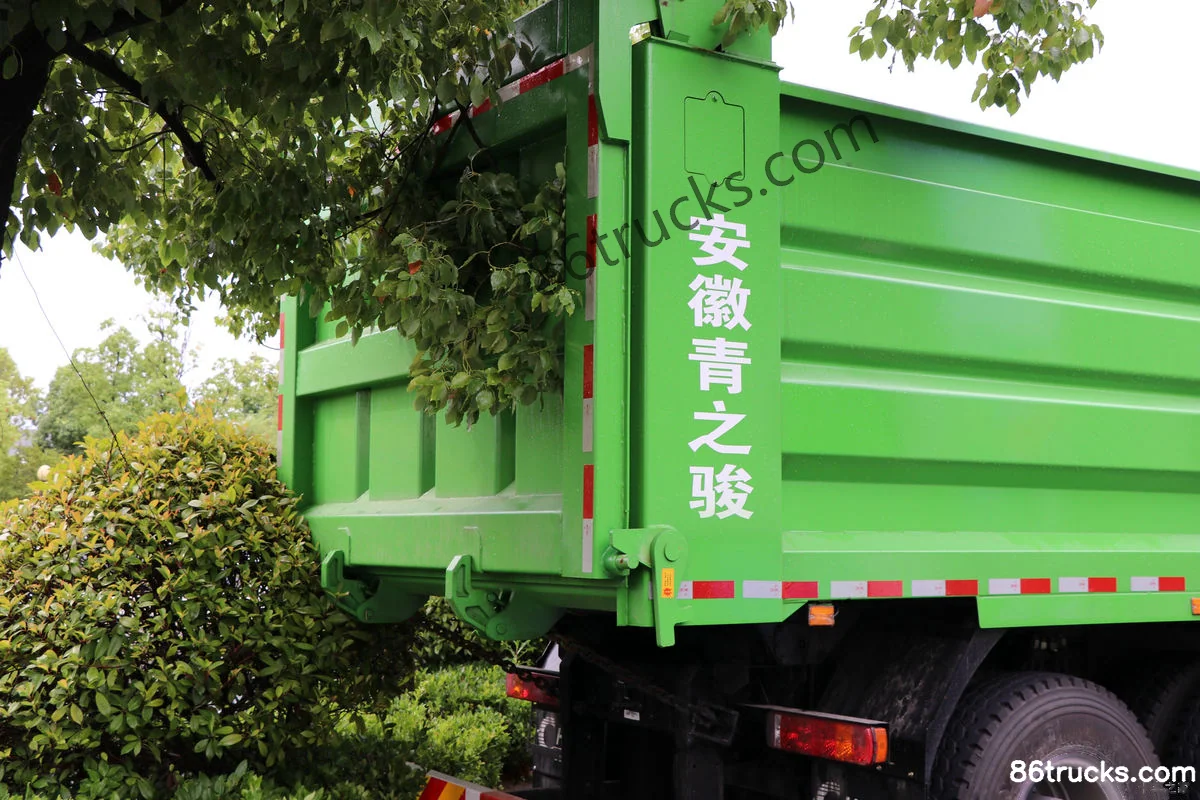

Body3

12 photos

FAQ

What emission standard does FAW Jiefang Qingdao JH6 Heavy Truck 410 hp 8X4(12 wheels) 5.8m LNG Dump Truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of FAW Jiefang Qingdao JH6 Heavy Truck 410 hp 8X4(12 wheels) 5.8m LNG Dump Truck?

Key specs of FAW Jiefang Qingdao JH6 Heavy Truck 410 hp 8X4(12 wheels) 5.8m LNG Dump Truck: Drive: 8x4; Horsepower: 410 hp; Emission: China V; Fuel: LNG (liquefied natural gas); Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is FAW Jiefang Qingdao JH6 Heavy Truck 410 hp 8X4(12 wheels) 5.8m LNG Dump Truck suited for?

FAW Jiefang Qingdao JH6 Heavy Truck 410 hp 8X4(12 wheels) 5.8m LNG Dump Truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does FAW Jiefang Qingdao JH6 Heavy Truck 410 hp 8X4(12 wheels) 5.8m LNG Dump Truck differ from other variants in the same series?

FAW Jiefang Qingdao JH6 Heavy Truck 410 hp 8X4(12 wheels) 5.8m LNG Dump Truck belongs to FAW Jiefang Qingdao JH6 heavy truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for FAW Jiefang Qingdao JH6 Heavy Truck 410 hp 8X4(12 wheels) 5.8m LNG Dump Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export FAW Jiefang Qingdao JH6 Heavy Truck 410 hp 8X4(12 wheels) 5.8m LNG Dump Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
