Sinotruk Steyr D5W 220 hp 4X2(6 wheels) 4.7m Dump Truck

Export reference
From $33,056
MSRP ¥23.8M CNY
Emission: China VI
Fuel: Diesel
Transmission: Fast Gear
Curb Weight:: 8.2ton
Wheelbase:: 3950mm
Tire Size:: 10.00R20 18PR
Rated payload: 8.805ton
Drive 4X2 (6 wheels)
Horsepower 220
Cargo box type: Dump type

Overview

The Sinotruk Steyr D5W 220 hp 4X2(6 wheels) 4.7m Dump Truck is a Light Truck featuring 8.805t payload, 18t GVW, Dump type cargo body and 4X2 (6 wheels) drive. On the powertrain side, it comes with a WeichaiWP4.6NQ220E61A engine, 220 hp, China VI emissions and Fast Gear transmission.

China VI 220 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): ZZ3184K4117F1
Drive type: 4X2
Wheelbase: 3950mm
engine: WeichaiWP4.6NQ220E61A
transmission: Fast Gear 10-Speed
Rear Axle Ratio: 4.875
Cab length: 7.25m
Cab width: 2.46m
Cab height: 3.08m
Front track width: 1965/1965mm
rear track: 1800/1800mm
Curb Weight: 8.2ton
Rated payload: 8.805ton
GVWR: 18ton
Origin: Chengdu, Sichuan
tonnage class: Light Truck
Approach angle: 15°
departure angle: 15°
Energy Type: Diesel
Engine parameters
Engine Brand: Weichai
Engine Model: WeichaiWP4.6NQ220E61A
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 4.58L
Emission standard: China VI
Max output power: 162kW
Max hp: 220Horsepower
Max torque: 850N·m
Max torque speed: 1300-1600rpm
Rated speed: 2300rpm
Engine Type: Common Rail+EGR+DOC+DPF+SCR
Transmission Parameters
Transmission Model: Fast Gear 10-Speed
Transmission Brand: Fast Gear
Forward gears: 10Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Unloading Type: Dump type
Cargo box type: Dump type
Cargo box length: 4.7m
Cargo box width: 2.3m
Cargo box height: 0.8m
Cab parameters
Cab suspension: Four-point air suspension
Cab width: 2260mm
Cab tilting: Electric
fuel tank
Fuel tank material: aluminum alloy
Fuel tank capacity: 220L
Chassis Specs
Front axle allowable load: 6500/11500kg
rear axle allowable load: 11500kg
Axle ratio: 4.875
Leaf spring count: 4/4/5
Tire
Tire Size: 10.00R20 18PR
Number of tires: 6pcs
interior configuration
AC control type: Manual
Power Windows:
Electronic Central Lock:
Exterior features
Aluminum air tank:

Photos

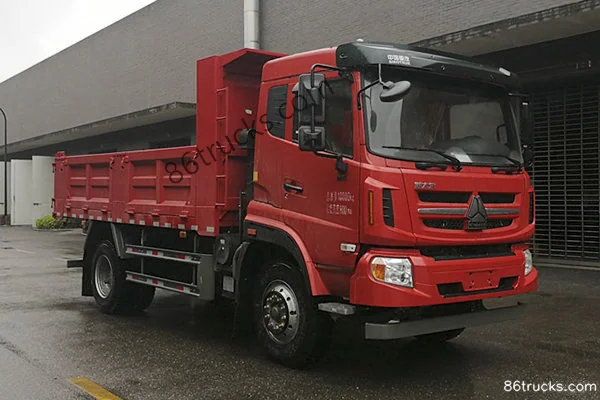

Exterior1

1 photos

FAQ

What is the export price of Sinotruk Steyr D5W 220 hp 4X2(6 wheels) 4.7m Dump Truck, and what does it include?

Sinotruk Steyr D5W 220 hp 4X2(6 wheels) 4.7m Dump Truck export reference is about From $33,056; MSRP is ¥23.8M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Sinotruk Steyr D5W 220 hp 4X2(6 wheels) 4.7m Dump Truck use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Sinotruk Steyr D5W 220 hp 4X2(6 wheels) 4.7m Dump Truck?

Key specs of Sinotruk Steyr D5W 220 hp 4X2(6 wheels) 4.7m Dump Truck: Drive: 4x2; Horsepower: 220 hp; Emission: China VI; Fuel: Diesel; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sinotruk Steyr D5W 220 hp 4X2(6 wheels) 4.7m Dump Truck suited for?

Sinotruk Steyr D5W 220 hp 4X2(6 wheels) 4.7m Dump Truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Sinotruk Steyr D5W 220 hp 4X2(6 wheels) 4.7m Dump Truck differ from other variants in the same series?

Sinotruk Steyr D5W 220 hp 4X2(6 wheels) 4.7m Dump Truck belongs to Sinotruk Steyr D5 Heavy Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sinotruk Steyr D5W 220 hp 4X2(6 wheels) 4.7m Dump Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sinotruk Steyr D5W 220 hp 4X2(6 wheels) 4.7m Dump Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
