Sinotruk HOWO MANH3 129hp 4X2(6 wheels) Truck Mounted Crane (4500mm wheelbase)

Export reference
MSRP N/A
Fuel: Diesel
Wheelbase:: 4500mm
Cab dimensions:: 8.15×2.49×3.55m
Type:: truck-mounted crane
GVWR:: 13.57ton
Front/rear suspension:: 1.26/2.39m
Drive 4X2 (6 wheels)
Horsepower 140
Rated mass: 5.175ton
Emission China V

Overview

The Sinotruk HOWO MANH3 129hp 4X2(6 wheels) Truck Mounted Crane (4500mm wheelbase) is a truck-mounted crane featuring 13.57t GVW and 4X2 (6 wheels) drive. On the powertrain side, it comes with a Yuchai engine, 140 hp, China V emissions and Diesel fuel.

China V 140 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 8.15×2.49×3.55m
Type: truck-mounted crane
Drive type: 4X2
Wheelbase: 4500mm
Rated mass: 5.175ton
GVWR: 13.57ton
Front/rear suspension: 1.26/2.39m
Energy Type: Diesel
Engine parameters
Engine Brand: Yuchai
Engine Model: YuchaiYCD4D4S-140
fuel type: Diesel
Displacement: 4.156L
Emission standard: China V
Max output power: 105kW
Max hp: 140Horsepower
Max torque: 460N·m
Max torque speed: 1500-1950rpm
Rated speed: 2800rpm
Body Parameters
Vehicle certification code: ZZ5148JSQF17EB0
Body Brand: Sinotruk
Chassis Specs
Chassis Series: HOWO MAN H3
Chassis Model: ZZ1148F17EB1
rear axle description: 1094D rear axle
Axle ratio: 5.833
Leaf spring count: 9/11+8
Transmission Parameters
Number of gears: 6Gear
Transmission Model: WLYWLY653H
Cab parameters
Cab: Day cab 2080
Tire
Tire Size: 9.00R20
Number of tires: 6pcs

Photos

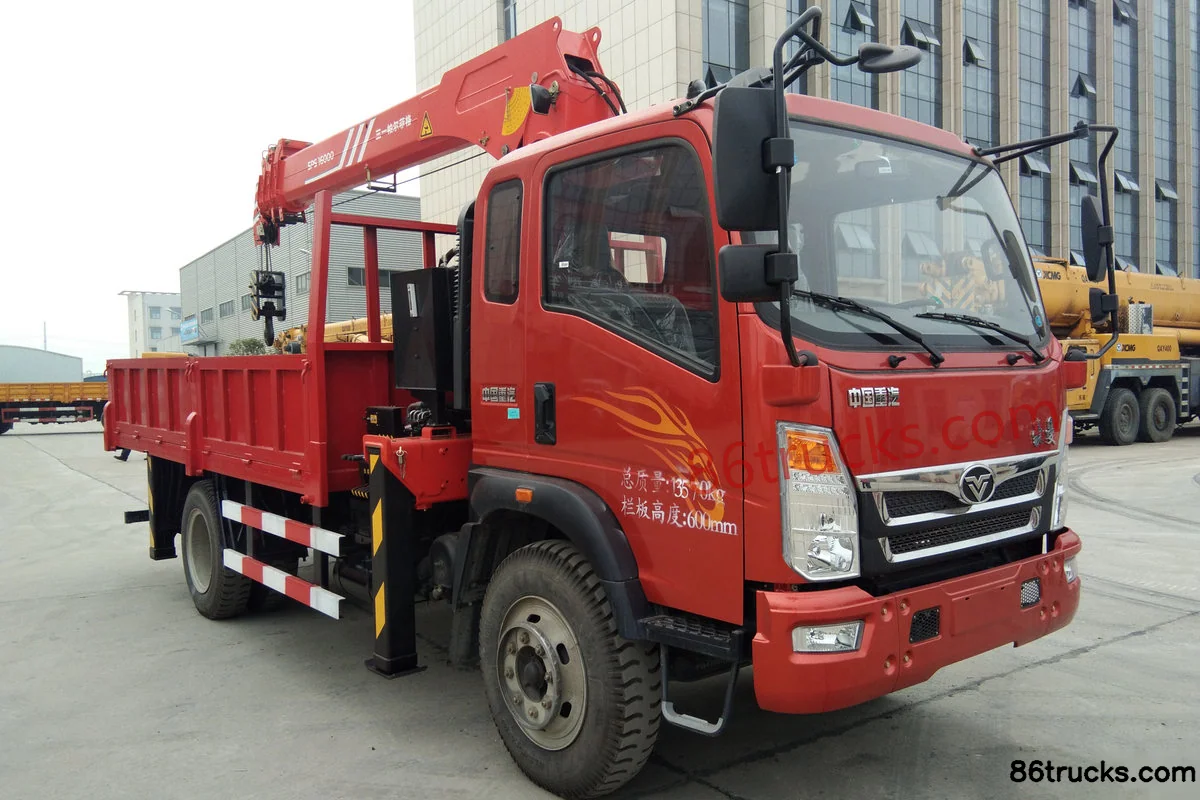

Exterior1

1 photos

FAQ

What emission standard does Sinotruk HOWO MANH3 129hp 4X2(6 wheels) Truck Mounted Crane (4500mm wheelbase) use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Sinotruk HOWO MANH3 129hp 4X2(6 wheels) Truck Mounted Crane (4500mm wheelbase)?

Key specs of Sinotruk HOWO MANH3 129hp 4X2(6 wheels) Truck Mounted Crane (4500mm wheelbase): Drive: 4x2; Horsepower: 140 hp; Emission: China V; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sinotruk HOWO MANH3 129hp 4X2(6 wheels) Truck Mounted Crane (4500mm wheelbase) suited for?

Sinotruk HOWO MANH3 129hp 4X2(6 wheels) Truck Mounted Crane (4500mm wheelbase) is a truck-mounted crane model; configuration should match the job. State the application, emission and LHD/RHD needs in your quote.

How does Sinotruk HOWO MANH3 129hp 4X2(6 wheels) Truck Mounted Crane (4500mm wheelbase) differ from other variants in the same series?

Sinotruk HOWO MANH3 129hp 4X2(6 wheels) Truck Mounted Crane (4500mm wheelbase) belongs to Sinotruk Pioneer Light Truck (truck-mounted crane). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sinotruk HOWO MANH3 129hp 4X2(6 wheels) Truck Mounted Crane (4500mm wheelbase)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sinotruk HOWO MANH3 129hp 4X2(6 wheels) Truck Mounted Crane (4500mm wheelbase)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
