Doosan DX80 Crawler Excavator

Export reference
MSRP N/A
Model:: DX80
Engine Model:: crawler excavator
Tonnage:: 8ton
Bucket capacity:: 0.32cubic meter
Machine dimensions:: 6×2.29×2.685mm
Track shoe width:: 450mm
Operating weight: 7.9ton
Bucket type: backhoe
Fuel Tank Capacity: 145L
Product power: Conventional Power

Overview

The Doosan DX80 Crawler Excavator is a excavator featuring 7.9ton GVW, backhoe bucket capacity, 145L tank capacity and Conventional Power power. On the powertrain side, it comes with a crawler excavator engine.

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model: DX80
Engine Model: crawler excavator
Product power: Conventional Power
Bucket type: backhoe
Tonnage: 8ton
Operating weight: 7.9ton
Bucket capacity: 0.32cubic meter
Machine dimensions: 6×2.29×2.685mm
Track shoe width: 450mm
Track gauge: 1770mm
Counterweight ground clearance: 825mm
Rear Overhang Radius: 1800mm
hydraulic system
Max flow of main pump: 75.6×2+18.7L/min
Working hydraulic circuit: 28
travel hydraulic circuit: 28Mpa
performance specs
Travel speed: 4.9 / 3.1km/h
Bucket digging force: 56kN
Arm Digging Force: 41kN
Max tractive force: 63kN
Oil capacity
Fuel Tank Capacity: 145L
Operating Range
Max digging radius: 6350mm
Max digging depth: 4165mm
Max digging height: 7120mm
Max unloading height: 5115mm
Max vertical digging depth: 3328mm
Engine parameters
Engine Model: YANMAR4TNV98 VDB24
Max output power: 41.4kW

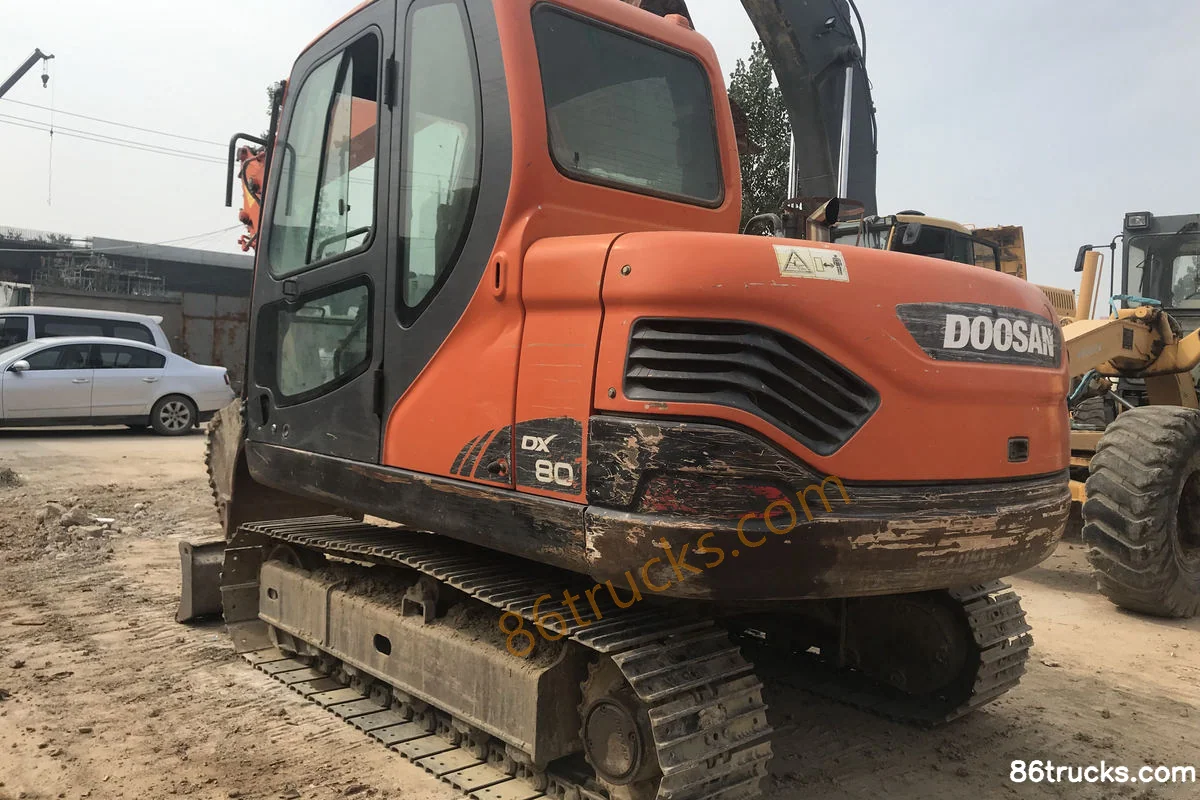

Photos
