JMC Shunda Narrow Body 116hp 4X2(6 wheels) 4.14m Dump Truck

Export reference
From $18,444
MSRP ¥13.28M CNY
Emission: China V
Fuel: Diesel
Transmission: GETRAG
Curb Weight:: 2.72ton
Wheelbase:: 3360mm
Tire Size:: 7.00R16LT 8PR
Rated payload: 1.645ton
Drive 4X2 (6 wheels)
Horsepower 116
Cargo box type: Dump type

Overview

The JMC Shunda Narrow Body 116hp 4X2(6 wheels) 4.14m Dump Truck is a Light Truck featuring 1.645t payload, 4.495t GVW, Dump type cargo body and 4X2 (6 wheels) drive. On the powertrain side, it comes with a JMCJX493ZLQ5 engine, 116 hp, China V emissions and GETRAG transmission.

China V 116 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): JMT3040XG2
Drive type: 4X2
Wheelbase: 3360mm
engine: JMCJX493ZLQ5
transmission: Getrag 5-speed
Cab length: 5.985m
Cab width: 1.88m
Cab height: 2.1m
Front track width: 1385mm
rear track: 1425mm
Curb Weight: 2.72ton
Rated payload: 1.645ton
GVWR: 4.495ton
Origin: Nanchang, Jiangxi
tonnage class: Light Truck
Approach angle: 27°
departure angle: 17°
Energy Type: Diesel
Engine parameters
Engine Brand: JMC
Engine Model: JMCJX493ZLQ5
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 2.771L
Emission standard: China V
Max output power: 85kW
Max hp: 116Horsepower
Max torque: 285N·m
Max torque speed: 1800-2200rpm
Rated speed: 3800rpm
Transmission Parameters
Transmission Model: Getrag 5-speed
Transmission Brand: GETRAG
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
Unloading Type: Dump type
Cargo box type: Dump type
Cargo box length: 4.14m
Cargo box width: 1.8m
Cargo box height: 0.4m
fuel tank
Fuel tank capacity: 80L
Chassis Specs
Front axle allowable load: 1855kg
rear axle allowable load: 2640kg
Leaf spring count: 7/4+6,7/5+6
Tire
Tire Size: 7.00R16LT 8PR
Number of tires: 6pcs
Control configuration
ABS:

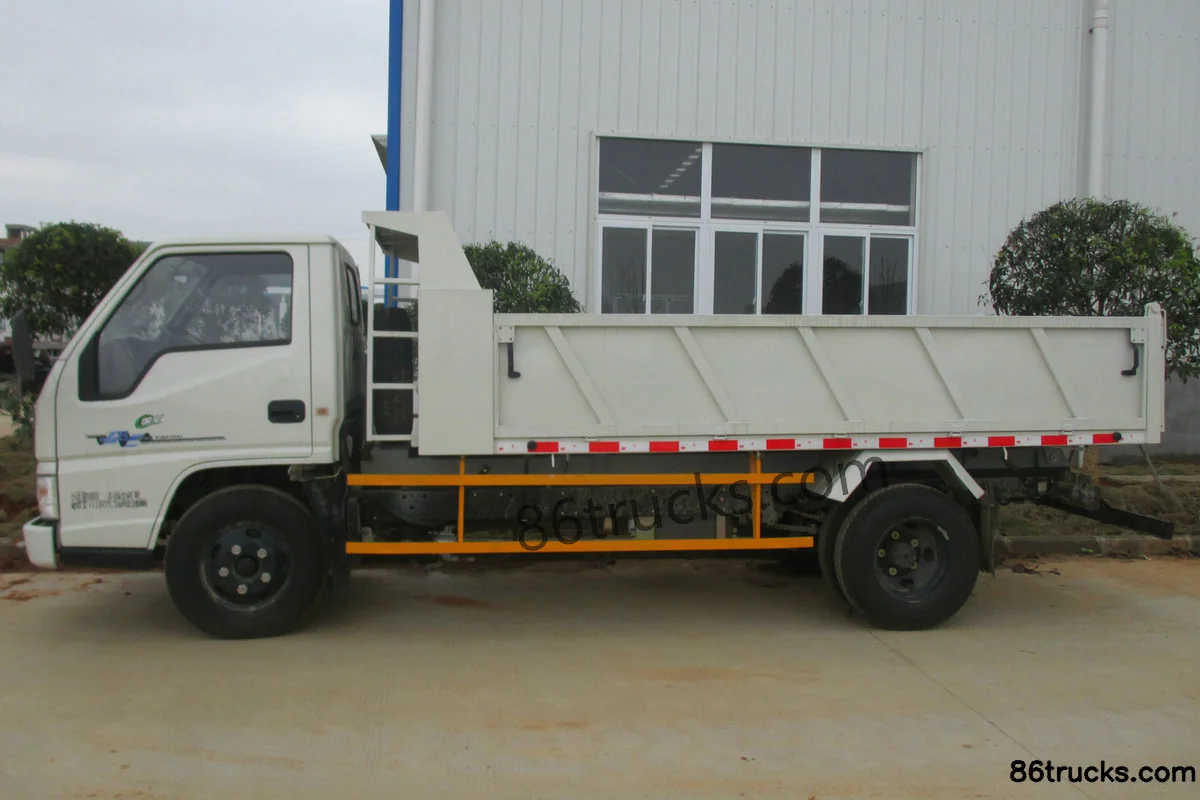

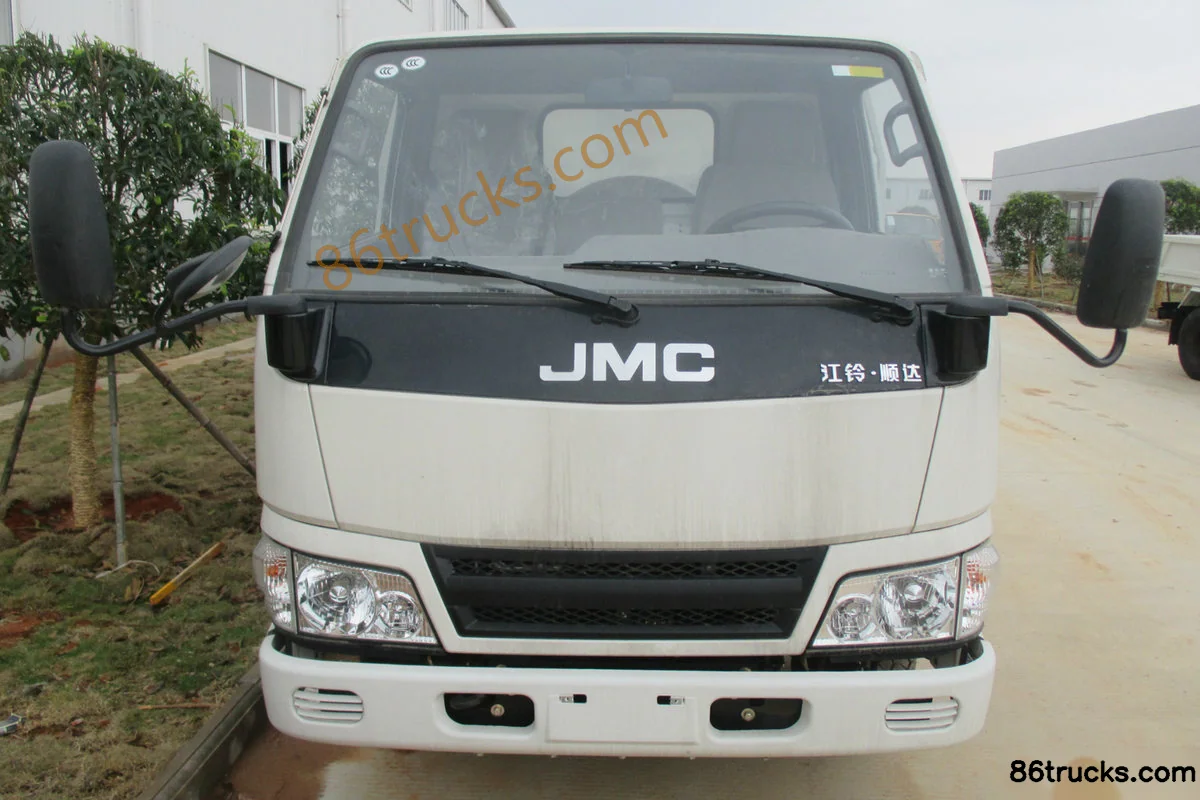

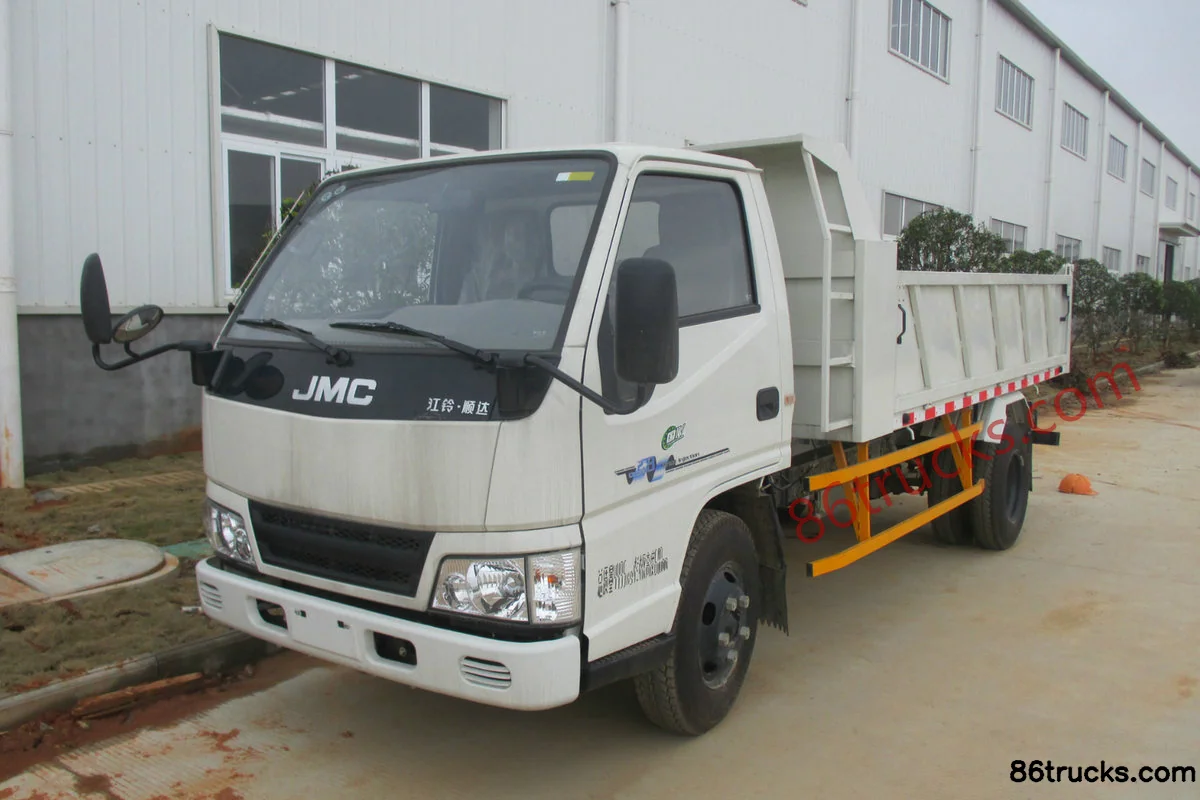

Photos

Exterior3

3 photos

FAQ

What is the export price of JMC Shunda Narrow Body 116hp 4X2(6 wheels) 4.14m Dump Truck, and what does it include?

JMC Shunda Narrow Body 116hp 4X2(6 wheels) 4.14m Dump Truck export reference is about From $18,444; MSRP is ¥13.28M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does JMC Shunda Narrow Body 116hp 4X2(6 wheels) 4.14m Dump Truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of JMC Shunda Narrow Body 116hp 4X2(6 wheels) 4.14m Dump Truck?

Key specs of JMC Shunda Narrow Body 116hp 4X2(6 wheels) 4.14m Dump Truck: Drive: 4x2; Horsepower: 116 hp; Emission: China V; Fuel: Diesel; Transmission: GETRAG. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is JMC Shunda Narrow Body 116hp 4X2(6 wheels) 4.14m Dump Truck suited for?

JMC Shunda Narrow Body 116hp 4X2(6 wheels) 4.14m Dump Truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does JMC Shunda Narrow Body 116hp 4X2(6 wheels) 4.14m Dump Truck differ from other variants in the same series?

JMC Shunda Narrow Body 116hp 4X2(6 wheels) 4.14m Dump Truck belongs to JMC Shunda narrow-body light truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for JMC Shunda Narrow Body 116hp 4X2(6 wheels) 4.14m Dump Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export JMC Shunda Narrow Body 116hp 4X2(6 wheels) 4.14m Dump Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
