Shantui Excavator JCM921C Crawler Excavator

Export reference
MSRP N/A
Model:: JCM921C
Engine Model:: crawler excavator
Tonnage:: 21ton
Bucket capacity:: 0.9cubic meter
Machine dimensions:: 9.548×2.8×3.073mm
Track shoe width:: 600mm
Operating weight: 20.5ton
Bucket type: backhoe
Fuel Tank Capacity: 360L
Product power: Conventional Power

Overview

The SUNWARD Shantui Excavator JCM921C Crawler Excavator is a excavator featuring 20.5ton GVW, backhoe bucket capacity, 360L tank capacity and Conventional Power power. On the powertrain side, it comes with a crawler excavator engine.

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model: JCM921C
Engine Model: crawler excavator
Product power: Conventional Power
Bucket type: backhoe
Tonnage: 21ton
Operating weight: 20.5ton
Bucket capacity: 0.9cubic meter
Machine dimensions: 9.548×2.8×3.073mm
Track shoe width: 600mm
Counterweight ground clearance: 1120mm
Min ground clearance: 470cm
Rear Overhang Radius: 2905mm
Oil capacity
Fuel Tank Capacity: 360L
coolant: 25L
hydraulic oil tank: 250L
Engine Oil Capacity: 20L
performance specs
Travel speed: 3.3/5.4km/h
Bucket digging force: 115kN
Arm Digging Force: 92.5kN
Operating Range
Max digging depth: 6605mm
Max digging height: 9281mm
Max unloading height: 6480mm
Max vertical digging depth: 5735mm
Engine parameters
Engine Model: CumminsCummins B5.9-C
Max output power: 112kW

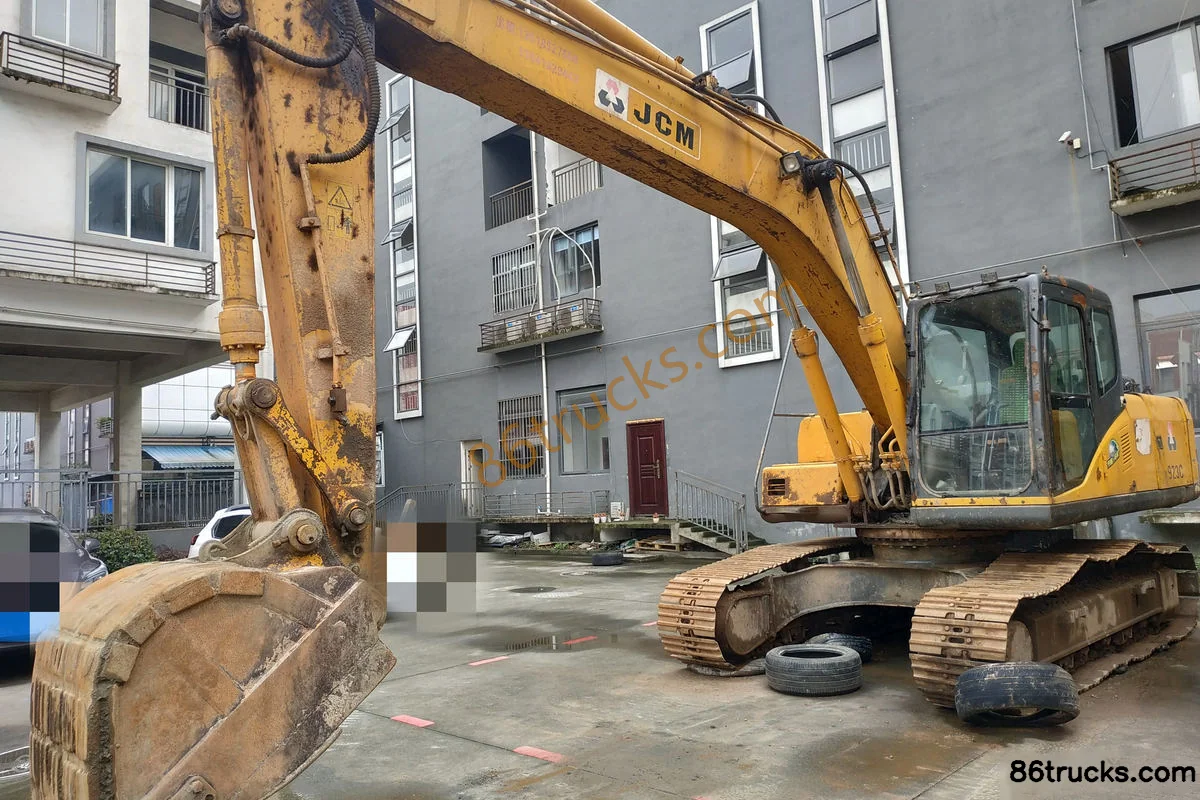

Photos

Exterior3

3 photos

FAQ

What transport jobs is Shantui Excavator JCM921C Crawler Excavator suited for?

Shantui Excavator JCM921C Crawler Excavator is a excavator model; configuration should match the job. State the application, emission and LHD/RHD needs in your quote.

How does Shantui Excavator JCM921C Crawler Excavator differ from other variants in the same series?

Shantui Excavator JCM921C Crawler Excavator belongs to SUNWARD crawler excavator (excavator). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Shantui Excavator JCM921C Crawler Excavator?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Shantui Excavator JCM921C Crawler Excavator?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
