XCMG XE260C Crawler Excavator

Export reference
MSRP N/A
Model:: XE260C
Engine Model:: crawler excavator
Tonnage:: 26ton
Bucket capacity:: 1.25cubic meter
boom length:: 6000mm
Arm Length:: 2960mm
XCMG XE260C Crawler Excavator exterior
View more photos (3)
Operating weight: 25.5ton
Bucket type: backhoe
Fuel Tank Capacity: 400L
Product power: Conventional Power

Overview

The XCMG XE260C Crawler Excavator is a excavator featuring 25.5ton GVW, backhoe bucket capacity, 400L tank capacity and Conventional Power power. On the powertrain side, it comes with a crawler excavator engine.

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model: XE260C
Engine Model: crawler excavator
Product power: Conventional Power
Bucket type: backhoe
Tonnage: 26ton
Bucket capacity: 1.25cubic meter
Operating weight: 25.5ton
boom length: 6000mm
Arm Length: 2960mm
Machine dimensions: 10.16×3.195×3.1mm
Track shoe width: 600mm
Track gauge: 2590mm
Counterweight ground clearance: 1050mm
Min ground clearance: 495cm
Rear Overhang Radius: 2985mm
hydraulic system
Max flow of main pump: 2*231L/min
travel hydraulic circuit: 34.3Mpa
Swing Hydraulic Circuit: 23Mpa
Oil capacity
Fuel Tank Capacity: 400L
hydraulic oil tank: 240L
Engine Oil Capacity: 25L
performance specs
Travel speed: 5.5/3.3km/h
Bucket digging force: 163kN
Arm Digging Force: 116kN
Operating Range
Max digging radius: 10240mm
Max digging depth: 6960mm
Max digging height: 9595mm
Max unloading height: 6725mm
Max vertical digging depth: 6090mm
Engine parameters
Engine Model: IsuzuISUZU CC-6BG1TRP
Max output power: 128.5kW

Photos

Exterior3

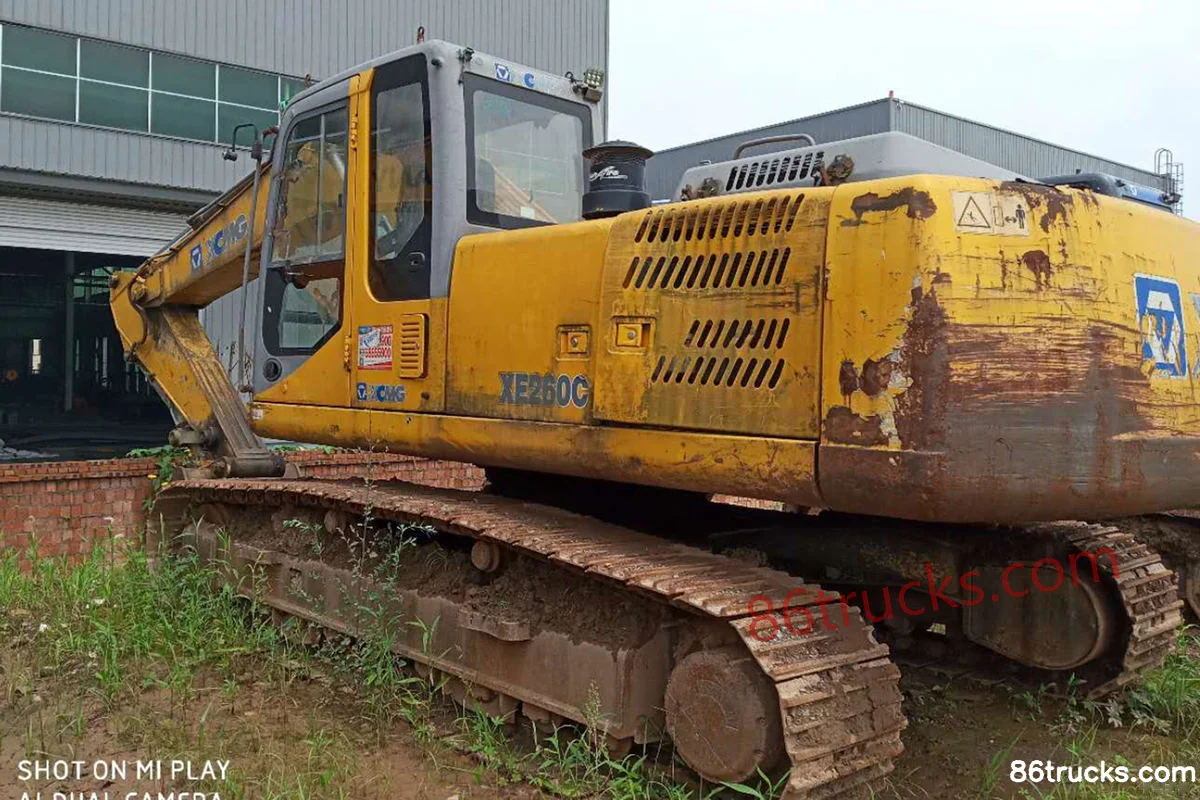

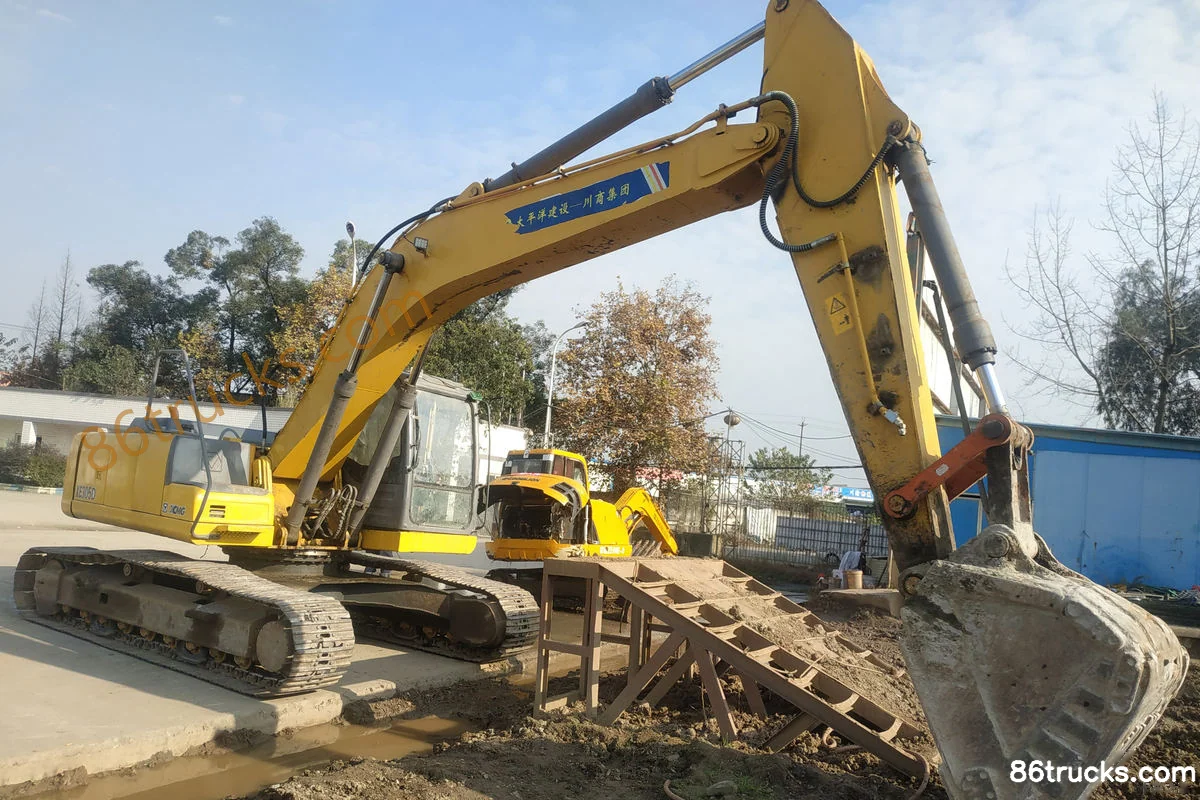

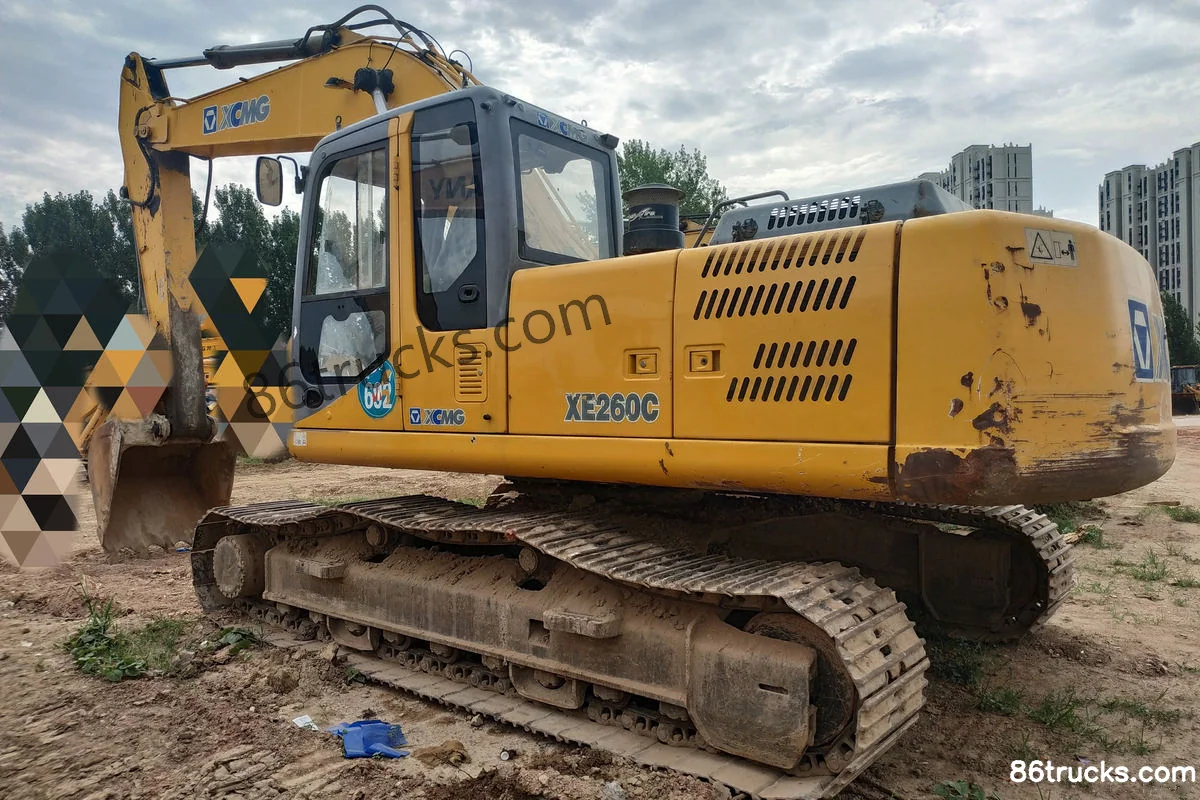

XCMG XE260C Crawler Excavator Exterior (1) | 86Trucks XCMG XE260C Crawler Excavator Exterior (2) | 86Trucks XCMG XE260C Crawler Excavator Exterior (3) | 86Trucks

3 photos

FAQ

What transport jobs is XCMG XE260C Crawler Excavator suited for?

XCMG XE260C Crawler Excavator is a excavator model; configuration should match the job. State the application, emission and LHD/RHD needs in your quote.

How does XCMG XE260C Crawler Excavator differ from other variants in the same series?

XCMG XE260C Crawler Excavator belongs to XCMG Crawler Excavator (excavator). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for XCMG XE260C Crawler Excavator?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export XCMG XE260C Crawler Excavator?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
