SHACMAN Commercial Vehicle Delong G200 Standard Load Edition 3L Diesel 195hp 4X2(6 wheels) Fast Gear 8-Speed 3.75m Raised Roof Dump Truck

Export reference
From $21,222
MSRP ¥15.28M CNY
Emission: China VI
Fuel: Diesel
Transmission: Fast Gear
Curb Weight:: 6.5ton
Wheelbase:: 3400mm
Tire Size:: 10.00R20 18PR
Rated payload: 11.37ton
Drive 4X2 (6 wheels)
Horsepower 195
Cargo box length: 3.75m

Overview

The SHACMAN Commercial Vehicle Delong G200 Standard Load Edition 3L Diesel 195hp 4X2(6 wheels) Fast Gear 8-Speed 3.75m Raised Roof Dump Truck is a Medium-duty truck featuring 11.37t payload, 18t GVW, 3.75m cargo body and 4X2 (6 wheels) drive. On the powertrain side, it comes with a YuchaiYCY30195-66 engine, 195 hp, China VI emissions and Fast Gear transmission.

China VI 195 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): SX3180NP6341
Drive type: 4X2
Wheelbase: 3400mm
engine: YuchaiYCY30195-66
transmission: Fast GearS8MD
Rear Axle Ratio: 5.571
Cab length: 5.995m
Cab width: 2.4m
Cab height: 2.85m
Front track width: 1810mm
rear track: 1725mm
Curb Weight: 6.5ton
Rated payload: 11.37ton
GVWR: 18ton
Origin: Baoji, Shaanxi
tonnage class: Medium-duty truck
Approach angle: 23°
departure angle: 20°
Version: Standard Load Edition
Energy Type: Diesel
Engine parameters
Engine Brand: Yuchai
Engine Model: YCY30195-66
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 2.97L
Emission standard: China VI
Max output power: 143kW
Max hp: 195Horsepower
Transmission Parameters
Transmission Model: S8MD
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 8Gear
Number of Reverse Gears: 2pcs
Housing Material: Iron
Cargo box parameters
Cargo box length: 3.75m
Cargo box width: 2.3m
Cargo box height: 0.8m
Cab parameters
Cab: Delong G200
Cab width: 2020mm
seating capacity: 3Personnel
Driver seat type: air suspension seat
fuel tank
Fuel tank capacity: 200L
Chassis Specs
Front axle description: 3.6t narrow
Front axle allowable load: 6500kg
Frame Dimensions: 250/6+4/double-layermm
rear axle description: 10t narrow/single reduction
rear axle allowable load: 11500kg
Axle ratio: 5.571
Leaf spring count: 9/10+8
Tire
Tire Size: 10.00R20 18PR
Number of tires: 6pcs
Control configuration
ABS:
interior configuration
Multifunction steering wheel:
AC control type: Manual
Power Windows:
Electric Heated Rearview Mirror:
Reverse Camera:
Remote key:
Electronic Central Lock:
Multimedia features
Center Console Color Screen:
External audio input (AUX/USB/iPod etc.):
Bluetooth / hands-free calling:
Radio:
lighting configuration
Front fog lamp:
Service brake
Parking brake: Spring brake
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type
smart configuration
Telematics System:

Photos

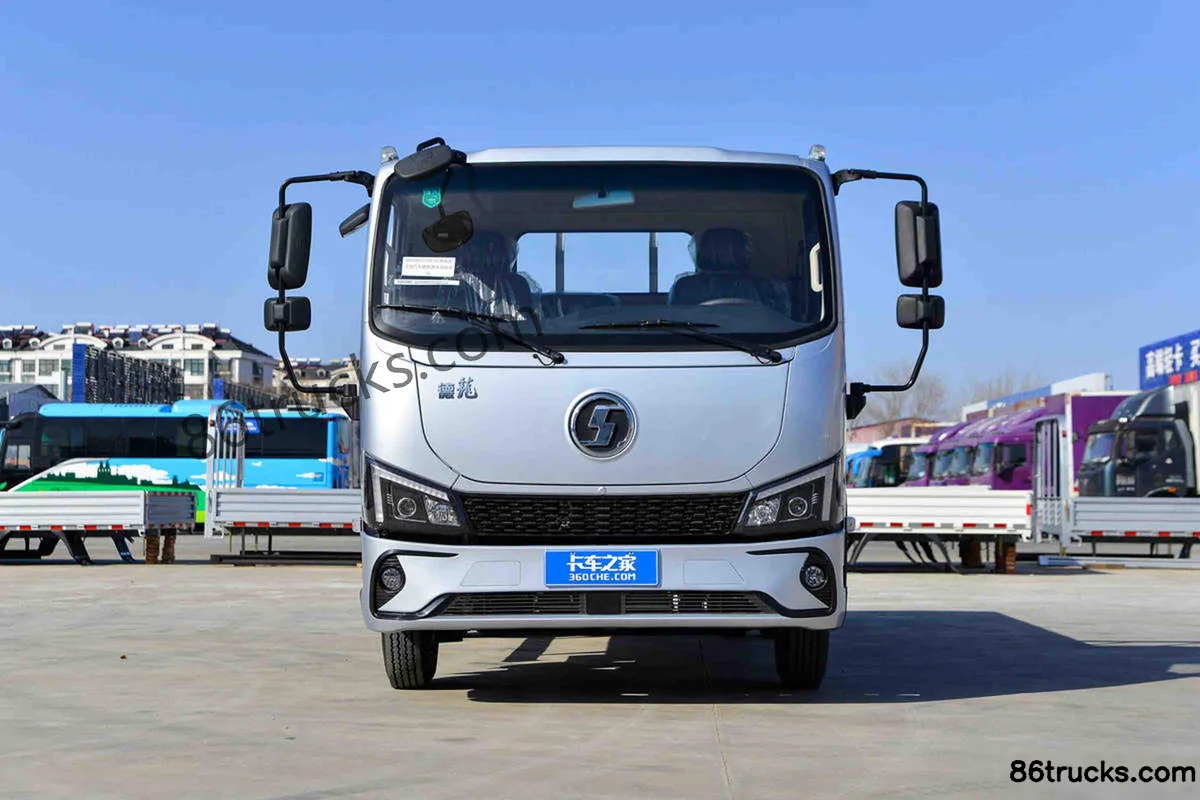

Exterior1

1 photos

FAQ

What is the export price of SHACMAN Commercial Vehicle Delong G200 Standard Load Edition 3L Diesel 195hp 4X2(6 wheels) Fast Gear 8-Speed 3.75m Raised Roof Dump Truck, and what does it include?

SHACMAN Commercial Vehicle Delong G200 Standard Load Edition 3L Diesel 195hp 4X2(6 wheels) Fast Gear 8-Speed 3.75m Raised Roof Dump Truck export reference is about From $21,222; MSRP is ¥15.28M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does SHACMAN Commercial Vehicle Delong G200 Standard Load Edition 3L Diesel 195hp 4X2(6 wheels) Fast Gear 8-Speed 3.75m Raised Roof Dump Truck use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of SHACMAN Commercial Vehicle Delong G200 Standard Load Edition 3L Diesel 195hp 4X2(6 wheels) Fast Gear 8-Speed 3.75m Raised Roof Dump Truck?

Key specs of SHACMAN Commercial Vehicle Delong G200 Standard Load Edition 3L Diesel 195hp 4X2(6 wheels) Fast Gear 8-Speed 3.75m Raised Roof Dump Truck: Drive: 4x2; Horsepower: 195 hp; Emission: China VI; Fuel: Diesel; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is SHACMAN Commercial Vehicle Delong G200 Standard Load Edition 3L Diesel 195hp 4X2(6 wheels) Fast Gear 8-Speed 3.75m Raised Roof Dump Truck suited for?

SHACMAN Commercial Vehicle Delong G200 Standard Load Edition 3L Diesel 195hp 4X2(6 wheels) Fast Gear 8-Speed 3.75m Raised Roof Dump Truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does SHACMAN Commercial Vehicle Delong G200 Standard Load Edition 3L Diesel 195hp 4X2(6 wheels) Fast Gear 8-Speed 3.75m Raised Roof Dump Truck differ from other variants in the same series?

SHACMAN Commercial Vehicle Delong G200 Standard Load Edition 3L Diesel 195hp 4X2(6 wheels) Fast Gear 8-Speed 3.75m Raised Roof Dump Truck belongs to SHACMAN Commercial Vehicle Delong G200 (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for SHACMAN Commercial Vehicle Delong G200 Standard Load Edition 3L Diesel 195hp 4X2(6 wheels) Fast Gear 8-Speed 3.75m Raised Roof Dump Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export SHACMAN Commercial Vehicle Delong G200 Standard Load Edition 3L Diesel 195hp 4X2(6 wheels) Fast Gear 8-Speed 3.75m Raised Roof Dump Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
