SHACMAN Delong New M3000 350hp 6X4(10 wheels) Truck Mounted Crane (Weichai WP9)

Export reference
MSRP N/A
Fuel: Diesel
Wheelbase:: 5775+1400mm
Cab dimensions:: 12.0×2.55×3.92m
Type:: truck-mounted crane
GVWR:: 25ton
Front/rear suspension:: 1.525/3.3m

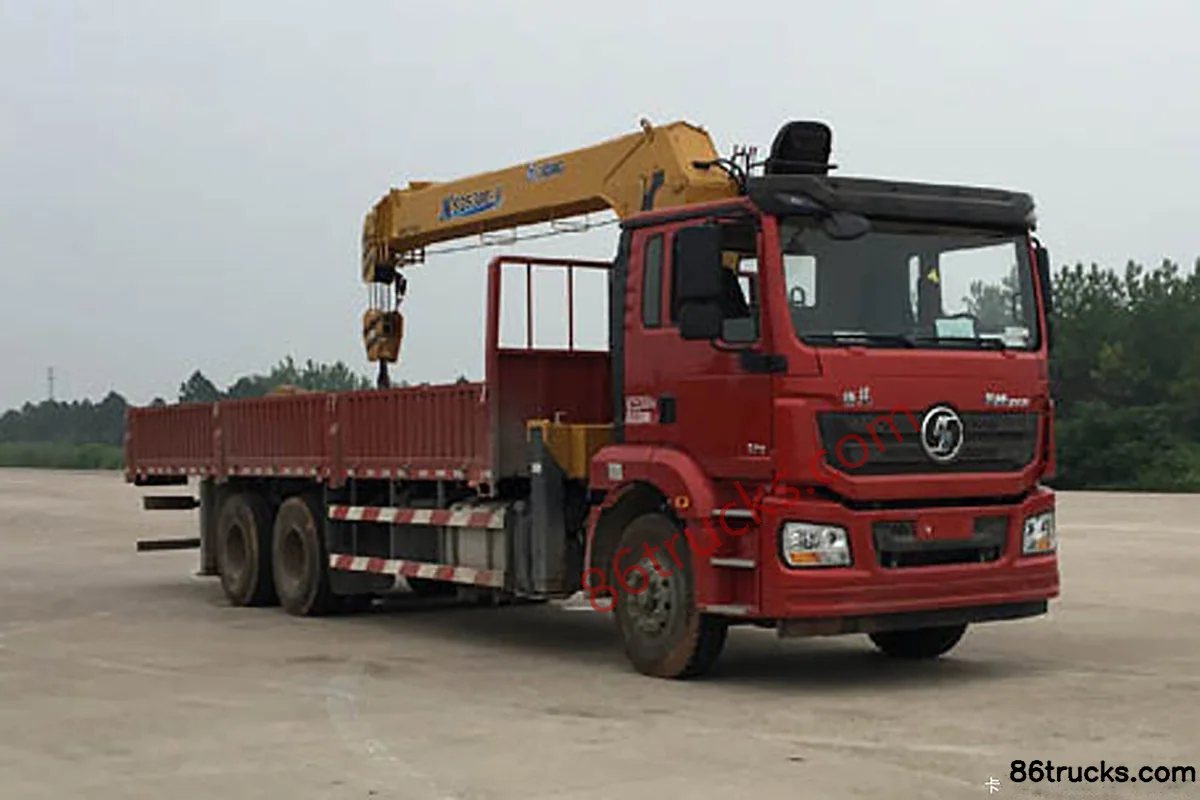

SHACMAN Delong New M3000 350hp 6X4(10 wheels) Truck Mounted Crane (Weichai WP9) exterior
View more photos (1)
Drive 6X4 (10 wheels)
Horsepower 350
Rated mass: 9.88ton
Emission China VI

Overview

The SHACMAN Delong New M3000 350hp 6X4(10 wheels) Truck Mounted Crane (Weichai WP9) is a truck-mounted crane featuring 25t GVW and 6X4 (10 wheels) drive. On the powertrain side, it comes with 350 hp, China VI emissions and Diesel fuel.

China VI 350 Diesel 6X4

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Cab dimensions: 12.0×2.55×3.92m
Type: truck-mounted crane
Drive type: 6X4
Wheelbase: 5775+1400mm
Rated mass: 9.88ton
GVWR: 25ton
Front/rear suspension: 1.525/3.3m
Energy Type: Diesel
Body Parameters
Other special notes: Extended semi-high roof cab (H), without wind deflector, cab four-point air suspension, air driver seat, manual tilt, highway bumper, sun visor, electric AC, electric power windows, central door lock, domestic steering gear, domestic clutch, transmission PTO, 165Ah maintenance-free battery, domestic 4-channel ABS, Tianxingjian Zhiya BD onboard terminal, reserved FARIZON throttle harness interface at battery box (controller optional, rocker or knob type), engine start/stop from outside, PTO switch on: engine speed ≥ 800 rpm, front underrun protection, standard 90 fifth wheel, QH50 PTO
Vehicle certification code: SX5259JSQMB4F2
Body Brand: SHACMAN
Engine parameters
Injection System: Common Rail
Engine Brand: Weichai
Engine Model: WeichaiWP9H350E62
fuel type: Diesel
Displacement: 8.8L
Emission standard: China VI
Max output power: 257kW
Max hp: 350Horsepower
Max torque: 1700N·m
Max torque speed: 1100-1400rpm
Rated speed: 1900rpm
Chassis Specs
Chassis Brand: SHACMAN
Chassis Series: Delong New M3000
Chassis Model: SX1259MB4F1
Frame Dimensions: 866×308(8+5+8)mm
rear axle description: MAN 16T dual-reduction
Axle ratio: 4.266
Leaf spring count: 10/12
Transmission Parameters
Number of gears: 12Gear
Transmission Model: Fast Gear12JSD180T
Tire
Tire Size: 11.00R20 18PR
Number of tires: 10pcs

Photos

Exterior1

SHACMAN Delong New M3000 350hp 6X4(10 wheels) Truck Mounted Crane (Weichai WP9) Exterior (1) | 86Trucks

1 photos

FAQ

What emission standard does SHACMAN Delong New M3000 350hp 6X4(10 wheels) Truck Mounted Crane (Weichai WP9) use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of SHACMAN Delong New M3000 350hp 6X4(10 wheels) Truck Mounted Crane (Weichai WP9)?

Key specs of SHACMAN Delong New M3000 350hp 6X4(10 wheels) Truck Mounted Crane (Weichai WP9): Drive: 6x4; Horsepower: 350 hp; Emission: China VI; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is SHACMAN Delong New M3000 350hp 6X4(10 wheels) Truck Mounted Crane (Weichai WP9) suited for?

SHACMAN Delong New M3000 350hp 6X4(10 wheels) Truck Mounted Crane (Weichai WP9) is a truck-mounted crane model; configuration should match the job. State the application, emission and LHD/RHD needs in your quote.

How does SHACMAN Delong New M3000 350hp 6X4(10 wheels) Truck Mounted Crane (Weichai WP9) differ from other variants in the same series?

SHACMAN Delong New M3000 350hp 6X4(10 wheels) Truck Mounted Crane (Weichai WP9) belongs to SHACMAN Delong New M3000 Heavy Truck (truck-mounted crane). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for SHACMAN Delong New M3000 350hp 6X4(10 wheels) Truck Mounted Crane (Weichai WP9)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export SHACMAN Delong New M3000 350hp 6X4(10 wheels) Truck Mounted Crane (Weichai WP9)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
